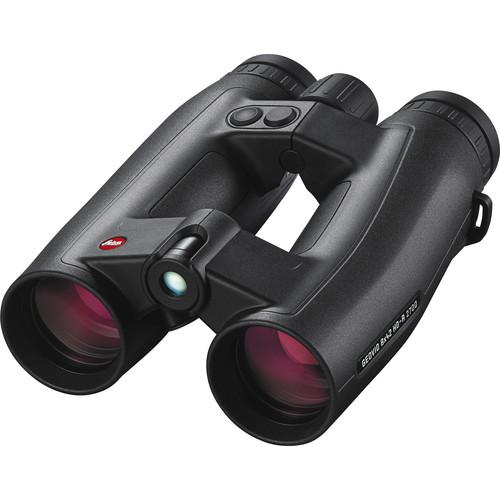

Product description The Leica 8x42 Geovid HD-R 2700 Rangefinder Binocular combines superior optical performance with a powerful 2700-yard laser rangefinder and ballistic computer into a highly portable and easy-to-use optic.Optically, the Geovid utilizes Leica's Perger-Porro prism optical design that yields the compact form factor of a roof prism with the rich depth of field and interference-free light path of a traditional Porro prism. To further improve image quality, is an internal baffle system to suppress stray light and the HDC fully multi-coated optical system that maximizes light transmission, while improving color fidelity and contrast. These optical features, combined with a moderate magnification and larger objectives, produce an optic with a wide exit pupil and long eye relief that is comfortable and easy to use with an exceptionally-wide field of view.The range finding system integrates an inclinometer and ballistics computer with the powerful IR laser to improve first-shot accuracy. Its inclinometer measures the relative angle from the user to the target, then combines that with the linear range, to provide an adjusted distance to enable them to better judge the hold-over/-under. The addition of Leica's Advanced Ballistic Compensation system utilizes one of 12 pre-programmed ballistic curves based on common ammunition loads, combined with the adjusted range and environmental conditions, to further improve hold-over/-under accuracy. Users can also create custom curves on the Leica website and load them onto the Geovid, refining the precision even more. Hold-over/-under values can be displayed as the adjusted range, the relative angle, or in MOA/Mils to enable fast click adjustments to riflescope turrets.Leica employs an open-bridge/dual-hinge design that makes the Geovid lighter and easier to handle without sacrificing strength or stability. Protecting the optics and electronics is a magnesium alloy chassis that is lightweight and durable. The body is wrapped in a protective rubber armor that provides a slip-resistant grip. To withstand the rigors of the trail, the optical tubes are nitrogen filled and O-ring sealed to be waterproof and submersible, and resistant to internal fogging when moving through extreme temperatures and environmental conditions. - Optical Performance
-
- Moderate 8x power magnifies without sacrificing field of view and exit pupil for easier viewing, especially in low-light conditions
- 42mm objective lenses boost light gathering ability while ensuring the optical tubes remain thin for easier handling
- Perger-Porro prism optical design combines the rich depth of field of a Porro prism light path while maintaining the more compact straight-line optical tube of a roof prism, without the phase interference, to minimize light loss and internal diffraction
- HDC fully multi-coated system has abrasion-resistant and anti-reflection properties to protect exterior lens surfaces, and maximize light transmission with a natural neutral color fidelity and improved contrast
- Internal baffle system suppresses stray light for improved contrast
- Hydrophobic AquaDura coating on external optical surfaces allows dirt, dust, and fingerprints to be removed easily without leaving residue on the lens surfaces
- Ultra-wide 65° apparent angle of view presents the user with a spacious and immersive observational experience
- 426' field of view at 1000 yd
- Laser Rangefinder
-
- Class 1 eye-safe infrared laser
- Displays distance in yards or meters
- Range: 10 to 2700 yd (10 to 2470m)
- Accuracy, 10-550 yd: ±1 yd (1m)
- Accuracy, 550-1100 yd: ±2 yd (2m)
- Accuracy, 1100 yd +: ±0.5%
- Spot mode for range to single subject; Scan mode for continuous measurement to multiple or moving targets
- Metering time averages 0.5 seconds
- Integrated inclinometer measures the angle relative to the target
- Equivalent Horizontal Range (EHR) mode uses angle and range to calculate an adjusted horizontal distance to target for improved accuracy from 10 - 1200 yd (10-1100m)
- Four-digit LED overlay with auto-brightness adjustment
- Simple and intuitive two-button right-handed user interface
- Runs on one included CR2 battery
- ABC (Advanced Ballistic Compensation) System
-
- Combines data from rangefinder, inclinometer, temperature, and atmospheric pressure with installed ballistic curves to provide hold-over/-under compensation values
- Compensation values displayed as hold-over, adjusted distance to target (EHR), or MOA/mils for the number of clicks required on the riflescope turrets
- 12 pre-installed fixed ballistic curves based on the most popular round loads allows for easy ballistic drop compensation (BDC)
- Ballistic calculator on Leica website enables user to build custom curves for specific loads, save them to a microSD card, and load them onto the optic via its card slot
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight while providing a solid platform for the internal focusing system and rangefinder
- Slip-resistant center focus wheel is easy to use with high precision, even when wearing gloves
- ±4 dioptric correction enables user to compensate for optical prescriptions for sharper views
- Twist-up 4-position click-stop rubber eyecups for use with or without eyewear
- Long 18mm eye relief makes long-duration viewing easier and more comfortable
- Wide 5.25mm exit pupil ensures complete coverage as pupils open and dilate in low light to keep the entire scene in the view
- Construction Details
-
- Open-bridge/dual-hinge design provides increased strength and more gripping surface area
- Lightweight and durable magnesium alloy housing
- Slip-resistant and protective rubber armoring
- Nitrogen-filled and O-ring sealed to be waterproof and submersible to 16.5', and resistant to internal fogging when moving through extreme changes in temperature or environmental conditions
- Weight: 34 oz, with battery
UPC: 799429408039 In the Box Leica 8x42 Geovid HD-R 2700 Rangefinder Binocular (Black) Cordura Case Neoprene Carrying Strap 2 x Objective Caps 2 x Eyepiece Caps CR2 Battery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 8x42 Geovid HD-R 2700 Rangefinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica HD-R 2700 Specs | | | Prism Type | Perger Porro | | Magnification | 8x | | Objective Lens Diameter | 42mm | | Angle of View | 8.1°, actual | | Field of View | 426' @ 1000 yd / 142 m @ 1000 m | | Minimum Focus Distance | 16.5' / 5.0 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18 mm | | Interpupillary Adjustment | Not specified by manufacturer | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | | | Laser Type | FDA Class 1 eye-safe IR | | Metering Range | 10 - 2700 yd / 10 - 2470 m | | Metering Accuracy | ± 1 yd / m: 10 - 547 yd / 10 - 500 m
