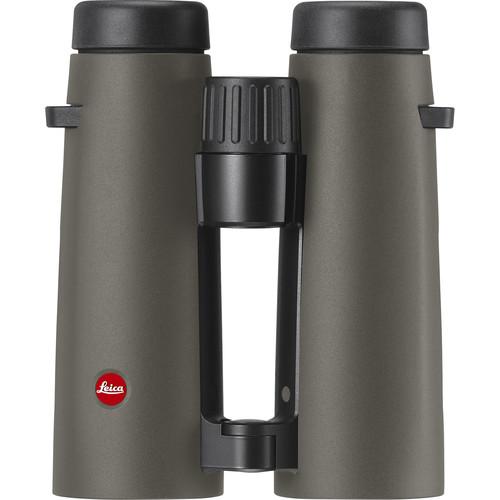

User Manual for Leica 8x42 Noctivid Binocular Click to enlarge the picture
Contents of the user manual for the Leica 8x42 Noctivid Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
|
User manual for the Leica 8x42 Noctivid Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Leica's olive green 8x42 Noctivid Binocular represents the perfect combination of form and function in a single optic. It is designed with an array of complementary technologies to produce bright and clear color-neutral images, while fitting comfortably in the hand for long, fatigue-free glassing sessions.The Noctivid's performance starts with the use of SCHOTT High Transmission glass with a 12-element lens configuration and their HighLux-System anti-reflection multi-coatings, followed by phase-corrected compact roof prisms. These features produce bright and clear high-contrast images with accurate color rendition across the entire visible spectrum. Internal baffles limit scattered light in the optical tubes, which can affect clarity and contrast, while an innovative lens design and internal field flatteners ensure edge-to-edge clarity across the entire wide-angle field of view. The wide viewing angle and relatively low 8x magnification provide sweeping panoramic views that draw you in for a truly immersive observational experience.The Noctivid is made with a dual-hinge/open-bridge that provides added gripping surface area while reducing the overall weight without sacrificing strength or stability. Its chassis is made of a lightweight and strong magnesium alloy that, when combined with the bridge configuration, further reduces the weight while shifting the center of gravity to the natural hand position, which translates to an improved handling experience with greatly reduced fatigue, allowing you to hold the binocular for extended periods of time. To withstand the rigors of extensive outdoor use, all of the metal surfaces are treated with a proprietary varnish coating to resist corrosion and wear and the optical tubes are nitrogen filled and O-ring sealed to be fogproof, waterproof, and submersible. - Optical Performance
-
- Moderate 8x power magnifies views while helping to maintain a wide exit pupil and long eye relief
- 42mm objective lenses improve light-gathering ability for enhanced low-light performance such as at dawn and dusk or when peering into dense brush
- SCHOTT HT (High Transmission) glass and 12 lens elements ensure accurate color rendition with limited distortion
- Multi-layer high-temperature plasma anti-reflection lens coating deposition process ensures balanced light transmission across the entire visible spectrum
- P40 phase-correcting prism coatings increase light transmission while improving contrast and clarity
- HighLux-System (HLS) maximizes light throughput to improve color rendition and contrast
- Internal baffle system reduces scattered light, which can interfere with contrast, color, and clarity
- Hydrophobic AquaDura coatings on external optical surfaces allow dirt, dust, and fingerprints to be removed easily
- Lens design and integrated field flatteners reduce spherical aberration and distortion across the entire field of view for edge-to-edge sharpness
- Wide 62° apparent angle of view produces a spacious view and an immersive observational experience
- Generous 406' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/Dual-hinge configuration provides additional gripping surface area for better handling
- Large slip-resistant center focusing wheel is easy to manipulate in cold and wet weather, or while wearing gloves
- 56-74mm adjustable interpupillary distance allows easy use for a wide variety of people
- ±4 right-eye dioptric correction range enables users to compensate for individual optical prescriptions for tack-sharp images
- Twist-out 4-position click-stop eyecups for comfortable use with or without eyewear
- Long 19mm eye relief ensures comfortable use with reduced eye strain, especially during long glassing sessions
- Wide 5.25mm exit pupil will completely cover pupils when they are open and fully dilated in low light to ensure the entire scene stays in view without vignetting
- Construction Details
-
- Bridge design helps to reduce overall weight without sacrificing strength or stability
- Lightweight and durable magnesium alloy chassis
- Protective olive green rubberized armoring provides a slip-resistant grip in all weather conditions
- Nitrogen filled for fogproof performance, especially when moving through extreme temperature changes and environmental conditions
- O-ring sealed to be submersible to 16.5' (5m)
- Proprietary varnish coating protects metal surfaces from corrosion and wear
UPC: 799429403867 In the Box Leica 8x42 Noctivid Binocular (Olive Green) 2 x Objective Lens Caps One-Piece Eyepiece Cover Cordura Carrying Case Contoured Neoprene Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 cvxywavrzxrafrbcescq A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 10.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 8x42 Noctivid Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40386 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.7° (actual) | | Field of View | 406.6' @ 1000 yd / 135.0 m @ 1000 m | | Minimum Focus Distance | 6.2' / 1.9 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 19.0 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 5.9 x 4.9 x 2.7" / 15.0 x 12.4 x 6.8 cm | | Weight | 30.3 oz / 860.0 g | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 10.7 x 8.2 x 6.9" |
