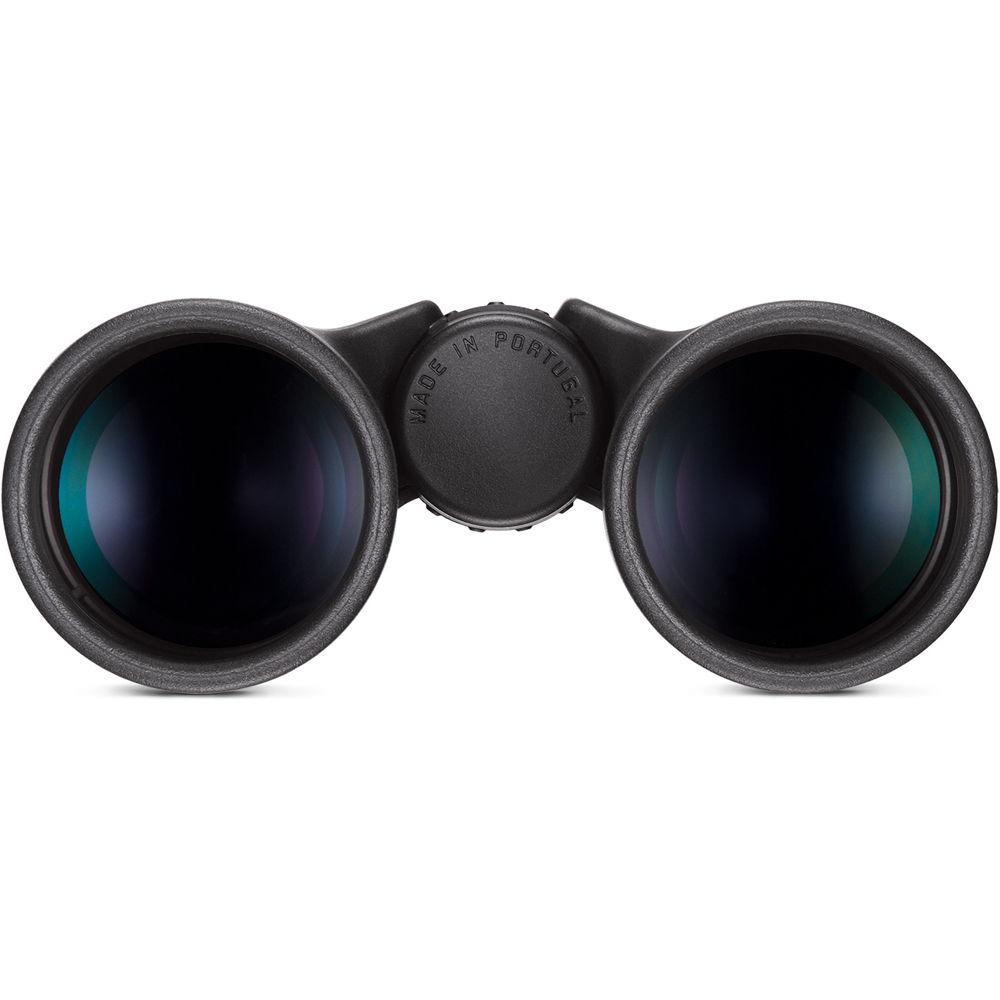

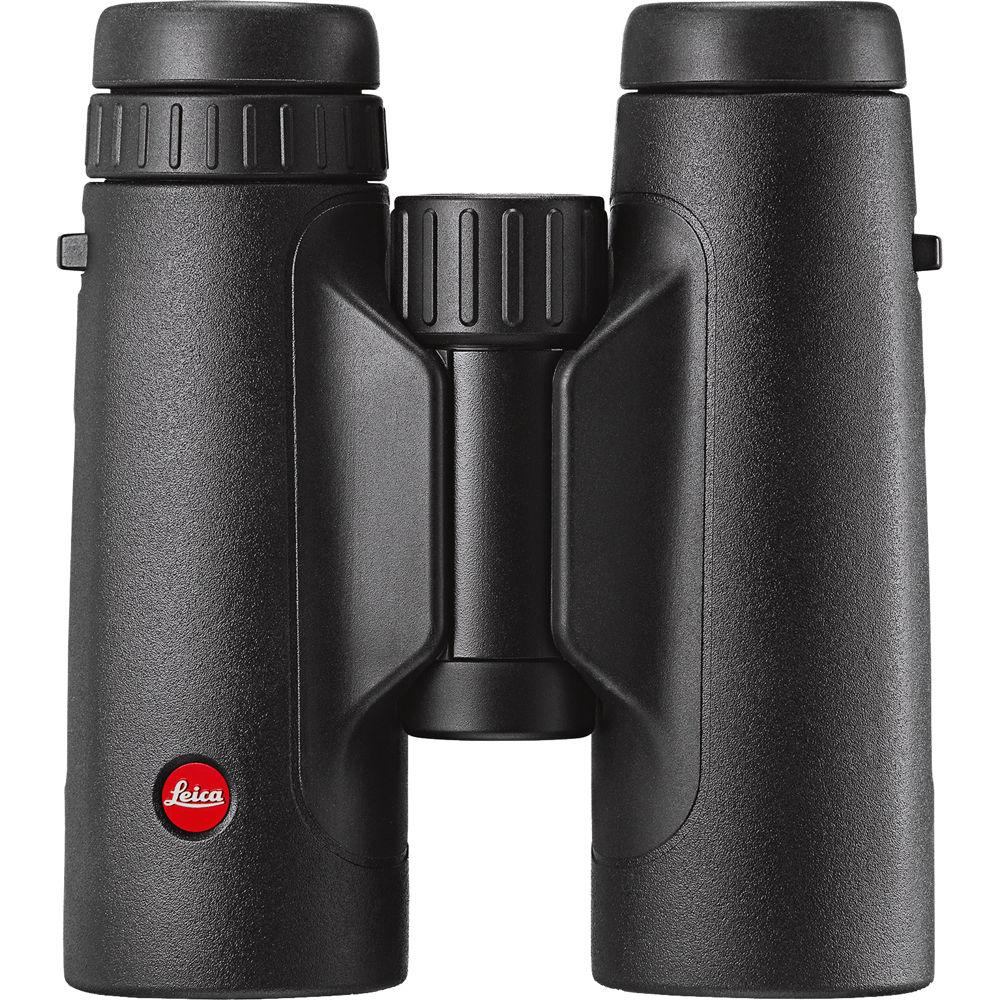

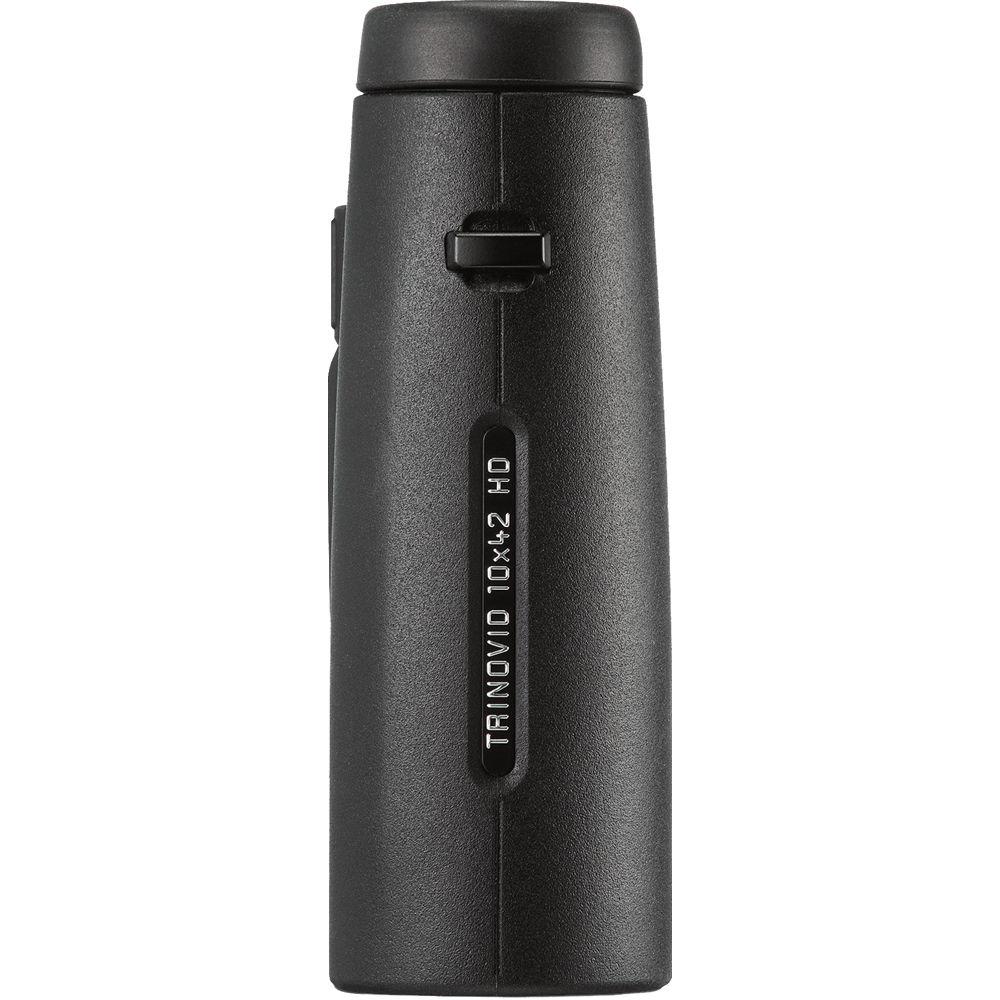

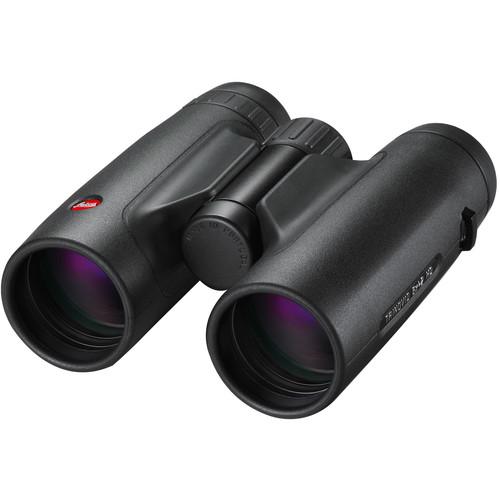

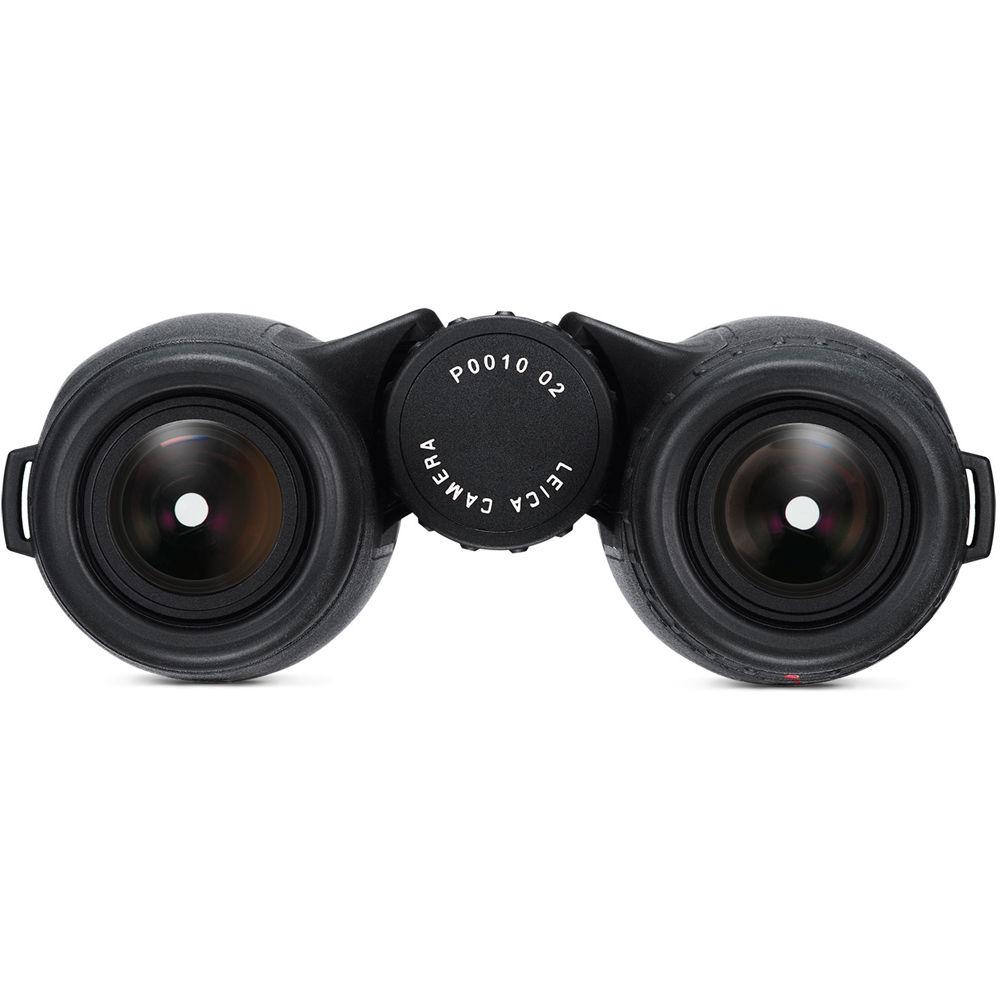

User Manual for Leica 8x42 Trinovid HD Binocular Click to enlarge the picture
Contents of the user manual for the Leica 8x42 Trinovid HD Binocular
- Product category: Binoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Binoculars
 |
User manual for the Leica 8x42 Trinovid HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Leica puts a new spin on their perennial favorite, the 8x42 Trinovid HD Binocular with phase corrected prisms that are coated with highly reflective multi-coatings to increase reflectivity, and anti-reflection fully multi-coated optics to boost light transmission through the lenses. These optical coatings work together to produce high-contrast images with true color rendition and minimal distortion. This optical performance is coupled with a comfortable 8x magnification, wide exit pupil and generous eye relief to produce an immersive viewing experience.Complementing the views produced by the Trinovid HD are construction details that make this optic able to stand up to the rigors of a life lived on the trail. First is a lightweight, sturdy, and corrosion-resistant magnesium alloy chassis that makes this binocular light and easy to handle. The body is covered with a textured rubber armor that protects it from bumps and impacts while giving it a slip-resistant grip in cold or wet conditions. Its optical tubes are nitrogen-filled and O-ring sealed to make it waterproof and submersible as well as fogproof when moving between extreme temperature fluctuations. To make handling the Trinovid easier are tethered objective lens covers that flip down and out of the way for observing, plus an ocular rainguard that attaches to the strap. Leica also includes their Adventure Strap system, which is a unique harness system that can be configured multiple ways for easier carrying and handling, while also doubling as a soft carrying bag to protect the binocular when not in use. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact roof prism optical path
- P40 phase corrected prism coatings increases contrast and provides true color rendition
- HLS (HighLux System): Highly reflective coatings on prisms reduce internal light loss
- HDC anti-reflection fully multi-coatings increase light transmission throughout optical path
- 373' field of view at 1000 yards
- 54° apparent angle of view
- Short 6' close focus distance
- Use and Handling
-
- Closed bridge configuration
- 4-position click-stop twist-up rubber eyecups
- Tripod mountable with optional adapter
- ±4 right-eye dioptric correction
- Long 17mm eye relief
- Wide 5.25mm exit pupil
- Construction Details
-
- Lightweight and durable magnesium alloy housing
- Black, protective, textured rubber armor for a slip-resistant grip
- Nitrogen-filled, water and fogproof. Submersible to 13' (4m)
- Tethered objective lens caps
- Weight: 25.75 oz
- Adventure Strap
-
- Water and dirt repellent neoprene
- Strap/Harness system also acts as carrying bag
- Can be set up in two different bino-harness configurations or as a conventional strap
- Harness system relieves neck strain and transfers weight to shoulders
UPC: 799429403188 In the Box Leica 8x42 Trinovid HD Binocular Neoprene Carrying Strap One-Piece Ocular Rainguard 2 x Objective Lens Caps Adventure Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 xesfdwybtrduwadzyyyftrsvywdrzwsxzas User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica 8x42 Trinovid HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40318 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.75° (actual)
54.0° (apparent) | | Field of View | 354.3' @ 1000 yd / 118.1 m @ 1000 m | | Minimum Focus Distance | 5.9' / 1.8 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 17.0 mm | | Interpupillary Adjustment | 58 to 76 mm / 2.3 to 3" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 4.6 x 2.6" / 14.0 x 11.7 x 6.5 cm | | Weight | 25.8 oz / 730.0 g | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 10.5 x 8.3 x 6.8" |
