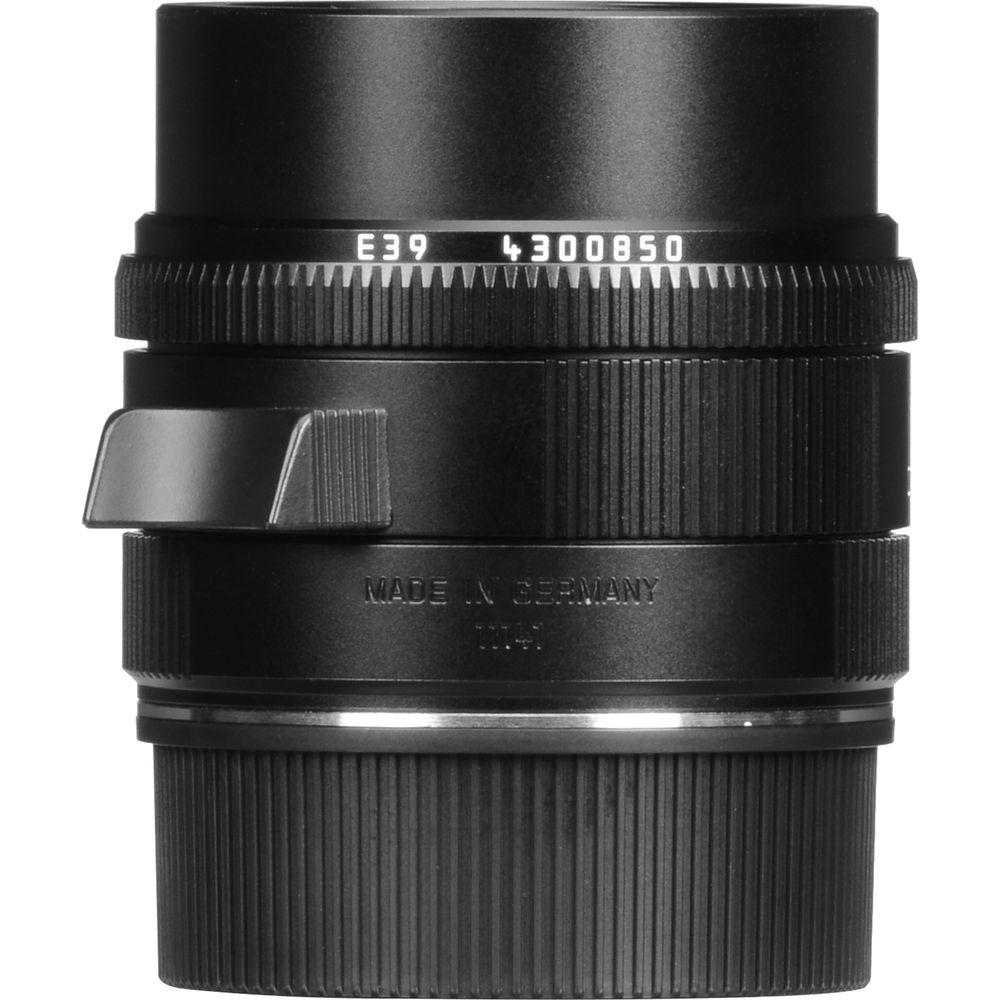

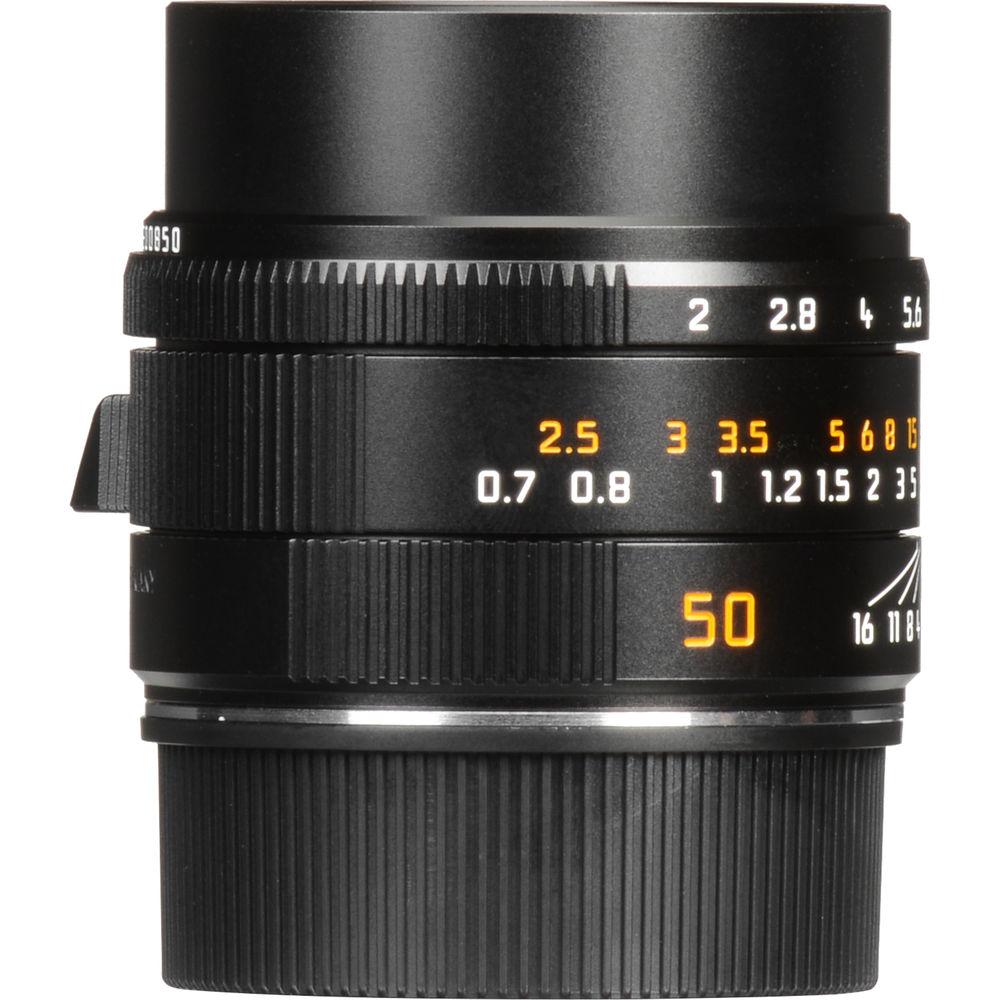

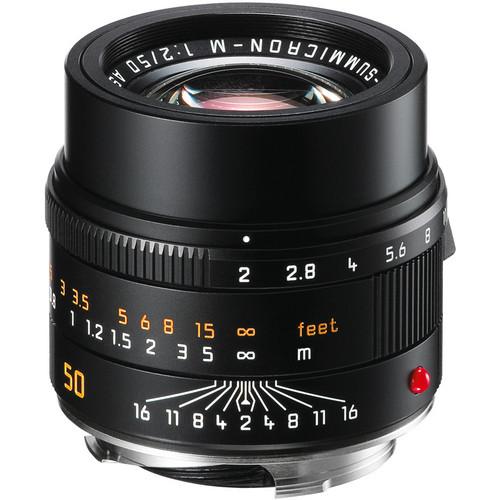

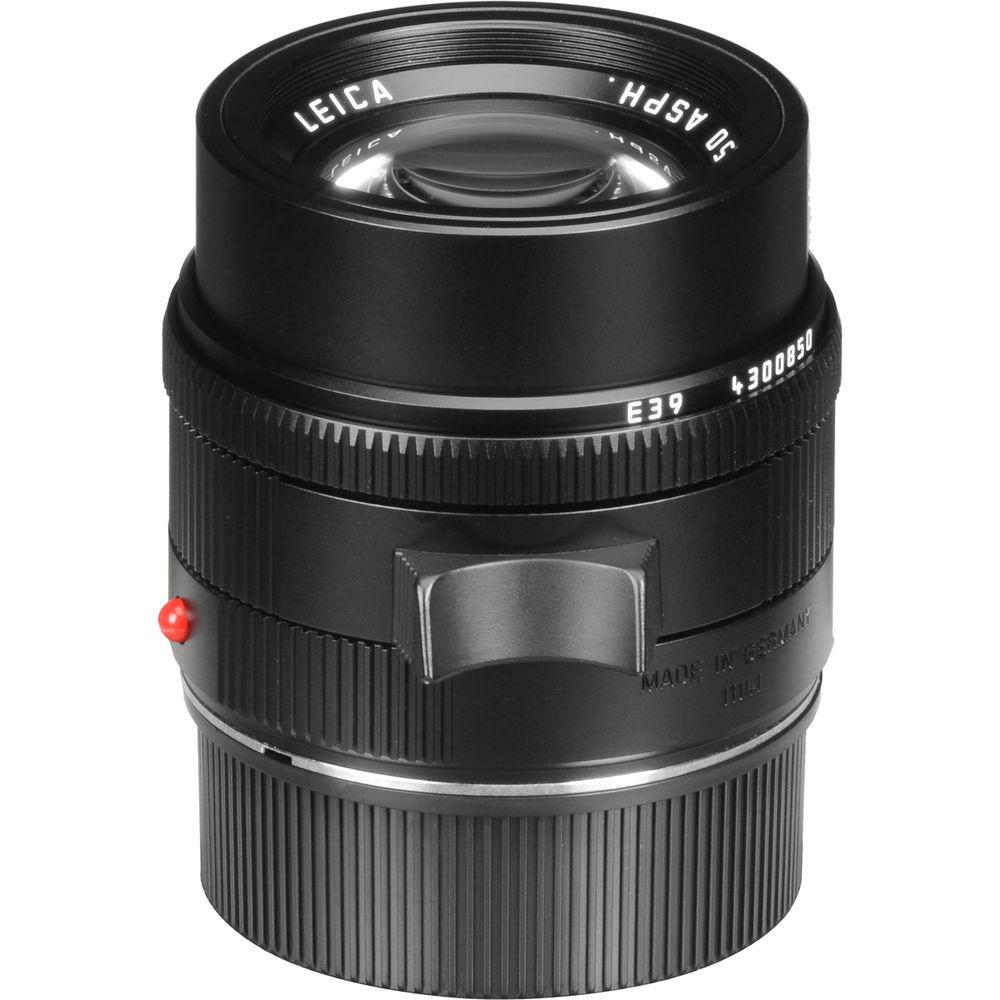

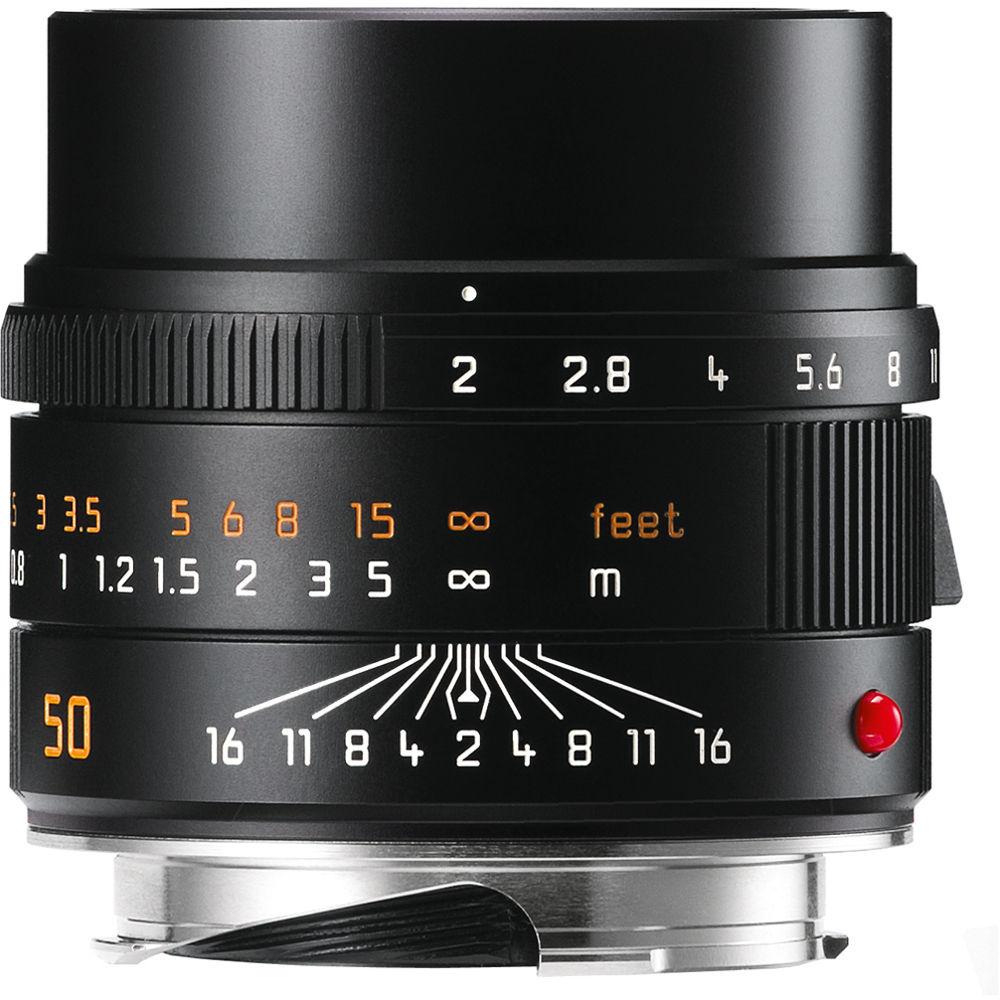

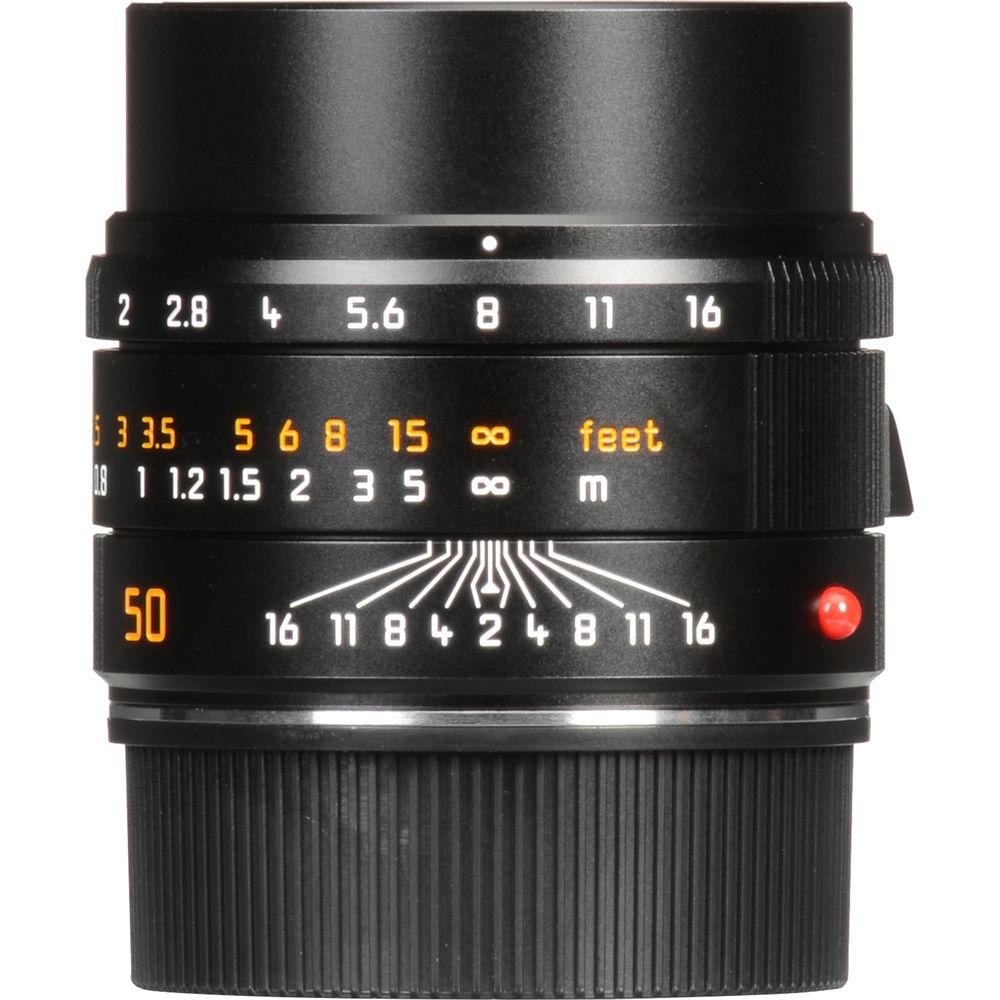

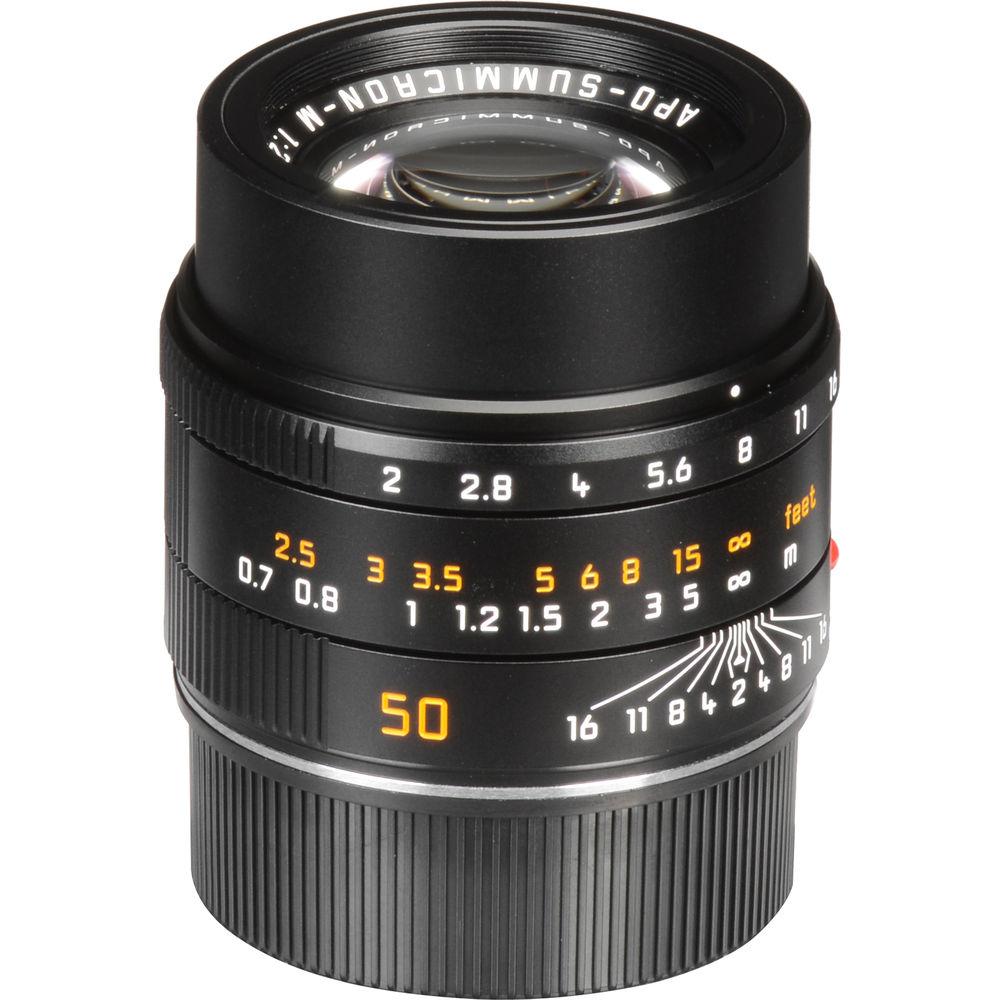

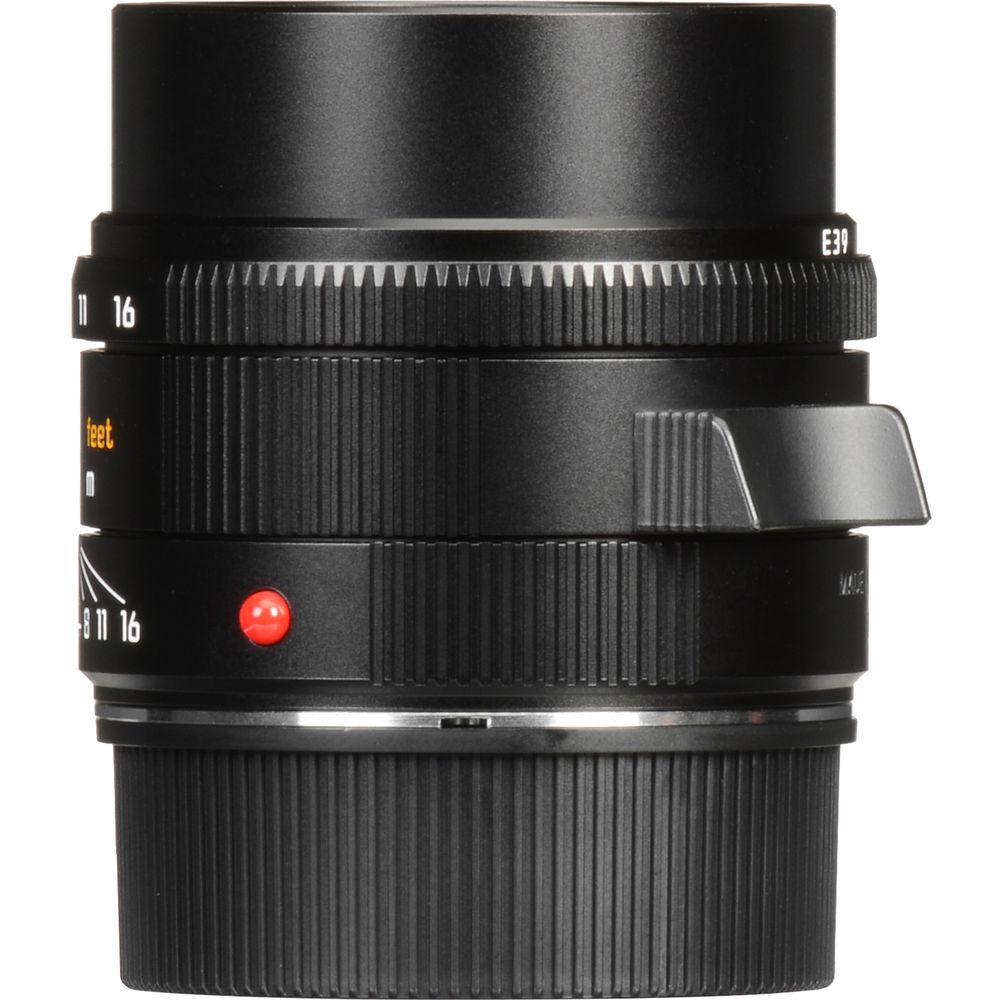

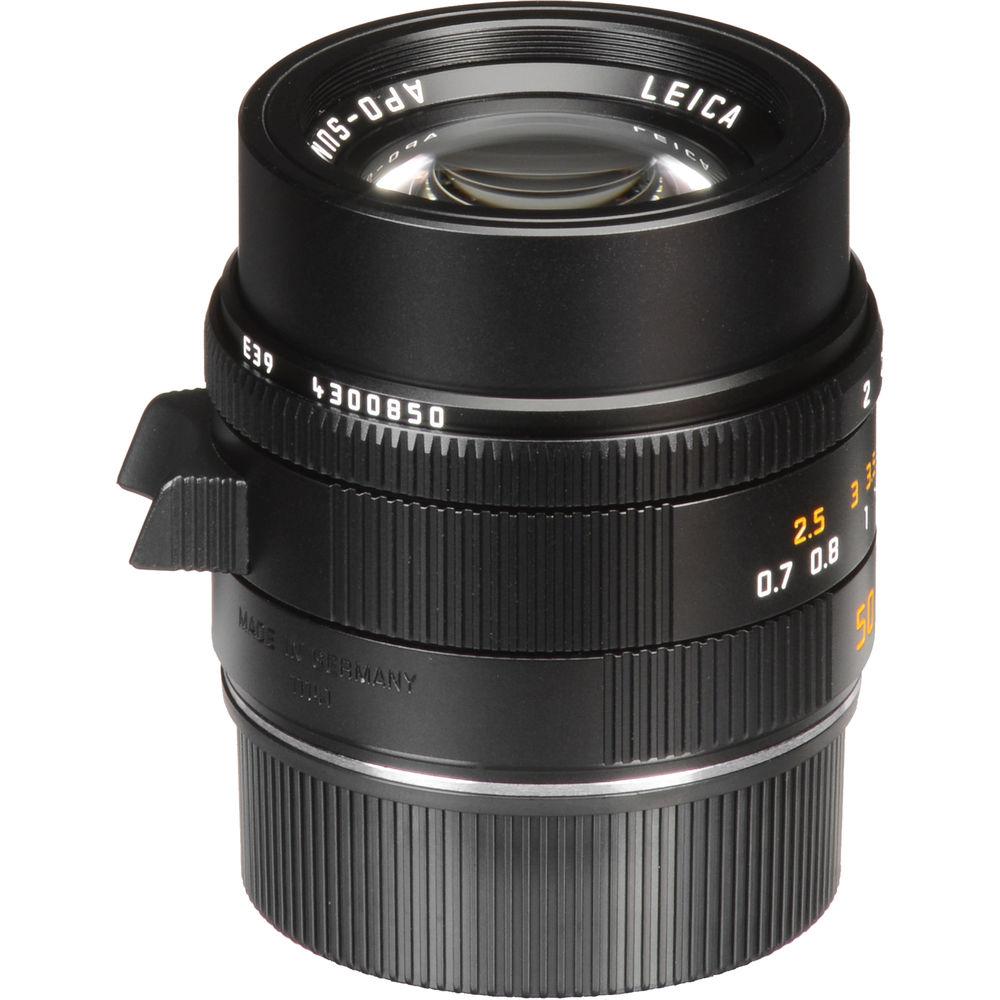

User Manual for Leica APO-Summicron-M 50mm f 2 ASPH. Lens Click to enlarge the picture
Contents of the user manual for the Leica APO-Summicron-M 50mm f 2 ASPH.
- Product category: Rangefinder Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Rangefinder Lenses
 |
User manual for the Leica APO-Summicron-M 50mm f 2 ASPH. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Pairing the classic normal focal length with an optically refined design, the black APO-Summicron-M 50mm f/2 ASPH. Lens from Leica is a fast standard prime characterized by its apochromatic designation. Using anomalous partial dispersion and high refractive index glasses in its design, this lens is capable of focusing red, green, and blue wavelengths at the same plane in order to virtually eliminate chromatic aberrations. One aspherical element is also featured in the design, to reduce spherical aberrations, and a floating element maintains clarity and sharpness throughout the focusing range from 2.3' to infinity. This compact 50mm lens is also distinguished by its compact form factor, making it ideal for use as an everyday lens. Like all M-mount lenses, this 50mm f/2 features a manual focus design, and a convenient focusing tab for more refined control during use. - Apochromatic design employs three elements made from anomalous partial color dispersion glass, as well as two high refractive index elements, in order to suppress chromatic aberrations throughout the aperture range for increased color accuracy and clarity.
- One aspherical element reduces spherical aberrations for improved sharpness from edge to edge.
- A floating element is used to maintain clarity and sharpness throughout the focusing range, from 2.3' to infinity.
- In addition to the apochromatic designation, this lens also pairs a Gaussian type optical construction in front of the aperture along with a design resembling the Summilux-M 50mm f/1.4 behind the aperture, in order to significantly reduce distortion while also increasing overall sharpness and consistent illumination.
- Bright f/2 maximum aperture benefits working in difficult lighting conditions and also affords greater control over depth of field.
- Compact overall design is ideal for use in everyday shooting situations.
- Manual focus design provides a minimum focusing distance of 2.3' with a maximum magnification ratio of 1:11.3.
- Built-in extendable lens hood shades and protects the front element to reduce lens flare and ghosting. Additionally, the front of the lens is threaded to accept 39mm screw-in filters.
UPC: 799429111410 In the Box Leica APO-Summicron-M 50mm f/2 ASPH. Lens (Black) Metal Cap For APO-Summicron-M 50mm f/2.0 ASPH Lens eqyczzbfxx 39E Lens Cap for 50mm f/2.0 M Rear Lens Cap Leather Case Limited 3-Year Warranty Specification PDF 171.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica APO-Summicron-M 50mm f 2 ASPH. Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11141 Specs | Focal Length | 50mm | | Maximum Aperture | f/16 | | Minimum Aperture | f/2 | | Lens Mount | Leica M | | Angle of View | 47° | | Minimum Focus Distance | 2.3' / 70 cm | | Maximum Reproduction Ratio | 1:11.3 | | Optical Design | 8 Elements in 5 Groups | | Filter Thread | 39mm | | Dimensions |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
