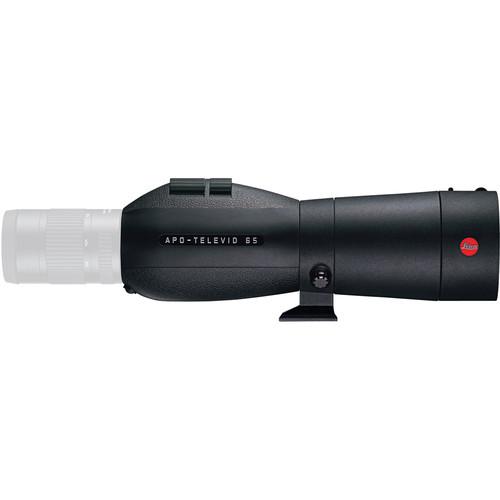

User Manual for Leica APO-Televid 65mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Leica APO-Televid 65mm Spotting Scope
- Product category: Spotting Scopes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Spotting Scopes
|
User manual for the Leica APO-Televid 65mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The straight-viewing configuration APO-Televid 65mm Spotting Scope from Leica combines premium optical elements with a weather-sealed housing and a proprietary micro-focusing system. Four fully multi-coated apochromatic lens elements and a Schmidt prism system form the core of this optical instrument. Leica's fluoride apochromatic glass is engineered to transmit luminous images that are geometrically flat from center to edge and color-faithful across the entire visible spectrum. When paired with Leica's 25-50x wide-angle aspherical zoom eyepiece (separate purchase required), the APO-Televid renders high-contrast images that are rich with detail.A magnesium-alloy chassis makes the structure of the APO-Televid as rigid and durable as aluminum-chassis designs in the same class but significantly less heavy than those models. To deliver weatherproof performance, the optical channel is nitrogen filled and O-ring sealed, maintaining its watertight seal to a depth of 5 meters. The AquaDura-coated hydrophobic objective lens surface resists moisture accumulation by causing rain and condensation to bead up and roll off the lens surface. The rubber-armored body is shock absorbent and slip resistant, providing an additional layer of protection against the unexpected. Leica's proprietary internal dual-focusing system enables you to control the focus of your scope with coarse or fine movements, ideal for digiscoping and nature observation. The integrated rotating tripod collar, quick-change bayonet eyepiece mount, and sliding lens hood make the APO-Televid a full-featured spotting scope for a wide range of recreational and professional glassing applications. - Optical Performance
-
- 65mm objective lens diameter
- Apochromatic fluoride glass elements
- 9.5-foot minimum focus
- 440mm focal length optics
- Fully multi-coated lenses
- Schmidt prism design
- Use and Handling
-
- Bayonet eyepiece mount
- Straight-viewing configuration
- Internal dual-focusing mechanism
- Sliding lens hood with sighting aid
- Rotating and locking tripod collar
- Eyepiece is not included, but required to use the spotting scope
- Construction Details
-
- Die-cast magnesium-alloy chassis
- AquaDura protective lens coating
- Nitrogen-purged housing
- Rubber-armored exterior
- Watertight to 17 feet
- Weighs 38.8 oz
In the Box Leica APO-Televid 65mm Spotting Scope (Straight Viewing, Requires Eyepiece) Protective Caps Limited 3-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica APO-Televid 65mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Apo-Televid 65 Specs | | | Objective Lens Diameter | 65 mm | | Minimum Focus Distance | 9.8' / 3.0 m | | | | Water Resistance | Waterproof | | | | Filter Thread | 67 mm | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 11.0 x H: 4.2 x W: 3.2" / L: 28.0 x H: 11.0 x W: 8.0 cm | | Weight | 38.8 oz / 1.1 kg | | | | Package Weight | 3.405 lb | | Box Dimensions (LxWxH) | 14.6 x 5.8 x 5.3" |
