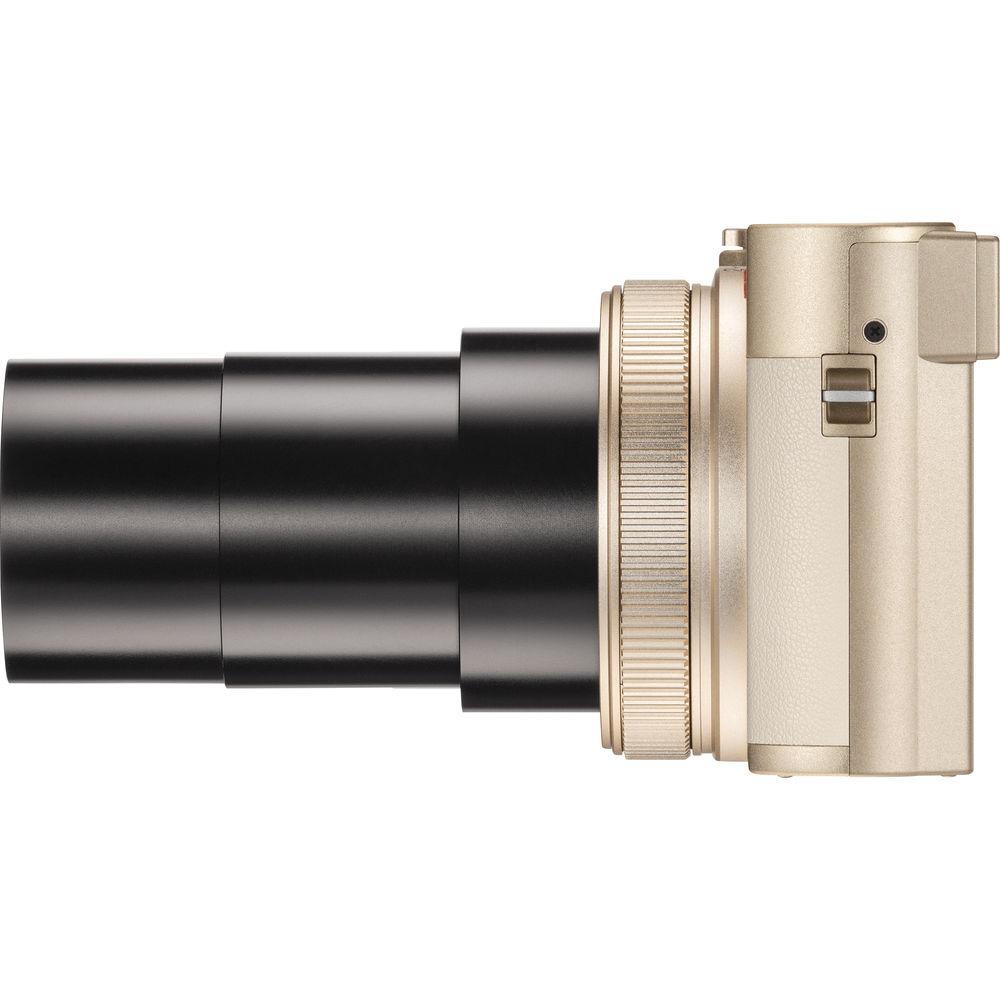

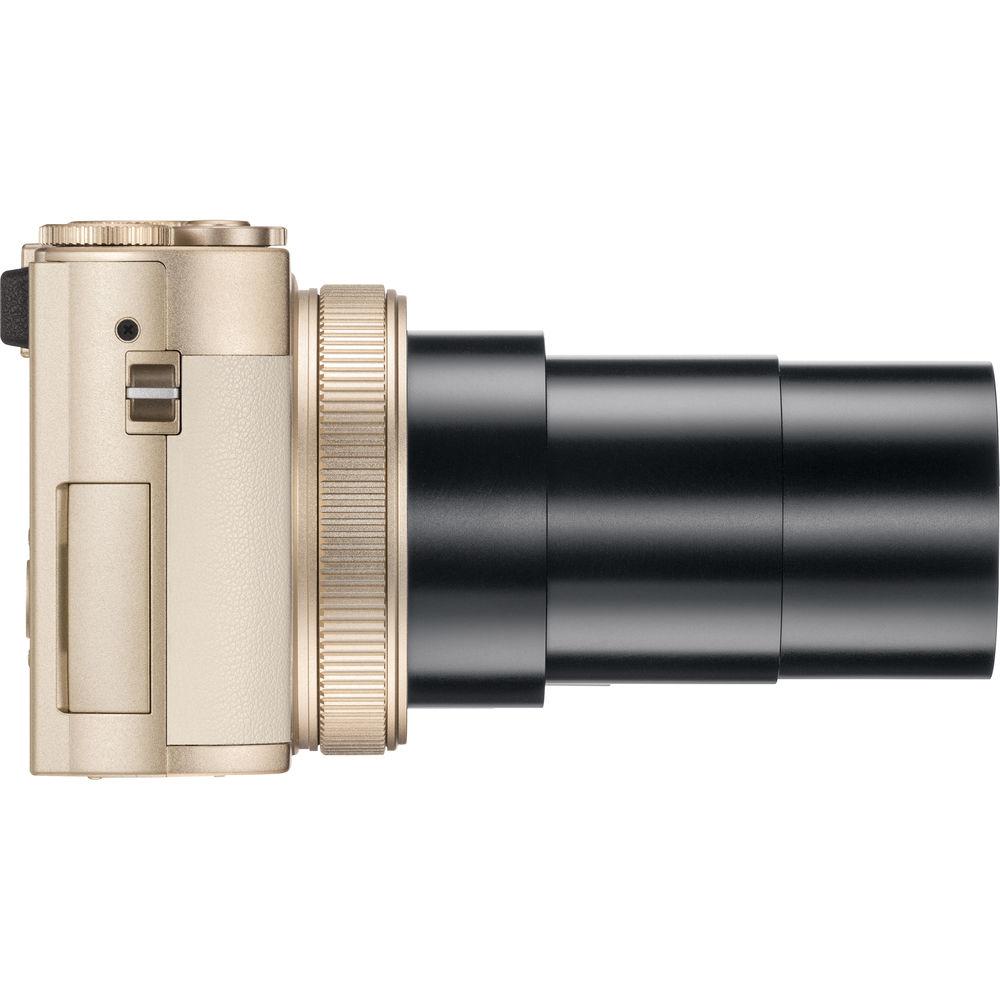

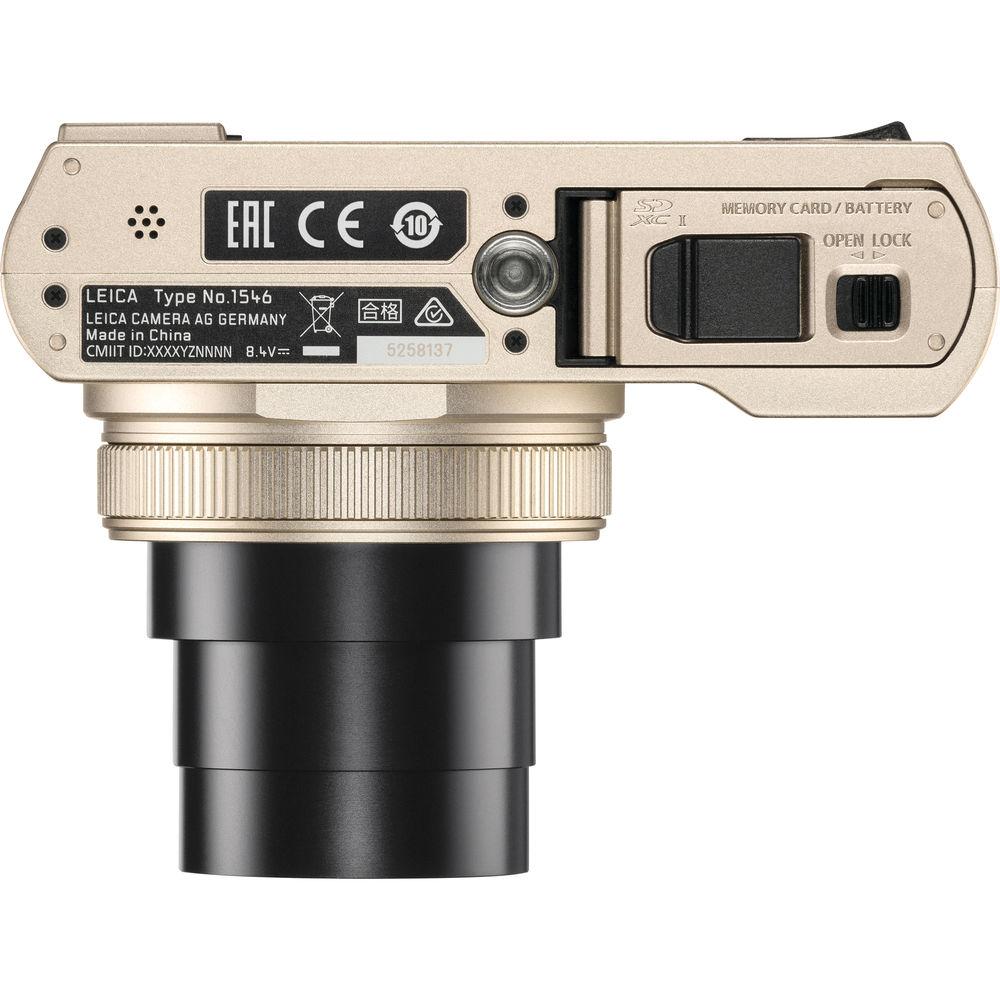

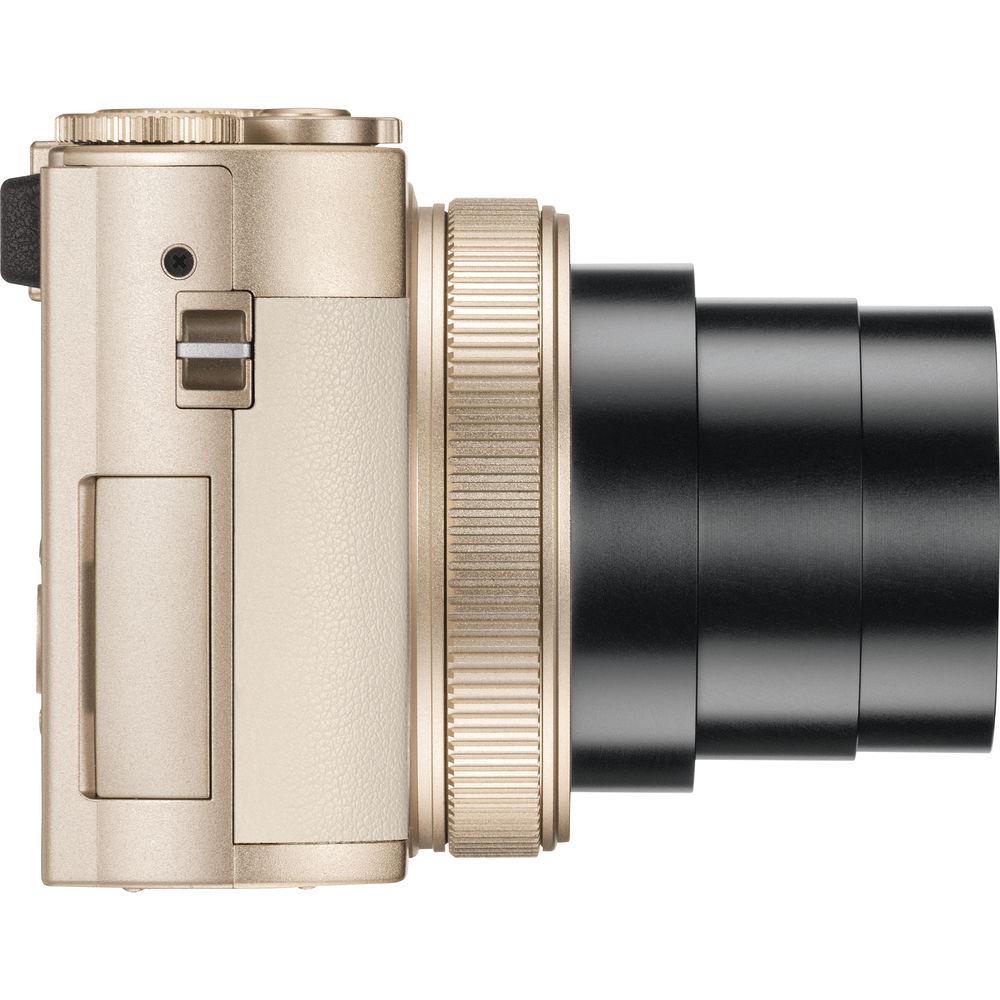

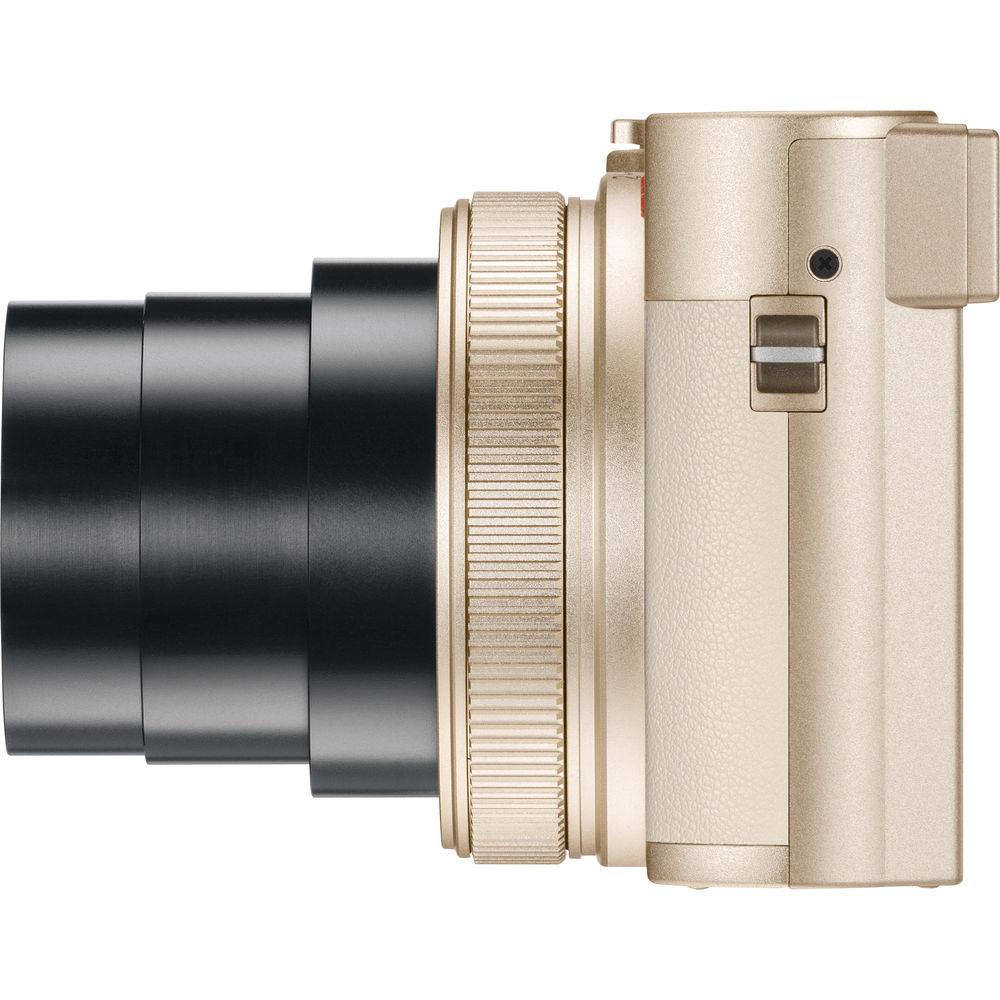

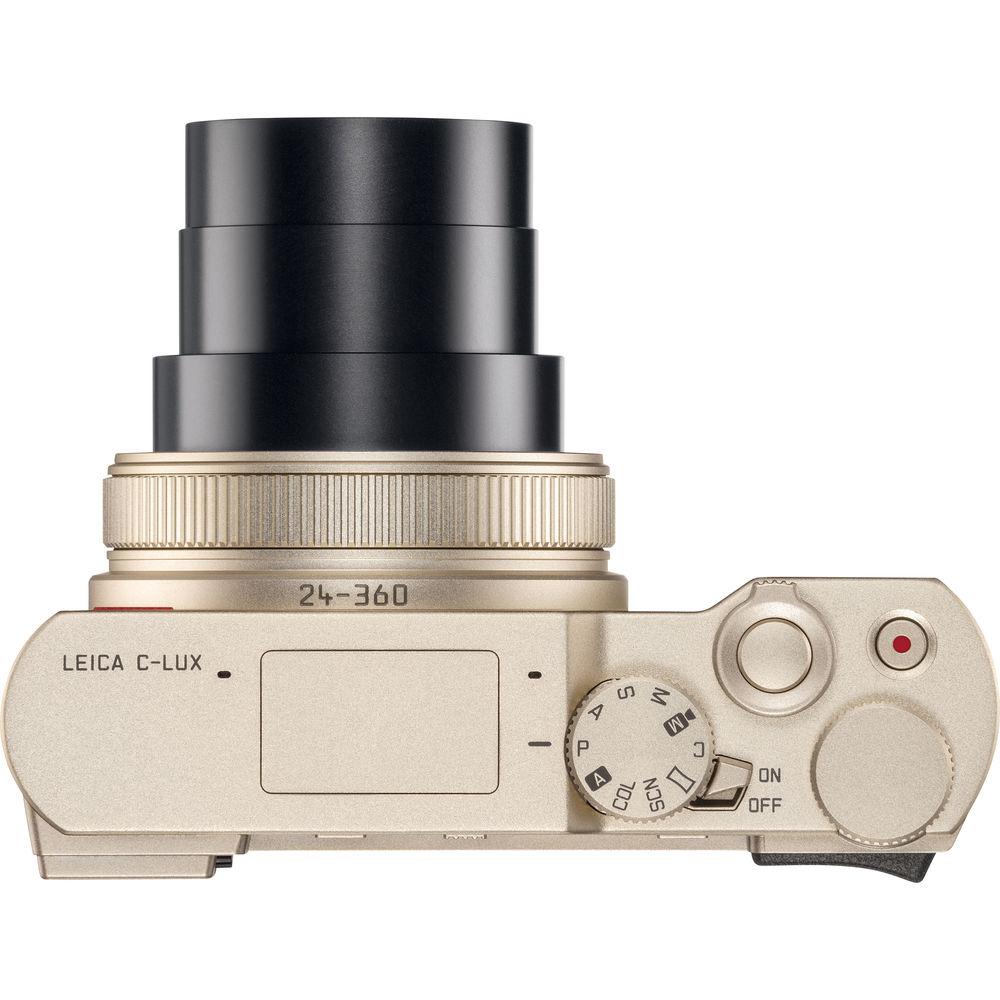

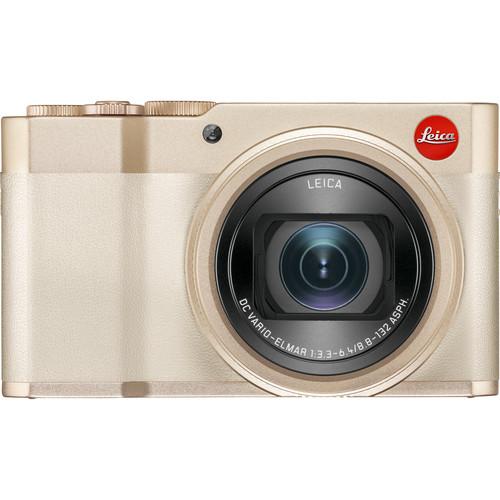

User Manual for Leica C-Lux Digital Camera Click to enlarge the picture
Contents of the user manual for the Leica C-Lux Digital Camera
- Product category: Point & Shoot Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Point & Shoot Cameras
 |
User manual for the Leica C-Lux Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Leica Keeps it Luxurious with the C-Lux Camera and Accessories Read More Sleek, stylish, and versatile, the light gold Leica C-Lux is a multimedia digital camera well-suited for everyday shooting. Revolving around a 20.1MP 1" MOS sensor, both high-resolution stills and UHD 4030p video can be recorded. The sensor's design affords a top sensitivity of ISO 25600 to enable working in low light, and a top 10-fps shooting rate is also available for photographing moving subjects. Complementing the sensor's versatility is a 15x optical zoom Leica DC Vario-Elmar lens, which covers a 24-360mm equivalent focal length range for photographing in a broad variety of situations. This lens's reach is benefited by 5-axis optical image stabilization, which minimizes the appearance of camera shake for sharper imagery when working handheld.
Beyond its performance, the C-Lux is also distinguished by its physical design that incorporates both a 2.33m-dot electronic viewfinder, for bright eye-level shooting, and a 3.0" 1.24m-dot touchscreen LCD. Additionally, built-in Wi-Fi and Bluetooth LE connectivity permits wirelessly sharing photos and movies to your mobile devices via the dedicated Leica C-Lux app. - 20.1MP 1" MOS Sensor
- Utilizing a large 20.1MP 1" MOS sensor, high-resolution stills and video can be captured within with a wide sensitivity range up to ISO 25600 to suit working in a variety of lighting conditions. The sensor and processor combination also affords a quick full-resolution continuous shooting rate of up to 10 fps, UHD 4K30p video recording at 100 Mb/s, and the ability to save 8MP stills from 4K video.

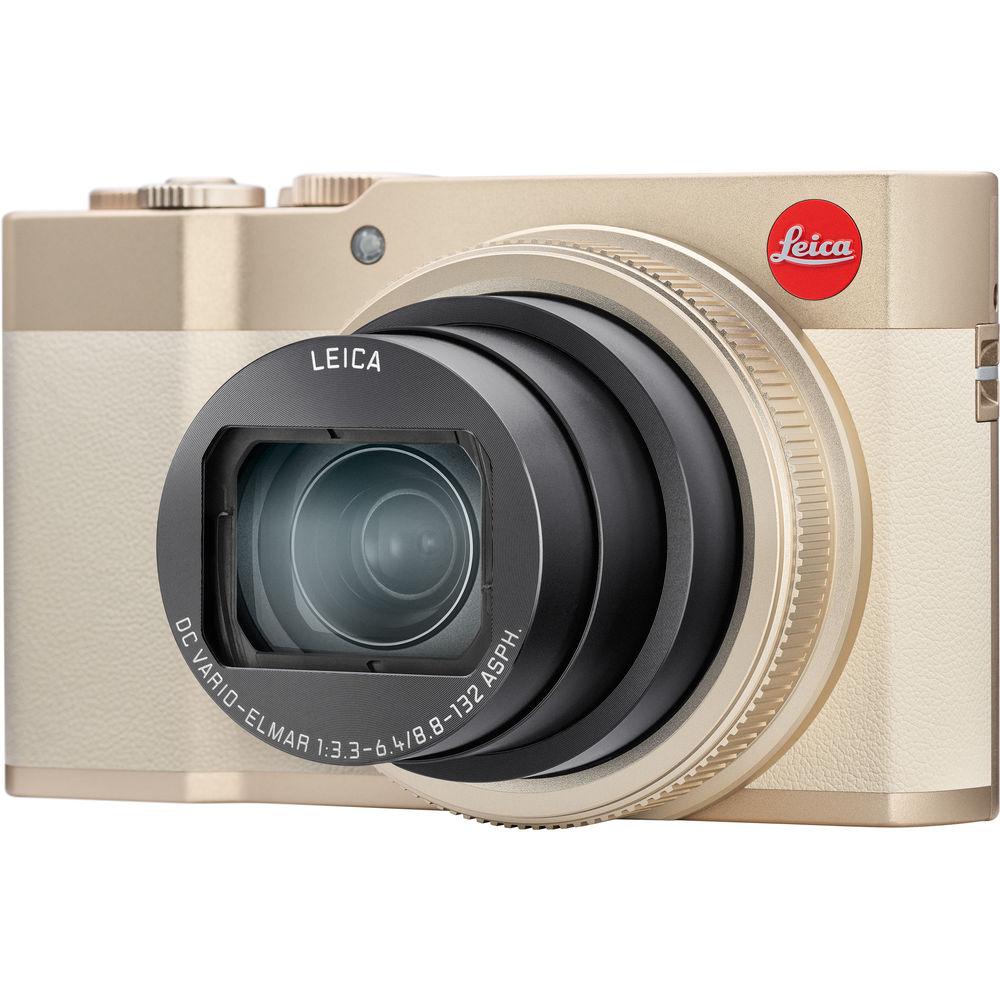

- Leica DC Vario-Elmar 15x Zoom Lens
- A long-reaching 15x Leica DC Vario-Elmar zoom offers a wide-angle to super-telephoto 24-360mm equivalent focal length range to suit photographing in a wide variety of situations. The lens is benefited by a fast 49-point autofocus system along with face detection focusing for working with different subject types. Also complementing the lens's reach is 5-axis optical image stabilization, which compensates for the effects of camera shake to produce sharper imagery when shooting handheld.
- Body Design and Wireless Connectivity
-

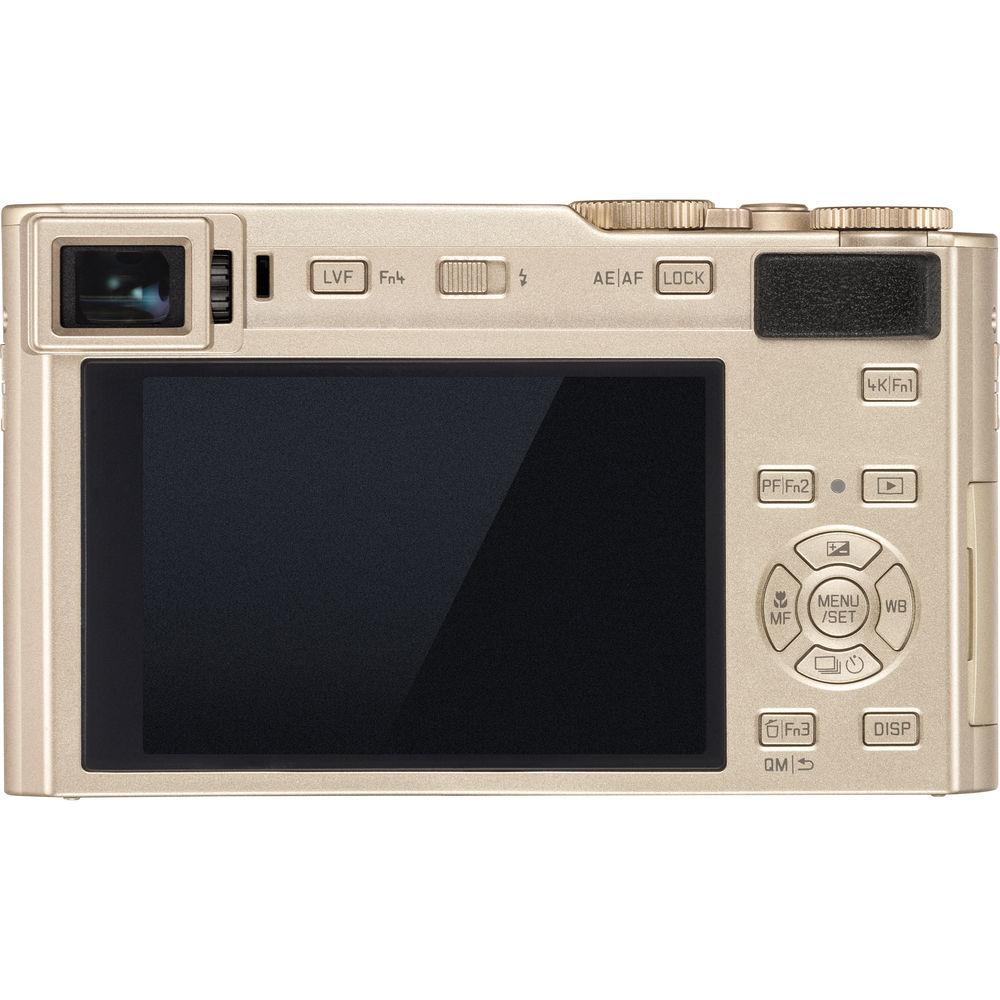

- Eye-level shooting is supported via the built-in 0.21" 2.33m-dot electronic viewfinder, which is ideal for working in bright, sunlit conditions.
- Rear 3.0" 1.24m-dot LCD monitor features a touchscreen design to support intuitive image playback and menu navigation. The screen's design also has an oleophobic coating to prevent marks and fingerprints.
- Both Wi-Fi and Bluetooth LE are available to facilitate wirelessly sharing imagery to iOS and Android smartphones or tablets via the dedicated Leica C-Lux app.
- Slim and sleek camera design features an attractive light gold finish.
- Built-in pop-up flash is available for working in low-light situations.
UPC: 799429191269 In the Box Leica C-Lux Digital Camera (Light Gold) BP-DC15 Li-ion Battery for D-LUX (Typ 109) AC Adapter USB Cable Limited 3-Year Warranty User Manual PDF 8.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica C-Lux Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica C-Lux Specs | | | Pixels | Actual: 20.9 Megapixel
Effective: 20.1 Megapixel | | Sensor | 1" MOS | | File Formats | Still Images: JPEG, RAW
Movies: MP4
Audio: AAC | | Image Stabilization | Optical, 5-Way | | | | Lens | Leica Vario-Elmar
Effective Focal Length: 8.8 to 132mm (35 mm Equivalent: 24 to 360mm)
Aperture: f/3.3 (W) to f/6.4 (T) to f/8 | | Zoom | Optical: 15x
Digital: 4x | | Focus Range | Wide: 1.64' to Infinity / 50 cm to Infinity
Telephoto: 3.28' to Infinity / 1 m to Infinity
Wide Macro: 1.18" to Infinity / 3 cm to Infinity
Tele Macro: 3.28' to Infinity / 1 m to Infinity | | | | Shutter | Type: Mechanical
Speed: 60 to 1/2000 Second
Type: Electronic
Speed: 1 to 1/16000 Second
Type: Electronic & Mechanical
Speed: 0 to 120 Second in Time Mode
1/30 to 1/16000 Second in Movie Mode | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -5 EV to +5 EV (in 1/3 EV Steps) | | Continuous Shooting | Up to 10 fps at 20.1 MP for up to 28 Exposures (Raw Format)
Up to 10 fps at 20.1 MP for up to 85 Exposures (JPEG Format)
Up to 7 fps at 20.1 MP
Up to 2 fps at 20.1 MP | | | | Flash Modes | Auto
Auto/Red-Eye Reduction
Forced On
Forced On/Red-Eye Reduction
Off
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC | | Resolution | 3840 x 2160p: 30 fps, 24 fps
1920 x 1080p: 60 fps, 30 fps
1280 x 720p: 30 fps | | | | Video Clip Length | Up to 29 Minutes | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Diopter Adjustment | -4 to +3 m | | Viewfinder Coverage | 100% | | Screen | 3.0" LCD Rear Touchscreen (1,240,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | | | Battery | 1 x BP-DC15 Rechargeable Lithium-Ion Battery Pack | | | | Dimensions (W x H x D) | 4.4 x 2.6 x 1.8" / 113.0 x 67.0 x 46.0 mm | | Weight | 11.99 oz / 340 g with battery and memory card | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 6.5 x 5.5 x 3.5" |
