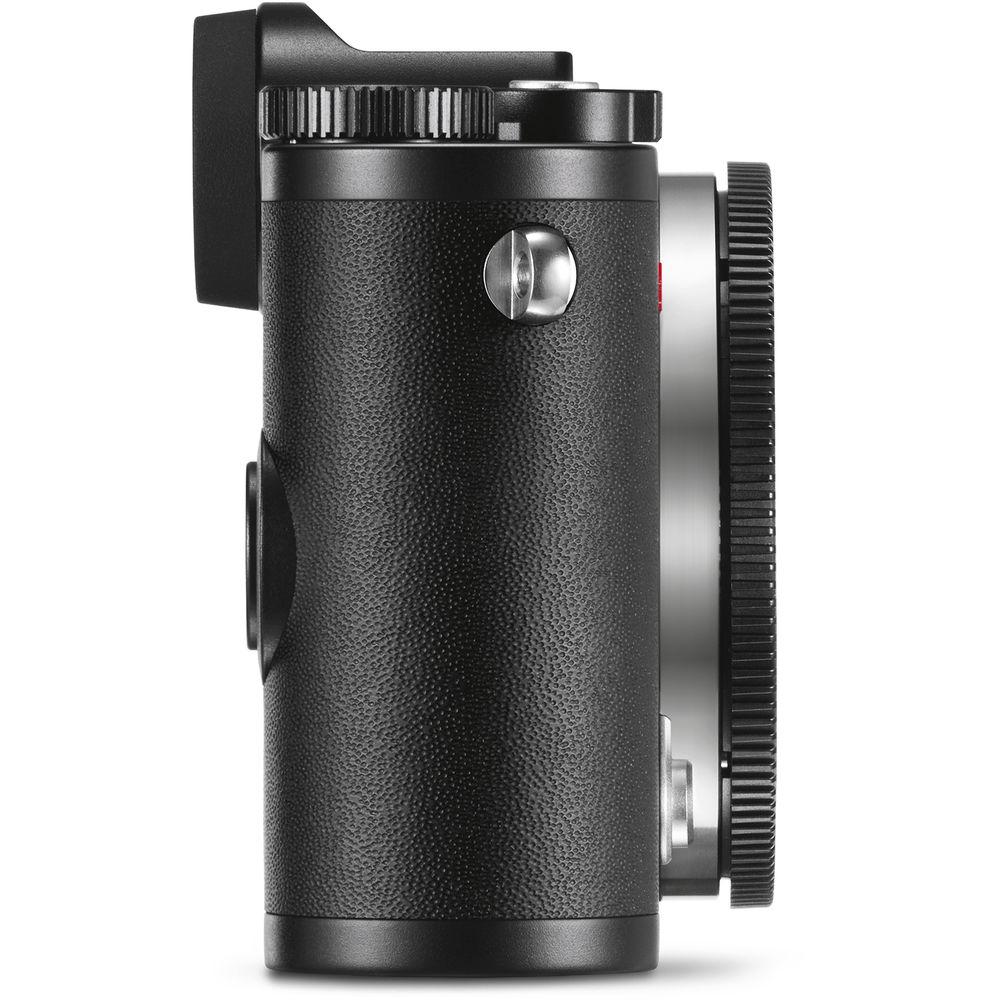

User Manual for Leica CL Mirrorless Digital Camera Click to enlarge the picture
Contents of the user manual for the Leica CL Mirrorless Digital Camera
- Product category: Mirrorless System Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Cameras
 |
User manual for the Leica CL Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

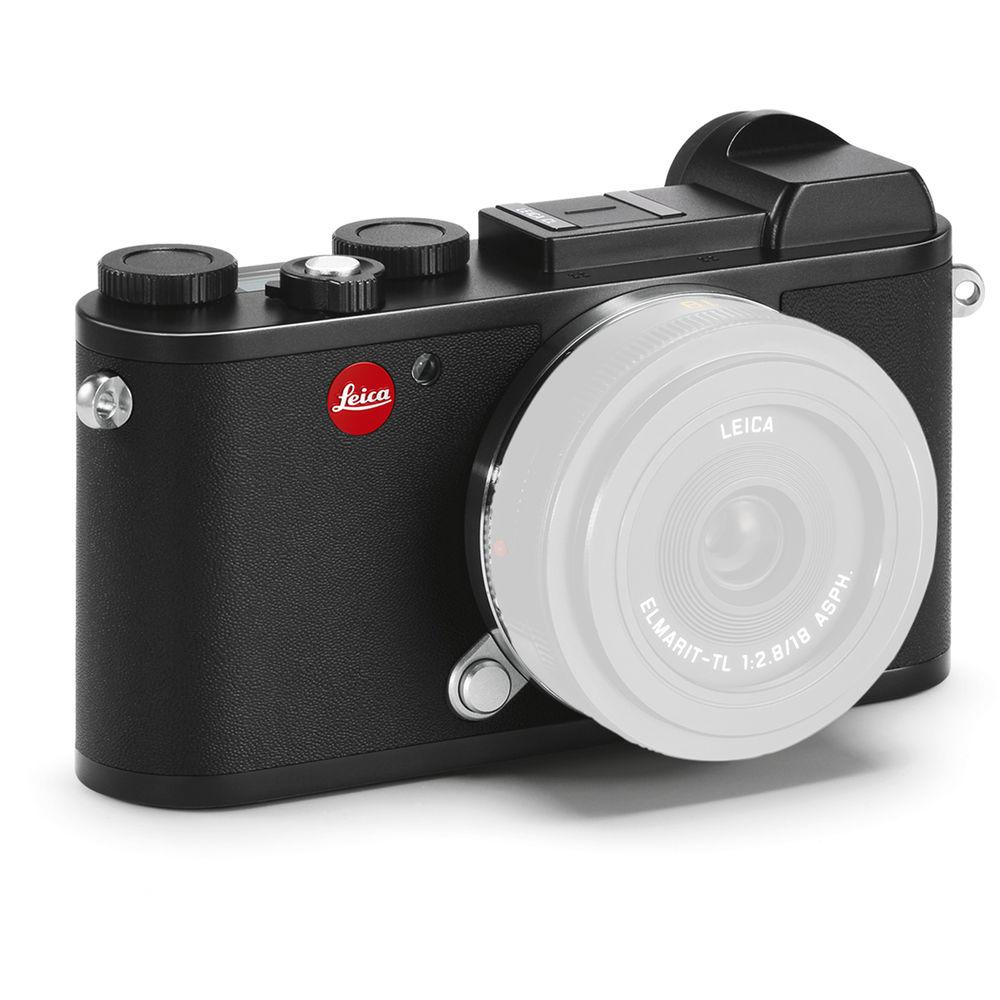

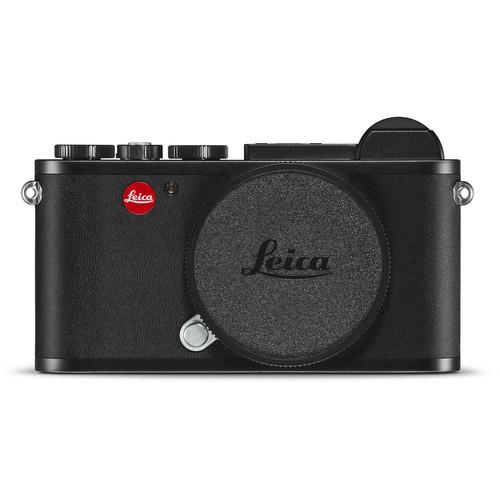

Product description Leica Unveils Compact CL Mirrorless Camera and TL 18mm Lens Read More Designed with Leica's minimalist yet functional school of thought, the black CL is a compact, sleek mirrorless digital camera offering intuitive control and a versatile range of imaging capabilities. Revolving around a 24.2MP APS-C CMOS sensor and Maestro II image processor combination, the CL is capable of producing high-resolution stills at up to 10 fps and UHD 4K/30p video, along with a sensitivity range of ISO 100-50000 for working a variety of lighting conditions. An electronic shutter function permits totally silent operation along with shutter speeds up to 1/25000 sec, and a 49-point contrast-detection autofocus system affords quick and accurate performance.
The characteristic svelte profile incorporates a 2.36m-dot electronic viewfinder for bright and clear eye-level viewing and a rear 3.0" 1.04m-dot touchscreen LCD enables the use of touch and gesture controls for familiar operation. Additionally, the top plate features its own LCD for quick settings review and two dials and customizable buttons are featured for more direct adjustment of oft-used settings. Additionally, built-in Wi-Fi connectivity also enables wireless sharing and remote camera control from a linked mobile device. - 24.2MP APS-C CMOS Sensor & Leica Maestro II Processor
- At the heart of the camera system is a 24.2MP APS-C CMOS sensor, which is paired with Leica's Maestro II processor to produce high-resolution, clear stills with native sensitivities ranging from ISO 100-50000 along with a top continuous shooting rate of 10 fps for up to 33 DNG+JPEGs or 140 JPEGs. A mechanical shutter affords precise speeds up to 1/8000 sec, and flash sync to 1/180 sec, while a silent electronic shutter can be used to reach a top speed of 1/25000 sec.
The sensor and processor also enable UHD 4K video recording at 30 fps for ultra-high resolution playback, along with support for Full HD at 60 fps and HD at 30 fps. Focus peaking is available as well to help ensure your videos are in focus. - 49-Point Contrast-Detection AF System
- Ensuring you are capturing tack-sharp photos at all times is an upgraded contrast-detect AF system with 49 selectable points available. The focusing system offers fast and accurate performance in a variety of lighting and shooting conditions.
- Body Design
-
- Built-in electronic viewfinder has a 2.36m-dot resolution and 0.74x magnification for bright, clear eye-level viewing. A manual +/-4m diopter is also available to suit different visions strengths.

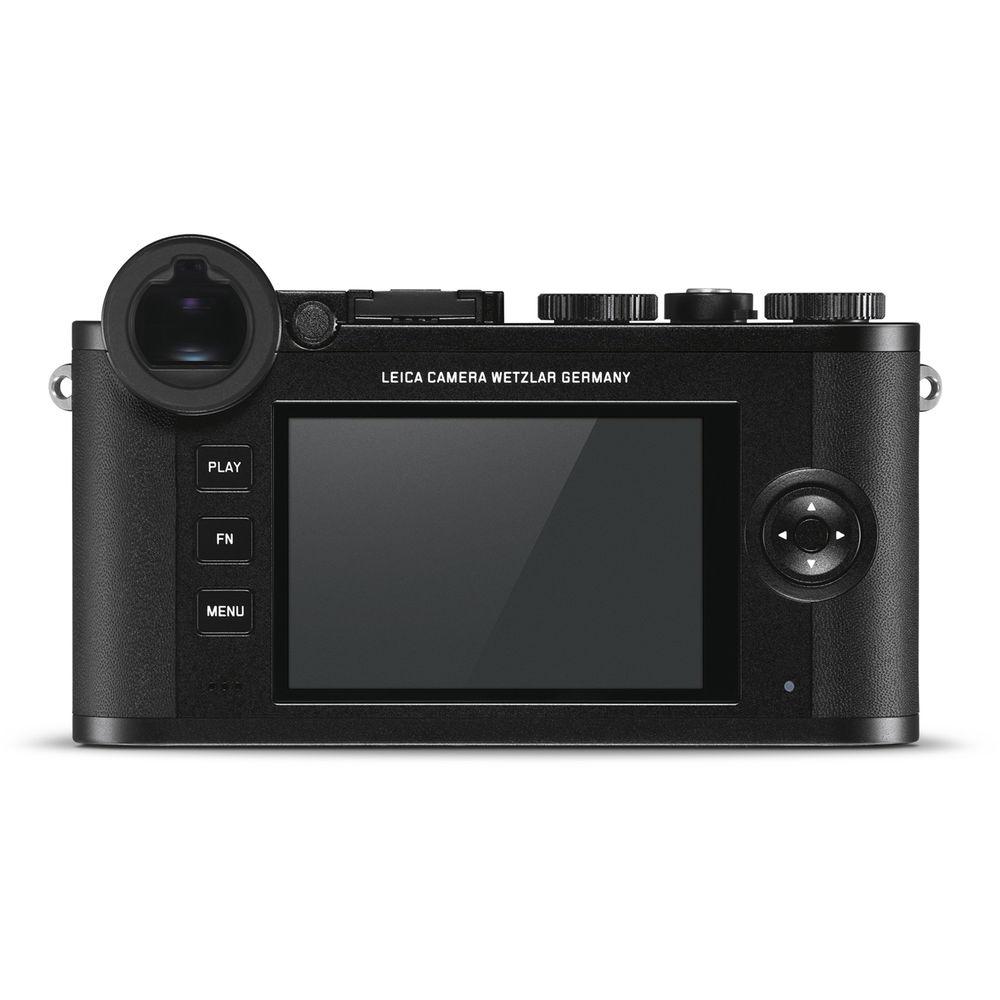

- Rear 3.0" 1.04m-dot LCD has a touchscreen design and supports familiar gesture controls for seamless, intuitive navigation while shooting or reviewing imagery.

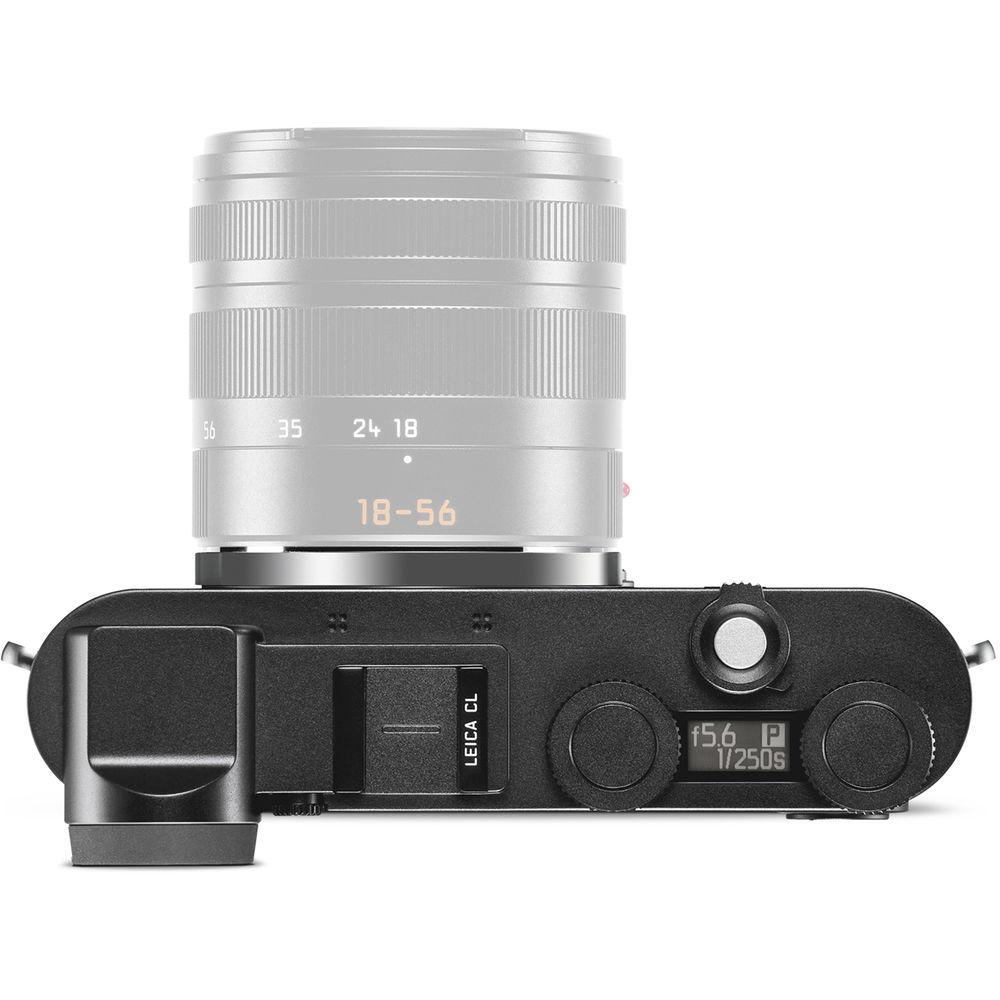

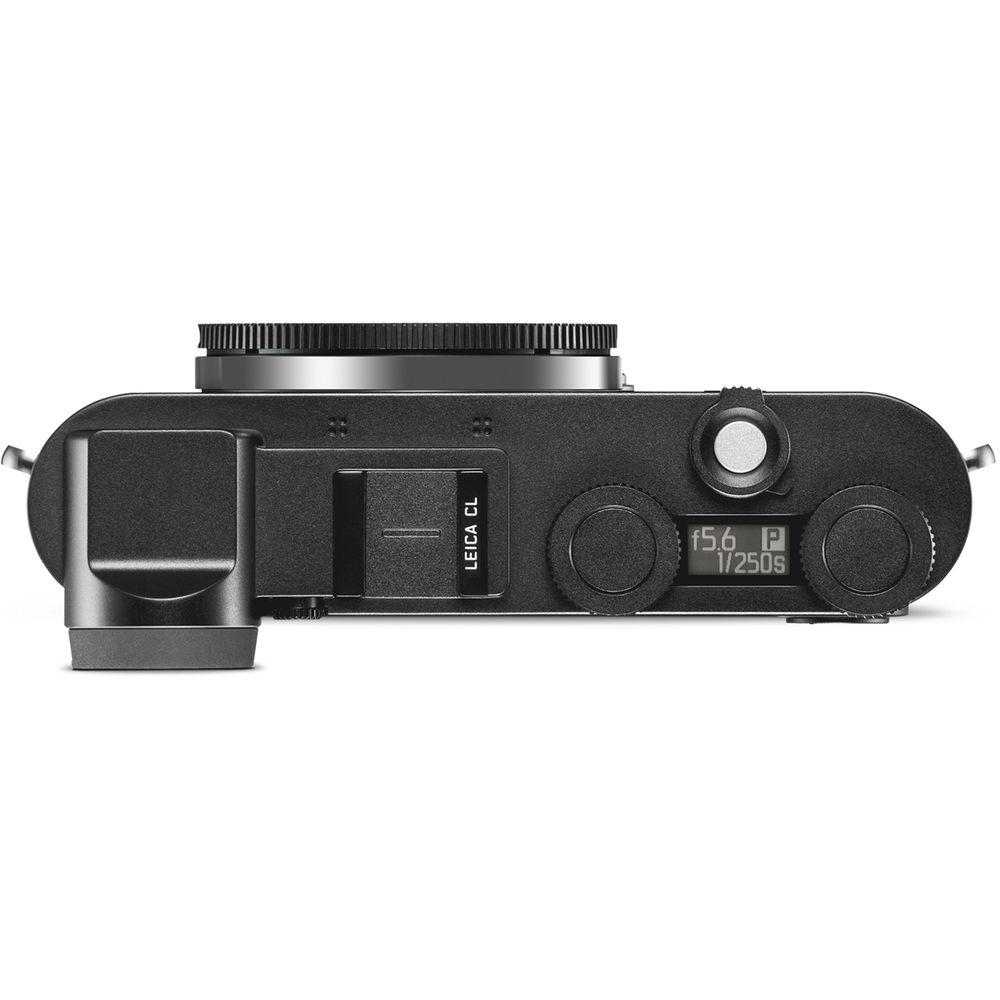

- Top status LCD is used to quickly monitor shooting settings.

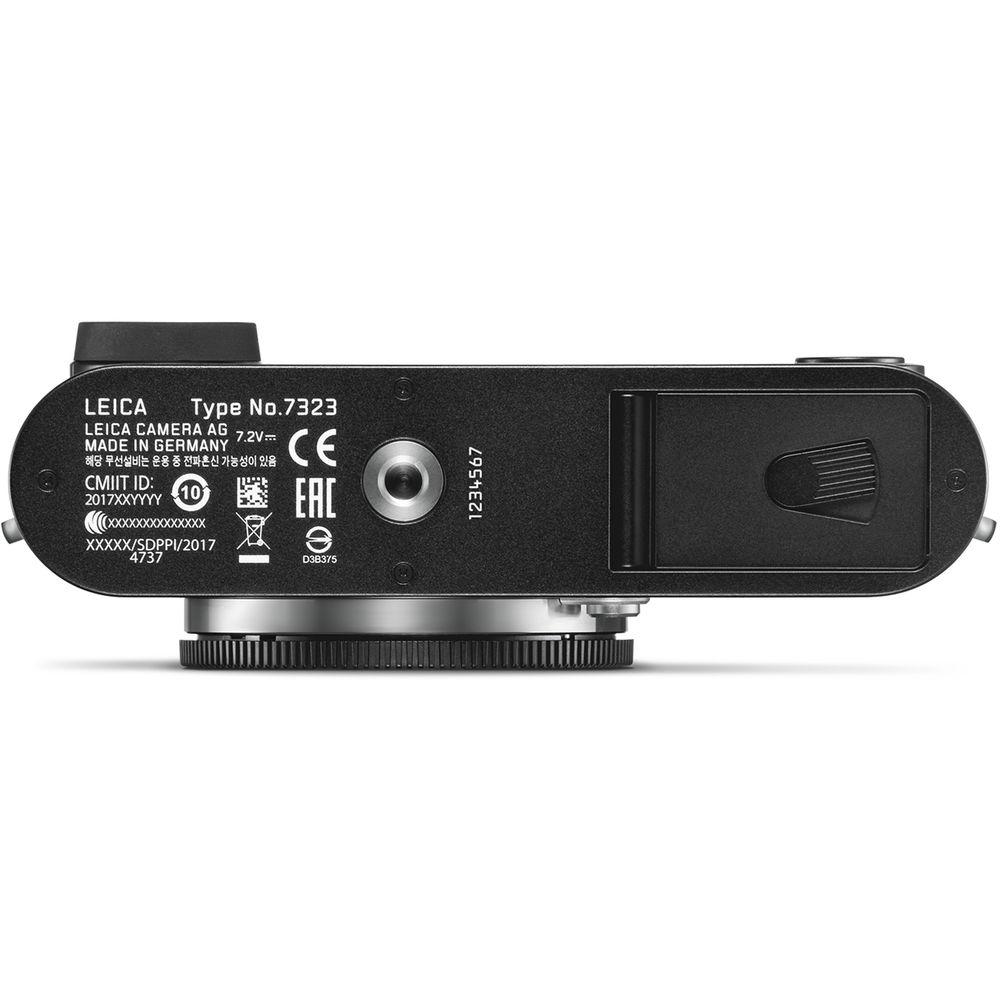

- Top and bottom covers are constructed from milled and anodized aluminum alloy while the front and rear body shells are magnesium alloy for an overall construction that is rigid yet lightweight.
- Two dials with center buttons are featured on the top plate for easy settings adjustment and four-way rear directional pad can be used for intuitive selecting of focus points.
- Built-In Wi-Fi Connectivity
- Integrated IEEE 802.11b/g/n Wi-Fi allows you to wirelessly connect iOS and Android devices to the CL for sharing photos and movies to smartphones or tablets for posting online. The free Leica App facilitates sharing imagery between the camera and device, and the app also enables a remote function for wirelessly adjusting the camera's shutter speed, aperture, and for releasing the shutter. The app can also be used as a remote electronic viewfinder to benefit composing self-portraits or group shots, or when working from difficult shooting angles.
- Leica L-Bayonet Mount
- Leica's mirrorless L-bayonet mount offers users the ability to connect both full-frame SL-series and APS-C TL-series glass, which benefits from electronic communication for blazing fast autofocus, electronic aperture control, and optical image stabilization. Additionally, as with most mirrorless today, the L mount can accept a variety of adapters, such as the M-Adapter L which provides shooters with access to the entire M-mount lens library. Leica will have adapters for the S, R, and Cine series as well, ensuring compatibility with a range of Leica's best lenses.
UPC: 799429193010 In the Box Leica CL Mirrorless Digital Camera (Body Only, Black) BP-DC 12 Lithium-Ion Battery for Leica Q Typ 116 Digital Camera (7.2V, 1200mAh) Battery Charger BC-DC 12 For V Lux 4 Camera Body Cap T Carrying Strap Accessory Shoe Cover Limited 1-Year Leica Society Digital Membership Limited 2-Year Warranty Quick start Guide PDF 4.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica CL Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica CL Specs | | | Lens Mount | Leica L | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | Actual: 24.96 Megapixel
Effective: 24.24 Megapixel | | Maximum Resolution | 6016 x 4014 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 23.6 x 15.7 mm | | Image File Format | DNG, JPEG | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 100 to 50000 | | Shutter Speed | Mechanical Shutter
1/8000 to 30 Seconds | | Metering Method | Center-Weighted Average, Spot | | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3 EV Steps) | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Halogen, Shade | | Continuous Shooting | Up to 10 fps at 24.2 MP for up to 33 Exposures (Raw Format)
Up to 10 fps at 24.2 MP for up to 140 Exposures (JPEG Format) | | Self Timer | 2/12-Second Delay | | | | Recording Modes | MP4
UHD 4K (3840 x 2160) at 29.97p
Full HD (1920 x 1080) at 29.97p/59.94p
HD (1280 x 720) at 29.97p | | Recording Limit | Up to 29 Minutes | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Contrast Detection: 49 | | | | Viewfinder Type | Electronic | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Eye Point | 20 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.74x | | Diopter Adjustment | -4 to +4 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Touchscreen LCD | | | | Built-in Flash | None | | Maximum Sync Speed | 1/180 Second | | Flash Compensation | -3 to +3 EV (1/3 EV Steps) | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Wireless | Wi-Fi | | GPS | None | | | | Battery | 1 x BP-DC12 Rechargeable Lithium-Ion, 7.2 VDC, 1200 mAh | | Dimensions (W x H x D) | 5.2 x 3.1 x 1.8" / 131.0 x 78.0 x 45.0 mm | | Weight | 14.21 oz / 403 g (Body with Battery) | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 8.7 x 8.5 x 6.6" |
