Product description

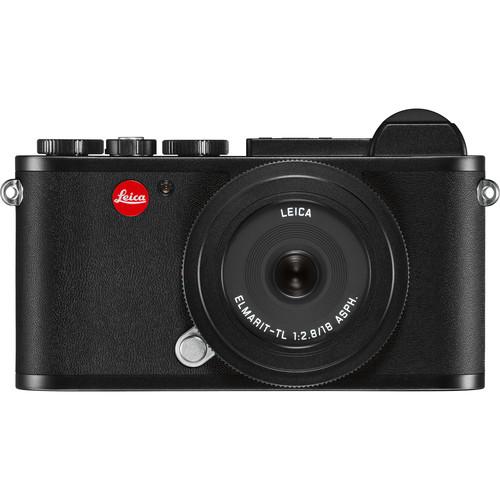

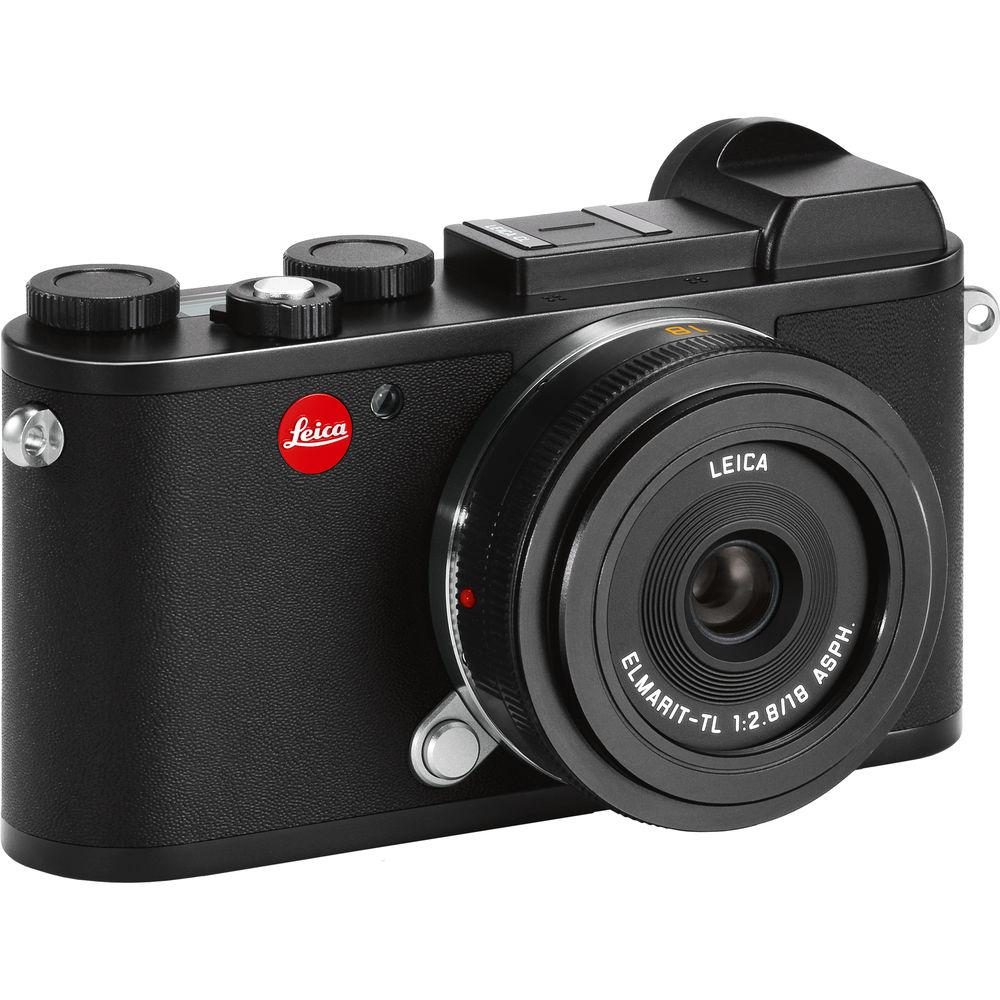

• CL Mirrorless Digital Camera (Body Only, Black) Designed with Leica's minimalist yet functional school of thought, the black CL is a compact, sleek mirrorless digital camera offering intuitive control and a versatile range of imaging capabilities. Revolving around a 24.2MP APS-C CMOS sensor and Maestro II image processor combination, the CL is capable of producing high-resolution stills at up to 10 fps and UHD 4K/30p video, along with a sensitivity range of ISO 100-50000 for working a variety of lighting conditions. An electronic shutter function permits totally silent operation along with shutter speeds up to 1/25000 sec, and a 49-point contrast-detection autofocus system affords quick and accurate performance.

  The characteristic svelte profile incorporates a 2.36m-dot electronic viewfinder for bright and clear eye-level viewing and a rear 3.0" 1.04m-dot touchscreen LCD enables the use of touch and gesture controls for familiar operation. Additionally, the top plate features its own LCD for quick settings review and two dials and customizable buttons are featured for more direct adjustment of oft-used settings. Additionally, built-in Wi-Fi connectivity also enables wireless sharing and remote camera control from a linked mobile device.
  24.2MP APS-C CMOS Sensor & Leica Maestro II Processor
  • At the heart of the camera system is a 24.2MP APS-C CMOS sensor, which is paired with Leica's Maestro II processor to produce high-resolution, clear stills with native sensitivities ranging from ISO 100-50000 along with a top continuous shooting rate of 10 fps for up to 33 DNG+JPEGs or 140 JPEGs. A mechanical shutter affords precise speeds up to 1/8000 sec, and flash sync to 1/180 sec, while a silent electronic shutter can be used to reach a top speed of 1/25000 sec.

    The sensor and processor also enable UHD 4K video recording at 30 fps for ultra-high resolution playback, along with support for Full HD at 60 fps and HD at 30 fps. Focus peaking is available as well to help ensure your videos are in focus.
  49-Point Contrast-Detection AF System
  • Ensuring you are capturing tack-sharp photos at all times is an upgraded contrast-detect AF system with 49 selectable points available. The focusing system offers fast and accurate performance in a variety of lighting and shooting conditions.
  Body Design
  • • Built-in electronic viewfinder has a 2.36m-dot resolution and 0.74x magnification for bright, clear eye-level viewing. A manual +/-4m diopter is also available to suit different visions strengths.

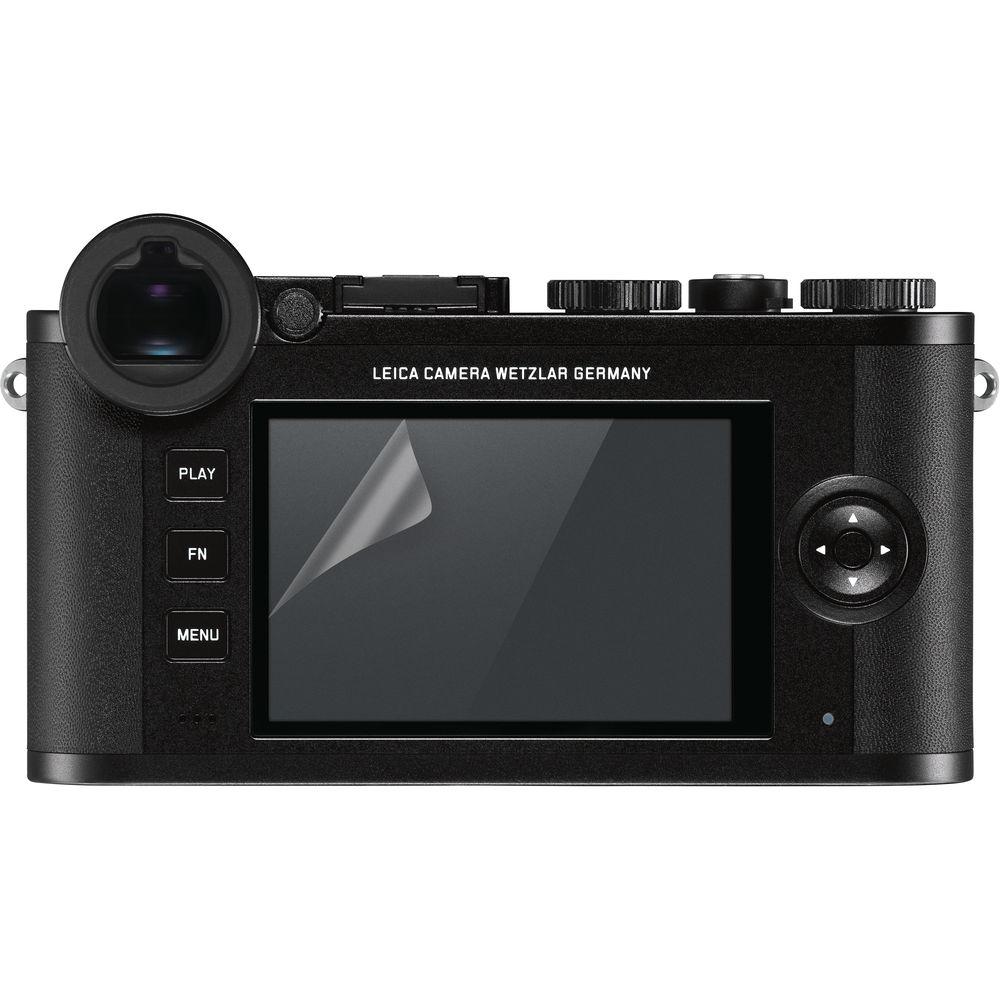

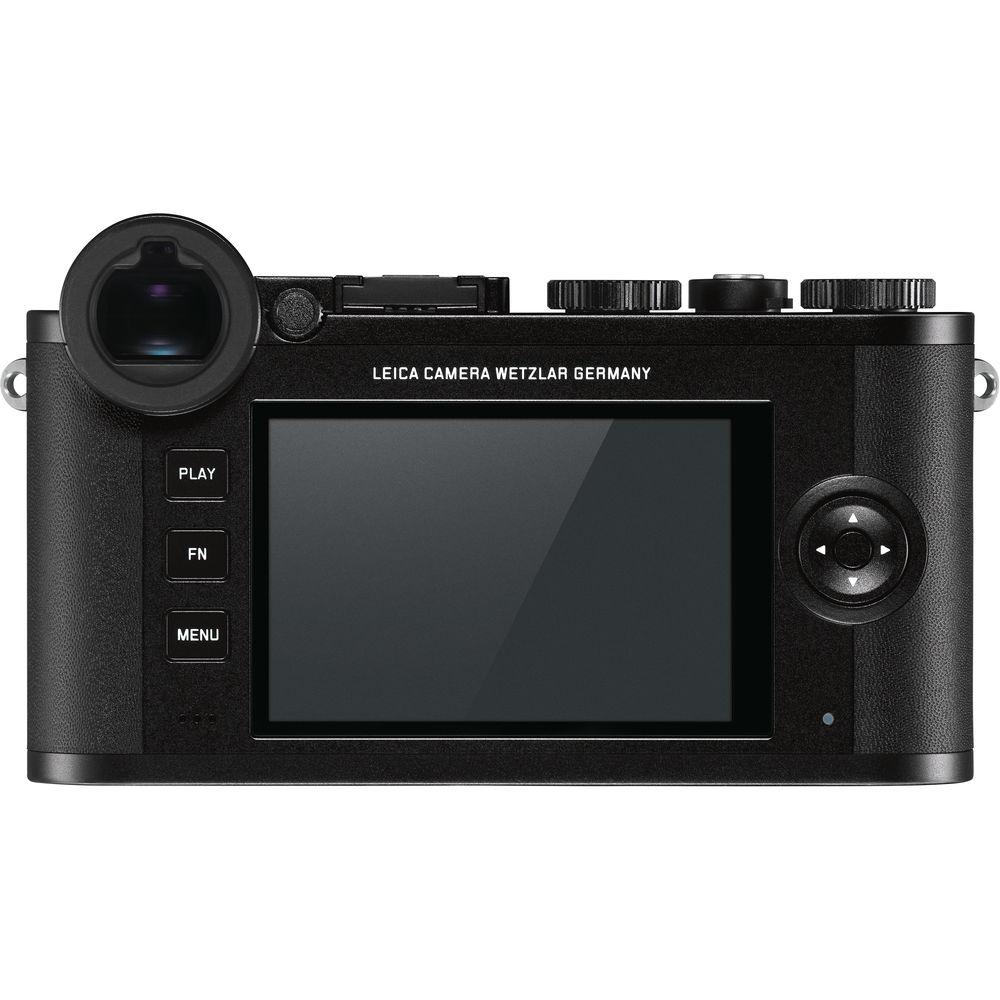

    • Rear 3.0" 1.04m-dot LCD has a touchscreen design and supports familiar gesture controls for seamless, intuitive navigation while shooting or reviewing imagery.

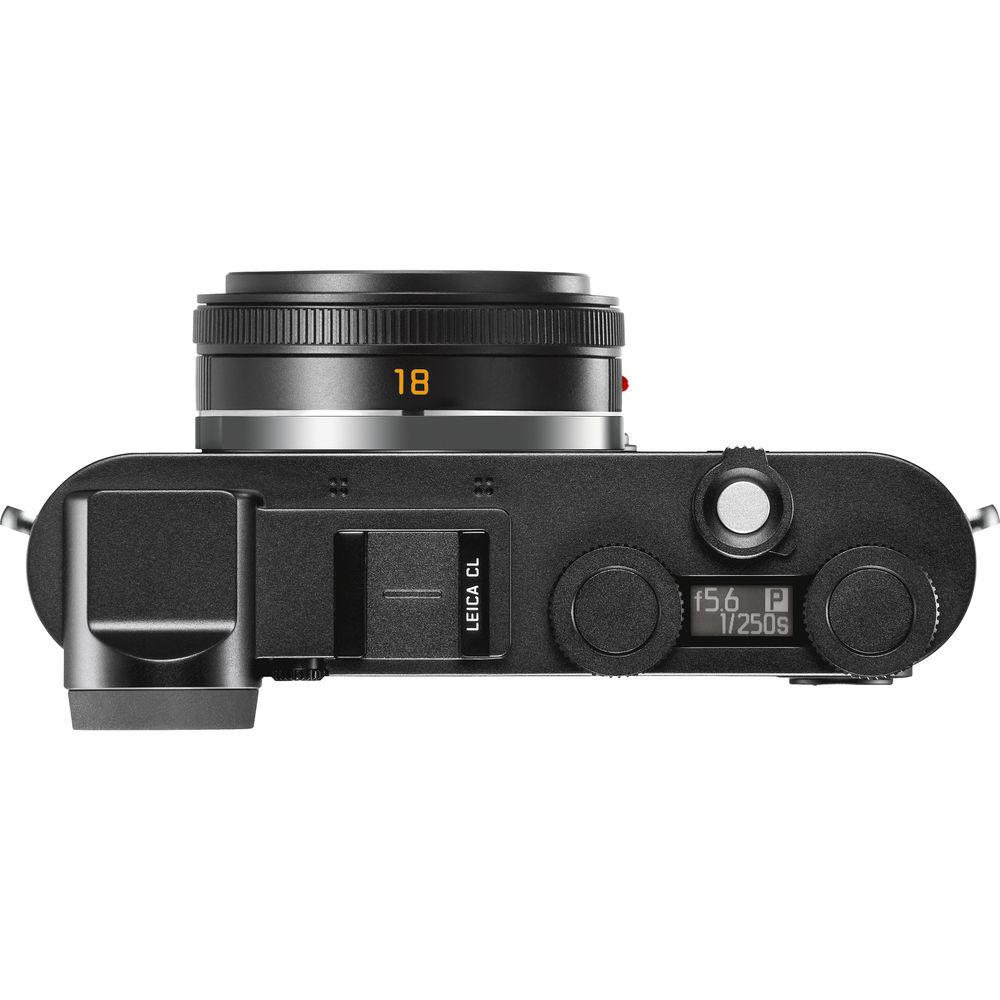

    • Top status LCD is used to quickly monitor shooting settings.

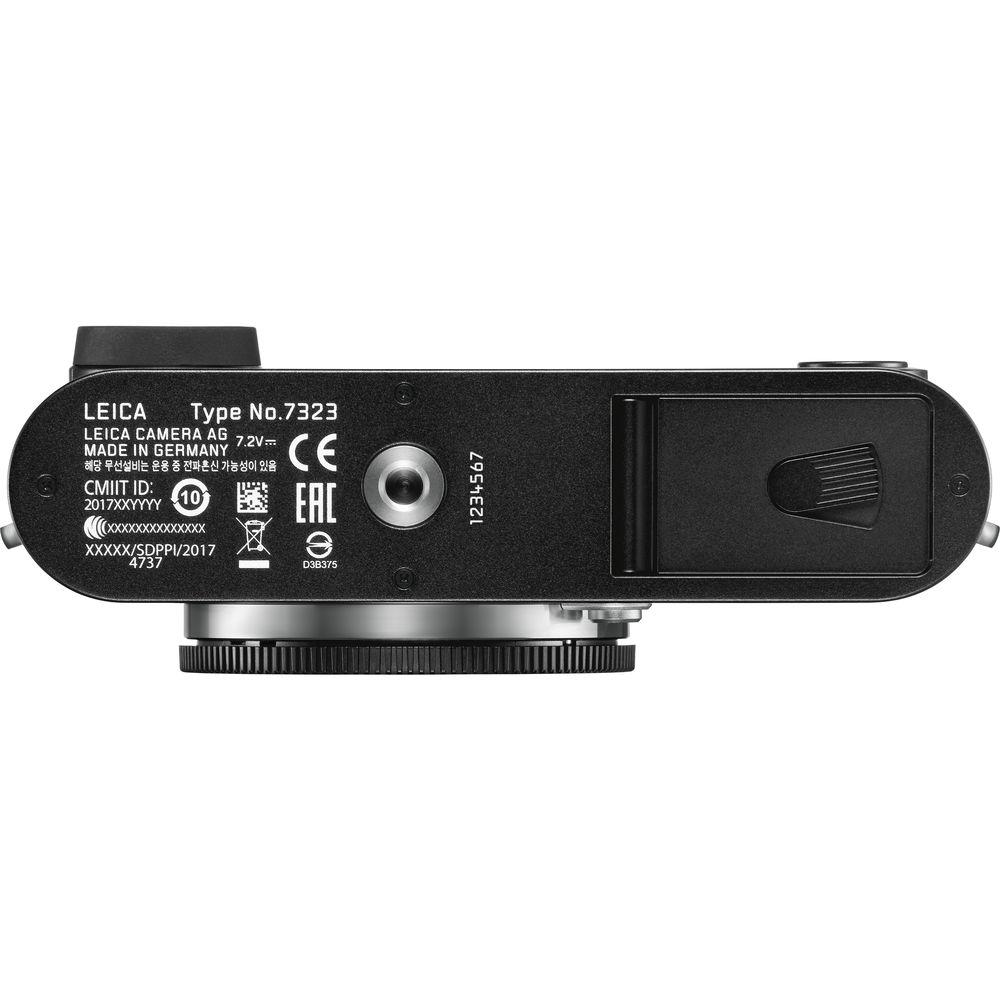

    • Top and bottom covers are constructed from milled and anodized aluminum alloy while the front and rear body shells are magnesium alloy for an overall construction that is rigid yet lightweight.
    • Two dials with center buttons are featured on the top plate for easy settings adjustment and four-way rear directional pad can be used for intuitive selecting of focus points.
  Built-In Wi-Fi Connectivity
  • Integrated IEEE 802.11b/g/n Wi-Fi allows you to wirelessly connect iOS and Android devices to the CL for sharing photos and movies to smartphones or tablets for posting online. The free Leica App facilitates sharing imagery between the camera and device, and the app also enables a remote function for wirelessly adjusting the camera's shutter speed, aperture, and for releasing the shutter. The app can also be used as a remote electronic viewfinder to benefit composing self-portraits or group shots, or when working from difficult shooting angles.
  Leica L-Bayonet Mount
  • Leica's mirrorless L-bayonet mount offers users the ability to connect both full-frame SL-series and APS-C TL-series glass, which benefits from electronic communication for blazing fast autofocus, electronic aperture control, and optical image stabilization. Additionally, as with most mirrorless today, the L mount can accept a variety of adapters, such as the M-Adapter L which provides shooters with access to the entire M-mount lens library. Leica will have adapters for the S, R, and Cine series as well, ensuring compatibility with a range of Leica's best lenses.
  UPC: 799429193010
• Elmarit-TL 18 mm f/2.8 ASPH. Lens (Black) An especially compact lens, the black Elmarit-TL 18 mm f/2.8 ASPH. is a 27mm equivalent wide-angle prime designed for APS-C-format Leica L-mount mirrorless cameras. Its pancake form factor measures just 0.8" thick, making it ideal for everyday use and travel applications. Its optical design features four aspherical surfaces to help suppress spherical aberrations and distortion for greater clarity and sharpness. Additionally, its autofocus design allows for full-time manual focus override for greater control when working with selective focus techniques.
  • This 18mm f/2.8 wide-angle prime lens is designed for APS-C-format L-mount mirrorless cameras and provides a 27mm equivalent focal length.
  • Four aspherical surfaces are featured in the optical design to control distortion and spherical aberrations for greater sharpness and clarity.
  • Pancake form factor measures just 0.8" thick for an ultra compact, sleek option well-suited to everyday shooting.
  • Autofocus design affords full-time manual focus control along with a minimum focusing distance of 11.8".
  UPC: 799429110888

• BP-DC 12 Lithium-Ion Battery for Leica Q Typ 116 Digital Camera (7.2V, 1200mAh)

• Battery Charger BC-DC 12 For V Lux 4

• Camera Body Cap T

• Carrying Strap

• Accessory Shoe Cover

• Limited 1-Year Leica Society Digital Membership

• Limited 2-Year Warranty

• Front and Rear Lens Caps

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CL Mirrorless Digital Camera (Body Only, Black)

  Lens Mount	Leica L
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 24.96 Megapixel Effective: 24.24 Megapixel
  Maximum Resolution	6016 x 4014
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	23.6 x 15.7 mm
  Image File Format	DNG, JPEG
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 50000
  Shutter Speed	Mechanical Shutter 1/8000 to 30 Seconds
  Metering Method	Center-Weighted Average, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Halogen, Shade
  Continuous Shooting	Up to 10 fps at 24.2 MP for up to 33 Exposures (Raw Format) Up to 10 fps at 24.2 MP for up to 140 Exposures (JPEG Format)
  Self Timer	2/12-Second Delay

  Recording Modes	MP4 UHD 4K (3840 x 2160) at 29.97p Full HD (1920 x 1080) at 29.97p/59.94p HD (1280 x 720) at 29.97p
  Recording Limit	Up to 29 Minutes

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 49

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	20 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.74x
  Diopter Adjustment	-4 to +4 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/180 Second
  Flash Compensation	-3 to +3 EV (1/3 EV Steps)
  Dedicated Flash System	TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Wireless	Wi-Fi
  GPS	None

  Battery	1 x BP-DC12 Rechargeable Lithium-Ion, 7.2 VDC, 1200 mAh
  Dimensions (W x H x D)	5.2 x 3.1 x 1.8" / 131.0 x 78.0 x 45.0 mm
  Weight	14.21 oz / 403 g (Body with Battery)

  Box Dimensions (LxWxH)	8.7 x 8.5 x 6.6"

• Elmarit-TL 18 mm f/2.8 ASPH. Lens (Black)

  Focal Length	18mm (35mm Equivalent Focal Length: 27mm)
  Maximum Aperture	f/2.8
  Minimum Aperture	f/16
  Lens Mount	Leica L
  Format Compatibility	APS-C
  Angle of View	75 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 77 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
