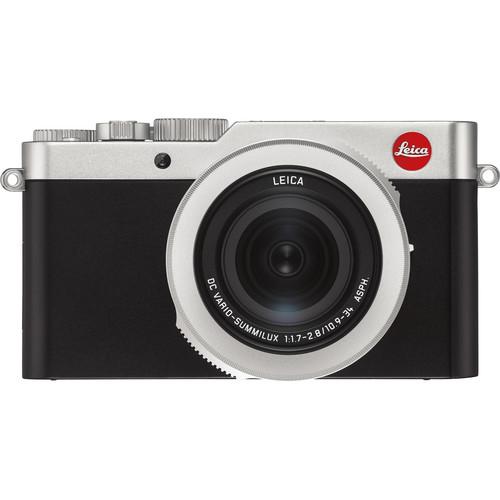

Product description Leica Announces the D-Lux 7 Compact Camera Read More Poised as the ideal pocket camera, the Leica D-Lux 7 is a svelte, compact camera characterized by its large sensor design, versatile lens, and sleek styling. The 17MP Four Thirds MOS sensor offers impressive performance with a sensitivity range up to ISO 25600 along with an 11-fps continuous shooting rate and UHD 4K30p video recording to suit multimedia shooting applications in a variety of conditions. Balancing the imaging capabilities is a flexible DC Vario-Summilux lens, which offers a 24-75mm equivalent focal length range along with a bright f/1.7-2.8 design for controlling depth of field and working in difficult lighting conditions. This lens also utilizes optical image stabilization to minimize the appearance of camera shake in order to realize sharper handheld imagery.
Complementing the sensor and lens attributes is a travel-friendly physical design, which incorporates both a 2.76m-dot electronic viewfinder and a 3.0" 1.24m-dot rear touchscreen LCD. These assets are backed up by built-in Bluetooth and Wi-Fi, which work in conjunction with the Leica FOTOS app for seamless wireless sharing as well as remote camera control from a linked iOS or Android device. - 17MP Four Thirds MOS Sensor
- A 17MP Four Thirds MOS sensor affords notable resolution and the larger physical size offers a high sensitivity range up to ISO 25600 along with low noise levels and vivid color and tonal rendering. The sensor's design, with 21.77MP total resolution, also supports working in multiple aspect ratios—4:3, 3:2, 16:9, and 1:1—while maintaining the same field of view. The sensor and image processor also enable continuous shooting at up to 11 fps and UHD 4K movie recording.
- Vario-Summilux Lens
- The built-in DC Vario-Summilux 3.1x zoom lens offers a 24-75mm equivalent focal length range, covering wide-angle to portrait-length focal lengths to suit working in a variety of shooting situations. Its bright f/1.7-2.8 maximum aperture range also suits working in low-light conditions and offers improved control over depth of field. Additionally, also benefiting working in difficult lighting, optical image stabilization minimizes the appearance of camera shake to help render sharper handheld images.
- UHD 4K Video Recording
- In addition to the versatile still shooting modes, the D-Lux 7 also supports recording UHD 4K video with either 30p or 24p frames rates at 100 Mb/s in the MP4 format. Full HD 1080p60 is also supported, in both MP4 and AVCHD formats.
- 4K PHOTO Modes
- Utilizing the D-Lux 7's video recording capabilities, a trio of still shooting modes are available for recording continuous 8MP stills at a 30-fps shooting rate:
- Burst: this mode will allow you to continuously record, making it ideal for instances where you need a fast frame rate in order to capture the best moment.
- Pre-Burst: this mode is ideal for times when you're unsure of the critical moment to press the shutter button and will record images one second prior to and one second after pressing the shutter button in order to give you 60 frames to choose from.
- Burst (S/S): this mode most closely follows the video recording process, and allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8MP frame.
- Body Design
-
- Bright electronic viewfinder has a 2.76m-dot resolution for clear eye-level viewing, even in bright sunlight.
- Rear 3.0" 1.24m-dot LCD features a touchscreen design for intuitive menu navigation, image playback, and for selecting AF points while shooting.
- Included hot shoe-mounted external flash can be used to provide additional illumination when working in low-light conditions.
- In-camera charging of the BP-DC15 lithium-ion battery is supported via an optional USB-connected power bank or when connected to a computer or AC adapter.
- Wireless Connectivity and Other Camera Features
-
- Built-in Bluetooth and Wi-Fi, when used in conjunction with the Leica FOTOS app for iOS and Android, permits sharing imagery directly to a linked mobile device and also enables remote control over the D-Lux 7 and remote shooting via a live view image.
- Post Focus allows users to select the point of focus after an image has been taken. An electronic shutter function avails a top shutter speed of 1/16,000 sec. to better enable working in bright conditions and with wider aperture settings.
UPC: 799429191160 In the Box Leica D-Lux 7 Digital Camera BP-DC15 Li-ion Battery for D-LUX (Typ 109) vdryuxtqydtryvfvdwqwztcubwcbr ACA-DC16-U Battery Charger/AC Adapter CF D Flash Unit Micro-B USB Cable Shoulder Strap Lens Cap Lens Cap String Hot Shoe Cover Limited 2-Year Warranty User Manual PDF 10mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica D-Lux 7 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica D-Lux 7 Specs | | | Pixels | Actual: 21.77 Megapixel
Effective: 17 Megapixel | | Sensor | Four Thirds (17.3 x 13 mm) MOS | | File Formats | Still Images: JPEG, RAW
Movies: AVCHD, MP4
Audio: AAC, Dolby Digital 2ch | | Max Resolution | 4736 x 3552 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Image Stabilization | Optical | | | | Lens | 11 Elements in 8 Groups
5 Aspherical
Effective Focal Length: 10.9 to 34mm (35 mm Equivalent: 24 to 75mm)
Aperture: f/1.7 (W) to f/2.8 (T) to f/16 | | Filter Thread | 43mm | | Zoom | Optical: 3.1x
Intelligent Zoom: 6.2x
Digital: 4x
Extra Optical Zoom (EZ): 4.3x
Extra Optical Zoom (EZ): 6.2x | | Focus Range | Normal: 1.64' to Infinity / 50 cm to Infinity
Wide: 1.18" to Infinity / 3 cm to Infinity
Telephoto: 11.81" to Infinity / 30 cm to Infinity | | | | ISO Sensitivity | Auto, 200 to 25600 (Extended Mode:100 to 25600) | | Shutter | Type: Mechanical
Speed: 60 to 1/4000 Second
Type: Electronic
Speed: 1 to 1/16000 Second
Type: Electronic
Speed: 30 to 0 Minute in Time Mode
Type: Electronic
Speed: 1/2 to 1/16000 Second in Movie Mode | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -5 EV to +5 EV (in 1/3 EV Steps) | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4 | | Continuous Shooting | Up to 11 fps at 17 MP
Up to 7 fps at 17 MP
Up to 5.5 fps at 17 MP
Up to 2 fps at 17 MP
Up to 30 fps at 8.3 MP | | Self-Timer | 2, 10 Sec | | | | Flash Modes | Auto
Auto/Red-Eye Reduction
First-Curtain Sync
Forced On
Forced On/Red-Eye Reduction
Off
Second-Curtain Sync
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | No | | External Flash Connection | Hot Shoe | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC/PAL | | Resolution | 3840 x 2160p: 30 fps, 25 fps, 24 fps
1920 x 1080p: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
1280 x 720p: 30 fps, 25 fps | | | | Video Clip Length | Up to 29 Minutes 59 Seconds | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Viewfinder Coverage | 100% | | Screen | 3.0" LCD Rear Touchscreen (1,240,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Battery | 1 x BP-DC15 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1025 mAh | | | | Dimensions (W x H x D) | 4.6 x 2.6 x 2.5" / 118.0 x 66.0 x 64.0 mm | | Weight | 14.22 oz / 403 g with battery and memory card | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 6.5 x 6.0 x 4.7" |
