User manual

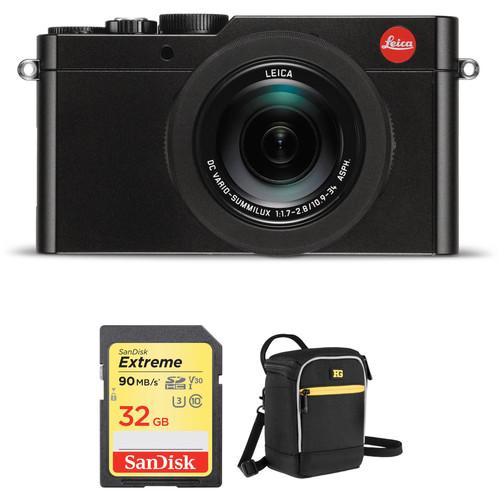

Leica D-LUX Digital Camera Basic Kit

User Manual for Leica D-LUX Digital Camera Basic Kit

• Product category: Point & Shoot Cameras Leica
• Brand: Leica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Leica Point & Shoot Cameras

Product description

• Leica D-LUX (Typ 109) Digital Camera (Black) The black Leica D-LUX (Typ 109) Digital Camera is a compact point and shoot camera that is built around a large, 12.8MP 4/3" MOS sensor which allows for greater depth of field control than is possible with smaller-sensor cameras, plus more effective light-gathering ability per pixel. As a result, subjects can be better isolated within the frame and more details are apparent in darker areas of the image with less noise.

  The 4/3" 12.8MP sensor provides high-resolution output, and with its bright, optically-stabilized DC Vario-Summilux f/1.7-2.8 lens, as well as an ISO range expandable from 100 to 25600, the D-LUX (Typ 109)'s ability to perform under low-light conditions is further enhanced. Even during sunny days or when shooting with a flash, the effect of the built-in lens's wide apertures is more apparent due to the 17.3 x 13.0mm sensor with regard to depth of field. Either close-up or far-away subjects can be easily separated from their backgrounds that are then rendered with a pleasing blur, making the D-LUX (Typ 109) an excellent choice for subjects ranging from macro, street photography, photojournalism, landscapes, or for whenever a highly-capable compact camera is desired.

  For those who wish to capture high-resolution video, the D-LUX (Typ 109) offers NTSC or PAL UHD 4K (3840 x 2160) output at 30p or 24p, which can be saved as easy-to use MP4 files. When lower video resolutions are sufficient, 1080p full HD or standard definition video can be selected instead, and results of any resolution can be played back on the camera's large, sharp 3.0" 921k-dot rear LCD display. During capture, the subject can also be viewed through the camera's 2764k integrated electronic viewfinder.

  Stills and video are saved to SD-type cards, up to and including those with SDXC capacities. To help preserve fast performance even while capturing high-resolution still photos or video, high-speed UHS-I SD-type memory cards can be used. While photos and videos can be downloaded from the memory card, Leica has provided additional options for sharing content taken with the D-LUX (Typ 109) even more convenient. Integrated Near Field Communication (NFC) and Wi-Fi 802.11 b/g/n allows for smartphones or tablets with the Leica Image Shuttle app the ability to record pictures even while shooting. The app can also generate a live image from the camera and settings can be controlled though the app as well.

  An advancement among point and shoot cameras, the D-LUX (Typ 109) shares the design and quality aspects photographers associate with Leica. The metal housing is sturdy and elegant, with well-placed tactile buttons and dials that further inspire the user's confidence.
  Large 12.8MP 4/3" MOS Sensor
  • The large area of the 17.3 x 13.0mm sensor contributes to better control of depth of field as well as improved shadow detail over versus smaller-sensor cameras. Details, contrast, and colors are accurately captured too.
  Fast f/1.7-2.8 Leica DC Vario-Summilux Lens
  • The integrated f/1.7-2.8 Leica DC Vario-Summilux Lens maintains excellent light-gathering ability even when fully zoomed, helping to free the user from exposure limitations, even in low light. This 3.1x optical zoom lens provides an angle of view equivalent to a 24-75mm lens on a 35mm film camera and is optically stabilized to help counteract blur caused by user movement.
  Excellent Low-Light Performance
  • Along with a large sensor and a bright lens at all focal lengths, and ISO range of 100 to 25600 helps to ensure that low-light is not an obstacle to capturing the image. The 12.8MP over and area of 17.3 x 13.0mm sensor and maximum apertures of f/1.7-2.8 can help to minimize noise at all ISO settings.
  UHD 4K Technology
  • The potential of the camera's large, 12.8MP 4/3" MOS sensor is further exploited by the ability to record UHD 4K (3840 x 2160) video at 30p. MP4 videos can also be recorded in full HD 1080p/60 or standard definition resolutions according to the NTSC or PAL standard.
  High-Resolution Viewing Options
  • Images and videos can be played back on the camera's large, sharp 3.0" 921k-dot rear LCD display. When it is preferable to use a viewfinder, the camera camera's integrated electronic viewfinder can be used instead.
  Wireless Connectivity
  • Paring the with a smartphone or tablet is made easy with integrated Near Field Communication (NFC) and Wi-Fi 802.11 b/g/n capability. Devices with the Leica Image Shuttle app can have images sent to them as images are taken with the camera. The app can also be used to show a live image from the camera or to control camera settings.
  Multiple Exposure Modes and Tactile Control
  • Exposure modes include program, aperture-priority, shutter-priority, manual, as well as 22 creative control modes. Exposure set can be quickly set via an aperture ring and shutter speed dial. Placement of these controls directly on the camera body allows for faster reaction to changing lighting conditions while providing constant confirmation of the chosen shutter speed and aperture.
  Durable and Elegant Body
  • Featuring a black-colored metal body, the D-LUX (Typ 109) is built to last. Buttons and dials are thoughtfully laid out to help ensure that the camera's features always remain a benefit and never and obstacle to the user.
  Included Flash
  • An integrated hot shoe and included Leica CF D external flash provide supplemental light when wanted while avoiding to drain the camera's battery.
  UPC: 799429184711
• SanDisk 32GB Extreme UHS-I SDHC Memory Card Built to meet the demands of photographers and passionate shutterbugs who are using advanced cameras and HD camcorders, the 32GB Extreme UHS-I SDHC Memory Card from SanDisk allows users to take advantage of functions such as fast action shots, continuous burst mode, and multiple frames per second. It features a capacity of 32GB, is compatible with the UHS-I bus, and delivers maximum read speeds of up to 90 MB/s and maximum write speeds of up to 40 MB/s. This Extreme UHS-I SDHC card supports the V30 speed class, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 speed class, this card also supports the U3 speed class, which likewise guarantees minimum write speeds of 30 MB/s. If your device only supports the Class 10 standard, minimum write speeds are guaranteed not to drop below 10 MB/s.

  Built for extreme conditions, SanDisk's 32GB Extreme UHS-I SDHC Memory Card is water, shock, and x-ray proof, while also being able to withstand temperatures from -13 to 185°F, allowing for use in environments such as snow and deserts. A built-in write protect switch further helps to safeguard your content, while advanced Error Correction Code engine offers improved data integrity and card reliability during read and write operations. Downloadable RescuePRO data recovery software helps you restore accidentally deleted images. The card also has a writable label on its surface and the included jewel case makes for easy storage and organization. This card is backed by a limited lifetime warranty.

  General Features

  Faster Performance and Downloads
  • With write speeds up to 40 MB/s, this card unleashes the full shooting potential of your advanced camera or DSLR. Take advantage of advanced functions such as fast action shots, continuous burst mode, and multiple frames per second. Photos are written to your card almost instantly so you'll get your best shot, and you'll save time moving it all from your camera to your computer.
  Capacity for High-Resolution Photos and Videos
  • With a capacity of 32GB to capture it all, this SanDisk Extreme UHS-I Card offers enough room for thousands of high-resolution photos. The card can accommodate high-volume image formats, such as RAW and JPEG, and also provides plenty of room for Full HD videos.
  4K and Full HD Video Recording
  • With Class 10, UHS Speed Class 3 (U3), and V30 video ratings, you'll be ready to capture 4K Ultra HD, cinema quality 3D, and Full HD video (1080p), which require more performance than ordinary cards can handle. This memory card's accelerated minimum sustained write speeds help ensure that video data isn't lost during recording, by reducing dropouts and stuttering.
  Error Correction for Enhanced Relability
  • Thanks to its Advanced Error Correction Code engine, this SanDisk Extreme UHS-I SDHC card helps reduce the chance for errors during data storage and retrieval. It prevents potential data corruption, providing high data integrity.
  Fast Transfer Speeds Reduce Upload Times
  • SanDisk Extreme UHS-I SDHC cards boast a read speed of up to 90 MB/s, so you can transfer photos and videos to your computer quickly. You'll spend less time uploading photos and more time editing, storing, and sharing.
  Durable Design
  • Designed and tested to withstand the tough conditions, this card has a capacity of 32GB and is waterproof, shockproof, and X-ray proof. It can operate in temperatures ranging from -13 to 185°F, so you can work in almost any climate.
  RescuePRO Software
  • SanDisk RescuePRO and RescuePRO Deluxe software are file and data recovery products for recovering deleted files from all types of digital media.
  UPC: 619659147037
• Ruggard Lyra 60 Camera Pouch (Black) Store, transport and protect your digital mirrorless or bridge camera from moisture, dirt and dust with the black Lyra 60 Camera Pouch from Ruggard. The pouch features an easy access, zippered, clamshell opening, and an interior SD memory card pocket. Soft, padded, interior nylon helps protect your camera from impact, scratches and abrasion. This protection is complemented by a weather-resistant nylon exterior. Carry the pouch with the top grab handle, handy belt loop with touch-fasten tabs, or with the removable shoulder strap. The bright yellow interior makes it easier to locate stored items in low light.
  • Durable, weather-resistant nylon exterior for protection from moisture, dirt, and dust
  • Thick foam padding to protect against bumps and impact
  • Soft nylon interior to prevent lens and screen scratches and abrasions
  • Interior media pocket for storing 2 SD memory cards
  • Zippered front pocket for added cards, lens cloth, spare battery and other small items
  UPC: 847628571358

• D-LUX (Typ 109) Digital Camera (Black) astyubqxaezybee
• Lithium-Ion Battery Pack
• Battery Charger
• USB Cable
• Leather Neck Strap (Black)
• Lens Cap with String
• Hot Shoe Cover
• CF D External Flash (Black)
• Limited 3-Year Warranty

• SanDisk - 32GB Extreme UHS-I SDHC Memory Card

• Ruggard - Lyra 60 Camera Pouch (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Leica D-LUX (Typ 109) Digital Camera (Black)

  Pixels	Actual: 16.8 Megapixel Effective: 12.8 Megapixel
  Sensor	Four Thirds (17.3 x 13.0 mm) MOS
  File Formats	Still Images: JPEG, RAW Movies: MP4 Audio: AAC
  Image Stabilization	Optical

  Lens	Effective Focal Length: 10.9 to 34mm (35 mm Equivalent: 24 to 75mm) Aperture: f/1.7 (W) to f/2.8 (T)
  Filter Thread	43mm
  Zoom	Optical: 3.1x Digital: 4.0x Intelligent Zoom: 6.2x
  Focus Range	Normal: 19.68" to Infinity / 49.99 cm to Infinity Wide: 1.18" to Infinity / 3 cm to Infinity Telephoto: 11.81" to Infinity / 30 cm to Infinity

  ISO Sensitivity	100 to 12500 (Extended Mode:100)
  Shutter	Type: Mechanical Speed: 60 to 1/4000 Second Type: Electronic Speed: 1 to 1/16000 Second 1/30 to 1/16000 Second in Motion Images (NTSC) Mode 1/2 to 1/16000 Second in Movie Mode
  Exposure Metering	Center-Weighted, Multi, Spot
  Exposure Modes	Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps)
  Shooting Modes	Bleach-Bypass Cross-Process Dynamic Monochrome Expressive Fantasy High Dynamic High-Key Impressive Art Low Key Miniature Effect Monochrome Natural Old Days One Point Color Panorama Portrait Retro Rough Monochrome Scenery Sepia Silky Monochrome Soft Focus Standard Star Filter Sunshine Toy Camera Effect Toy Pop Vivid Color
  White Balance	Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 4
  Continuous Shooting	Up to 40 fps for up to Exposures Up to 11 fps for up to Exposures Up to 7 fps for up to Exposures Up to 2 fps for up to Exposures

  Flash Modes	Auto Auto/Red-Eye Reduction Forced On Forced On/Red-Eye Reduction Off Slow Sync Slow Sync/Red-Eye Reduction
  Built-In Flash	No
  Effective Flash Range	Wide:2.62 to 27.88' / 0.80 to 8.50 m Telephoto:0.98 to 17.06' / 0.30 to 5.20 m
  External Flash Connection	Hot Shoe

  Memory Card Type	SD SDHC SDXC

  Video Recording	Yes, NTSC
  Resolution	3840 x 2160p: 30 fps, 24 fps 1920 x 1080p: 60 fps, 30 fps 1280 x 720p: 30 fps 680 x 480p: 30 fps

  Video Clip Length	Up to 29 Minutes
  Audio Recording	Built-In Mic: With Video (Stereo)

  Viewfinder Type	Electronic
  Viewfinder Coverage	100%
  Screen	3.0" LCD Rear Screen (921,000 Pixels)
  Screen Coverage	100%

  Connectivity	AV / USB Multi, AV Output, HDMI C (Mini)
  Wi-Fi	Yes, Wi-Fi 4 (802.11n) Built In

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	10 to 80%

  Battery	1 x Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1025 mAh

  Dimensions (W x H x D)	4.6 x 2.6 x 2.4" / 11.7 x 6.6 x 6.1 cm
  Weight	12.87 oz / 364.86 g without battery

  Box Dimensions (LxWxH)	6.9 x 6.1 x 4.7"

• SanDisk 32GB Extreme UHS-I SDHC Memory Card

  Card Type	SDHC
  Storage Capacity	32 GB
  Bus Type	UHS-I
  Speed Class	10
  UHS Speed Class	U3
  Video Speed Class	V30
  Bus Interface Speed	UHS Class I
  Data Transfer	Read Speed: 90 MB/s Maximum (Burst) Write Speed: 40 MB/s Maximum (Burst) Write Speed: 30 MB/s Minimum
  Durability	Shockproof, Temperature Extremes, Waterproof, X-Ray Proof
  Operating Temperature	-13 to 185°F/ -25 to 85°C
  Storage Temperature	-40 to 185°F/ -40 to 85°C
  Error Correction	Yes
  Built-in Write-Protect Switch	Yes

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.1"

• Ruggard Lyra 60 Camera Pouch (Black)

  Carrying/Transport Options

  Belt Loop, Handle, Shoulder Strap

  Exterior Dimensions	4.25 x 3.5 x 5.75" / 10.8 x 8.9 x 14.6 cm
  Exterior Material	Nylon
  Type of Closure	Zipper

  Interior Dimensions	4 x 3.25 x 5.5" / 10.16 x 8.26 x 13.97 cm
  Interior Material	Nylon
  Weight	3.0 oz / 85 g

  Box Dimensions (LxWxH)	2.598 x 2.047 x 0.63"
