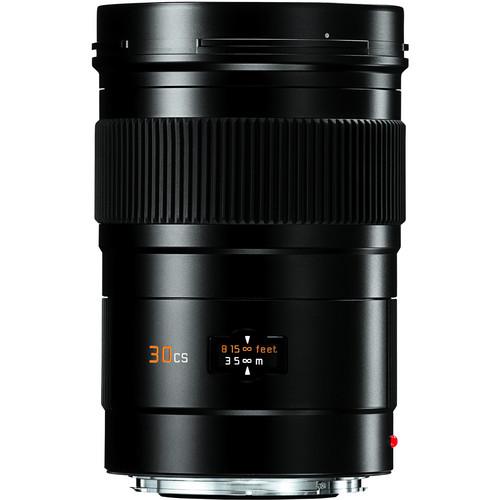

User Manual for Leica Elmarit-S 30mm f 2.8 ASPH CS Lens Click to enlarge the picture
Contents of the user manual for the Leica Elmarit-S 30mm f 2.8 ASPH
- Product category: Medium Format Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Medium Format Lenses
|
User manual for the Leica Elmarit-S 30mm f 2.8 ASPH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The Leica Elmarit-S 30mm f/2.8 ASPH CS Lens is a wide-angle prime lens designed for the Leica S-series medium format digital cameras. It provides a 35mm-equivalent focal length of 24mm, giving a broad perspective that is ideally suited to interior, architecture, and landscape shooting. An f/2.8 maximum aperture is ideal for control over focus position for shallow depth of field imagery and also benefits working in dim lighting conditions with available light. The CS version of this lens incorporates a central shutter within the lens design to benefit working with high-speed flash sync at any shutter speed, up to the maximum of 1/1000 sec.
The optical design of this lens features five elements with anomalous partial dispersion and three low-dispersion fluoride elements to reduce chromatic aberrations. Three high-refractive index and two aspherical elements are also integrated into the construction in order to minimize monochromatic aberrations and improve the overall image sharpness and clarity. The rear-most six elements are moved in order to control focus, maintaining a constant lens length while focusing as closely as 1.6' away. - Wide-angle prime lens designed for Leica S medium-format digital cameras.
- 35mm-equivalent focal length of 24mm offers a wide perspective that is well-suited for interior, architecture, and landscape photography.
- Central shutter permits flash sync at all shutter speeds from 8 to 1/1000 sec.
- Maximum f/2.8 aperture is ideal for low available light shooting as well as greater control over focus placement.
- Optical construction incorporates five anomalous partial dispersion elements, three low-dispersion fluoride elements, three high-refractive index elements, and two aspherical elements to minimize an array of aberrations while also providing high image quality and sharpness.
- Rear-group type internal focusing maintains lens' overall length and offers faster, more controlled performance for auto focusing.
UPC: 799429110741 In the Box Leica Elmarit-S 30mm f/2.8 ASPH CS Lens Front and Rear Lens Caps Lens Hood Lens Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Elmarit-S 30mm f 2.8 ASPH CS Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11074 Specs | Focal Length | 30 mm | | Aperture | Maximum: f/2.8
Minimum: f/22 | | Camera Mount | Leica S bayonet | | Angle of View @ Infinity | 83° | | Minimum Focus Distance | 1.64' / 49.99 cm | | Optical Design | 13 Elements in 9 Groups | | Maximum Reproduction Ratio | 1:11.3 | | Shutter Type | Leaf | | Shutter Speeds | 1 / 1000 to 6 second | | Flash Synchronization | Shutter Speed up to 1/1000 at All Speeds | | DOF Scale | No | | Distance Scale | Yes | | Autofocus | Yes | | Filter Thread | Front: 82 mm | | Dimensions | Approx. 3.46 x 5.04" (88 x 128 mm) | | Weight | 2.51 lb / 1.14 kg | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 9.5 x 6.6 x 6.6" |
