User Manual for Leica Elmarit-S 45mm f 2.8 ASPH Lens Click to enlarge the picture
Contents of the user manual for the Leica Elmarit-S 45mm f 2.8 ASPH
- Product category: Medium Format Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Medium Format Lenses
 |
User manual for the Leica Elmarit-S 45mm f 2.8 ASPH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

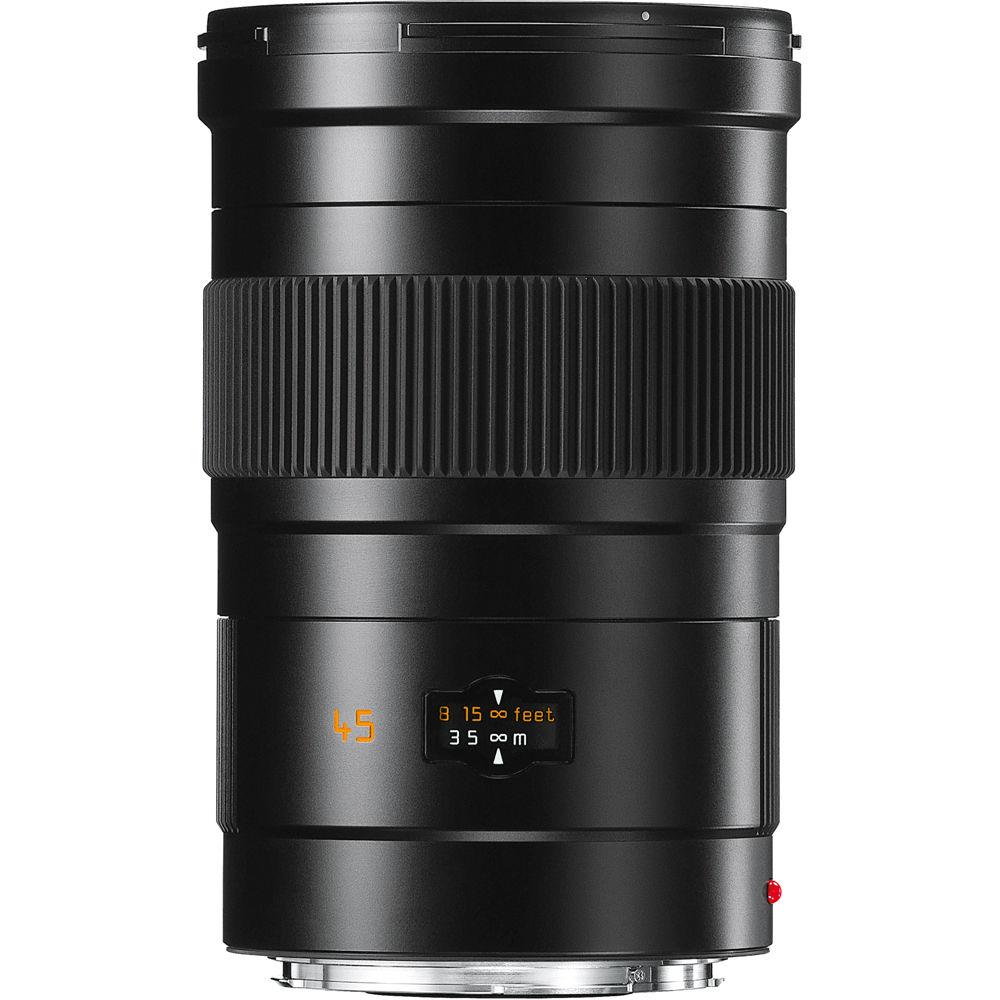

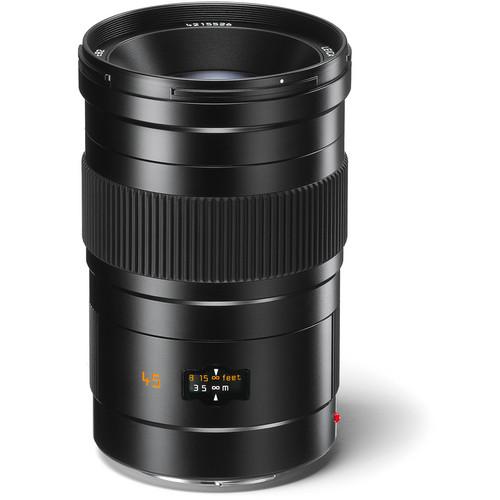

Product description The Leica Elmarit-S 45mm f/2.8 ASPH Lens is a wide-angle prime lens designed for the Leica S-series medium format digital cameras. It provides a 35mm-equivalent focal length of 36mm, giving a moderately wide perspective that is ideally suited to photojournalism, architecture, landscape, and fashion photography. An f/2.8 maximum aperture is ideal for shallow depth of field imagery and also effective in dim lighting conditions when working with available light.The sophisticated optical design of this lens features three elements with anomalous partial dispersion glass and two high refraction extra-low dispersion elements to reduce chromatic aberrations. In addition, one aspherical surface element minimizes monochromatic aberrations and improves overall image sharpness. Rear-group focusing and one independent floating optical element maintain a constant lens length while providing sharp focus from infinity to the minimum focus distance of 23.6".Weather sealing protects the lens from dust and water spray and the included retractable lens hood deflects stray light to minimize flares and help provide high contrast images, even in backlight situations. - Wide-angle prime lens designed for Leica S medium-format digital cameras.
- 35mm-equivalent focal length of 36mm offers a moderately wide perspective that is well-suited for architecture, fashion, landscape and street photography and photojournalism.
- Maximum f/2.8 aperture is ideal for low light shooting as well as greater control over shallow depth of field focusing. The electronically controlled iris offers selectable f-stops in half-stop increments via the click wheel on the camera.
- The optical construction incorporates three anomalous partial dispersion glass elements, two high-refraction extra-low dispersion elements, and one aspherical surface element to minimize chromatic and monochromatic aberrations and provide sharp, high-contrast images.
- Rear-group type internal focusing maintains lens' overall length and offers faster, more controlled autofocus performance.
- A floating lens element moves independently to provide sharp focus from infinity to the minimum focus distance of 23.6".
- Weather sealing protects the lens from elements such as dust & water spray and the lens barrel features a black anodized finish.

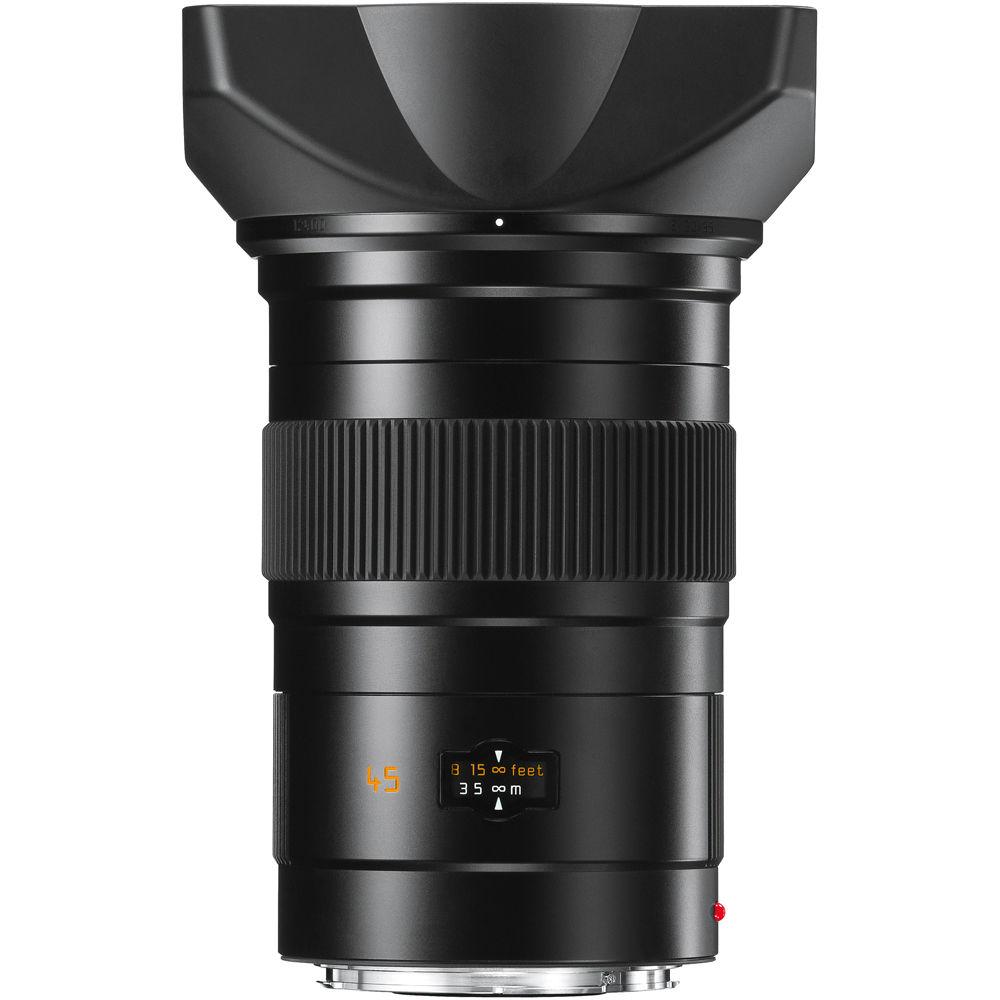

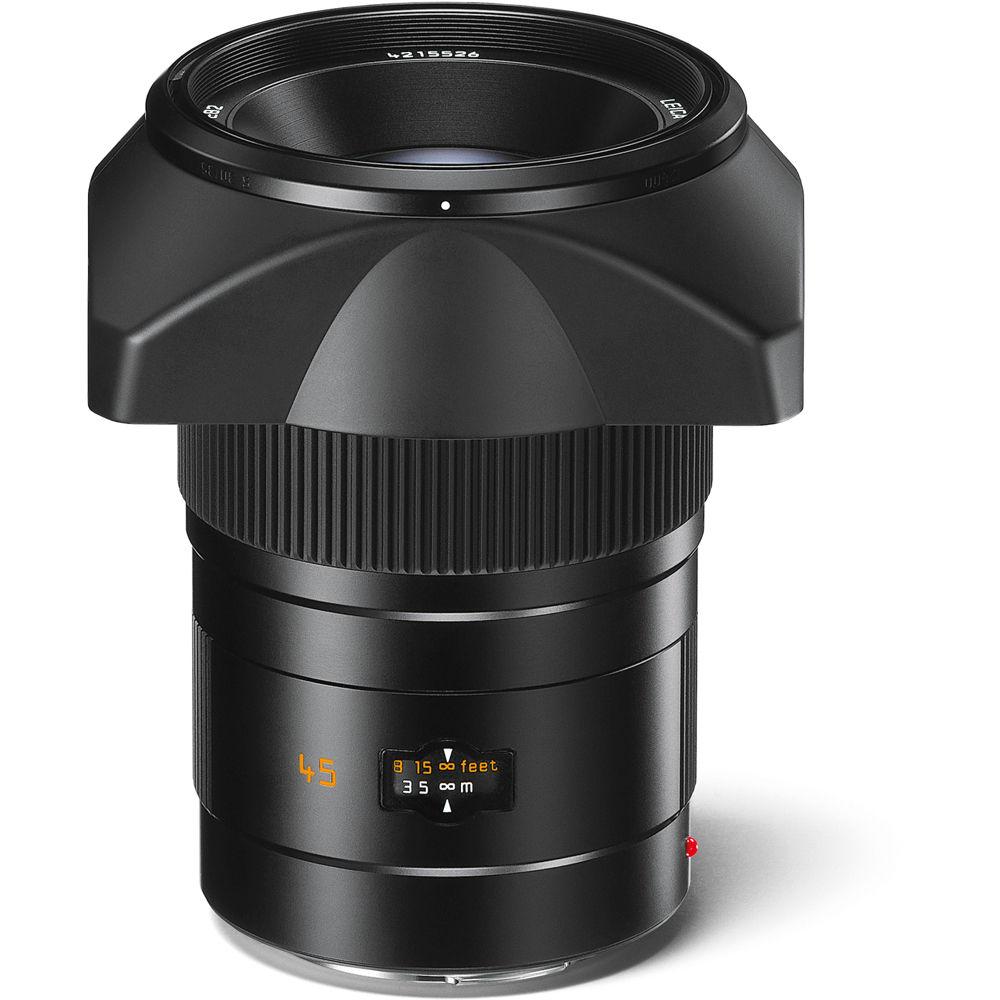

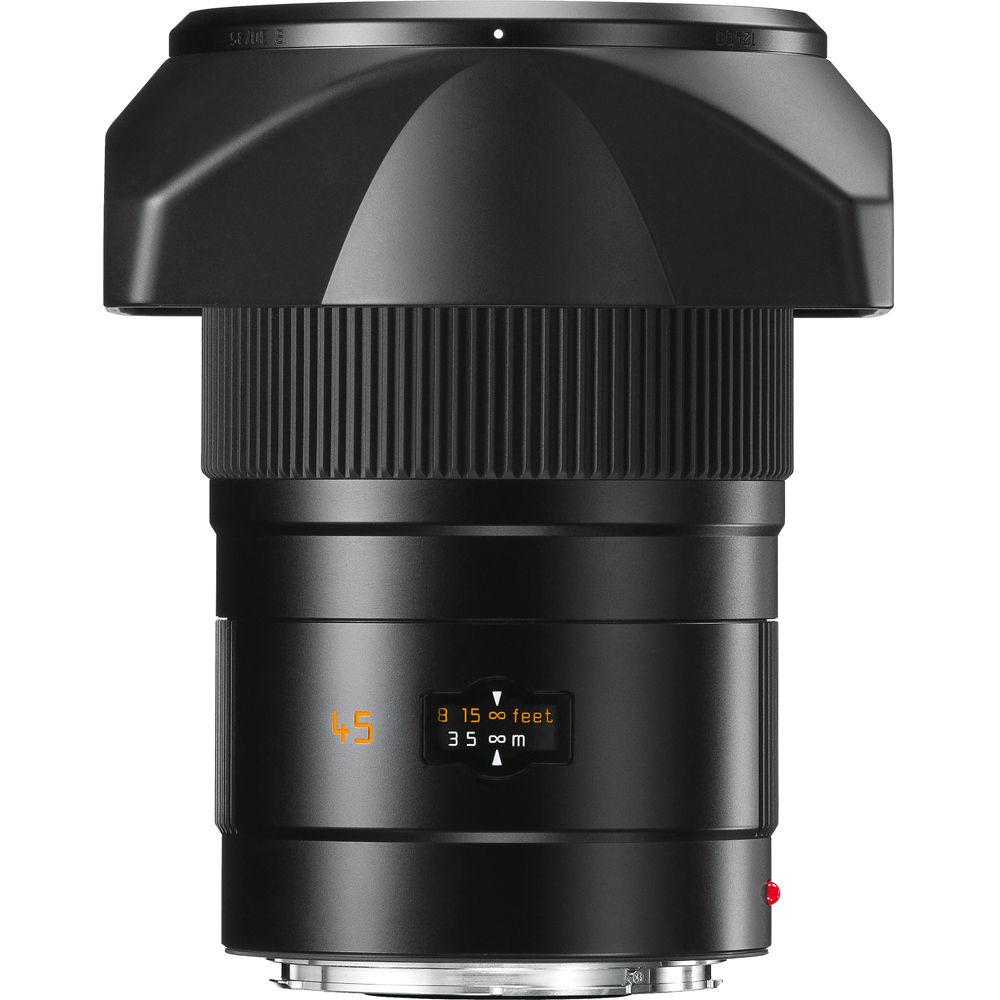

- The included lens hood is dedicated to match the lens' light beam path and is retractable for easy transport and storage.
UPC: 799429110772 In the Box Leica Elmarit-S 45mm f/2.8 ASPH Lens 82mm Front Lens Cap for S-Series Lenses 16020 S-Rear Lens Cap Lens Hood Lens Pouch Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Elmarit-S 45mm f 2.8 ASPH Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11077 Specs | Focal Length | 45 mm | | Aperture | Maximum: f/2.8
Minimum: f/22 | | Camera Mount | Leica S bayonet | | Angle of View @ Infinity | 62° | | Minimum Focus Distance | 23.62" / 0.6 m | | Area of Coverage | 456 x 304 mm | | Optical Design | 12 Elements in 9 Groups | | Maximum Reproduction Ratio | 1:10.1 | | Flash Synchronization | 1/125 | | DOF Scale | No | | Distance Scale | Yes | | Autofocus | Yes | | Filter Thread | Front: 82 mm | | Dimensions | Approx. 3.46 x 5.35" (88 x 136 mm) | | Weight | 2.27 lb / 1030 g | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 9.5 x 6.6 x 4.6" |
