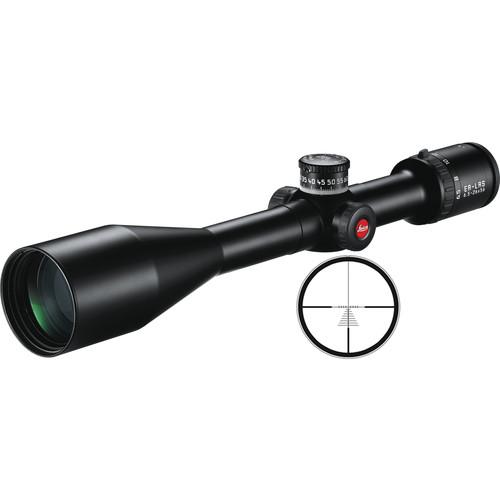

User Manual for Leica ER 6.5-26x56 LRS Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Leica ER 6.5-26x56 LRS Side Focus
- Product category: Riflescopes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Riflescopes
|
User manual for the Leica ER 6.5-26x56 LRS Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Optimized for marksmen and competitive shooters, the long-range ER 6.5-26x56 LRS Side Focus Riflescope from Leica features a wide objective lens, high contrast High Definition (HD) multicoated optics, and a 4x zoom. The 56mm objective provides maximum light gathering capacity in its class, which allows you to extend your hunting day and take shots at dawn or dusk. The brightness of images is further enhanced with multiple high quality dielectric anti-reflective coatings that provide transmission of light greater than 91%. With the additional AquaDura coating on the objective lens, you can simply wipe out the lens with a lens cloth without worrying about it getting wet or scratched. Aiming is parallax-free from 55 yards to infinity and the scope offers a 1/2 cm per click impact point correction, a 70 MOA windage, and a 120 cm elevation adjustments. The side focus adjustment option helps you to adjust sharpness of the reticle without taking your eye off the target.
Intended for enhanced magnum ballistic shooting with magnum rifles, the Magnum Ballistic reticle is located in the second focal plane and will remain the same in size as you change the zoom factor on your scope. It is ideal for mountain or open plain big game hunting and varmint shooting at extended ranges. In addition, it allows you control to compensate for cross-winds with hold-offs for 10 and 20 mph and has hold-overs for fast range determinations.
The durable matte black housing is made of single-piece high-grade aluminum and features a 30mm main tube. It is nitrogen filled to provide fogproof and waterproof performance and is submersible to 13.1'. The knurled zoom ring has a low profile lever for fast one-finger zooming. Also included with the riflescope are a lens cloth, objective lens and eyepiece covers. Optical Performance -
- Zoom magnification: 6.5-26x
- Objective lens diameter: 56mm
- High Definition (HD) optical elements
- Multicoated for brighter, clearer, high contrast images
- Optimized to reduce color fringes and improve contrast
- AquaDura water-resistant coating allows for easy objective lens cleaning
- Angular field of view: 3.1-0.8°
- Exit pupil diameter: 8.6-2.2 mm
Reticle -
- Magnum Ballistic reticle located at the second focal plane
- Ideal for mountain or open plain big game hunting and varmint shooting at extended ranges
- Provides hold-overs for fast range determinations
- Intended for enhanced magnum ballistic shooting with magnum rifles
- Hold-offs for 10 and 20 mph cross-winds
Use and Handling -
- 70 cm windage and 120 cm elevation adjustment ranges
- 1/2 cm impact point correction
- Parallax-free from 55 yd to infinity
- Eye relief: 3.9"
Construction Details -
- Main tube diameter: 30mm
- Sport Ballistic Turret for marksmen and competitive shooters included
- Side focus dial for parallax correction adjustments
- Zoom ring has a low profile lever for a fast one-finger zooming action
- Housing is made of single piece anodized high-grade aluminum
- Nitrogen-filled fogproof
- Waterproof, submersible to 13.1'
UPC: 799429560812 In the Box Leica ER 6.5-26x56 LRS Side Focus Riflescope (Magnum Ballistic) - Cleaning Cloth
- Ocular Cover
- Objective Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica ER 6.5-26x56 LRS Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 56081 Specs | | | Magnification | 6.5 to 26x | | Objective Lens Diameter | 56 mm | | Field of View | 6.5x: 16.5' @ 100 yd / 5.5 m @ 100 m
26x: 4.4' @ 100 yd / 1.5 m @ 100 m | | Exit Pupil Diameter | 6.5x: 8.6 mm
26x: 2.2 mm | | Eye Relief | 3.9" / 100 mm | | Diopter Correction | -4.0 to +3.0 | | | | Reticle Type | Magnum Ballistic Reticle (Second Focal Plane) | | | | Filter Thread | M58 x 0.75 | | Parallax Correction | Yes, 54.6 yd / 50 m to Infinity | | | | Water Resistance | Waterproof to 13.1' / 4 m | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 14.8" / 37.6 cm | | Weight | 26.5 oz / 750 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 19.0 x 4.6 x 4.6" |
