Leica M-A Rangefinder Camera

Search your instruction manual in PDF to download

User Manual for Leica M-A Rangefinder Camera

Click to enlarge the picture
Leica M-A Rangefinder Camera Contents of the user manual for the Leica M-A Rangefinder Camera
  • Product category: 35mm Cameras Leica
  • Brand: Leica
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Leica 35mm Cameras

Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera Leica M-A Rangefinder Camera
User manual for the Leica M-A Rangefinder Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Leica product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!



Product description

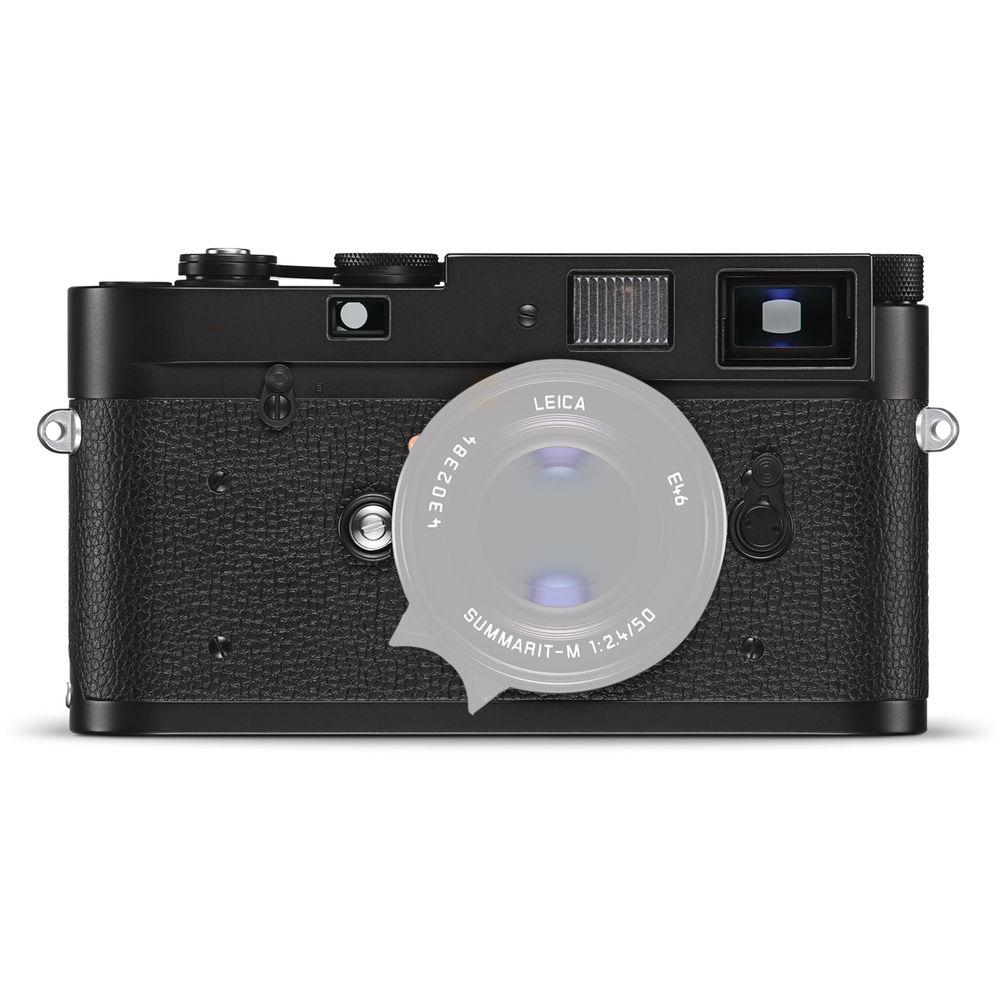

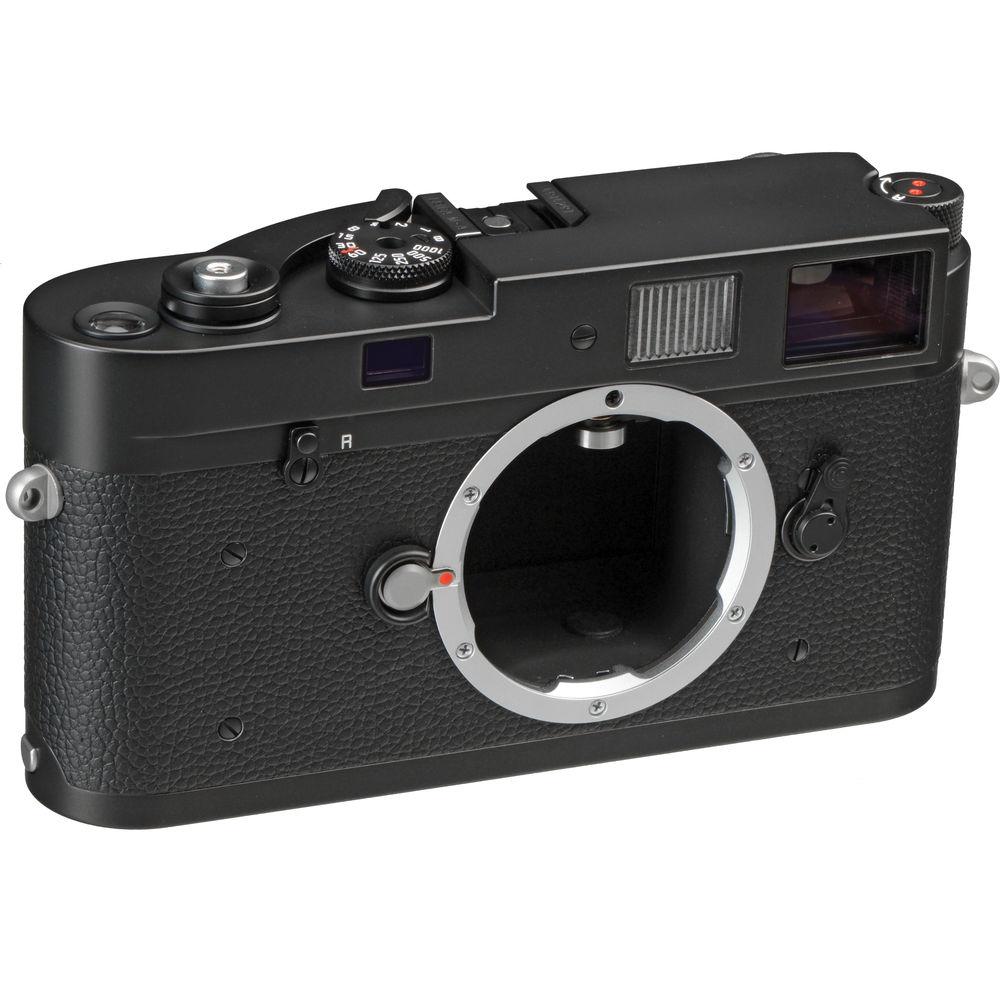

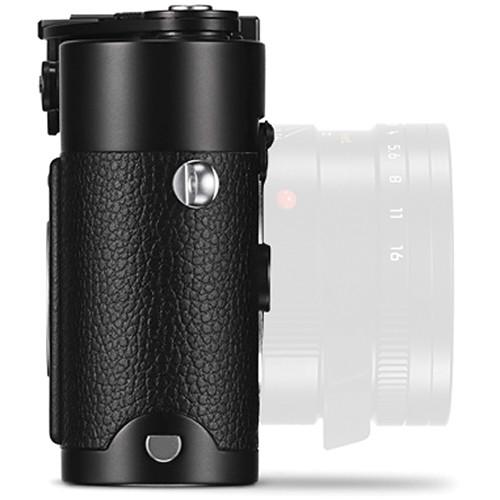

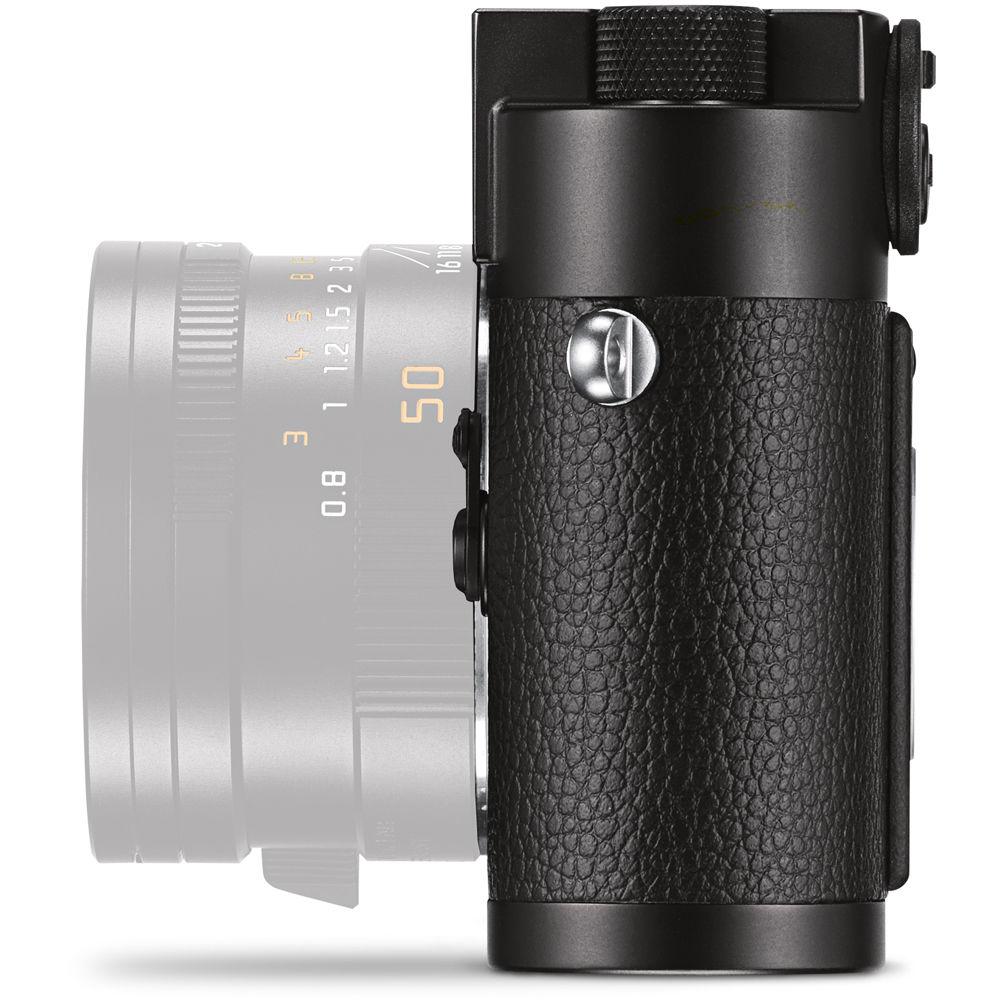

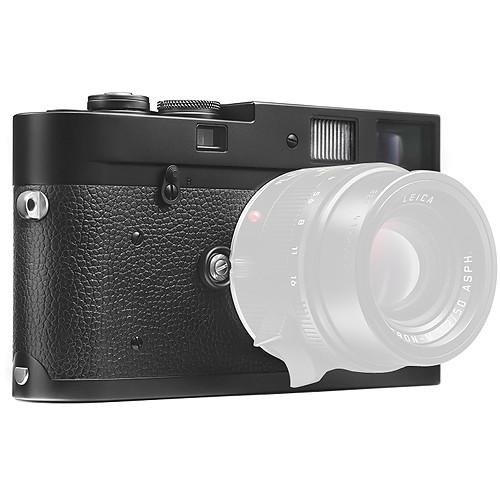

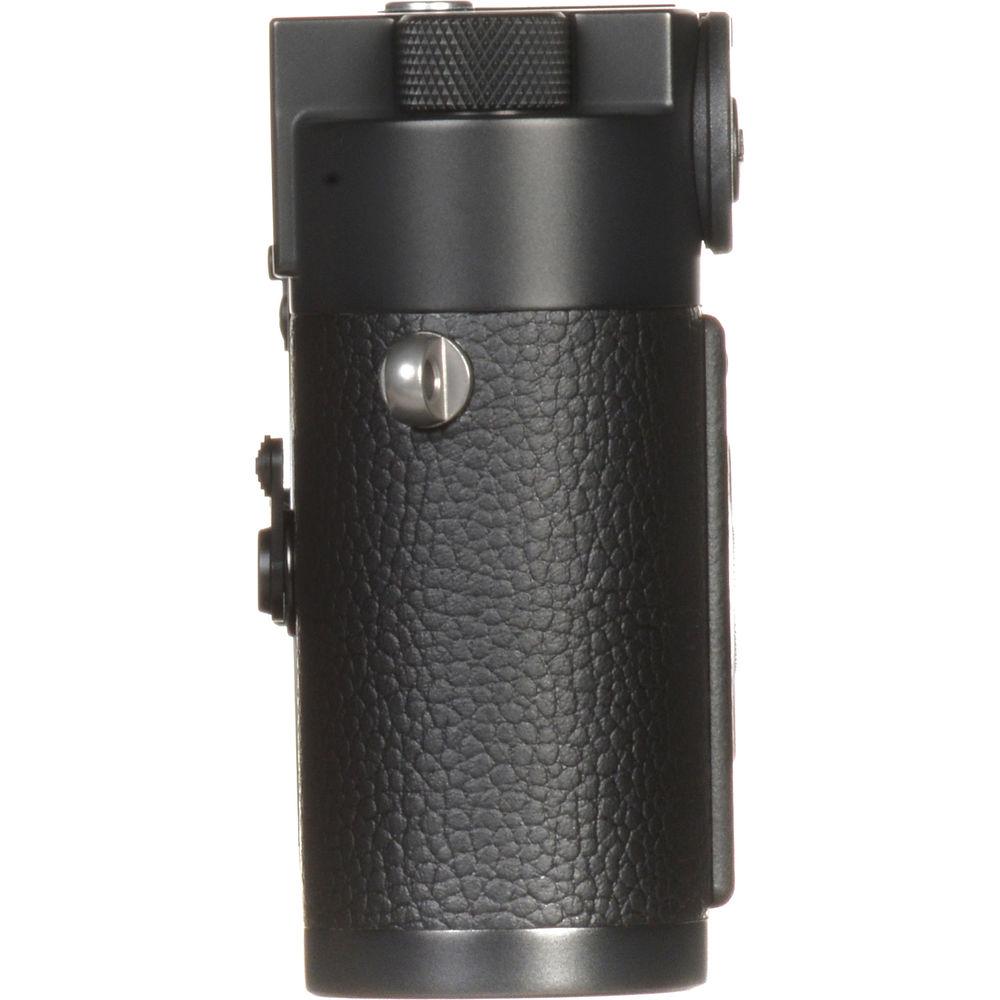

Focusing on the founding principles of photography, the Leica M-A (Typ 127) is a 35mm film rangefinder camera characterized by its simplicity and unobtrusiveness. As a completely mechanical camera, no battery is required for operation and the only exposure control offered is a choice of shutter speed, up to 1/1000 sec. A large, bright 0.72x-magnification viewfinder pairs with a precise rangefinder mechanism to enable comparative manual focusing control with M-mount lenses, along with parallax-corrected compositional framing. The body features black-colored chromed brass top and bottom covers, as well as an all-metal body design, to offer both durability as well as an aesthetic, minimal appearance. Designed for intuitiveness and efficient operability, the precision afforded by the M-A serves to complement a straight-forward working method.
  • Classic 35mm film rangefinder features a large, bright 0.72x-magnification viewfinder.
  • Completely mechanical operation requires no battery and permits working with just the basic aspects of photography: shutter speed, aperture, and film speed.

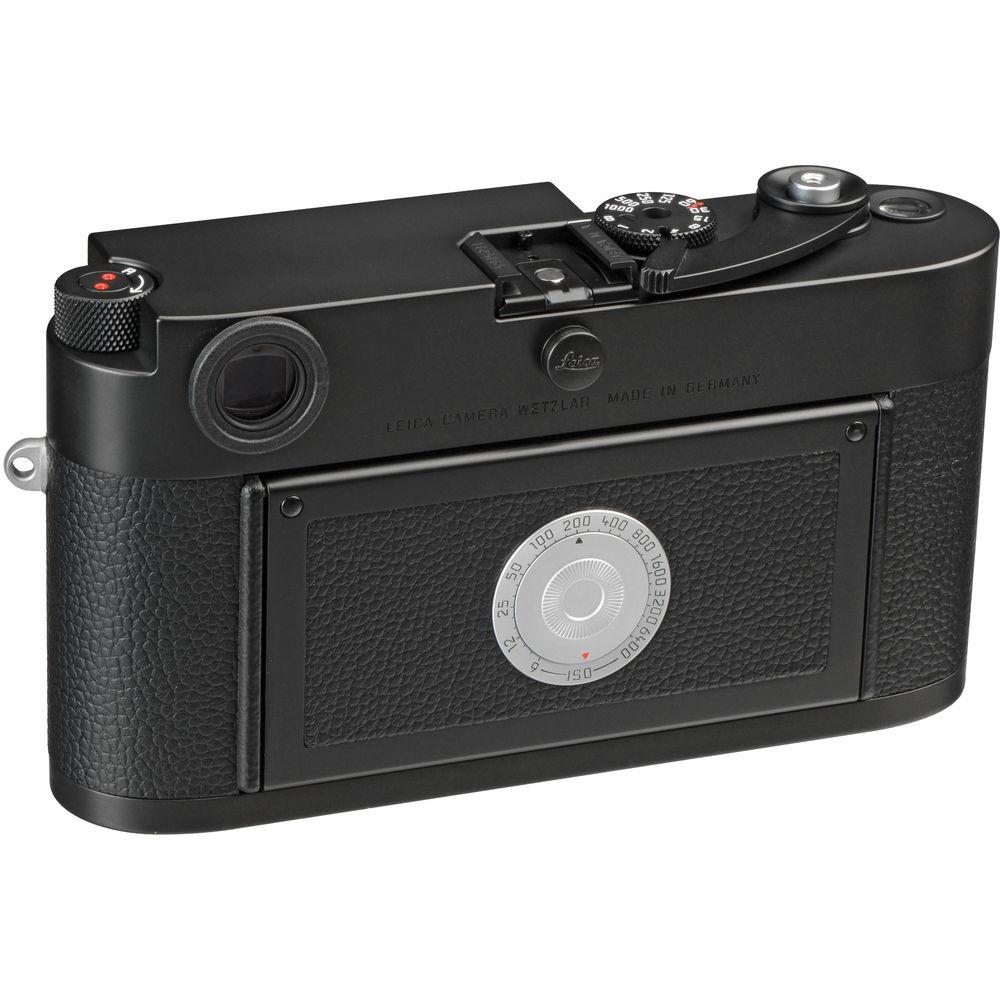

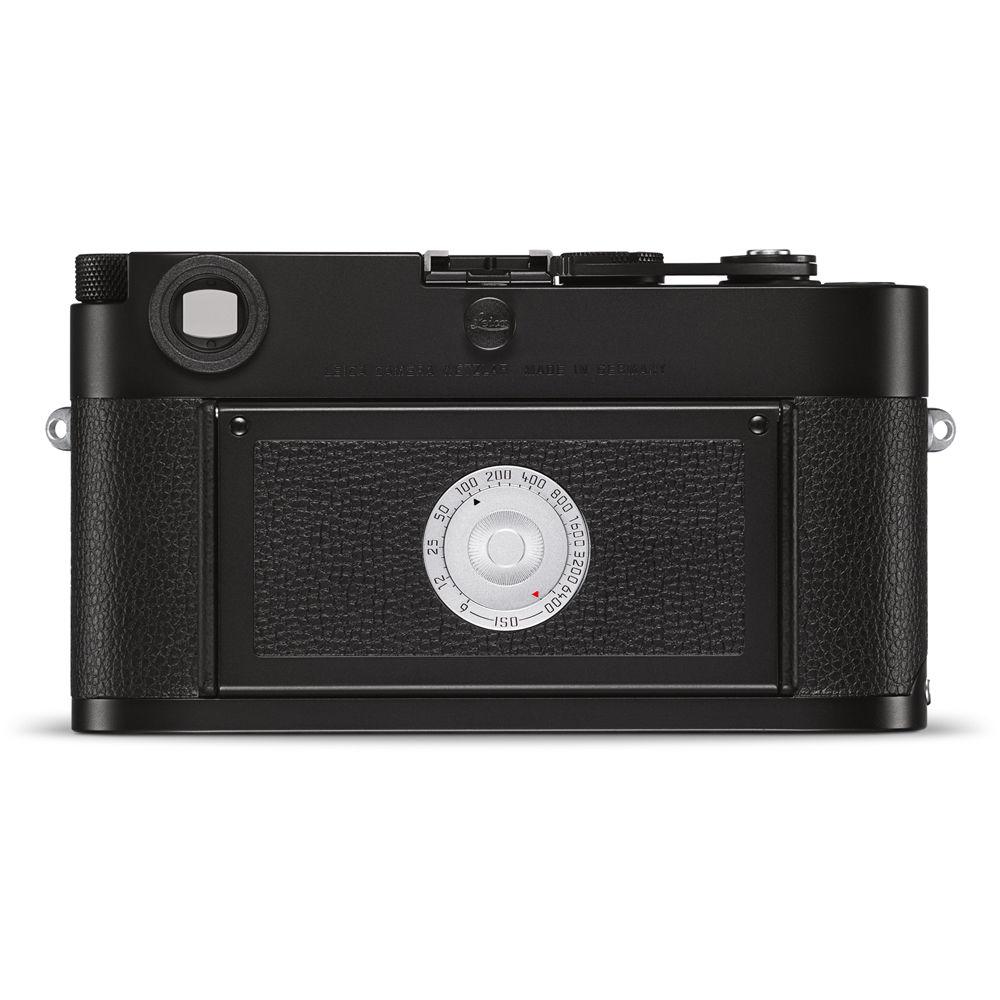

  • A rear ISO dial can be used to indicate the speed of film in use.

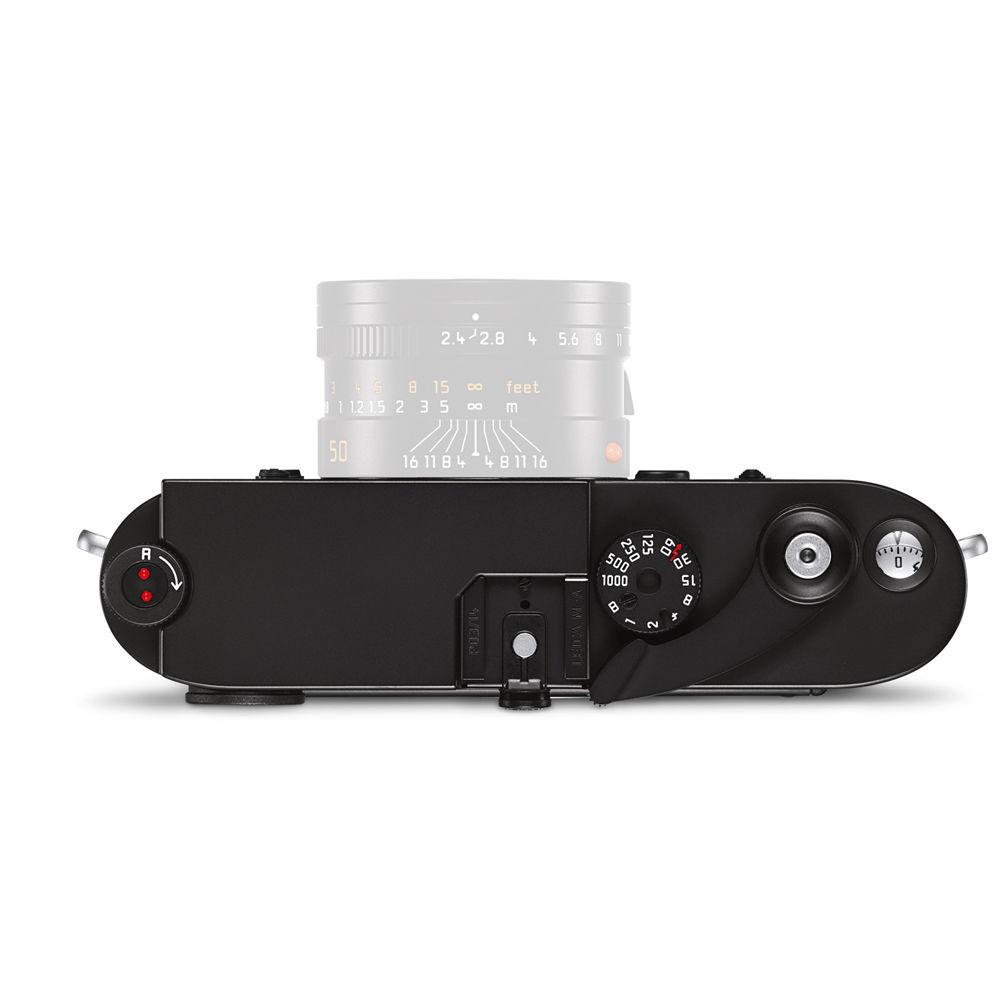

  • The top shutter speed dial permits selection of speeds from 1/1000 sec. to 1 sec., with a bulb setting also available for long exposures. Flash sync is available at all speeds up to 1/50 sec.
  • The hot shoe incorporates a center contact for compatibility with a wide array of flashes.
  • Compatible with all M-mount lenses ranging in focal lengths from 16mm to 135mm.
  • Image field frame lines are automatically activated with each mounted lens, and offer an accurate, parallax-corrected reference for image composition. Alternatively, image field lines can be selected to pre-visualize the composition of other focal length lenses.
UPC: 799429103705 In the Box Leica M-A (Typ 127) Rangefinder Camera (Black)
  • Body Cap
  • Carrying Strap
  • Roll of Kodak Tri-X 400 35mm Black & White Negative Film
  • Limited 1-Year Leica Society Digital Membership
  • Limited 3-Year Warranty
  • LHSA Digital Membership PDF 77.5kb Table of Contents




    Upload User Manual

    Have you got an user manual for the Leica M-A Rangefinder Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Leica M-A (Typ 127) Specs

    Lens Mount Leica M bayonet
    Lens System Leica M lenses from 16-135mm focal length
    Type Mechanical rangefinder
    Film Format 35 mm
    Exposure Control Manual (shutter speed on body only; aperture on attached lens)
    External Flash Connection Hot shoe with center contact
    Flash Synchronization With first curtain; up to 1/50 sec.
    Shutter Type Focal plane; mechanical rubber blanket slotted shutter with horizontal movement
    Shutter Speed Range 1 to 1/1000 sec. (in 1 EV increments), bulb
    Type Bright line frame viewfinder with automatic parallax correction
    Eyepiece Calibrated to -0.5 dpt (optional corrective lenses available)
    Parallax Correction Horizontal and vertical offset between viewfinder and lens axis automatically compensated for according to relevant distance setting

    At the shortest possible distance for each focal length, the bright line frame size corresponds to an image of approx. 23 x 35 mm. When set to infinity, depending on the focal length between 9% (28mm) and 23% (135mm) more is captured by the film than is shown in the corresponding bright line frame
    Magnification 0.72x
    Rangefinder Basis 49.9 mm (mechanical measurement basis of 69.25 mm x viewfinder magnification of 0.72x)
    Split or superimposed image rangefinder shown as bright field in the center of the viewfinder image
    Film Loading Manual film loading after opening the bottom cover and the rear panel
    Film Wind Forward: Manual winding with quick wind lever (compatible with optional motorized winders)
    Rewind: Manually with pull-out rewind button, after moving the R lever on front of camera
    Tripod Mount 1/4"
    Dimensions 5.4 x 1.5 x 3.0" / 138 x 38 x 77 mm
    Weight 1.3 lb / 578 g
    Package Weight 4.35 lb
    Box Dimensions (LxWxH) 8.7 x 8.6 x 6.5"
