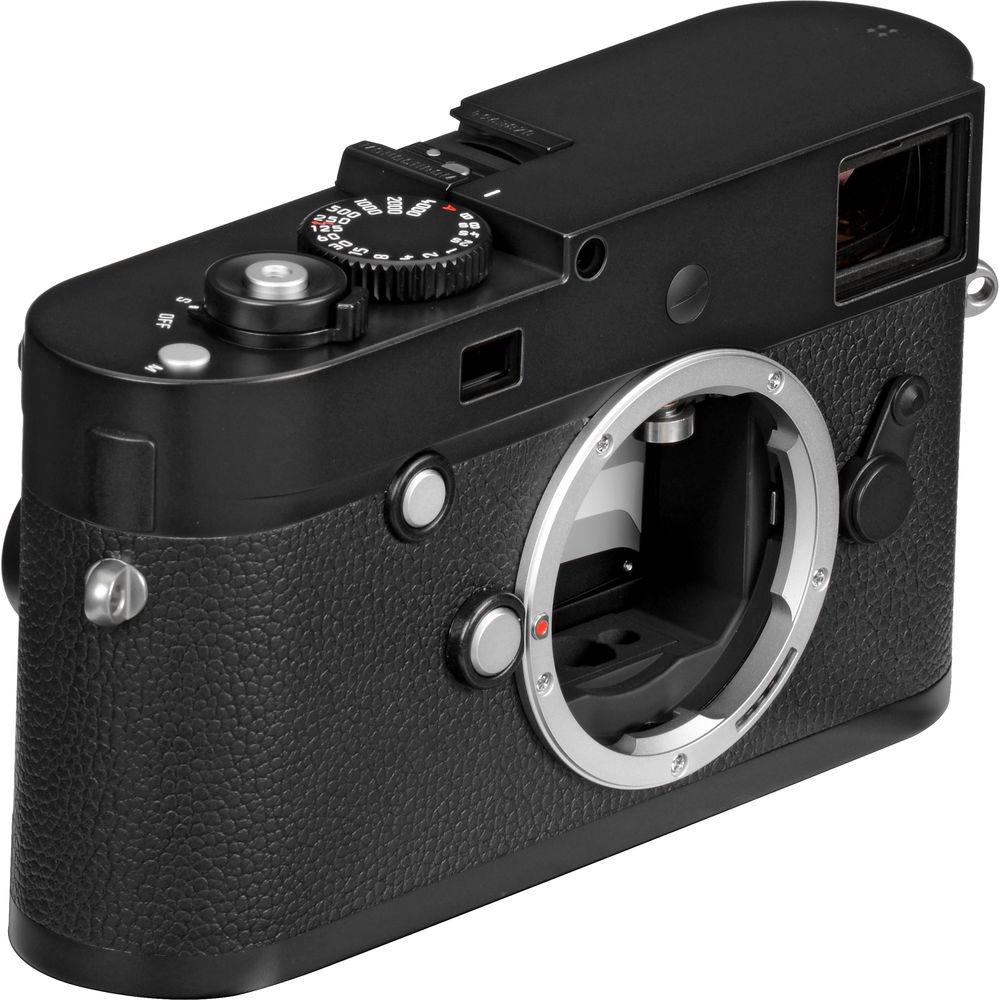

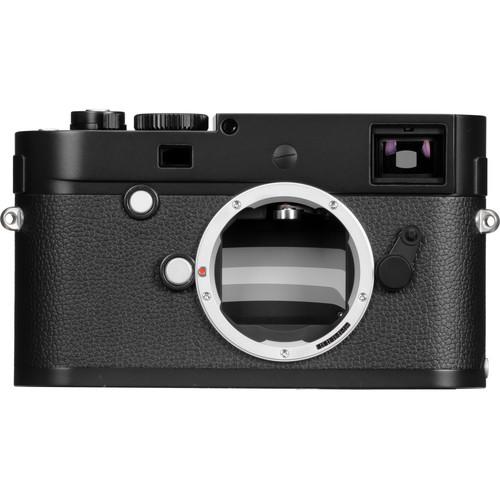

User Manual for Leica M Monochrom Digital Rangefinder Camera Click to enlarge the picture
Contents of the user manual for the Leica M Monochrom Digital Rangefinder Camera
- Product category: Mirrorless System Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Cameras
 |
User manual for the Leica M Monochrom Digital Rangefinder Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Things We Love: Leica M Monochrom (Typ 246) Digital Rangefinder Camera Read More - Leica Monochrom Typ 246: First Look
- How to use a Leica M Camera
Consistent with Leica's passion for classic designs mixed with contemporary functionality, the M Monochrom (Typ 246) Digital Rangefinder Camera is a unique digital camera dedicated to producing black and white imagery. Lacking a color filter array, as well as an optical low pass filter, the M Monochrom's full-frame 24MP CMOS sensor records solely in luminance values, forgoing the need for color interpolation, in order to gain the utmost in sharpness, clarity, and resolution. Complementing the imaging capabilities, the Leica Maestro image processor also affords a sensitivity range from ISO 320-25000 as well as a 3 fps shooting rate with a 2GB buffer for recording up to 30 frames in a sequence. Full HD 1080p video recording is also possible in either 24 or 25 fps frame rates. Unique among digital cameras, the Typ 246 maintains Leica's preference for a rangefinder design and incorporates a 0.68x optical viewfinder with split and superimposed manual focusing, automatic parallax correction, and manual image field selection. Conversely, the camera also features a 3.0" 921.6k-dot LCD with sapphire glass covering to maintain the overall durability of the magnesium alloy and brass body.
As with past M-series cameras, the M Monochrom retains the ability to utilize the vast network of M-mount lenses from 16mm to 135mm. When working in live view, and since focusing operation is entirely manual, focus peaking and 10x live view zoom can be utilized to ensure critical focus. An ergonomic body design places all of the necessary camera controls within reach during shooting, including top shutter speed and drive mode dials, as well as rear menu navigation buttons and selection dial located atop the thumb rest.
The DNG files created by the M Monochrom (Typ 246) are not currently compatible with Apple's Photos and Aperture applications in Mac OS X Yosemite (10.10.3 and 10.10.4) and should not be imported into your Photos or Aperture libraries. - Monochrom
- Distinct from most digital camera, the M Monochrom (Typ 246) is a high-resolution camera dedicated solely to recording black and white imagery. By omitting a color filter array, as well as an optical low pass filter, this camera records imagery only in luminance values in order to gain higher sharpness, as well as increased clarity, depth, and resolution. Additionally, this design also contributes to reduce noise values when shooting at higher sensitivities, up to ISO 25000.
- 24 MP CMOS Sensor and Maestro Processor
- Featuring a full-frame 24 MP B&W CMOS sensor and Maestro processor, this camera is also characterized by its improved shooting speed and versatility. A continuous shooting rate of 3 fps is possible and a 2GB buffer permits recording up to 30 DNG and/or JPEG files in a sequence with instant review possible.
The sensor and processor combination also affords full HD 1080p video recording, in either 24 or 25 fps frame rates. An on-board monaural microphone can be used for audio recording, in auto, manual, or "Concert" modulation settings, or an optional external stereo microphone can be used when paired with a microphone adapter set. - Optical Viewfinder and Rangefinder
- The optical viewfinder is a large, bright-line 0.68x-magnification rangefinder with automatic parallax compensation and LED-illuminated frame lines, which are set to match the image sensor size at a focusing distance of 6.6'. On the front of the camera, a viewfinder frame selector can also be used to manually change the apparent image field to help visualize the scene with varying focal lengths.
The rangefinder mechanism displays split or superimposed bright field images within the center of the viewfinder to benefit accurate manual focusing control. The effective rangefinder metering basis is 47.1mm (mechanical metering basis 69.25 mm x viewfinder magnification of 0.68x). - 3.0" LCD Monitor and Sapphire Crystal Cover

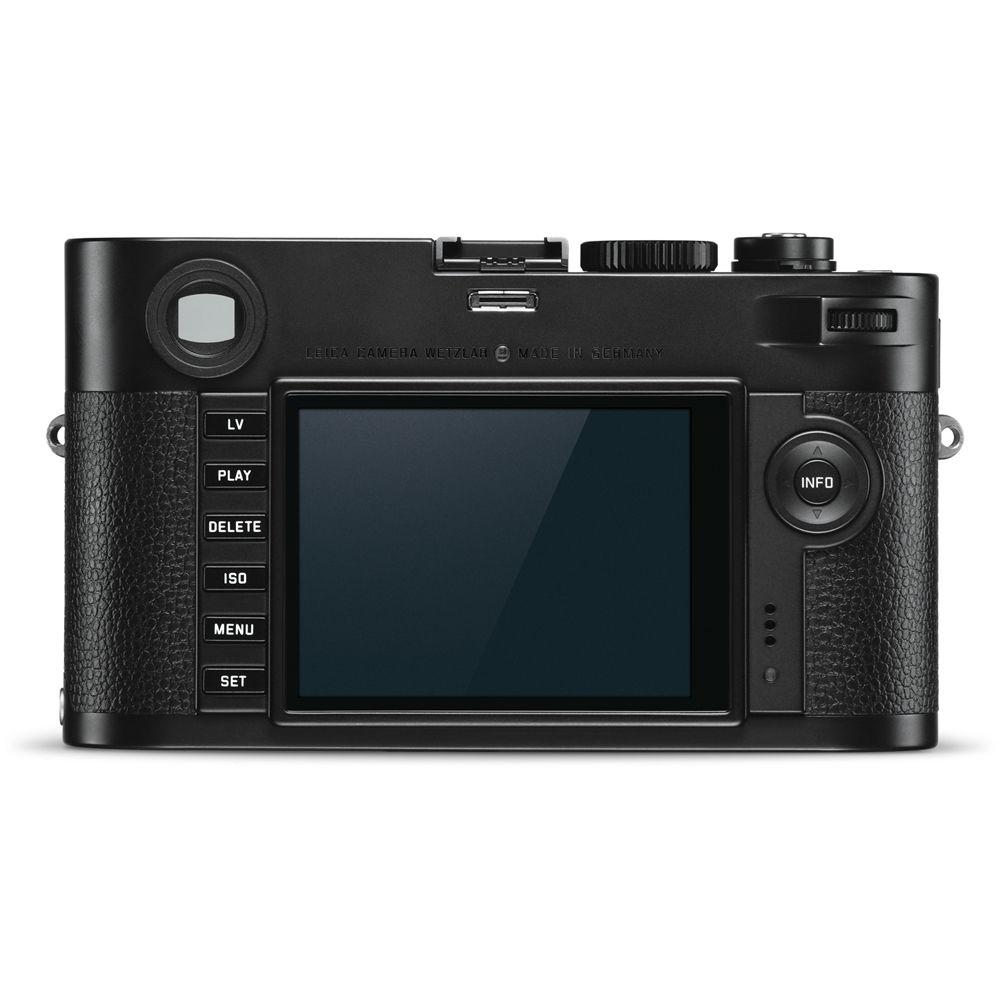

- Complementing the optical viewfinder is a 3.0" 921.6k-dot LCD monitor, which is fitted with a scratch-resistant protective cover made from sapphire crystal glass for added durability. In addition to image review and menu navigation, this monitor also permits live view monitoring with the ability to utilize focus peaking and 10x zoom features to better ensure critical sharpness. Focus peaking highlights bright edges of contrast when they are in sharp focus, while the zoom control allows you to home in on fine details within the scene.
- Body Design

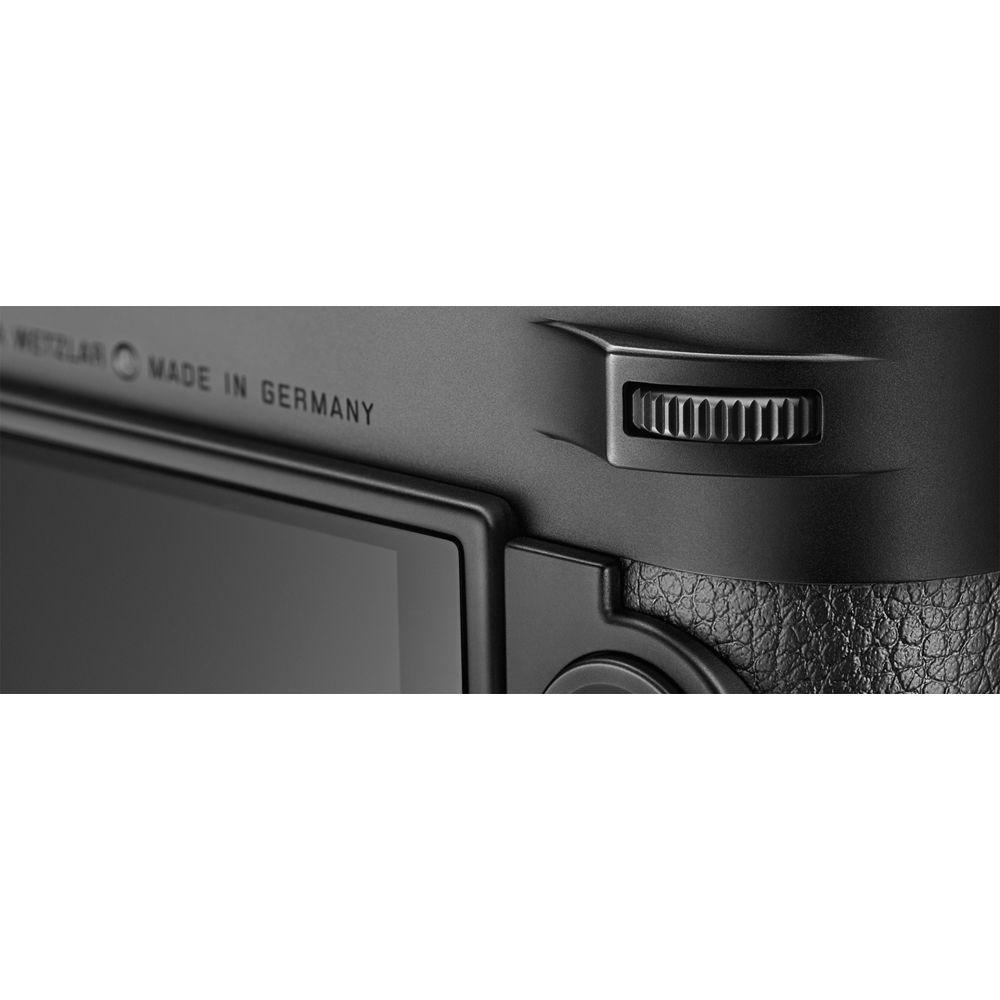

- Reminiscent of classic Leica designs, the M Monochrom features a black chrome-plated metal body design with a magnesium-alloy chassis, brass top and bottom plates, and a synthetic leather wrap. This minimalist and discreet appearance is further maintained by the unobtrusive Leica engraving on the rear of the body, with no front-facing or top plate logos.

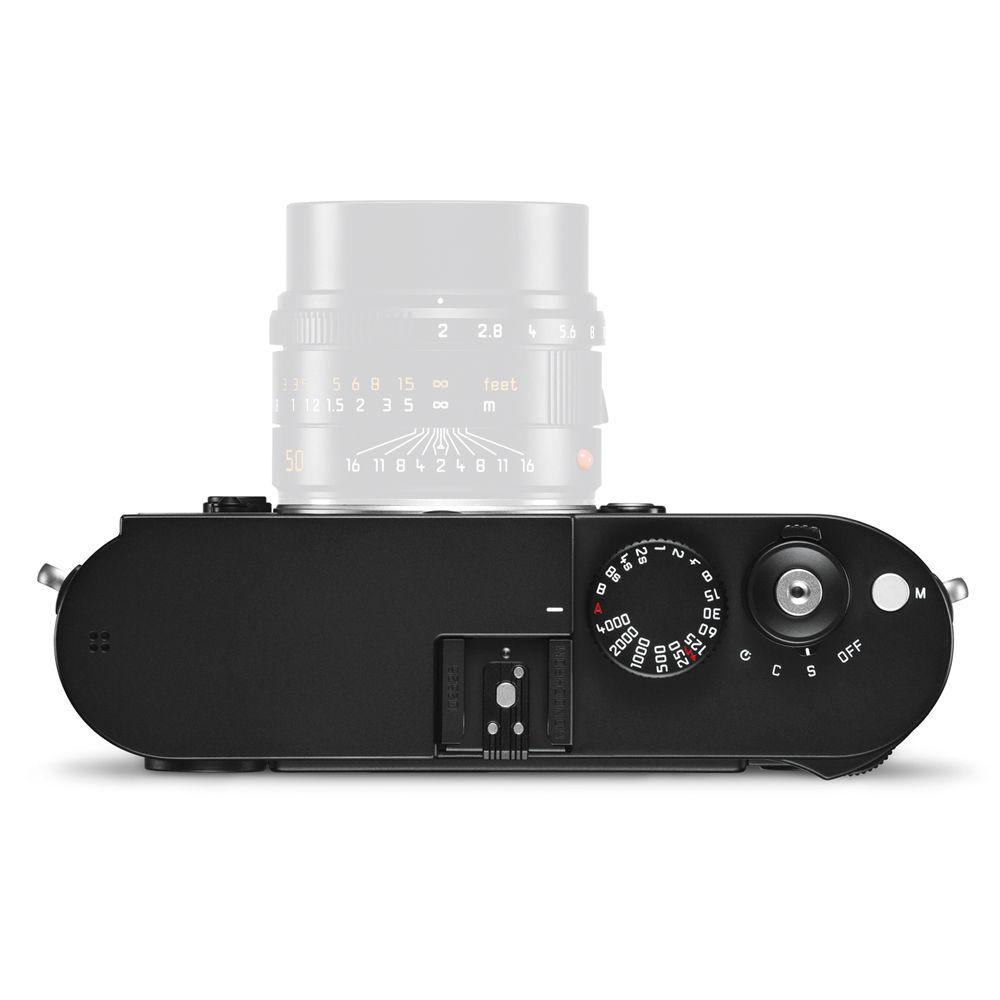

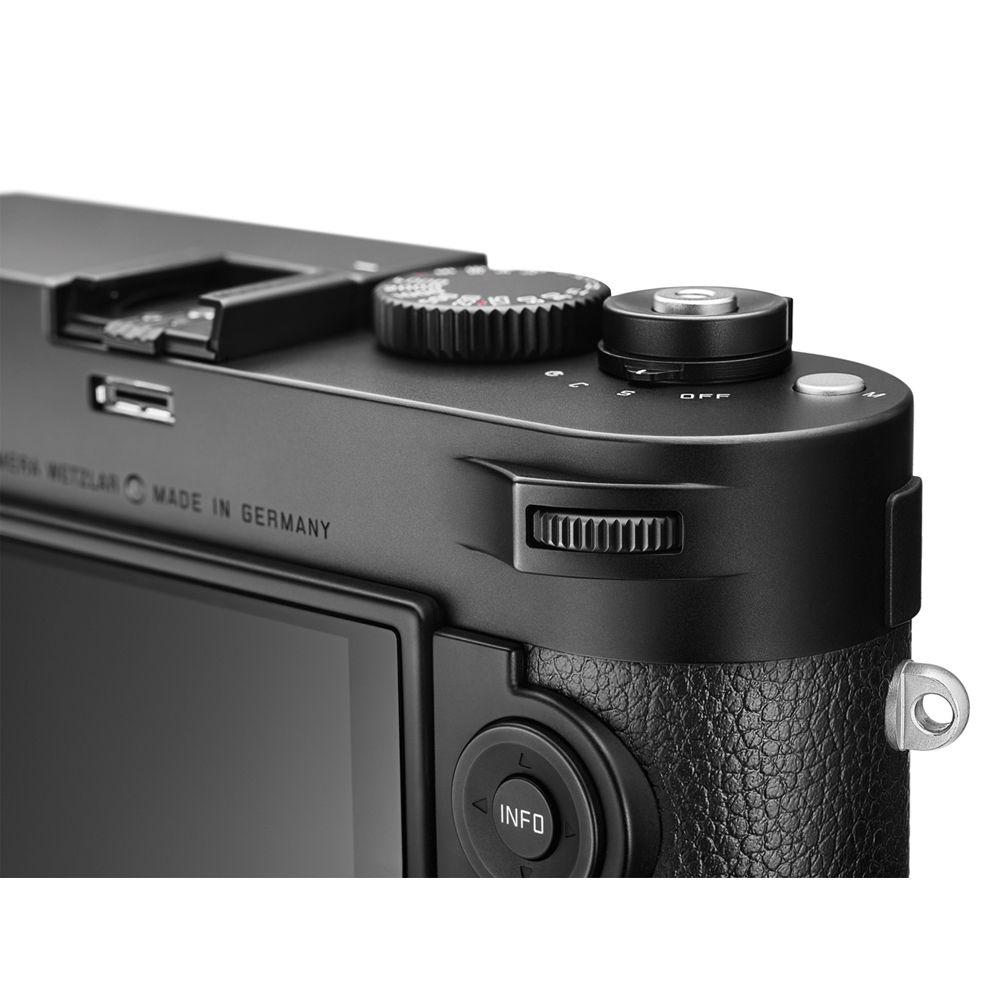

Furthermore, the pared-down, ergonomic design allows direct access to necessary camera controls, including top shutter speed and drive mode dials and rear menu navigation controls. - Other Camera Features
-
- Designed to accept all M-mount lenses, Leica R-mount lenses are also compatible through the use of an optional R to M adapter.
- A download version of Adobe Lightroom is made available after purchase, and is ideally suited to processing of the M Monochrom's DNG RAW image files.
- An electronic level display can be used to ensure consistently level horizons and plumb verticals.
- After a JPEG is recorded, in-camera toning effects can be applied to imagery to simulate the look of film-based black and white processes.
- Language support: German, English, French, Spanish, Italian, Japanese, traditional Chinese, simplified Chinese, Russian, and Korean.
UPC: 799429109301 In the Box Leica M Monochrom (Typ 246) Digital Rangefinder Camera BP-SCL2 Lithium-Ion Battery Pack (7.4V, 1800 mAh) tbryrswcweazyabbdfucvqtffxcaaq BC-SCL2 Battery Charger for BP-SCL2 Li-Ion Battery European Mains Cable Car Charging Cable Carrying Strap Body Cap Accessory Shoe Cover Limited 1-Year Leica Society Digital Membership Limited 2-Year Warranty First Look: Leica Monochrom Typ 246 BH Online Videos 06/16/2015 Hands-On Review: the Leica M Monochrom (Typ 246) Shawn C. Steiner 06/11/2015 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica M Monochrom Digital Rangefinder Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica M Monochrom (Typ 246) Specs | | | Lens Mount | Leica M | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | 24 Megapixel | | Maximum Resolution | 5976 x 3992 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 23.9 x 35.8 mm | | Image File Format | DNG, JPEG | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 320 to 25000 | | Shutter Speed | Electronic Front Curtain Shutter
1/4000 to 60 Seconds in Aperture Priority Mode
1/4000 to 8 Seconds in Manual Mode
0 to 60 Seconds in Time Mode | | Metering Method | Center-Weighted Average | | Exposure Modes | Aperture Priority, Manual | | Metering Range | 0 to 20 EV | | Continuous Shooting | Up to 3 fps at 24 MP for up to 30 Exposures (JPEG Format) | | Self Timer | 2/12-Second Delay | | | | Recording Modes | Full HD (1920 x 1080) at 24p/25p
HD (1280 x 720) at 24p/25p | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Mono)
External Microphone Input | | | | Focus Type | Manual Focus Only | | | | Viewfinder Type | Optical | | Viewfinder Magnification | Approx. 0.68x | | Monitor Size | 3" | | Monitor Resolution | 921,600 Dot | | Monitor Type | LCD | | | | Built-in Flash | None | | Flash Modes | First-Curtain Sync, Second-Curtain Sync | | Maximum Sync Speed | 1/180 Second | | Flash Compensation | -3 to +1 EV (1/3 EV Steps) | | Dedicated Flash System | TTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Wireless | None | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Battery | 1 x BP-SCL2 Rechargeable Lithium-Ion Battery Pack, 7.4 VDC, 1800 mAh | | Dimensions (W x H x D) | 5.5 x 1.7 x 3.1" / 138.6 x 42.0 x 80.0 mm | | Weight | 1.50 lb / 680 g (Body with Battery) | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 8.8 x 8.5 x 6.6" |
