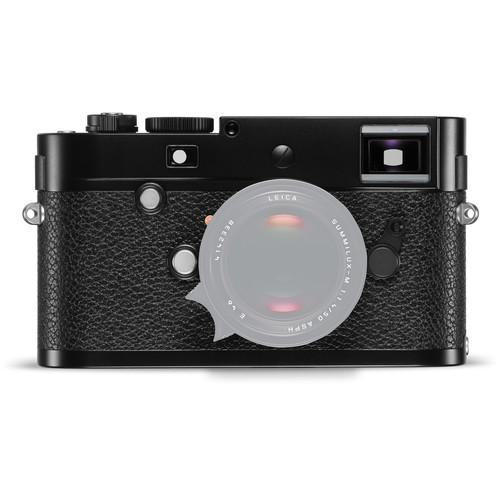

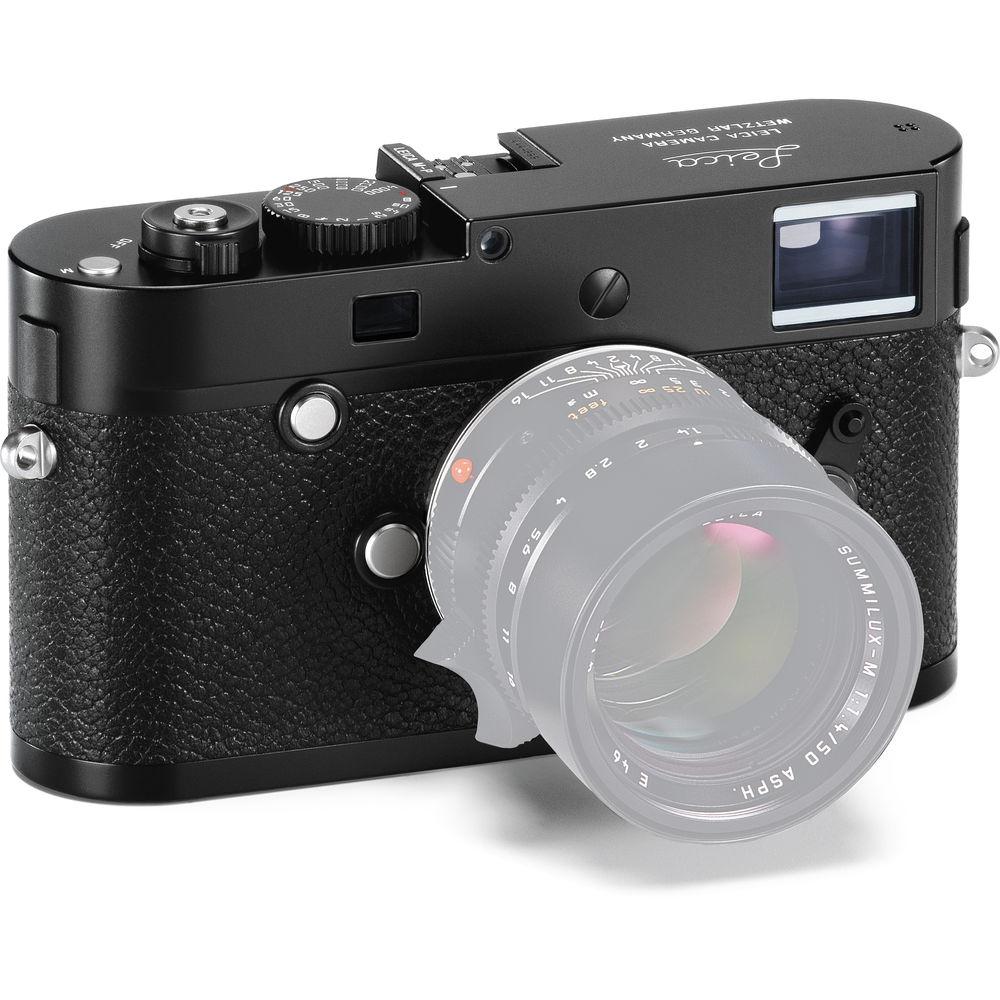

User Manual for Leica M-P Digital Rangefinder Camera Click to enlarge the picture
Contents of the user manual for the Leica M-P Digital Rangefinder Camera
- Product category: Mirrorless System Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Cameras
 |
User manual for the Leica M-P Digital Rangefinder Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Marrying minimalist design elements with celebrated image quality, the black Leica M-P (Typ 240) Digital Rangefinder Camera pairs a full-frame image sensor with the quality and tradition Leica's reputation was founded upon. Featuring a MAX 24MP CMOS sensor and Maestro image processor, the M-P realizes rich image quality with low noise levels and smooth color and tonal gradations. The sensor and processor combine to also avail a top sensitivity of ISO 6400, full HD 1080p movie recording and 3 fps shooting for up to 24 consecutive frames. Unique among digital cameras, this camera maintains Leica's preference for a rangefinder design and incorporates a 0.68x optical viewfinder with split and superimposed manual focusing, automatic parallax correction, and manual image field selection. Conversely, the camera also features a 3.0" 920k-dot LCD with sapphire glass covering to maintain the overall durability of the magnesium alloy and brass body. Distinguishing itself through unobtrusiveness, the M-P also carries the select designation of no front-facing Leica logos in favor of an engraved Leica script on the top plate.
As with past M-series cameras, the M-P retains the ability to utilize the vast network of M-mount lenses and is also compatible with Leica R-mount lenses via an optional adapter. When working in live view, and since focusing operation is entirely manual, focus peaking and 10x live view zoom can be utilized to ensure critical focus. An ergonomic body design places all of the necessary camera controls within reach during shooting, including top shutter speed and drive mode dials, as well as rear menu navigation buttons and selection dial located atop the thumb rest. The rugged metal body also integrated rubber seals throughout its design to render the M-P dust- and weather-resistant for sustained use in trying conditions. - Leica M-P (Typ 240)

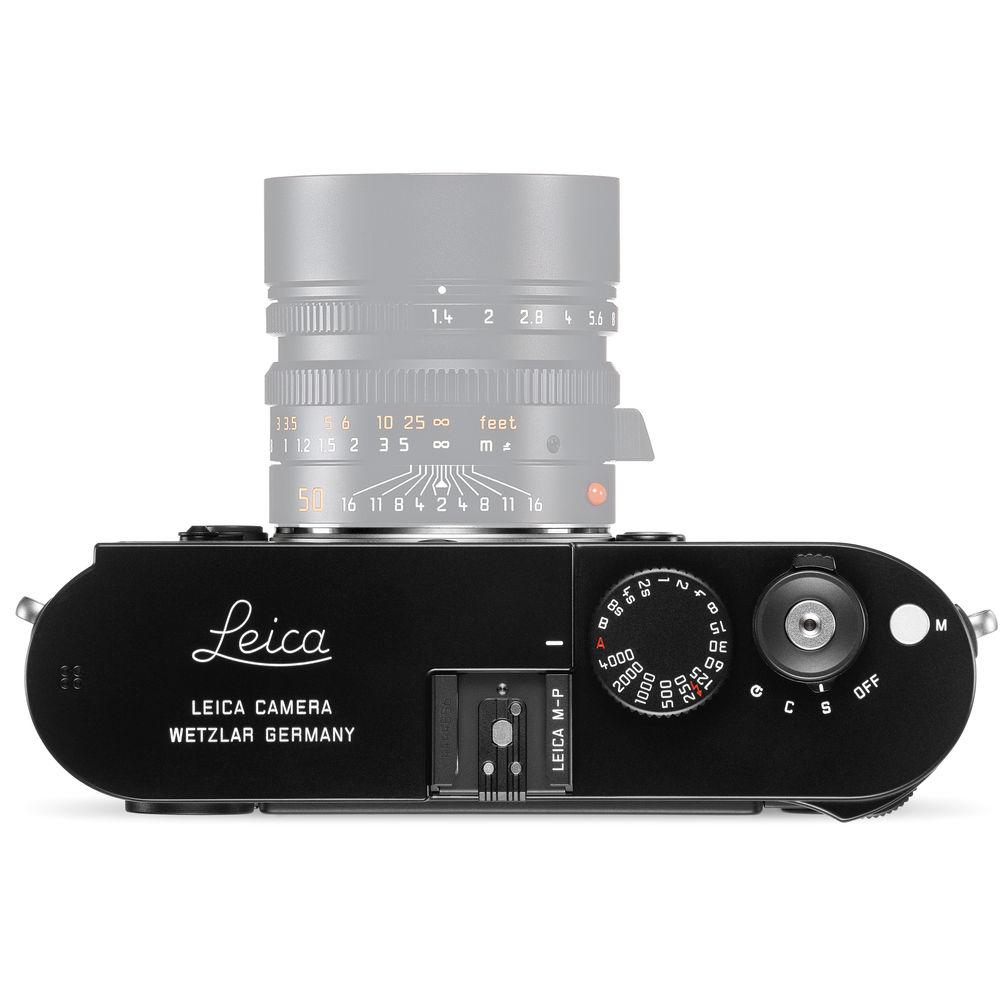

- Featuring a classic, minimalist appearance, the M-P has an unobtrusive design that omits the traditional red dot and front-facing 'M' lettering in favor of an engraved Leica script on the brass top plate.
- MAX 24MP CMOS Sensor and Maestro Image Processor
- Featuring a full-frame Leica MAX 24MP CMOS sensor, this camera is able to produce high-resolution still imagery and full HD video with marked image quality and low noise levels. When combined with the Maestro image processor, a sensitivity range of ISO 200-6400 is available, which can further be expanded to ISO 100 for working in brighter conditions.
This image processor also facilitates faster overall performance, and works in conjunction with a 2GB image buffer for longer sustained shooting sequences of 3 fps for up to 24 consecutive frames. - Optical Viewfinder and Rangefinder
- The optical viewfinder is a large, bright-line 0.68x-magnification rangefinder with automatic parallax compensation and LED-illuminated frame lines, which are set to match the image sensor size at a focusing distance of 6.6'. On the front of the camera, a viewfinder frame selector can also be used to manually change the apparent image field to help visualize the scene with varying focal lengths.
The rangefinder mechanism displays split or superimposed bright field images within the center of the viewfinder to benefit accurate manual focusing control. The effective rangefinder metering basis is 47.1mm (mechanical metering basis 69.25 mm x viewfinder magnification of 0.68x). - 3.0" LCD Monitor and Sapphire Crystal Cover

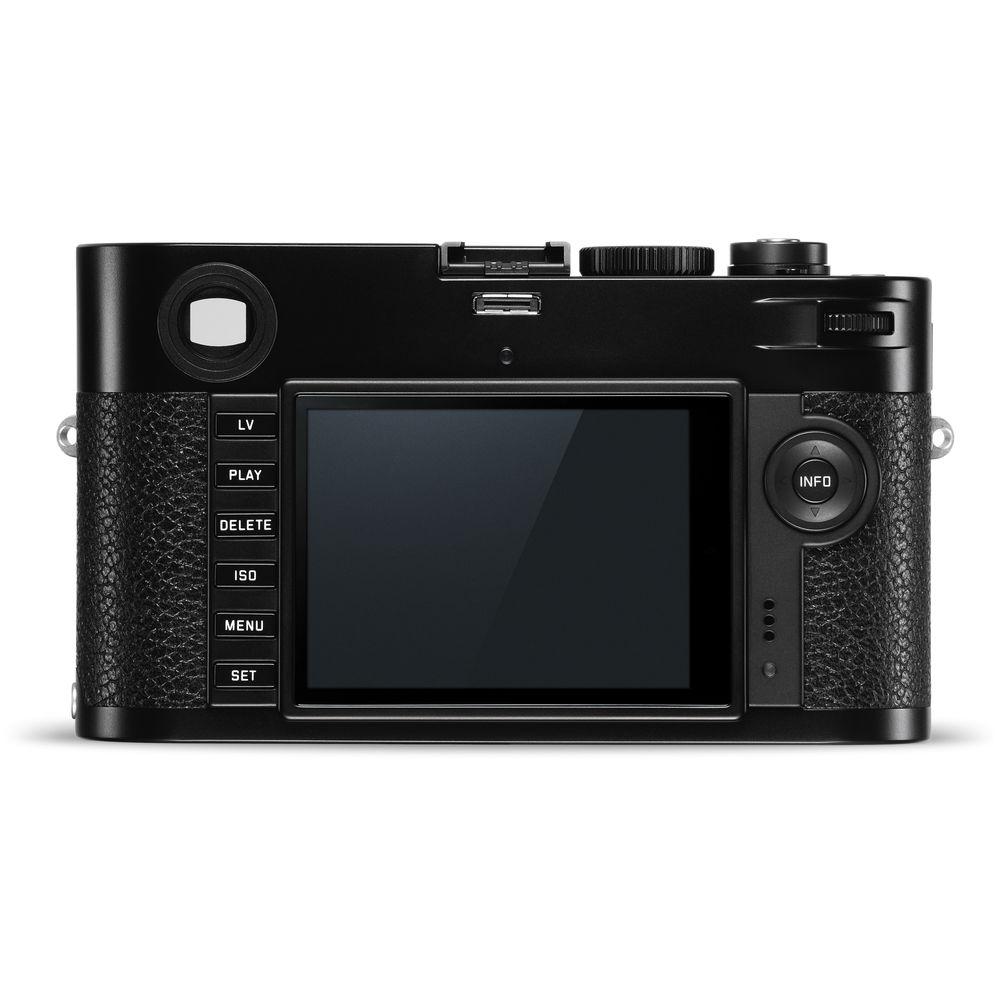

- Complementing the optical viewfinder is a 3.0" 920k-dot LCD monitor, which permits live view monitoring with the ability to utilize focus peaking and 10x zoom features to better ensure critical sharpness. Focus peaking highlights bright edges of contrast, in red, green, or blue colors, when they are in sharp focus, while the zoom control allows you to home in on fine details within the scene.
This monitor features a scratch-resistant protective cover made from sapphire crystal glass for added durability and protection. Furthermore, anti-reflective coatings are used on both sides of the covering glass for greater visibility in bright light conditions. - Full HD 1080p Video
- Full HD 1080p video recording is supported, in both 24 and 25 fps frame rates. HD 720p recording is also available, as well as VGA 480p at 30 fps. A monaural microphone is incorporated into the body's design and features manual audio level control during recording.
- Body Design
- Reminiscent of classic Leica designs, the M-P features a metal body design with a magnesium-alloy chassis and brass top plate, which is accentuated by a synthetic leather wrap. Rubber seals are placed throughout the body to protect it from dust and use during inclement weather. Furthermore, the pared-down, ergonomic design allows direct access to necessary camera controls, including top shutter speed and drive mode dials and rear menu navigation controls.
- Other Camera Features
-
- Designed to accept all M-mount lenses, Leica R-mount lenses are also compatible through the use of an optional R to M adapter.
- A download version of Adobe Lightroom is made available after purchase, and is ideally suited to processing of the M-P's DNG RAW image files.
- Up to four sets of camera and exposure settings can be saved under a user-selected profile name and rapidly retrieved whenever required. For added convenience, these profiles can be saved to an SD card.
- Exposure Bracketing of 3 or 5 frames at 0.5, 1, 2 and 3 EV steps.
- Different film modes are available to refine the appearance of imagery, as well as saturation, contrast, and sharpening settings.
- Language support: English, German, French, Italian, Spanish, Russian, Japanese, Traditional Chinese, Simplified Chinese, Korean
In the Box Leica M-P (Typ 240) Digital Rangefinder Camera (Black) BP-SCL2 Lithium-Ion Battery Pack (7.4V, 1800 mAh) BC-SCL2 Battery Charger for BP-SCL2 Li-Ion Battery 12V Charging Cable Carrying Strap Accessory Port Cover Body Cap Limited 1-Year Leica Society Digital Membership Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica M-P Digital Rangefinder Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Leica M-P Digital Rangefinder Camera can be downloaded in PDF format at the link stated below.
Technical parametersLeica M-P (Typ 240) Specs | | | Focus Mode | Manual Focus (M) | | | | Viewfinder Magnification | Approx. 0.68x | | Diopter Adjustment | -3 to +3 m | | | | Metering Method | Center-Weighted Average, Multi-Zone, Spot | | White Balance | Auto, Cloudy, Daylight, Flash, Fluorescent (Natural White), Fluorescent (White), Kelvin, Manual, Shade, Tungsten | | Continuous Shooting | Up to 3 fps at 24 MP for up to Exposures | | | | External Flash Connection | Hot Shoe | | | | Battery | 1 x Rechargeable Lithium-Ion, 7.4 VDC, 1800 mAh | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 8.8 x 8.5 x 6.3" |
