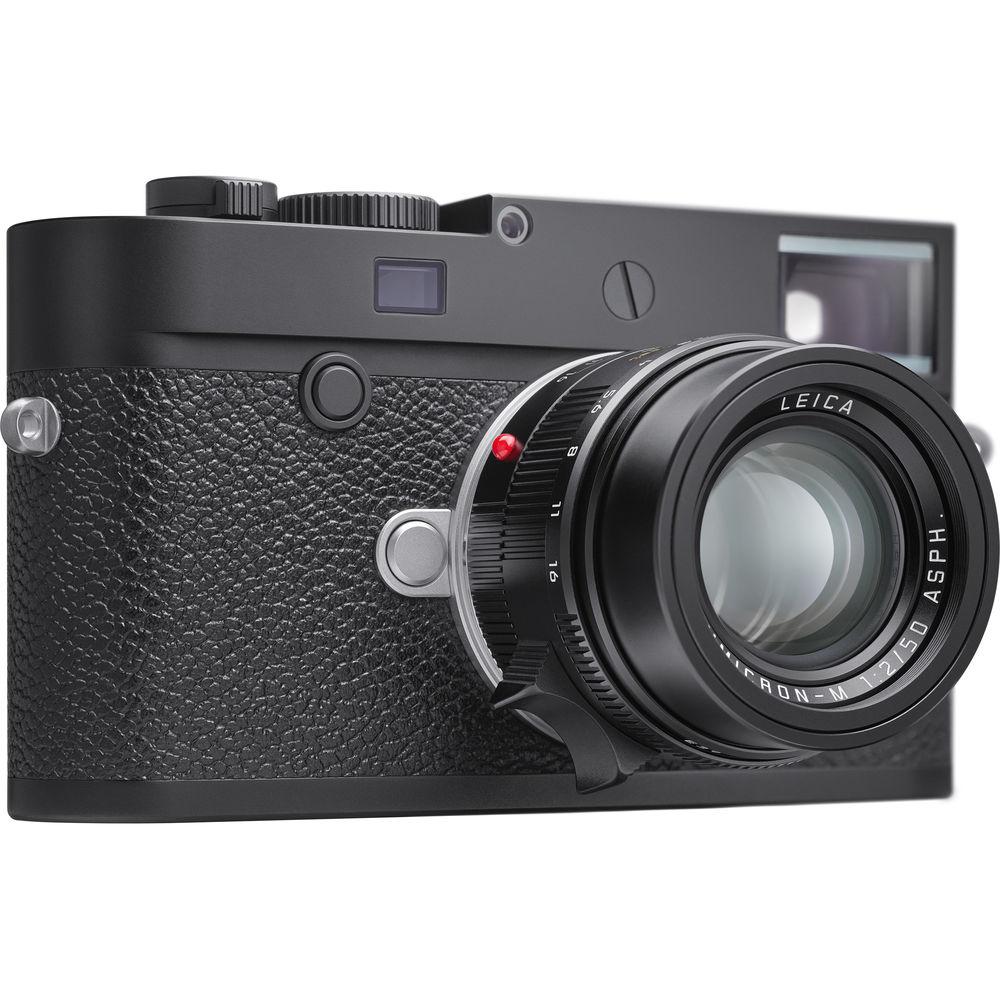

User Manual for Leica M10-P Digital Rangefinder Camera Click to enlarge the picture
Contents of the user manual for the Leica M10-P Digital Rangefinder Camera
- Product category: Mirrorless System Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Cameras
 |
User manual for the Leica M10-P Digital Rangefinder Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description The New Leica M-10P: Blend Deeper into the Cityscape Read More Distinguished by its sleekness and simplicity, the black chrome Leica M10-P is a digital rangefinder camera that blends enhanced still imaging capabilities with an updated, pared-down appearance as well as the quietest shutter of any film or digital M-series camera. Utilizing a redeveloped 24MP full-frame CMOS sensor and Maestro II image processor, the M10-P yields high-resolution imagery with an extended dynamic range, high sensitivity to ISO 50000, and a continuous shooting rate of 5 fps. Akin to its sibling model, the M10, the M10-P features a slim body profile reminiscent of M film cameras, and the larger 0.73x-magnification optical viewfinder allows for greater composition and focusing accuracy. The body design also incorporates a dedicated ISO dial for quick adjustment, even when the camera is turned off, and the rear 3.0" 1.04m-dot touchscreen LCD features a Gorilla Glass cover to guard against scratching and light impacts. Also contributing to durability, the top and bottom plates are constructed from brass and the chassis is built from magnesium alloy to realize a robust physical construction for long-lasting use. Additionally, the M10-P also sports an integrated Wi-Fi module for wireless sharing and remote camera control from a linked mobile device. - Leica M10-P
- Taking the M10 to more inconspicuous places, the M10-P is a sleek evolution of the pared-down, simple camera system. In addition to the film camera-inspired nature of its sibling model, including the slim body design, high-magnification optical viewfinder, and omission of video recording, the M10-P gains a redesigned shutter that makes it the quietest of all film and digital M cameras. The M10-P is also characterized by a rear touchscreen LCD, for intuitive settings and playback control; a built-in level gauge, for perfectly aligning compositions in-camera; and the omission of the front red dot, for a more unobtrusive appearance.
- 24MP CMOS Sensor and Maestro II Processor
- A redeveloped full-frame 24MP CMOS sensor pairs with the Maestro II image processor to deliver a wide dynamic range with notable color rendering, as well as enhanced sensitivity from ISO 100-50000 to suit working in a variety of lighting conditions. The image processor also incorporates a 2GB buffer to afford fast continuous shooting at 5 fps for up to 40 consecutive frames in a burst.
- Optical Viewfinder and Rangefinder

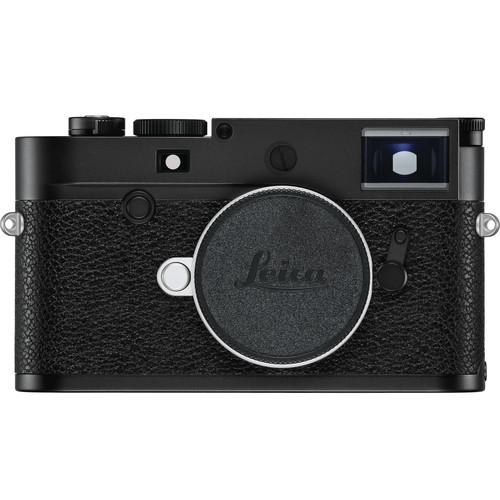

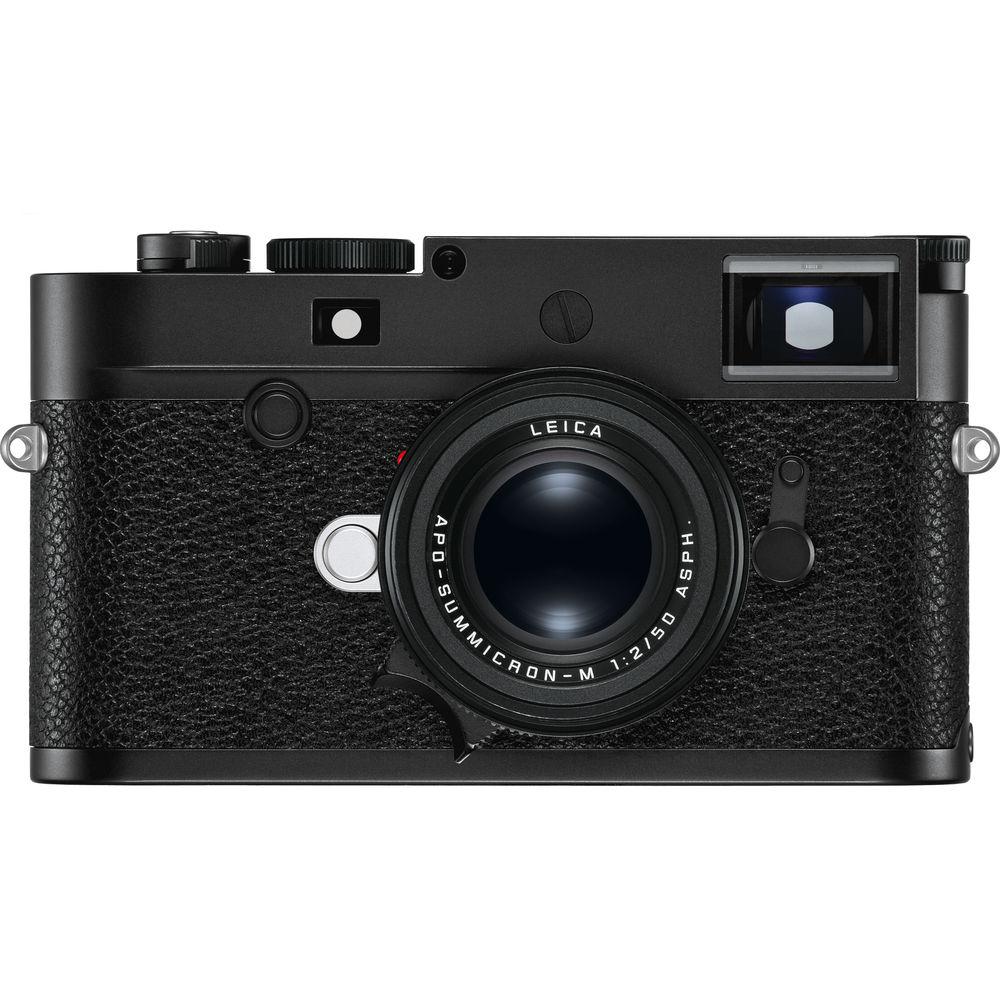

- The optical viewfinder is a large, bright-line 0.73x-magnification rangefinder with automatic parallax compensation and bright-line frame lines, which are set to match the image sensor size at a focusing distance of 6.6'. On the front of the camera, a viewfinder frame selector can also be used to manually change the apparent image field to help visualize the scene with varying focal lengths; options are available in 35mm/135mm, 28mm/90mm, and 50mm/75mm focal length pairs.
The rangefinder mechanism displays split or superimposed bright field images within the center of the viewfinder to benefit accurate manual focusing control. The effective rangefinder metering basis is 50.6mm (mechanical metering basis 69.31 mm x viewfinder magnification of 0.73x). - Body Design and Built-In Wi-Fi
-
- Slim body profile is reminiscent of Leica's film cameras for easier handling and manipulation.

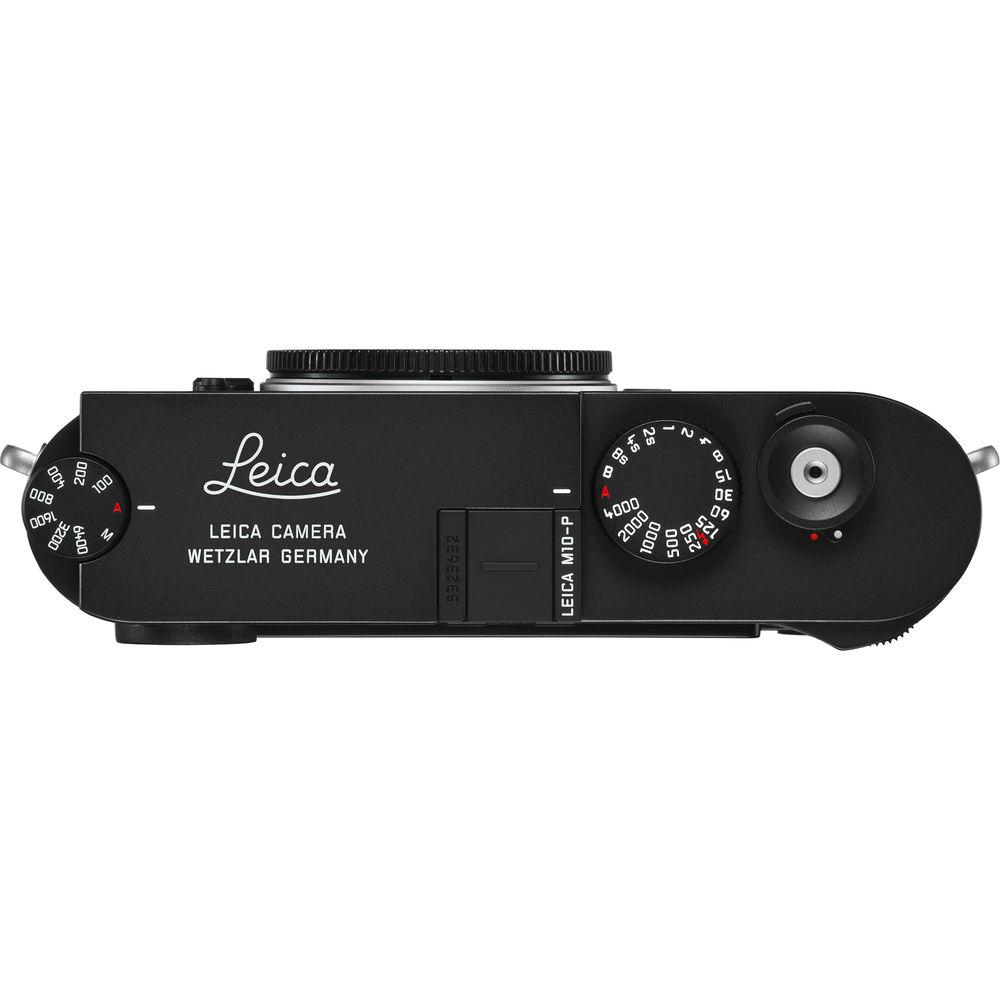

- Integrated ISO dial is featured on the top plate to permit simple and direct adjustment of sensitivity values, even when the camera is turned off.

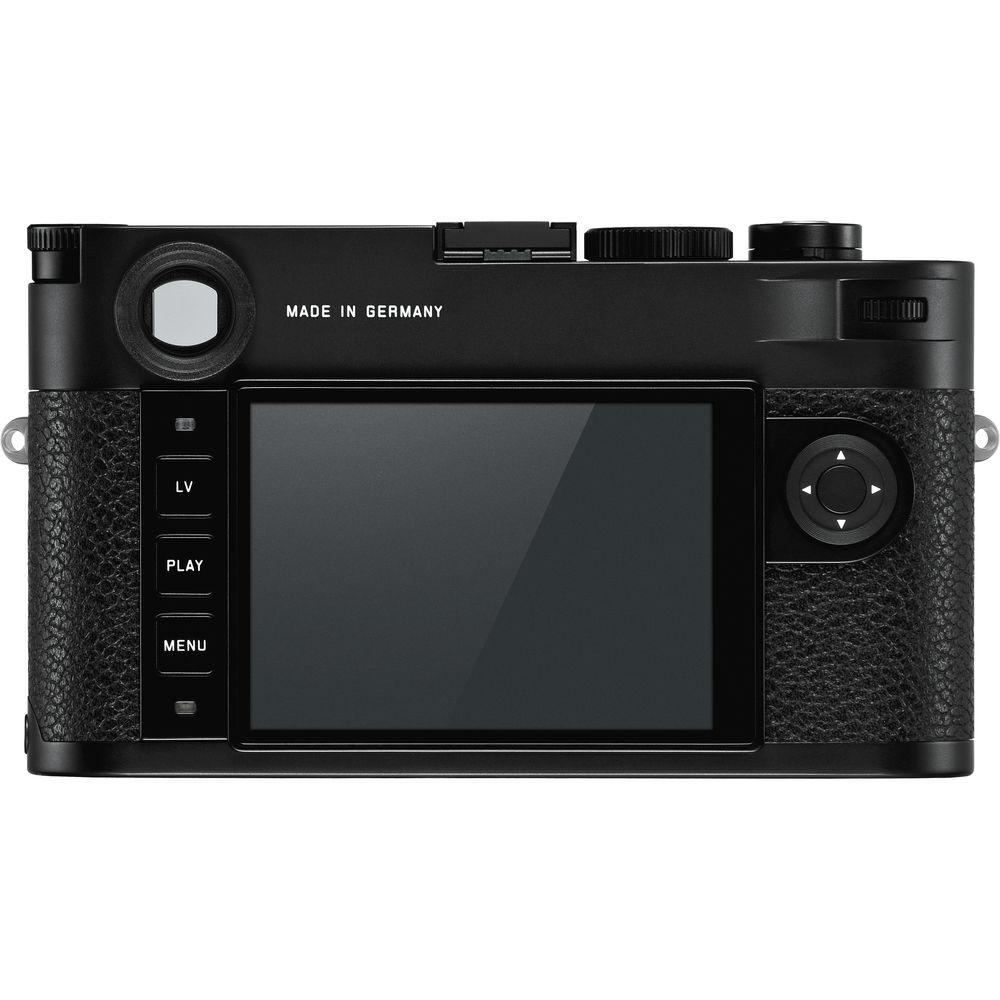

- The rear of the camera features just three buttons—live view, playback, and menu—for more simplified and intuitive navigation of the camera's control-set.
- A programmable Favorites menu can be used, which allows you to define your most oft-used settings and select them for easy, one-touch access.
- 3.0" 1.04m-dot touchscreen LCD provides an intuitive means for image playback as well as live view shooting.
- Rear LCD monitor has a Corning Gorilla Glass cover to protect it against scratching and impacts.
- Built-in level gauge aids in achieving perfectly level horizons.
- Top and bottom plates are machined from solid blocks of brass and the chassis is built from magnesium alloy for a truly durable, hard-wearing physical construction.
- Rubber seals are used to prevent the entrance of light rain and dust to enable working in inclement conditions.
- Built-in Wi-Fi permits sharing imagery directly to a linked smartphone and also enables remote control over the M10-P to adjust select shooting parameters or to release the shutter via the Leica M app.
- Other Camera Features
-
- When working in live view, focus peaking is available to highlight edges of contrast for easier, more precise manual focus adjustment.
- Designed to accept all M-mount lenses, Leica R-mount lenses are also compatible through the use of an optional R to M adapter.
- Compatible with the optional Visoflex accessory electronic viewfinder for manually focusing adapted lenses.
- Images can be recorded in either the DNG or JPEG file format.
- A top hot shoe permits working with an external flash and the top sync speed is 1/180 sec.
- Language support: German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, and Korean.
UPC: 799429200213 In the Box Leica M10-P Digital Rangefinder Camera (Black Chrome) BP-SCL5 Lithium-Ion Battery Pack (7.4V, 1300mAh) BC-SCL5 Battery Charger Carrying Strap Body Cap Accessory Shoe Cover Limited 1-Year Leica Society Digital Membership Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica M10-P Digital Rangefinder Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Leica M10-P Digital Rangefinder Camera can be downloaded in PDF format at the link stated below.
Technical parametersLeica M10-P Specs | | | Lens Mount | Leica M | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | 24 Megapixel | | Maximum Resolution | 5976 x 3992 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 24 x 36 mm | | Image File Format | DNG, JPEG | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 100 to 50000 | | Shutter Speed | 1/4000 to 8 Seconds
1/4000 to 125 Seconds in Aperture Priority Mode
Bulb Mode | | Metering Method | Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual | | Metering Range | -1 to 20 EV | | White Balance | Auto, Color Temperature, Manual | | Continuous Shooting | Up to 5 fps at 24 MP for up to 40 Exposures (JPEG Format) | | Self Timer | 2/12-Second Delay | | | | Focus Type | Manual Focus Only | | | | Viewfinder Type | Optical | | Viewfinder Magnification | Approx. 0.73x | | Monitor Size | 3" | | Monitor Resolution | 1,036,800 Dot | | Monitor Type | Touchscreen LCD | | | | Built-in Flash | None | | Maximum Sync Speed | 1/180 Second | | Flash Compensation | -3 to +3 EV (1/3 EV Steps) | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Wireless | Wi-Fi | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Battery | 1 x BP-SCL5 Rechargeable Lithium-Ion, 7.4 VDC, 1300 mAh | | Dimensions (W x H x D) | 5.5 x 3.1 x 1.5" / 139.0 x 80.0 x 38.5 mm | | Weight | 1.50 lb / 680 g (Body with Battery) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 8.5" |
