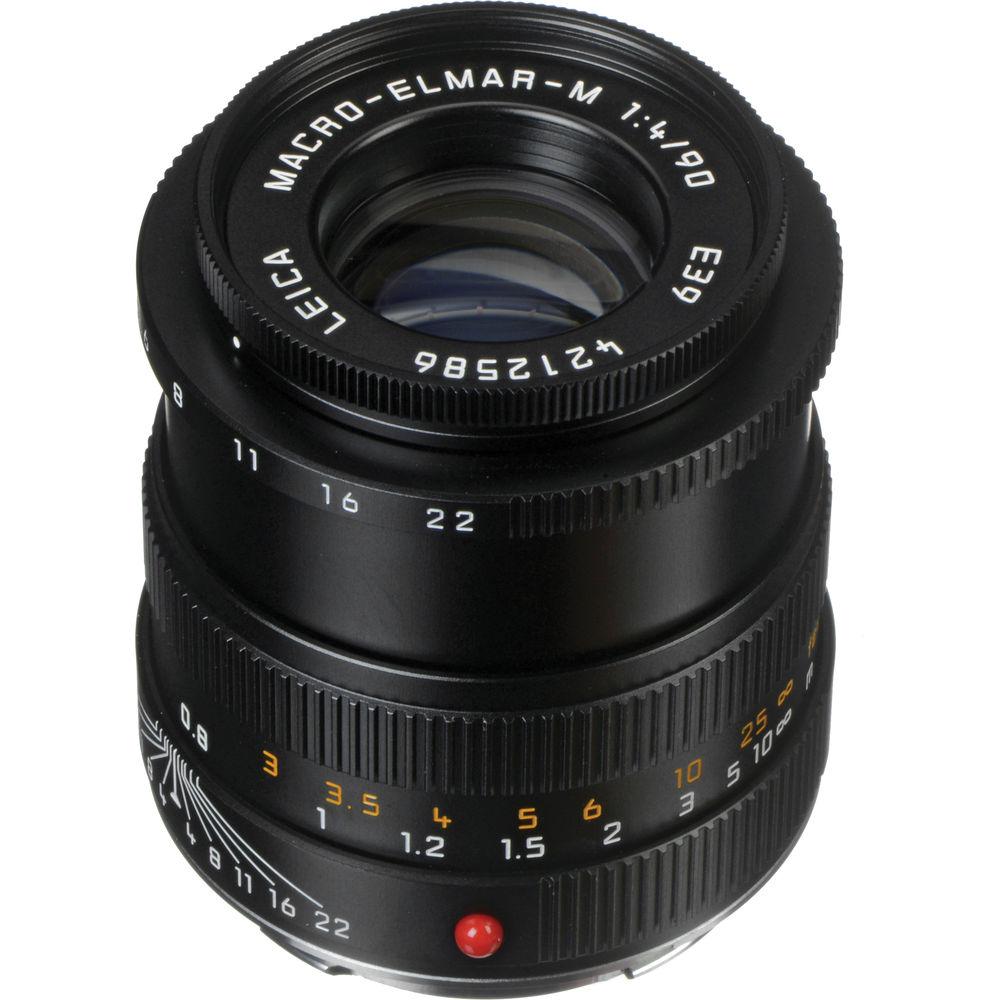

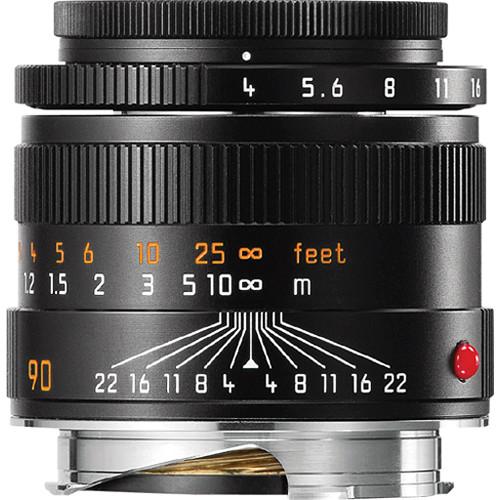

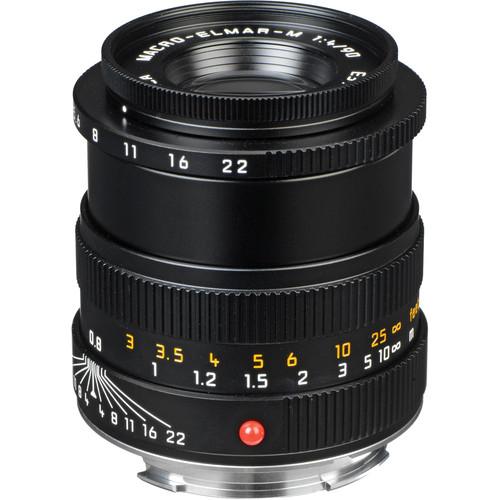

User Manual for Leica Macro-Elmar-M 90mm f 4 Lens Click to enlarge the picture
Contents of the user manual for the Leica Macro-Elmar-M 90mm f 4 Lens
- Product category: Rangefinder Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Rangefinder Lenses
 |
User manual for the Leica Macro-Elmar-M 90mm f 4 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description A unique and compact lens within the Leica M-mount lineup, the Macro-Elmar-M 90mm f/4 is a short telephoto prime characterized by its retractable design and compatibility with the Macro-Adapter-M for close-up shooting. It features a simple but effective four elements in four groups optical design, which maintains sharpness and even illumination throughout the aperture and focusing ranges. A multi-layer anti-reflective coating has also been applied to individual elements to control lens flare and ghosting for improved contrast and color fidelity. Its manual focus design permits working with subjects as close as 2.6' away with a reproduction ratio of 1:6.7.
When coupled with the optional Macro-Adapter-M and used on a camera featuring live view, this lens is also able to achieve a minimum focusing distance of 16.1" with a reproduction ratio of 1:2. The lens' retractable design also enables it to maintain infinity focus when used with the Macro-Adapter-M. - Four elements within four groups optical design delivers edge-to-edge sharpness and illumination throughout the aperture range.

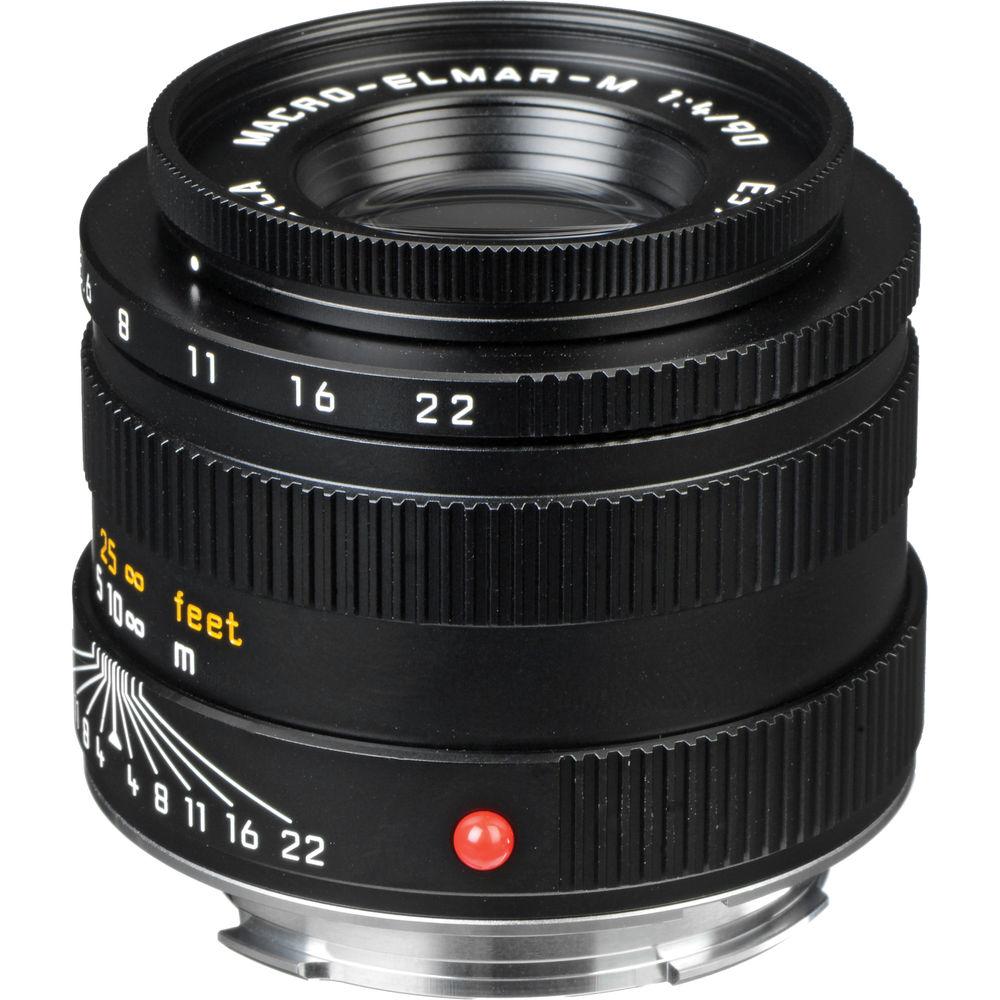

- Retractable lens design (1.6"-long when collapsed) helps to maintain a compact form factor during traveling.
- A multi-layered anti-reflective coating has been applied to individual lens elements to minimize lens flare and ghosting for color-neutral, contrast-rich imagery.
- Manual focus design provides a minimum focusing distance of 2.6' with a maximum magnification ratio of 1:6.7.
- When paired with the optional Macro-Adapter-M, and used on a camera featuring live view, a minimum focusing distance of 16.1" is possible with a maximum reproduction ratio of 1:2. Additionally, infinity focusing is still possible when used in combination with the Macro-Adapter-M.
In the Box Leica Macro-Elmar-M 90mm f/4 Lens Lens Hood for 90mm f/4-M and 135mm f/3.4-M Lenses rzdqfxcttfbqyxaxe Front Lens Cap Rear Lens Cap for M-Mount Lenses Leather Lens Bag Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Macro-Elmar-M 90mm f 4 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11670 Specs | Focal Length | 90mm | | Maximum Aperture | f/4 | | Minimum Aperture | f/22 | | Lens Mount | Leica M | | Angle of View | 27° | | Minimum Focus Distance | 2.6' / 80 cm | | Maximum Reproduction Ratio | 1:6.7 | | Optical Design | 4 Elements in 4 Groups | | Filter Thread | 39mm | | Dimensions |
