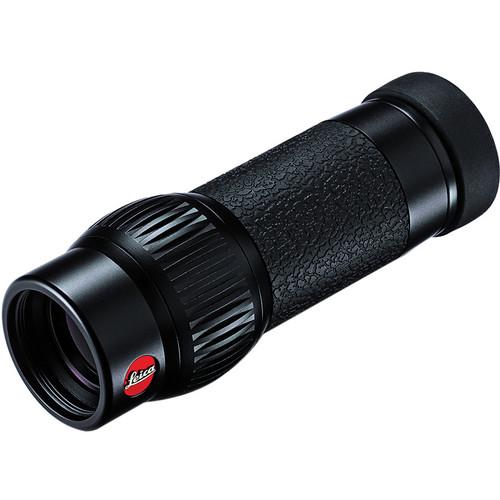

User Manual for Leica Monovid 8x20 Monocular Click to enlarge the picture
Contents of the user manual for the Leica Monovid 8x20 Monocular
- Product category: Monoculars Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Monoculars
|
User manual for the Leica Monovid 8x20 Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Offering style, elegance, and the optical performance you would expect from Leica, the Monovid 8x20 Monocular brings distant subjects in close and reveals the tiny details of nearby objects. Whether you're scoping a performer on stage, glassing the treeline for the Lord God bird, or investigating the intricate subtleties of a Nautilus shell – you'll be glad you didn't leave home without it.The Monovid's 8x optical system features a phase-corrected roof prism and lenses with HDC and AquaDura coatings, to maximize light transmission and deliver a bright, sharp image. Inside the Monovid's cylindrical leather carry case there's a special pocket for a very special attachment – a close-up lens that allows 8x magnification at distances as close as 9.8". Its aluminum housing is nitrogen-filled to prevent internal fogging in any climate, and it is sufficiently watertight to withstand being submerged to a depth of more than 16 feet with no ill effects. - Optical Performance
-
- 8x magnification
- 20mm objective lens
- Roof prism with P40 phase correction coating
- AquaDura & HDC optical coatings maximize light transmission and repel water and dirt
- Use and Handling
-
- 331' Field of view at 1000 yards
- Close-up accessory lens: focuses to 9.8"
- Twist-up eyecup accommodates eyeglasses
- Comfortable 15mm eye relief
- Construction Details
-
- Submersible to 16'/5.0 m
- Nitrogen-purged aluminum housing is fogproof in any climate
- Internal focusing via central focusing knob
- Leather case with silent magnetic fastener and close-up lens compartment
UPC: 799429403904 In the Box Leica Monovid 8x20 Monocular (Black) Leather Carry Case Close Focus Lens Hand Strap Eyepiece Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Monovid 8x20 Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40390 Specs | Magnification | 8x | | Objective Lens Diameter | 20mm | | Exit Pupil | 2.5 mm | | Angle of View | 6.3° | | Linear Field of View | 331' @ 1000 yd / 110 m @ 1000 m | | Eye Relief | 15 mm | | Minimum Focus Distance | Normal: 5.9' / 1.8 m With close-up lens: 9.8" / 25 cm | | Waterproofing | Submersible to 16.5' / 5.0 m | | Length | 3.9" / 9.8 cm | | Diameter | 1.4" / 3.6 cm | | Weight | Monocular: 4 oz / 112 g (4.4 oz / 126 g with close-up lens) | | | | Package Weight | 0.96 lb | | Box Dimensions (LxWxH) | 7.85 x 6.25 x 3.85" |
