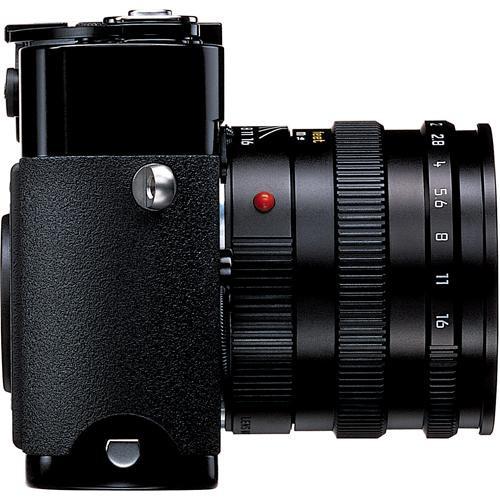

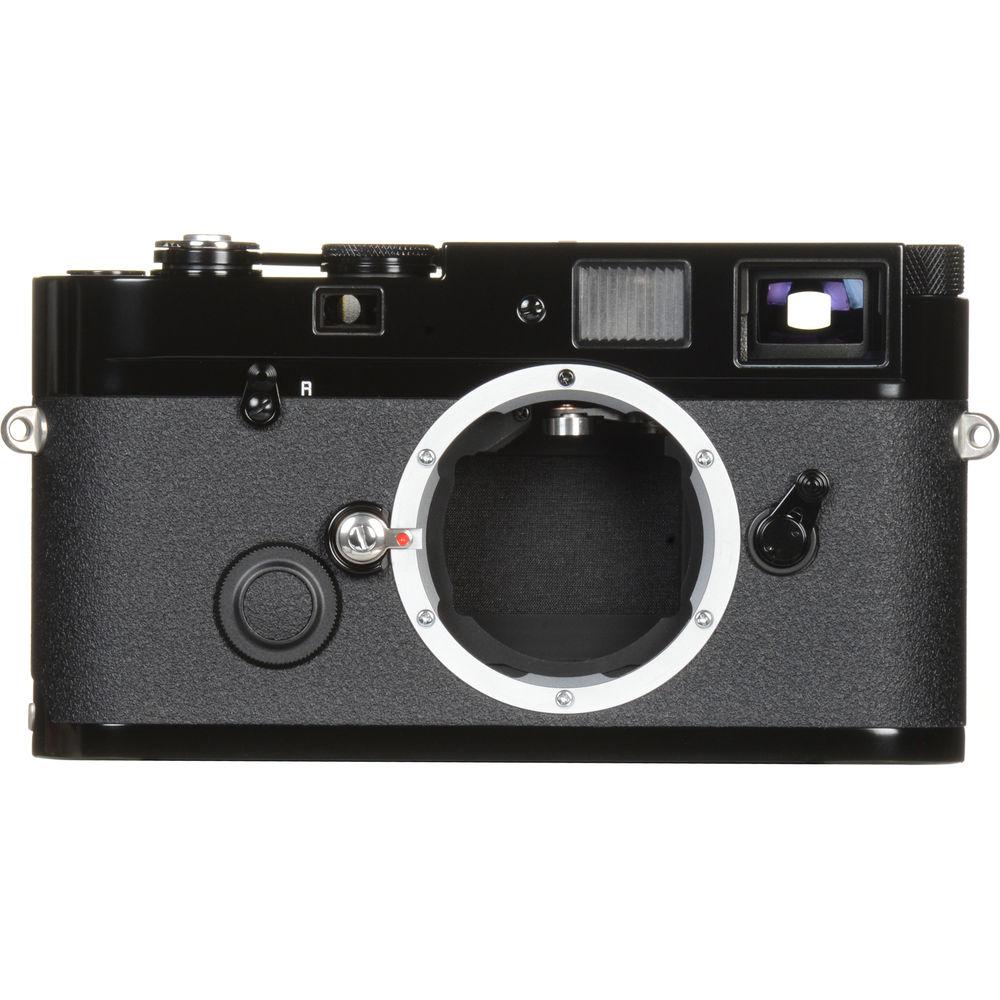

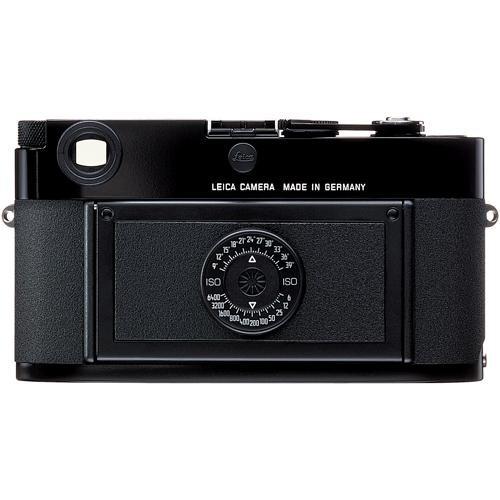

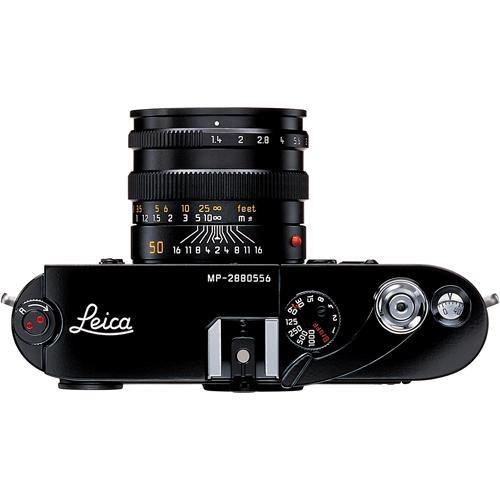

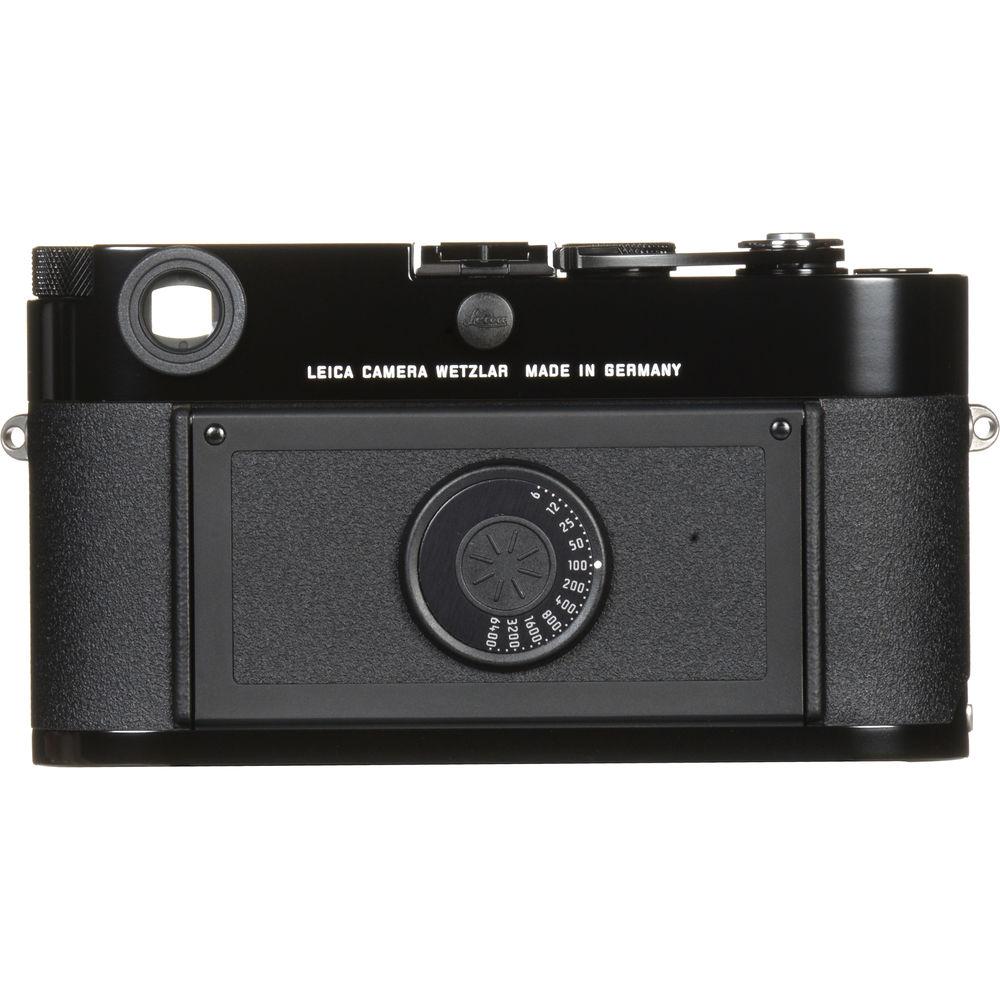

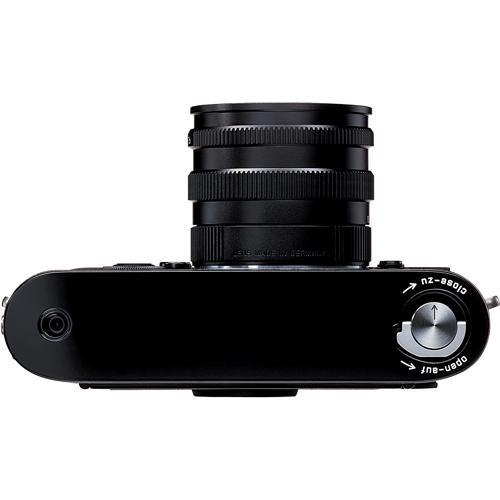

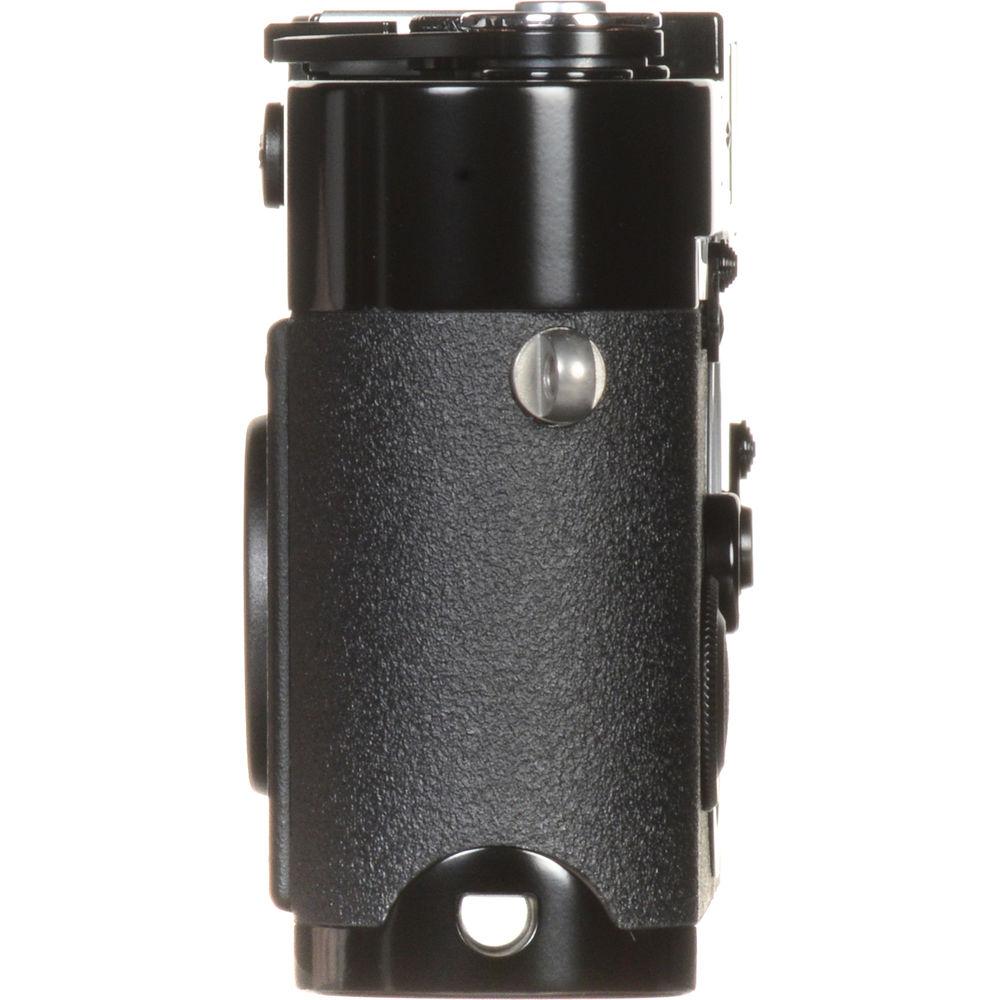

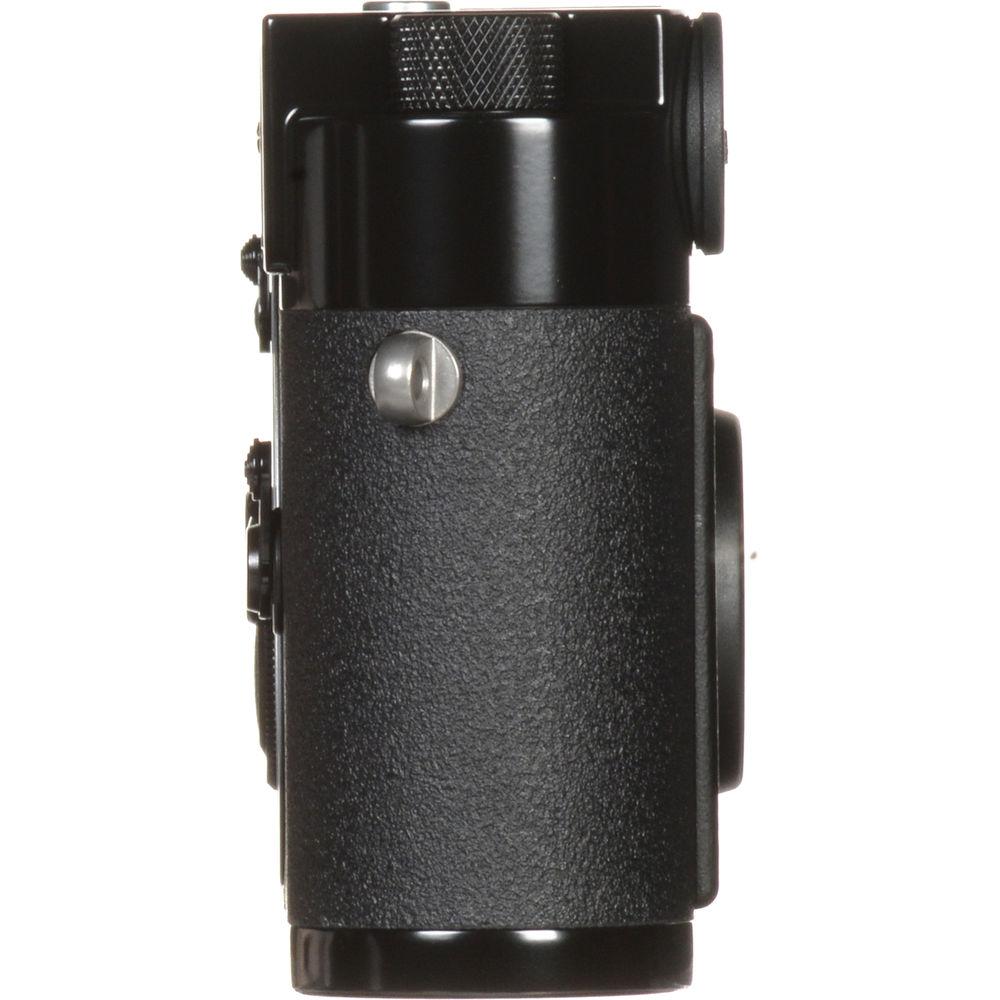

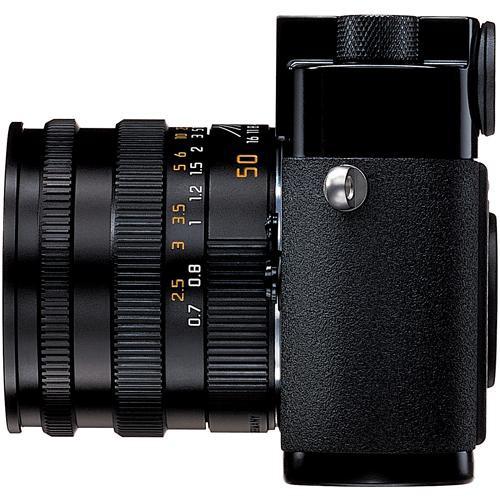

User Manual for Leica MP 0.72 Rangefinder Camera Click to enlarge the picture
Contents of the user manual for the Leica MP 0.72 Rangefinder Camera
- Product category: 35mm Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica 35mm Cameras
 |
User manual for the Leica MP 0.72 Rangefinder Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Classic Camera Review: The Leica M4 Read More With the name MP, the new Leica rangefinder camera joins the line of reporter cameras that have been tailored specifically to the wishes of professional photographers. It is the purely mechanical alternative to the LEICA M7, whose electronically controlled shutter and aperture priority automatic exposure control offer more convenience and functions.The camera concept of the LEICA MP is tailored to the craft of the photographer! Every component of the camera was analyzed and improved meticulously, and it embodies the essence of more than 50 years of experience in optics and mechanical design. The optimized rangefinder facilitates highly accurate focusing, even under difficult light conditions. The MP is a 100% mechanical camera, the battery being necessary only to operate its internal light meter. All its operating elements are made of metal, so that it withstands heavy duty use under extreme conditions. Technical gadgetry is purposely limited to those features that truly contribute towards creating a better picture. - Extremely reliable performance
- Viewfinder is always bright - even in low light
- Large assortment of high performance lenses ranging from 21 to 135mm and speeds as fast as f/1
- 100% mechanical, all metal
In the Box Leica MP 0.72 Rangefinder Camera (Black) 2 x MS-76 (SR44/EPX76) 1.5v Silver Batteries Body Cap Neck Strap Flash Socket Cap Limited 1-Year Leica Society Digital Membership Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica MP 0.72 Rangefinder Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Leica MP 0.72 Rangefinder Camera can be downloaded in PDF format at the link stated below.
Technical parametersLeica MP .72 Specs | Type | 35mm interchangeable lens rangefinder camera | | Lens Mount | Leica M bayonet | | Focus Modes | Manual only | | Exposure Modes | Manual only | | Exposure Metering | TTL (Through-The-Lens) selective center-weighted | | Metering Range | EV -2 To EV 20 with f/1.0 lens At ISO 100 | | ISO Range | 6 - 6400 (manually set) | | Shutter Speed | 1/1000 to 1 second
Bulb | | PC Terminal | Yes | | Flash Mounting | Hot shoe - X-sync up to 1/50th sec | | Film Transport | Manual (optional winder available) | | Viewfinder | .72x magnification. Bright-line frames for 28, 35, 50, 75, 90 and 135mm lenses automatically engaged with attachment of lens. Optional viewfinders for 21 and 24mm lenses mount in the flash shoe. | | Viewfinder Info | Over/under and correct exposure indication (LED Classic > 0 < manual metering, LED Battery status) | | Diopter Correction | Optional -3 to +3 available (attachable to existing eyepiece) | | Self Timer | No | | Remote Control | Possible with optional standard mechanical cable release | | Multiple Exposure | No | | Power Source | Two (2) SR44(76S) 1.55v Silver Battery or one (1) DL76 Lithium | | Dimensions | 5.4 x 3 x 1.5" (138 x 77 x 38mm) WxHxD | | Weight | 1.3 lb (600g), including batteries | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 9.5 x 7.8 x 5.1" |
