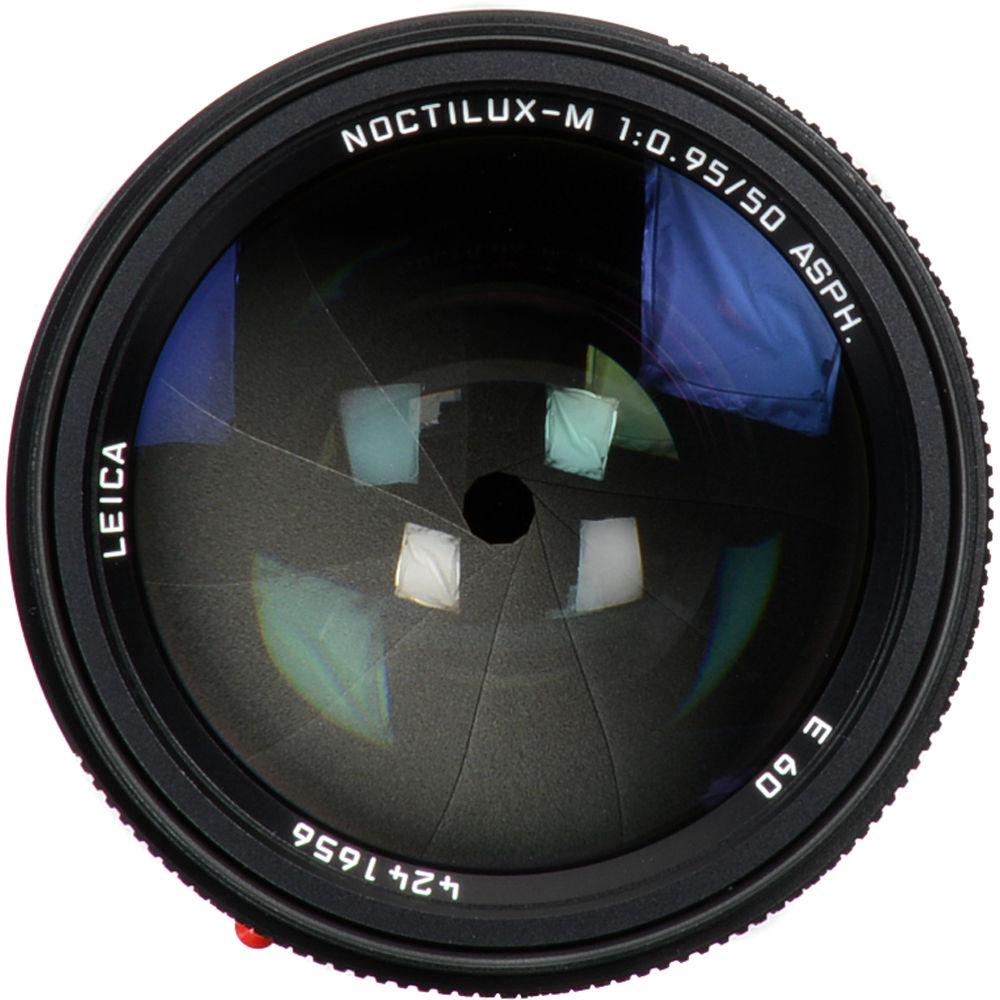

User Manual for Leica Noctilux-M 50mm f 0.95 ASPH. Lens Click to enlarge the picture
Contents of the user manual for the Leica Noctilux-M 50mm f 0.95 ASPH.
- Product category: Rangefinder Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Rangefinder Lenses
 |
User manual for the Leica Noctilux-M 50mm f 0.95 ASPH. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

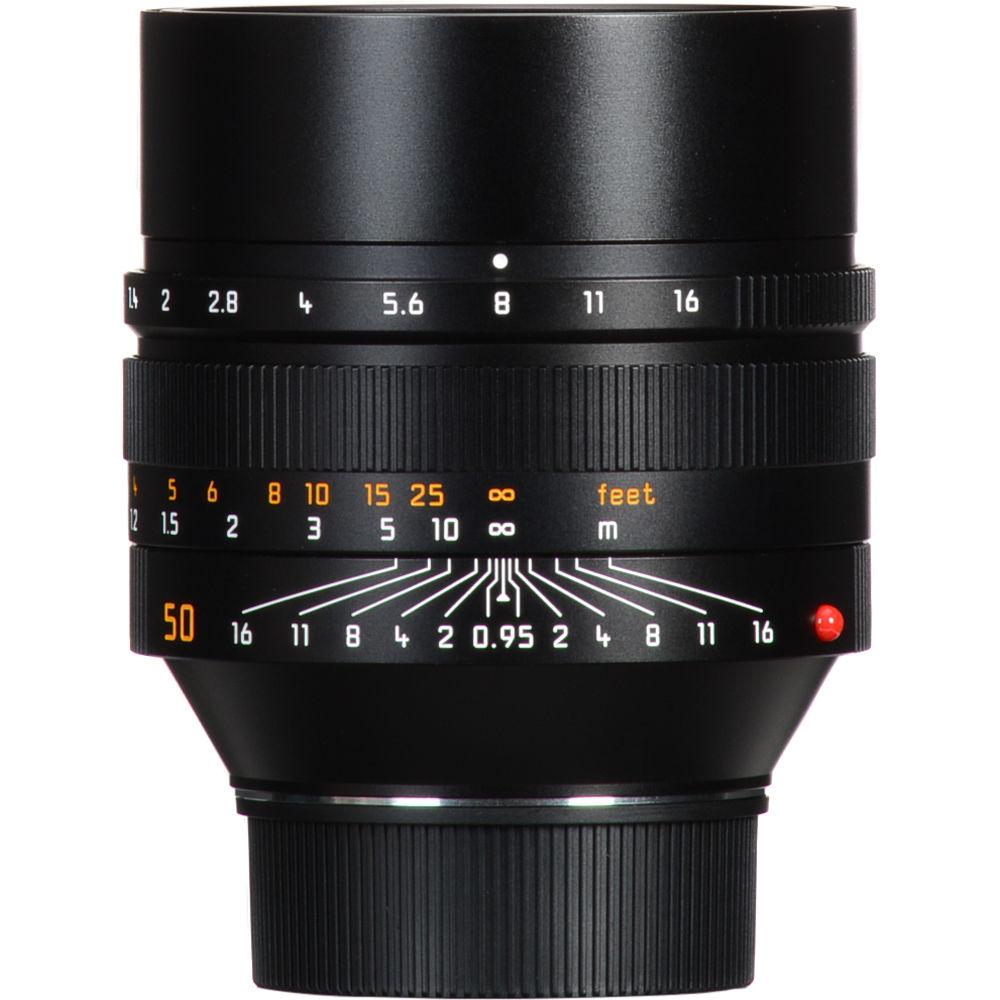

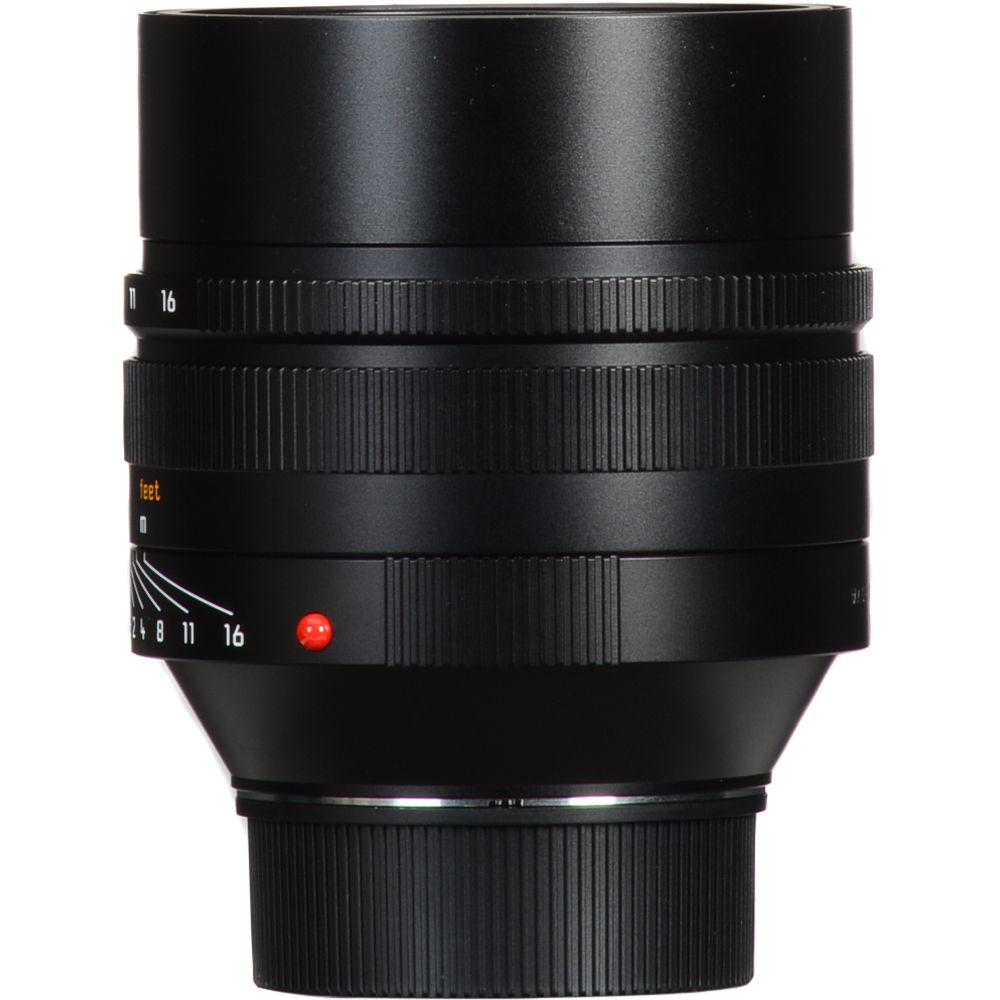

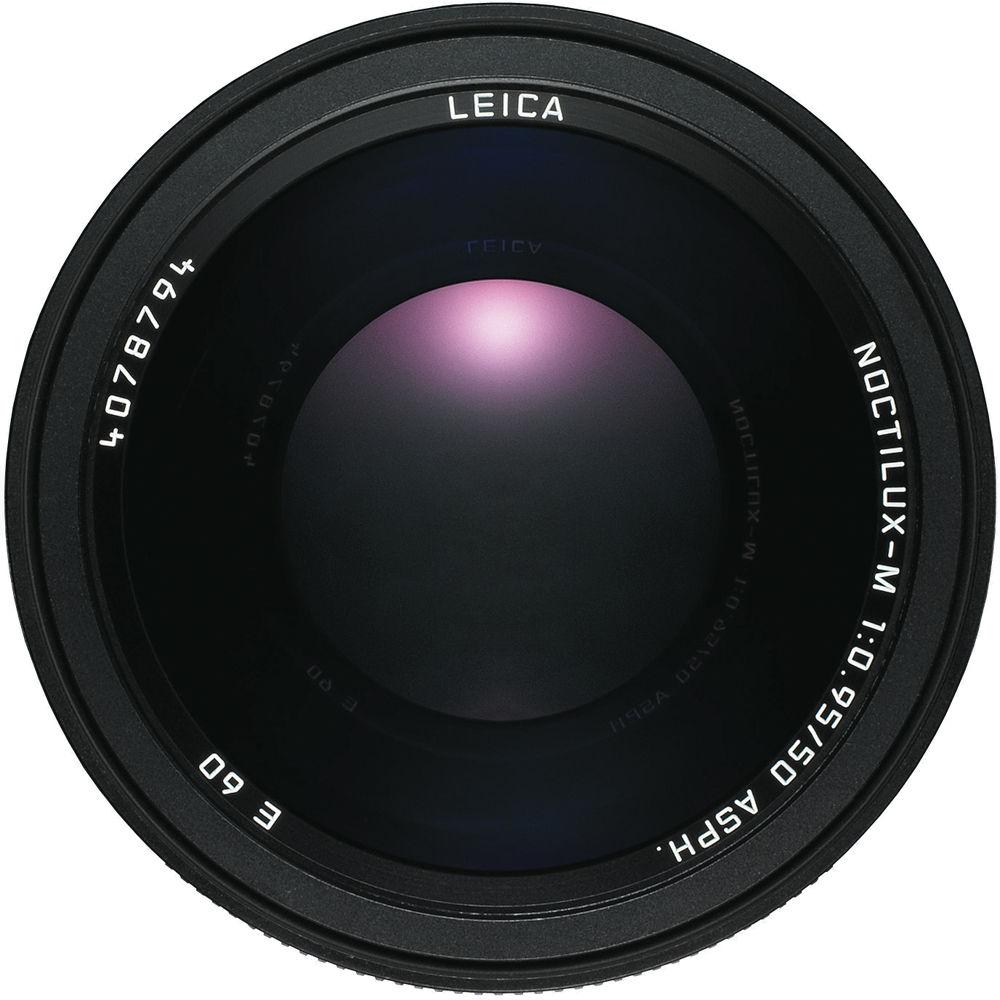

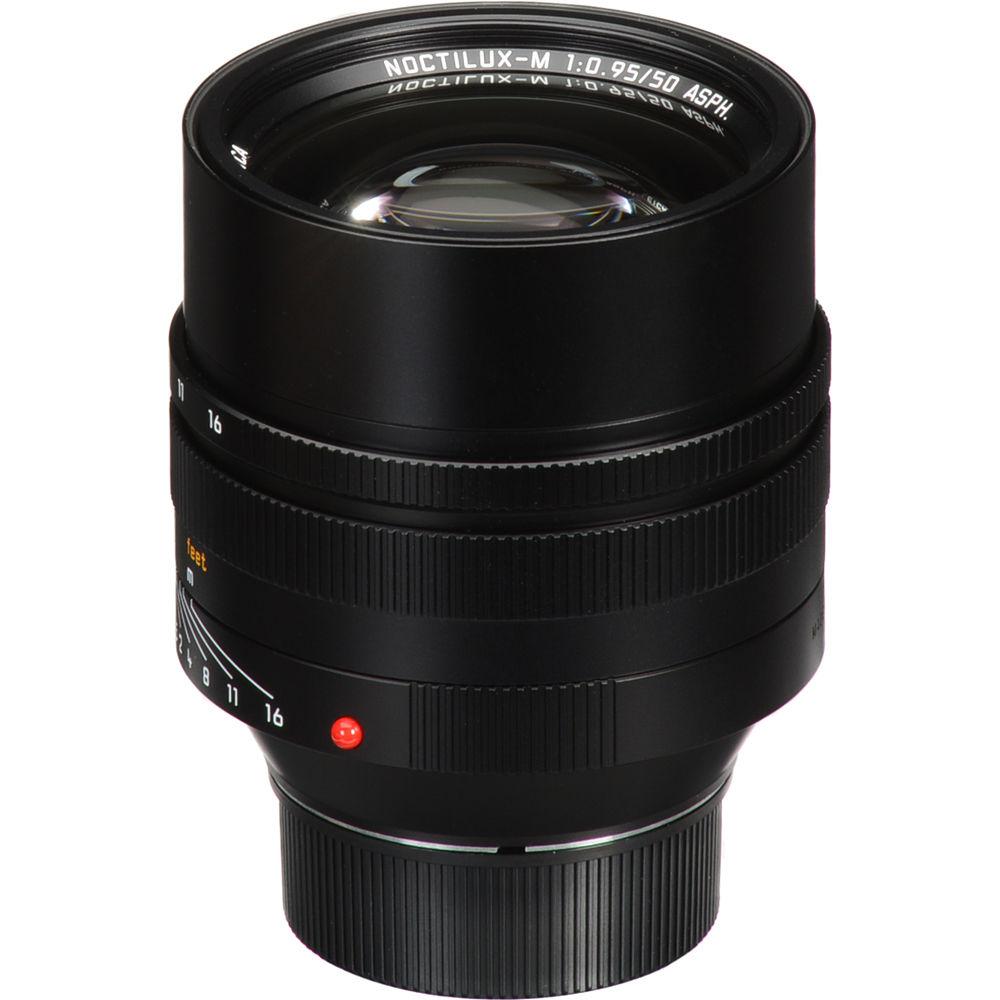

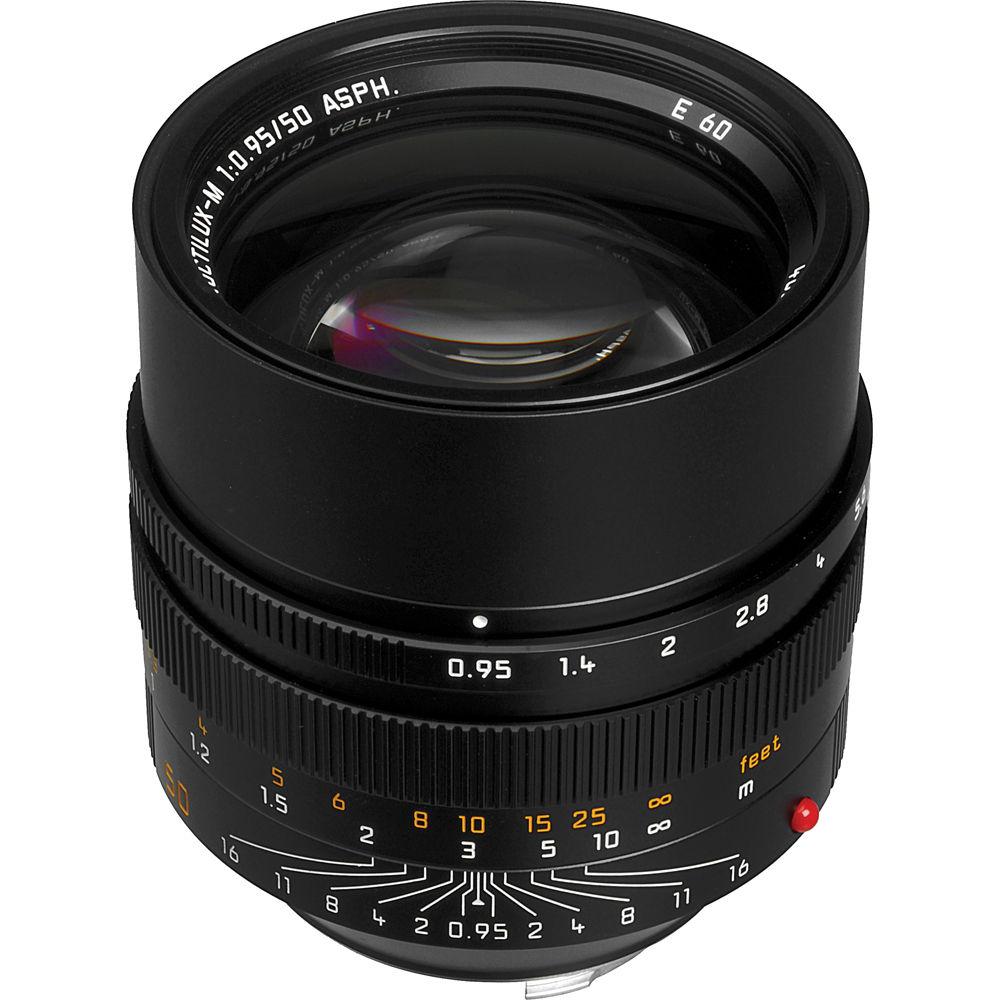

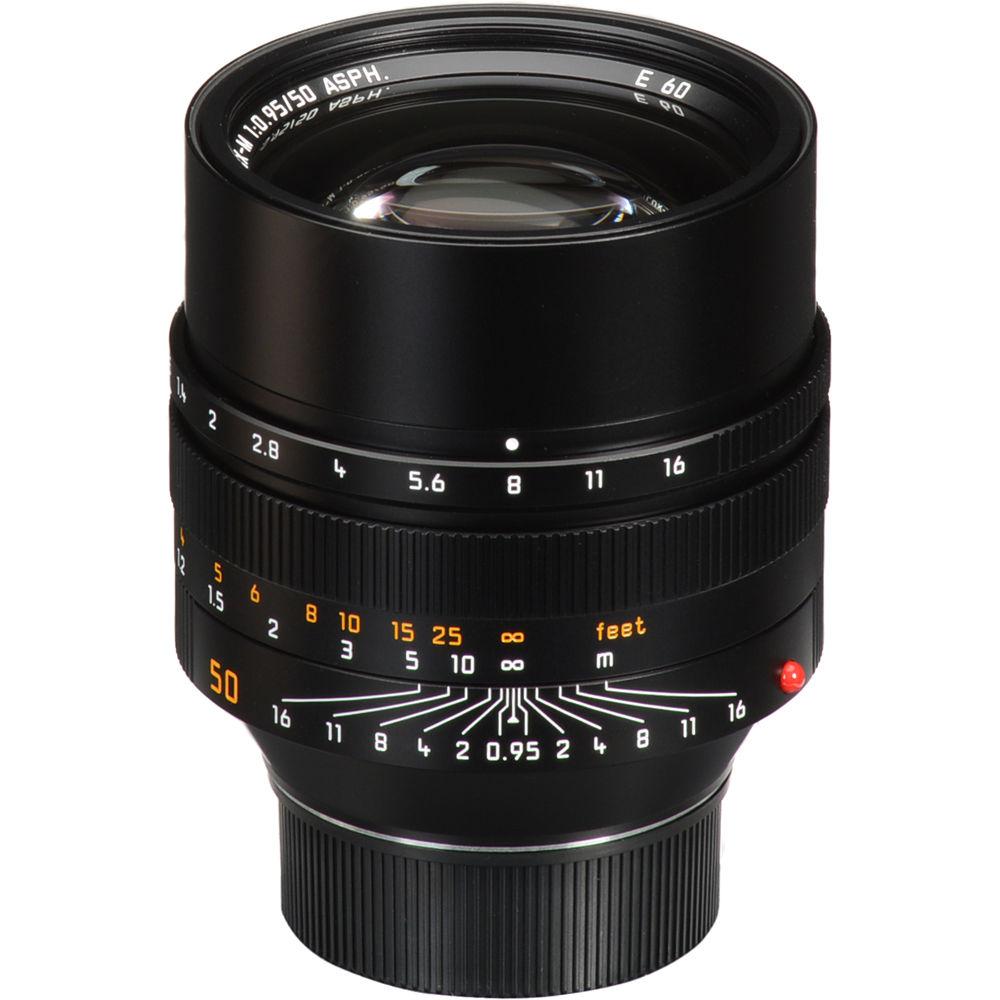

Product description One of the most legendary lenses in Leica's M-mount lineup, the black Noctilux-M 50mm f/0.95 ASPH. is an ultra-fast normal-length prime characterized by its unique rendering quality, ability to isolate subject matter, and exceptional low-light performance. Based on a classic double Gauss optical design, the lens employs a pair of aspherical elements, anomalous partial dispersion glass, and high refractive index elements to produce the distinct subtle softness when working wide open while also delivering accurate color and minimal distortion. A floating elements system is also used to maintain consistent image quality throughout the focusing range, from 3.3' to infinity. Additionally, the lens features a built-in extendable lens hood and accepts 60mm threaded filters. - Extremely fast f/0.95 maximum aperture affords notable control over depth of field for selective focus shooting, and also benefits working handheld in low-light conditions.
- Distinct "slightly soft" rendering is characteristic of the Noctilux line, and is well-suited to portraiture and other lifestyle applications.
- Referencing a double Gauss-type optical design, the lens is constructed with eight elements in five groups. Five of the elements are made from anomalous partial dispersion glass and three are made from high refractive index glass to produce distinct rendering quality while limiting color fringing and chromatic aberrations.
- Two large-diameter aspherical elements are also used to control spherical aberrations for improved clarity and reduced distortion.
- A rear floating element is employed to maintain consistent image quality throughout the focusing range, even at the minimum focusing distance of 3.3'.
- Built-in extendable lens hood shades and protects the front element to reduce lens flare and ghosting. Additionally, the front of the lens is threaded to accept 60mm screw-in filters.

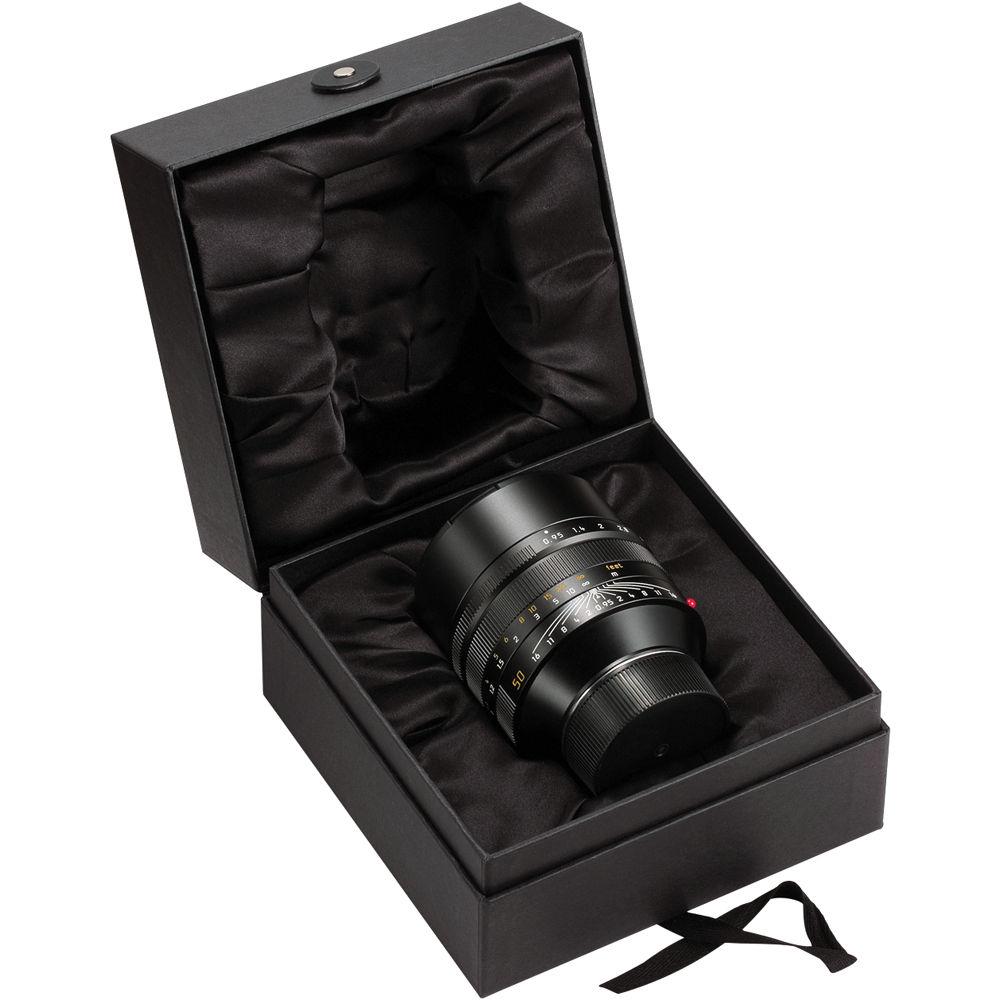

In the Box Leica Noctilux-M 50mm f/0.95 ASPH. Lens (Black) Front Lens Cap Rear Lens Cap for M-Mount Lenses fcvucwfy Presentation Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Noctilux-M 50mm f 0.95 ASPH. Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11-602 Specs | Focal Length | 50mm | | Maximum Aperture | f/16 | | Minimum Aperture | f/0.95 | | Lens Mount | Leica M | | Angle of View | 47° | | Minimum Focus Distance | 3.3' / 1 m | | Maximum Reproduction Ratio | 1:17 | | Optical Design | 8 Elements in 5 Groups | | Filter Thread | 60mm | | Dimensions |
