User Manual for Leica Pinmaster II Click to enlarge the picture
Contents of the user manual for the Leica Pinmaster II
- Product category: Laser Rangefinders Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Laser Rangefinders
|
User manual for the Leica Pinmaster II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

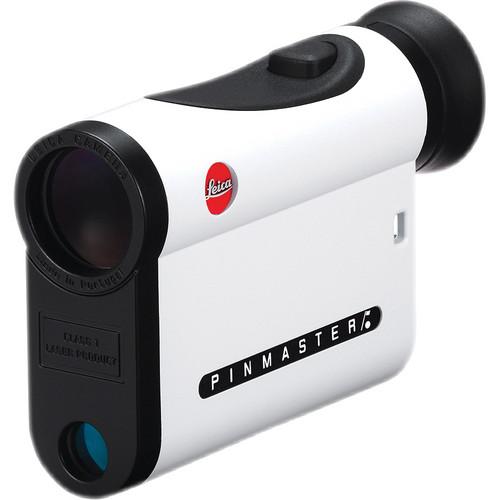

Product description The Pinmaster II from Leica, with a snappy white surface and black trim, provides a critical edge by measuring the distance to your next pin on the links. A 7x24 monocular that ranges distances up to 825 yards, it features First Target Logic, which was developed specifically for the golf range. It will display the closer target instead of a farther target so that the golf flag will be ranged, rather than the bushes beyond it. It can be set to calculate the distance to a stationary target, or switched to its scanning mode to track moving objects. Its start-up time is a quick 0.5 seconds. The Pinmaster II's housing is crafted from carbon-fiber reinforced plastic that's submersible to 3.2 feet. Its compact form-factor allows it to slip into most pockets easily, while its light weight of less than 1/2 pound allows it to be comfortably carried for the whole 18 holes. An adjustable ocular with a comfortable rubber eyecup offers a generous amount of eye relief and accurate focusing that accommodates eye/sunglass wearers. The easy-to-read red LED display is bright, tack sharp, and it can be set to display its measurements in yards or meters. - Rangefinder
-
- Range: 10-825 yards
- Measuring accuracy: ± 1 yard to 400 yards, ± 2 yards to 825 yards, 0.5% beyond 825 yards
- First Target Logic finds the flag, not the background trees
- Optical Performance
-
- Extended 15 mm eye relief accommodates eye/sunglass wearers
- 7x magnification
- 24mm objective lens
- Phase-correcting P40 coating
- Roof prism
- Use and Handling
-
- Measuring time: ≈0.5 seconds
- LED display: Bright led readout is easy to see in any light
- Measuring modes: Single reading, scanning mode, yards, meters
- Display: 4 character LED / ambient light-controlled / brightness level
- ±3.5 dioptric correction
- Comfortable 3.4mm exit pupil
- Long 15mm eye relief
- Construction Details
-
- Fold down rubber eyecups for sun and eyeglasses wearers
- Housing: Carbon-fiber reinforced plastic
- Waterproofing: Submersible to 3.3' / 1.0 m for 30 minutes
Lightweight: 7.8 oz with battery but no strap UPC: 799429405335 In the Box Leica Pinmaster II Cordura Carry Case Carrying Cord CR2 Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Pinmaster II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 40533 Specs | Prism Type | Roof | | Magnification | 7.0x | | Objective Lens Diameter | 24mm | | Field of View | 347' @ 1000 yd / 115 m @ 1000 m | | Angle of View | 6.5° | | Laser Type | EN/FDA class 1 eye-safe invisible laser
Laser beam divergence: approx. 0.5 x 2.5 MRAD | | Metering Range/Accuracy | Range: 10 to 825 yd / 10 to 750 m Accuracy: ± 1 to 400 yd / 366 m
± 2 to 825 yd / 750 m
0.5% beyond 825 yd / 750 m | | Exit Pupil Diameter | 3.4 mm | | Eye Relief | 15.0 mm | | Dioptric Correction | ±3.5 | | Weatherproofing | Waterproof to 3.3' / 1.0 m for 30 minutes | | Tripod Socket | No | | Power Source | 1 3 V Lithium-type C2R | | Battery Life (approx.) | 2,000 measurements at 68° F / 20° C | | Dimensions | 4.5 x 3.0 x 1.3" / 11.3 x 7.5 x 3.4 cm | | Weight | With battery, without strap: 7.8 oz / 221.1 g | | | | Package Weight | 0.945 lb | | Box Dimensions (LxWxH) | 6.15 x 4.25 x 3.35" |
