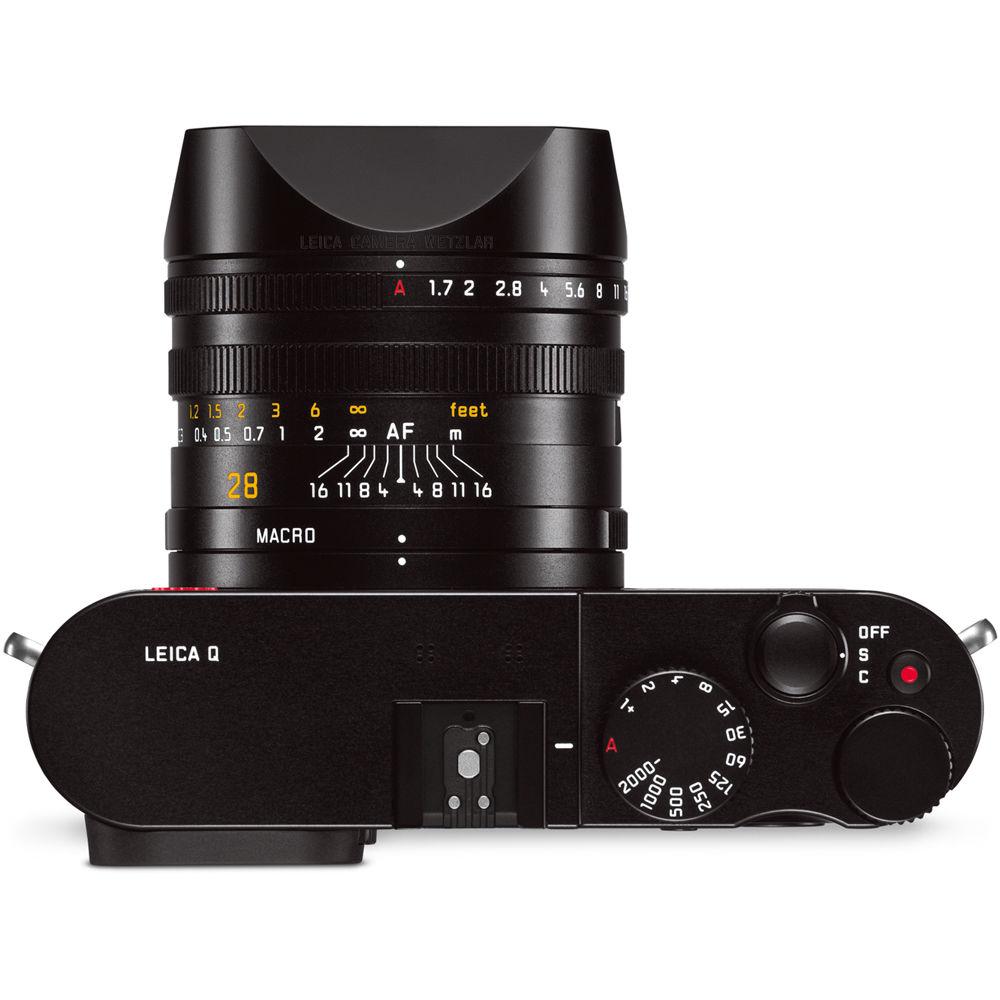

User Manual for Leica Q Digital Camera Click to enlarge the picture
Contents of the user manual for the Leica Q Digital Camera
- Product category: Point & Shoot Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Point & Shoot Cameras
 |
User manual for the Leica Q Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Video: Hands-On Review Of The Leica Q (Typ 116) Read More - Leica Q (Typ 116): Hands-On Review

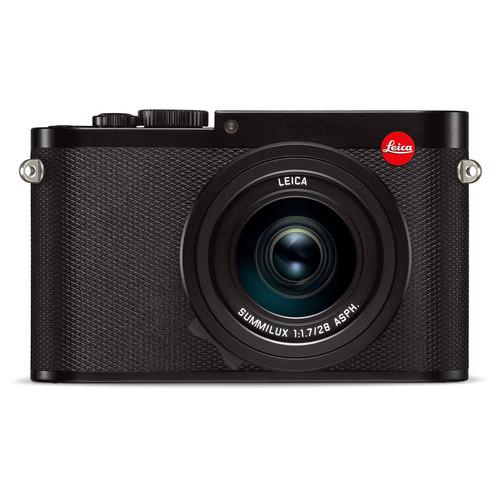

A no compromise compact, the black Leica Q (Typ 116) Digital Camera wields a full-frame 24.2-megapixel CMOS sensor within its exceptionally portable, and beautiful, body. Leveraging the power of the Leica Maestro II series image processor, high-resolution, low-noise imaging is possible at sensitivities up to ISO 50000 and at a continuous rate of 10 fps. Also, the camera utilizes a Summilux 28mm f/1.7 ASPH. lens to allow users to dramatically separate the subject from the background as well as work in difficult light conditions.

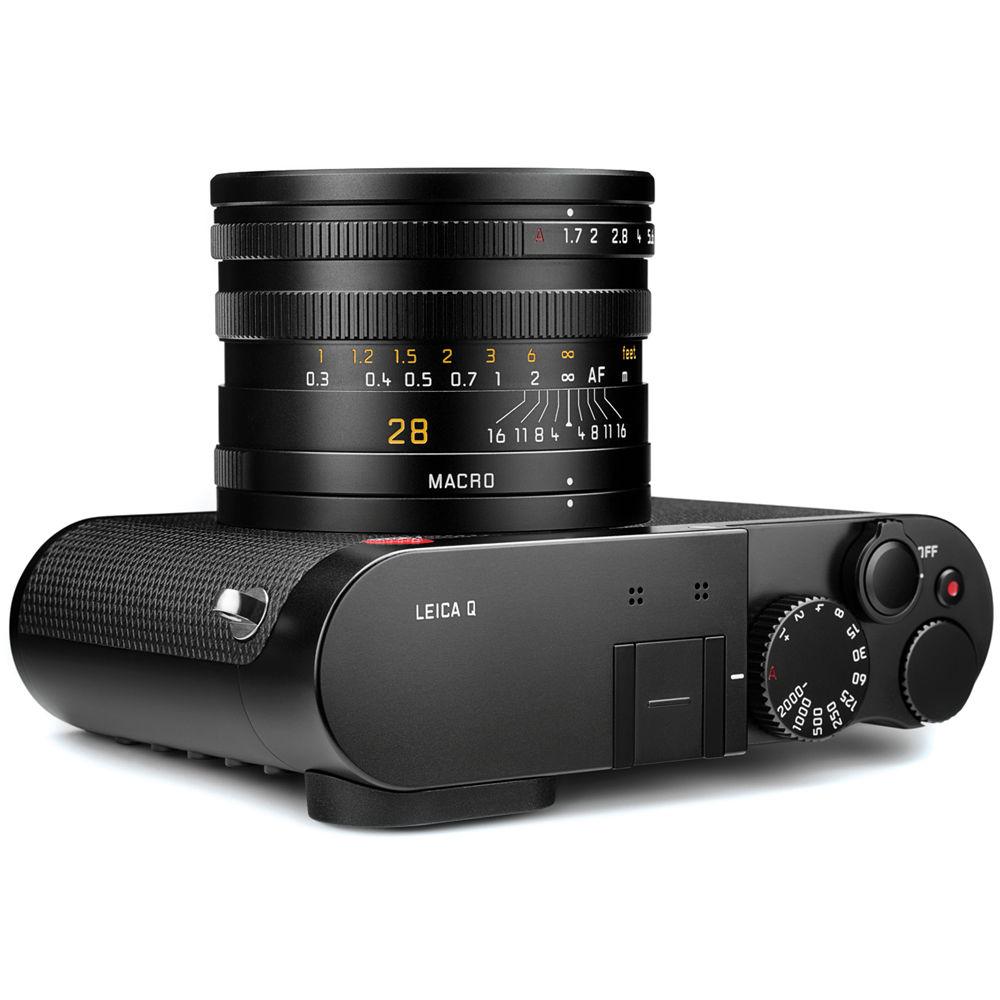

The design is benefitted by Leica's classic simple aesthetic and the body has easily read laser engraved lettering, numbers, and dials. Construction is solid with a machined aluminum top plate and a lightweight magnesium alloy body. Also, it has a large thumb rest on the back and a diamond pattern on the front leathering to ensure a firm, comfortable grip over the camera. Further, the Q (Typ 116) has a built-in 3.68-megapixel LCOS electronic viewfinder which provides a live through-the-lens image with handling similar to that of a rangefinder.
In addition to fully manual control with physical operation using the aperture and focus rings on the lens, auto focus is possible using a contrast-based system. This enables fast, sharp imaging at the click of the shutter. The rear 3.0" 1.04m-dot touchscreen LCD monitor helps by allowing users to quickly take control of their focus by just tapping on their subject. Focusing aids are also available in the form of Focus Peaking and Live View Zoom.
Another benefit of the updated Maestro II processor is Full HD 1080p video capture at 60 or 30 fps. A built-in stereo microphone enables high-quality sound recording and an integrated wind filter limits extraneous noise. Full manual control will then allow users to dial in the exact look they want or need for their shot.
Share your photos and videos instantly thanks to an integrated Wi-Fi module which allows you to link the camera to a smartphone, tablet, or computer. The Q also has an NFC chip for tap-to-connect functionality with certain devices and the free Leica Q app lets you take remote control of your camera for adjusting exposure while you shoot from odd angles and positions. - Leica Q (Typ 116)
- With Leica's classic styling's, the Q (Typ 116) offers an intuitive, minimal design while remaining compact. It packs a full-frame sensor and Summilux lens for optimal image quality in both stills and video. An electronic viewfinder is also available for rangefinder-like operation and handling, much like their M-series cameras.
- 24MP Full-Frame CMOS Sensor and Maestro II Image Processor
- Featuring a full-frame 24MP CMOS sensor, this camera can capture sharp high-resolution images and Full HD video with exceptionally low noise at sensitivities up to ISO 50000. Combined with the power of the Maestro II image processor, this enables continuous shooting at a rate of up to 10 fps and video at up to 60 fps.

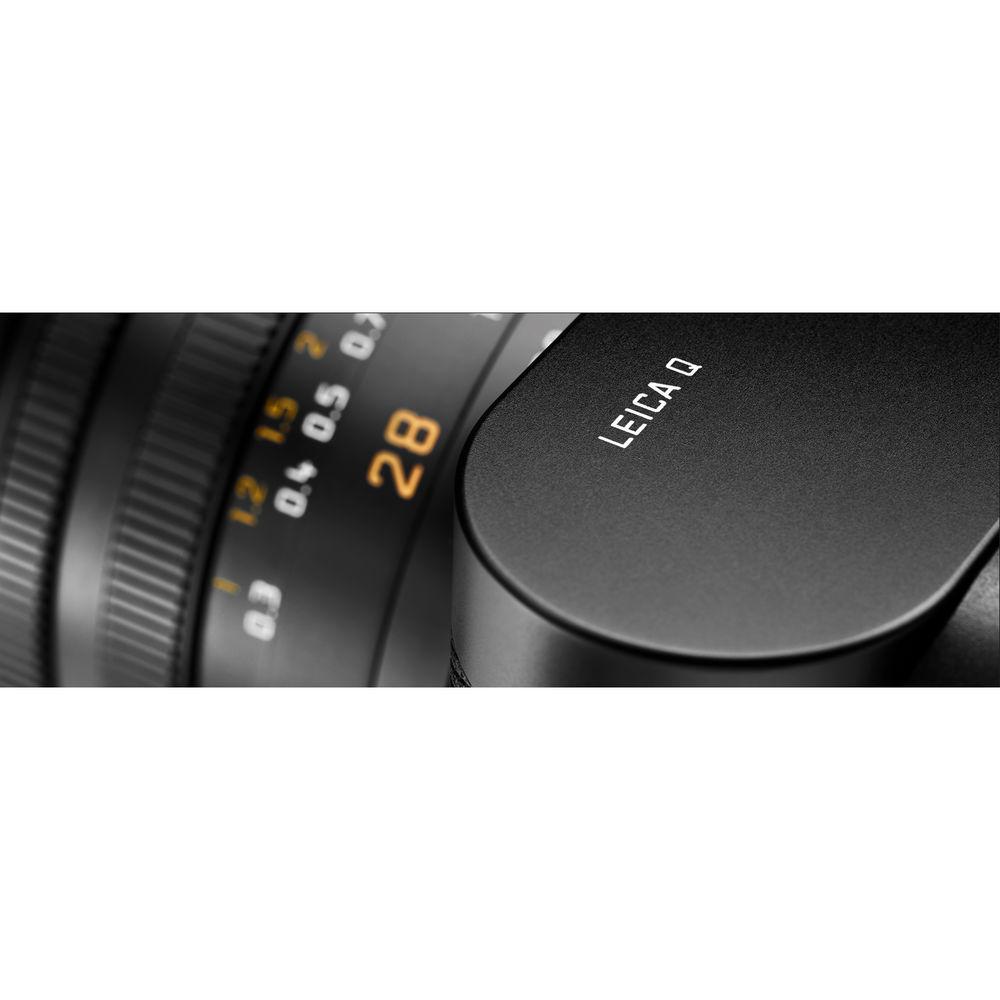

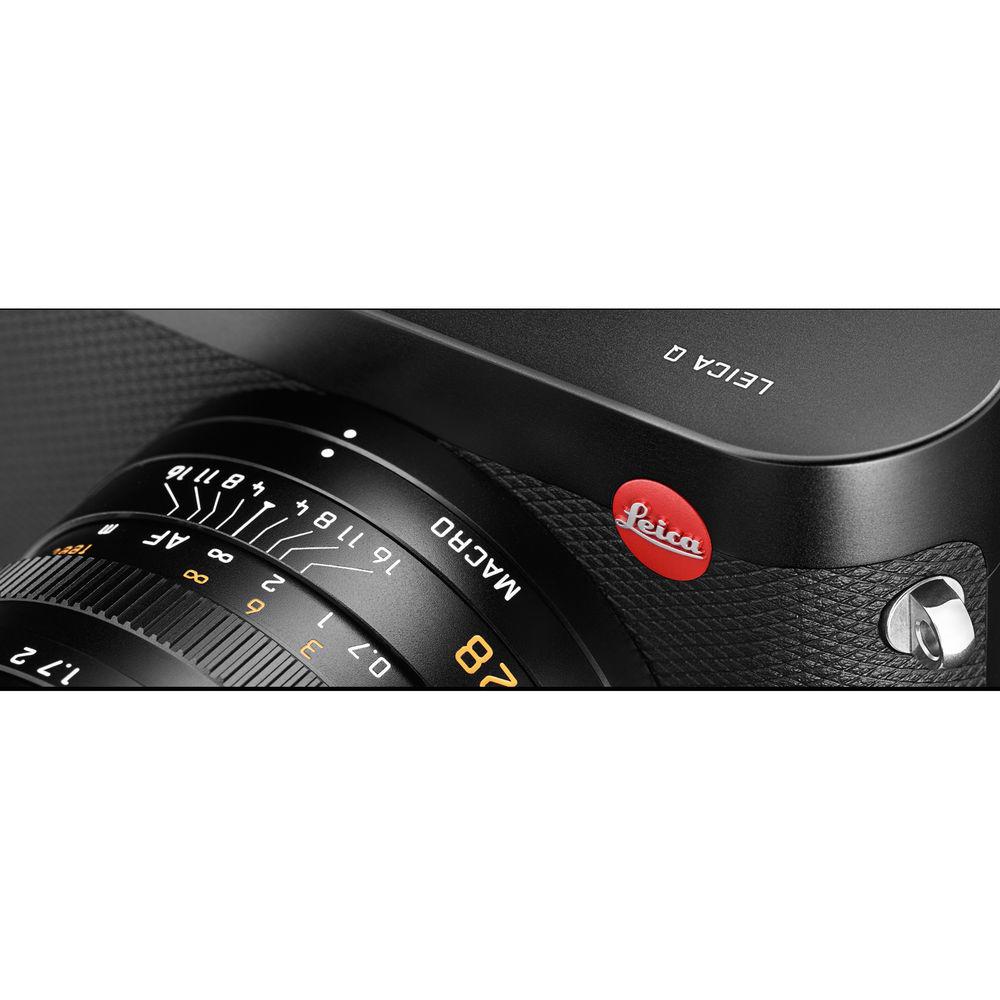

- Summilux 28mm f/1.7 ASPH. Lens
- Take control of your imaging with the ability to separate the subject from the background with the Summilux 28mm f/1.7 ASPH. lens of the Leica Q (Typ 116). It has a fast f/1.7 maximum aperture for working in low light conditions and both a physical aperture blade and focus ring for tactile operation. Users looking for a little tighter framing can benefit from a Digital Frame Selector setting which will crop in either 1.25x to a 35mm equivalent or 1.8x for a 50mm equivalent field of view, both of which will be visible on the EVF and LCD. Additionally, further benefitting image quality is an optical stabilization system to reduce camera shake in videos and photos and the ability to accept 49mm threaded filters.
- Electronic Viewfinder

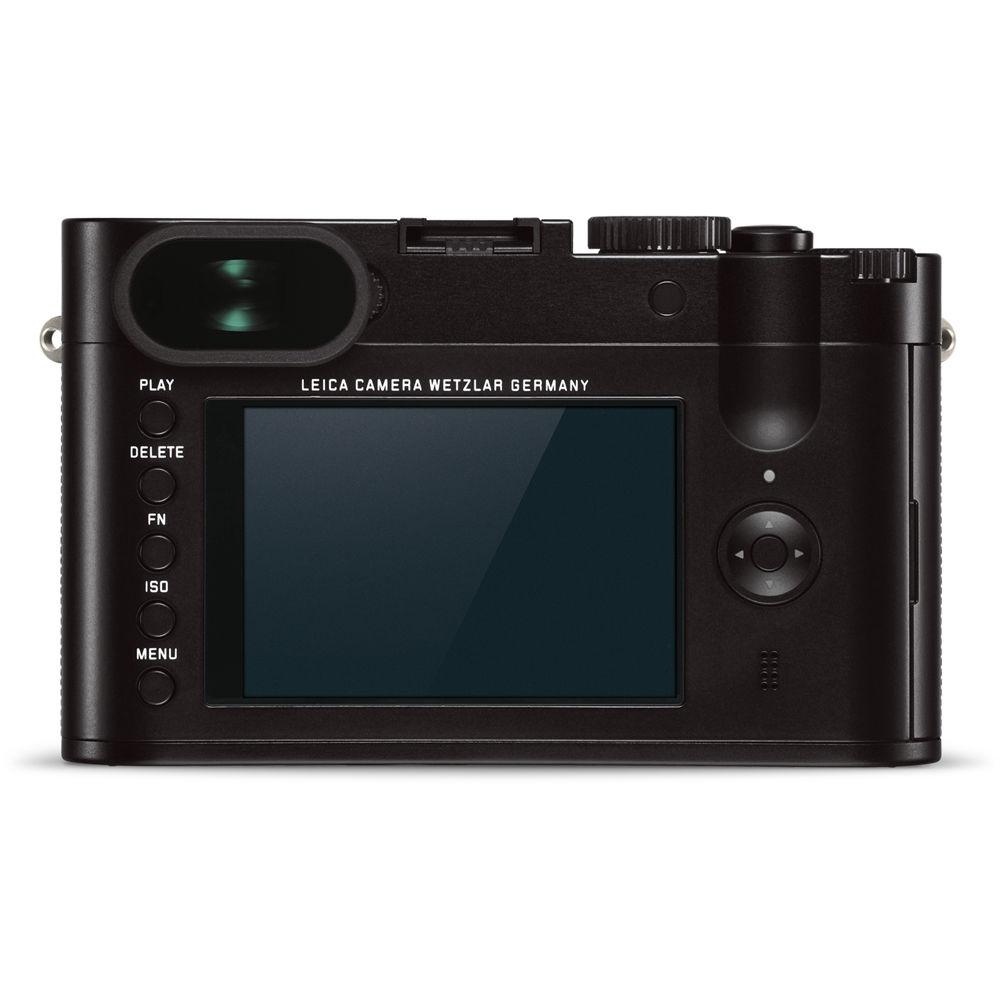

- Natural, ergonomic shooting is possible with the inclusion of a 3.68MP LCOS electronic viewfinder in the top left corner on the back of the camera. This setup provides an exceptionally clear and bright viewing experience with a 1280 x 960 pixels x 3 colors design.
- 3.0" 1.04m-Dot LCD Touchscreen
- Compose images, review photos, and adjust settings using the large 3.0" 1.04m-dot LCD touchscreen on the rear of the camera. This panel is also touch capable for making fast changes to your settings. This enables features like touch focus for simply tapping on your subject to lock on.
- Full HD 1080p Video Recording
- Record full HD 1080p video at either 60 or 30 fps with the Q, capturing sharp, highly detailed images thanks to the Maestro II image processor. The camera can also shoot 720p at 30 fps.

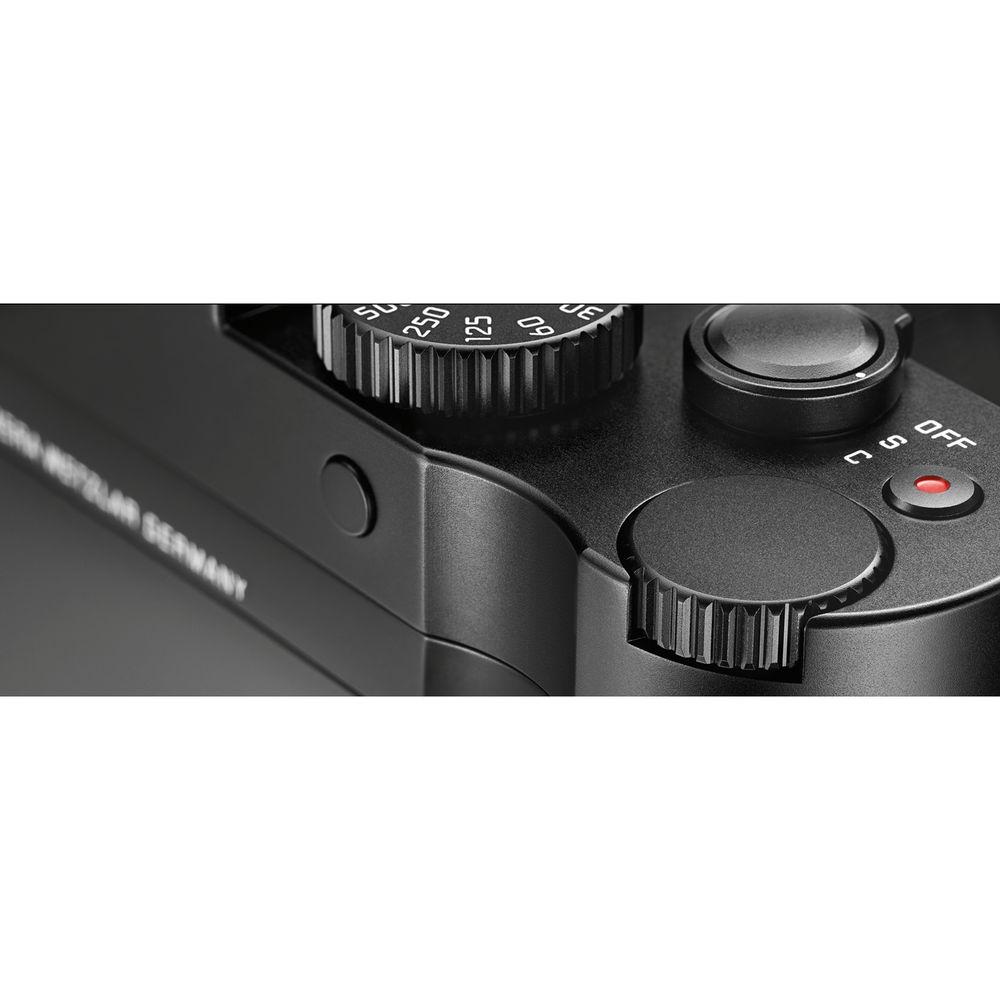

- Body Design

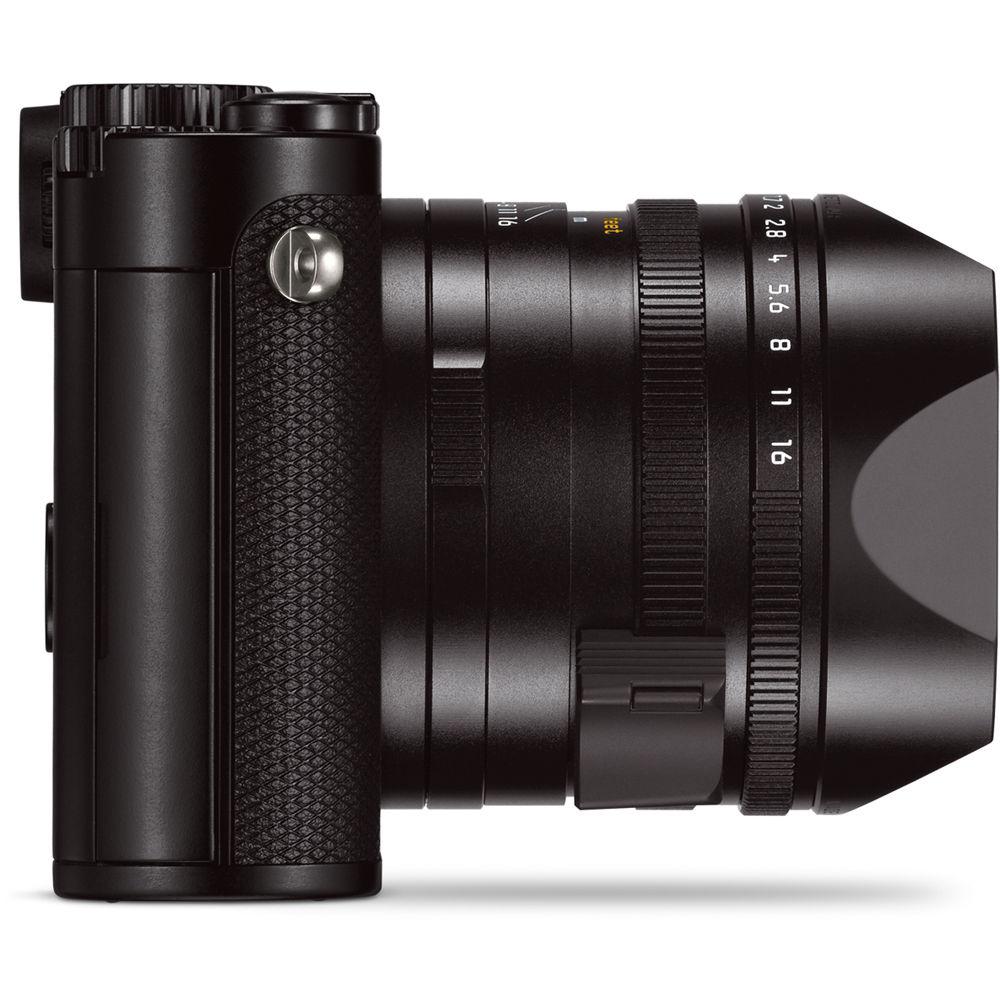

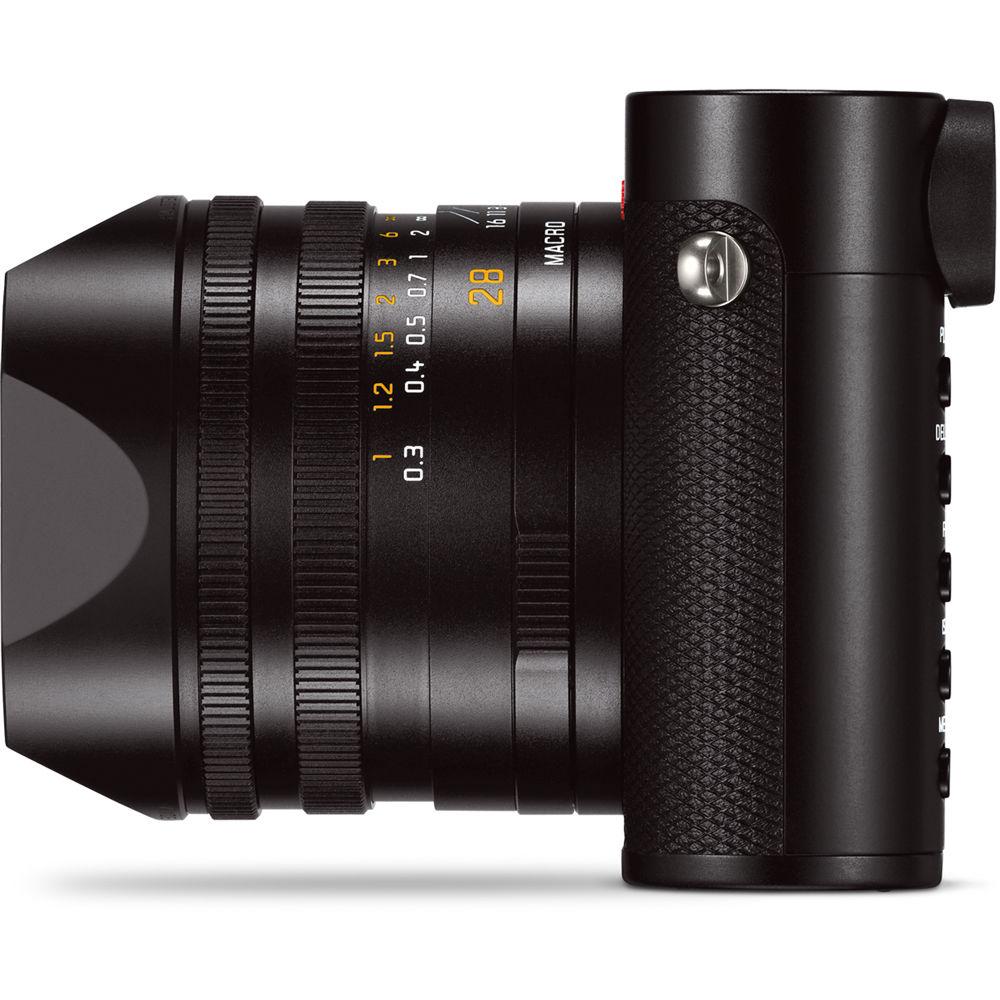

- Incorporating a solid machined aluminum top plate and a magnesium alloy body, the Q (Typ 116) is designed to last. The rear features a substantial thumb rest which combined with the diamond-patterned leathering makes for a supremely comfortable and secure grip over the camera.
- Built-In Wi-Fi Connectivity with NFC
- Share your photos and videos instantly thanks to an integrated Wi-Fi module which allows you to link the camera to a smartphone, tablet, or computer. The Q also has an NFC chip for tap-to-connect functionality with certain devices and the free Leica Q app lets you take remote control of your camera for adjusting exposure while you shoot from odd angles and positions.
- Other Camera Features
-
- DNG RAW and JPEG shooting are supported.
- Flash synchronization at up to 1/500 second.
- Selectable 10, 5, and 3 fps.
- Hot shoe for external flash units.
UPC: 799429190002 In the Box Leica Q (Typ 116) Digital Camera (Black) - Carrying Strap
- Lens Hood
- Lens Cap
- Accessory Shoe Cover
- BP-DC 12 Lithium-Ion Battery for Leica Q Typ 116 Digital Camera (7.2V, 1200mAh)
- Battery Charger
- Power Cable
- USB Cable
- Limited 1-Year Leica Society Digital Membership
- Limited 2-Year Warranty
User Manual PDF 8.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Q Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Q (Typ 116) Specs | | | Pixels | Actual: 26.3 Megapixel
Effective: 24.2 Megapixel | | Sensor | Full Frame (36 x 24 mm) CMOS | | Bit Depth | 14-Bit | | File Formats | Still Images: DNG, JPEG
Movies: MP4
Audio: AAC | | Max Resolution | 24 MP: 6000 x 4000 | | Aspect Ratio | 3:2 | | Image Stabilization | Optical | | Color Spaces | sRGB, Adobe RGB | | | | Lens | 11 Elements in 9 Groups
3 Aspherical
Effective Focal Length: 28mm
Aperture: f/1.7 (W) to f/16 | | Filter Thread | 49mm | | Zoom | None | | Focus Range | Normal: 11.81" to Infinity / 30 cm to Infinity
Macro: 6.69" to Infinity / 17 cm to Infinity | | | | ISO Sensitivity | Auto, 100 to 50000 | | Shutter | Type: Mechanical
Speed: 30 to 1/2000 Second
Type: Electronic
Speed: 1/2500 to 1/16000 Second | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | White Balance | Auto, Cloudy, Color Temperature, Daylight, Flash, Halogen, Manual, Shade | | Continuous Shooting | Up to 10 fps at 24 MP for up to Exposures | | Self-Timer | 2, 12 Sec | | | | Flash Modes | Auto
Manual | | Built-In Flash | No | | External Flash Connection | Hot Shoe | | | | Built-In Memory | None | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes | | Resolution | 1920 x 1080p: 60 fps, 30 fps
1280 x 720p: 30 fps | | | | Video Clip Length | Up to 29 Minutes 59 Seconds | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Diopter Adjustment | -3 to +3 m | | Viewfinder Coverage | 100% | | Screen | 3" LCD Touchscreen (1,040,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B | | Wi-Fi | Yes Built In | | GPS | None | | | | Battery | 1 x BP-DC 12 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1200 mAh | | | | Dimensions (W x H x D) | 5.1 x 3.1 x 3.7" / 130.0 x 80.0 x 93.0 mm | | Weight | 1.41 lb / 640 g with battery | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 8.8 x 8.3 x 6.6" |
