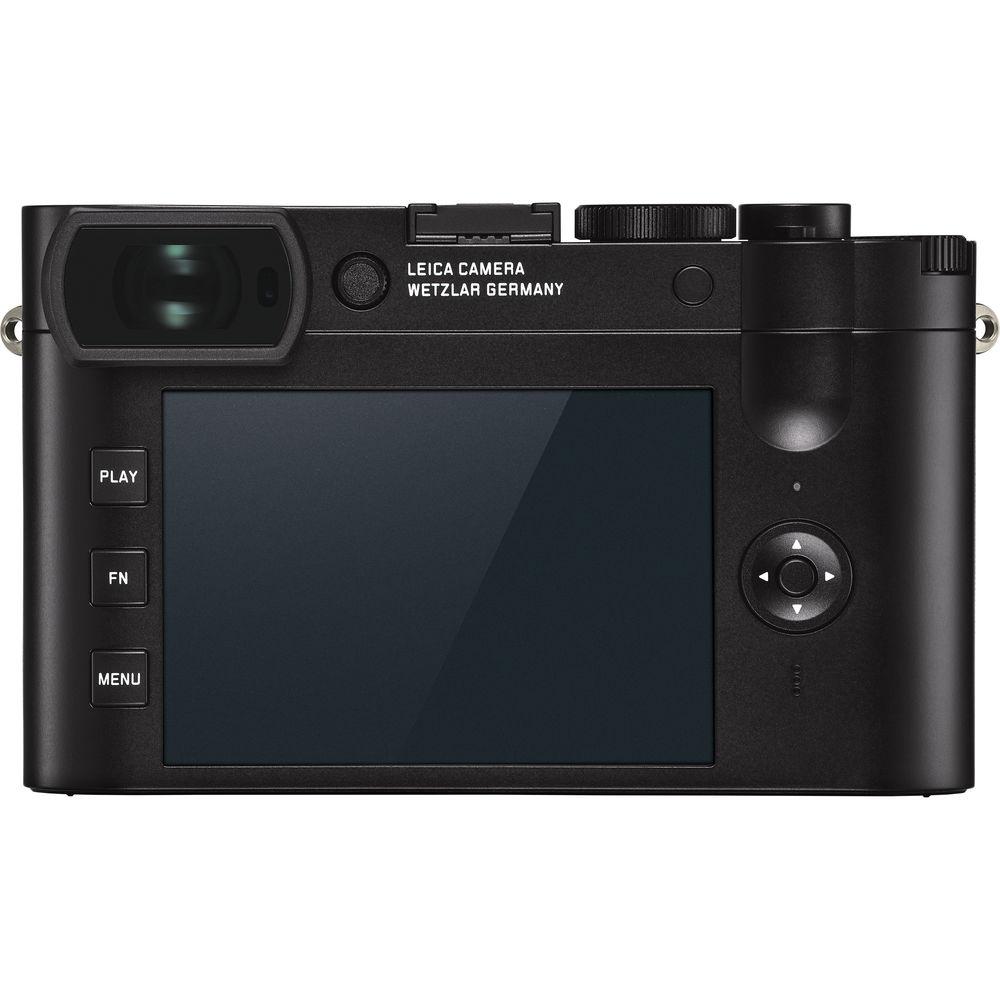

User Manual for Leica Q2 Digital Camera Click to enlarge the picture
Contents of the user manual for the Leica Q2 Digital Camera
- Product category: Point & Shoot Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Point & Shoot Cameras
 |
User manual for the Leica Q2 Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

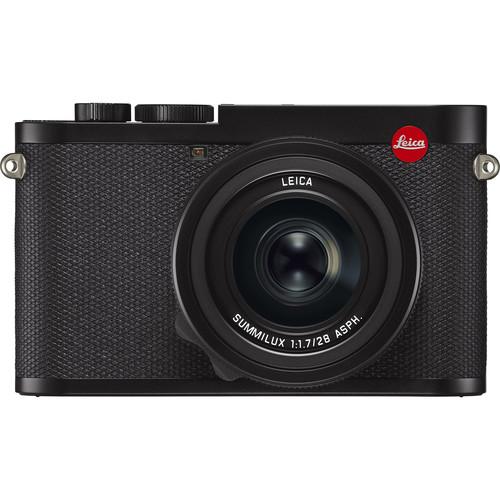

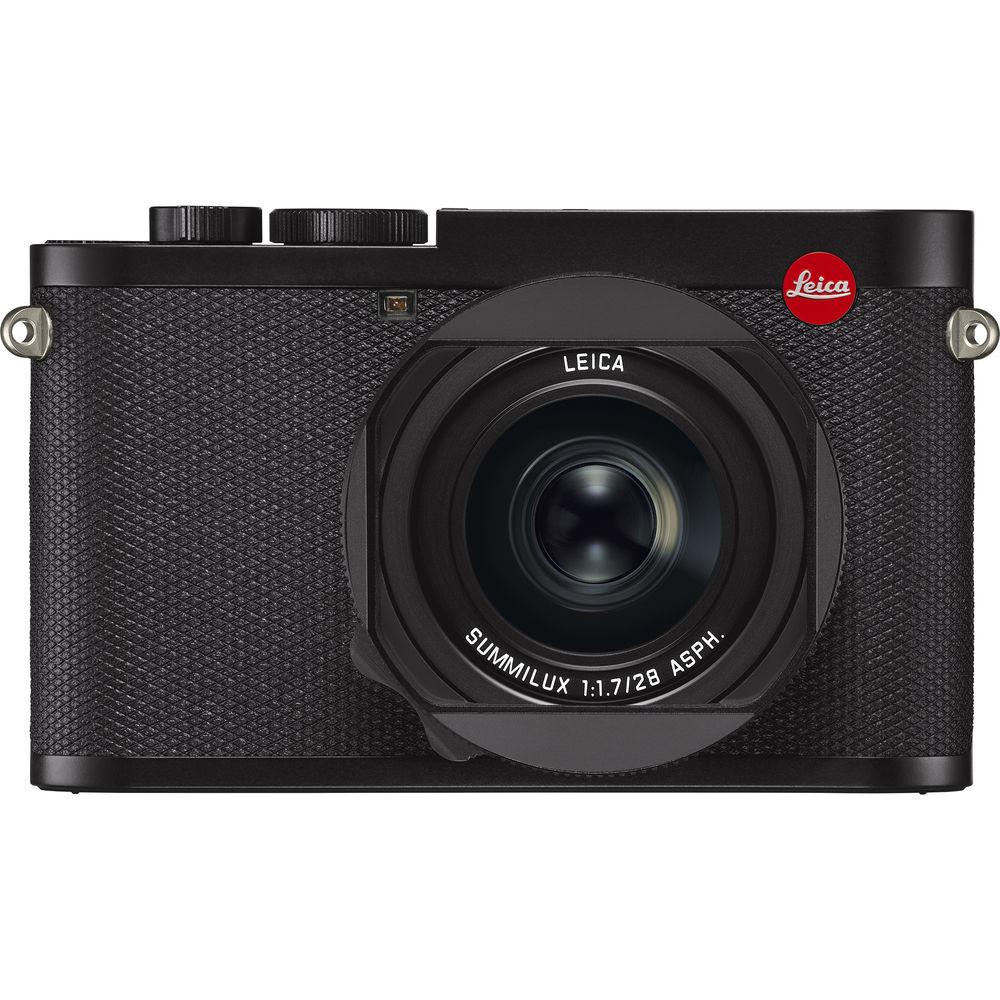

Product description Leica Reveals the Q2, an Even More Perfect Travel Camera Read More Redeveloped while retaining impressive imaging and optical attributes, the Leica Q2 is an advanced compact camera characterized by its updated sensor design and intuitive operation. Revolving around a revised full-frame 47.3MP CMOS sensor and Maestro II image processor, high-resolution stills shooting is possible along with both DCI and UHD 4K video recording. The image processor also contributes to a broad ISO 50-50000 sensitivity range along with quick 10-fps full-resolution continuous shooting. The added resolution also affords a series of unique Crop Modes, which simulate working with longer focal length lenses, including 35mm, 50mm, and 75mm fields of view.
Speaking of the lens, the Q2 features the same impressive wide-angle prime Summilux 28mm f/1.7 ASPH. fixed lens, which has been matched to the sensor design for exceptional resolution and clarity. The lens's design incorporates three aspherical elements and its bright f/1.7 maximum aperture suits working in low-light conditions. Additionally, a macro setting permits working with subjects as close as 6.7" away.
Complementing the imaging and optical assets, the Q2 remains an especially compact and intuitive camera, well-suited for street and travel photography. Its sleek magnesium alloy body is weather-sealed for working in trying environments and it has adopted the same battery featured in the flagship SL mirrorless camera for longer battery life. A high-resolution 3.68MP OLED electronic viewfinder is featured for fluid and clear eye-level monitoring and a rear 3.0" 1.04m-dot touchscreen LCD also affords straightforward playback and settings control. Built-in Bluetooth LE and Wi-Fi permit wireless sharing and remote camera control from a linked mobile device via the Leica FOTOS app. - 47.3MP Full-Frame CMOS Sensor and Maestro II Processor
- Featuring a redeveloped imaging system, the Q2 incorporates a high-resolution 47.3MP full-frame CMOS sensor along with an updated Maestro II image processor, which lends more flexible image creation along with smooth color and tonal rendering, a broad 13-stop dynamic range, low noise, and a wide sensitivity range from ISO 50-50000. Processing capabilities also afford fast shooting performance, up to 10 fps at full-resolution with a mechanical shutter, along with an especially quick 49-area autofocus system. Stills can be recorded as 14-bit DNG files and JPEGs. The added resolution also enables unique digital zoom capabilities to simulate working with different focal length lenses: 30MP images can be created using a 35mm field of view, 15MP images with a 50mm field of view, and 7MP with a 75mm field of view.
In addition to stills, the Q2 features improved video recording with the ability to shoot both DCI 4K24p and UHD 4K30p video, along with high-speed Full HD recording at up to 120p. - Summilux 28mm f/1.7 ASPH. Lens

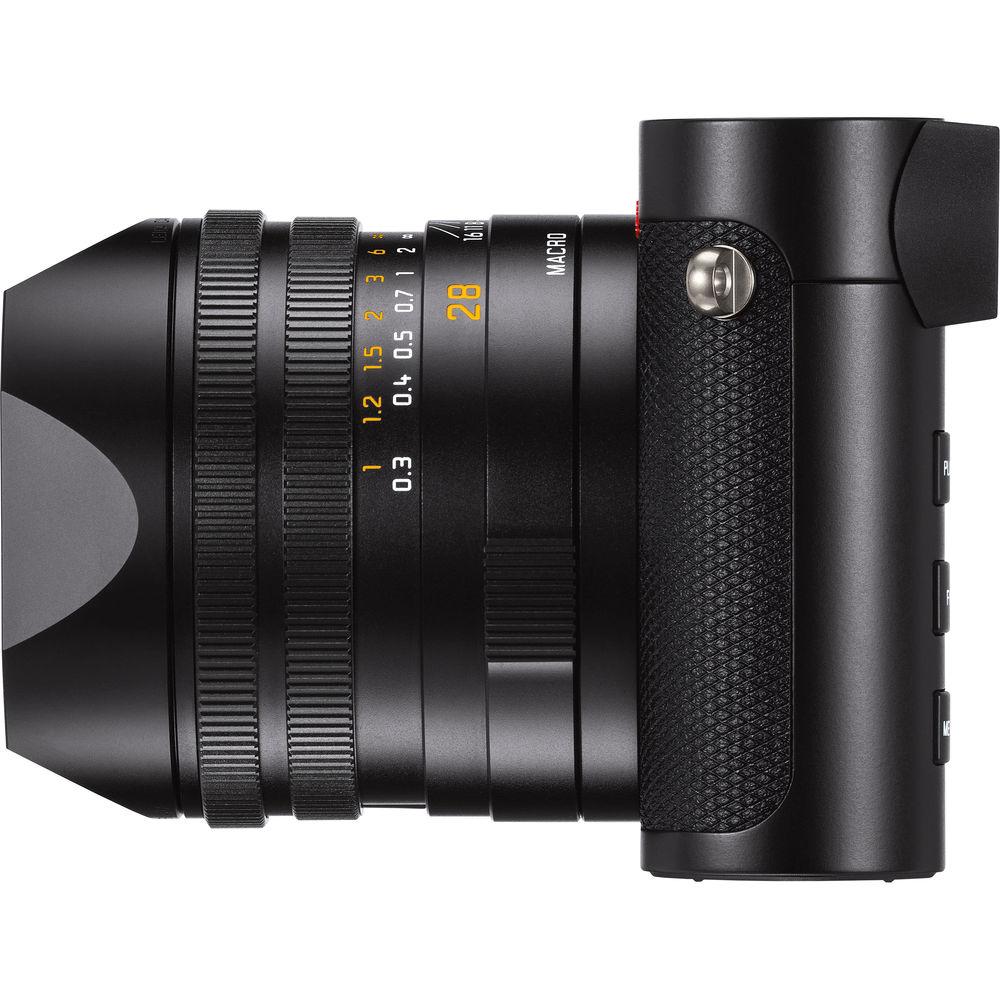

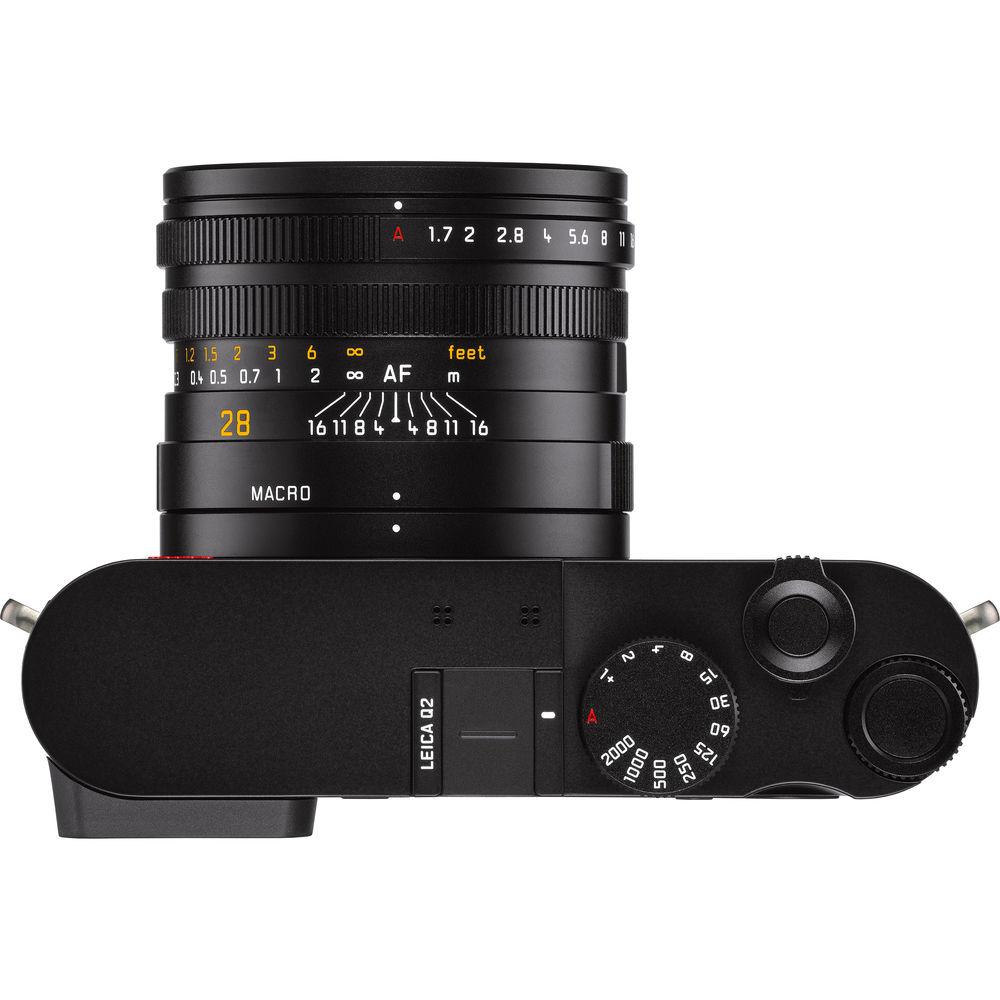

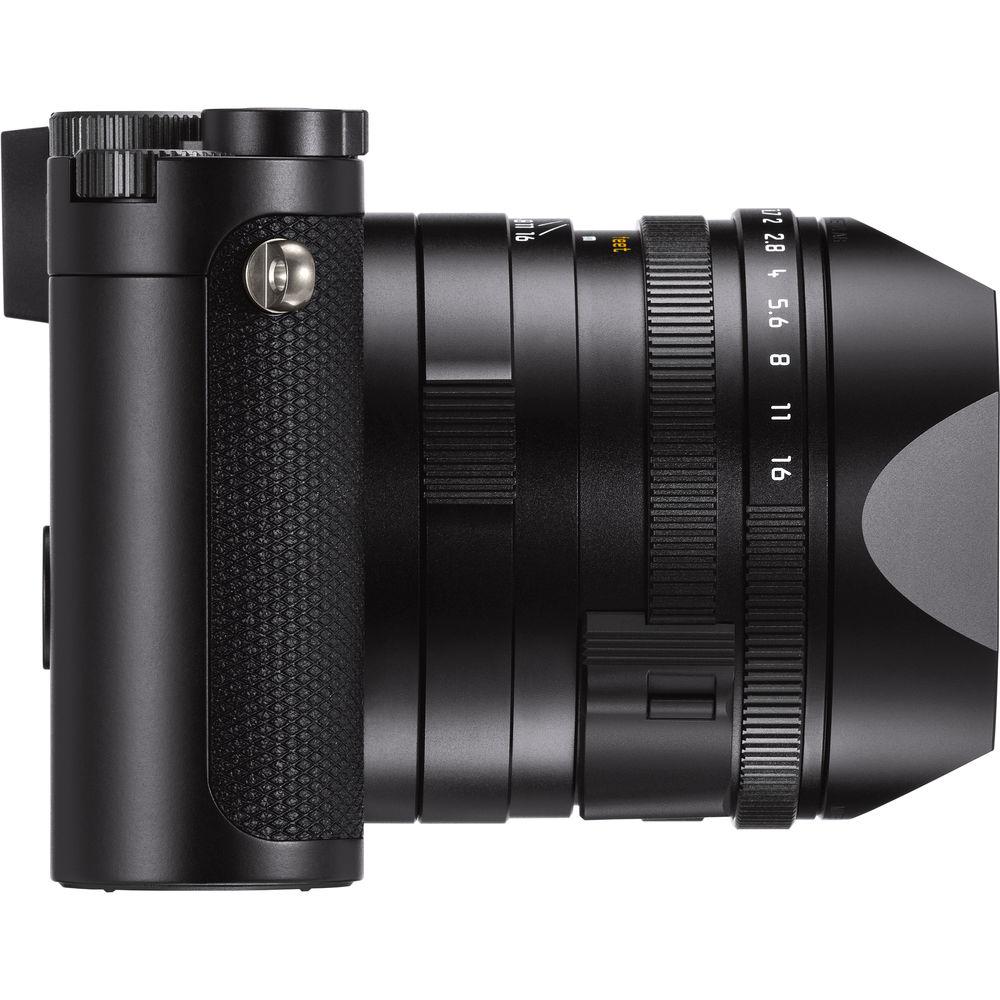

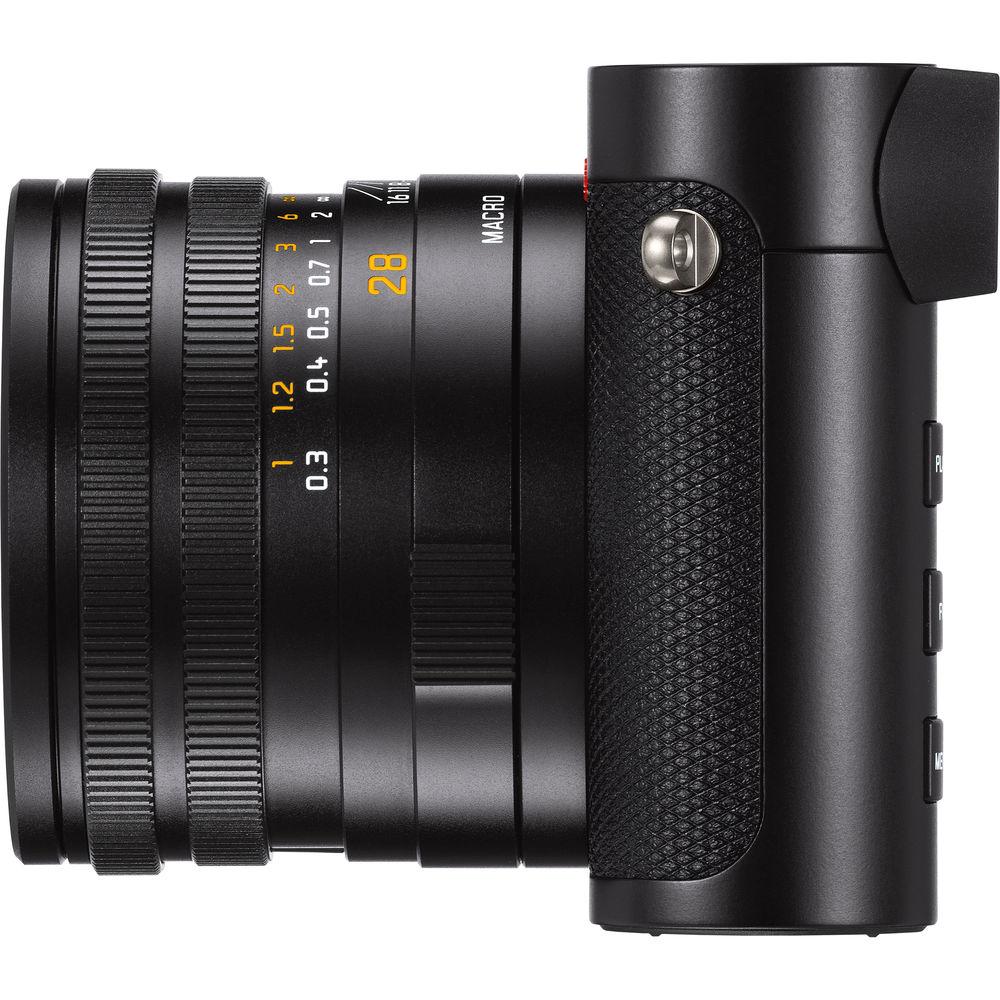

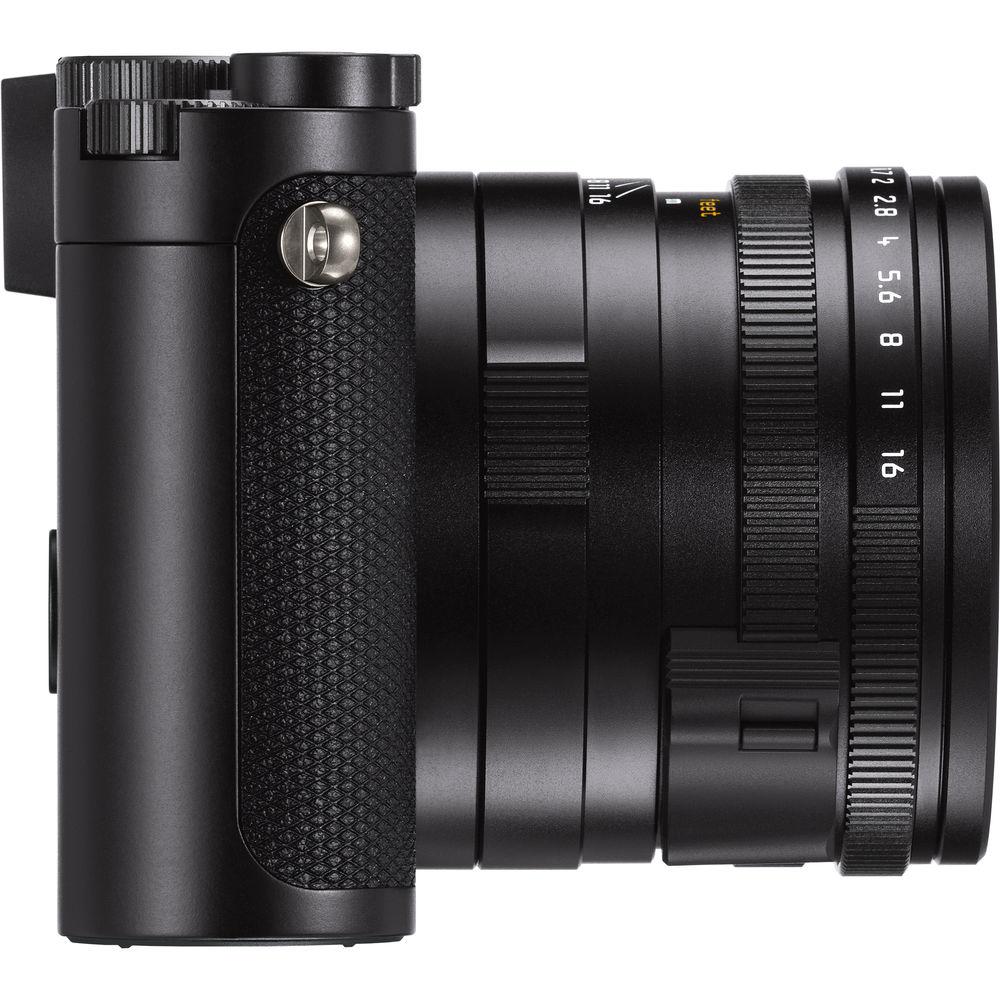

- Key to the popularity of the Q-series is the incorporation of a fixed Summilux 28mm f/1.7 wide-angle prime lens. Blending Leica's optical know-how with a design perfectly matched to the image sensor, this lens incorporates three aspherical elements to control distortion and spherical aberrations for sharp and accurate rendering. Its fast f/1.7 maximum aperture also excels in low-light conditions and offers improved control over depth of field. Extending its versatility, a dedicated macro focusing position can also be used for working with subjects as close as 6.7" away. Additionally, optical image stabilization helps to compensate for the effects of camera shake for sharper handheld shooting.
- Body Design
-
- High-resolution 3.68MP (1280 x 960) OLED electronic viewfinder provides a clear and realistic means for eye-level viewing. Its high refresh rate virtually eliminates lag and an updated eye sensor provides faster automatic switching between the EVF and the rear LCD.
- Rear 3.0" 1.04m-dot LCD features a touchscreen design for intuitive navigation and playback, as well as the ability to touch to focus.

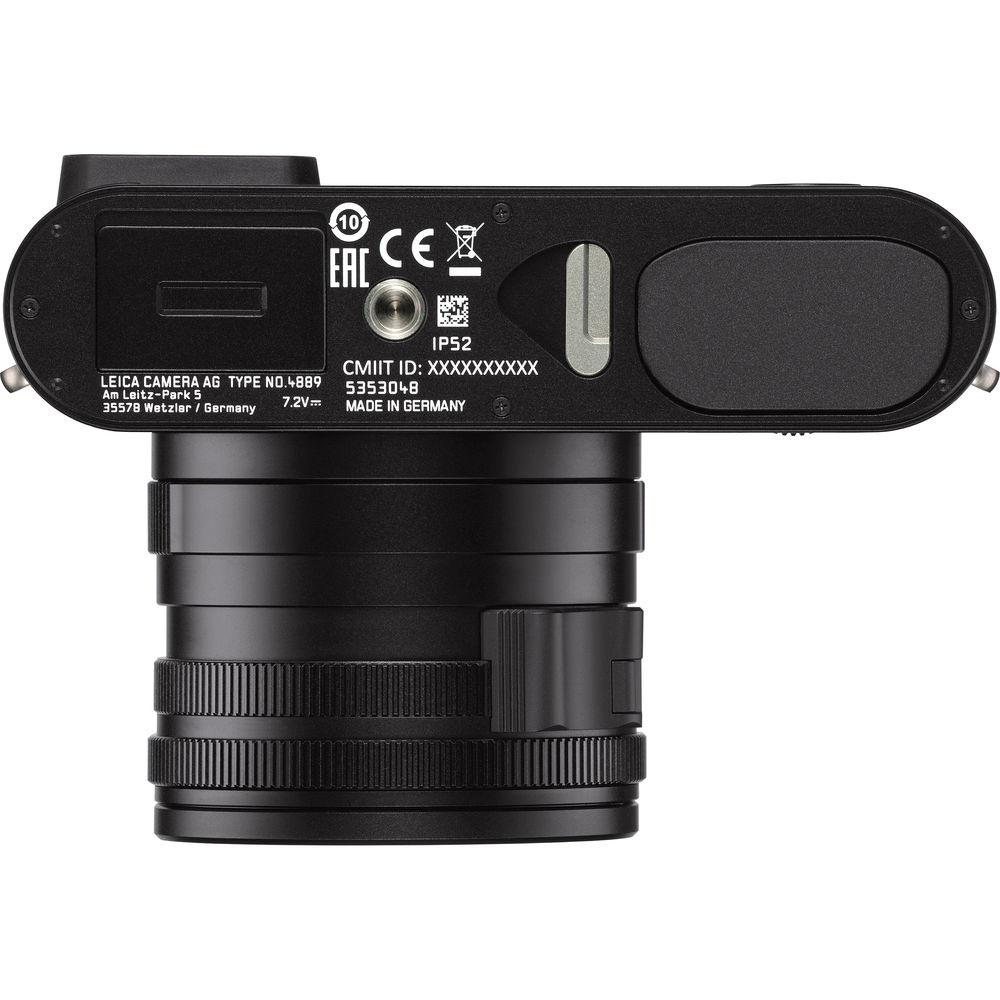

- Lightweight magnesium alloy body is dust and moisture sealed (IP52-rated) for use in harsh environmental conditions.
- Adoption of the BP-SCL4 battery, as used with the SL (Typ 601) mirrorless camera, affords an improved 370 shots per charge and the battery's physical design incorporates a rubber gasket to further reinforce the overall weather sealing.
- Enhanced haptics, following suit of the M10 and CL-series cameras, emphasize a simpler interface, including a single-stage On/Off button, a three-button rear control set, a programmable button within the thumb-wheel dial, a push-button diopter adjustment, and a distinctive thumb grip.
- Mechanical shutter affords flash sync speeds up to 1/500 sec.
- Lens features a 49mm filter thread diameter for attaching optional filters.
- Accepts one SD-type memory card and supports the UHS II protocol.
- Built-in Wi-Fi, when used in conjunction with the Leica FOTOS app for iOS and Android, permits sharing imagery directly to a linked mobile device and also enables remote control over the Q2 and remote shooting via a live view image. Additionally, Bluetooth LE helps to maintain a permanent connection between the mobile device and the camera, enabling remote waking of the camera and automatic connection anytime within range.
In the Box Leica Q2 Digital Camera BP-SCL4 Lithium-Ion Battery Pack (8.4V, 1860mAh) BC-SCL4 Battery Charger Lens Hood Lens Cap Carrying Strap Accessory Shoe Cover USB Cable Limited 1-Year Leica Society Digital Membership Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Q2 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Q2 Specs | | | Pixels | Actual: 50.4 Megapixel
Effective: 47.3 Megapixel | | Sensor | Full Frame (24 x 36 mm) CMOS | | Bit Depth | 14-Bit | | File Formats | Still Images: DNG, JPEG
Movies: MP4
Audio: AAC | | Max Resolution | 46.7 MP: 8368 x 5584 | | Aspect Ratio | 3:2 | | Image Stabilization | Optical | | Color Spaces | sRGB, Adobe RGB | | | | Lens | 11 Elements in 9 Groups
3 Aspherical
Effective Focal Length: 28mm
Aperture: f/1.7 (W) to f/16 (T) | | Filter Thread | 49mm | | Zoom | Digital: 1.25x
Digital: 1.785x
Digital: 2.6785x | | Focus Range | Normal: 11.81" to Infinity / 30 cm to Infinity
Macro: 6.69" to / 17 cm to | | | | ISO Sensitivity | Auto, 50 to 50000 | | Shutter | Type: Mechanical
Speed: 60 to 1/2000 Second
Type: Electronic
Speed: 1 to 1/40000 Second | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | Shooting Modes | Auto
Beach & Snow
Candle
Fireworks
HDR
Landscape
Miniature Effect
Night Portrait
Panorama
Portrait
Sports
Sunset | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Incandescent, Shade | | Continuous Shooting | Up to 10 fps
Up to 5 fps
Up to 3 fps | | Self-Timer | 2, 12 | | | | Built-In Flash | No | | External Flash Connection | Hot Shoe | | | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes | | Resolution | 4096 x 2160p: 24 fps
3840 x 2160p: 30 fps, 24 fps
1920 x 1080p: 120 fps, 60 fps, 30 fps, 24 fps | | | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Diopter Adjustment | -4 to +3 m | | Viewfinder Coverage | 100% | | Screen | 3.0" LCD Rear Touchscreen (1,040,000 Pixels) | | Screen Coverage | 100% | | | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Battery | 1 x BP-SCL4 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1860 mAh | | | | Dimensions (W x H x D) | 5.1 x 3.1 x 3.6" / 130.0 x 80.0 x 91.9 mm | | Weight | 1.58 lb / 718 g with battery | | | | Package Weight | 4.79 lb | | Box Dimensions (LxWxH) | 9.0 x 8.7 x 7.0" |
