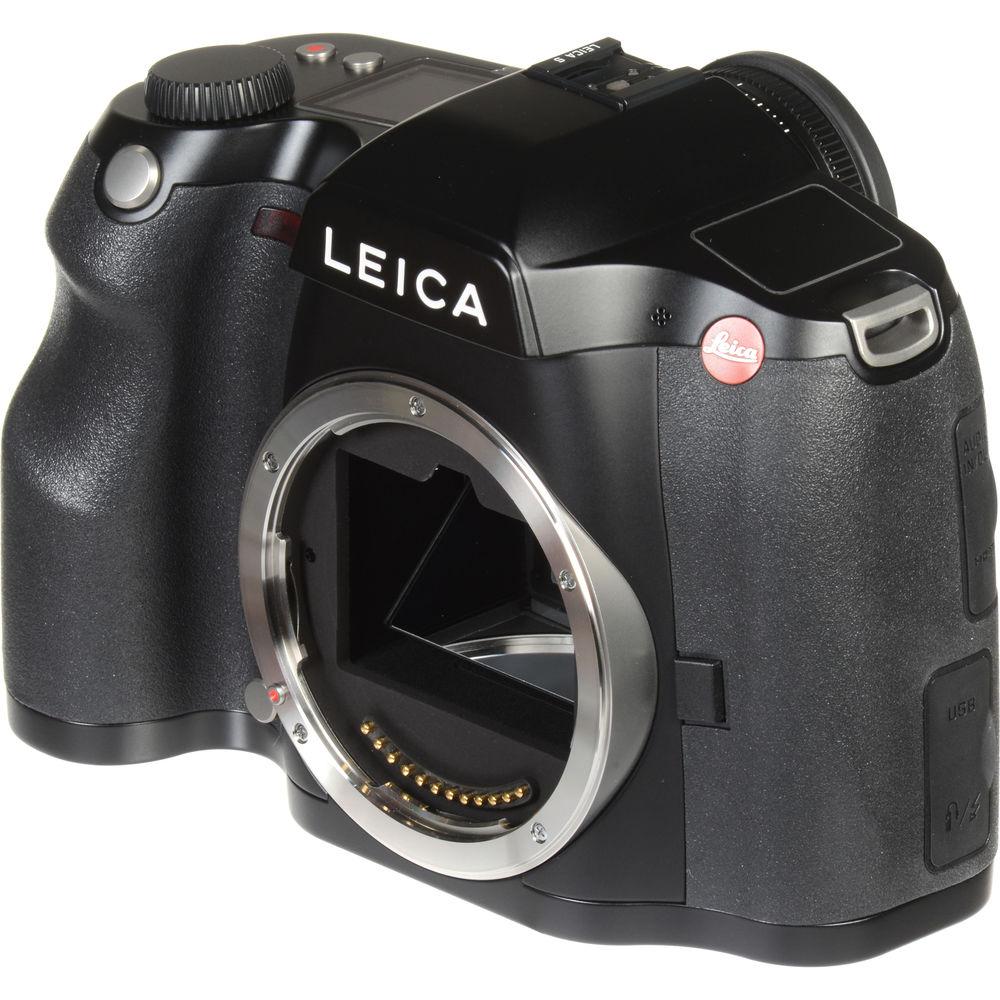

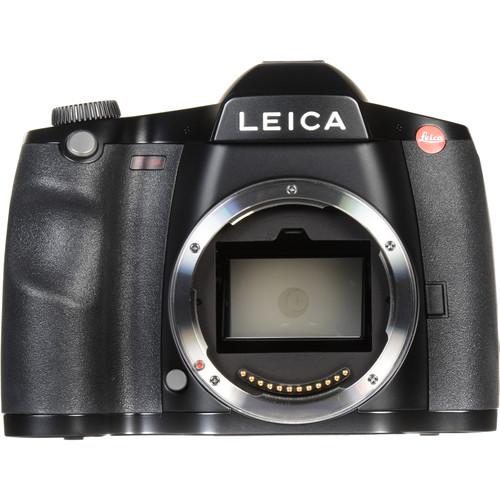

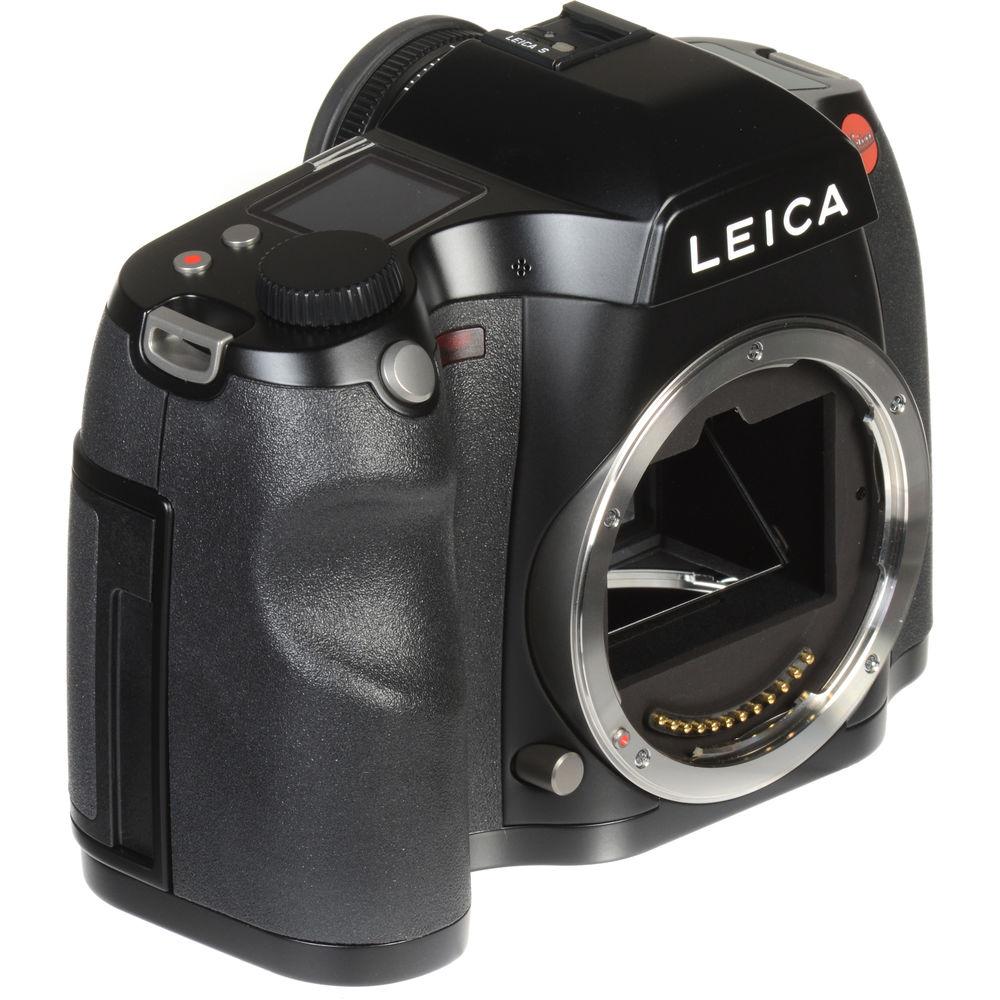

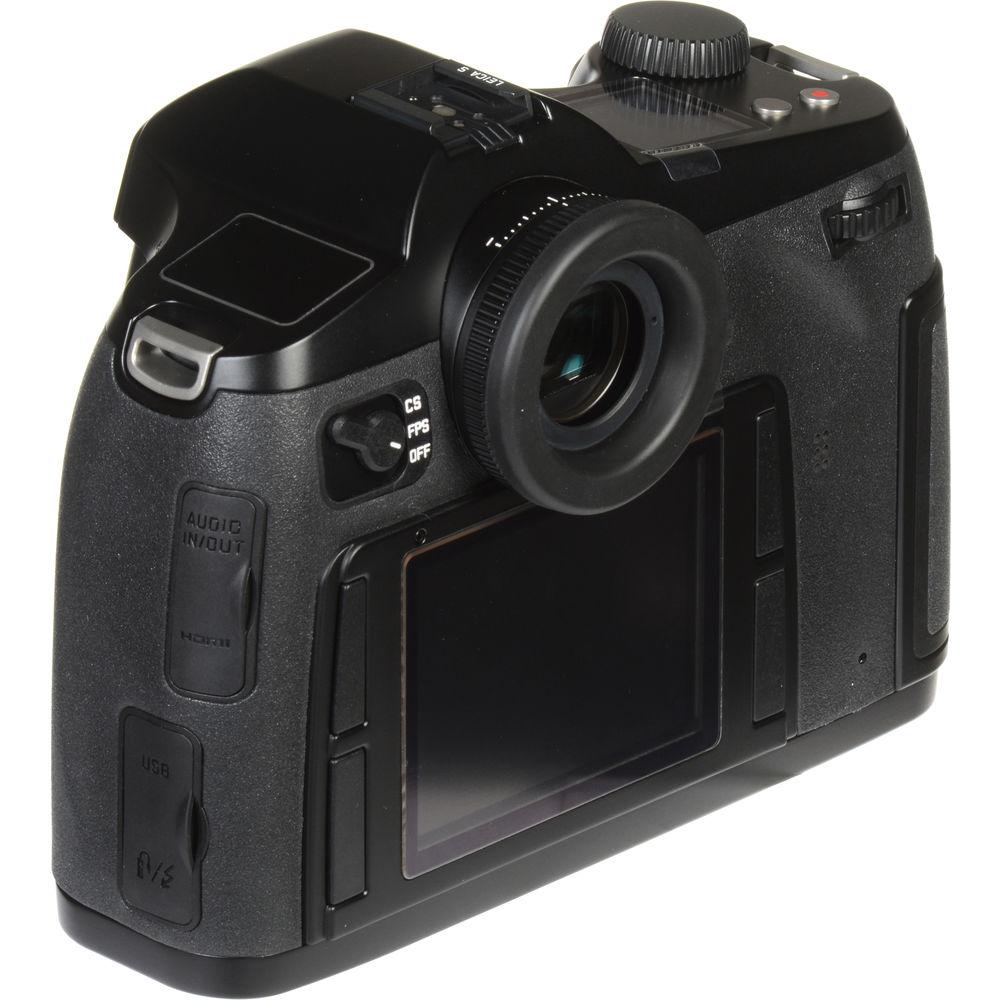

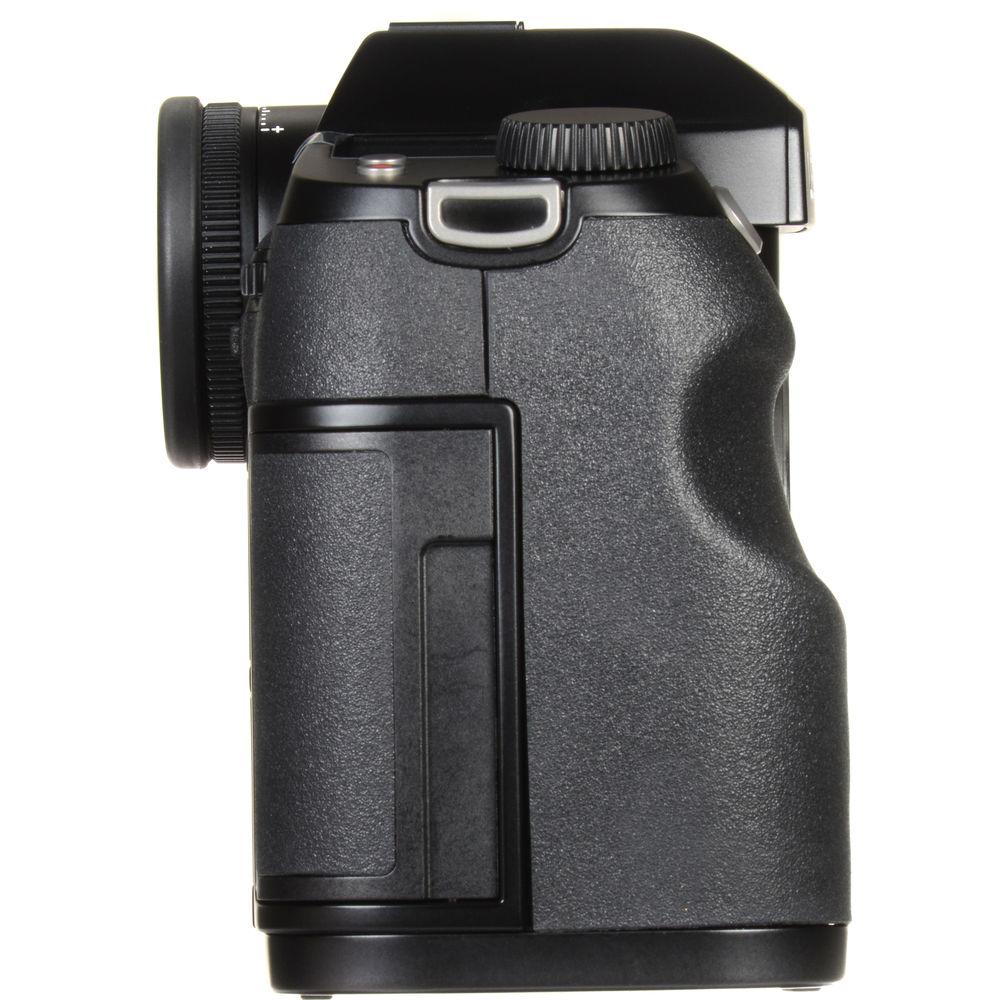

User Manual for Leica S Medium Format DSLR Camera Click to enlarge the picture
Contents of the user manual for the Leica S Medium Format DSLR Camera
- Product category: Medium Format Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Medium Format Cameras
 |
User manual for the Leica S Medium Format DSLR Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Offering performance and flexibility unique to the medium format world, the Leica S (Typ 007) is a medium format DSLR offering high-resolution still and video recording capabilities. Revolving around a 37.5MP 30 x 45mm CMOS sensor and Maestro II image processor, this camera is notable in its ability to produce image quality with remarkable sharpness, clarity, and dynamic range. The omission of an optical low-pass filter from the sensor's design further enables enhanced detail and resolution, that pairs well with the optimized Leica S lenses. Furthermore, on-sensor microlenses work to produce consistent and even light distribution to ensure edge-to-edge sharpness and illumination for a high degree of overall clarity. Beyond advanced still image recording, the S is also capable of producing 4K video files, as well as full HD, with a variety of options for audio and video recording. Utilizing the large sensor to the fullest extent, the S (Typ 007) is a versatile imaging device designed to deliver the utmost quality to both photographers and videographers.
Combining the sensor and processing prowess of the camera, a top sensitivity of ISO 12500 is afforded as well as the ability to record up to 32 consecutive DNG files at a rate of 3.5 fps. A predictive autofocus system, using a central cross-type phase detection point, helps to maintain critical focus in a variety of lighting conditions. Additionally, if working in live view, focus peaking serves as a useful alternative for ensuring image sharpness with manual focus techniques.
Complementing the advanced imaging capabilities of the Leica S is an equally refined body design, which takes on a minimalist structure with focus on the most essential shooting controls. A large, 3.0", 921.6k-dot, LCD monitor serves as a clear means for image review and menu navigation while the large 0.87x-magnification, pentaprism viewfinder acts as a bright tool for image composition. A weather-sealed, magnesium alloy, body construction protects the system from dust and moisture, including the series of interface ports and lens mount. Additionally, built-in Wi-Fi connectivity enables remote camera control and wireless transferring of files to mobile devices, and a GPS module enables the recording of location information to the EXIF data of image files. - Leica Pro Format CMOS Sensor
- A large 37.5MP 45 x 30mm CMOS sensor enables truly high-resolution imaging with a sensitivity range from ISO 100-12500 and a dynamic range of approximately 15 stops. The large size of the sensor helps to produce notable image sharpness and clarity with smooth tonal and color gradations. Additionally, the design of the sensor enables the omission of a traditional optical low-pass filter for achieving even greater image sharpness and resolution. On-chip microlenses have also been incorporated into the sensor's design to ensure even light distribution and sharpness from edge-to-edge.
- Fast and Efficient Performance
- A highly efficient Maestro II image processor and 2GB buffer complements the image sensor's capabilities and facilitates recording up to 32 consecutive 37.5MP DNG lossless compressed files at a continuous shooting rate of 3.5 fps. When shooting in the JPEG format, the total number of consecutive images recorded is only limited by the memory card's capacity. Additionally, the focal plane shutter's design has also been enhanced and tested to provide at least 150,000 cycles. In regard to focus, a predictive autofocus mode benefits tracking moving subjects through the use of a single cross-type phase-detection sensor.
- 4K and Full HD Movie Recording
- In addition to apt still shooting capabilities, the S (Typ 007) also avails the ability to record 4K video (4096 x 2160) within a Super 35-sized area of the sensor, or full HD 1080p video using the entire sensor area. In full HD, frame rates up to 30p are available and a frame rate of 24 fps can be used during 4K recording. Additionally, both recording modes allow manual control of exposure and audio settings. Timecode can be utilized to benefit multiple camera setups and can be recorded internally or externally via an Audio-Adapter S. Additionally, benefitting focus and exposure precision, focus peaking and a histogram with exposure clipping display can be viewed during recording.
Using the HDMI Type C interface, uncompressed video can also be recorded to an optional external recorder with 4:2:2 color sampling.
Benefitting the recording capabilities, a 3.5mm audio jack is incorporated into the camera's design and can be used in combination with the optional Audio-Adapter S. - Camera Design

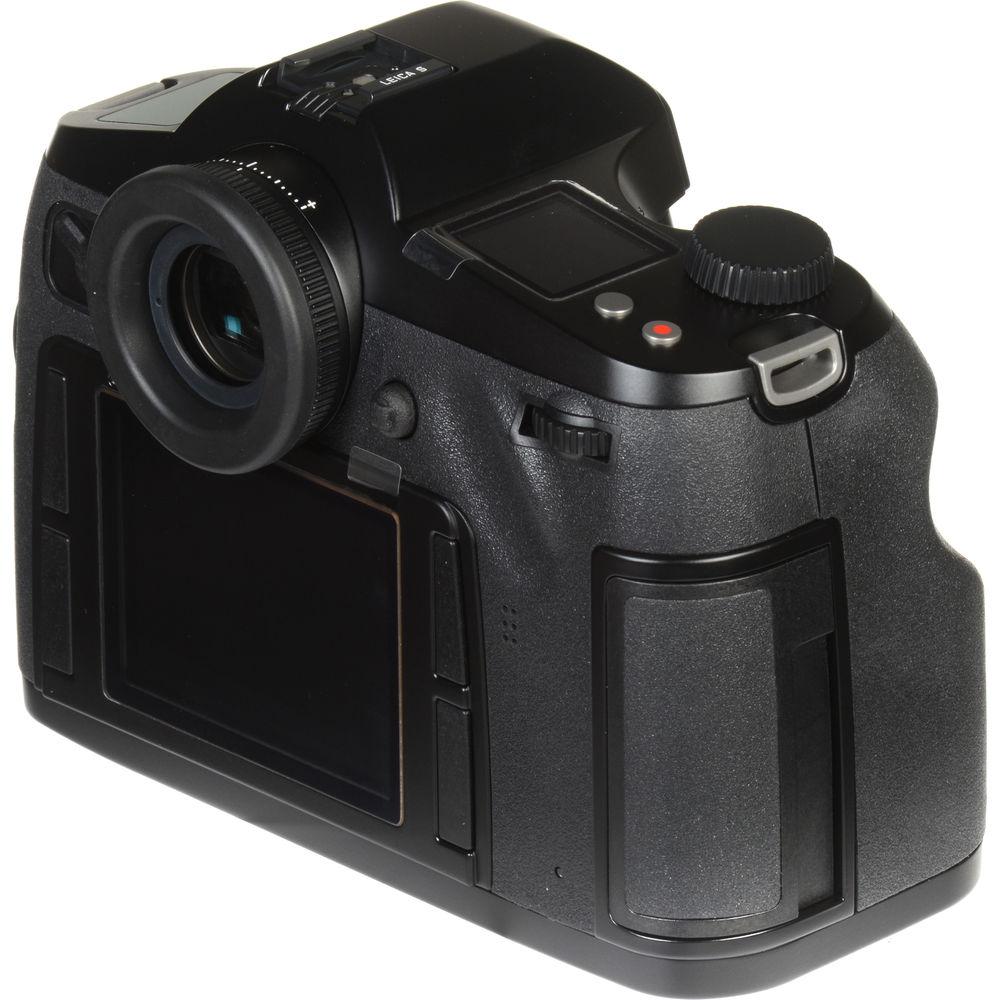

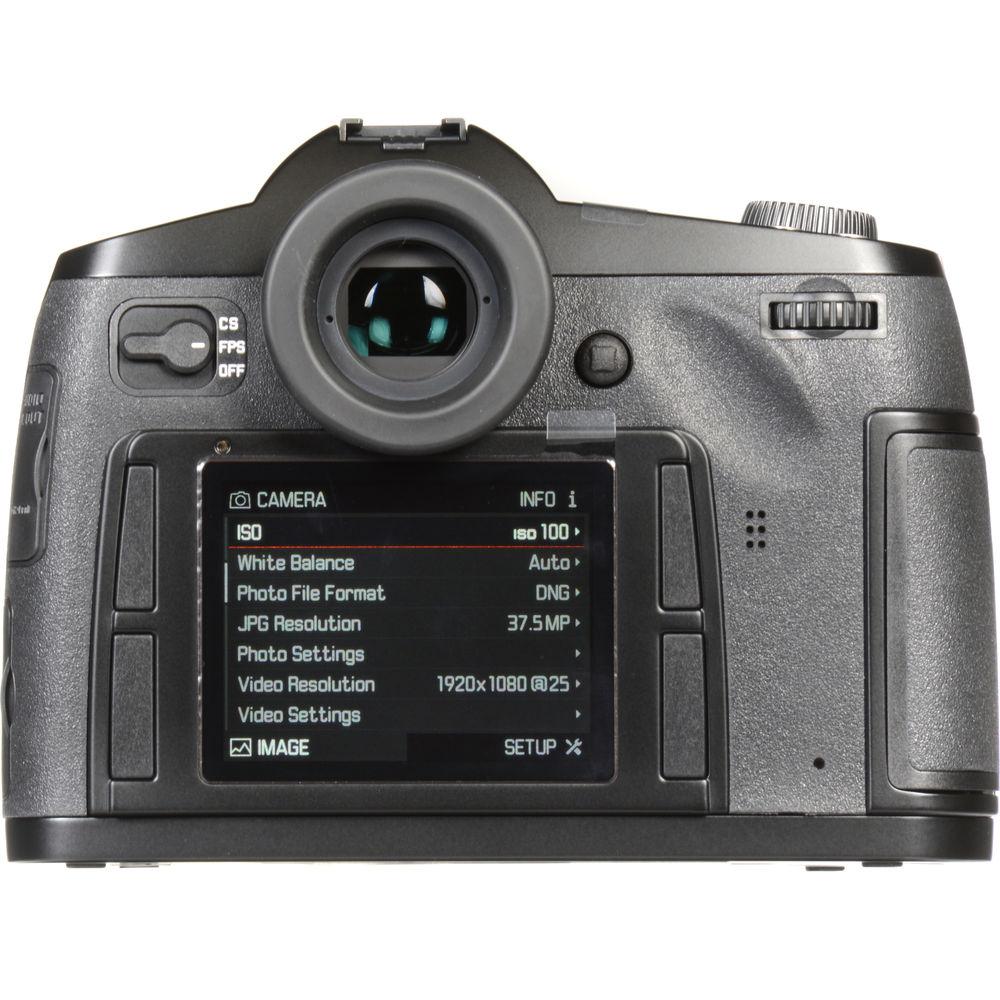

- Housing the imaging system is a robust, dust and weather-sealed magnesium alloy body featuring an anti-slip rubberized cover for both durability and refined handling. A rear, 3.0", 921.6k-dot, LCD monitor is available for live view monitoring and image review, and is covered with Corning Gorilla Glass for added protection and greater viewing clarity. Alternatively, an eye-level, pentaprism viewfinder is also available and features a 0.87x magnification and can accept optional interchangeable focusing screens to suit your personal shooting needs. A dual-axis spirit level can also be viewed from within the finder for assuredly level horizons and plumb verticals.

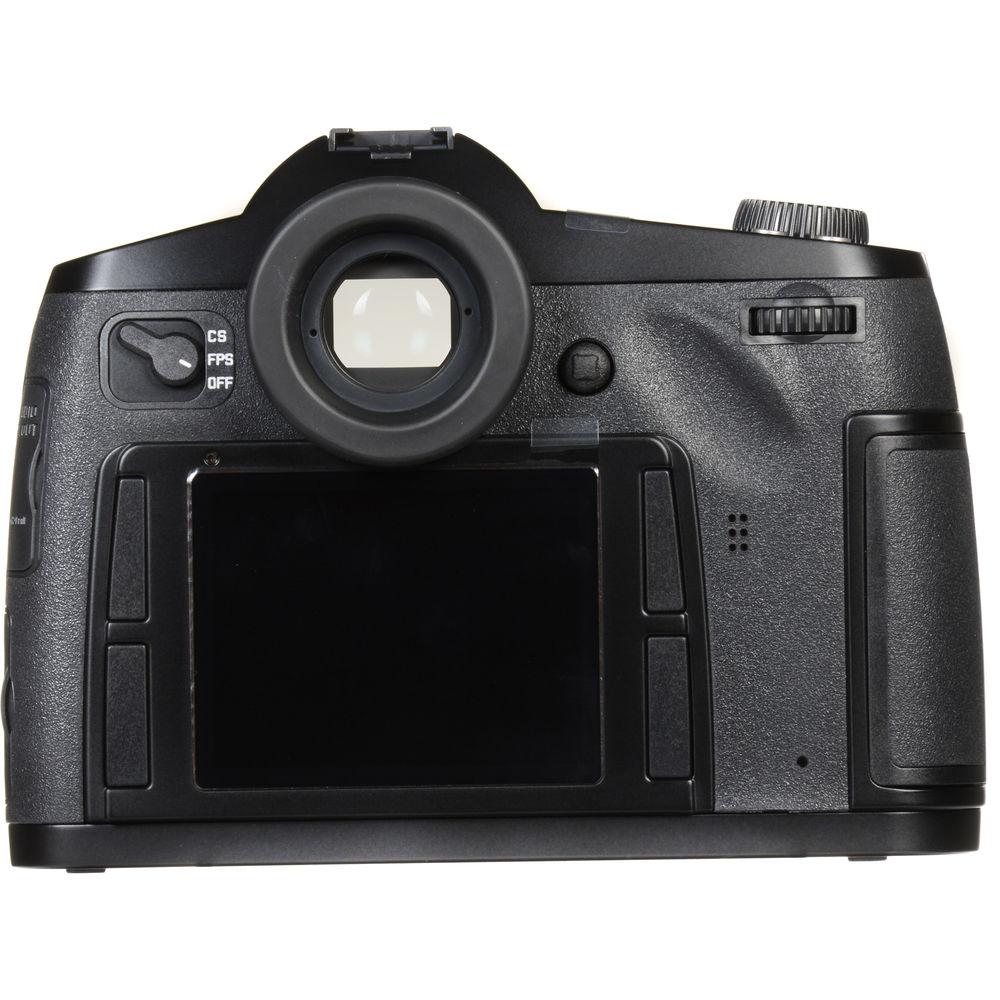

The rear of the camera is also laid out in an intuitive manner for expedited settings control using a joystick-based control method. Both a flash sync port and hot shoe are available for external flash support and a contact bar at the base of the camera is designed to accept an optional Multifunctional Hand Grip S for enhanced handling in the vertical shooting orientation. - Connectivity and Interface Design
- Built-in Wi-Fi connectivity enables the use of mobile devices for remote camera control and wireless image transferring via the dedicated app. Additionally, a GPS module is also incorporated into the body's design to permit in-camera geotagging of files for plotting to an interactive map.
Benefitting in-camera recording of imagery, dual memory card slots accept one SD-type memory card and one CompactFlash-type memory card to permit overflow recording or in-camera partitioning of file types. Beyond the HDMI Type C port for recording to external recorders, a USB 3.0 terminal is also available to permit fast image transferring to a computer or for tethered shooting applications. - Language Support
- English, French, German, Spanish, Italian, Japanese, Chinese (traditional and simple), Russian, Korean, and Portuguese.
In the Box Leica S (Typ 007) Medium Format DSLR Camera (Body Only) Battery S Quick Charger S with US, UK, and EU Plug Adapters Camera Strap S Eyepiece Cap Camera Cap Limited 1-Year Leica Society Digital Membership Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica S Medium Format DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica S (Typ 007) Specs | | | Lens Mount | Leica S bayonet | | Compatible Lenses | Leica S lenses | | Image Sensor | 37.5 MP
45 x 30 mm CMOS sensor (Leica Pro format)
No optical low-pass filter, IR filter on sensor. 0.8x crop factor compared to 35mm format | | Aspect Ratio | 3:2 | | Maximum Resolution | 7500 x 5000 px | | Pixel Size | 6 µm | | Dynamic Range | 15 stops | | Color Depth | 16-bit | | Color Space | sRGB
Adobe RGB
eciRGB_v2 | | White Balance | Daylight, clouds, shade, tungsten, HMI, neon warm, neon cool, flash, gray card, Live View, autoWB, color temperature (Kelvin) | | Sensitivity | Auto, ISO 100-12500 | | Exposure Mode | P: full automatic (with manual exposure shift), T: time-priority, A: aperture-priority, M: manual | | Exposure Metering | Open aperture measurement through lens (TTL) | | Exposure Metering Mode | Multi-field (5 field)
Center-weighted
Spot (3.5%) | | Exposure Compensation | +/- 3 EV in 1/2 EV steps | | Exposure Bracketing | 3 or 5 images; 1/2, 1, 2, or 3 EV | | Metering Range | Multi-field and center-weighted: EV 1.2 to 20
Spot: EV 2.7 to 20 | | Shutter | Focal plane shutter; microprocessor-controlled metal blades
Central shutter (with Leica S central shutter lenses) | | Shutter Speed Range | 125 to 1/4000 sec. in 1/2 EV steps | | Drive Mode | Single, continuous, interval, self-timer (12 or 2 sec. delay with mirror up) | | Continuous Shooting | Up to 3.5 fps | | Focus | Predictive autofocus with central cross sensor | | Focus Modes | AF single, predictive AF continuous, manual override | | | | File Format | DNG lossless compressed: 37.5 MP
JPEG: 37.5 MP, 9.3 MP, 2.3 MP
DNG+JPEG | | File Size | DNG lossless compressed: 42 MB
JPEG: 16 to 1 MB, depending on image content and resolution | | Buffer | DNG lossless compressed: Up to 32 images
JPEG: No limit, depending on memory medium, exposure time, and ISO | | Storage | 1x SD/SDHC/SDXC
1x CompactFlash (UDMA 7)
External via tethered connection | | | | Video Recording | Full HD 1920 x 1080 (with Leica Pro Format sensor area)
4K 4096 x 2160 (with Super 35 window mode) | | Frame Rate | Full HD: 24, 25, and 30 fps
4K: 24 fps | | Video File Format | MOV (Motion JPEG) | | Color Sampling | 4:2:2 | | Exposure Control | Manual and auto control | | Focus | Manual, AF-field can be positioned | | Exposure Metering Mode | Multi-field, center-weighted, spot (linked with the AF-field) | | Audio | Manual and auto control
In-camera stereo microphone: 48 kHz, 16 bit
3.5 mm jack for audio-in or audio-out via optional Audio-Adapter S | | | | Type | Pentaprism optical viewfinder | | Magnification | 0.87x (at 70mm, infinity focus, 0 diopter) | | Viewfinder Frame Coverage | Approx. 98% | | Diopter Correction | -3 to +1 m | | Focusing Screen | Interchangeable | | | | LCD Monitor | 3.0" 921.6k-dot TFT LCD with Corning Gorilla Glass cover, 100% frame coverage

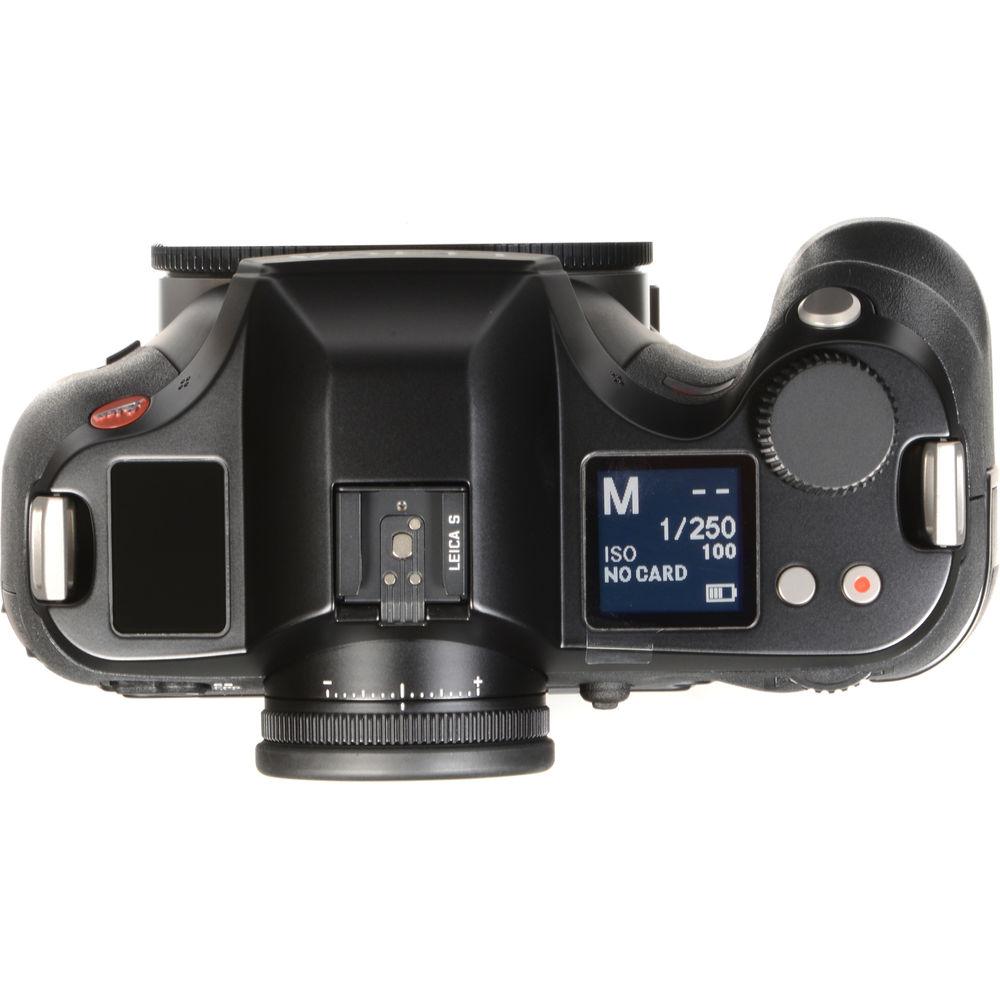

Top monochrome information display | | Color Space | sRGB (16 million colors) | | Viewing Angle | 170° | | | | Interface | LEMO Flash-sync
Hot shoe with middle and control contacts | | Flash Synchronization | X-sync with focal plane shutter: 1/125 sec.
X-sync with central shutter lens: Up to 1/1000 sec.
High-speed sync: Up to 1/4000 sec. with optional SF 58 flash and HSS setting | | Flash Control | SCA 3502
TTL
TTL HSS (up to 1/4000 sec.)
A
M
Strobe
Start or end of exposure | | | | Wi-Fi | Built-in Wi-Fi and GPS modules | | Interface | HDMI Type C jack
Flash sync socket
LEMO USB 3.0 high-speed jack
Audio-Adapter (audio-in, audio-out, time code) LEMO flash sync socket
LEMO cable release socket
Contact bar for Leica Multifunctional Handgrip S (optional) | | Power Supply | Battery S: Rechargeable lithium-ion battery pack (7.3 V, 2850 mAh

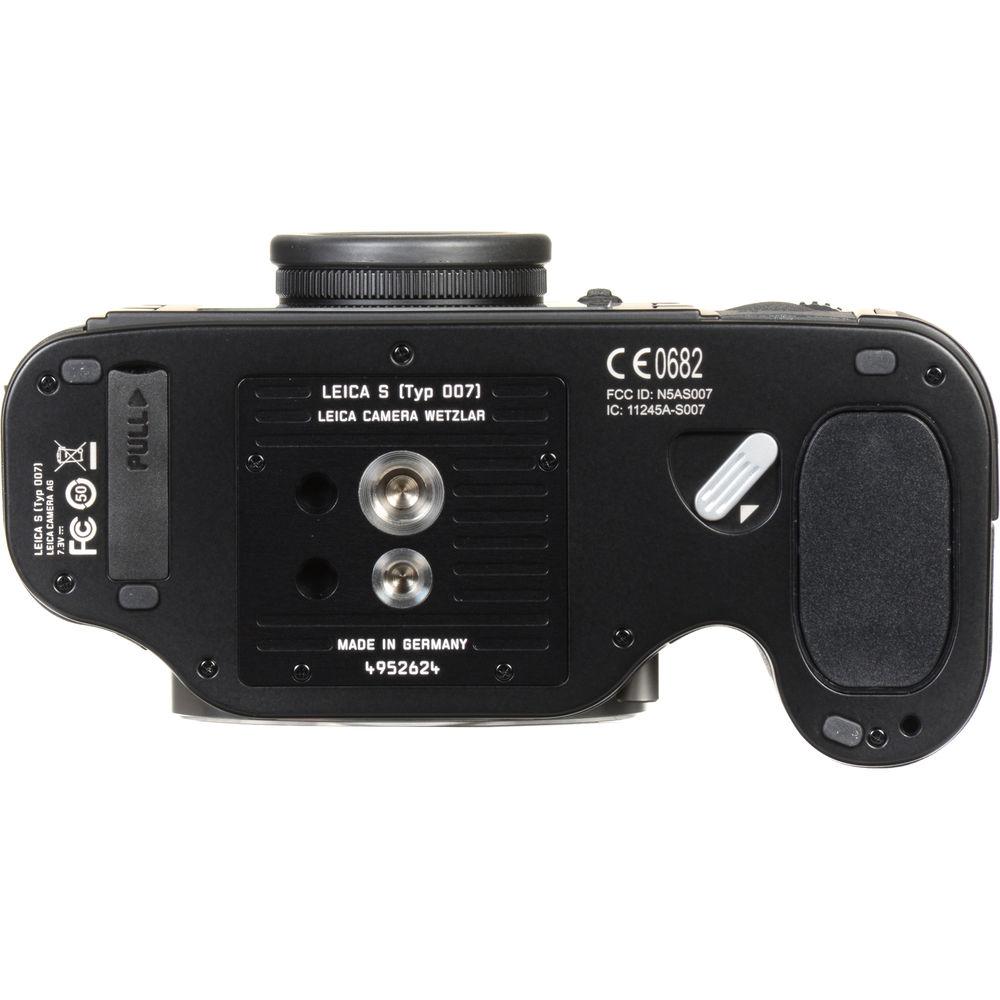

Leica AC Adapter S (optional) | | | | Tripod Mount Thread | 1/4"-20 and 3/8"-16 with anti-locking pins | | Operating Conditions | 32-113°F / 0-45°C
15-80% relative humidity | | Dimensions | 6.3 x 3.1 x 4.7" / 160 x 80 x 120 mm | | Weight | 2.8 lb / 1.26 kg (without battery) | | | | Package Weight | 7.65 lb | | Box Dimensions (LxWxH) | 14.1 x 9.8 x 7.4" |
