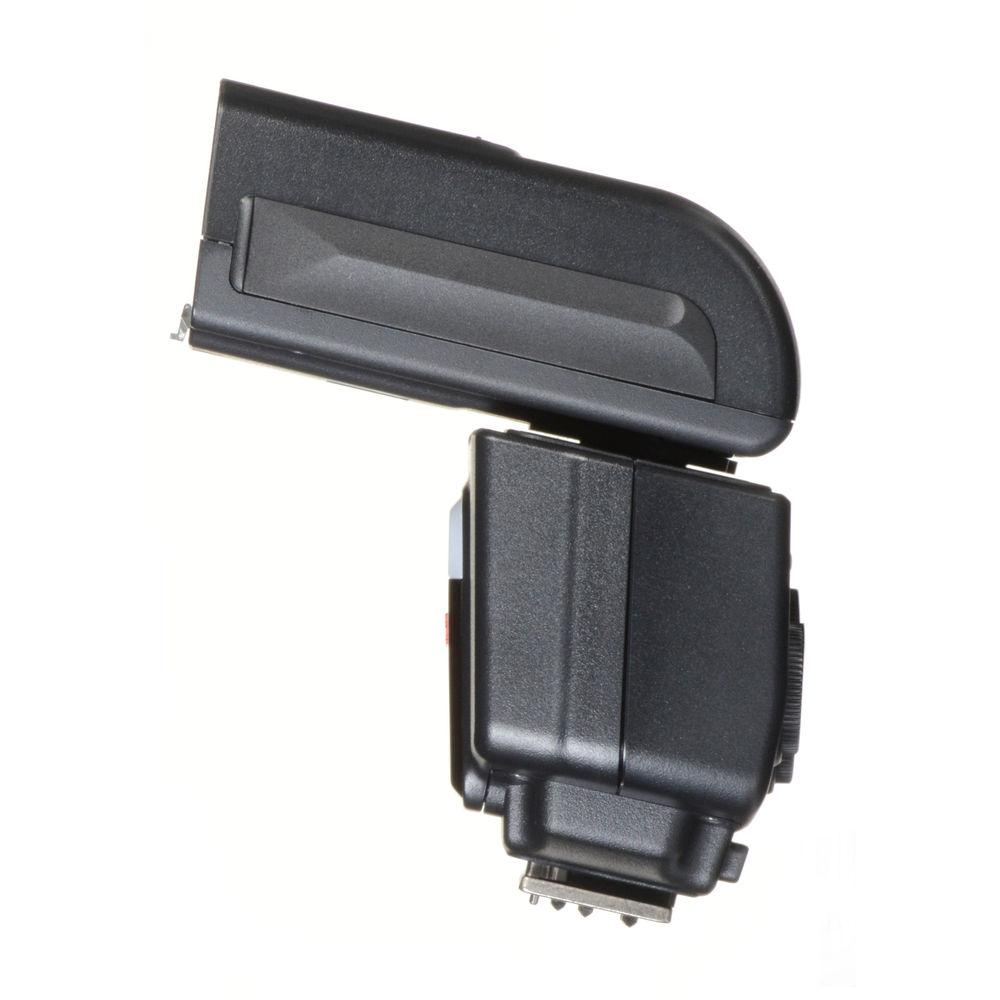

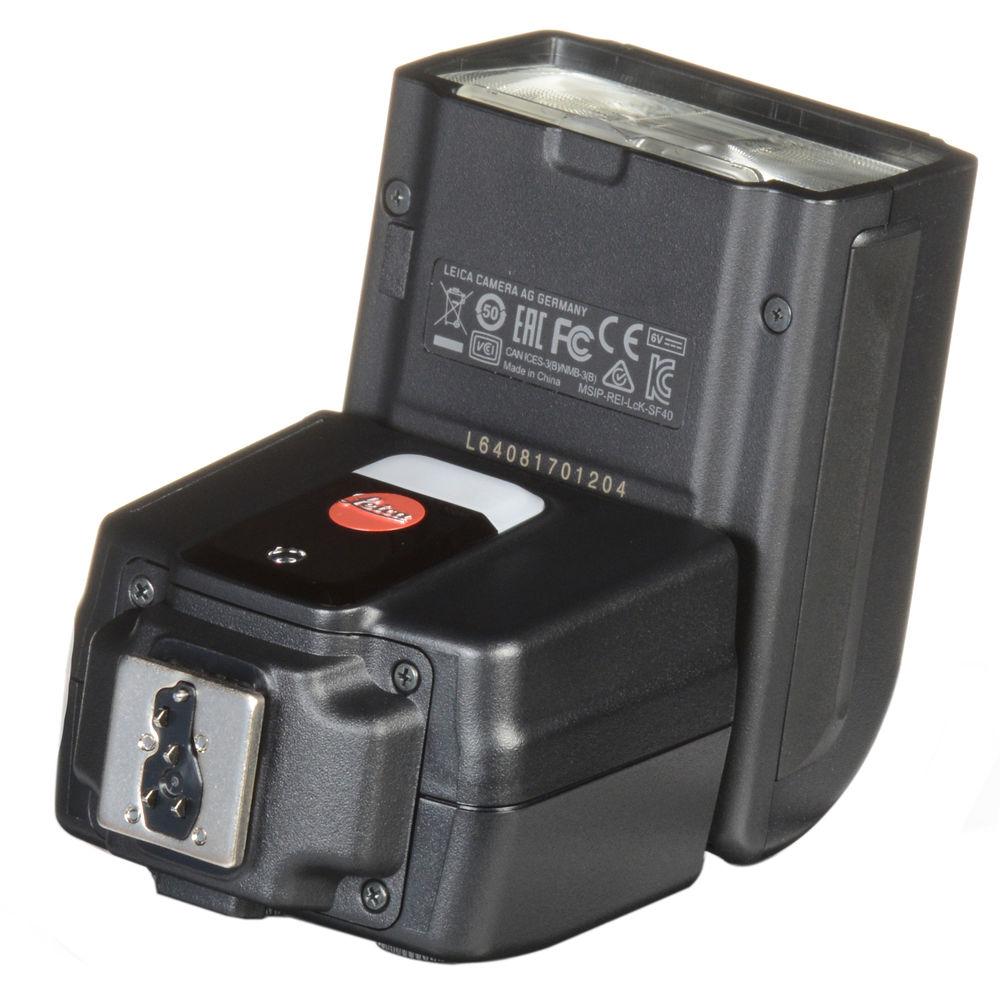

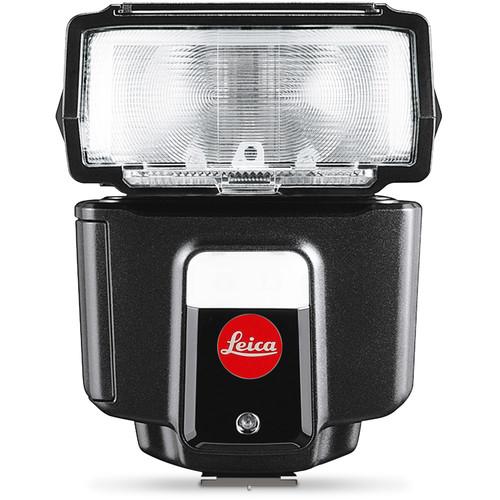

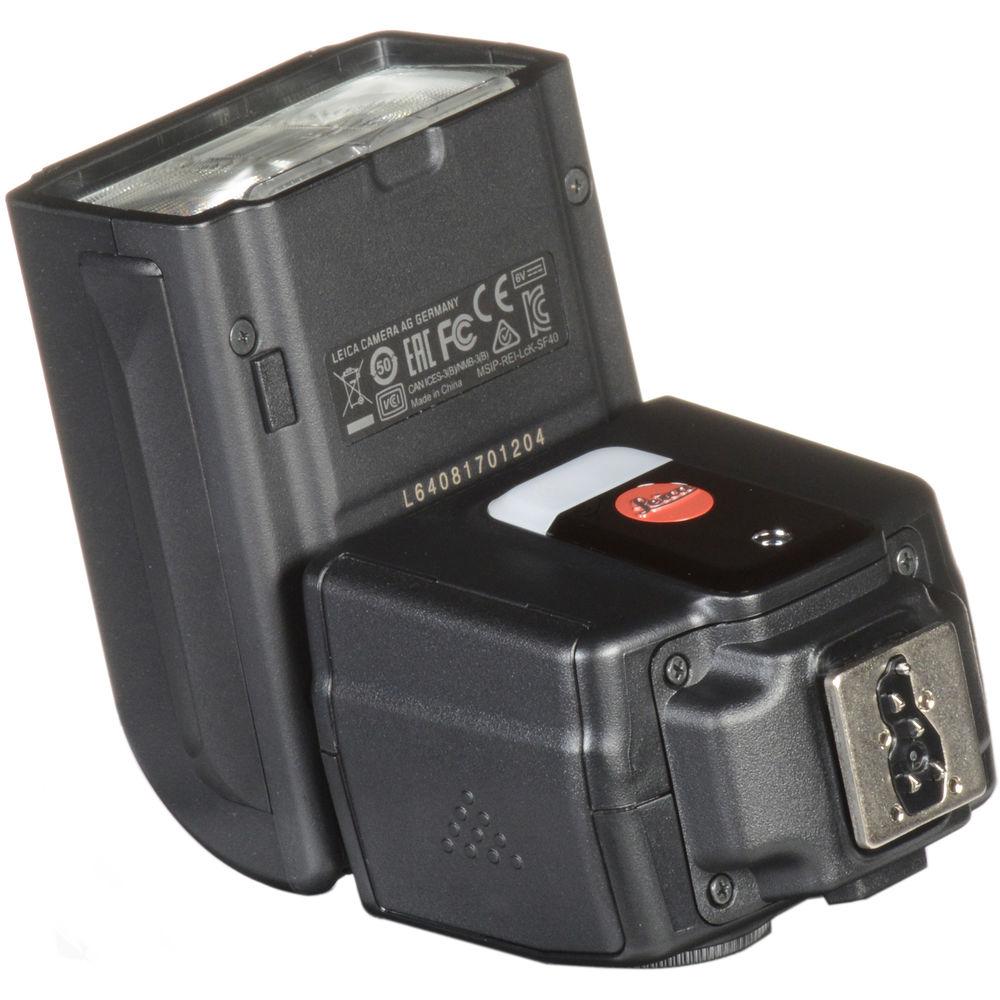

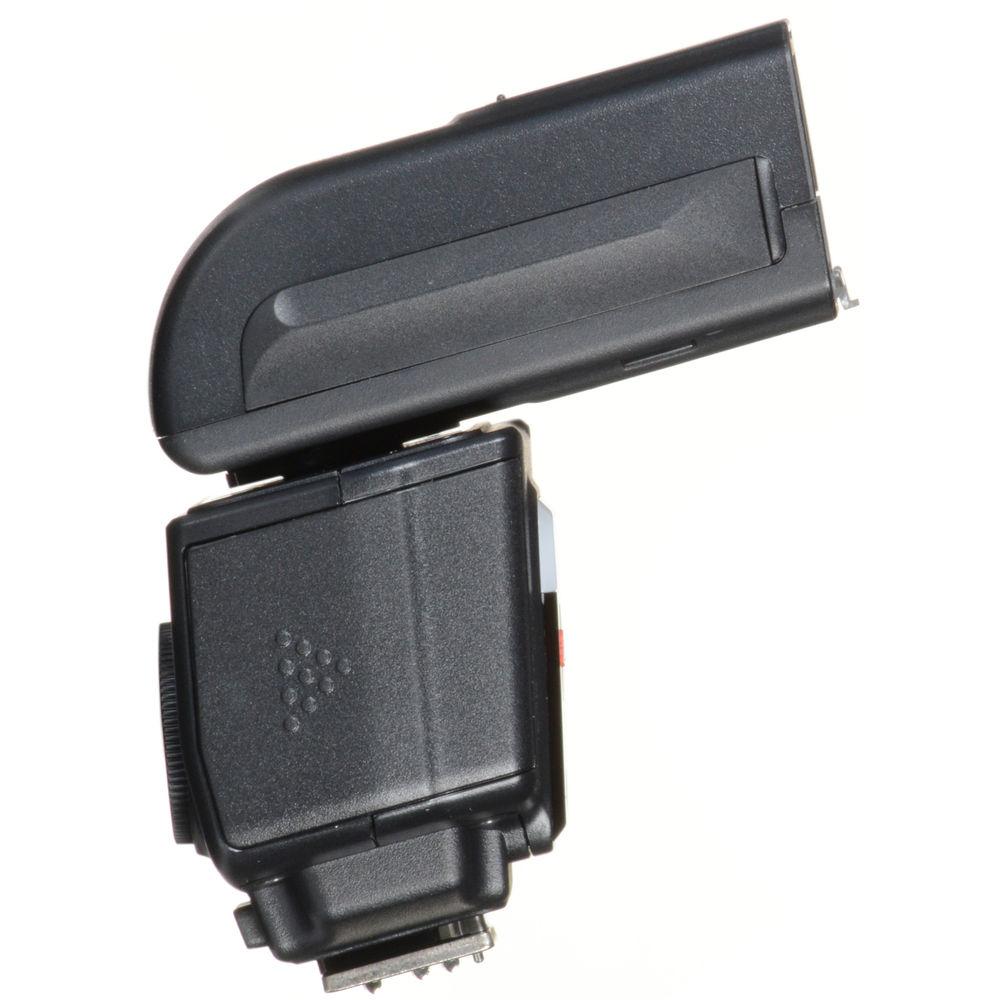

User Manual for Leica SF 40 Flash Click to enlarge the picture
Contents of the user manual for the Leica SF 40 Flash
- Product category: On Camera Flashes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica On Camera Flashes
 |
User manual for the Leica SF 40 Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

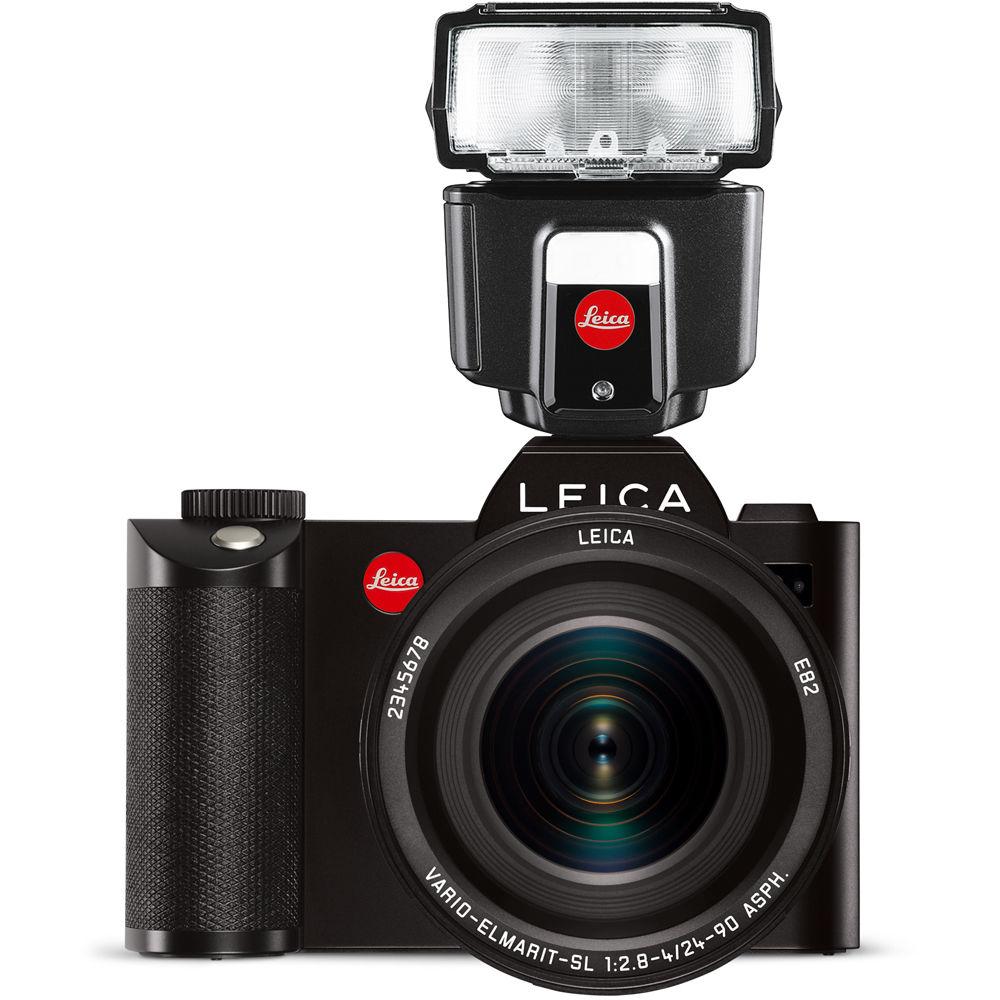

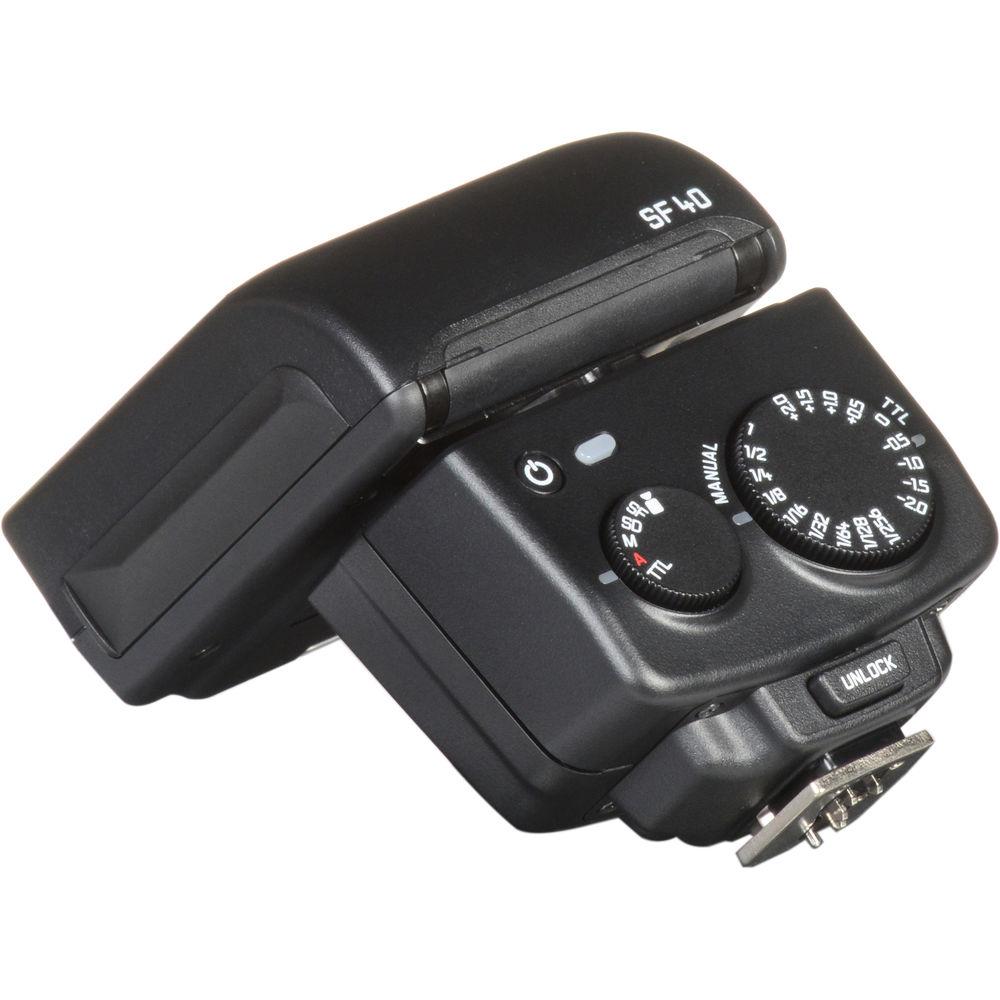

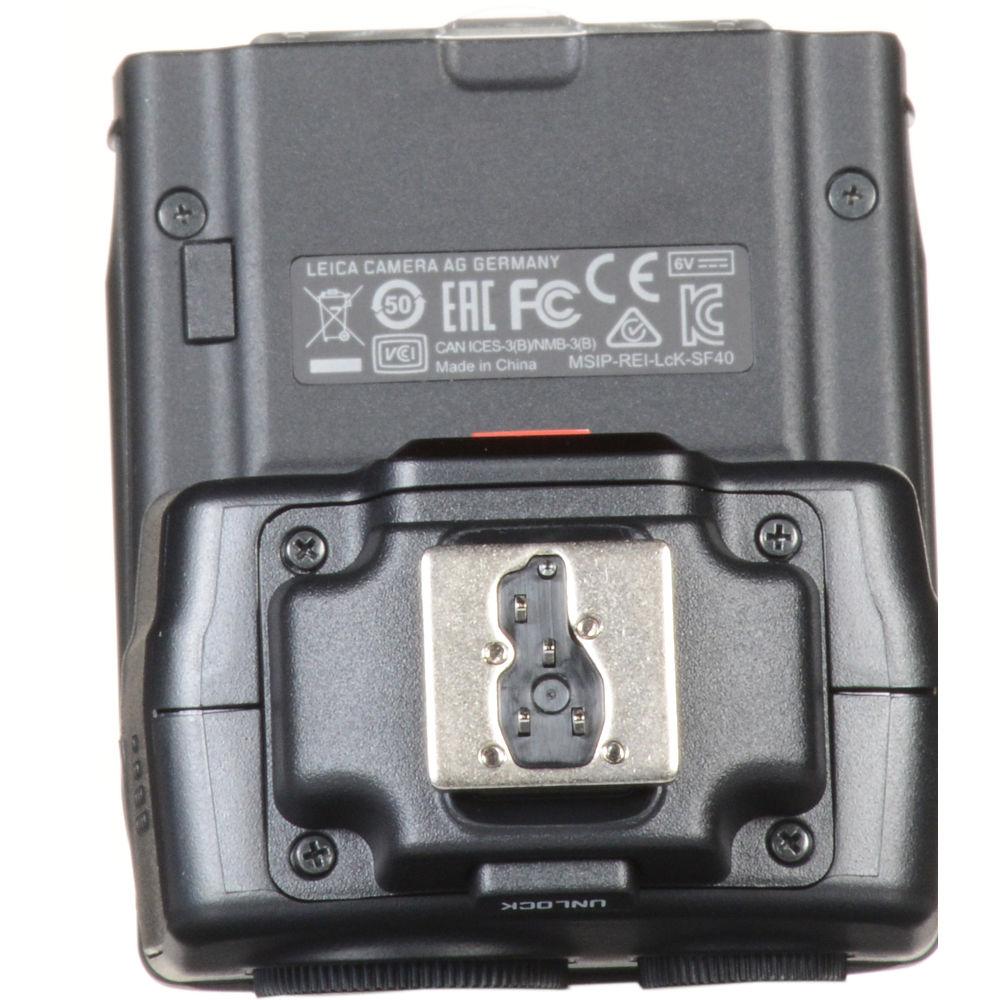

Product description Punch up your scene with some additional light from the SF 40 Flash from Leica. Optimized for use with Leica's latest cameras, the SF 40 has TTL support for automatic exposure and metering and it features a compact design with a useful output. Rated with a guide number of 131' at ISO 100 and 105mm, this unit can easily illuminate a room or subject. Also, it has a zoom range of 24-105mm, which can be expanded to 16mm with the use of the pull-out diffusion panel, for excellent coverage with your lenses. On top of this, an LED video light with nine output levels is available for lighting a scene for high resolution video capture.
Fully featured as a flash, the SF 40 offers both tilt up to 90° and a full 360° of rotation for complete bounce coverage. It can also be set as a wireless slave flash when used with a compatible master unit. Recycle time ranges from 0.1-4 seconds and it runs on four AA batteries. Additionally, it has support for slow, high-speed, 1st and 2nd curtain sync modes. - Guide number at ISO 100 of 131' at 105mm and 89' at 35mm position
- Full manual control option from 1/1 to 1/256 power
- Recycle time of 0.1 to 4 seconds
- Approximately 220 to 1,700 flashes on a single set of fully-charged batteries
- LED run time of about 3.5 hours with new batteries
- Color temperature of 5600K
- Exposure compensation from -2 to +2 EV in 1/2 step increments
- AF assist beam with range of 2.3 to 16.4'
- Flash duration of 1/800 to 1/20,000 second

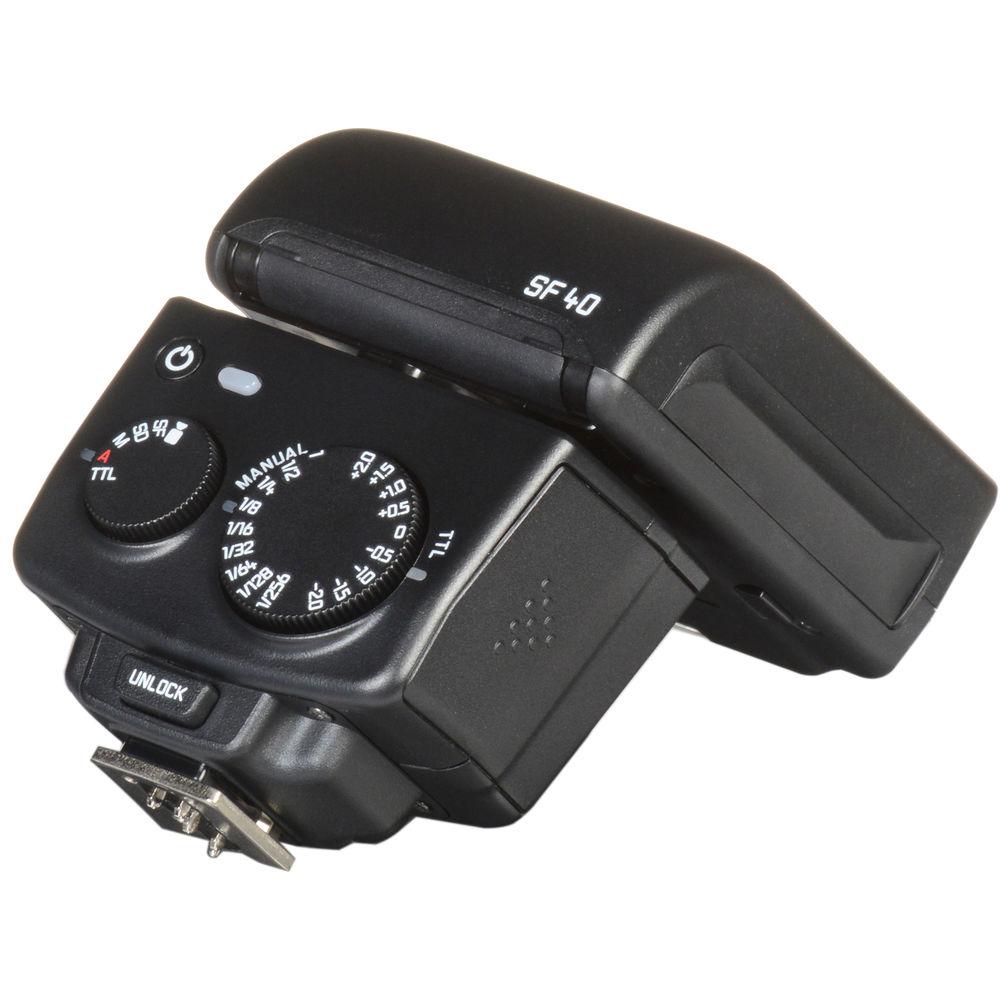

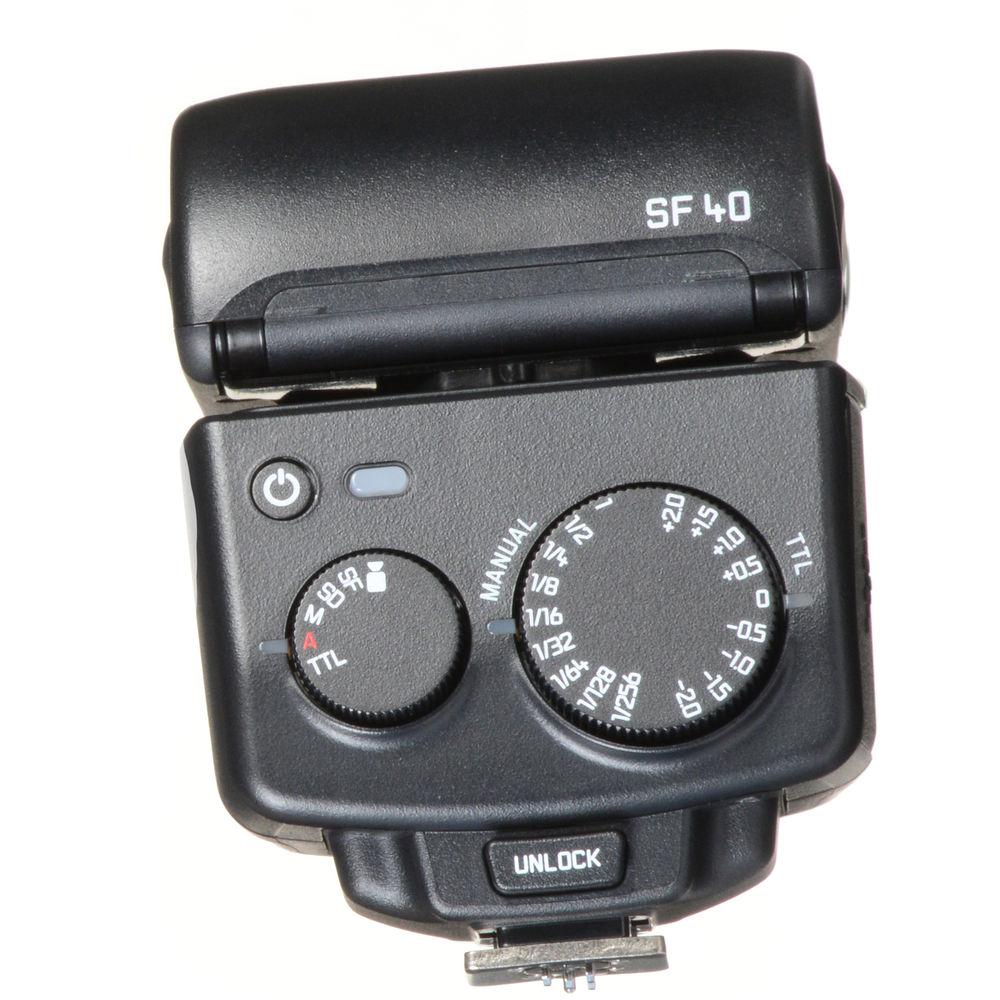

- Two selector dials on the back of the flash for changing modes and adjusting power settings
- LED light has 9 steps of output levels
UPC: 799429146245 In the Box Leica SF 40 Flash External Diffuser Soft Case Flash Stand Limited 2-Year Warranty User Manual PDF 5.1mbuvvutxas Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica SF 40 Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica SF 40 Specs | Mount | Shoe | | Guide No. | 131.23' / 40 m ISO 100 at 105 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/256 | | Bounce Head | 0 to +90° | | Swivel Head | 360° | | Coverage | 16 - 105 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 105 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 4 Seconds | | Flash Duration | 1/800 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/2 EV steps) | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 3.3 x 2.4 x 3.3" / 85.0 x 61.0 x 85.0 mm | | Weight | 7.16 oz / 203 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 4.5 x 4.4 x 3.9" |
