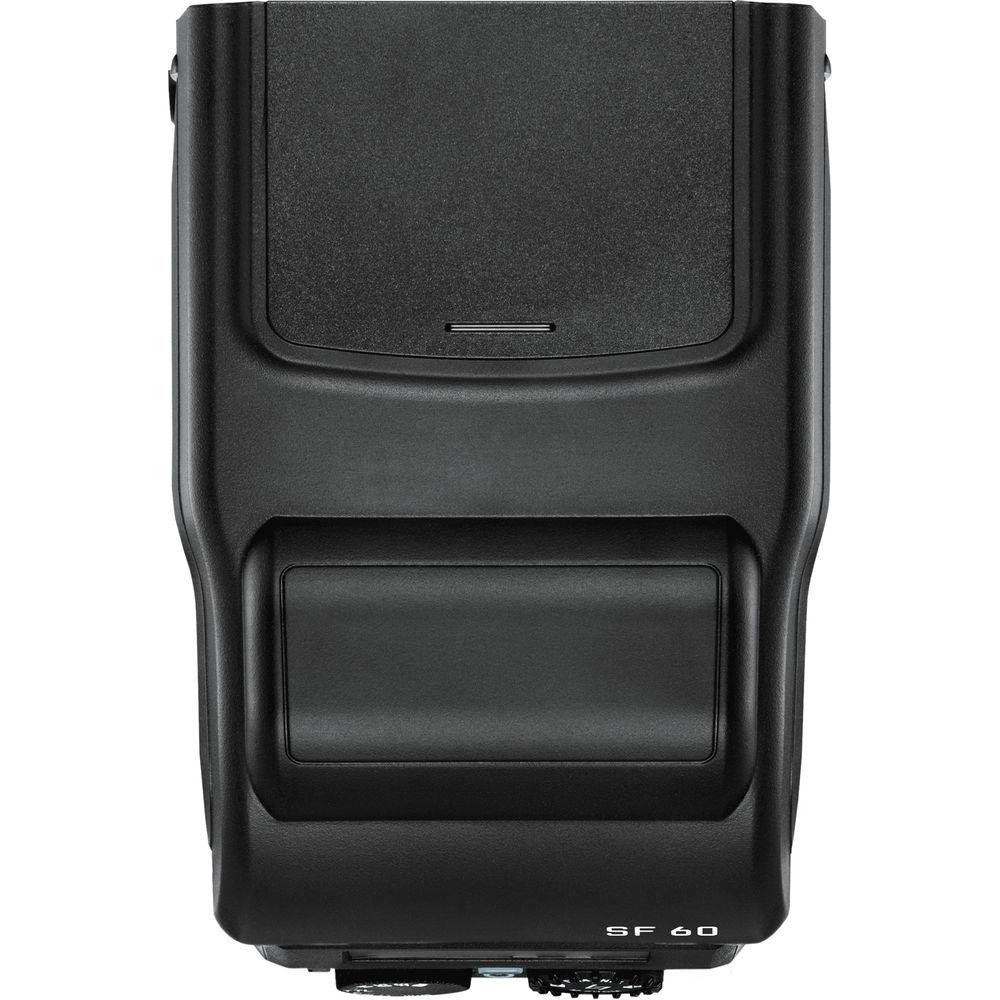

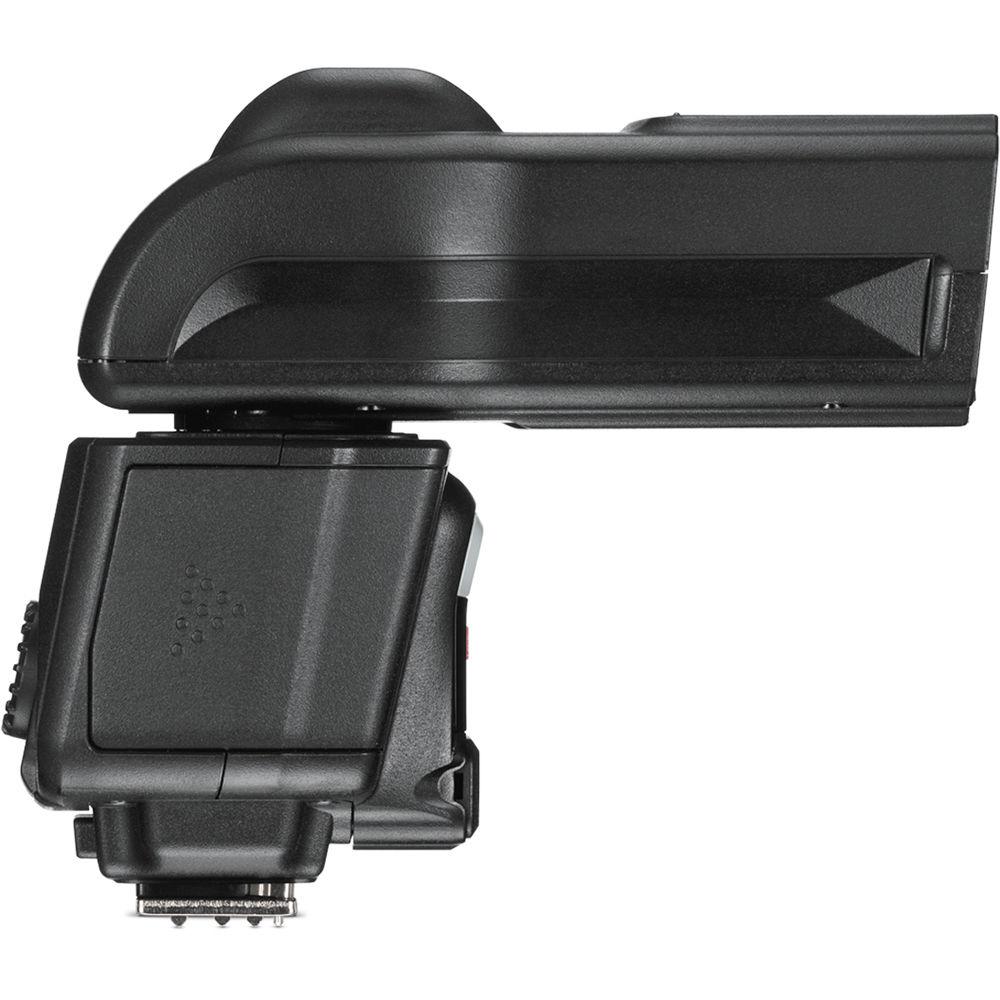

User Manual for Leica SF 60 Flash Click to enlarge the picture
Contents of the user manual for the Leica SF 60 Flash
- Product category: On Camera Flashes Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica On Camera Flashes
 |
User manual for the Leica SF 60 Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

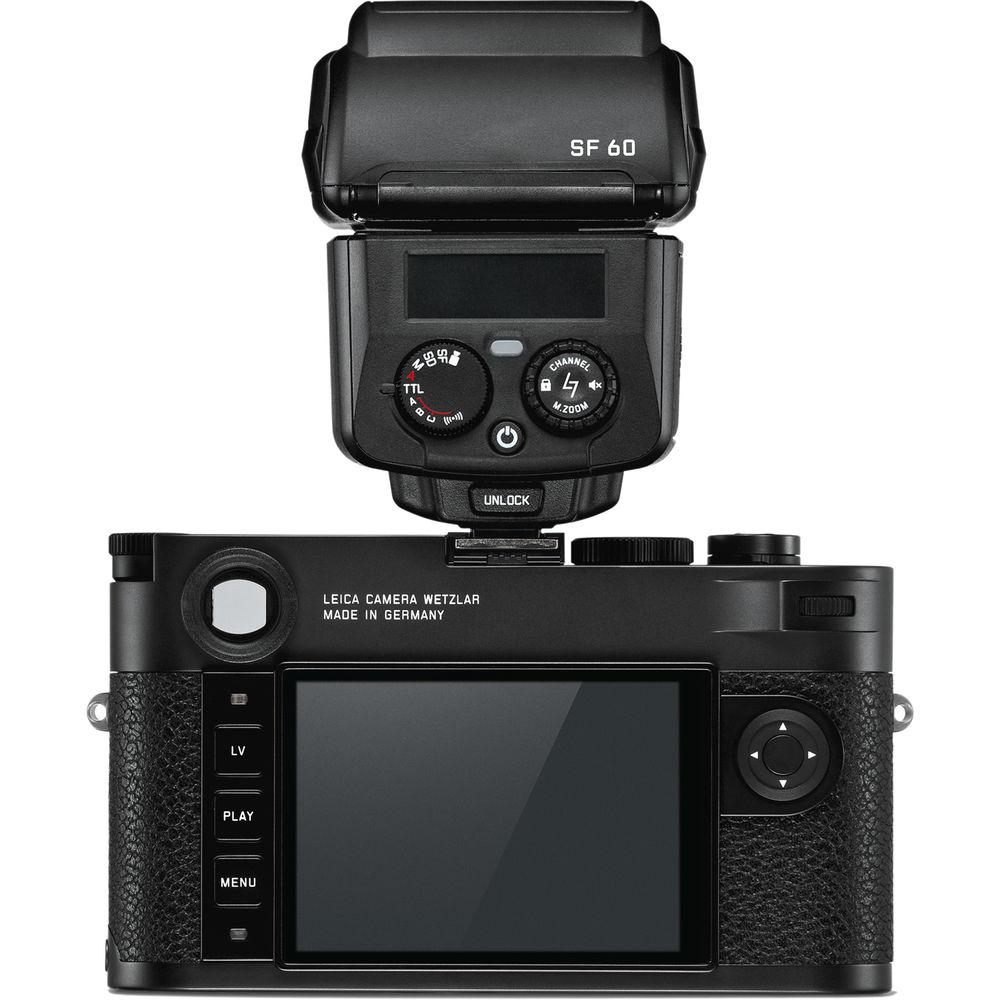

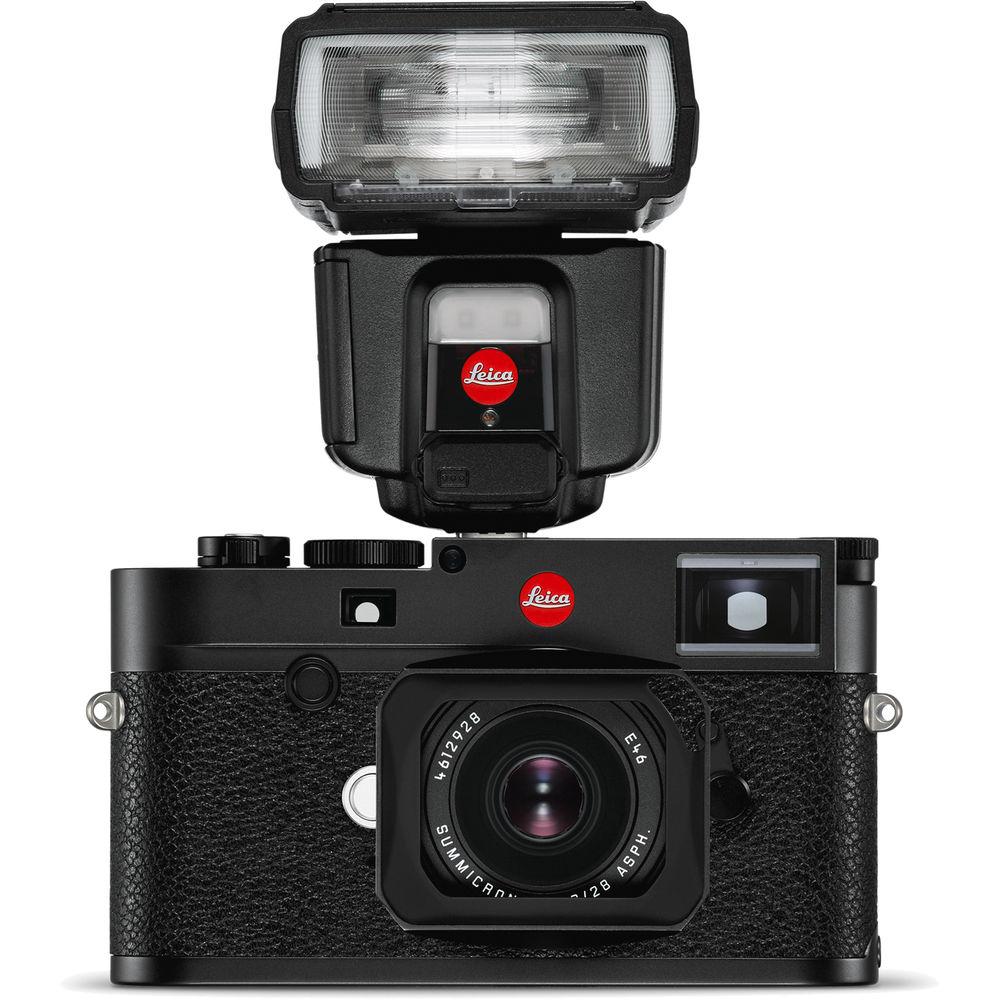

Product description Leica Gets Flashier with the SF 60 Flash and SF C1 Remote Read More Versatile, compact, and wireless TTL-enabled, the SF 60 is a flexible flash well-suited for select Leica M, S, and SL-series cameras. Despite its portable size, this flash offers a guide number of 197' at ISO 100 and the 200mm setting, and has a zoom head with a total range of coverage from 24-200mm. It can also be expanded to 16mm with the built-in diffusion panel. Additionally, hybrid stills/video shooters can benefit from this flash as well thanks to a built-in LED video light for constant illumination.

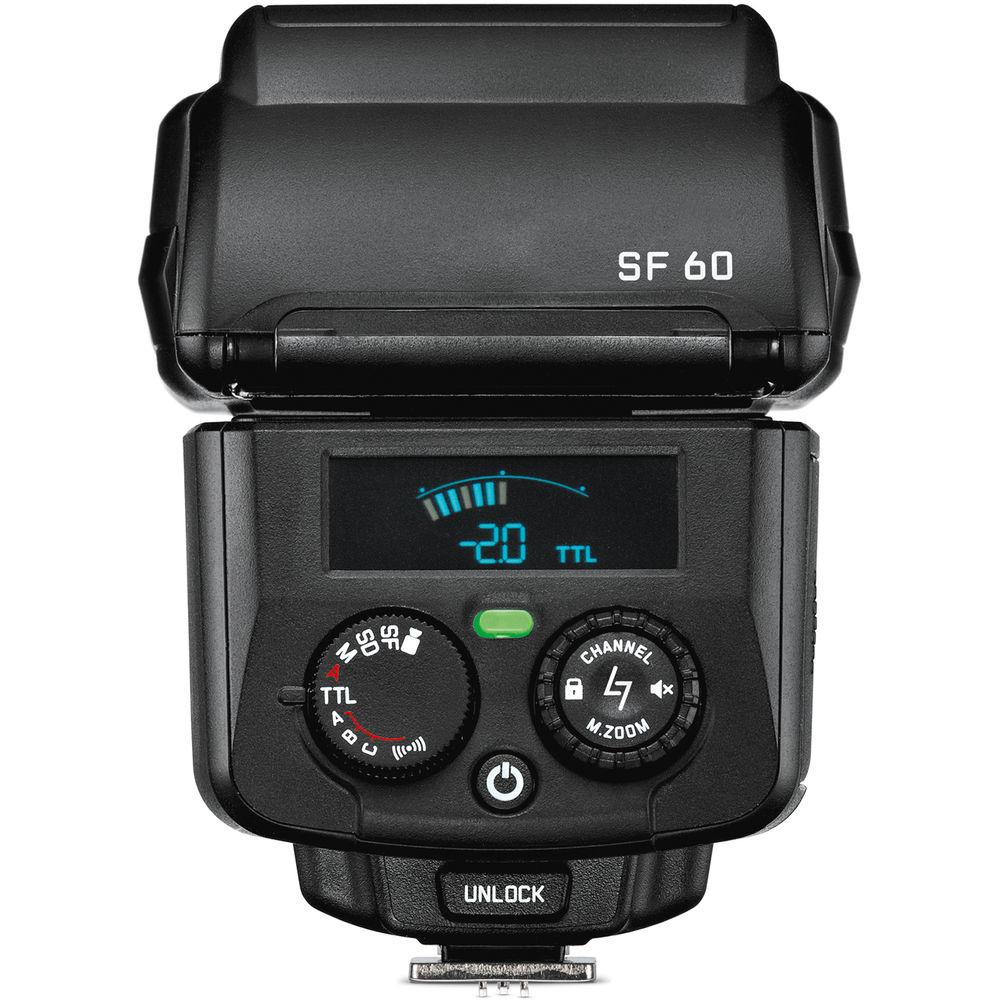

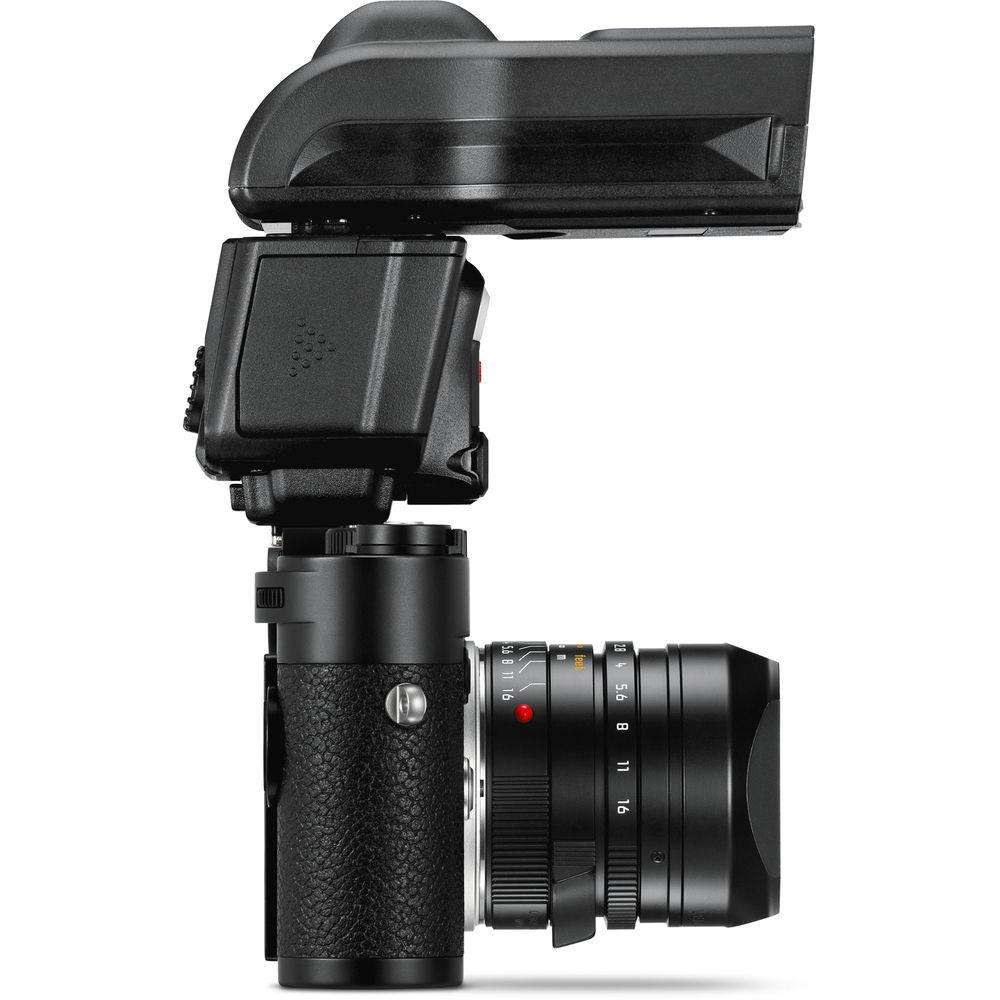

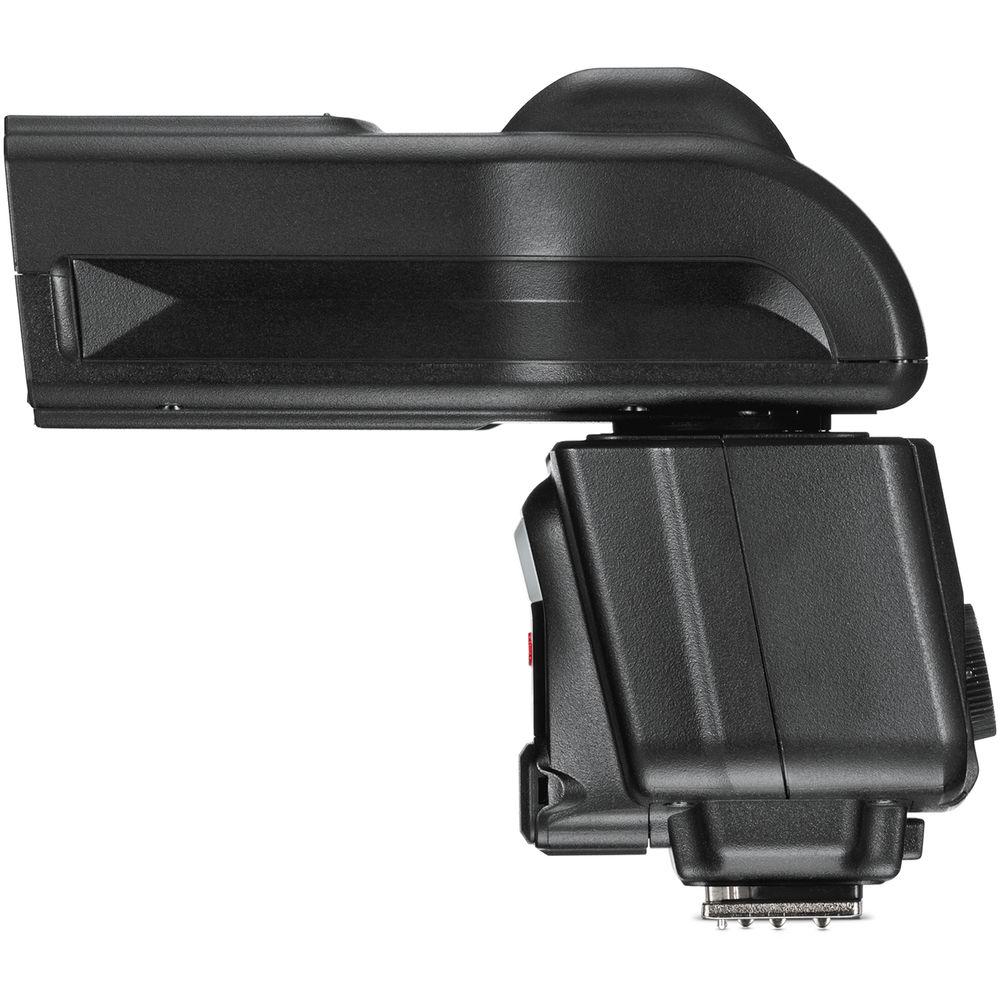

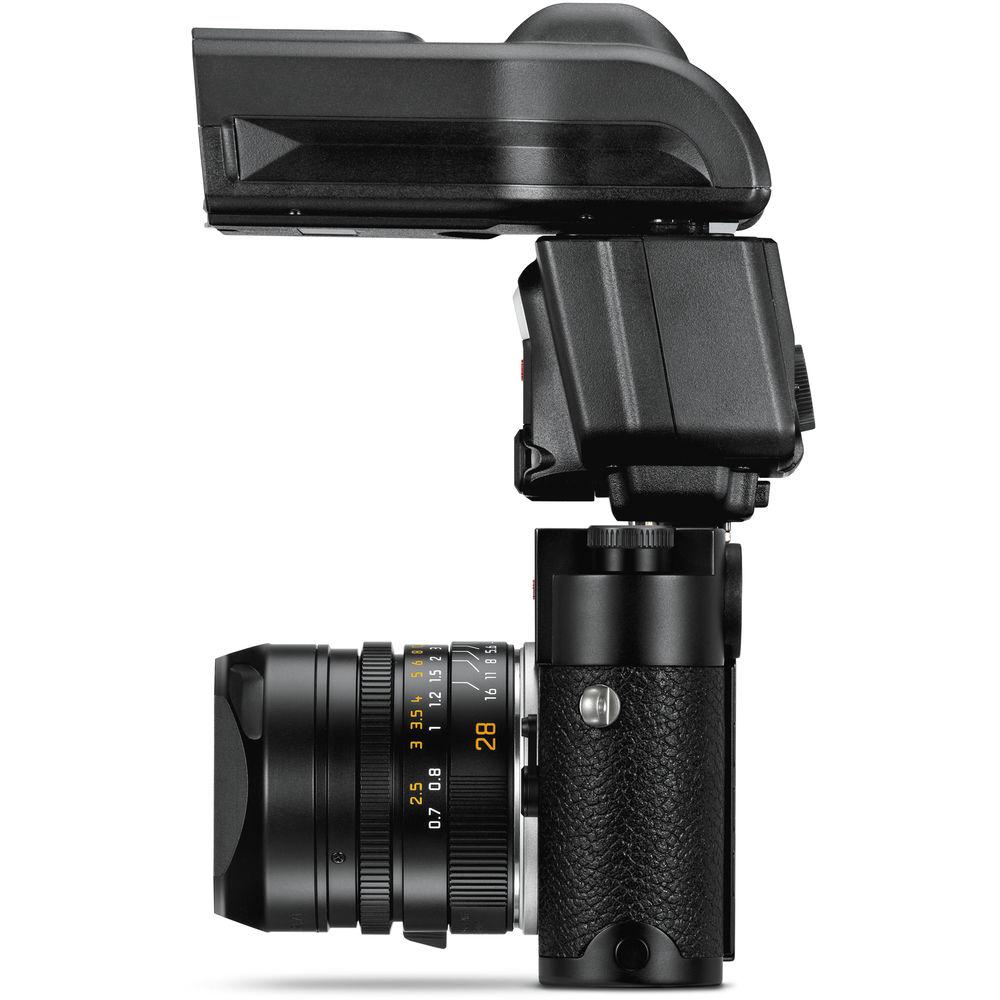

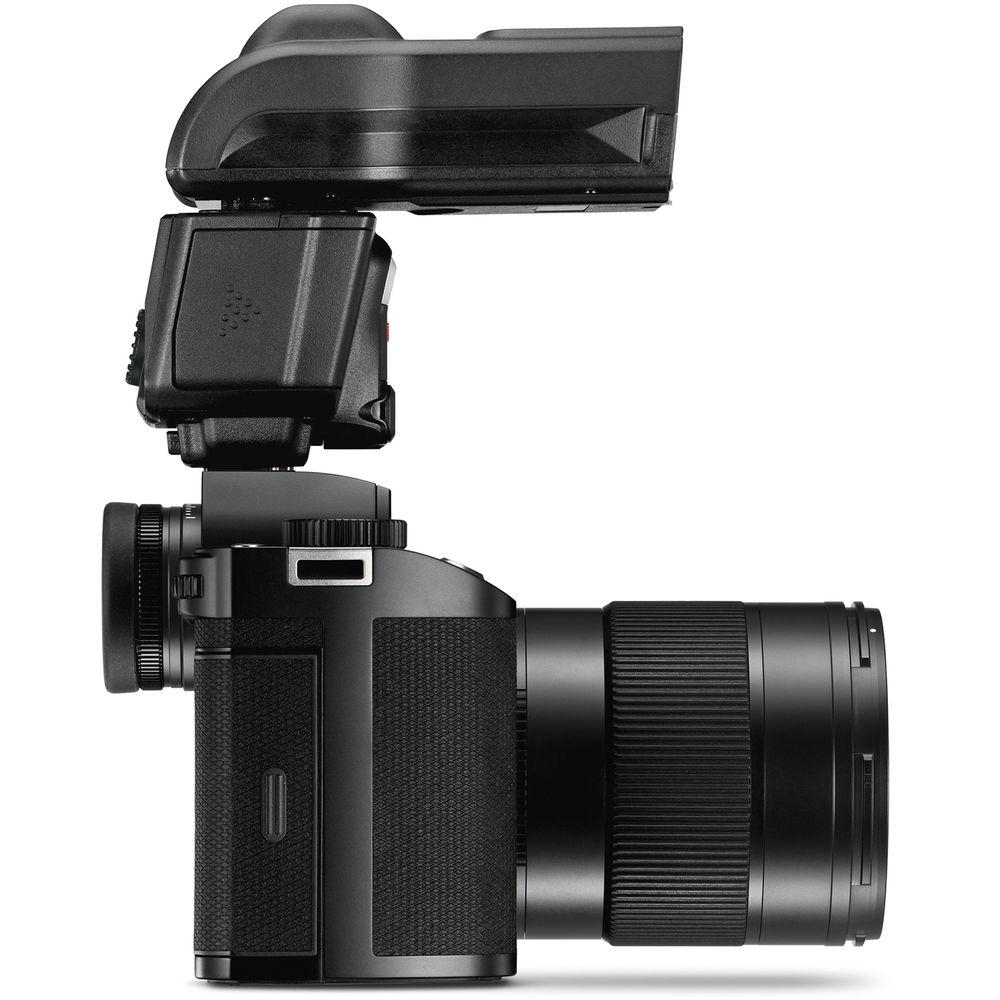

The flash head's design permits up to 90° upward tilt and 180° rotation in both directions for full bounce flash control. Sync features, such as slow, high-speed, first-, and second-curtain sync are also supported for creative shooting. The flash's design offers seamless operation via rear dials and color LCD screen and it accepts either 4 AA batteries or an optional external power pack. - Wireless slave TTL functionality using either the Leica SF C1, with a range of 328', or using optical slave capabilities
- Radio mode allows access to 8 channels and 3 groups
- Flash exposure compensation settings of ±2 EV in 1/3 EV steps
- Manual power control from 1/1 to 1/256 in 1/3 EV steps
- HV power socket for using external battery packs
- TTL Compatibility
- M10, M (Typ 240), M9, M8, Q, CL, SL, S (Typ 007), S (Typ 006) [no AF light at flash support]
Latest firmware may need to be installed UPC: 799429146252 In the Box Leica SF 60 Flash External Diffuser Soft Case Flash Stand Limited 2-Year Warranty A Guide to On-Camera Flash Bjorn Petersen 04/12/2019 Quick start Guide PDF 3.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica SF 60 Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica SF-60 Specs | Mount | Shoe | | Guide No. | 196.85' / 60 m ISO 100 at 200 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | Manual: 1/1 to 1/256 | | Bounce Head | 0 to +90° | | Swivel Head | 360° | | Coverage | 16 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Off-Camera Terminal | None | | Recycle Time | Approximately 0.1 to 5.5 Seconds | | Flash Duration | 1/800 to 1/2000 sec | | Flash-Ready Indicator | Yes | | Compensation | -2 EV to +2 EV (in 1/3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: RF
Distance: Up to 328.08' / 100 m
Mode: Slave | | Wireless Communication Channels | 8 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Batteries | | Dimensions (W x H x D) | 4.4 x 2.9 x 3.9" / 112.0 x 73.0 x 98.0 mm | | Weight | 10.58 oz / 300 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.0 x 4.5 x 0.5" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Leica SF 60 Flash
| Subject: Need assistance setting SF 60 up correctly. | | Date: 16.09.2022 22:02:48 | Name: John Sims | This flash Leica SF 60 looks very complicated for someone who is 78 and not a computer Geek.
Please help. Would like to try it on my SL-2 and not damage it. | | Post reply |
