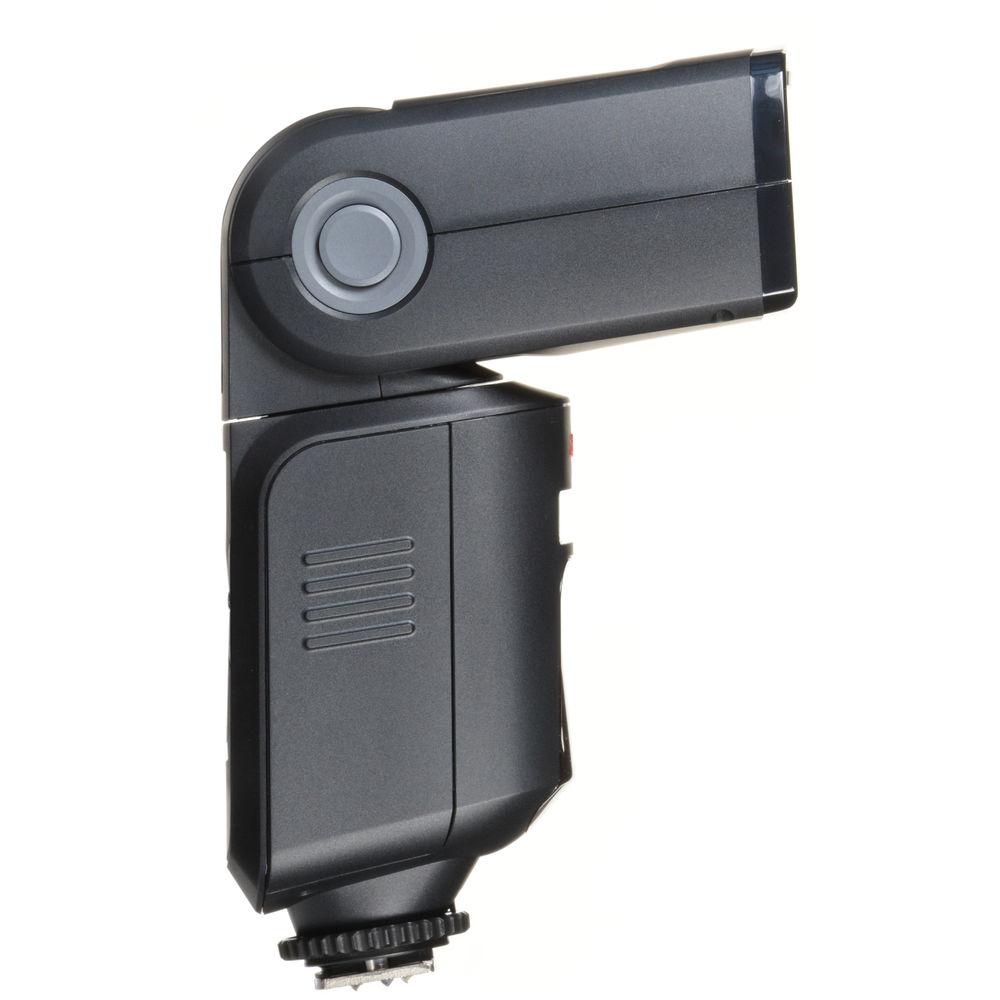

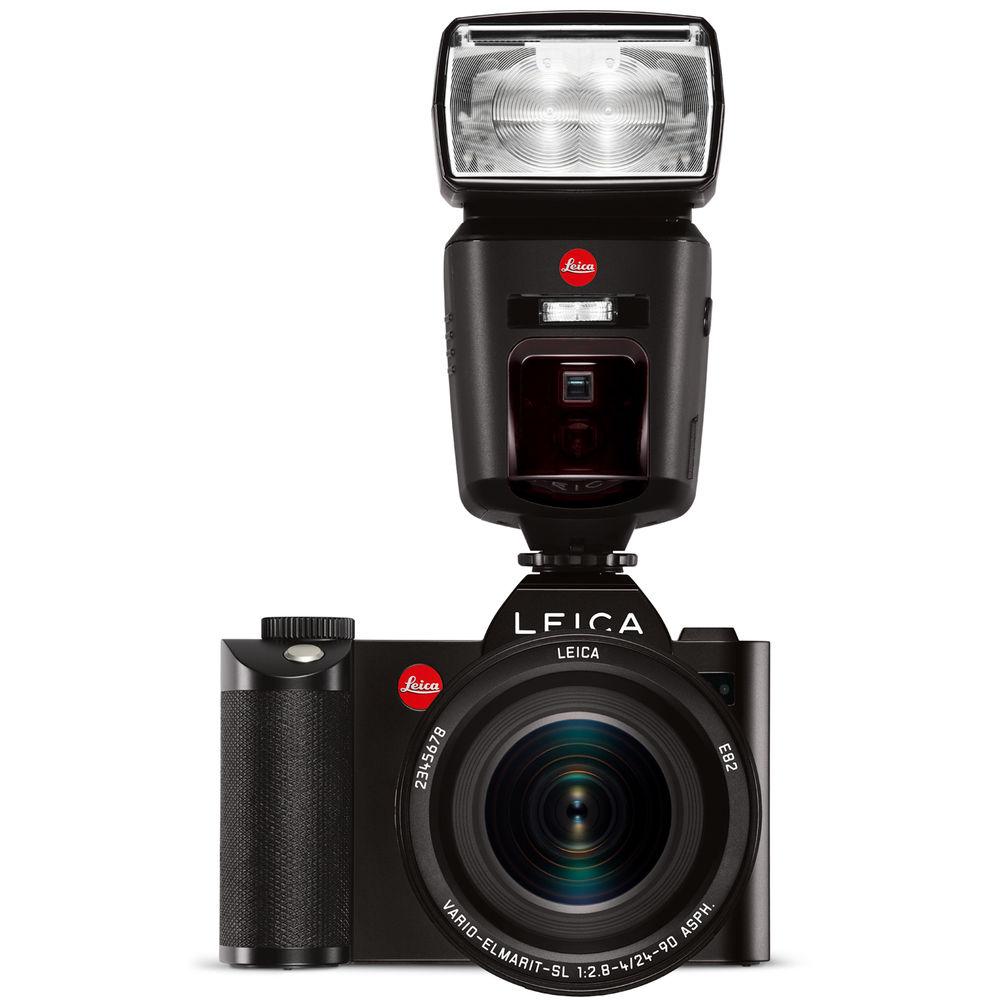

Leica SF 64 Flash

Search your instruction manual in PDF to download

User Manual for Leica SF 64 Flash

Click to enlarge the picture
Leica SF 64 Flash Contents of the user manual for the Leica SF 64 Flash
  • Product category: On Camera Flashes Leica
  • Brand: Leica
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Leica On Camera Flashes

Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash Leica SF 64 Flash
User manual for the Leica SF 64 Flash contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Leica product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!



Product description

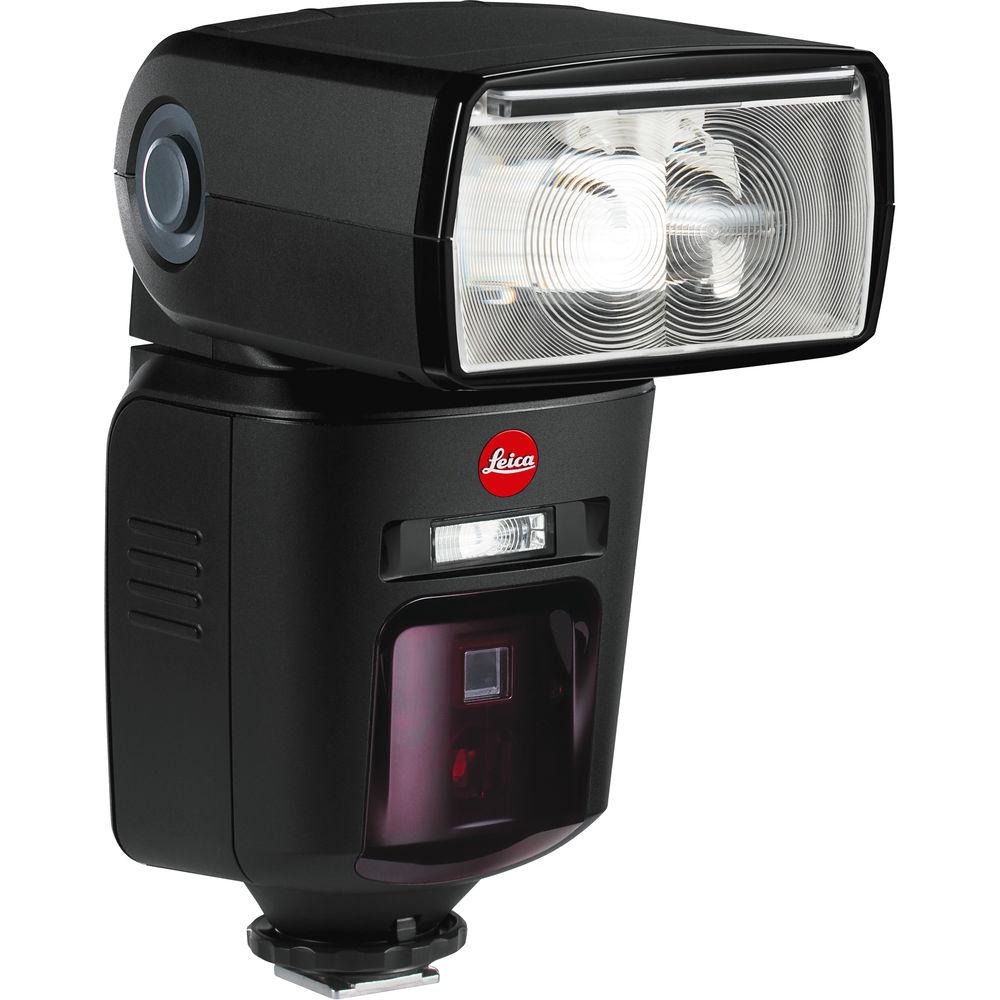

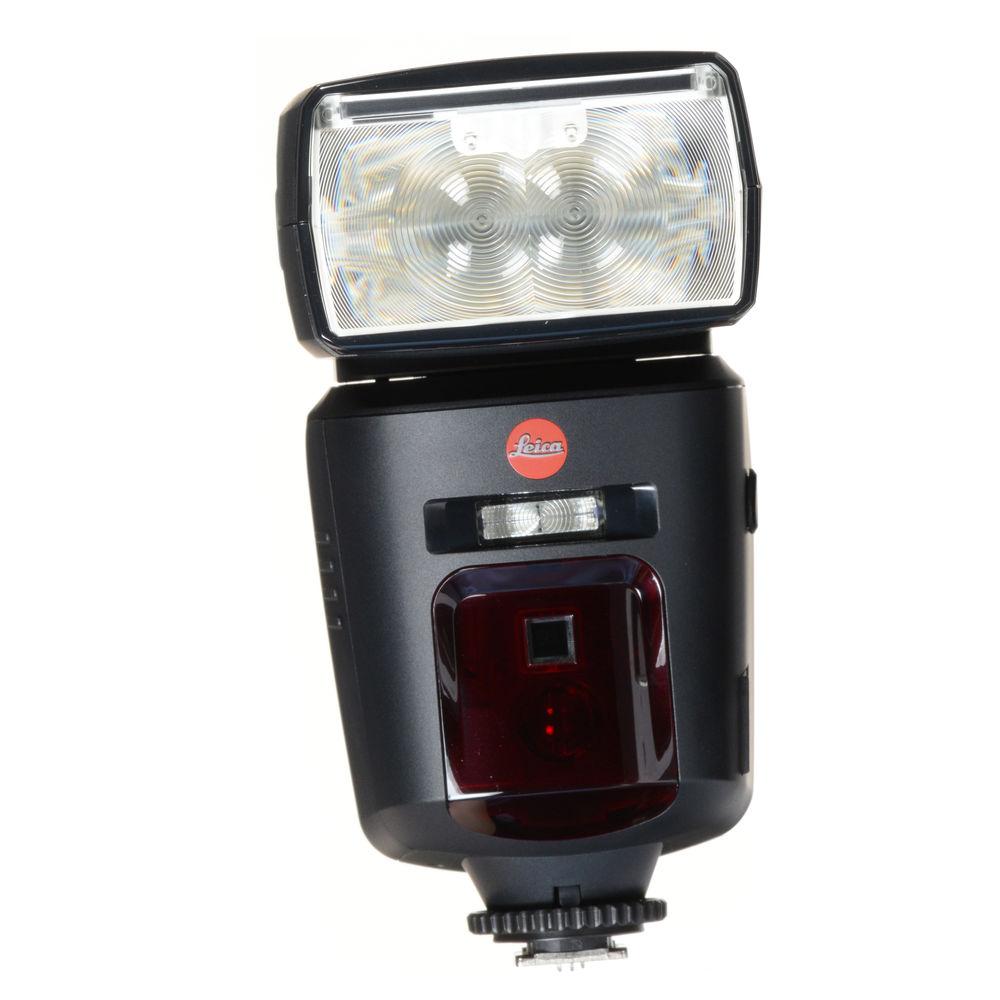

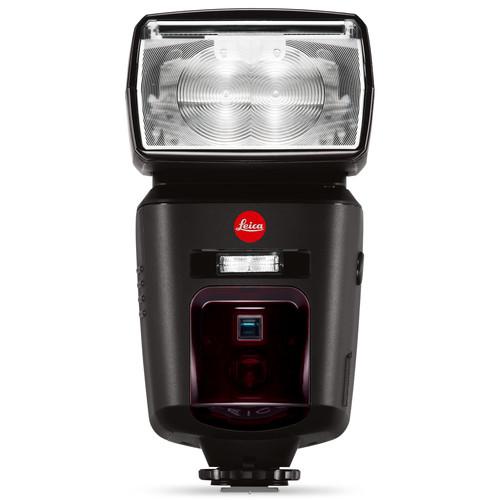

A Guide to On-Camera Flash Read More For times when you need a serious on-camera lighting solution, Leica has developed the powerful SF 64 Flash with an impressive guide number of 210' at ISO 100 and 200mm. Offering completely automatic metering thanks to TTL support with select cameras, the SF 64 will make shooting a breeze and with a wide zoom range of 24-200mm, which can be expanded to 12mm with the built-in panel, users will be able to use nearly any lens in their arsenal without worry. For additional versatility, the flash head can tilt from -9 to 90° as well as rotate right 120° and left 180° for full bounce capabilities. Additionaly, a bonus in the form of wireless slave triggering can give photographers control over the light in their scene.

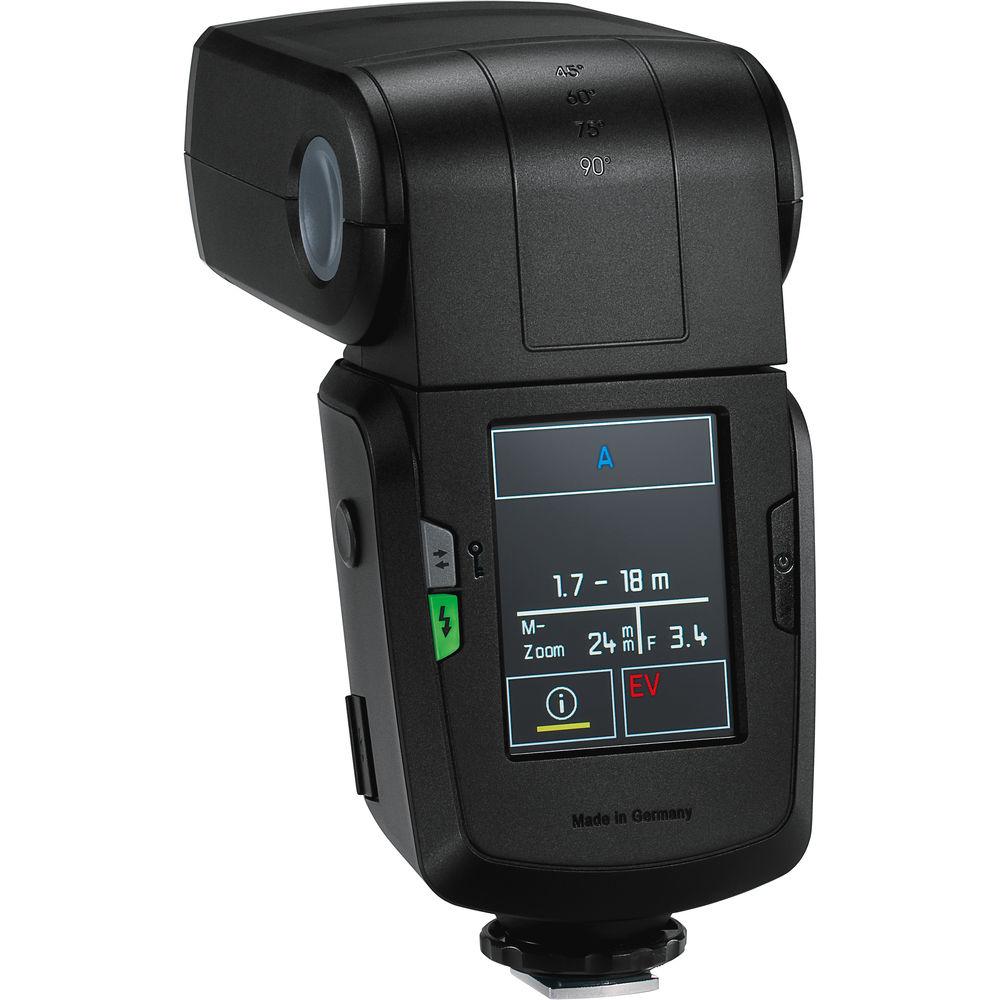

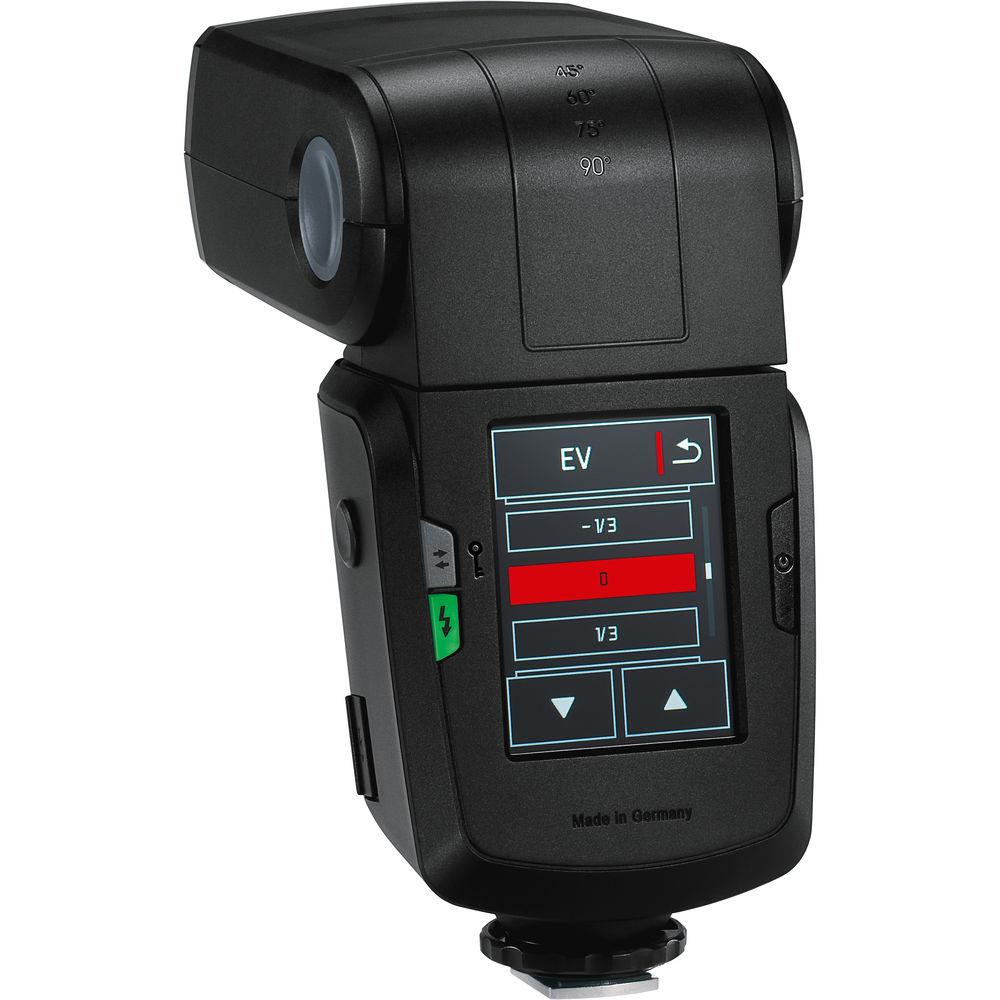

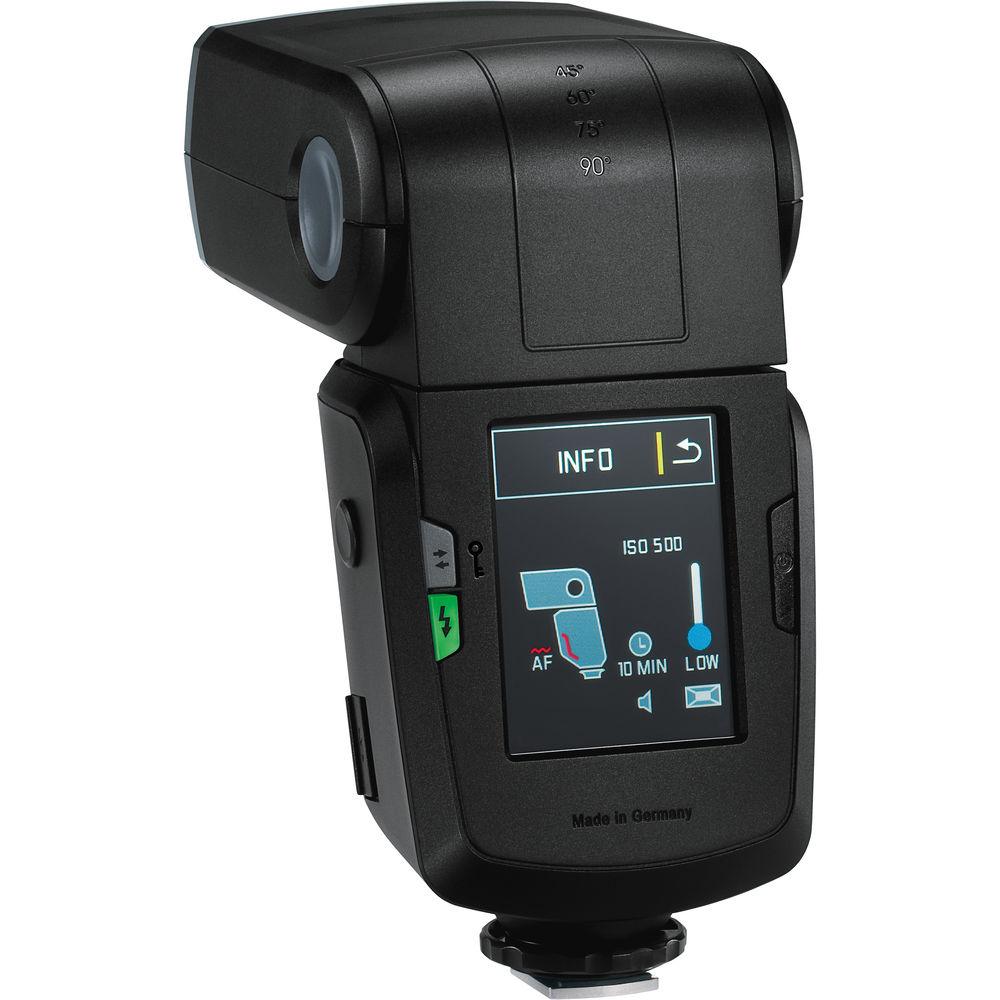

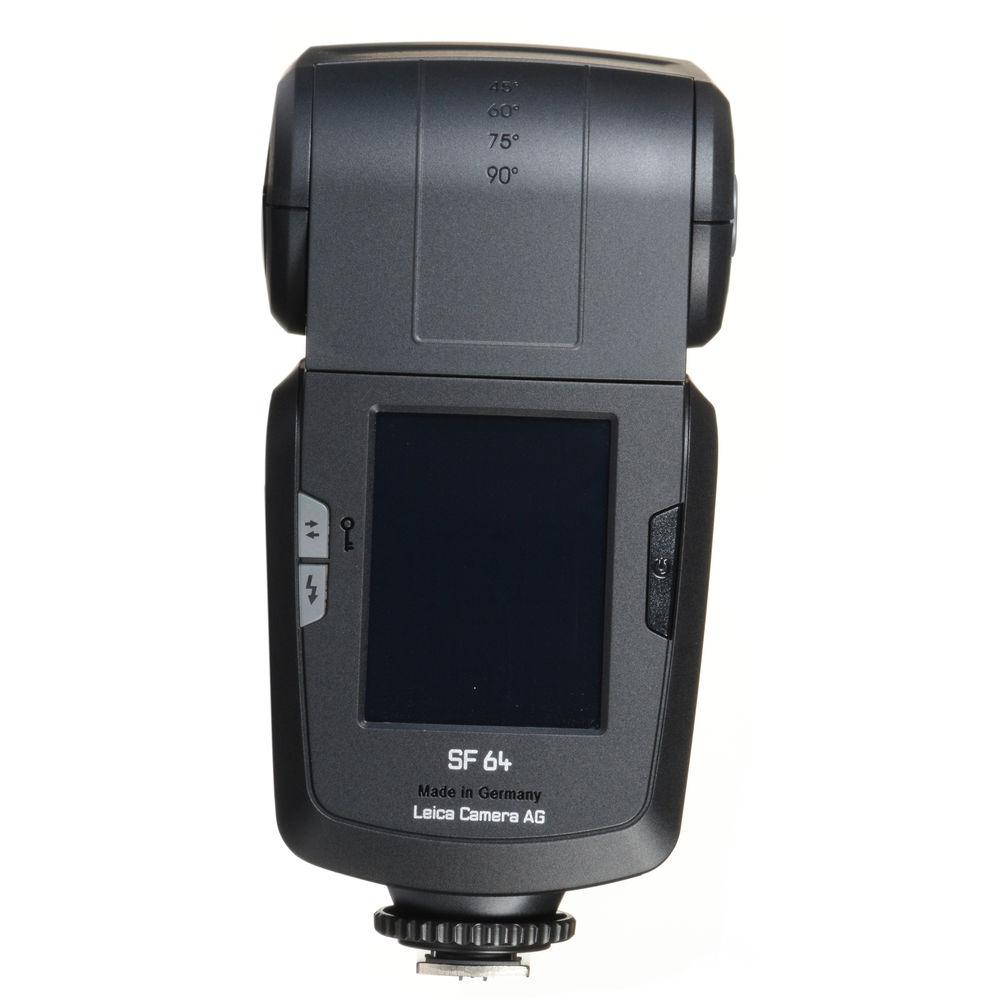

Making this flash unique is the use of a secondary light reflector with two output levels for creating very even illumination on your subject. There is also a color LCD touchscreen on the rear of the flash for quickly accessing and changing settings and a modeling flash will help users preview the look of shadows before taking a shot. The SF 64 boasts a recycle time of 0.1-4.4 seconds and runs on just 4 AA batteries. Multiple sync settings can be accessed for the ultimate in creativity with slow, high-speed, 1st and 2nd curtain options. Finally, the flash is equipped with a USB port for updating the firmware.
  • Optimized for use with M (Typ 240), M9, Q (Typ 116), SL (Typ 601), S (Typ 006), S (Typ 007), and other cameras with TTL support
  • Maximum guide number of 210' at ISO 100 and 200mm
  • Automatic zoom range of 24-200mm with additional spot and extended zoom modes and an integrated wide-angle diffuser that extends the range to 12mm
  • Built-in white reflector card
  • Modeling light option for previewing lighting
  • Flash readiness display and acoustic status notifications
  • Wakes up with camera
  • Manual flash power from 1/1 to 1/256 is 1/3 step increments
  • Automatic flash power with 12 aperture values
  • Color touchscreen display with range display
  • Wireless slave mode has access to instant sync or skip preflash settings
  • Four programmable settings
  • Integrated sync port and power pack socket
  • USB port for updating the flash firmware
  • High-speed, first and second curtain sync options
  • Automatic shut off and manual key lock
  • Manual flash exposure correction and bracketing available
  • Automatic fill-in flash, rapid, strobe, and servo flash with learning curve modes
  • Runs on four AA batteries or power pack
UPC: 799429146238 In the Box Leica SF 64 Flash
  • Soft Case
  • Flash Stand
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Leica SF 64 Flash in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Leica SF 64 Specs

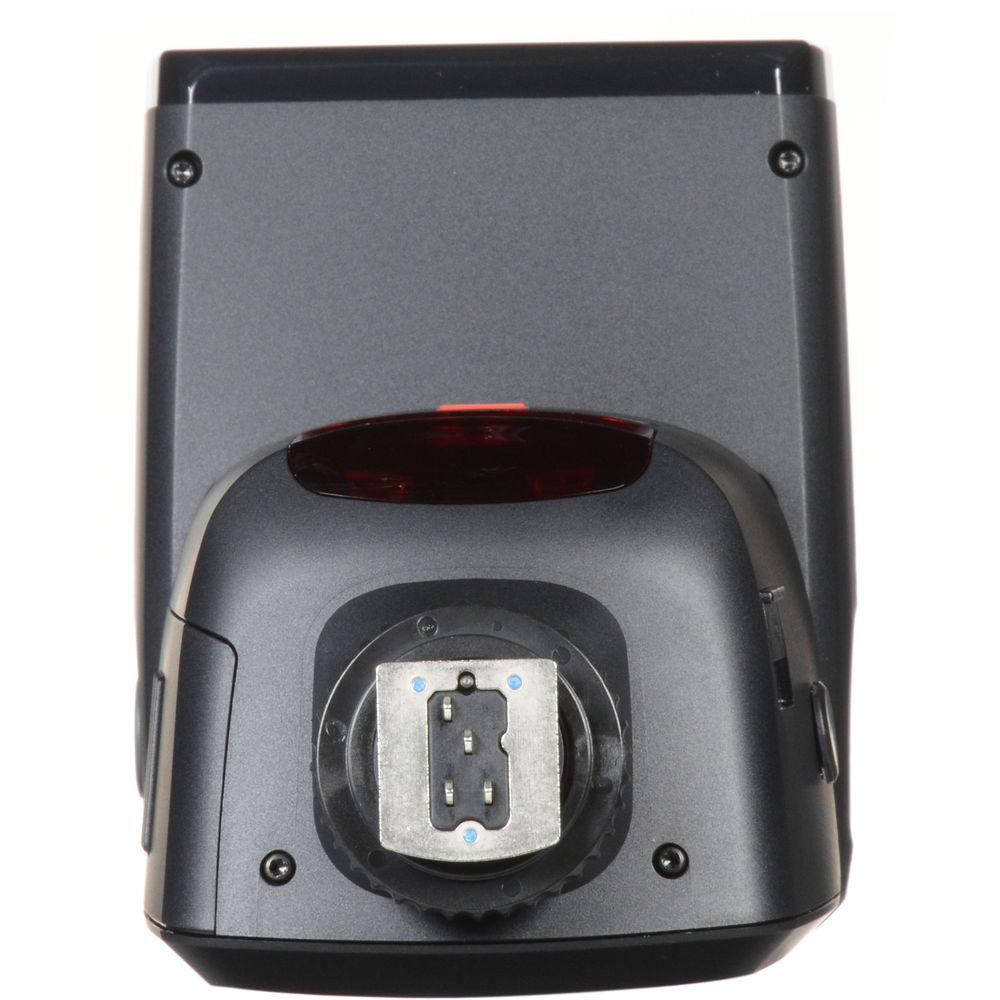

    Mount Shoe
    Guide No. 209.97' / 64 m ISO 100 at 200 mm Position
    Exposure Control Automatic, Manual, TTL
    Vari-Power 1/1 to 1/256
    Bounce Head -9 to +90°
    Swivel Head 300°
    Coverage 12 - 200 mm (Full Frame)
    Zoom Head Full Frame: 24 - 200 mm
    Off-Camera Terminal PC
    Recycle Time Approximately 0.1 to 4.4 Seconds
    Flash Duration 1/180 to 1/18000 sec
    Flash-Ready Indicator Yes
    Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Slave Timing Modes Instant Sync
    Skip Preflash
    Power Source 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries
    Dimensions (W x H x D) 3.1 x 5.8 x 4.4" / 7.9 x 14.7 x 11.2 cm
    Weight 1.97 lb / 895 g
    Package Weight 2.7 lb
    Box Dimensions (LxWxH) 9.2 x 6.2 x 4.1"
