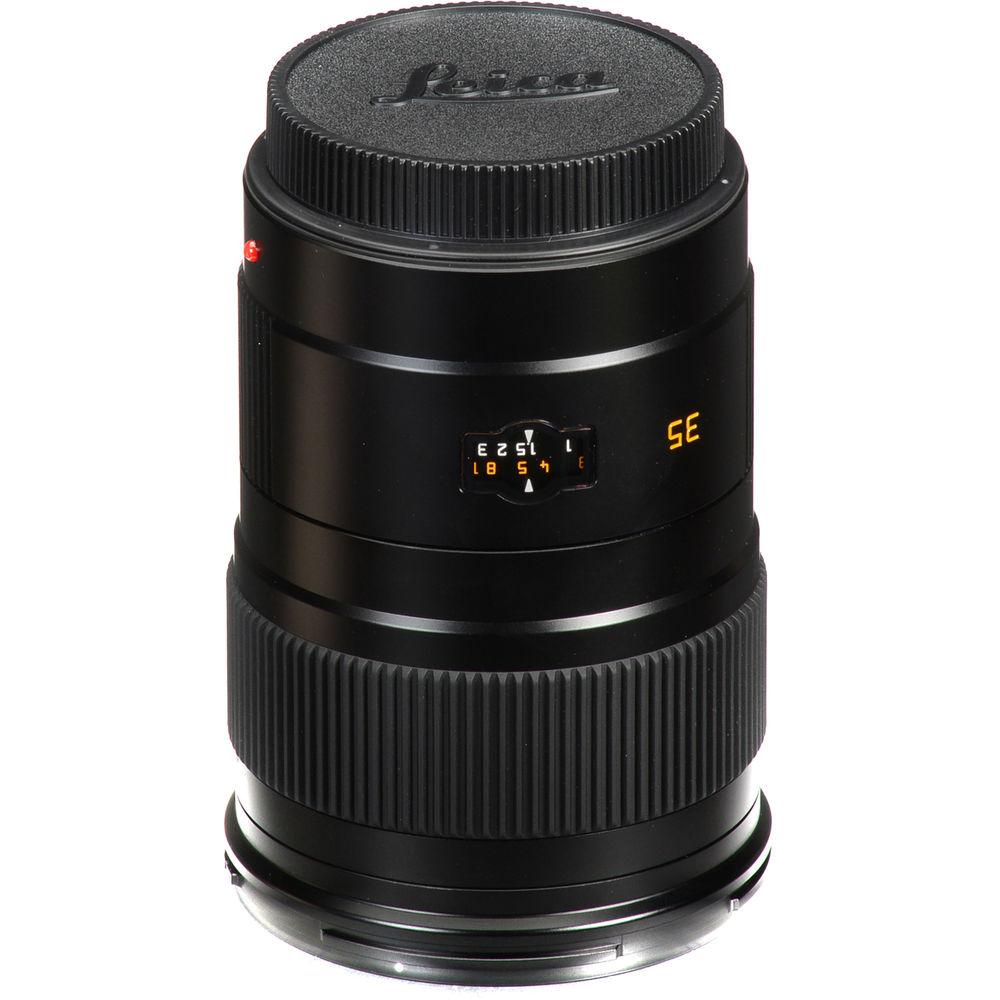

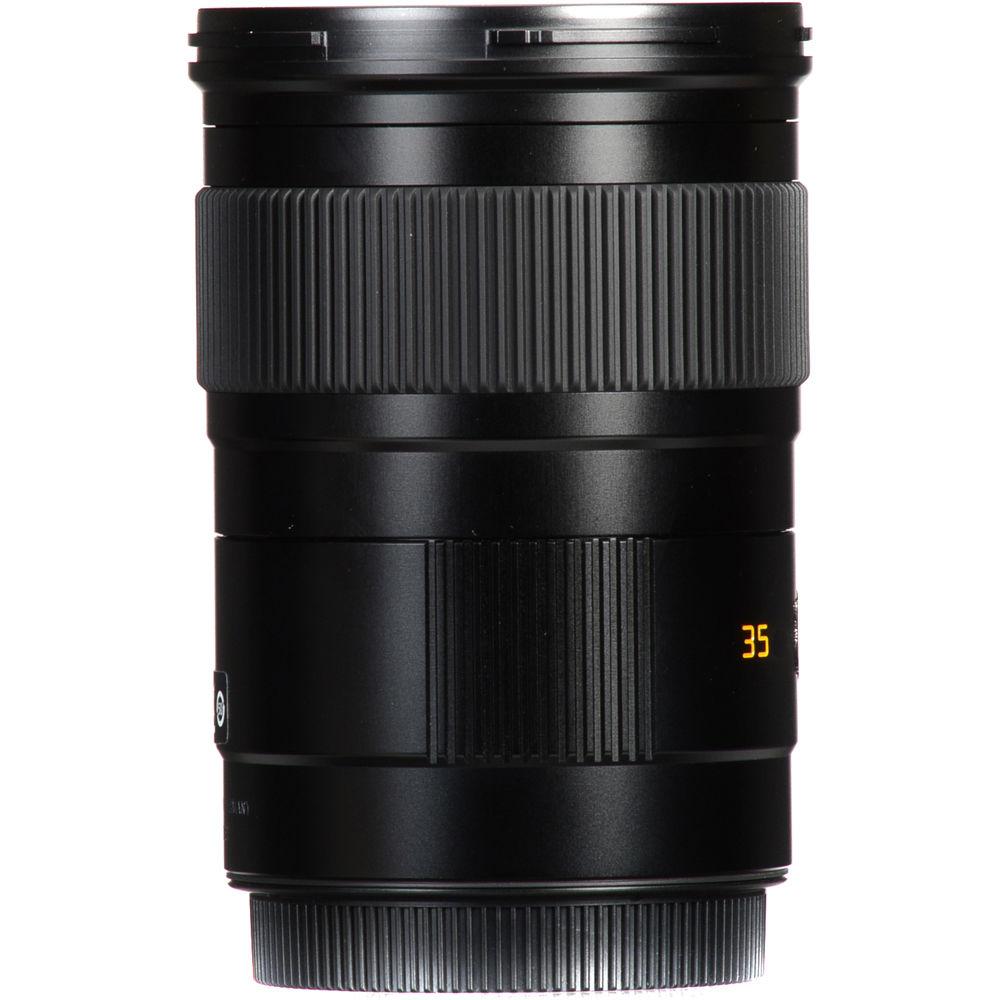

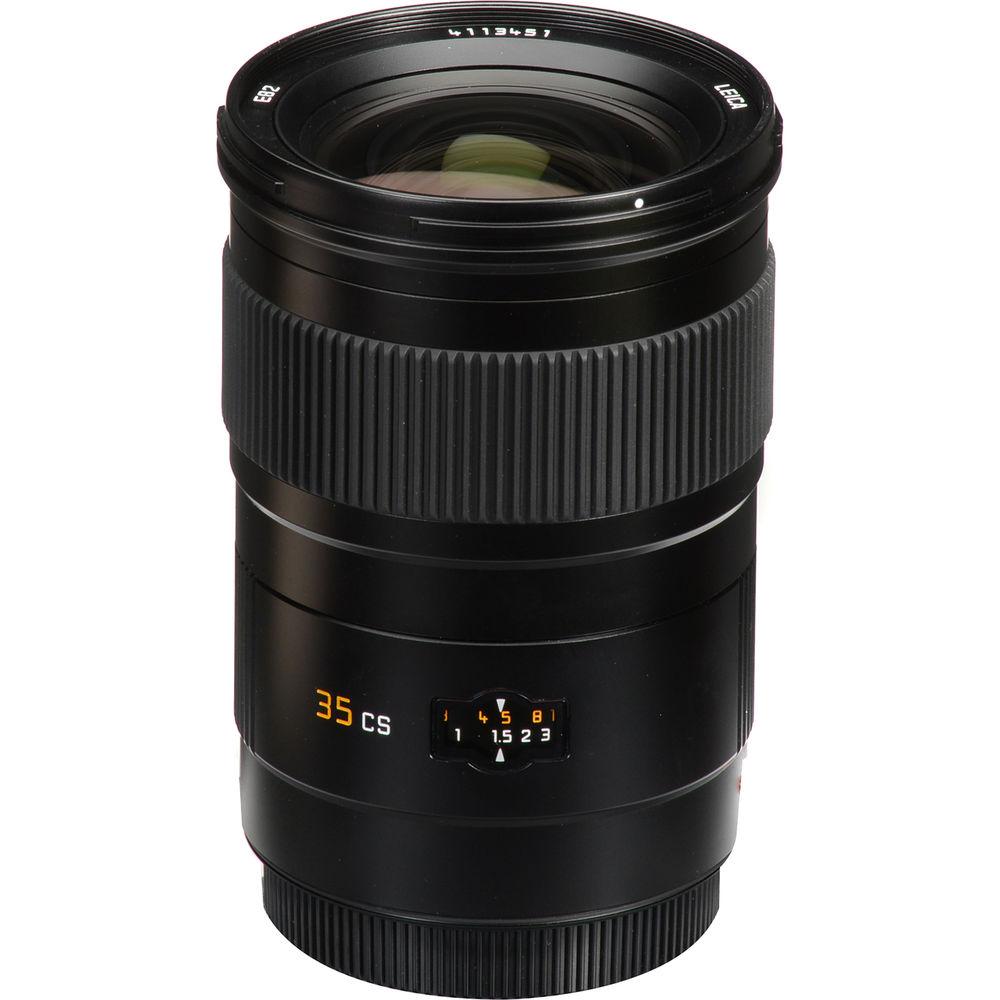

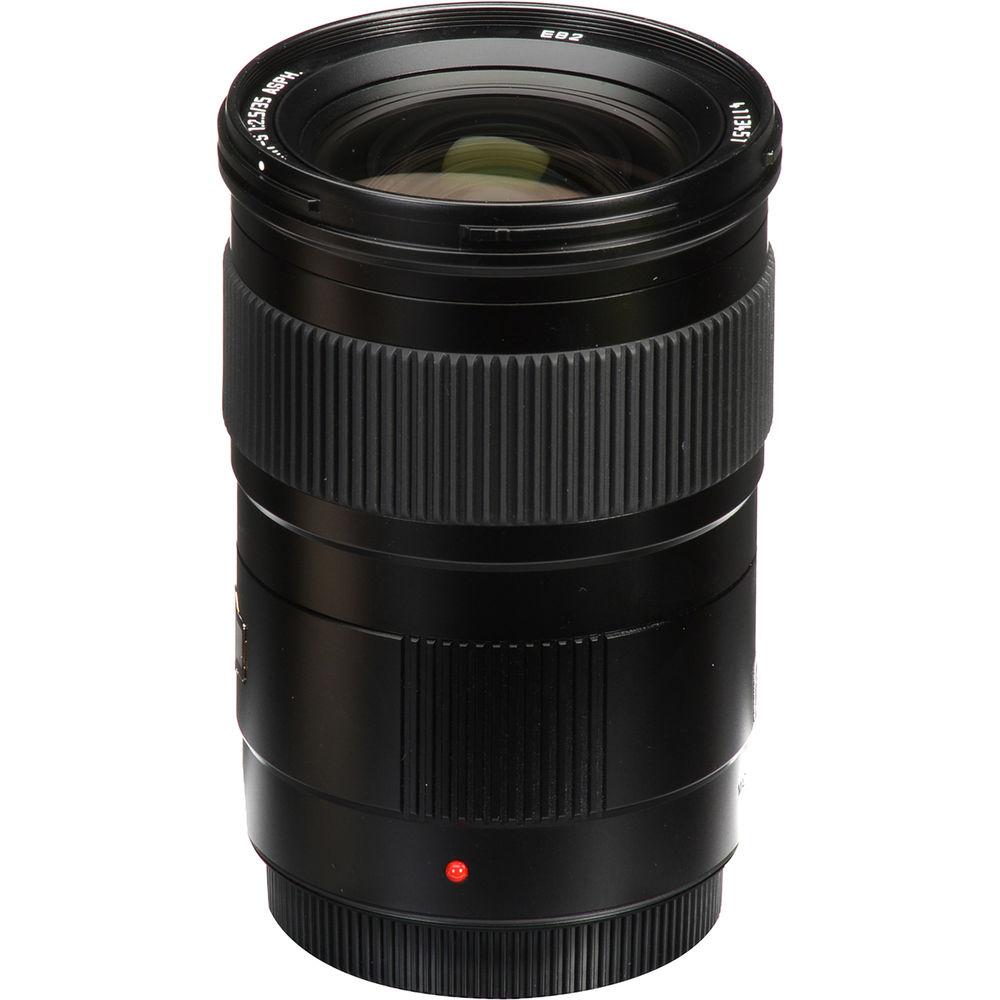

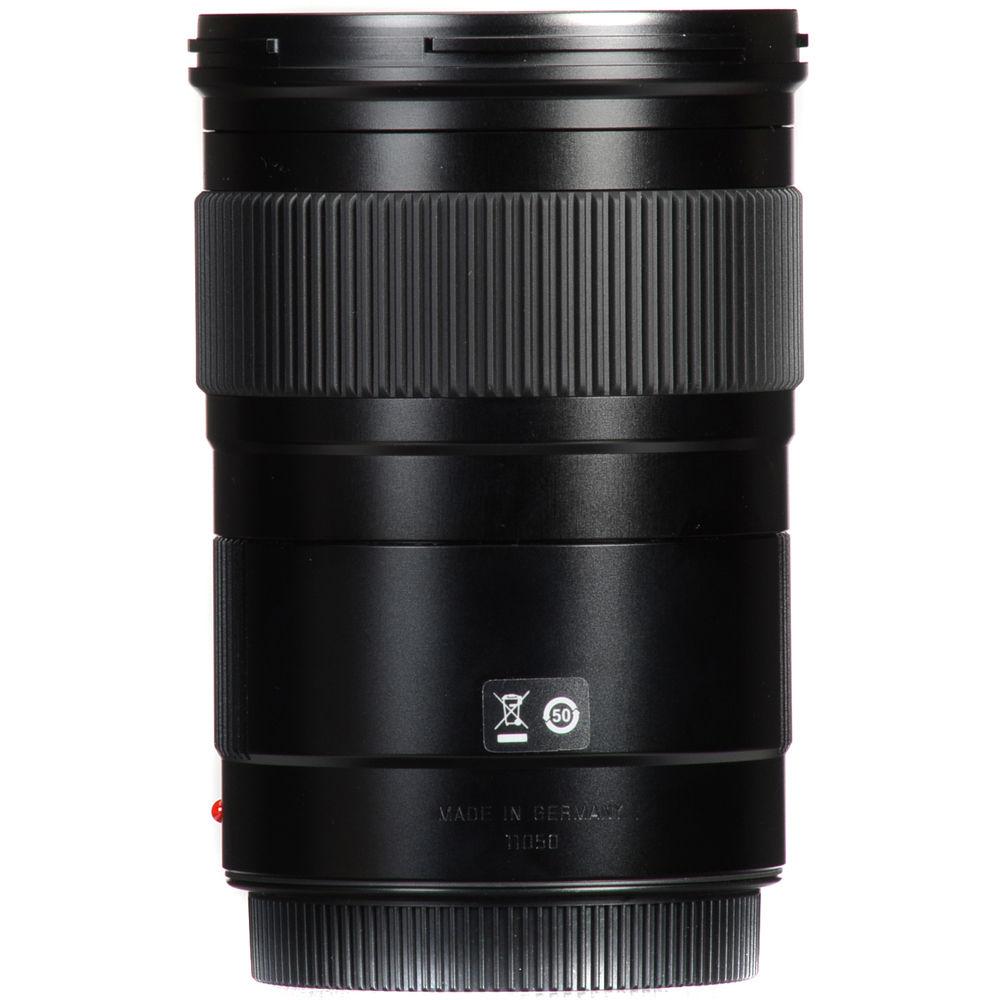

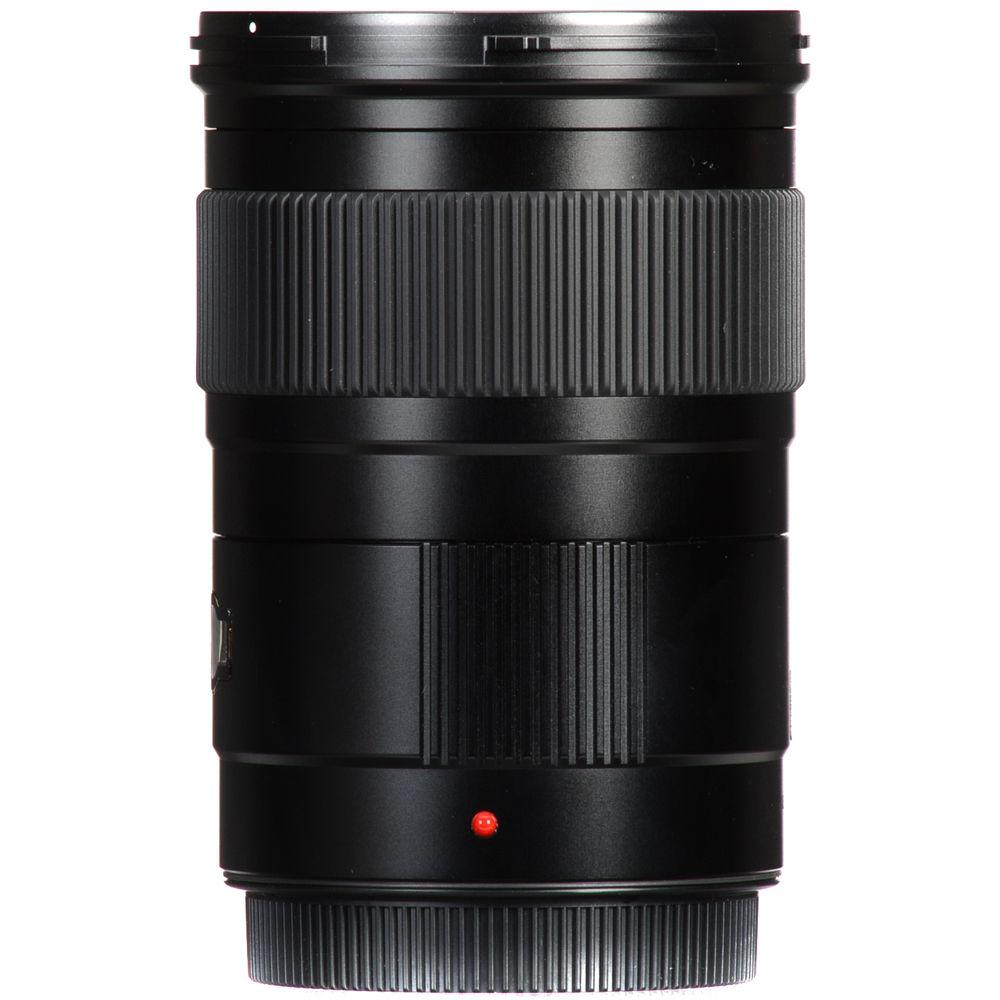

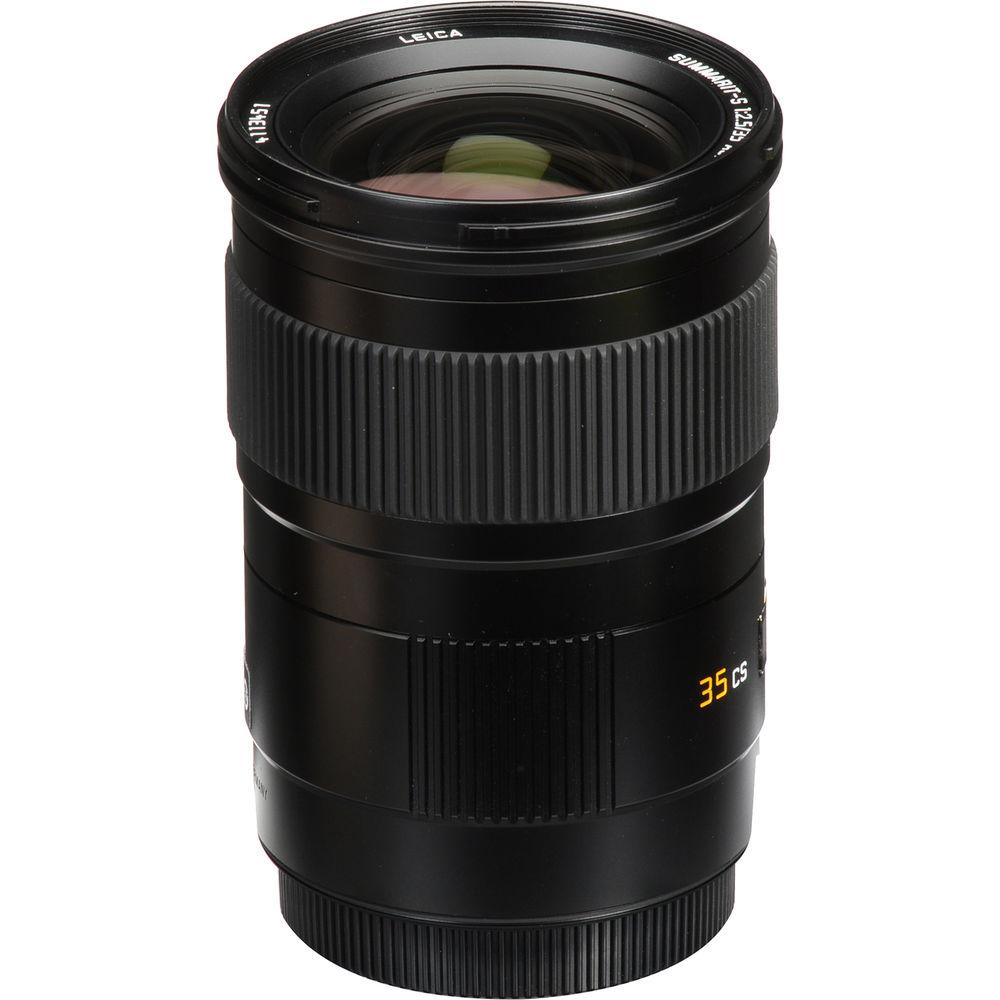

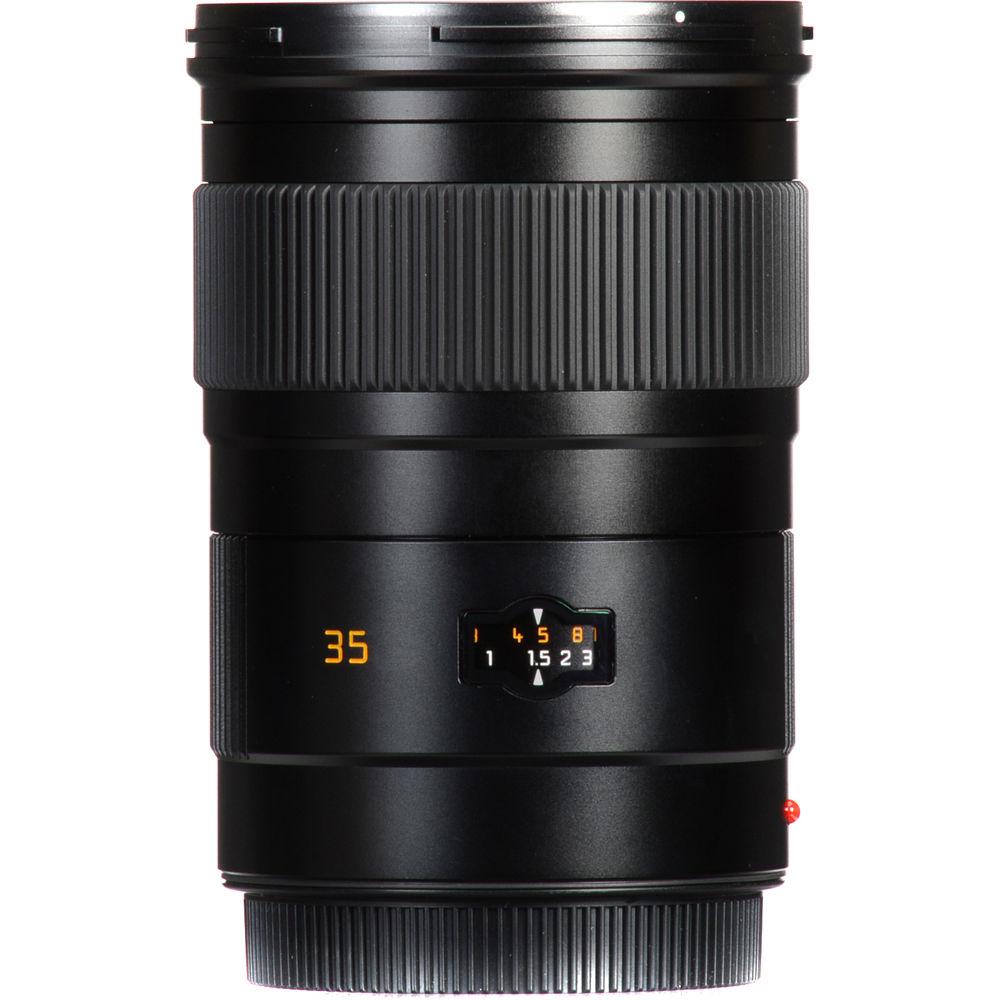

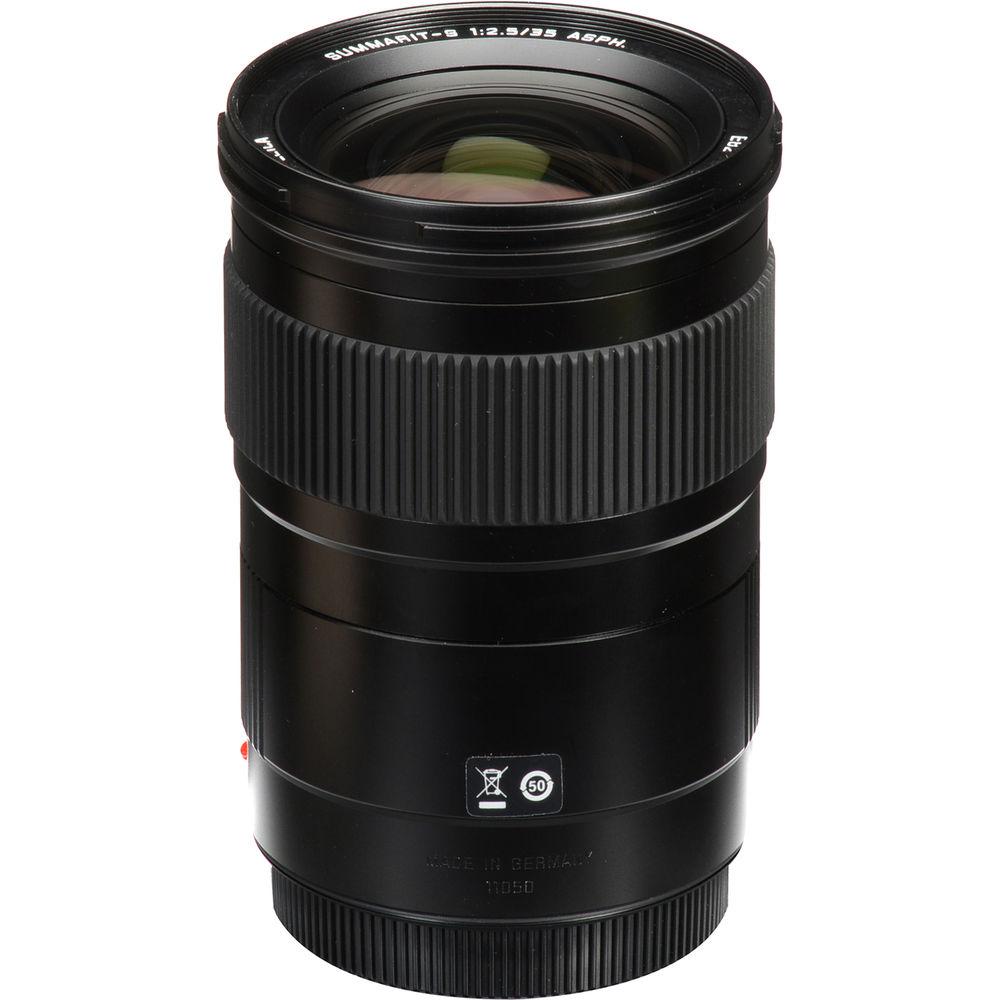

User Manual for Leica Summarit-S 35mm f 2.5 ASPH CS Lens Click to enlarge the picture
Contents of the user manual for the Leica Summarit-S 35mm f 2.5 ASPH
- Product category: Medium Format Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Medium Format Lenses
 |
User manual for the Leica Summarit-S 35mm f 2.5 ASPH contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

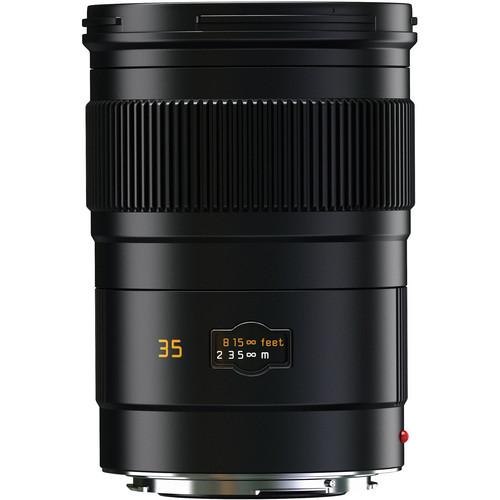

Product description The Leica Summarit-S 35mm f/2.5 ASPH CS Lens is a classical wide angle lens with high optical performance. Two aspherical lenses together with special highly refractive glass with atypical partial dispersion, yields excellent sharpness and contrast throughout the image field. This reference-class lens displays consistently high image performance utilizing an inner focusing system with a floating element.
The Summarit-S 35mm f/2.5 ASPH CS is equipped with an integrated Central (leaf) Shutter. Photographers can activate the shutter via the camera's main switch. It enables flash units to be used at a shutter speed of 1/500 second, and it performs effectively with studio flash units. The shutter also has an electronically-controlled drive guaranteeing reliable, fast exposure times and low energy consumption.
This lens displays maximum performance across the entire image field at all apertures. With a broad effective range of focus (minimum distance of 21.65' (55cm), it is possible to produce unusual and attractive compositions. With Leica's high-degree of lens precision there is almost no discernable vignetting, distortion and chromatic aberrations. Thus, images don't require a large amount of post-production corrections.
The Summarit-S 35mm f/2.5 ASPH CS is equipped with a Leica-designed microprocessor for precise autofocus and iris diaphragm control with silent gearing and it has a focus ring with enough drag to let the user to override the autofocus at any time. - Two aspherical lenses together with special highly refractive glass with anomalous partial dispersion guarantee excellent sharpness and high contrasts even at the extreme edges of the image.
- S-bayonet mount ensures rapid and precise digital exchange of data and commands between the camera and lens.
- Lens has its own Leica-designed microprocessor for precise autofocus and iris diaphragm control.
- Generous focus ring with just the right amount of drag, letting the photographer override the autofocus at any time.
- The lens is produced to extremely narrow tolerances, with each lens centered by hand, guaranteeing superior quality and optical performance.
- The integrated Central (leaf) Shutter allows flash units to be used at the fastest shutter speed of 1/500 second, giving photographers more options for suppressing unwanted ambient light. The Summarit-S 35 mm F/2.5 ASPH CS performs effectively with studio flash units.
In the Box Leica Summarit-S 35mm f/2.5 ASPH CS Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Summarit-S 35mm f 2.5 ASPH CS Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11050 Specs | | | Focal Length | 35mm | | Aperture | Maximum: f/2.5
Minimum: f/22 | | Camera Mount Type | Leica S Bayonet | | Format Compatibility | Digital Medium Format Sensor | | Angle of View | 75° | | Minimum Focus Distance | 1.8' / 54.86 cm | | Magnification | 0.09x | | Maximum Reproduction Ratio | 1:11 | | Optical Design | 11 Elements in 9 Groups | | | | Filter Thread | 82 mm | | Dimensions (DxL) | 3.46 x 4.80" / 8.79 x 12.19 cm | | Weight | 2.38 lb / 1.08 kg | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 6.7 x 6.7 x 6.6" |
