User Manual for Leica Summaron-M 28mm f 5.6 Lens Click to enlarge the picture
Contents of the user manual for the Leica Summaron-M 28mm f 5.6 Lens
- Product category: Rangefinder Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Rangefinder Lenses
 |
User manual for the Leica Summaron-M 28mm f 5.6 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

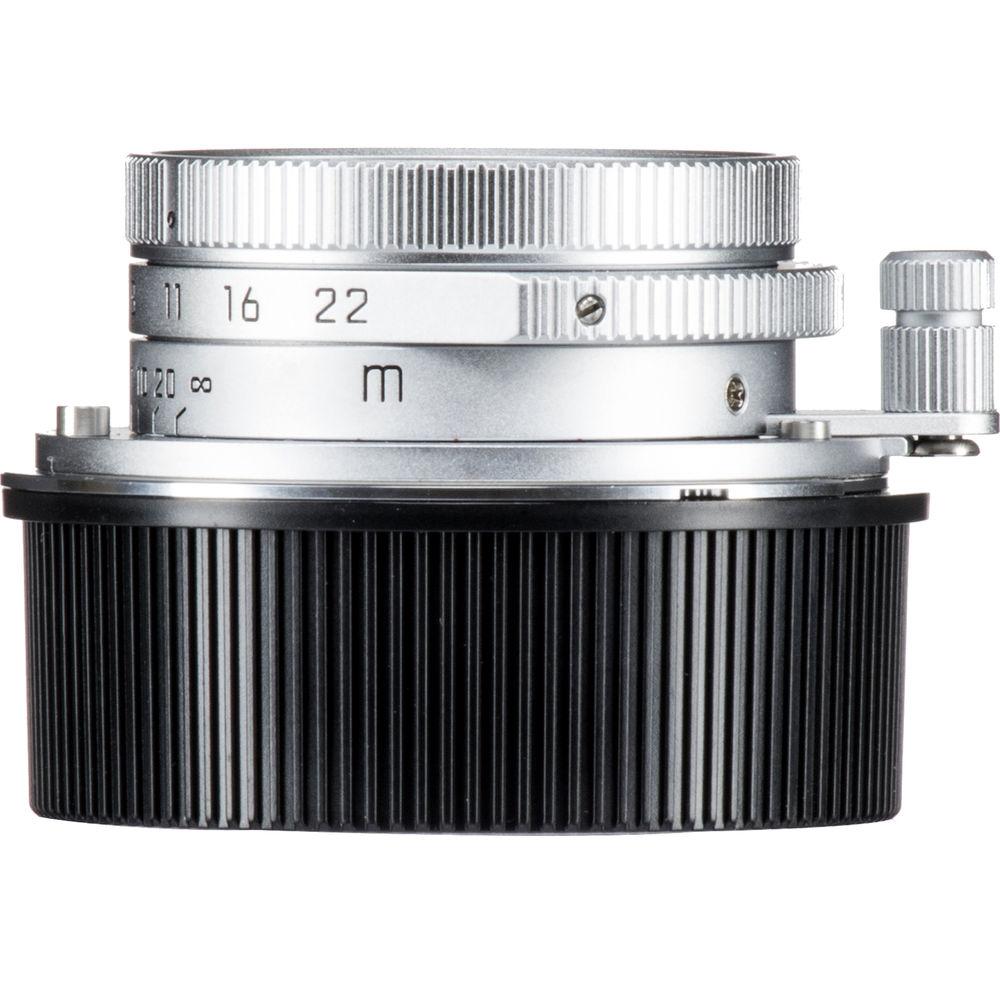

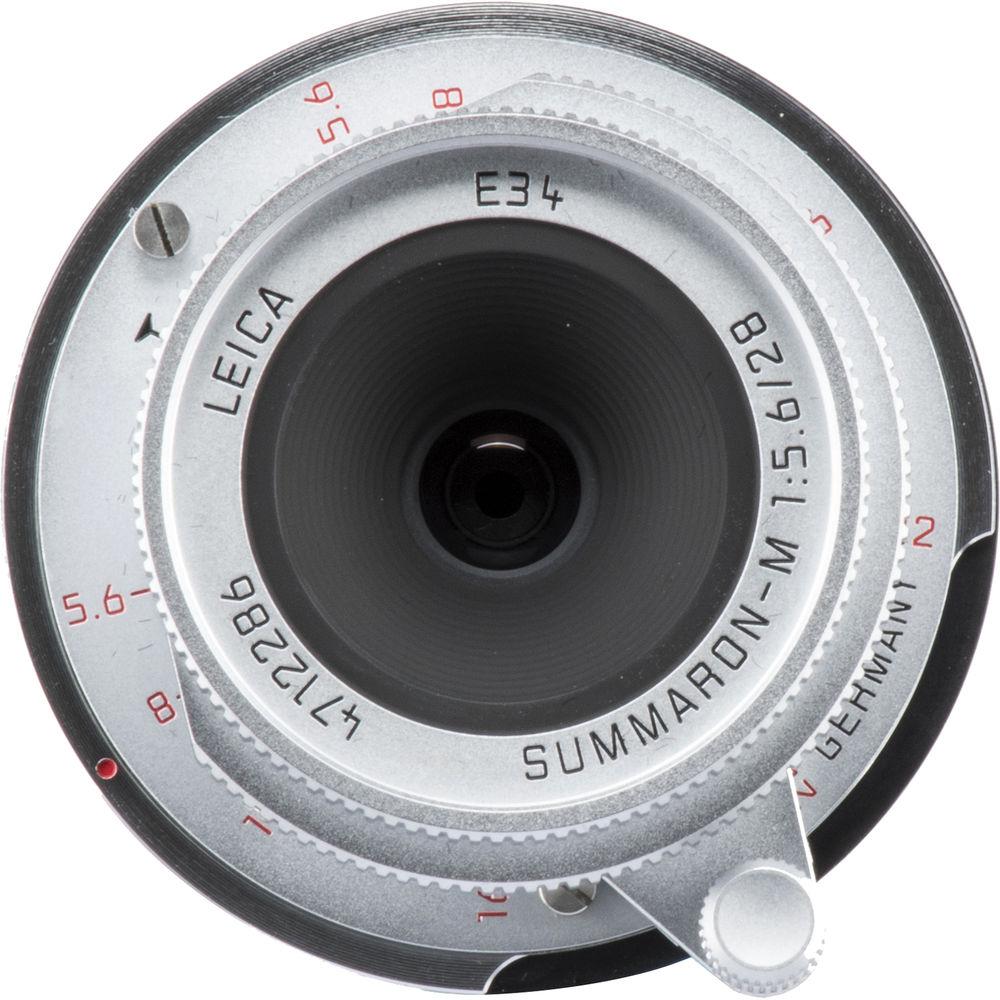

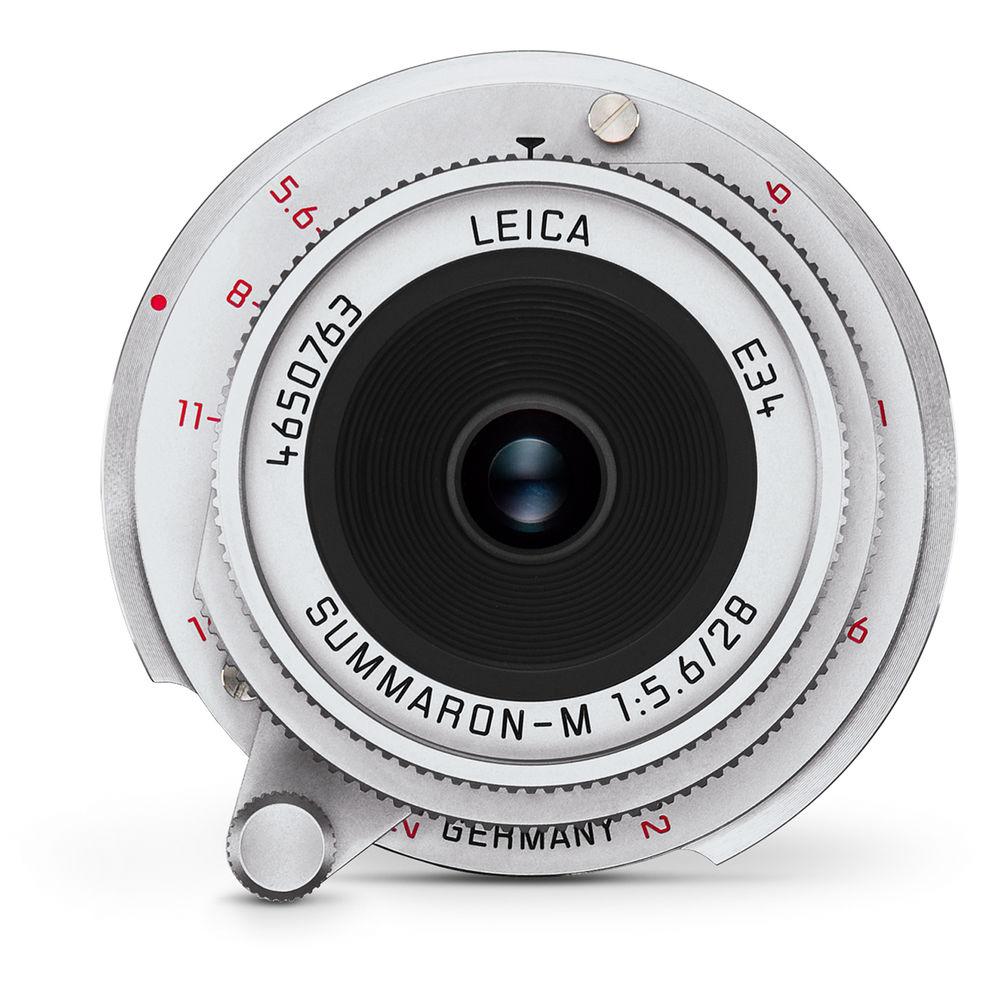

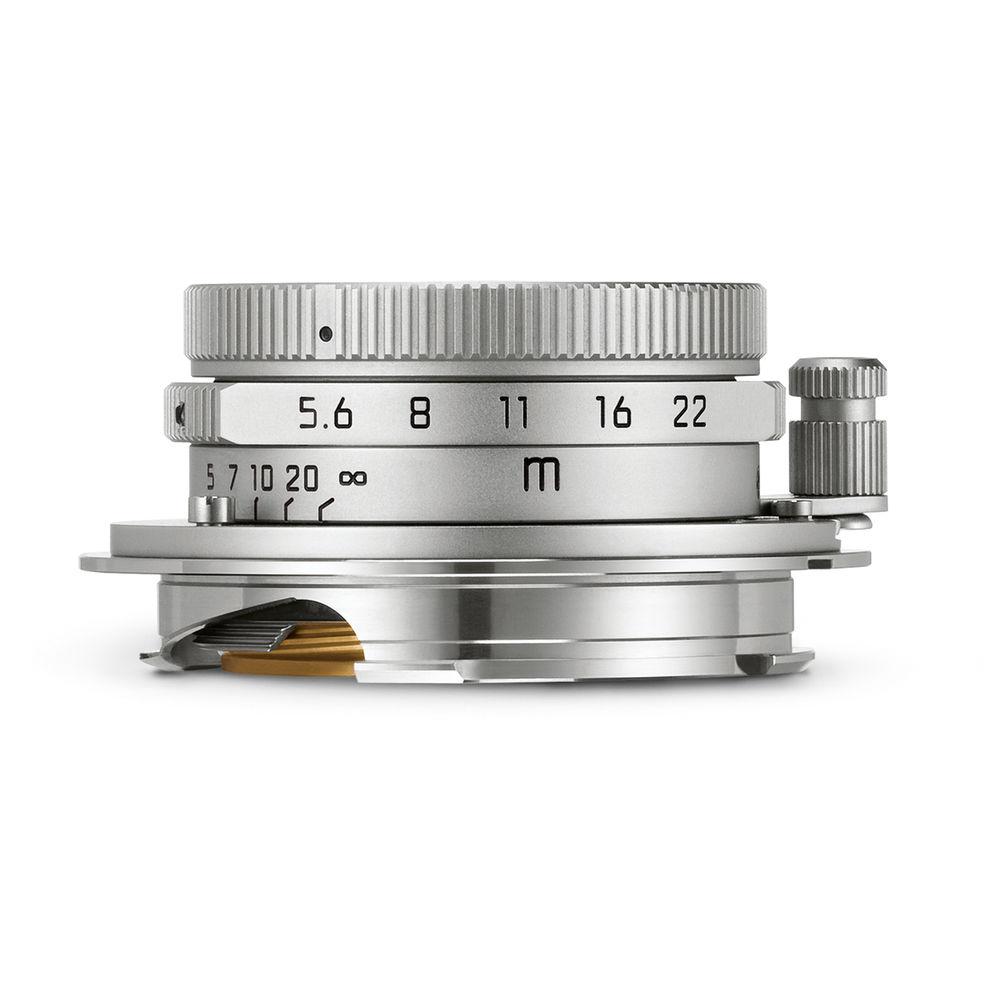

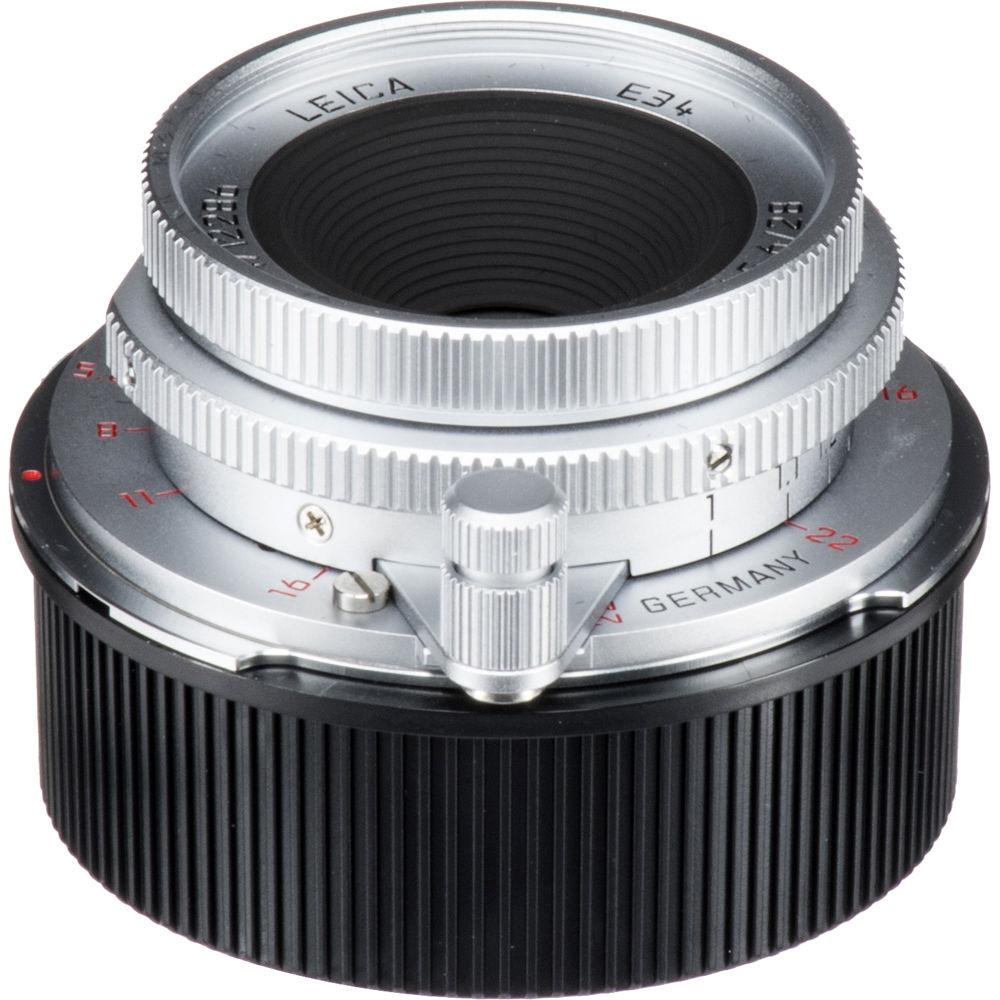

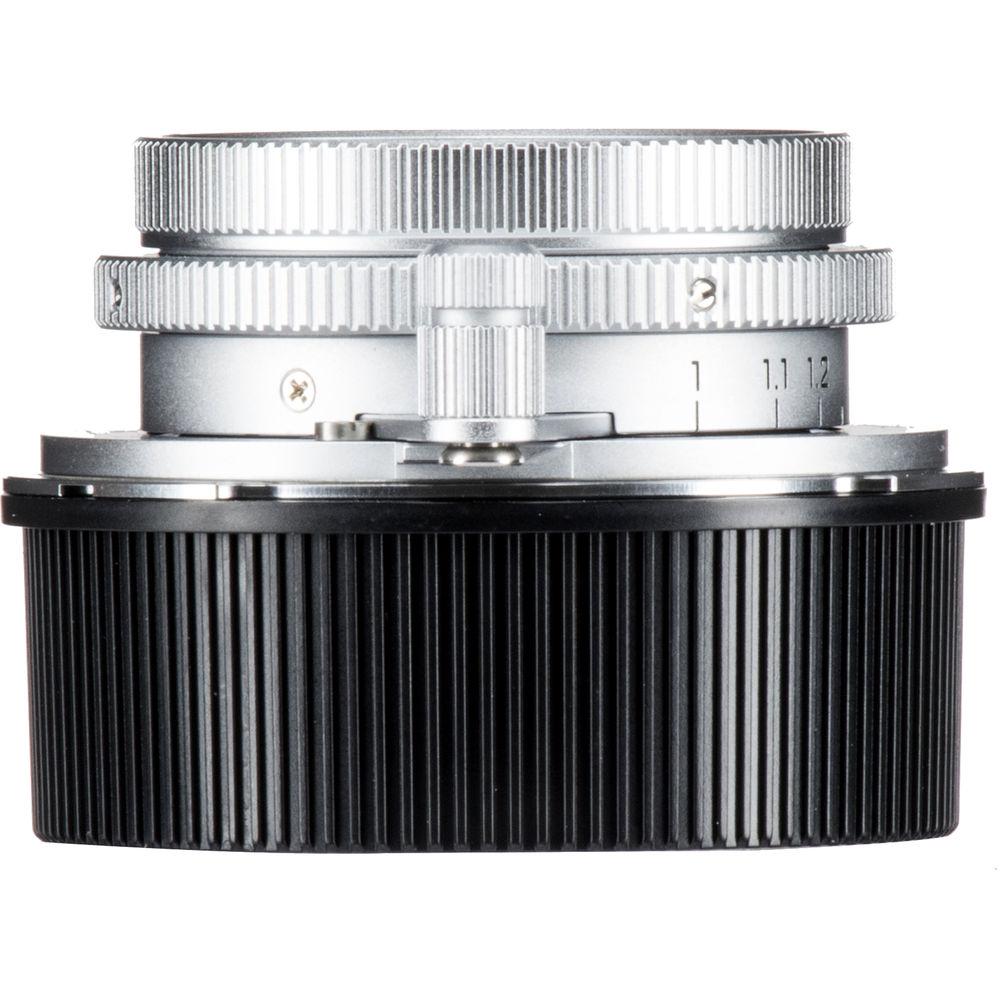

Product description Based on the classic screw-mount version of this lens from 1955, this silver Summaron-M 28mm f/5.6 Lens from Leica has been updated to contemporary standards, and fitted with an M-mount bayonet, yet still sports the ultra slim profile and vintage aesthetic. This wide-angle prime's calling card is its small, discreet size that is ideal for use as an everyday lens, and its symmetrical six elements in four groups optical design renders subjects with natural contrast and distinctive vignetting for a unique character and analog quality. Manual focus operation permits working with subjects as close as 3.3' away, and an integrated depth of field scale aids in pre-focusing for faster, more spontaneous shooting. Complementing the lens is an included lens hood that is machined from solid brass to match the classic lines of the lens as well as guard against stray light from affecting image quality. - Modeled after the original screw mount version from 1955, this revised edition utilizes the same classic optical design but updated with contemporary materials and 6-bit coding to better support working with digital rangefinder cameras.
- Both a wide-angle field of view and discreet profile, which measures less than 0.8"-long, make this lens ideal for street photography and other everyday shooting applications.
- Classic symmetrical optical design uses six elements in four groups to achieve a distinctly analog appearance with natural contrast, fine rendition of details and sharpness, and noticeable vignetting for an aesthetic, unique image quality.

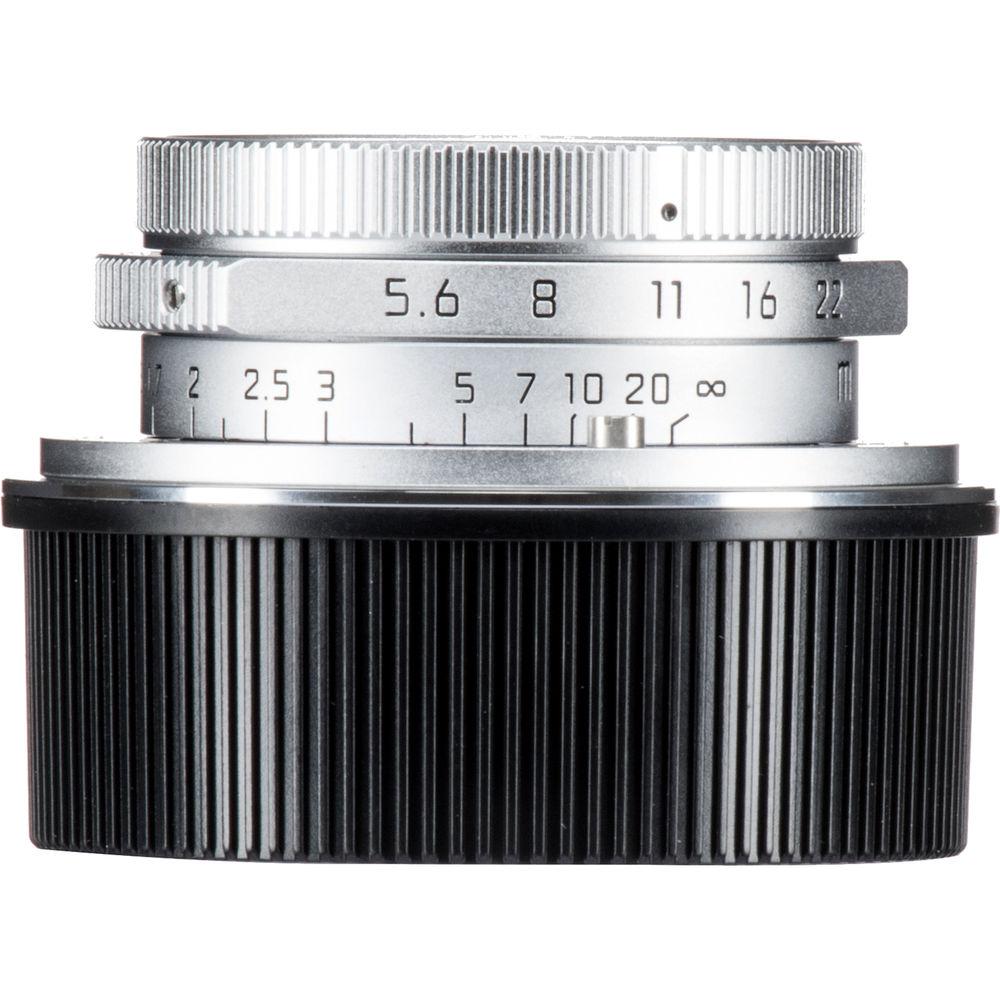

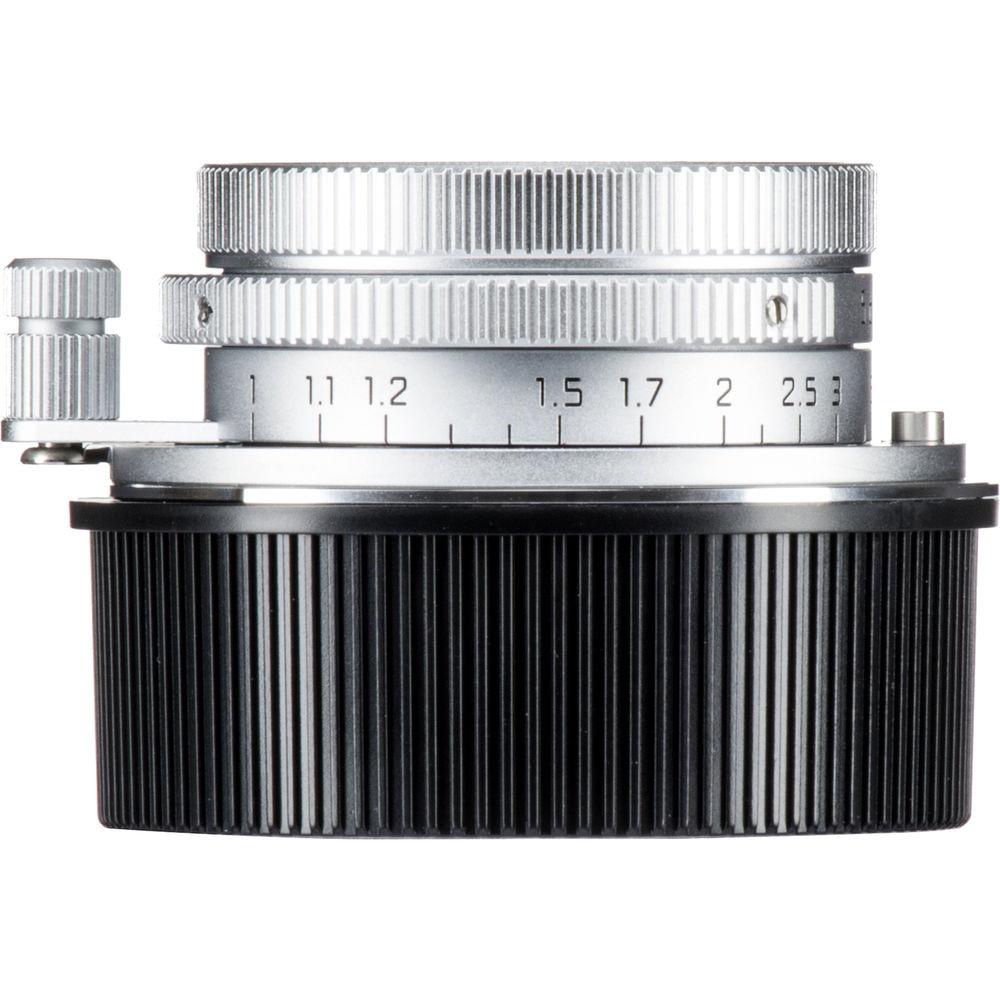

- Manual focus design provides a minimum focusing distance of 3.3' with a maximum magnification ratio of 1:33.4. An integrated depth of field scale aids when using pre-focusing techniques, and a long focus throw offers greater precision for isolating subjects in the frame.

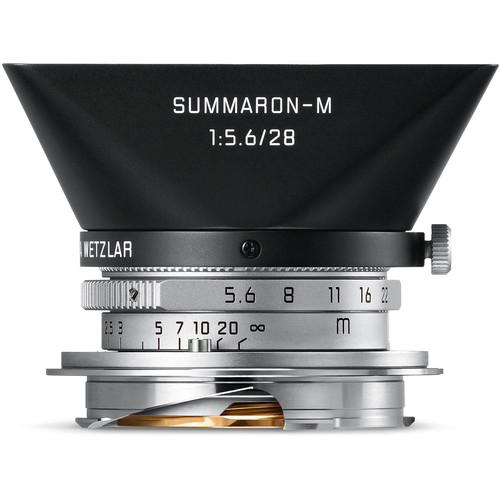

- Included lens hood is machined from solid brass to further recall the historical character of the lens.

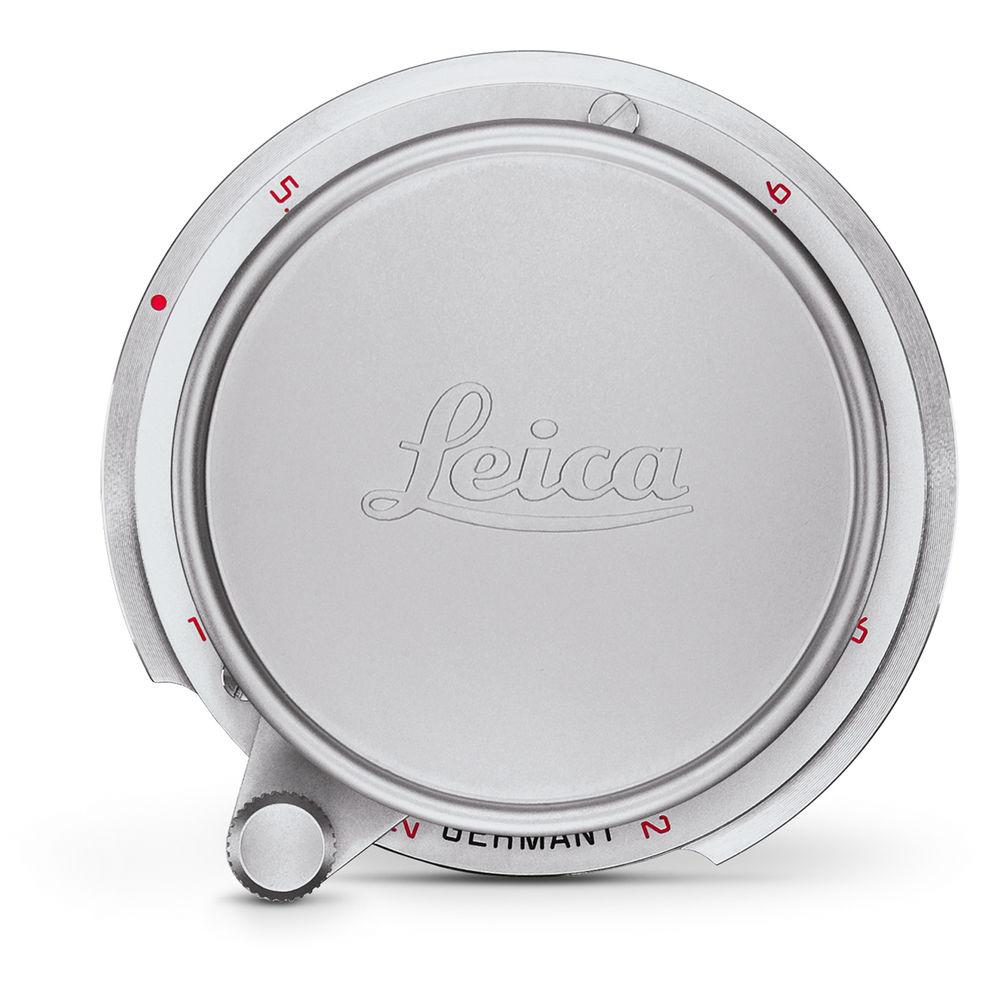

In the Box Leica Summaron-M 28mm f/5.6 Lens (Silver) Front Lens Cap Rear Lens Cap for M-Mount Lenses wuxxqcdq Lens Hood Limited 3-Year Warranty Data Sheet PDF 405.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Summaron-M 28mm f 5.6 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica 11695 Specs | Focal Length | 28mm | | Maximum Aperture | f/5.6 | | Minimum Aperture | f/22 | | Lens Mount | Leica M | | Angle of View | 75° | | Minimum Focus Distance | 3.3' / 1 m | | Maximum Reproduction Ratio | 1:33.4 | | Optical Design | 6 Elements in 4 Groups | | Diaphragm Blades | 8 | | Focus Type | Manual Focus | | Filter Thread | 34mm | | Dimensions |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
