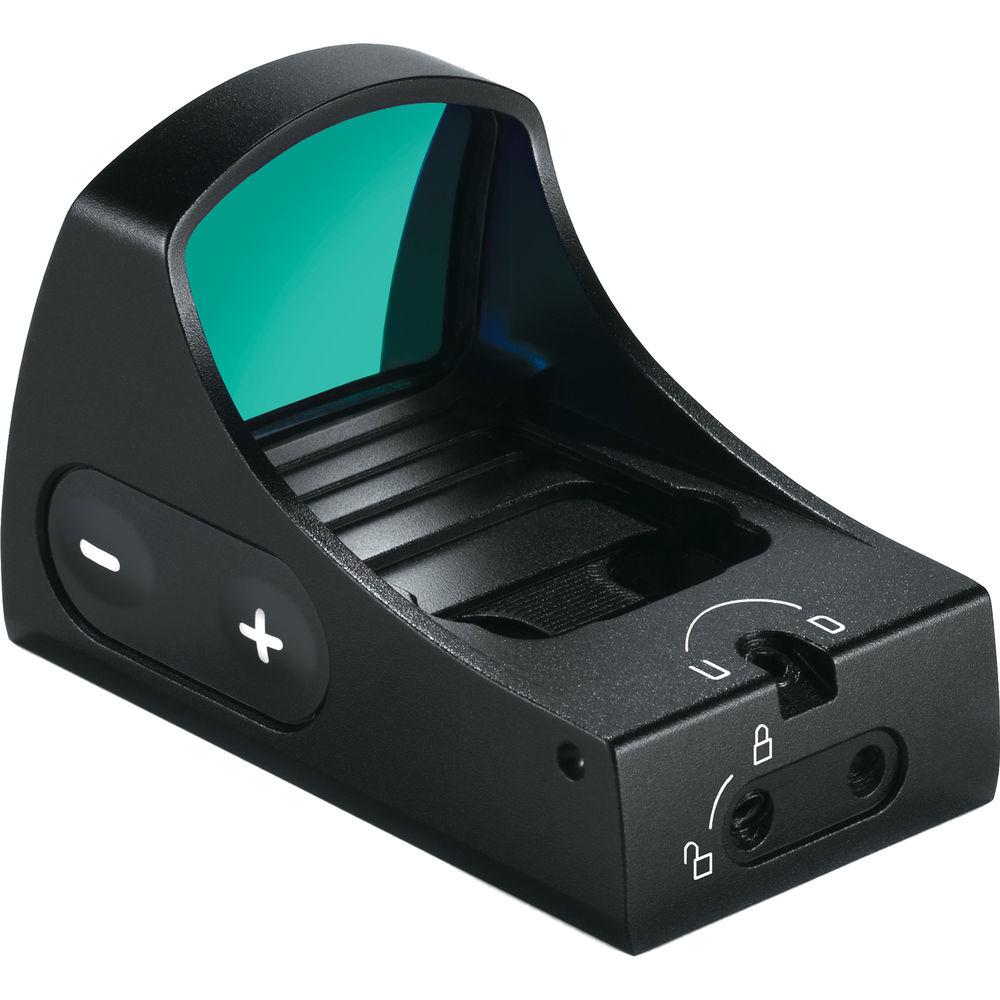

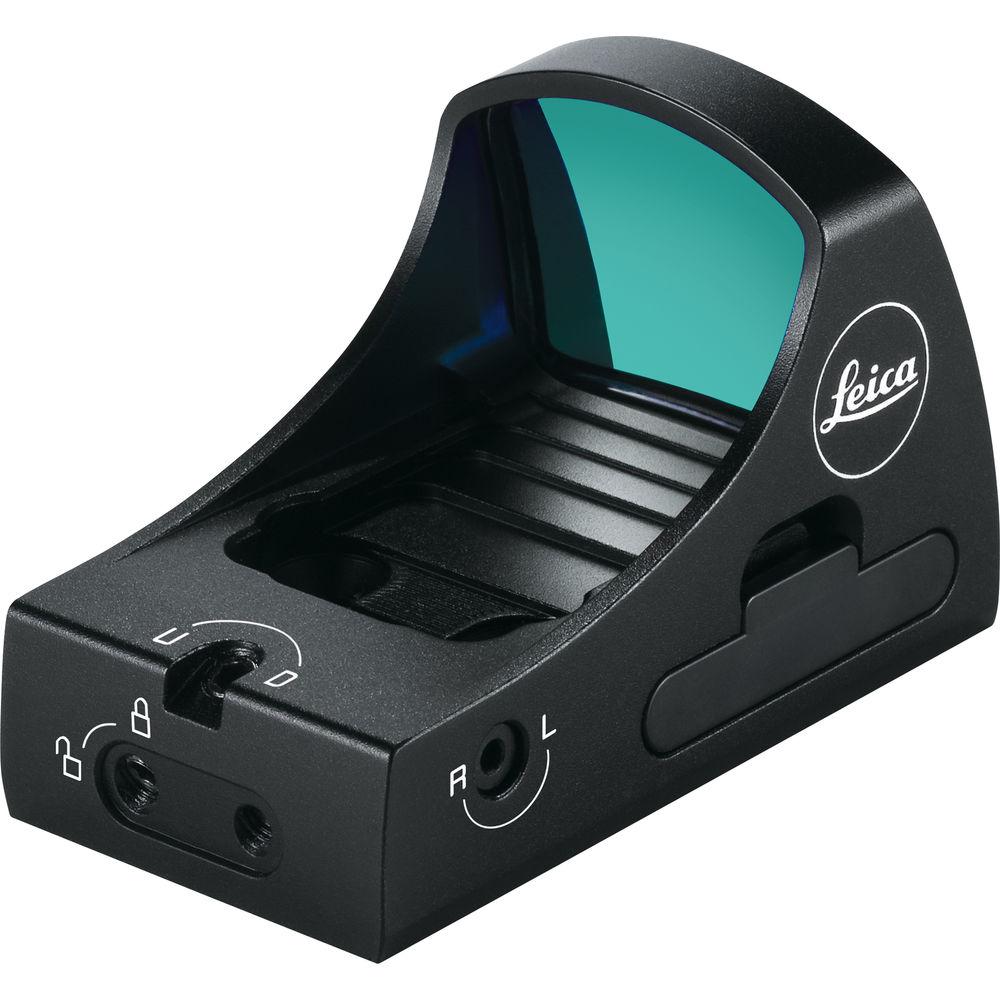

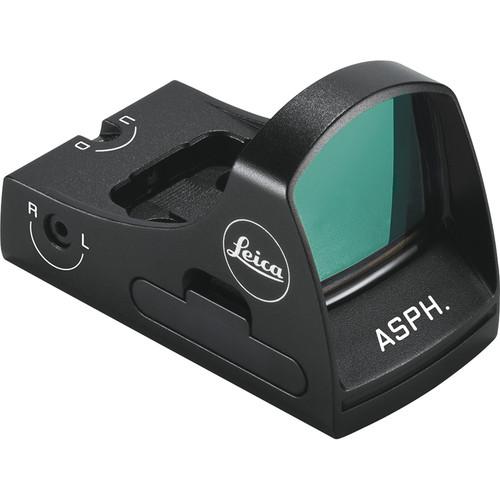

User Manual for Leica Tempus ASPH. Red-Dot Sight Click to enlarge the picture
Contents of the user manual for the Leica Tempus ASPH. Red-Dot Sight
- Product category: Red Dot/Holographic Sights Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Red Dot/Holographic Sights
 |
User manual for the Leica Tempus ASPH. Red-Dot Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Engineered for precision and speed, the Tempus ASPH. Red-Dot Sight will give users a true Leica experience with its durability, fully multi-coated optics, and a highly visible 3.5 MOA red aiming dot. Its aspherical optical design delivers true-color 1x images that are low in distortions and free of parallax at 43.7 yards. Powered by one CR2032 battery, the 3.5 MOA Red-Dot reticle creates a high-contrast dot in a wide range of lighting conditions, thanks to the twelve brightness levels. Outfitted with an impact-resistant and submersible body that's machined from a single piece of aluminum, the scope will endure most challenges that you may face. - Optical Performance
-
- 25 x 21mm window
- Aspherical optical design
- Fully multi-coated
- Nearly 1:1 image with no reduction
- Delivers true color images with high contrast
- Use and Handling
-
- 1.1 MOA impact point correction
- 100 MOA windage and elevation ranges
- Construction Details
-
- Aluminum housing
- Machined single-piece body
- Accommodates one CR2032 battery
- Compatible with top-mounted Docter mounts
- Waterproof and submersible to 3.3'
- Reticle
-
- 3.5 MOA Red Dot
- Brilliant dot is clearly visible on most backgrounds
- Twelve illumination brightness levels
- Auto-off after four hours of inactivity
- Parallax-free at 43.7 yd
UPC: 799429555009 In the Box Leica Tempus ASPH. Red-Dot Sight (3.5 MOA Red-Dot Reticle, Matte Black) - CR2032 Battery
- Protective Cover
- Adjustment Allen Key
- Battery Compartment Tool
- Cleaning Cloth
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Tempus ASPH. Red-Dot Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Tempus Specs | Magnification | 1x | | Objective Lens Diameter | 25 x 21 mm | | Impact Point Correction | 1.1 MOA | | Windage/Elevation Adjustment | 100 MOA | | Parallax-Free | 43.7 yd / 40.0 m | | Resolution | <60" | | Battery | 1 x CR2032 lithium battery | | Operating Temperature | -13 to 122°F / -25 to 50°C | | Storage Temperature | -31 to 158°F / -35 to 70°C | | Weatherproofing | Waterproof and submersible to 3.3' / 1.0 m (0.1 bar) | | Dimensions | 2.1 x 1.35 x 1.1" / 53.5 x 34.5 x 28 mm | | Weight | 1.31 oz / 37.0 g (without a battery)
1.41 oz / 40.0 g (with a battery) |
