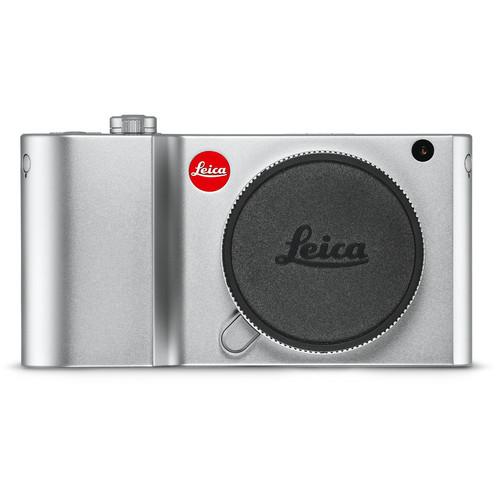

User Manual for Leica TL2 Mirrorless Digital Camera Click to enlarge the picture
Contents of the user manual for the Leica TL2 Mirrorless Digital Camera
- Product category: Mirrorless System Cameras Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Cameras
 |
User manual for the Leica TL2 Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|

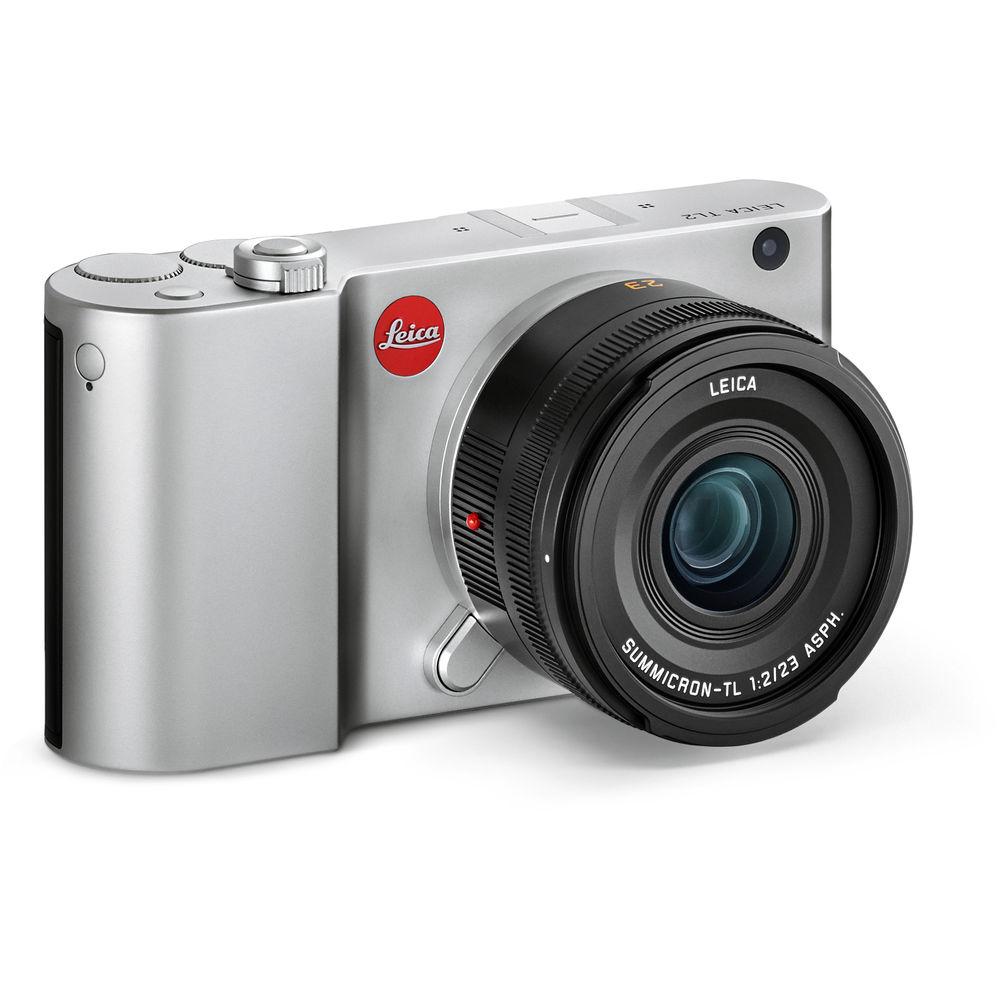

Product description The Attractive New Leica TL2 Arrives Read More Minimal and intuitive, the sleek silver TL2 Mirrorless Digital Camera from Leica is a photographic tool for photographers looking for a compact, yet capable imaging system with the latest technology. It maintains the unibody design of its predecessors and is crafted in Germany from a single block of aluminum for durability, but makes a major advancement with the implementation of a newly developed 24.2MP APS-C CMOS sensor and the Maestro II processor. This enables multiple high-end features, including 20 fps shooting with an electronic shutter, UHD 4K video at 30 fps, and Full HD video at 60 fps. Along with the electronic shutter, which can provide shutter speeds of up to 1/40000 second as well, the contrast-detect AF system is enhanced with 49 points and vastly improved speed.
With a carefully crafted design already, the TL2 enhanced the 3.7" 1.3m-dot touchscreen by making operation about eight times faster than previous models. The MyCamera Menu remains allows for users to create a quickly accessible location for all their commonly accessed settings. An FN button is also available and for speedy data transfer the camera now has a USB Type-C port with USB 3.0 support. Images can be stored in the camera in multiple ways, as the TL2 boasts 32GB of internal memory alongside a UHS-II SD card slot. Additionally, the camera features integrated Wi-Fi connectivity and through an optional mobile app users can remotely control settings. - Leica TL2
- Further evolving their mirrorless lineup, the Leica TL2 is another well-designed camera that offers both an outstanding feature set combined with intuitive controls. Made from a solid block of aluminum, the TL2 is assembled and polished by hand in Germany, which ensures outstanding durability and operation. This model also offers incredible speed and performance, including a new electronic shutter function that provides shooting speeds of up to 20 fps, a speedier touchscreen interface, and faster autofocusing. Toss in UHD 4K video recording and the TL2 becomes a top performer in this ever-growing field.
- 24.2MP APS-C CMOS Sensor & Leica Maestro II Processor
- At the heart of every camera system has to be an exceptional sensor, and the TL2 is fortunate to have an outstanding 24.2MP APS-C CMOS at its core. This sensor, which is paired with Leica's Maestro II processor, provides outstanding resolution and clarity as well as native sensitivities ranging from ISO 100-50000. Combine this with the TL2's minimalist, yet functional design and you have a sleek and intuitive setup for capturing stunning images. Furthermore, this sensor has an electronic shutter option that unlocks high speed 20 fps shooting and faster shutter speeds.
- Leica L-Bayonet Mount
- Leica's mirrorless L-bayonet mount offers users the ability to connect both full-frame SL-series and APS-C TL-series glass, which benefits from electronic communication for blazing fast autofocus, electronic aperture control, and optical image stabilization. Additionally, as with most mirrorless today, the L mount can accept a variety of adapters, such as the M-Adapter L which provides shooters with access to the entire M-mount lens library. Leica will have adapters for the S, R, and Cine series as well, ensuring compatibility with a range of Leica's best lenses.
- 49-Point AF System and 20 fps Shooting
- Ensuring you are capturing tack-sharp photos at all times is an upgraded contrast-detect AF system, this time with 49 points available. The entire operation has been speed up for faster and more accurate autofocusing, including in AF-C mode, with performance with a wide-angle lens being measured at just 165 ms and telephoto lenses not far behind at just 190 ms. Users can also access a 20 fps shooting speed by switching the camera over to a silent electronic shutter, which also boasts a maximum shutter speed of 1/40,000 second. The mechanical shutter is quite capable as well with 7 fps shooting and a max shutter speed of 1/4000 second.
- UHD 4K Video Recording
- Massive upgrades have been included in the TL2 when it comes to video recording, most notably with the addition of UHD 4K at 30 fps. This ultra-high resolution video mode allows you to capture sharp video that will work wonderfully with existing and future displays. Also, alongside UHD 4K is boosted Full HD with a max frame rate of 60 fps and HD, which can do slow motion at 120 fps. Focus peaking is available as well to help ensure your videos are in focus and there is a micro-HDMI port for output to an external display or monitor.
- Built-In Wi-Fi Connectivity
- Integrated IEEE 802.11b/g/n Wi-Fi allows you to wirelessly connect iOS and Android devices to the TL for sharing photos and movies to smartphones or tablets for posting online. The free Leica TL-App facilitates sharing imagery between the camera and device, and the app also enables a remote function for wirelessly adjusting the camera's shutter speed, aperture, and for releasing the shutter. The app can also be used as a remote electronic viewfinder to benefit composing self-portraits or group shots, or when working from difficult shooting angles.
- Other Features
-
- Minimal, unibody design is built from a single, solid piece of aluminum alloy that has been assembled and polished by hand in Germany. The TL2 also features newly curving chamfered edges for an even sleeker design.
- The seamless aesthetic of the camera body is maintained through the inclusion of just four physical controls along with a large rear touchscreen LCD.

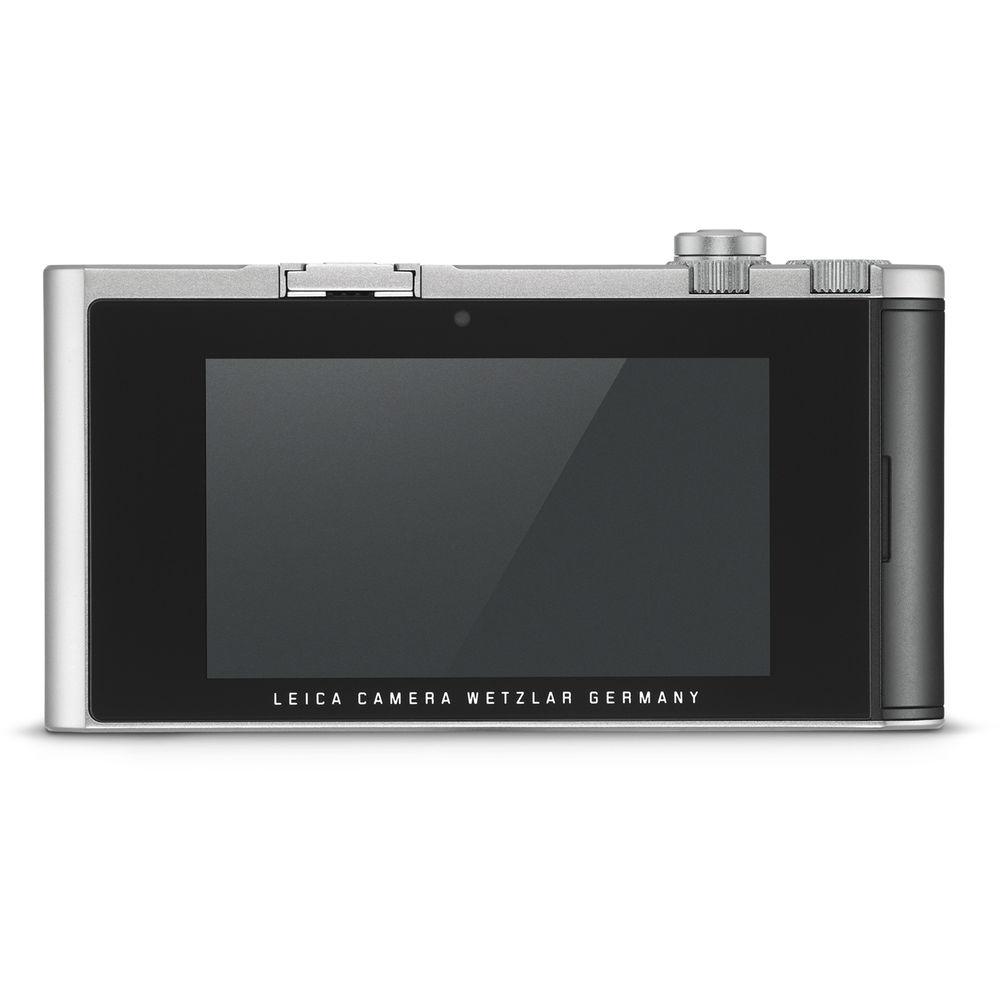

- The 3.7" LCD monitor has a high resolution of 1.3-million dots for clear and vivid playback and image composition, and the now eight times faster touchscreen interface affords intuitive menu navigation and settings control for easy operation.
- MyCamera menu lets you customize the display by long-touching and dragging specific camera settings into place to suit your own shooting needs.
- Start-up time has been improved to 600 ms.
- Internal 32GB of memory lets you shoot without an SD card if desired, however, a fast UHS-II SD memory card slot is also featured for longer shooting sessions.
- Leica L lens mount is directly compatible with TL and SL-series lenses, including those with OIS, and Leica M- and R-mount lenses via optional lens mount adapters.
- Top hot shoe can be used in conjunction with an optional external flash or can also be used with the optional Visoflex external electronic viewfinder for eye-level monitoring.
- An FN button can be programmed to perform select functions.
- The TL2 now offers a DNG only shooting mode.
- A USB Type-C port with USB 3.0 functionality is available for exceptionally fast data transfer as well as USB charging.
- Included BP-DC13 lithium-ion battery offers approximately 250 shots per charge.
UPC: 799429181888 In the Box Leica TL2 Mirrorless Digital Camera (Silver) - BP-DC13 Lithium-Ion Battery (7.2V, 985mAh, Black)
- BC-DC13 Charger for T (Typ 701) Digital Camera
- 6 x Adapter Plugs
- USB Cable
- Carrying Strap
- 2 x Carrying Strap Release Pins
- Limited 1-Year Leica Society Digital Membership
- Limited 2-Year Warranty
User Manual PDF 36.8mbyvffdwrezzryuarufutyztyzx Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica TL2 Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica TL2 Specs | | | Lens Mount | Leica L | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | Actual: 24.96 Megapixel
Effective: 24.24 Megapixel | | Maximum Resolution | 6016 x 4014 | | Aspect Ratio | 3:2 | | Sensor Type | CMOS | | Sensor Size | 23.6 x 15.7 mm | | Image File Format | DNG, JPEG | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 100 to 50000 | | Shutter Speed | Electronic Shutter
1/40000 to 30 Seconds
Mechanical Shutter
1/4000 to 30 Seconds | | Metering Method | Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3 EV Steps) | | White Balance | Auto, Cloudy, Daylight, Flash, Halogen, Manual, Shade | | Continuous Shooting | Up to 20 fps at 24 MP for up to 29 Exposures (Raw Format)
Up to 7 fps at 24 MP for up to 29 Exposures (Raw Format) | | Self Timer | 2/12-Second Delay | | | | Recording Modes | MP4
UHD 4K (3840 x 2160) at 29.97p
Full HD (1920 x 1080) at 59.94p
HD (1280 x 720) at 59.94p/120p | | Recording Limit | Up to 29 Minutes | | Video Encoding | NTSC | | Audio Recording | Built-In Microphone (Stereo) | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S), Touch AF & Shutter | | Autofocus Points | Contrast Detection: 49 | | | | Monitor Size | 3.7" | | Monitor Resolution | 1,300,000 Dot | | Monitor Type | Touchscreen LCD | | | | Built-in Flash | None | | Maximum Sync Speed | 1/180 Second | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Internal Memory | 32 GB | | Connectivity | HDMI D (Micro), USB Type-C | | Wireless | Wi-Fi | | GPS | Yes | | | | Battery | 1 x BP-DC13 Rechargeable Lithium-Ion, 7.2 VDC, 985 mAh | | Dimensions (W x H x D) | 5.3 x 2.7 x 1.3" / 134.0 x 69.0 x 33.0 mm | | Weight | 12.52 oz / 355 g (Body Only) | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 8.7 x 8.5 x 6.6" |
