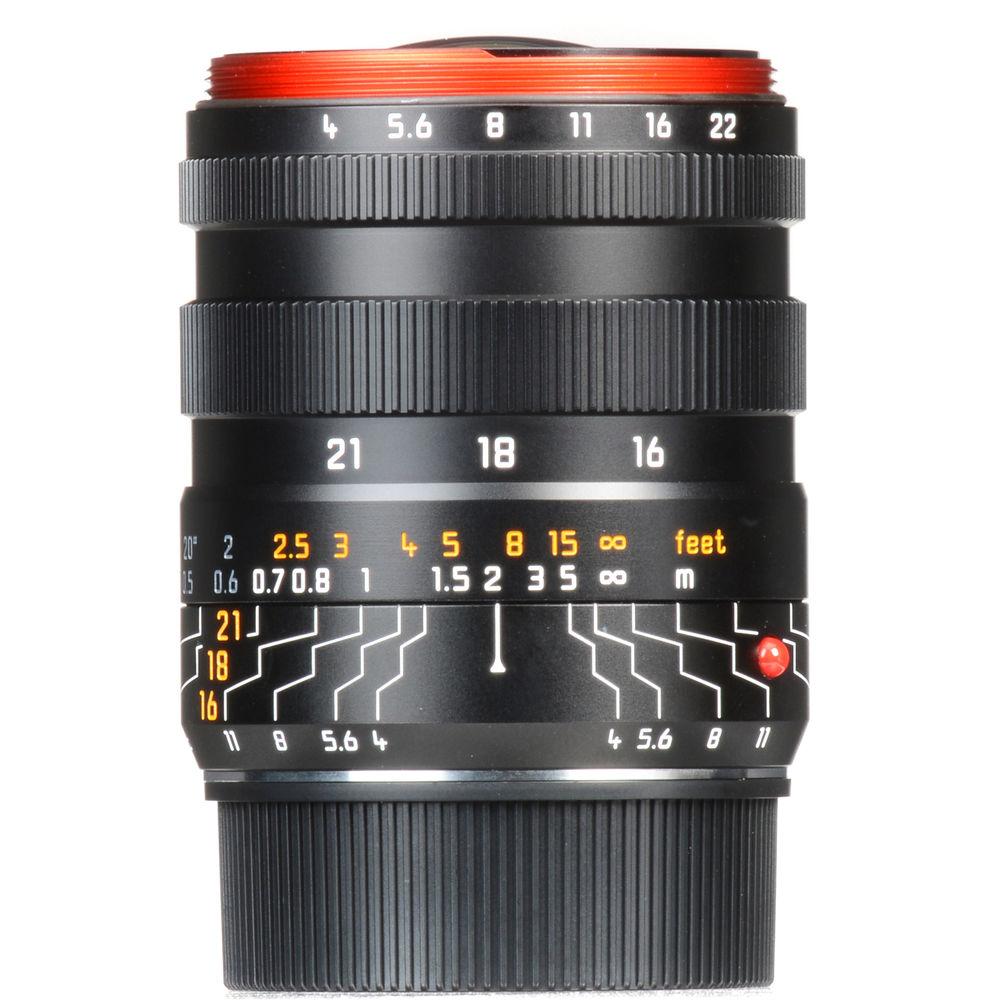

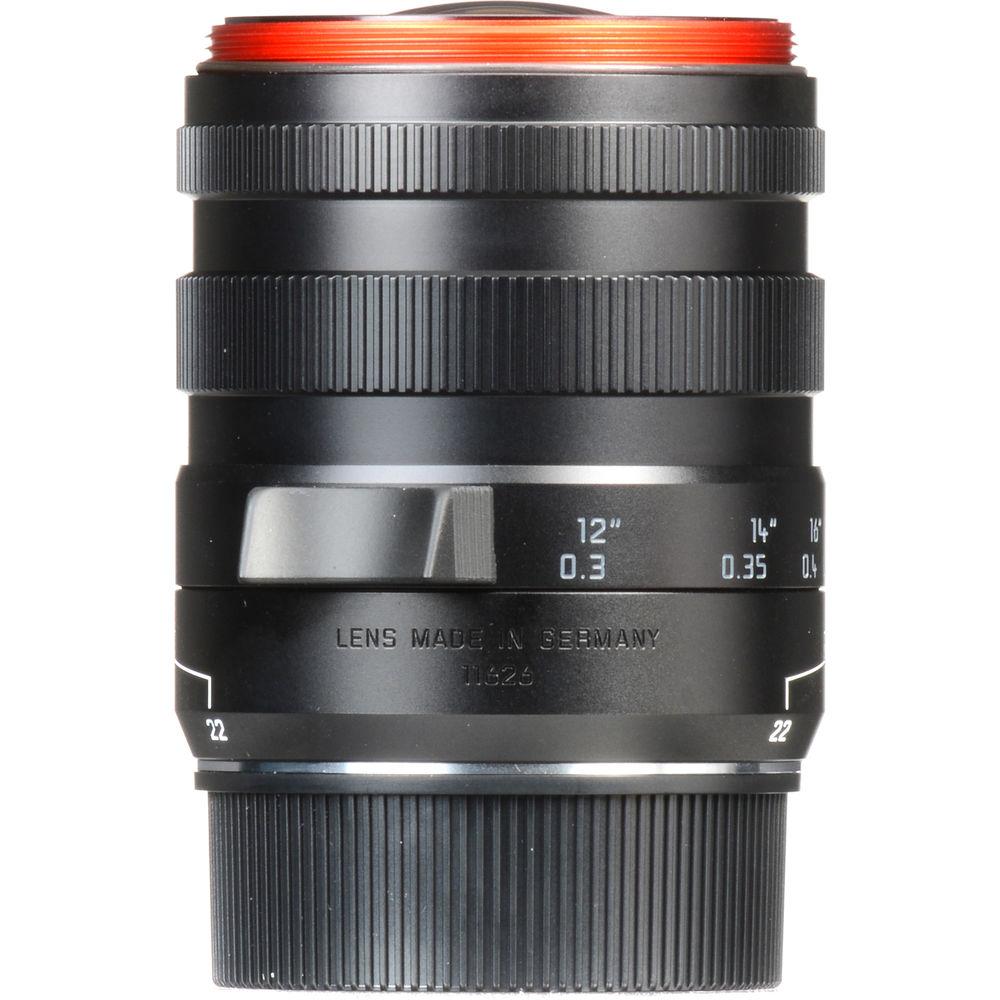

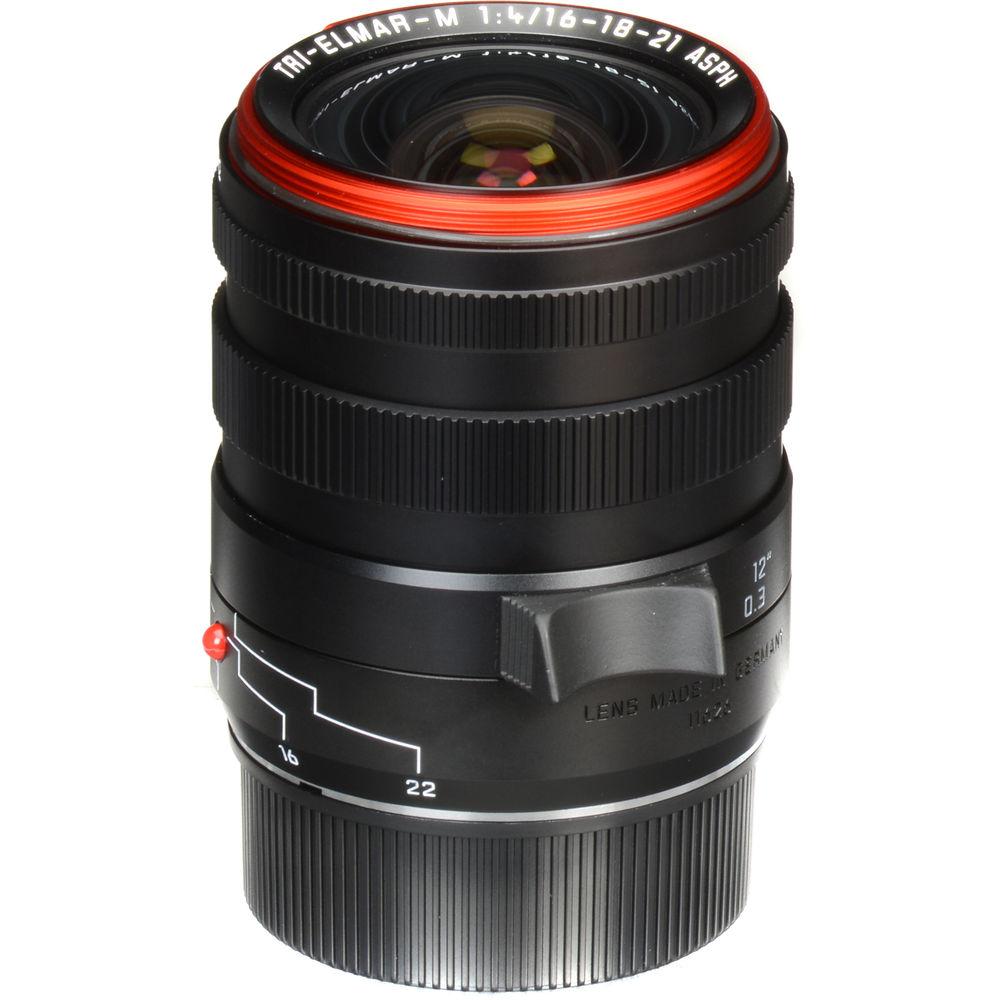

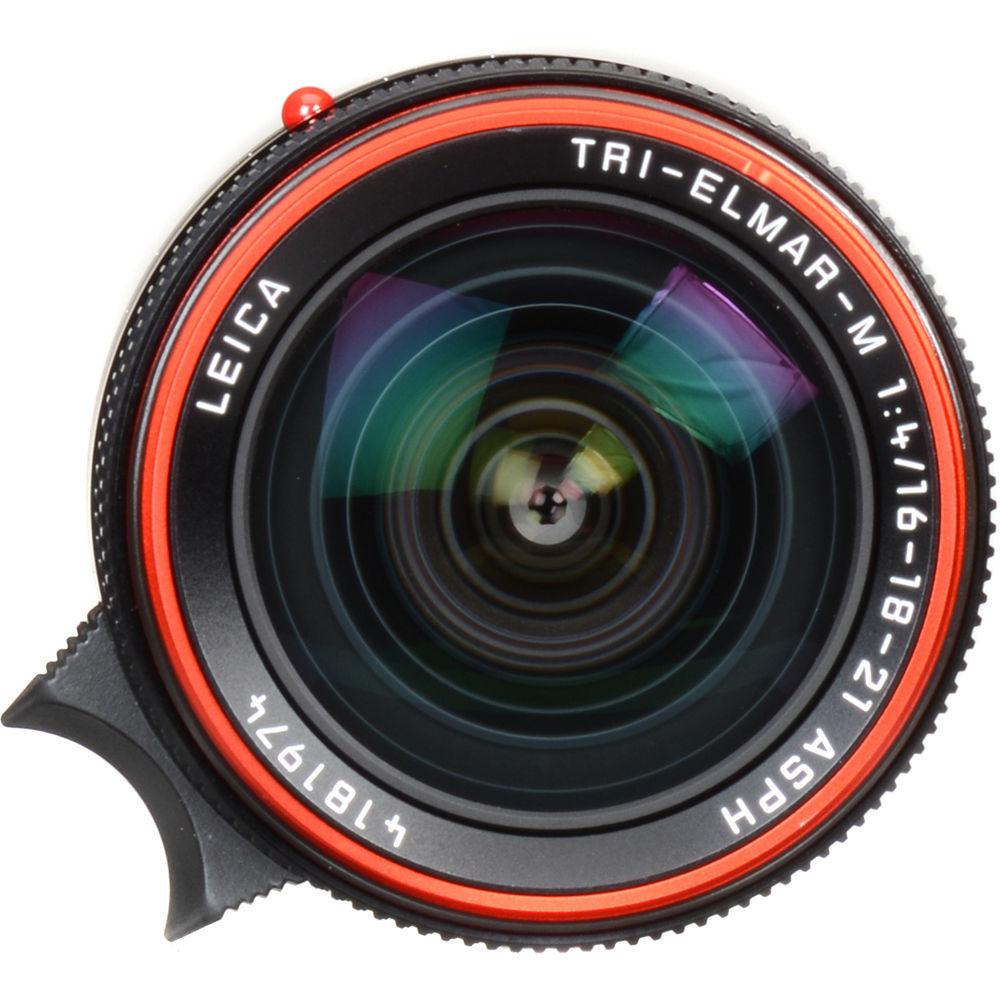

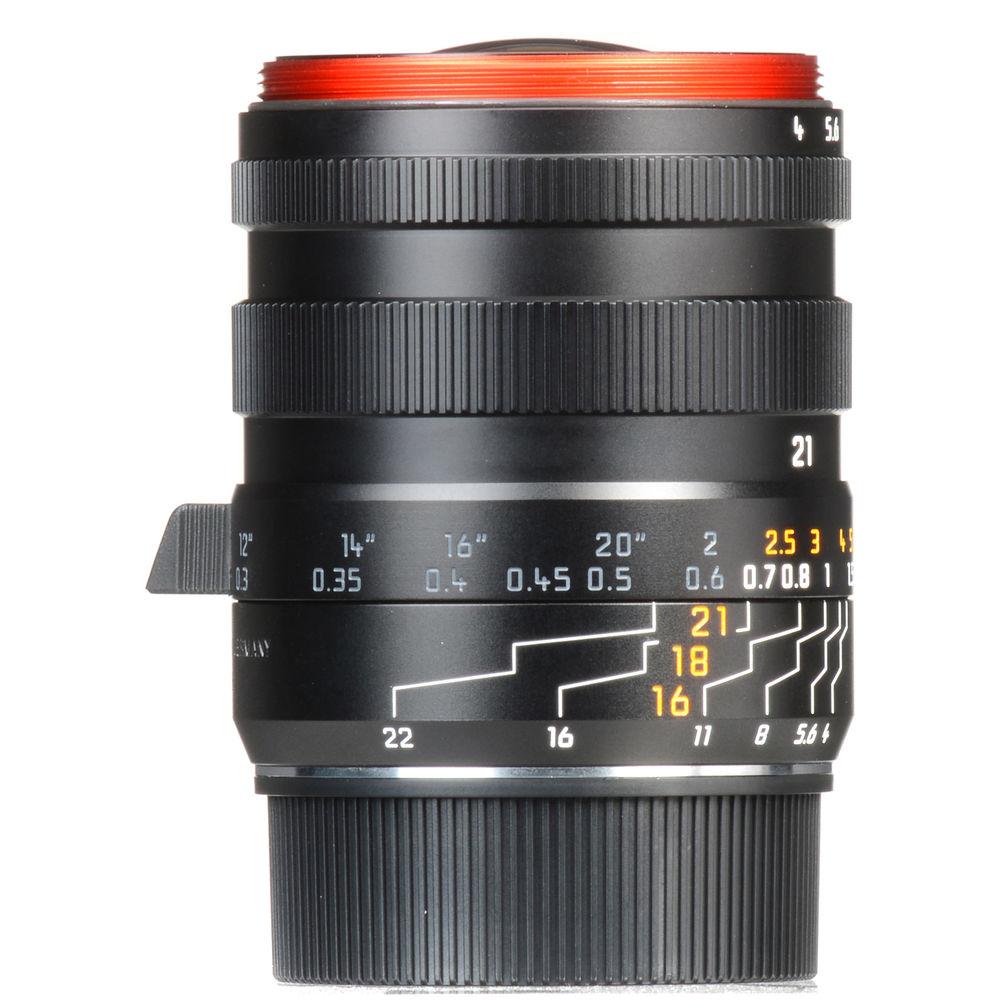

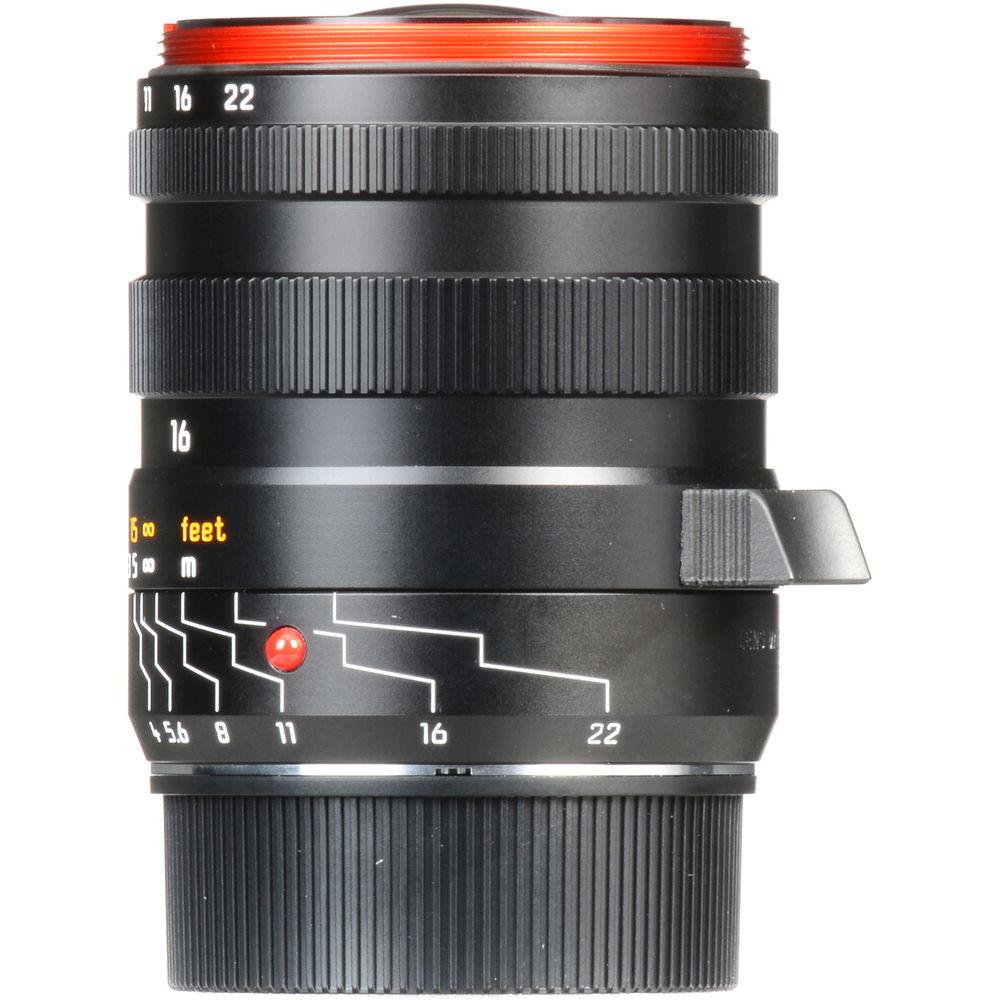

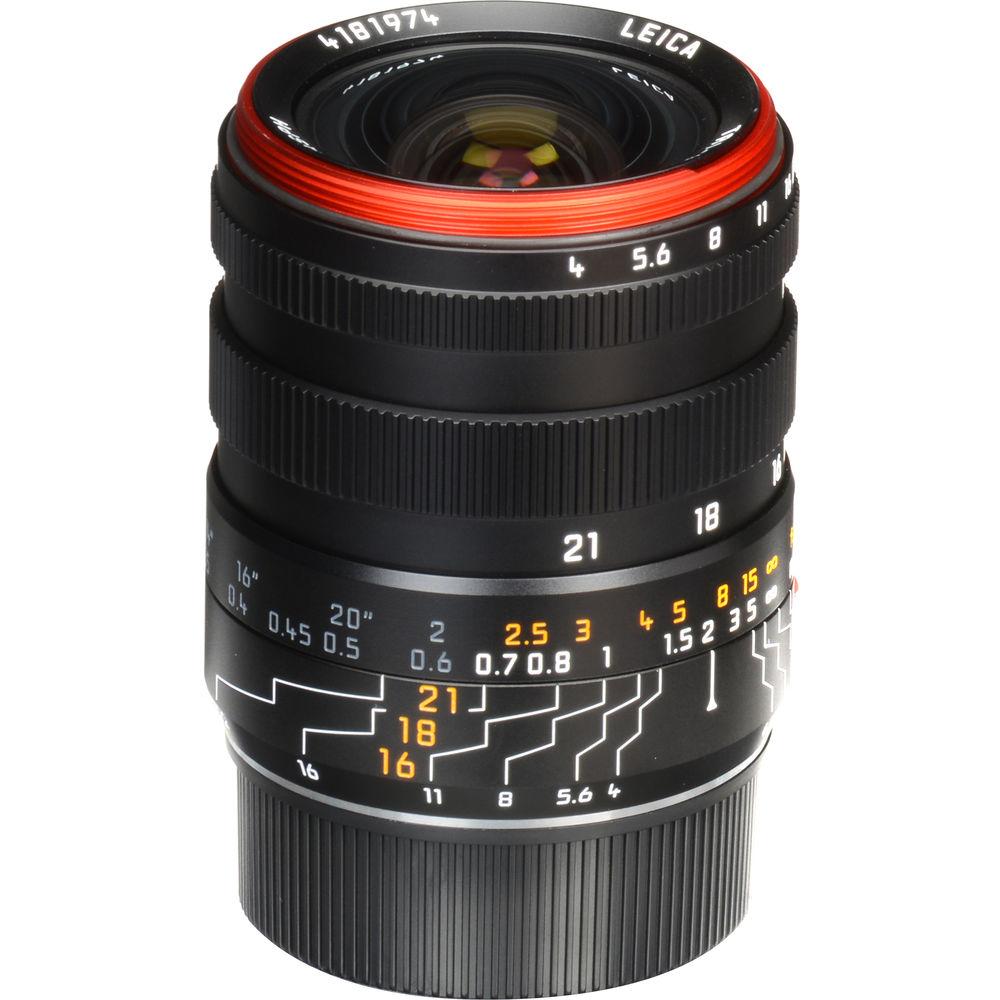

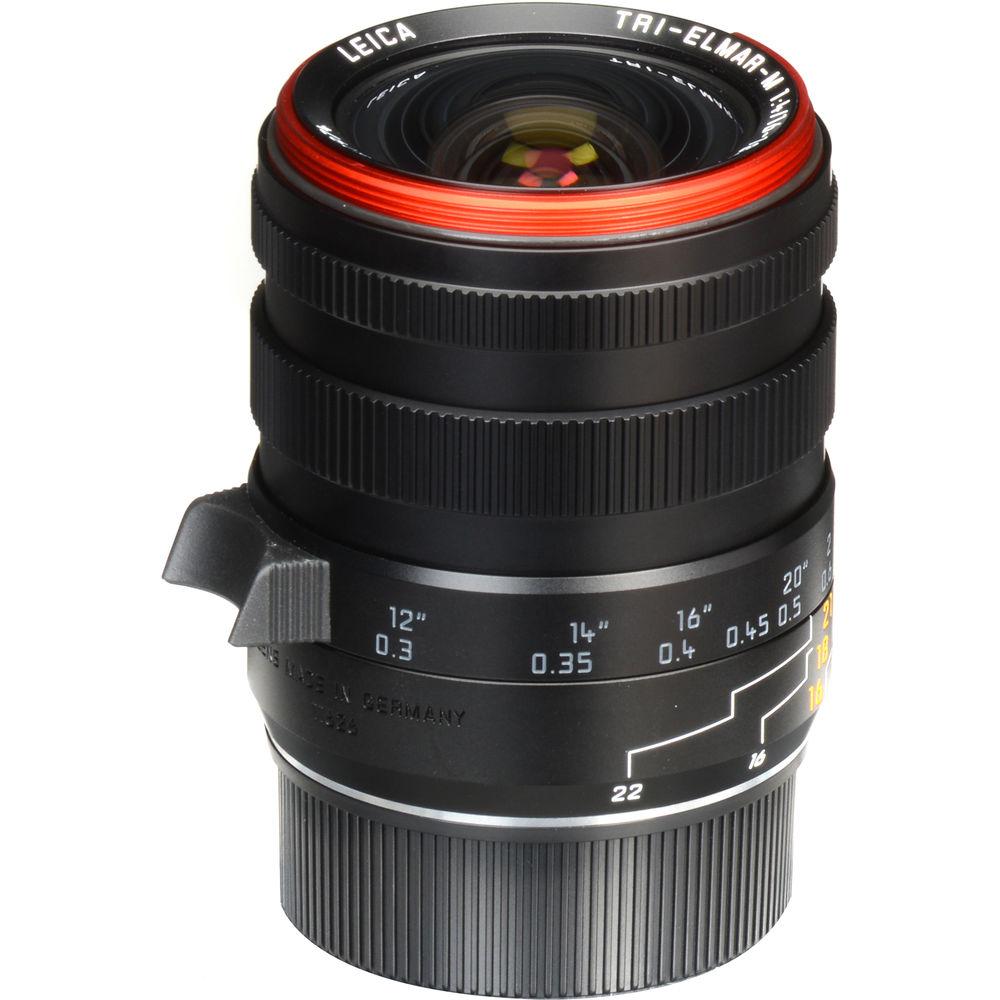

User Manual for Leica Tri-Elmar-M 16-18-21mm f 4 ASPH. Lens Click to enlarge the picture
Contents of the user manual for the Leica Tri-Elmar-M 16-18-21mm f 4 ASPH.
- Product category: Uncategorized Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Uncategorized
|
User manual for the Leica Tri-Elmar-M 16-18-21mm f 4 ASPH. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description A uniquely versatile super-wide lens, the Tri-Elmar-M 16-18-21mm f/4 ASPH. from Leica allows you to work with three separate focal lengths within one lens. The optical design, which includes a pair of aspherical elements, notably reduces distortion for clean, accurate rendering of interior and architectural subjects, and the aspherical elements also promote a more compact form factor. Seamless switching between 16mm, 18mm, and 21mm focal length positions is possible while retaining a minimum focusing distance of 1.6', and a floating elements design is used to maintain image quality even at close range. - Unique three-focal-length lens gives you the option to seamlessly switch between the 16mm, 18mm, and 21mm focal length positions to adjust your field of view.
- Super wide-angle lens has been designed to notably reduce distortion and field curvature to suit photographing interior and architectural subjects.
- Two aspherical elements are featured to limit spherical aberrations and improve sharpness and clarity throughout the aperture range and at each focal length setting.
- An internal manual focusing design is used along with a floating elements system to achieve consistent image quality throughout the focusing range at each focal length, even at the minimum focusing distance of 1.6'.
- The aspherical elements also contribute to a more compact form factor.
- The front of the lens is male threaded to accept the included lens hood or an optional 67mm filter holder.

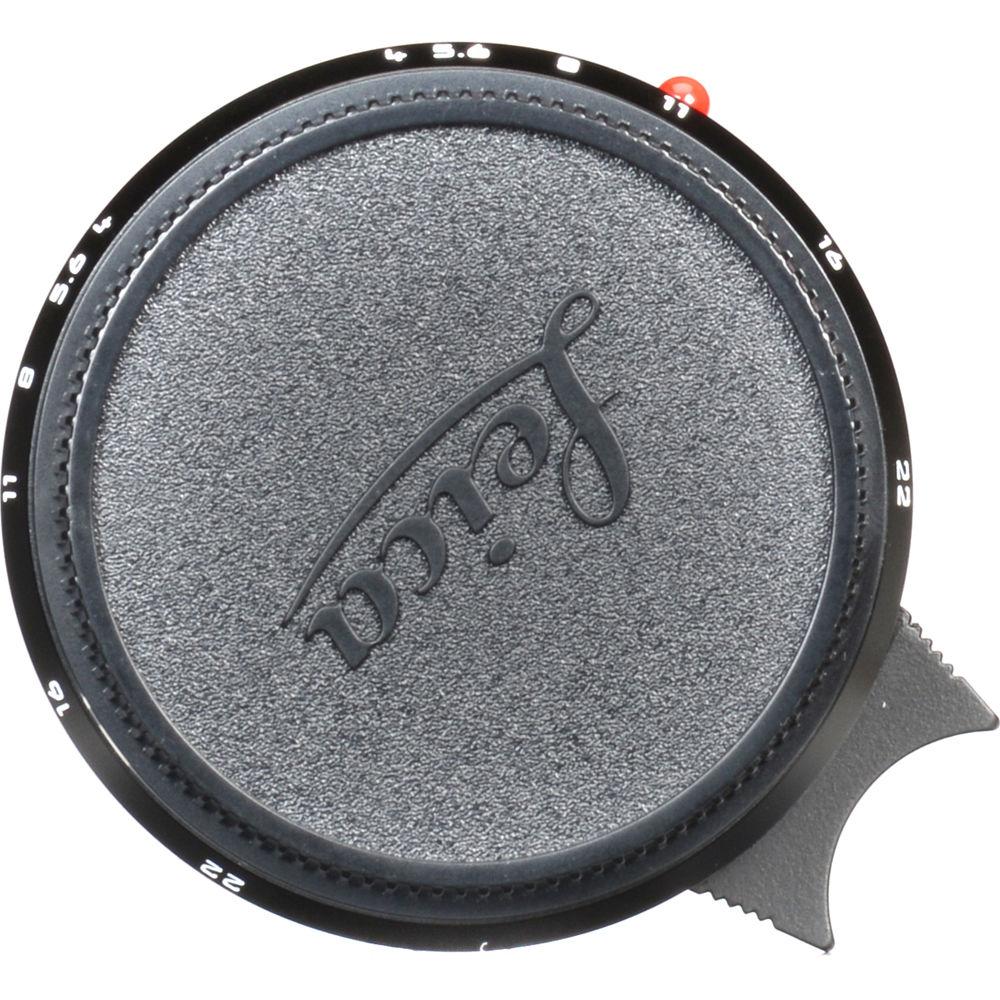

In the Box Leica Tri-Elmar-M 16-18-21mm f/4 ASPH. Lens Lens Hood for 16-18-21mm Lens uucefsua Lens Hood Cap for Leica Wide-Angle Lenses Rear Lens Cap for M-Mount Lenses Leather Pouch Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Tri-Elmar-M 16-18-21mm f 4 ASPH. Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters Focal Length | 16mm 18mm 21mm | Aperture | f/4 to f/22 | Camera Mount Type | Leica M | Angle of View | 16mm: 107° 18mm: 100° 21mm: 92° | Minimum Focus Distance | 1.6' / 50 cm | Reproduction Ratio | 16mm: 1:38 18mm: 1:35 21mm: 1:30 | Optical Design | 10 elements in 7 groups | Diaphragm Blades | Not specified by manufacturer | Focus | Manual | Filter Thread | N/A (male thread to accept included lens hood or optional 67 mm filter holder) | Dimensions | 2.1 x 2.4" / 54 x 62 mm | Weight | 11.8 oz / 335 g |
