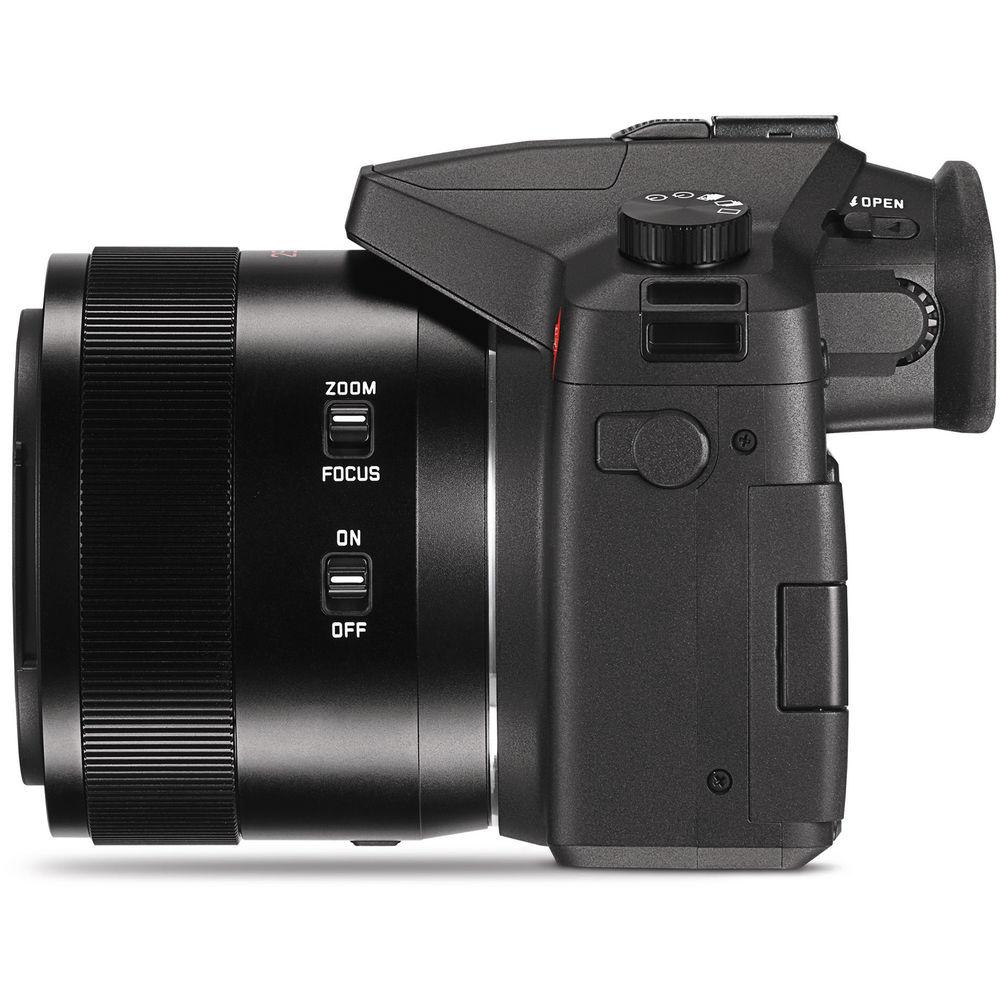

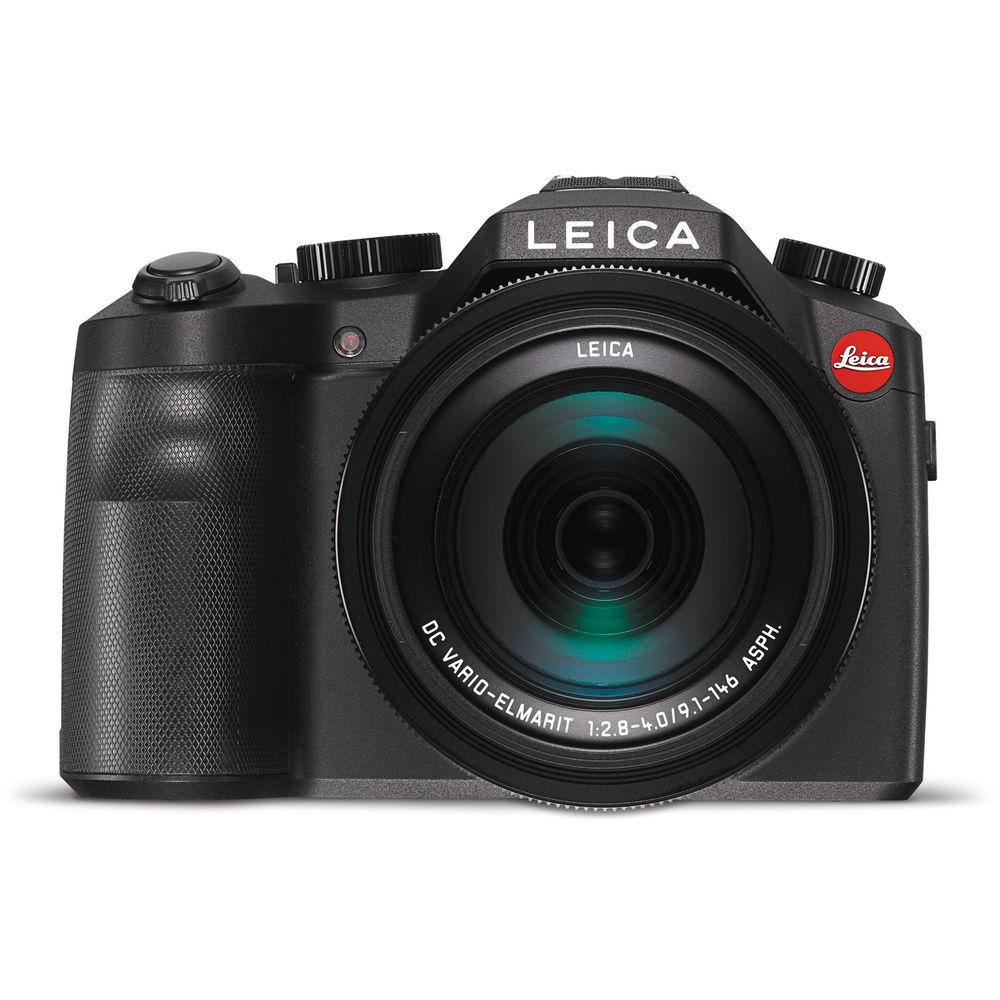

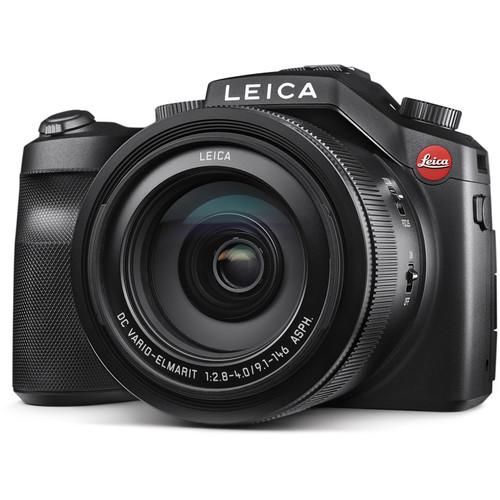

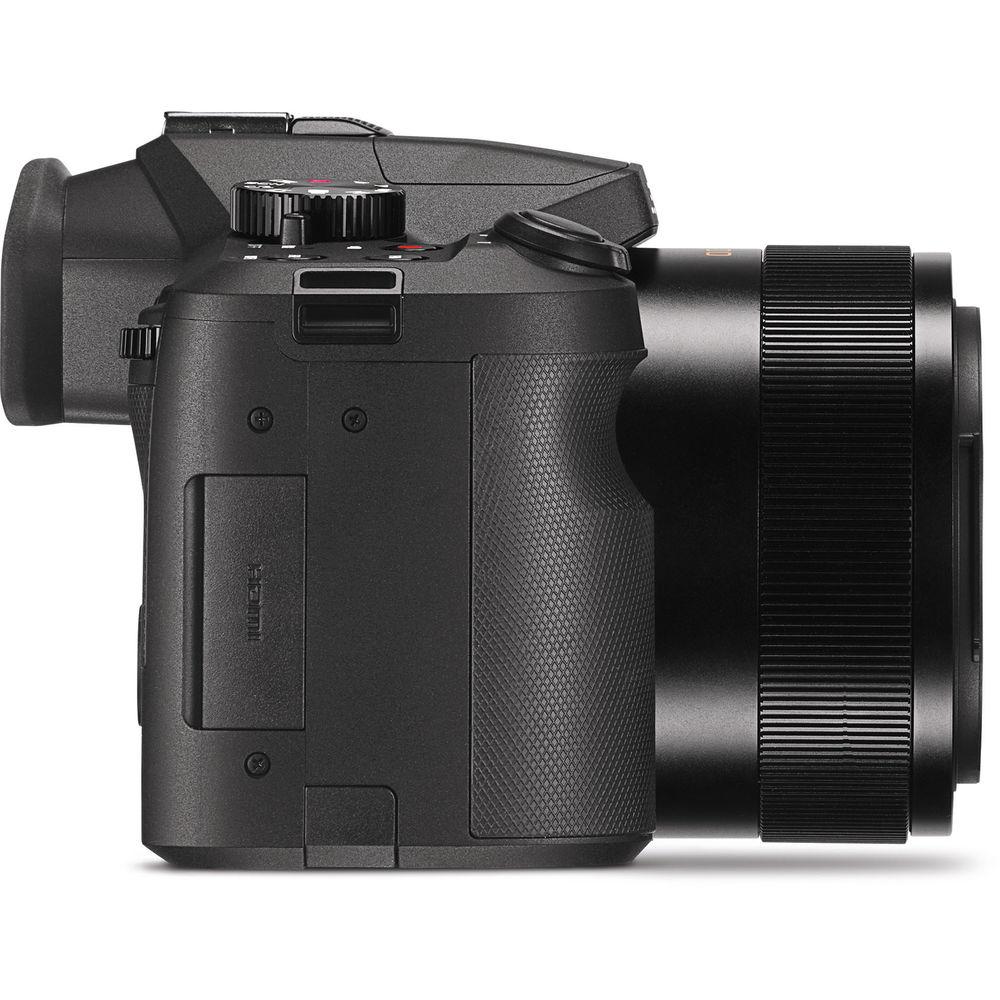

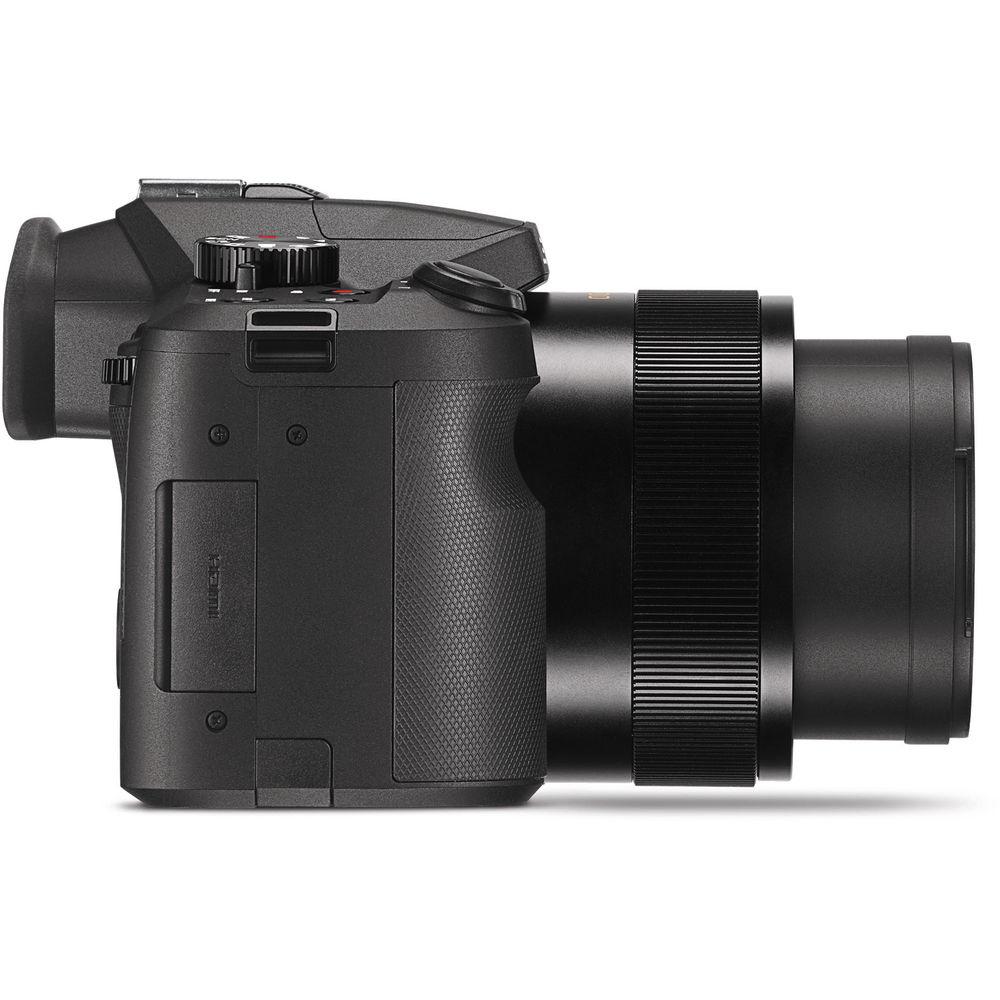

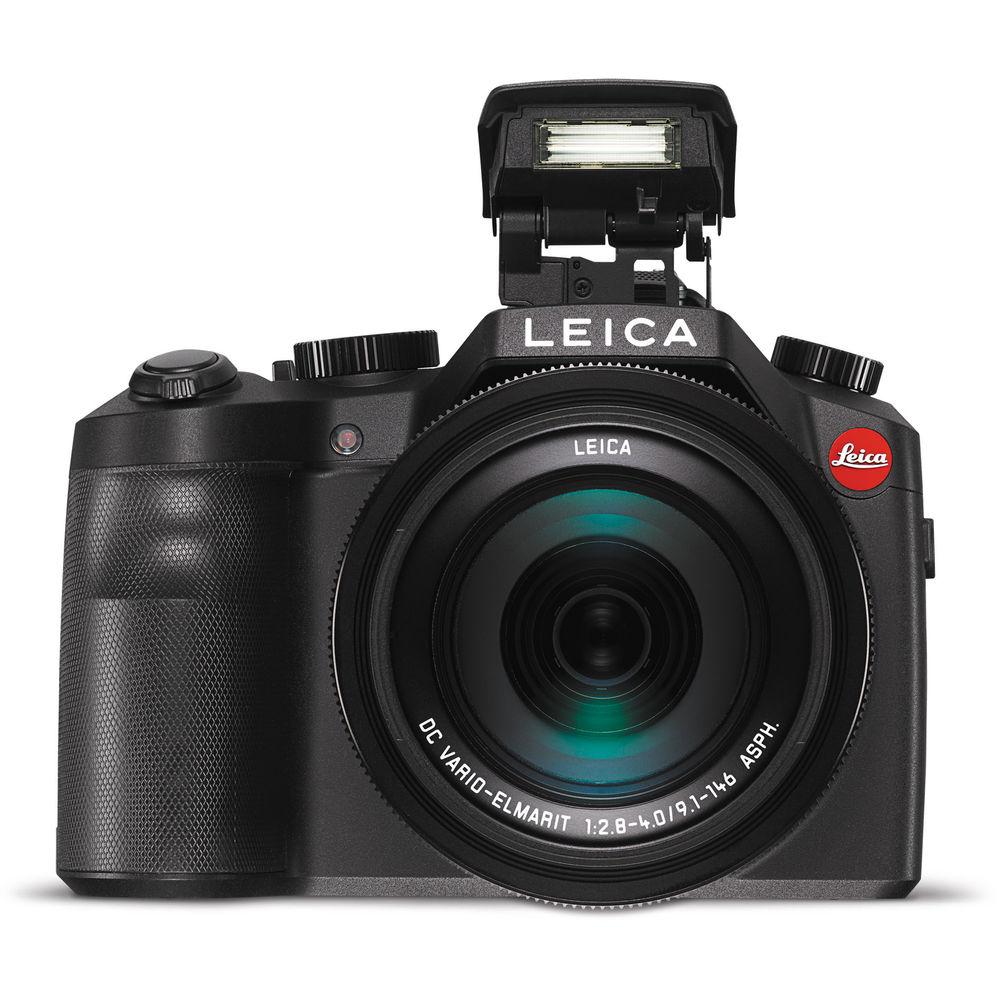

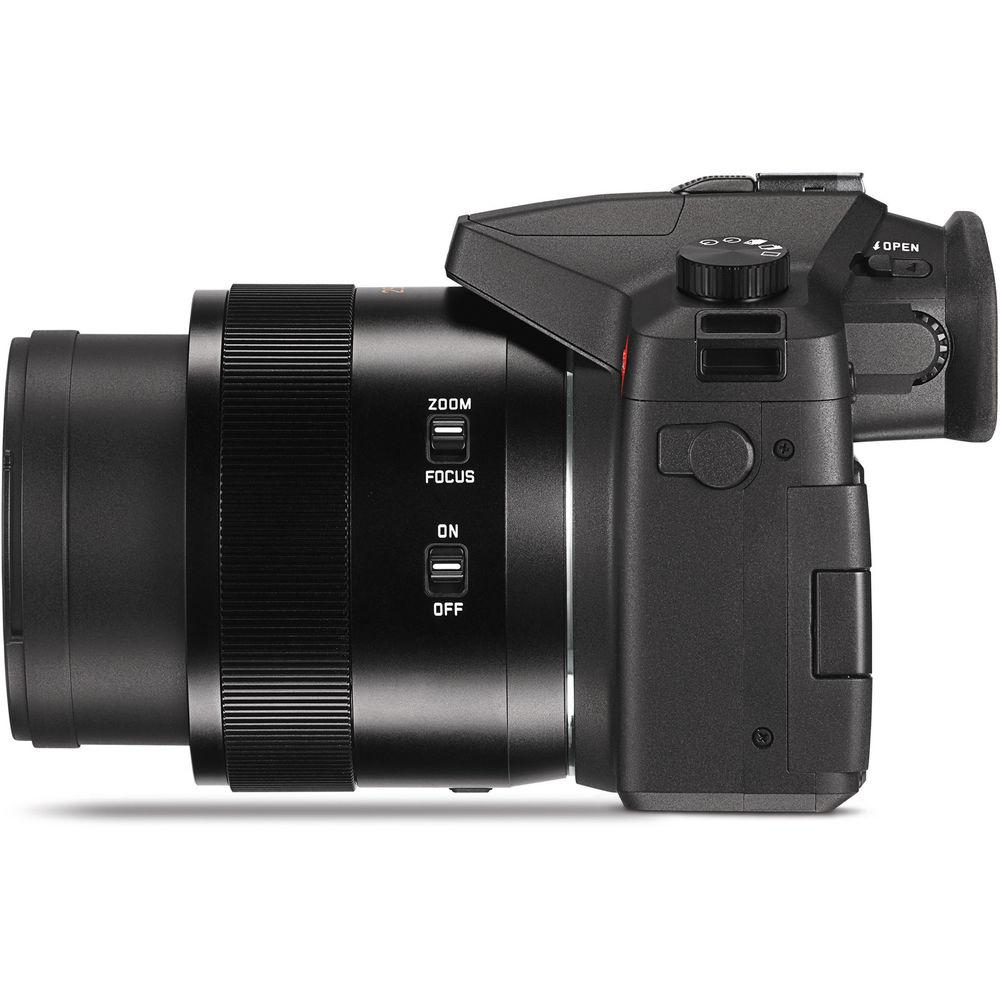

Product description The Leica V-LUX (Typ 114) Digital Camera is an advanced point-and-shoot digital camera with the form factor of a DSLR. It has a 20MP, 1" MOS sensor, a 16x zoom lens, and UHD 4K video capability.
The built-in, DC Vario-Elmarit, 9.1-146mm f/2.8-4.0 ASPH lens has a 35mm equivalent focal length of 25-400mm. Optical Image Stabilization helps minimize the appearance of camera shake, resulting in sharper images, and 4x digital zoom and 32x intelligent zoom provide the lens with an extended focal range. The moderately fast aperture, combined with a native sensitivity range of ISO 120-12500 allow the lens to perform in situations with low light.
The V-LUX captures high-quality MP4 video files in resolutions up to 3840 x 2160 UHD 4K, and a built-in microphone can record stereo audio while recording video.

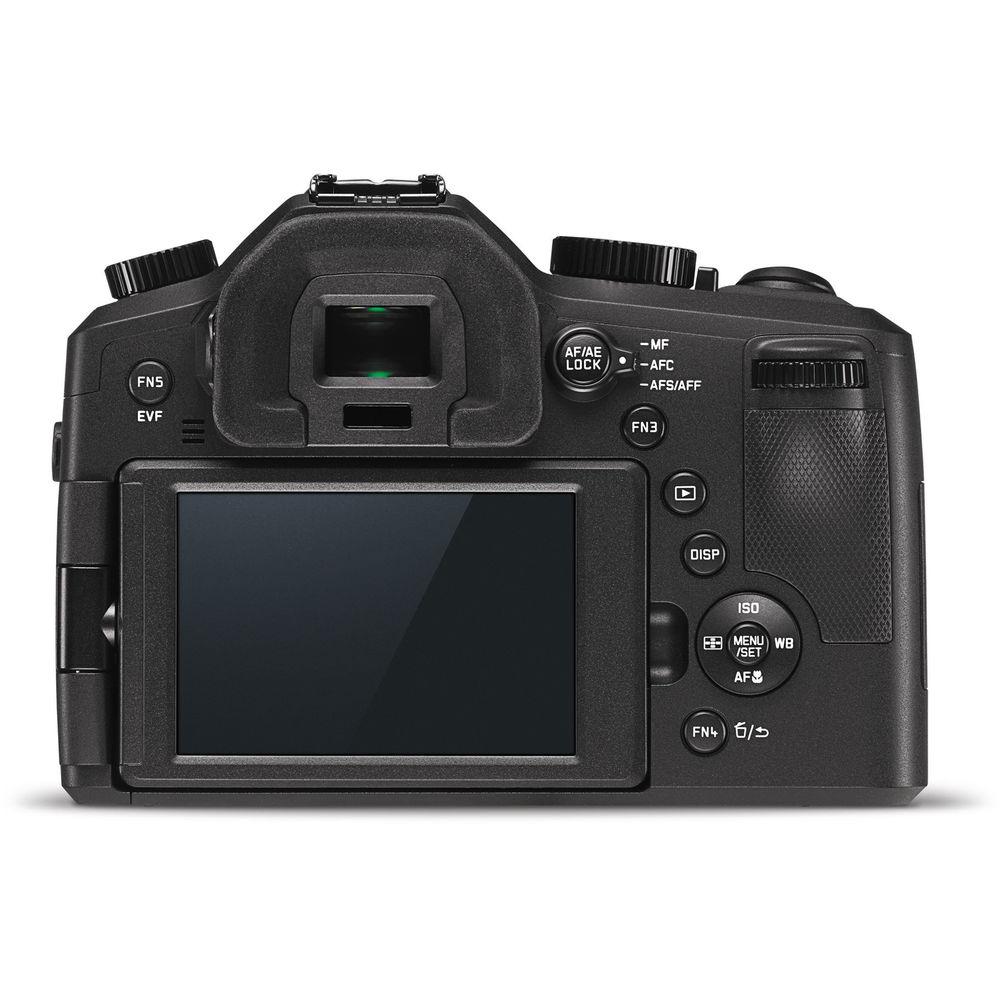

A 3", 920k-dot, rotatable, LCD screen on the camera enables photo review and menu navigation, and a 0.39", OLED, 2,360k-dot, electronic viewfinder allows for accurate composition. Built-in Wi-Fi and NFC allow for instant image sharing and remote control via the Image Shuttle App. - Leica DC Vario-Elmarit 9.1-146mm f/2.8-4.0 ASPH Lens
- This 16x optical zoom lens provides a 25-400mm equivalent focal length, giving you a full range of wide-angle to super-telephoto lengths. The built-in OIS and fast aperture range combine to allow for handheld shooting at long distance, even in poor light.
- 20MP 1" MOS Sensor
- A much improved sensor from the V-LUX 4's 12MP CMOS sensor, this larger sensor provides more megapixels, a narrower depth of field, and delivers higher-quality images at up to a native ISO 12500, or extended to ISO 25000.
- High-Resolution Integrated EVF with 2.36 Million Pixels
- This 2.4MP 0.39" OLED electronic viewfinder has approximately 2.36 million pixels, and features an eye sensor and diopter adjustment.
- 3" Multi-Axis Rotate-and-Tilt LCD
- The LCD screen has 920k dots and is rotatable to aid in shooting from different angles.
- UHD 4K Video
- The V-LUX not only shoots in full HD, but UHD 4K video as well, at a resolution of 3840 x 2160.
- Performance Speed
- When using the electronic shutter, the V-LUX can shoot up to 50 fps, and up to 12 fps when using the mechanical shutter.
- Image Shuttle App
- Allows you to control the camera's functions from your smart device.
UPC: 799429181949 In the Box Leica V-LUX (Typ 114) Digital Camera BP-DC12 Lithium-Ion Battery for V-Lux 4 Digital Cameras (7.2V/1200 mAh) Battery Charger USB Cable Neck Strap Lens Cap Lens Hood Hot Shoe Cover Limited 3-Year Warranty User Manual PDF 9.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica V-LUX Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica V-Lux (Typ 114) Specs | | | Pixels | Actual: 20.9 Megapixel
Effective: 20.1 Megapixel | | Sensor | 1" (13.2 x 8.8 mm) MOS | | File Formats | Still Images: JPEG, RAW
Movies: MP4 | | Image Stabilization | Optical & Mechanical | | | | Lens | Leica DC Vario-Elmarit, 15 Elements in 11 Groups
Effective Focal Length: 9.1 to 146mm (35 mm Equivalent: 25 to 400mm)
Aperture: f/2.8 (W) to f/4.0 (T) | | Filter Thread | 62mm | | Zoom | Optical: 16x
Digital: 4x
Intelligent Zoom: 32x | | Focus Range | Macro: 1.18" to / 3 cm to | | | | ISO Sensitivity | Auto, 125 to 12500 (Extended Mode:Auto, 80 to 25000) | | Shutter | Type: Mechanical
Speed: 60 to 1/4000 Second
Type: Electronic
Speed: 1 to 16,000 Second | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Program, Scene Modes, Shutter Priority | | Continuous Shooting | Up to 12 fps at 20 MP for up to Exposures | | Remote Control | Optional | | | | Flash Modes | Auto
Auto/Red-Eye Reduction
Forced On
Forced On/Red-Eye Reduction
Slow Sync
Slow Sync/Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:1 to 44' / 0.3 to 13.41 m
Telephoto:3.25 to 31' / 0.99 to 9.45 m | | External Flash Connection | Hot Shoe | | | | Built-In Memory | 87 MB | | Memory Card Type | SD (Up to 2 GB)
SDHC (Up to 32 GB)
SDXC (Up to 64 GB) | | | | Video Recording | Yes, NTSC/PAL | | Resolution | 3840 x 2160p: 25 fps | | | | Audio Recording | Built-In Mic: With Video (Stereo) | | | | Viewfinder Type | Electronic | | Screen | 3" LCD Rear Screen Tilt (920,000 Pixels) | | | | Connectivity | 1/8" Microphone, 2.5mm Sub-mini (2-Ring), AV Output, USB 2.0 | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) Built In | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | | | Dimensions (W x H x D) | 5.4 x 3.9 x 5.2" / 137.2 x 99.1 x 132.1 mm | | Weight | 29.3 oz / 830.7 g with battery | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 8.268 x 6.693 x 6.142" |
