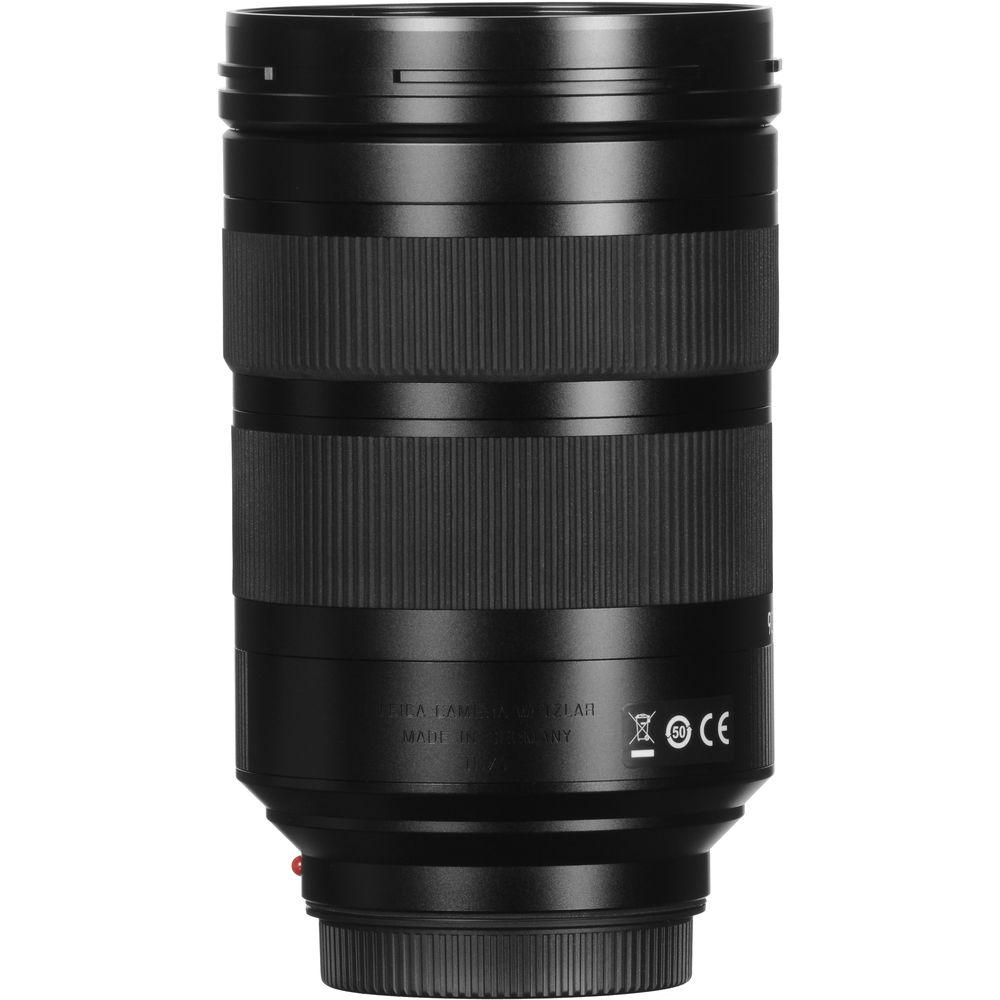

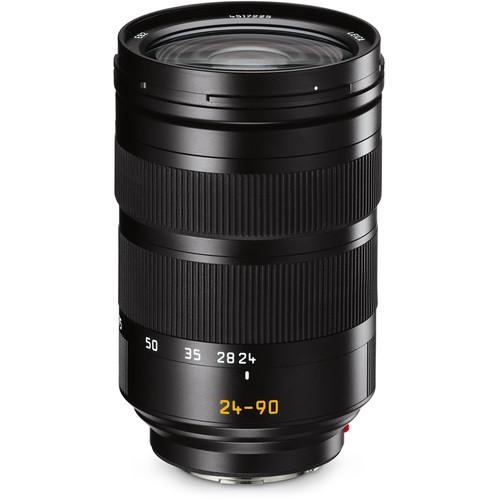

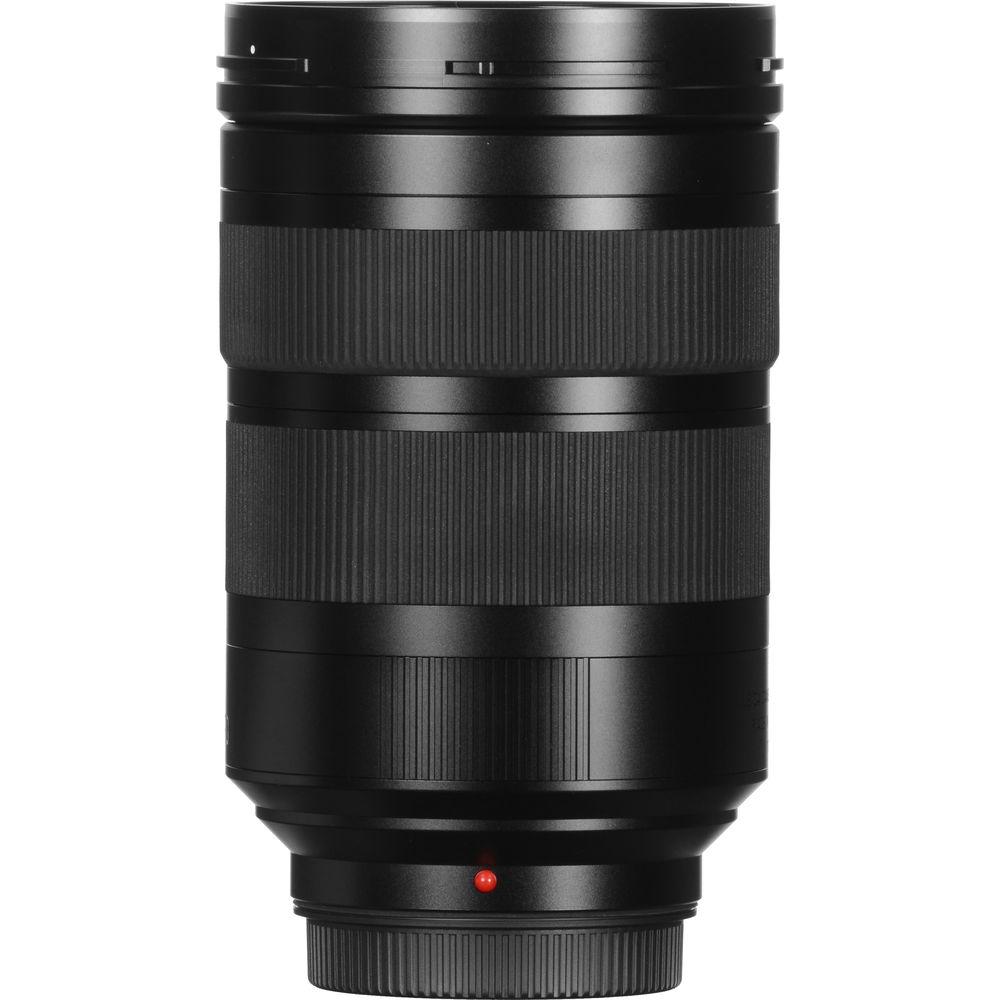

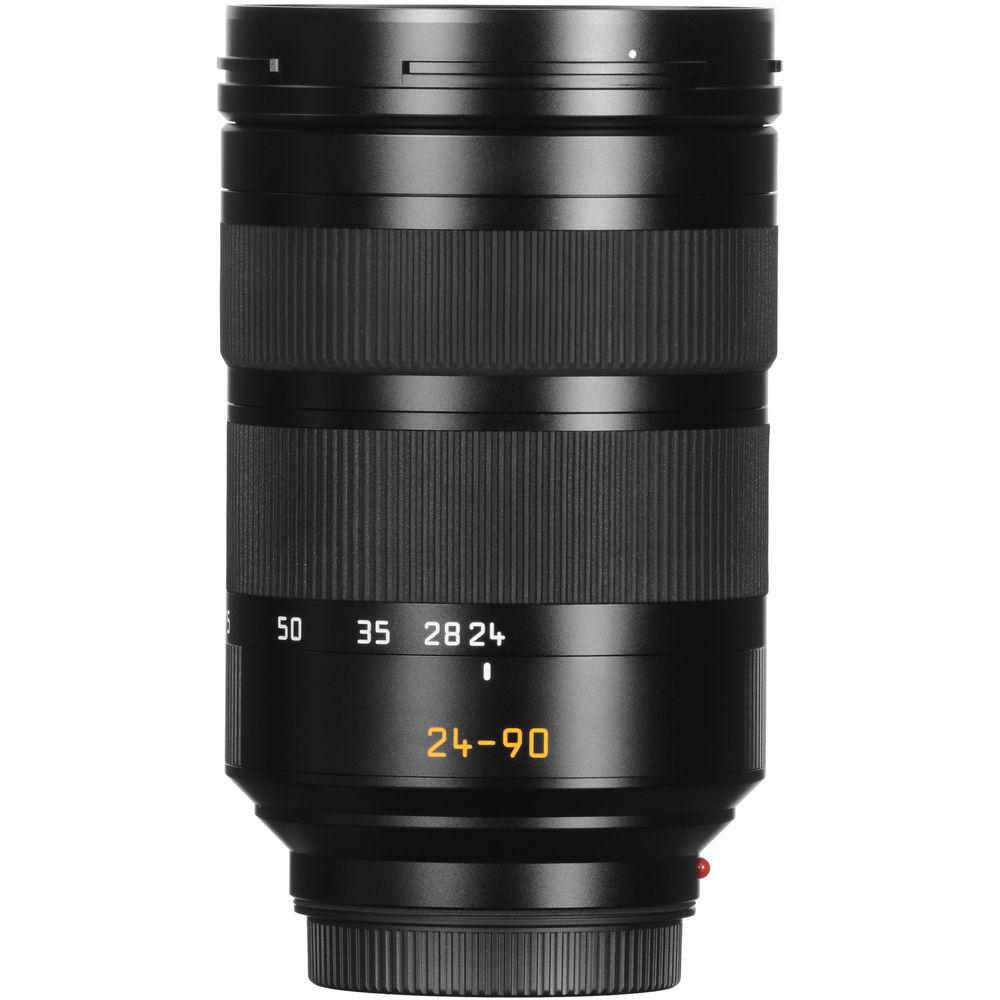

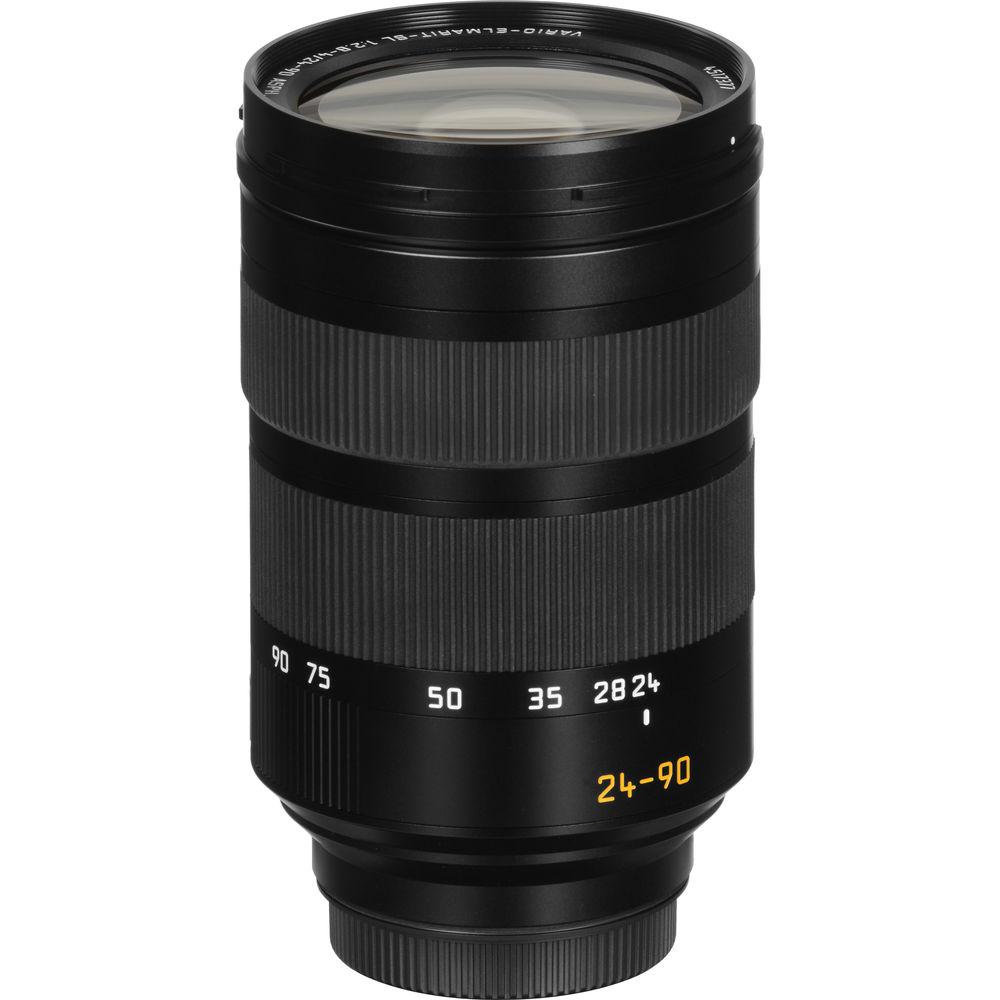

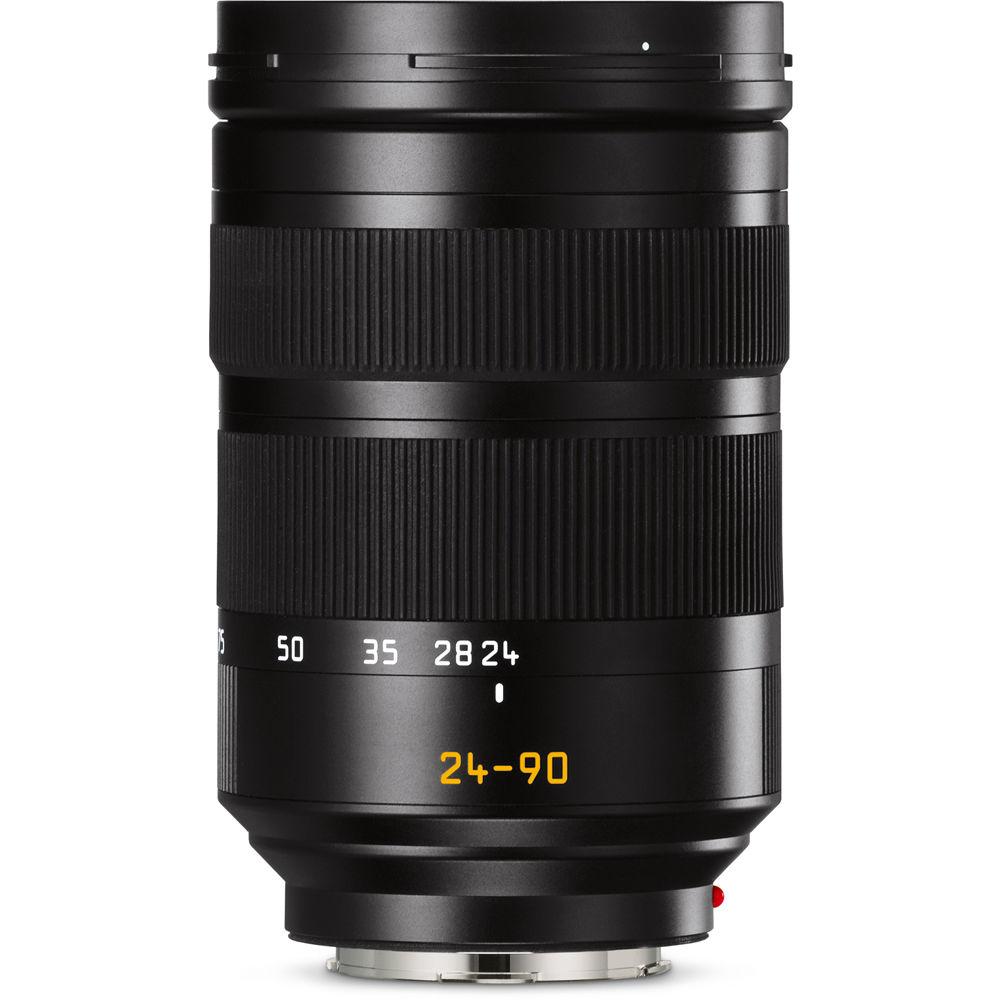

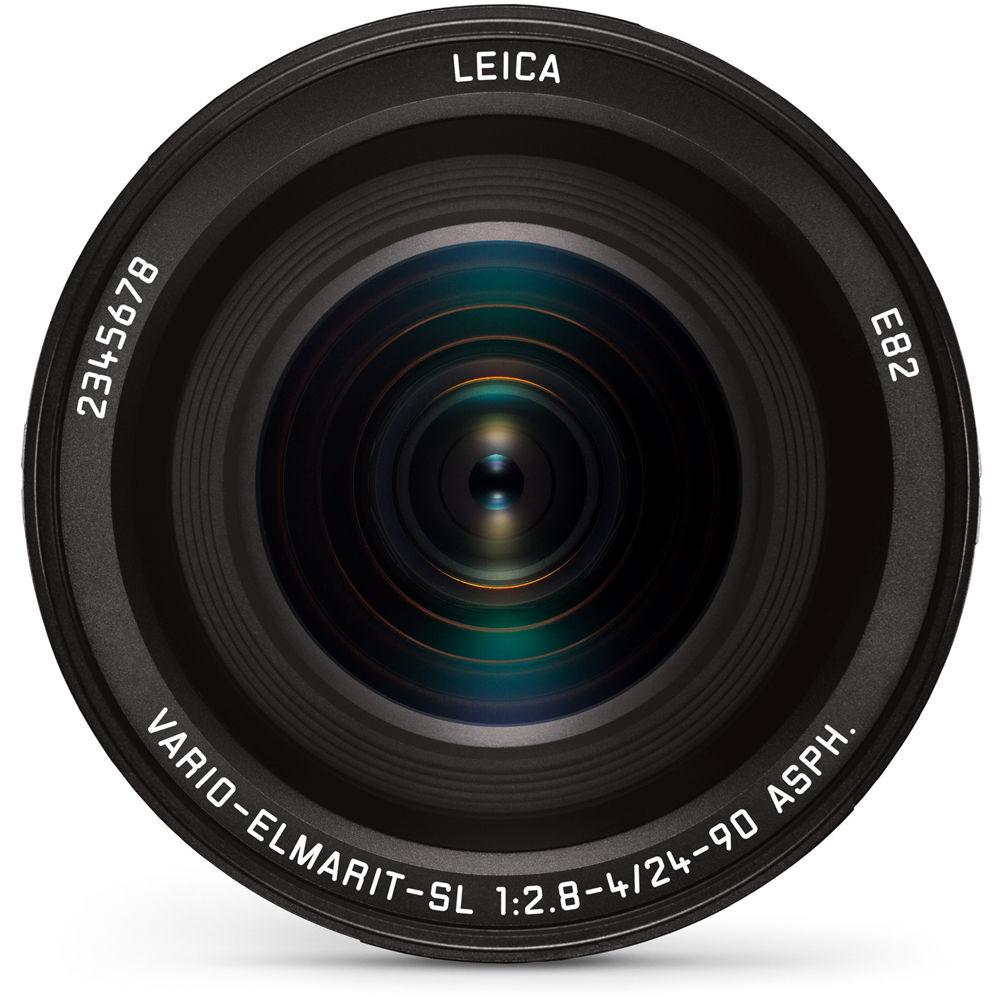

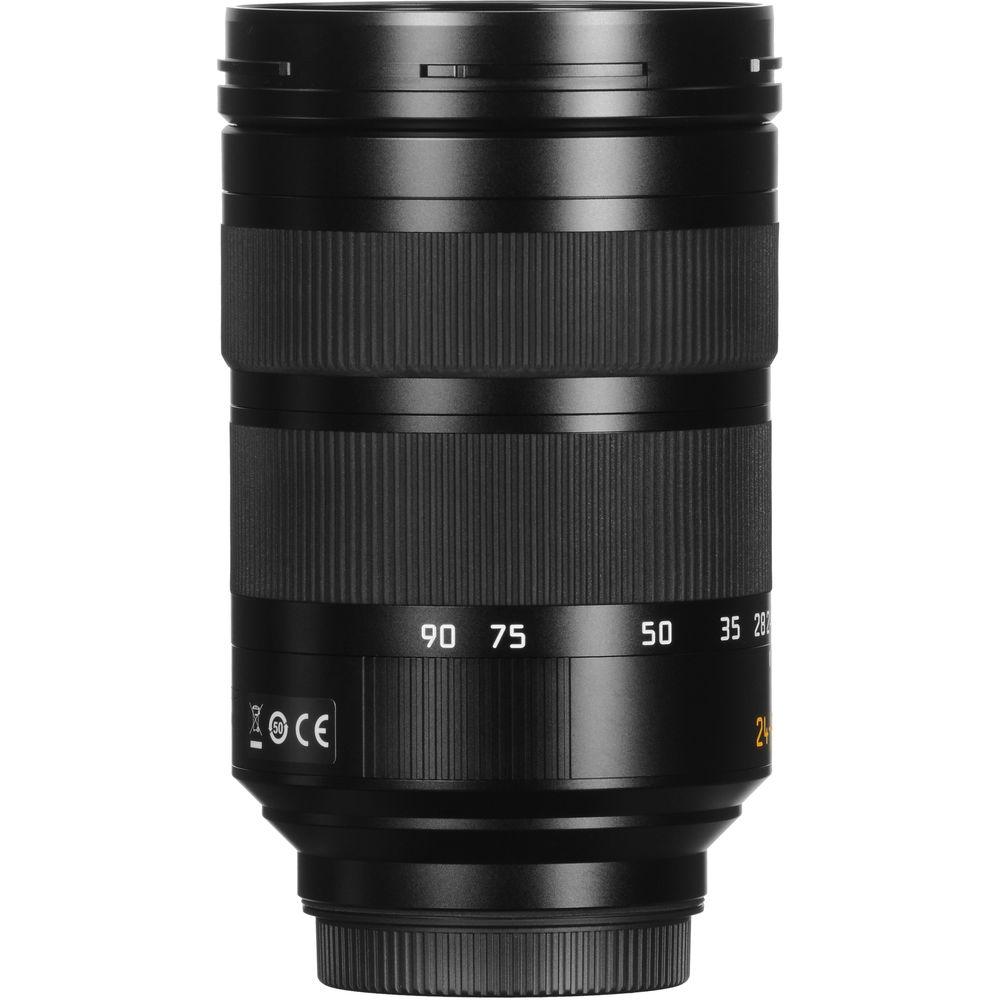

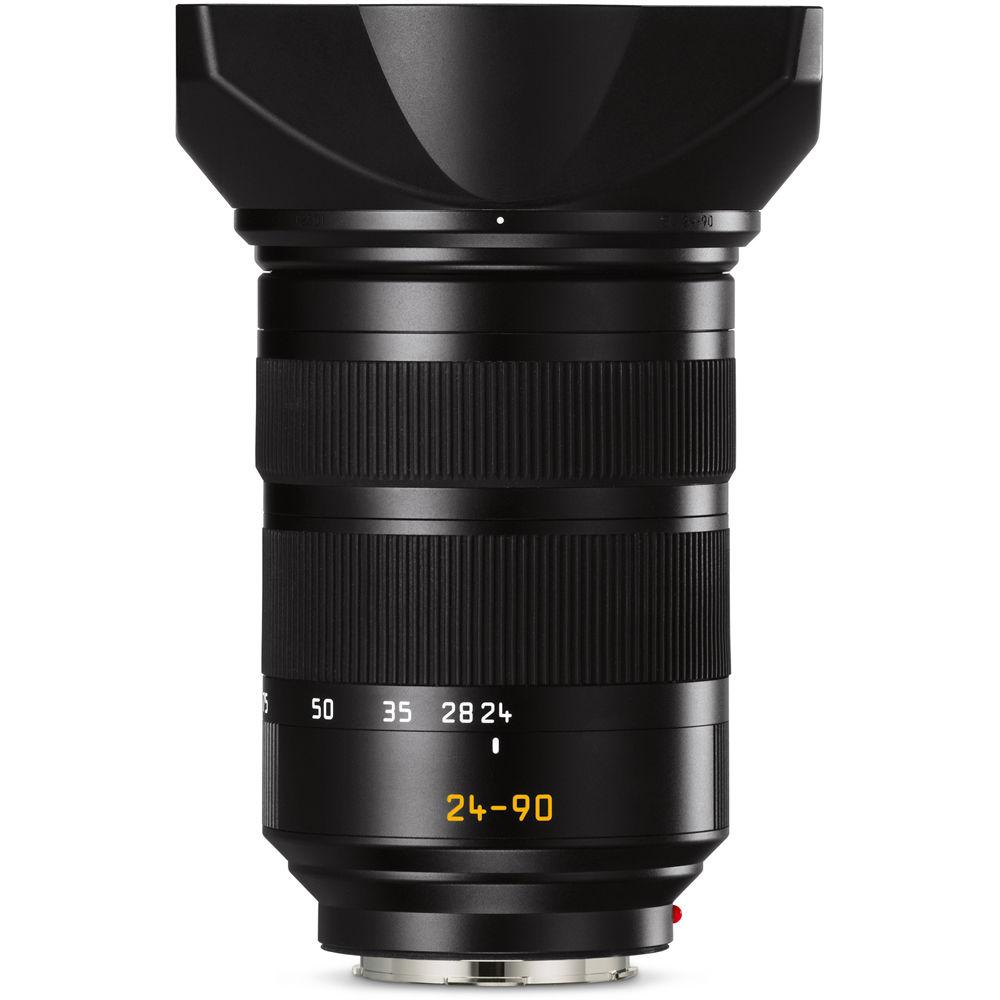

User Manual for Leica Vario-Elmarit-SL 24-90mm f 2.8-4 ASPH. Lens Click to enlarge the picture
Contents of the user manual for the Leica Vario-Elmarit-SL 24-90mm f 2.8-4 ASPH.
- Product category: Mirrorless System Lenses Leica
- Brand: Leica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leica Mirrorless System Lenses
 |
User manual for the Leica Vario-Elmarit-SL 24-90mm f 2.8-4 ASPH. contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leica product will considerably shorten its lifespan!
|
Product description Mirrorless Unleashed: Hands-On with the Leica SL (Typ 601) Read More Offering a versatile wide-angle to portrait-length range, the Vario-Elmarit-SL 24-90mm f/2.8-4 ASPH. is a fast standard zoom from Leica designed for full-frame L mount mirrorless cameras. The 18 elements in 15 groups lens construction incorporates four aspherical elements and 11 anomalous partial dispersion elements, which help to reduce chromatic aberrations and distortions throughout the zoom range for notable image sharpness and clarity. The f/2.8-4 maximum aperture benefits working in a variety of lighting conditions and also offers greater control over focus position for working with shallow depth of field techniques. Designed for consistent performance at all focal lengths and focusing distances, the versatility this lens affords is well-suited to nearly any photographic application.
Complementing the imaging performance is an apt 3.5-stop effective Optical Image Stabilization system that minimizes the appearance of camera shake for sharper handheld shooting in difficult lighting conditions. A silent and precise autofocus motor also benefits both stills and video capture, and utilizes an internal focusing mechanism to quicken overall performance. This focusing design also prevents the front 82mm filter ring from rotating during use to better enable the use of circular polarizing or graduated filters. Additionally, this lens features Leica's AquaDura hydrophobic coating on the front and rear elements, to guard against moisture and smudging, and a fully dust and water-sealed design to protect the lens during use in inclement environments. - Wide-angle to portrait-length 24-90mm L mount zoom is designed for use on full-frame mirrorless cameras, and can also be used on APS-C-sized models where it will provide a 36-135mm equivalent focal length range.
- The f/2.8-4 maximum aperture is ideal for working in difficult lighting conditions and also offers increased control over focus position for selective focus applications.
- Four aspherical elements and 11 anomalous partial dispersion glass elements reduce chromatic and spherical aberrations throughout the zoom range and increase image sharpness and clarity.
- A multiple-axis Optical Image Stabilization system compensates for up to 3.5 stops of camera shake for sharper handheld shooting with slower shutter speeds.
- A stepping motor with linear positioning offers smooth, silent, and precise autofocus performance for focusing as closely as 11.8" at the 24mm focal length position, or as closely as 17.7" at the 90mm focal length position. Only a single lightweight element is moved during focusing for quickened speeds.
- The water-repellent AquaDura coating has been applied to the front and rear optical surfaces to protect against moisture and other elements.
- Weather-sealed design protects against dust and moisture to benefit working in trying shooting conditions.
- Internal focusing design prevents the front filter ring from rotating during operation to better enable working with circular polarizers, graduated ND filter, or other types of filters dependent on a specific orientation.

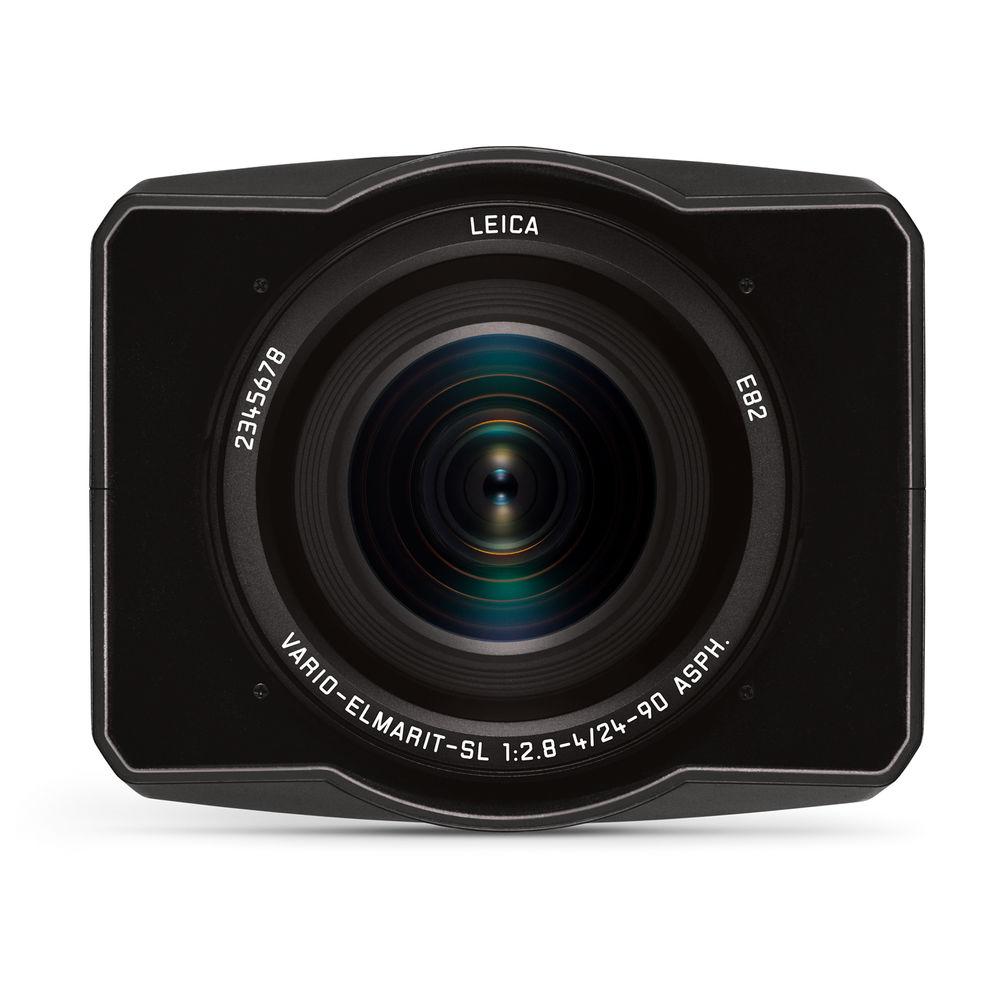

UPC: 799429111762 In the Box Leica Vario-Elmarit-SL 24-90mm f/2.8-4 ASPH. Lens Front and Rear Lens Caps Lens Hood Limited 2-Year Warranty Data Sheet PDF 955kbytvxccxwyuruvt Table of Contents
|
Upload User Manual
Have you got an user manual for the Leica Vario-Elmarit-SL 24-90mm f 2.8-4 ASPH. Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeica Vario-Elmarit-SL 24-90mm f/2.8-4 ASPH. Specs | Focal Length | 24 to 90mm | | Maximum Aperture | f/2.8 to 4 | | Minimum Aperture | f/22 | | Lens Mount | Leica L | | Format Compatibility | Full-Frame | | Angle of View | 82.4
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
