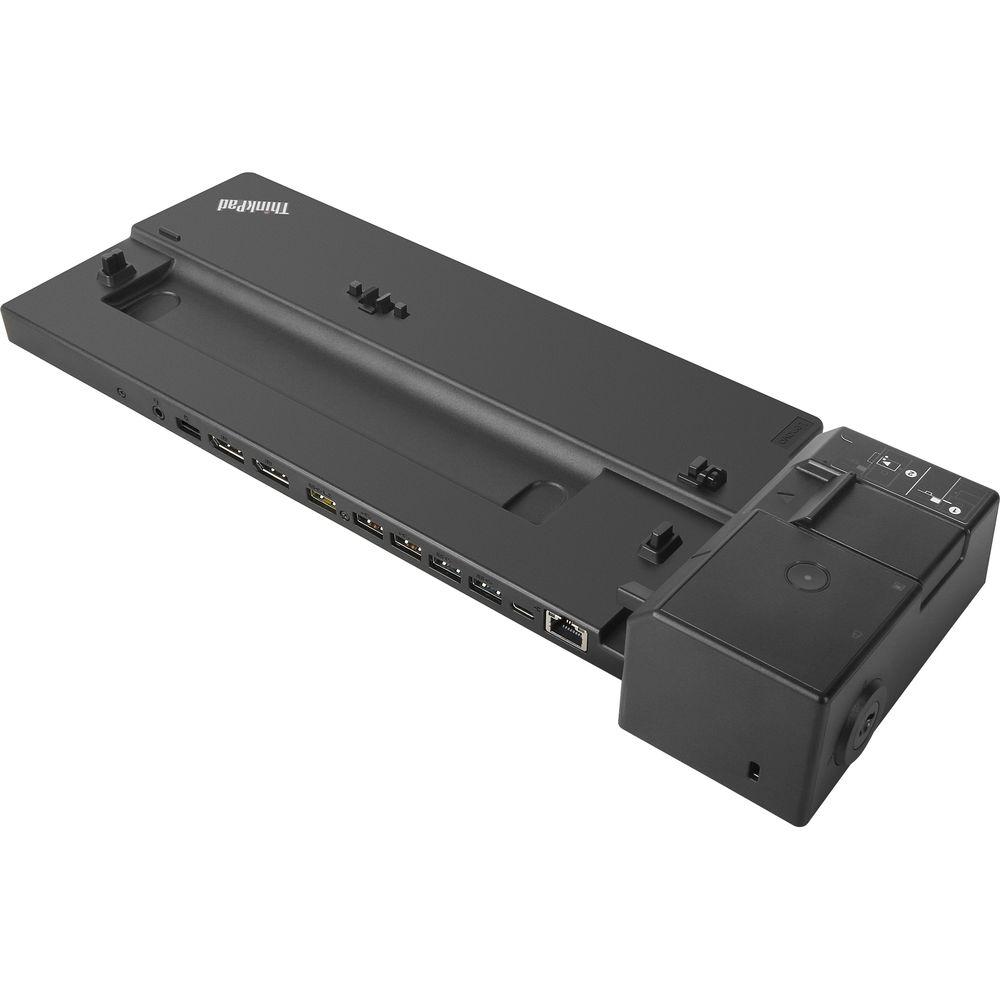

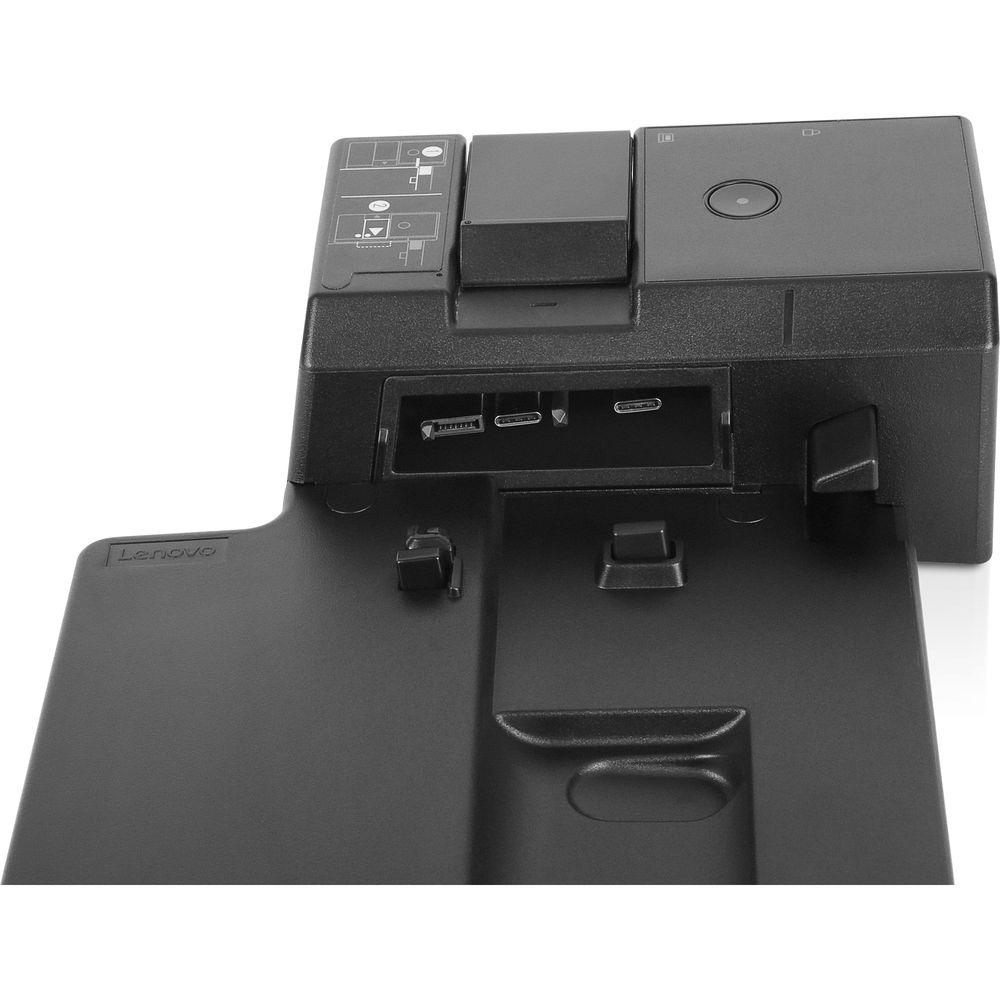

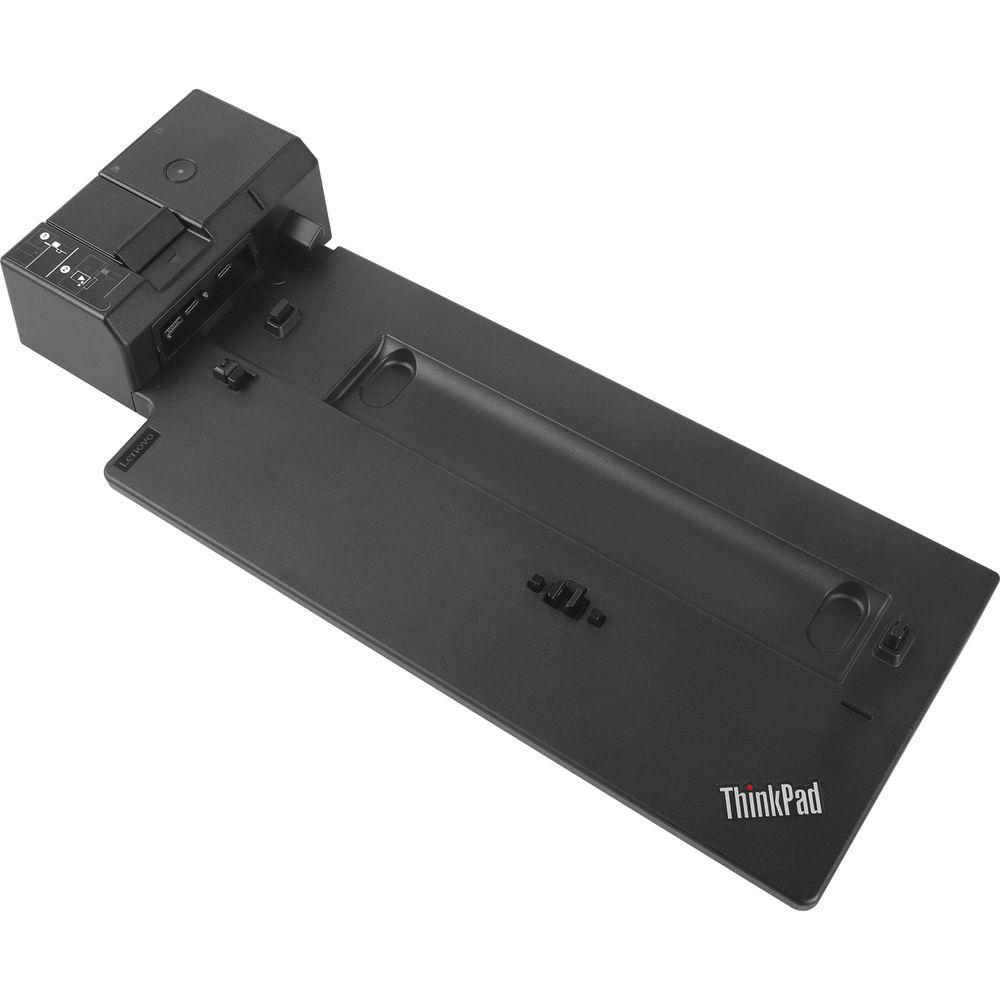

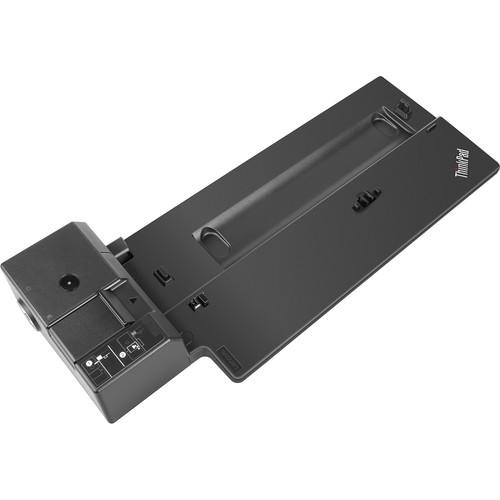

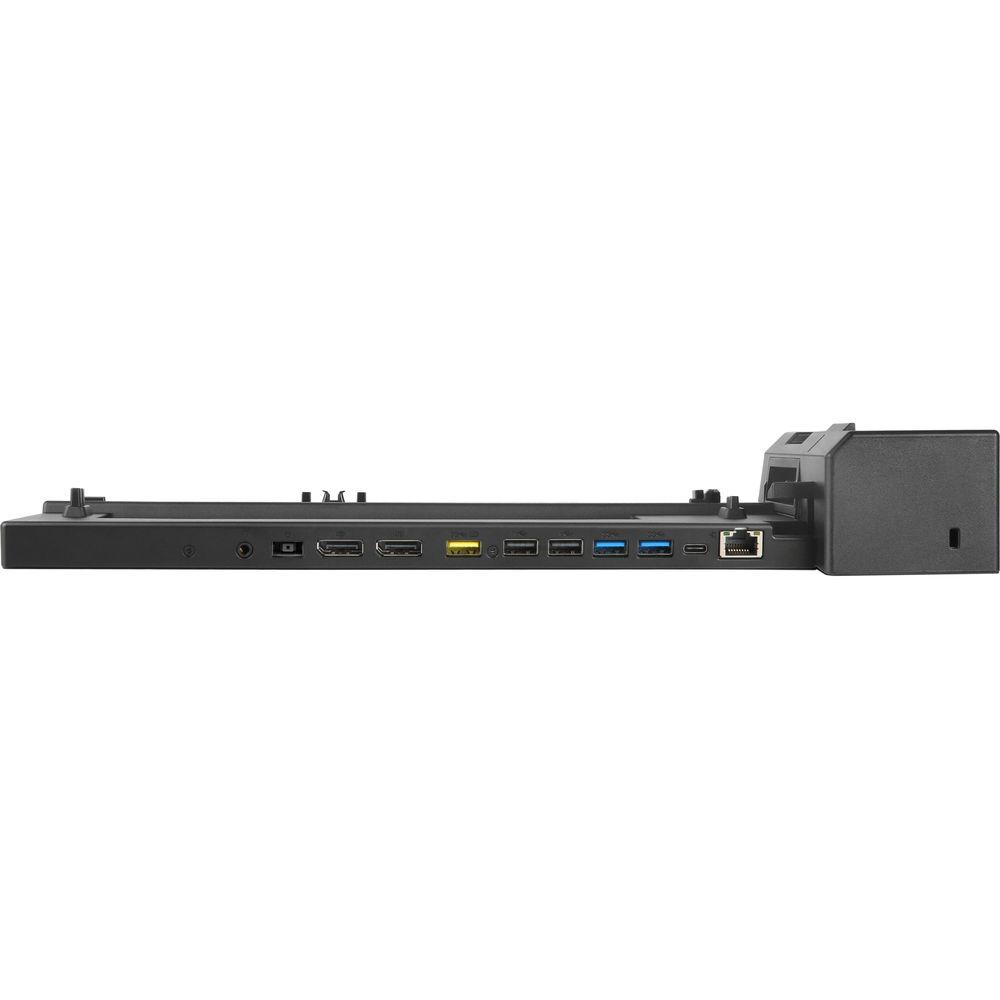

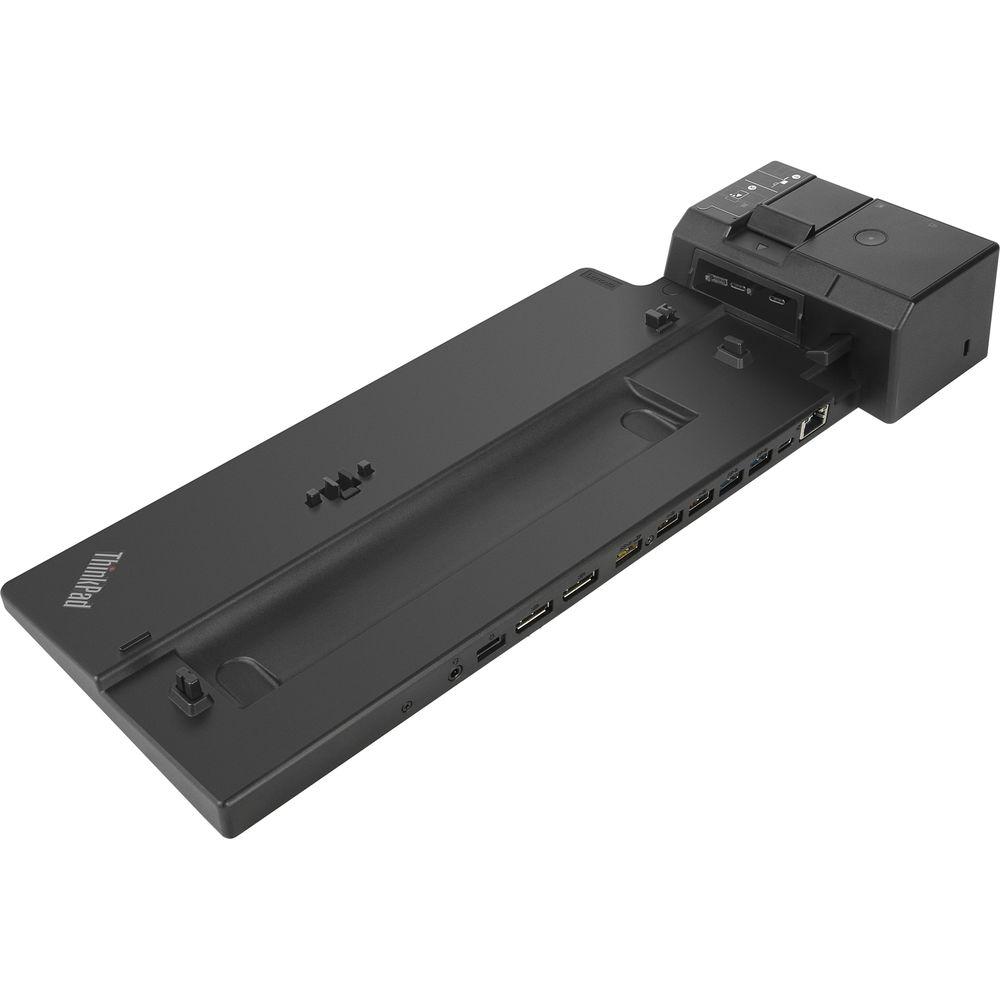

Product description The ThinkPad Pro Docking Station from Lenovo is designed to dock with select 2018 ThinkPads and provide extra ports for you to get your daily tasks done. Snap your ThinkPad laptop onto the dock to access three USB 3.1 Gen 1 Type-A ports, two USB 2.0 Type-A ports, one of which provides always-on charging, as well as a single USB 3.1 Type-C port that offers charging support up to 3A when connected to the included 135W ThinkPad AC adapter. This dock also allows you to extend your ThinkPad's screen to a maximum of two external displays via its dual DisplayPort 1.4 ports.
Connect to local area networks and the internet with the dock's built-in Gigabit Ethernet port. Or listen to your favorite tunes with the integrated 3.5mm headphone jack, which supports stereo audio and microphone usage. In terms of keeping your ThinkPad safe, this docking station has a Kensington security lock slot for warding away potential thieves. It also includes two security keys to lock in your ThinkPad when it's attached to the dock. - ThinkPad Compatibility
- Built for 2018 ThinkPad L, T, X, and X1 series laptops, including the L480, L580, P52s, P580p, T480, T480s, T580, X280, and X1 Carbon Gen 6.
- USB 3.1 Gen 1
- The system features three USB 3.1 Gen 1 Type-A ports and a single USB 3.1 Type-C port that will allow you to connect peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.1 Gen 1 transfers data up to 10 times faster than USB 2.0. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- Charge Support
- This docking station supports charging up to 135W with the included ThinkPad 135W AC adapter and power cord. Furthermore, one of the ThinkPad Pro Docking Station's USB 2.0 supports always-on charging while the solo USB Type-C port supplies up to 3A of power.
- Display Support
- Lenovo's docking station is fit for intense graphic work with a desktop expansion solution capable of delivering resolutions up to dual UHD displays @ 60 Hz.
- Gigabit Ethernet
- The ThinkPad Pro Docking Station supports 10/100/1000 Gigabit Ethernet, which supplies enterprise manageability.
- Secured System
- The dock has a security lock hole, so you can keep your ThinkPad safe from potential thieves. It also has a convenient eject button for one-step system removal.
- For IT Managers
- The mechanical ThinkPad Pro Dock supports PXE boot, wake on LAN, and MAC address pass-through for simplified asset management.
- Driver-Free
- This dock doesn't require a driver for usage and delivers high video quality without interference.
- Convenient & Compact Design
- Lenovo's ThinkPad Pro Docking Station is designed with a small desktop footprint and has a physical side alignment that ensures successful docking with your ThinkPad.

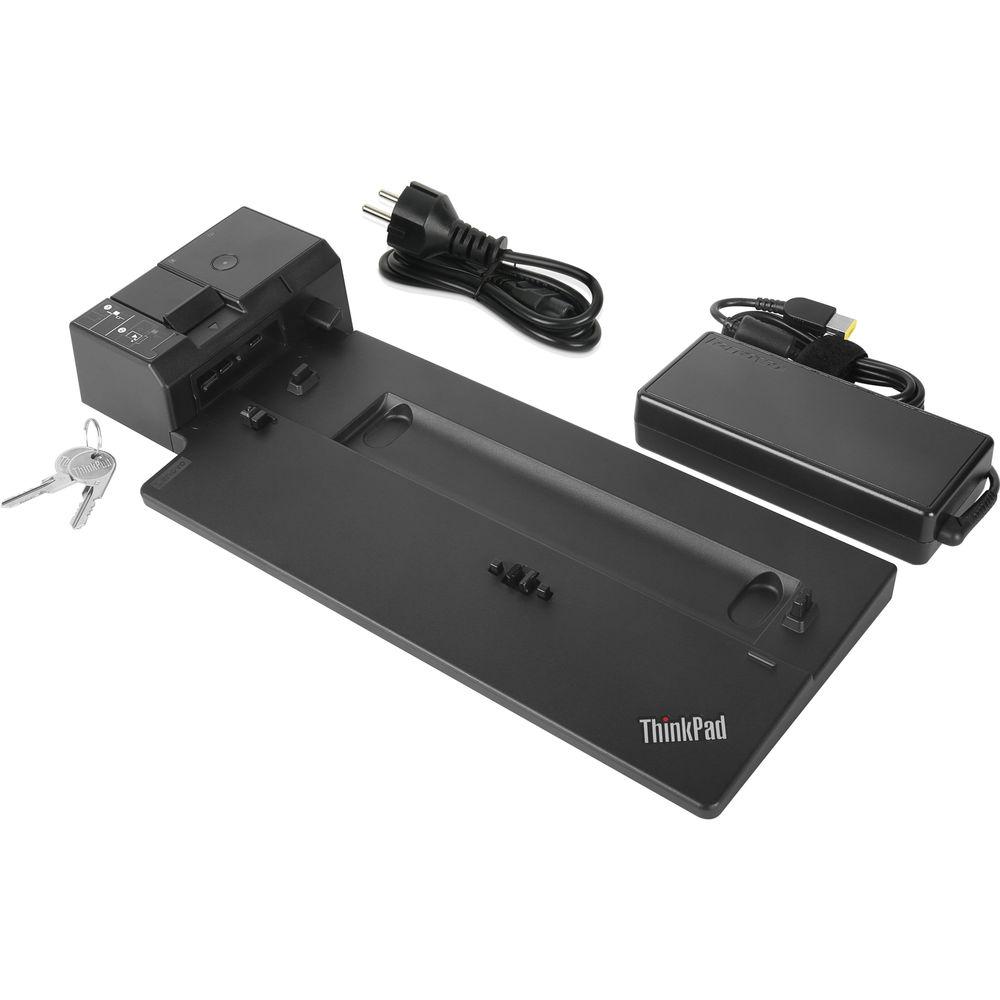

UPC: 192076019892 In the Box Lenovo 135W ThinkPad Pro Docking Station ThinkPad 135W AC Adapter Power Cord 2 x Security Keys Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 135W ThinkPad Pro Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkPad Pro Docking Station Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C (3 A)
3 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x Proprietary Type-C Female | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | Lenovo ThinkPad L480
Lenovo ThinkPad L580
Lenovo ThinkPad P52s
Lenovo ThinkPad P580p
Lenovo ThinkPad T480
Lenovo ThinkPad T480s
Lenovo ThinkPad T580
Lenovo ThinkPad X280
Lenovo ThinkPad X1 Carbon Gen 6 | | Operating System Support | Linux, Windows | | UASP Support | No | | | | Lock Slot | Yes, Kensington | | Dimensions | 14.88 x 6.26 x 2.13" / 378 x 159 x 54.1 mm | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 16.1 x 8.3 x 3.4" |
