User Manual for Lenovo 135W ThinkPad Ultra Docking Station Click to enlarge the picture
Contents of the user manual for the Lenovo 135W ThinkPad Ultra Docking Station
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
 |
User manual for the Lenovo 135W ThinkPad Ultra Docking Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

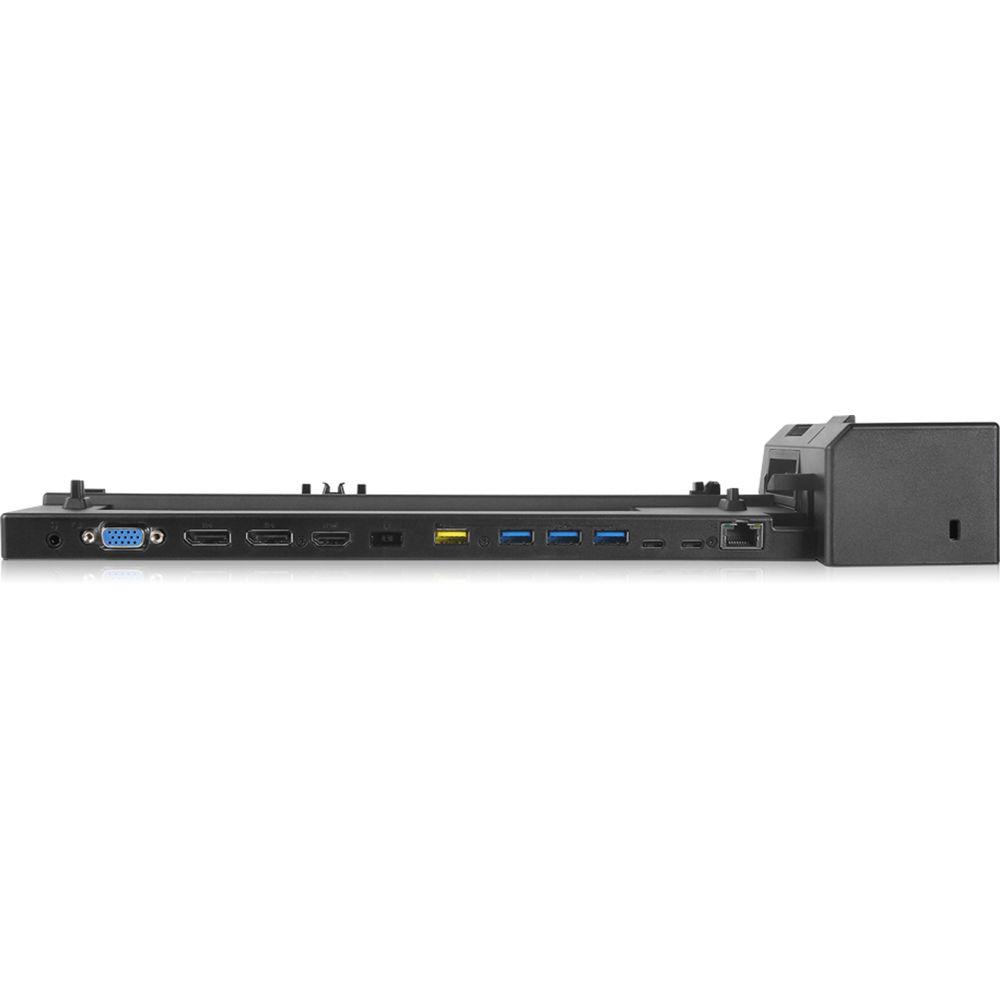

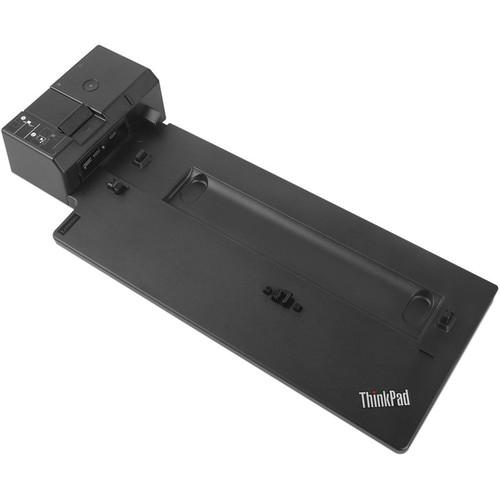

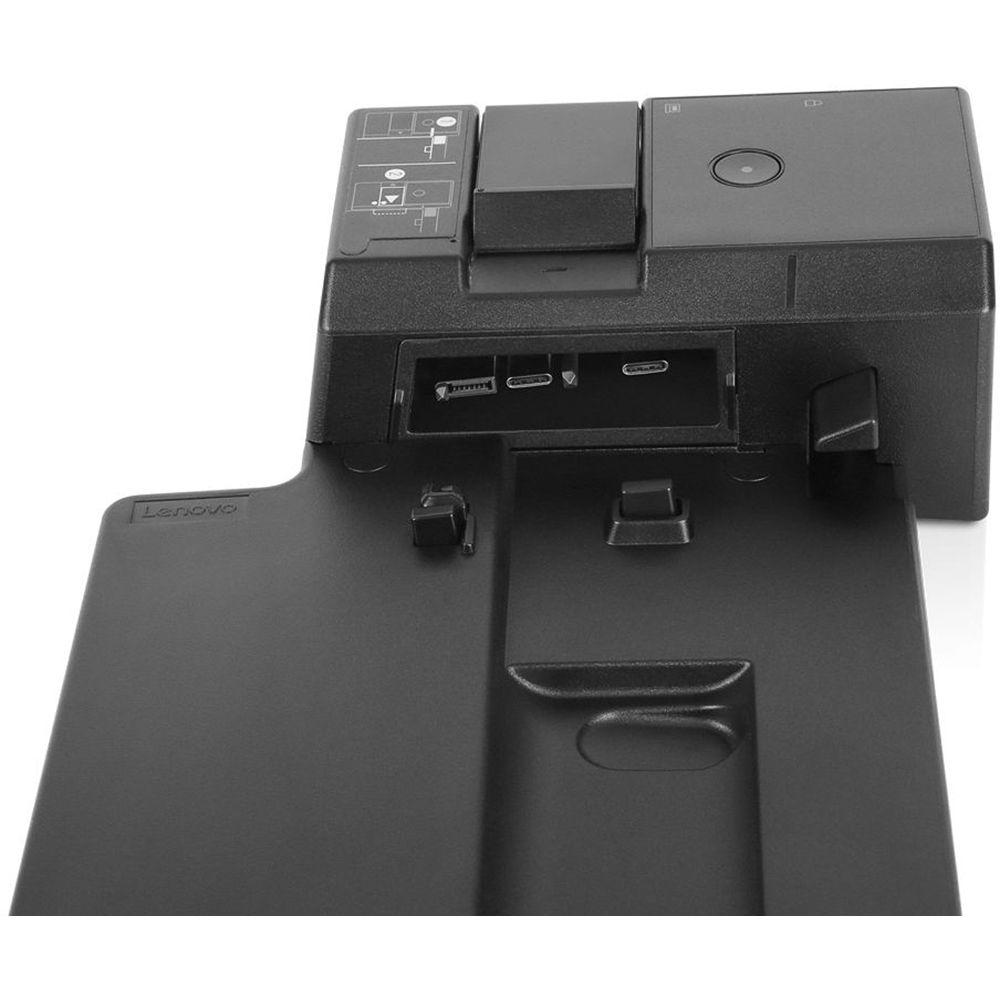

Product description Add desktop-like connectivity to your notebook with the ThinkPad Ultra Docking Station from Lenovo. This dock is designed to output 5V of power so you can charge your connected devices. The ThinkPad Ultra houses a plethora of ports, including two USB 3.0 Gen 2 Type-C, four USB 3.0 Gen 2 Type-A inputs, and a 3.5mm stereo and mic headphone jack. Extend your laptop's display to external monitors via the ThinkPad Ultra's two DisplayPort 1.4 ports, an HDMI 2.0 connection, and a VGA port. Additionally, the system has an integrated Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch.
The ThinkPad Ultra comes with a Kensington security lock slot and two included keys. Lenovo's ThinkPad Ultra supports PXE book, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. It also comes with a 135W slim tip AC power adapter and cord; and features rapid charge support and mirrored power button make it easy to unlock and go. Furthermore, this dock is designed exclusively for ThinkPad notebooks, driver-free. -
- 10/1000 Gigabit Ethernet; supports enterprise manageability
- Driver-free and perfect video quality
- Charges Lenovo ThinkPads with an included ThinkPad 135W AC adapter
- Physical rear alignment for a perfect dock every time
- Smaller desktop footprint vs. Series 3 docking stations
- Compatibility: ThinkPad P52s, L580, L480, T580, P580p, T480s, T480, X1 Carbon Gen 6, and X280
UPC: 192076019915 In the Box Lenovo 135W ThinkPad Ultra Docking Station 2 x Security Keys ThinkPad 135W AC Adapter Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 135W ThinkPad Ultra Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkPad Ultra Docking Station Specs | | | USB | 2 x USB 3.1 Gen 2 Type-C (3 A)
4 x USB 3.1 Gen 2 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.4
1 x HDMI 2.0
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | USB 3.1 Gen 2 Type-C Female | | | | Number of Displays Supported | 4 | | Data Transfer Rate | 10 Gb/s USB 3.1 Gen 2 | | UASP Support | No | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 8 to 95% | | | | Lock Slot | Yes, Kensington | | Dimensions | 14.9 x 6.3 x 2.1" / 37.85 x 16 x 5.33 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.84 lb | | Box Dimensions (LxWxH) | 16.3 x 8.65 x 3.55" |
