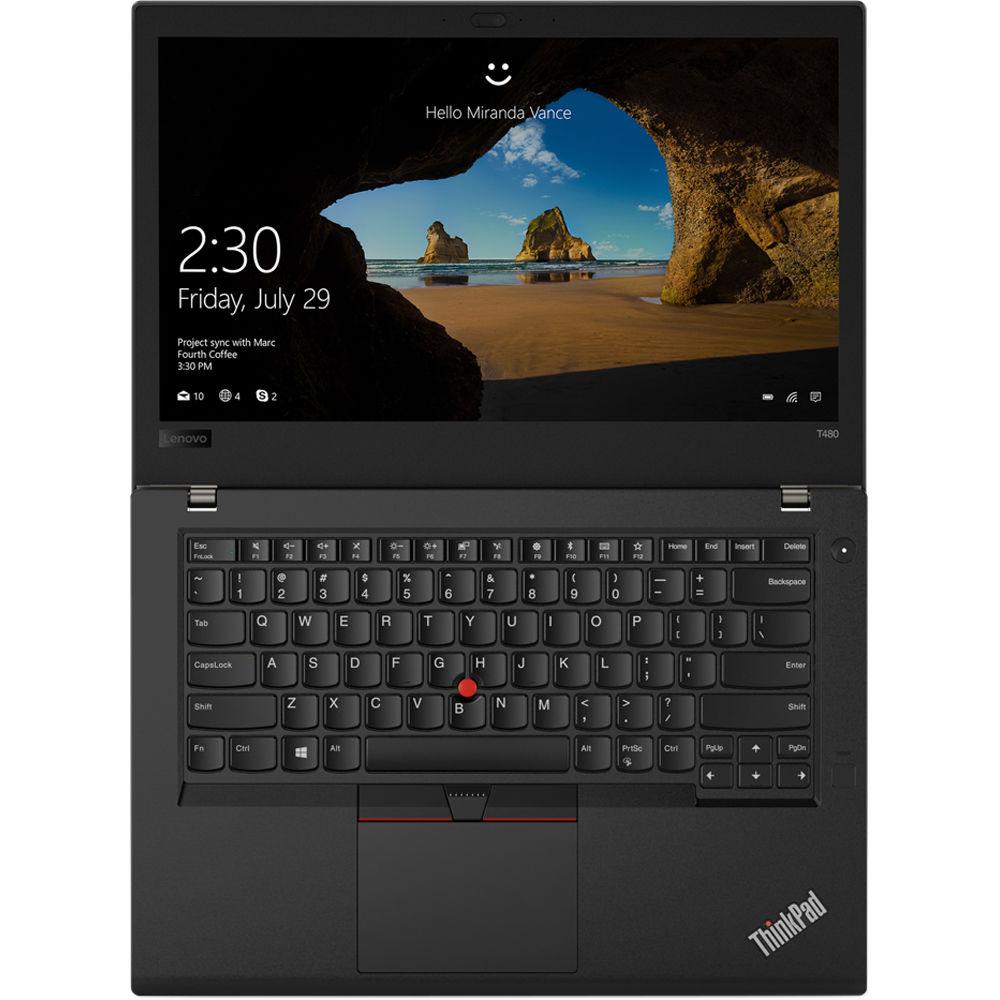

User Manual for Lenovo 14" ThinkPad T480 Multi-Touch Laptop Click to enlarge the picture
Contents of the user manual for the Lenovo 14" ThinkPad T480 Multi-Touch Laptop
- Product category: Notebooks Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Notebooks
 |
User manual for the Lenovo 14" ThinkPad T480 Multi-Touch Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

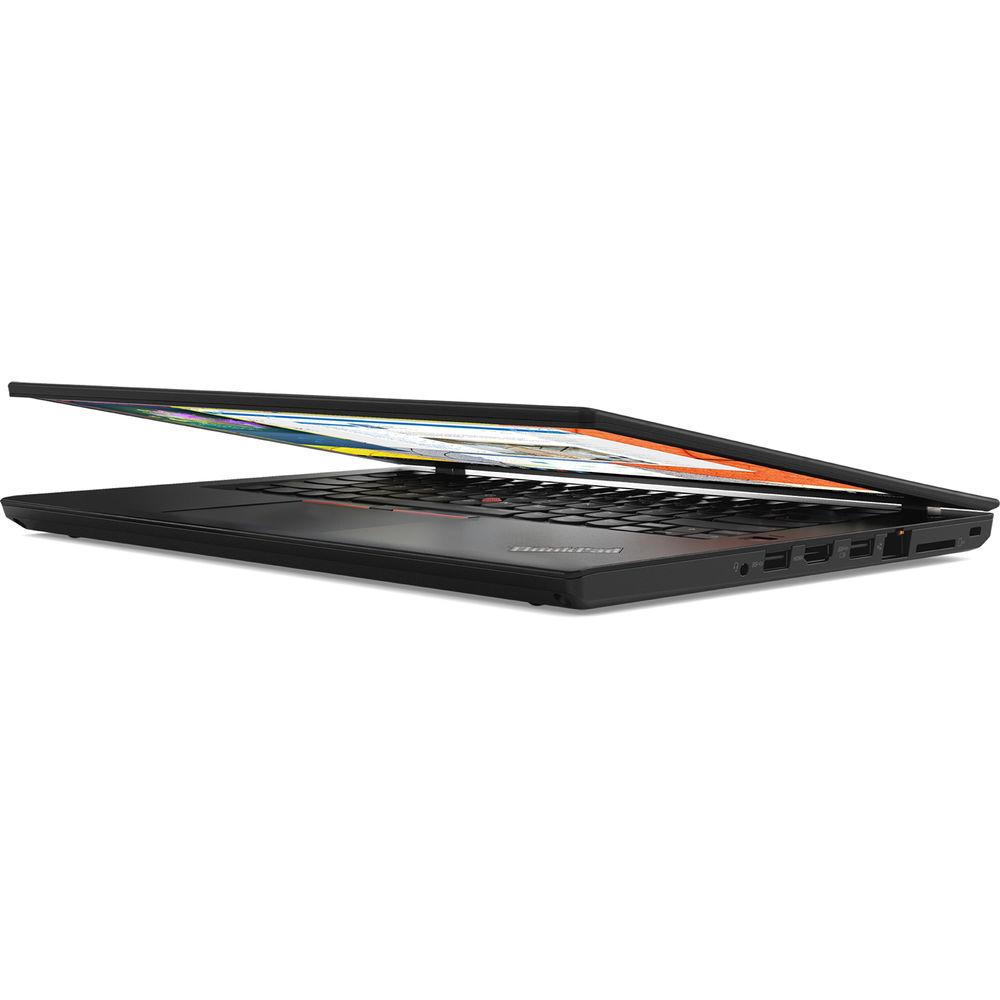

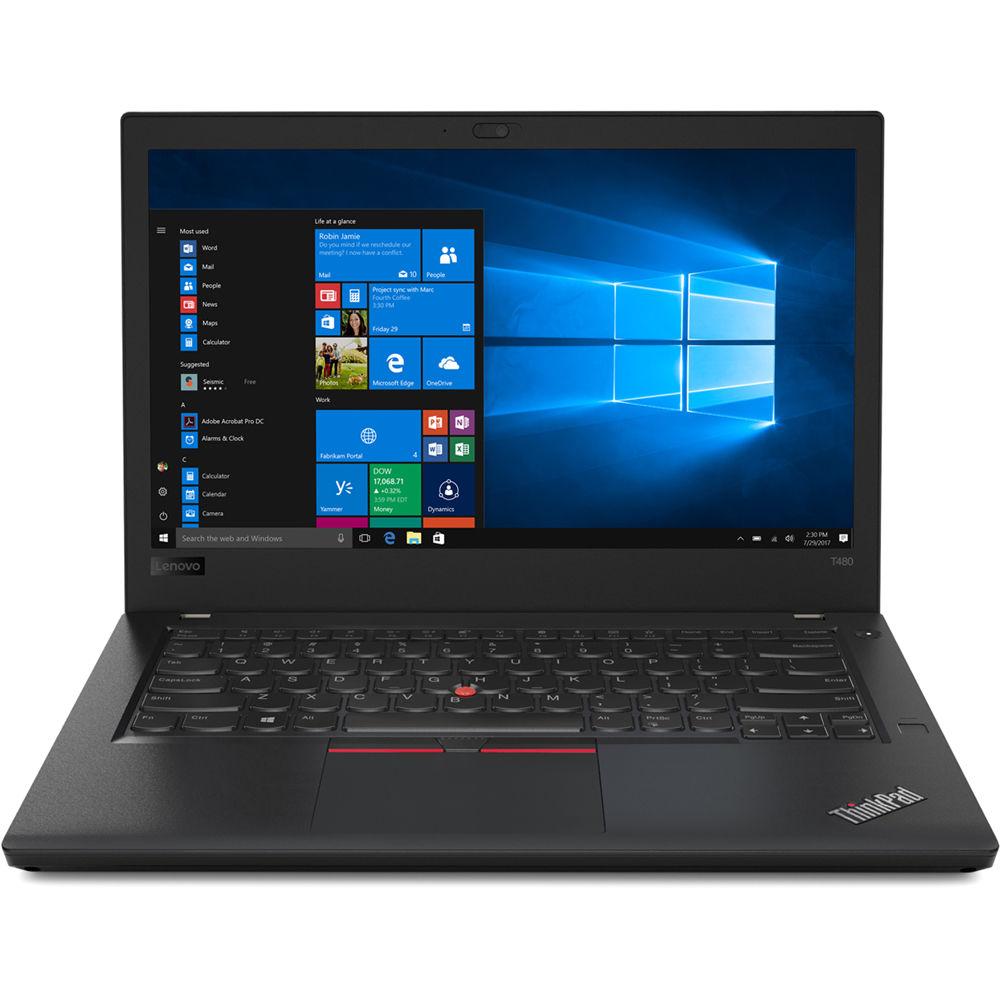

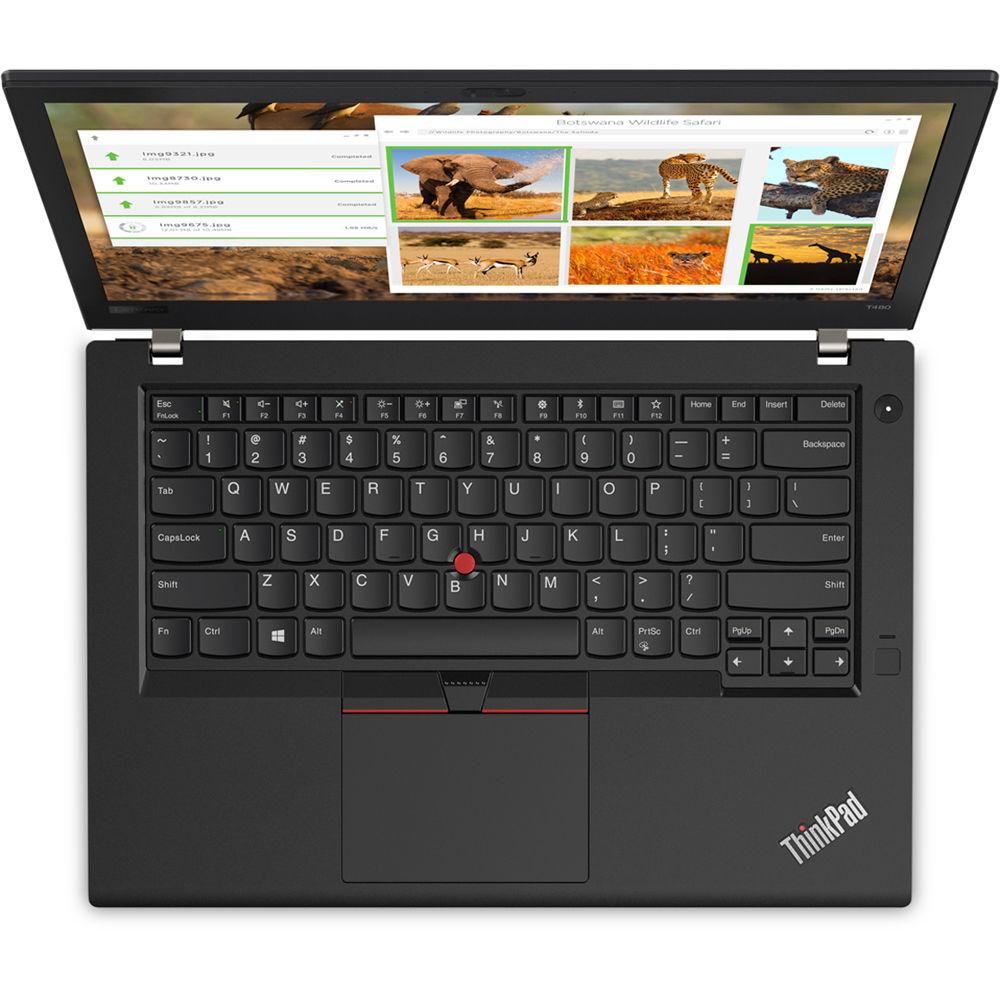

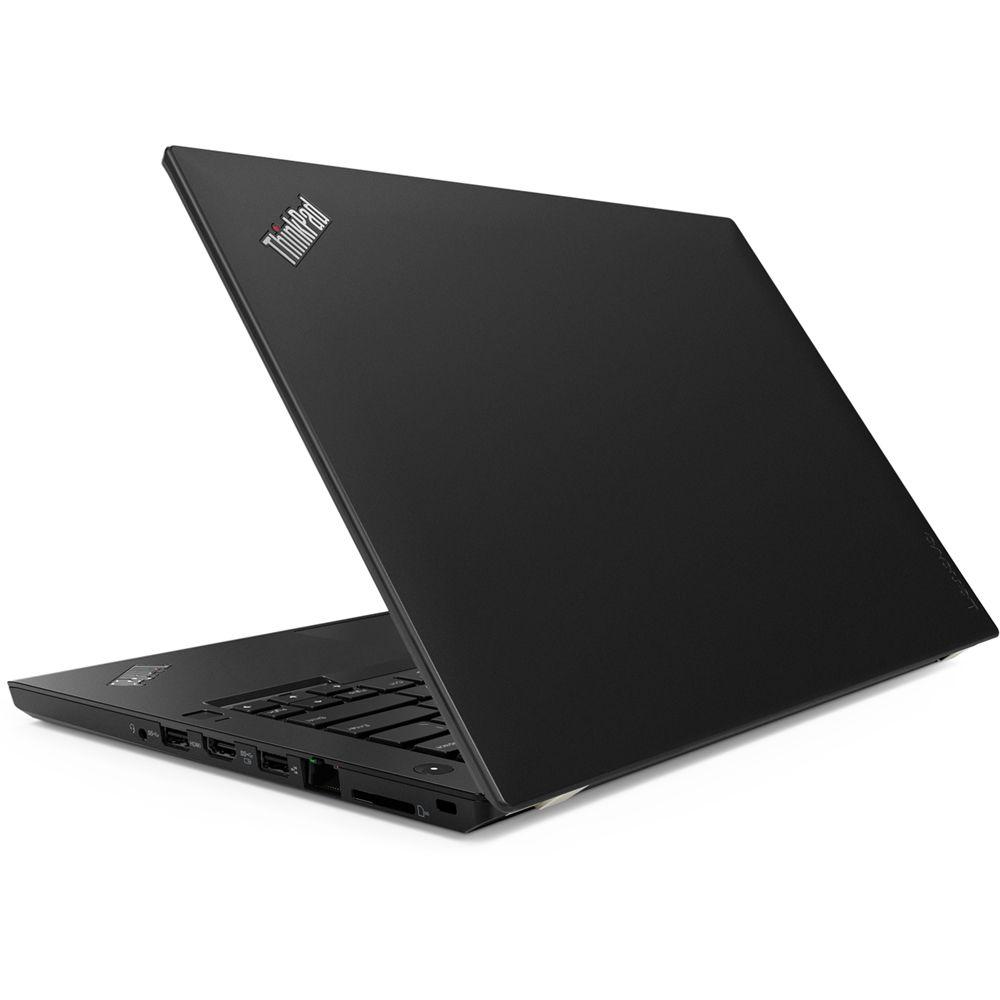

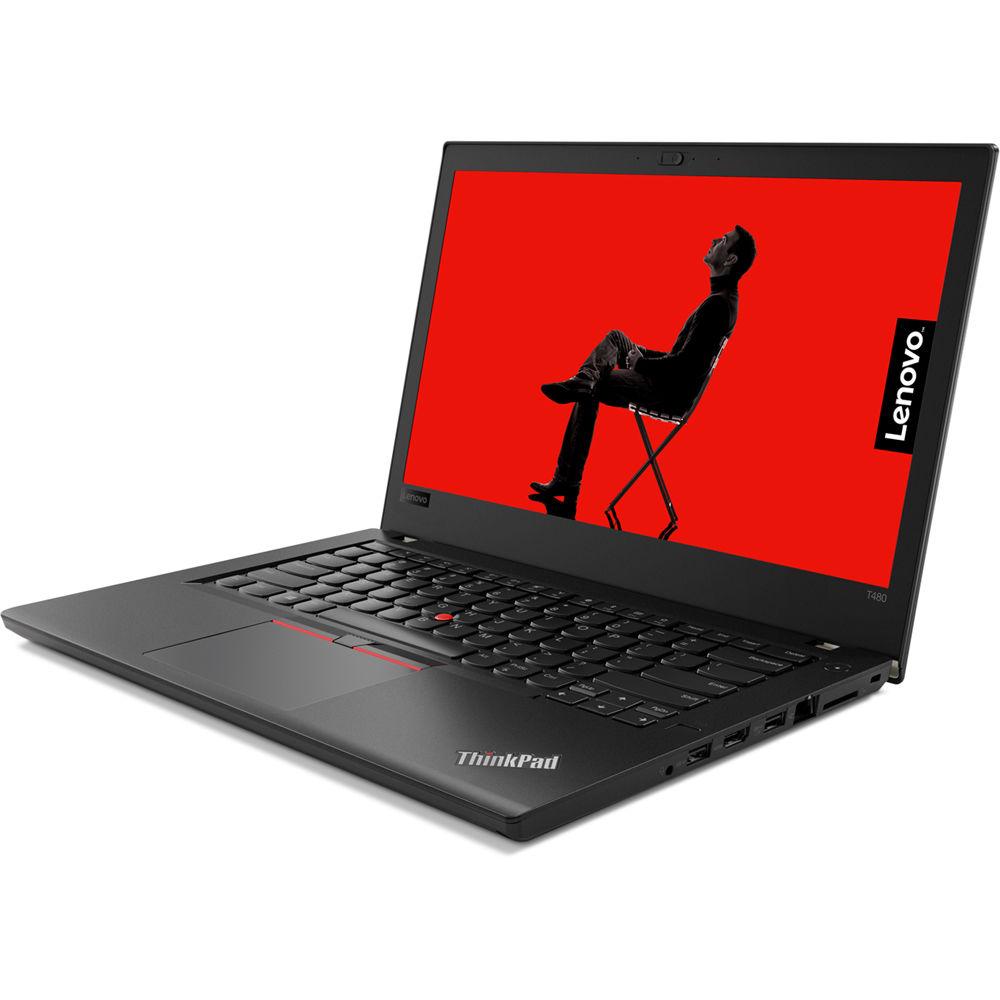

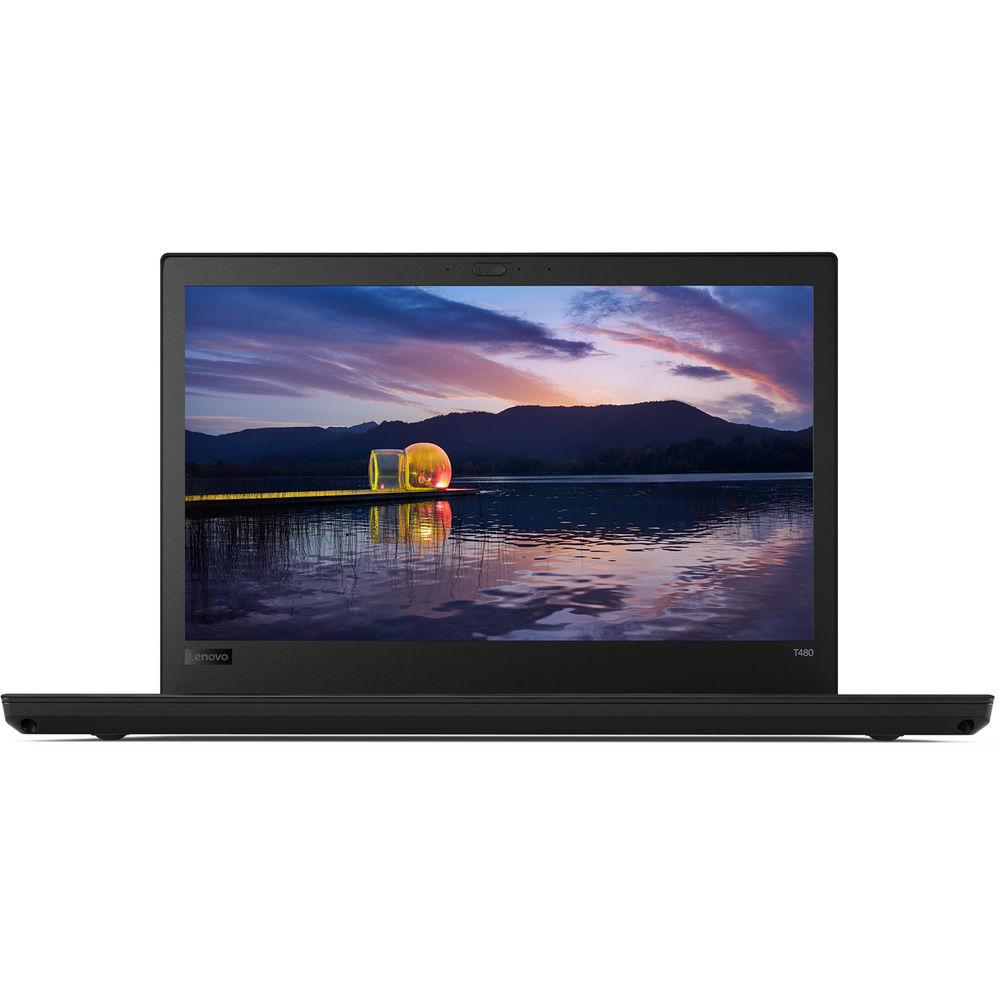

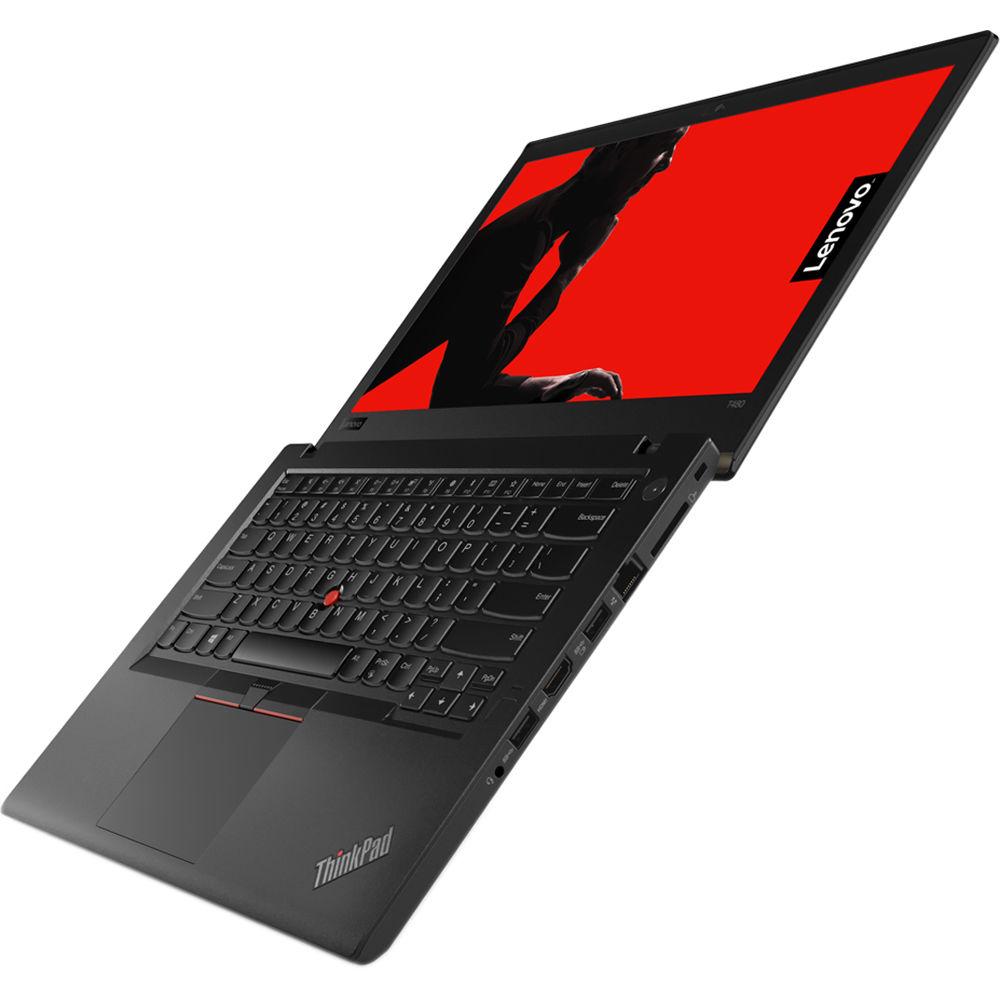

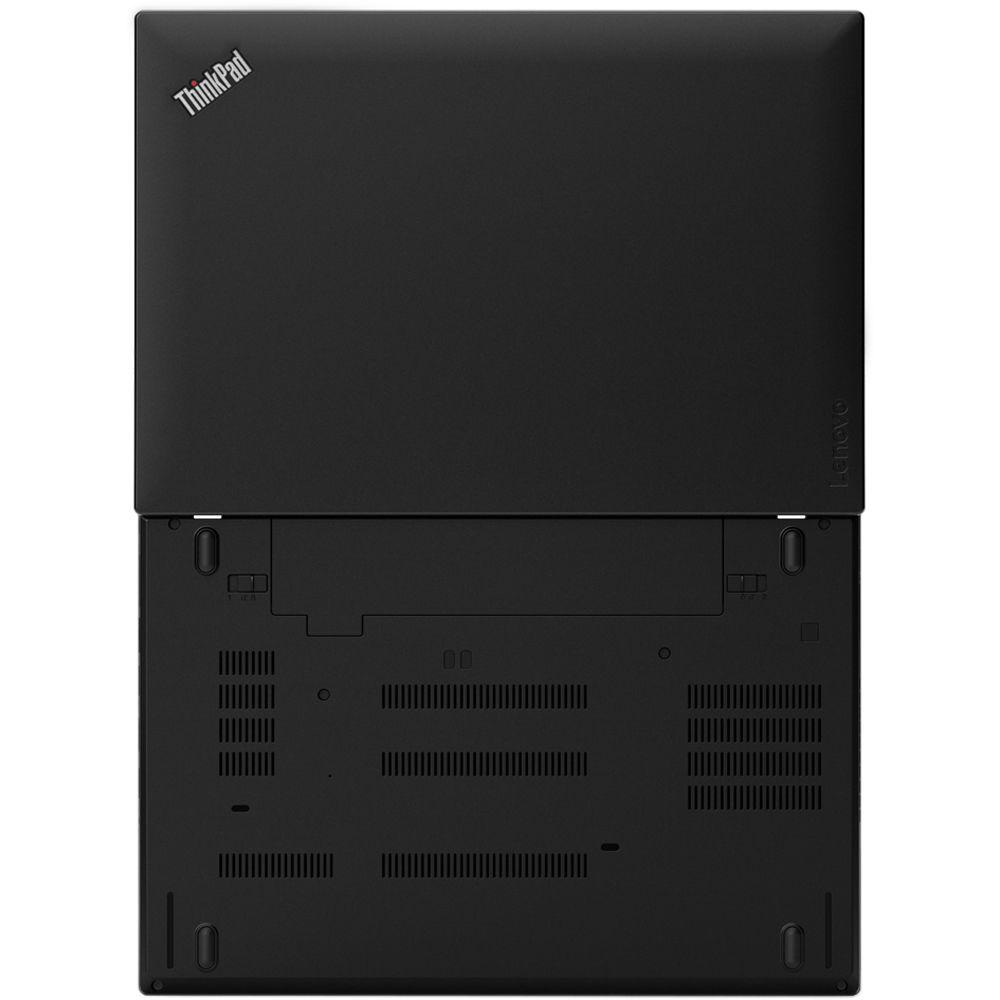

Product description Work Laptopscqaytfduvrfrd The 14" ThinkPad T480 Multi-Touch Laptop from Lenovo is designed with the performance, security, and portability for business users. To keep up with your day-to-day tasks, it features a 24 Wh built-in battery and a 24 Wh removable battery. With this combination, you can swap out a battery when power is running low without having to turn off the system. Specs-wise, it's powered by a 1.7 GHz Intel Core i5-8350U quad-core processor, 8GB of DDR4 RAM, and a 256GB M.2 PCIe NVMe SSD. Should you need more space, you can install an additional drive as well as attach external storage solutions using its multiple USB ports.
Its 14" display, driven by integrated Intel UHD graphics, features a 1920 x 1080 resolution for crisp and clear HD playback. Moreover, it supports touch inputs and gestures, which you can utilize in Windows 10 to enhance its efficiency and accessibility. It also has HDMI and Thunderbolt 3 outputs that you can use to connect external displays for larger viewing and enhanced multitasking. Other integrated features include 802.11ac Wi-Fi, Gigabit Ethernet, Bluetooth 4.1, a 720p webcam, a microphone, speakers, a fingerprint reader, and an audio in/out jack. The operating system installed is Windows 10 Pro. - Power Bridge Technology
- The ThinkPad T480 features Power Bridge technology, which utilizes a 23 Wh built-in battery in combination with a 23 Wh external battery. This allows you to swap out a battery and replace it with a fully charged one without having to turn your machine off.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Security
- The ThinkPad T480 is equipped with a webcam, a fingerprint reader, and TPM security. With Windows Hello, you can easily log into your system with just a glance or a tap of your finger, even if you forgot your password. Meanwhile, the Kensington lock slot and TPM security keeps your device and data protected.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana, can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Laptop, Cortana keeps track of your needs and wants, and she learns over time to improve her information-gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192330090926 In the Box Lenovo 14" ThinkPad T480 Multi-Touch Laptop Power Cable & Adapter Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 14" ThinkPad T480 Multi-Touch Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo T480 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 1.7 GHz Intel Core i5-8350U Quad-Core | | Maximum Boost Speed | 3.6 GHz | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 620 | | | | Panel Type | IPS | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | Yes | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 170 x 170° | | | | 2.5" Slots | 1 x Height Unspecified (Available) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort)
1 x USB 3.1 Gen 1 | | Display | 1 x HDMI 1.4 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | Yes | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC/MMCplus Hybrid | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.1 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 24 Wh Removable
24 Wh Non-Removable | | Maximum Runtime | 14.4 Hours | | | | Keyboard | Notebook Keyboard with Backlight | | Pointing Device | TouchPad, Pointing Stick | | | | Security | HDD User Password Protection, Power-On Password, Kensington Lock Slot, Infineon TPM Software Professional Package, Fingerprint Reader | | Power Supply | 65 W | | Dimensions | 13.3 x 9.2 x 0.8" / 336.6 x 232.5 x 19.9 mm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 18.5 x 12.0 x 3.2" |
