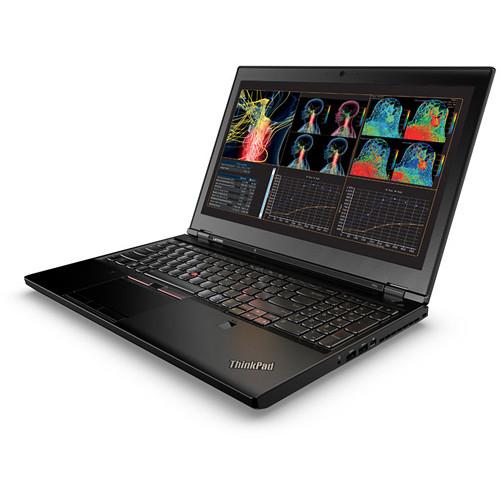

User Manual for Lenovo 15.6" ThinkPad P51 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo 15.6" ThinkPad P51 Mobile Workstation
- Product category: Notebooks Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Notebooks
 |
User manual for the Lenovo 15.6" ThinkPad P51 Mobile Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

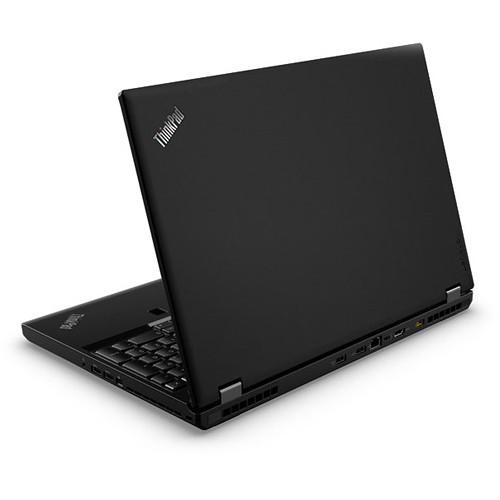

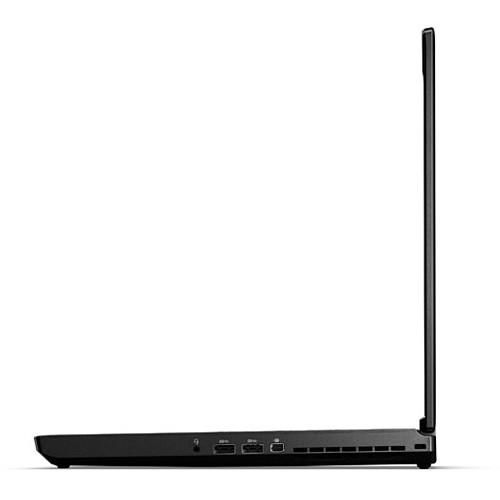

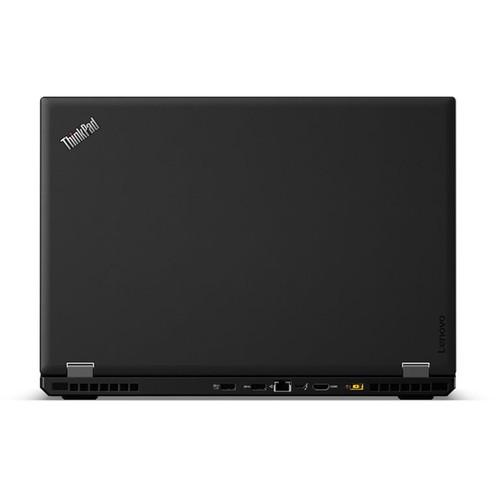

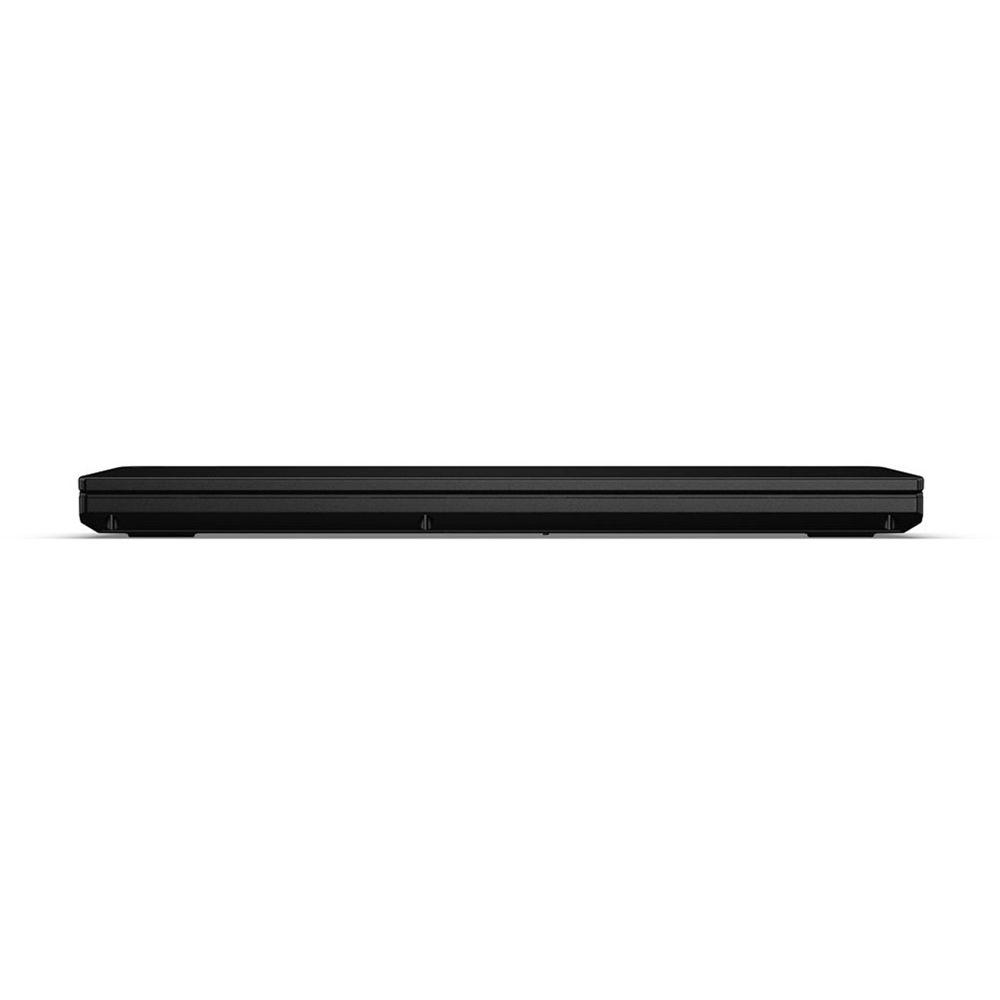

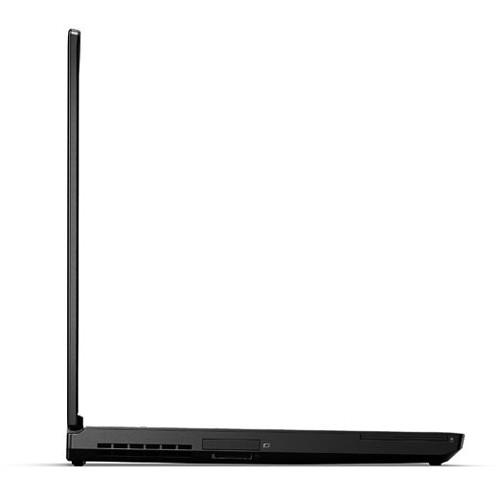

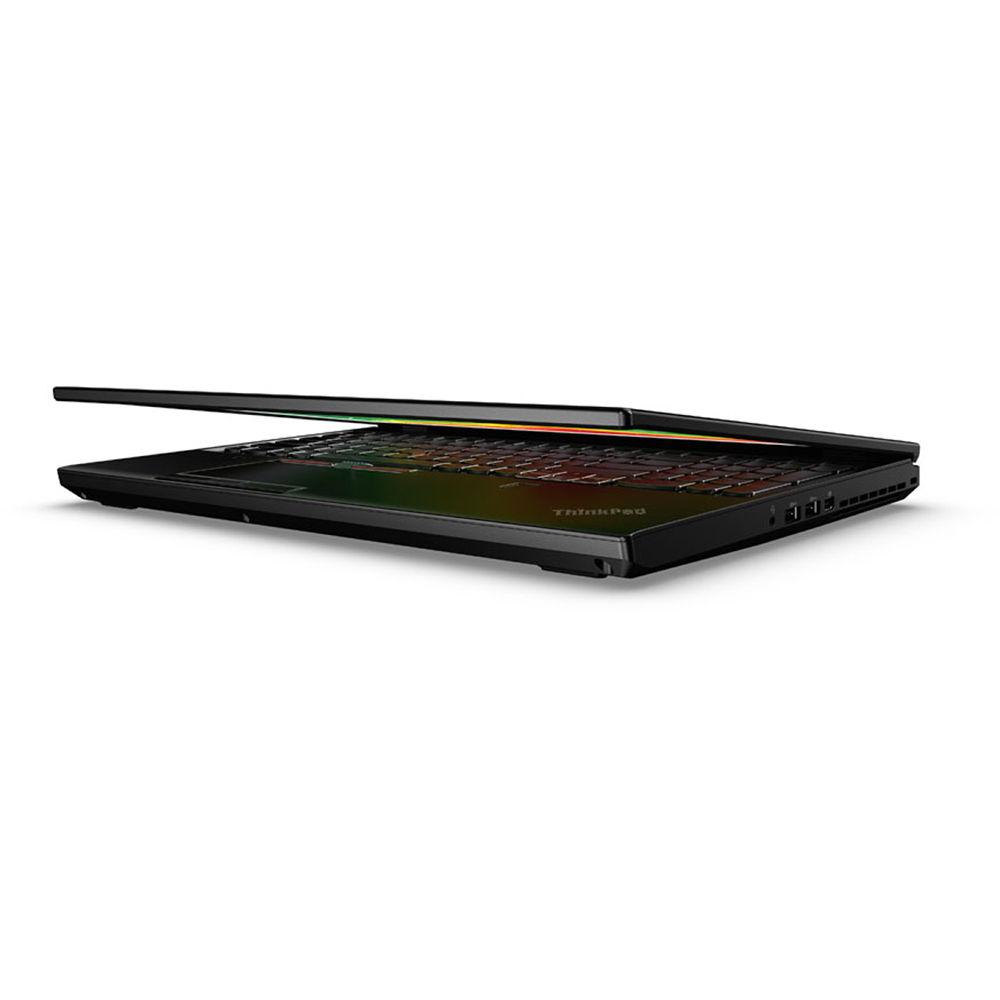

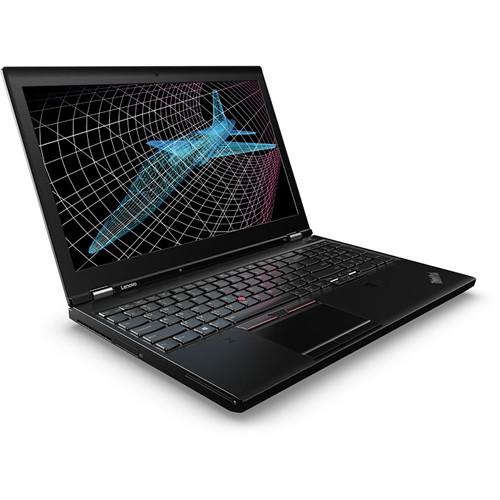

Product description Thin at 0.96" and weighing 5.9 lb, the 15.6" ThinkPad P51 Mobile Workstation from Lenovo has been designed as a go-to PC for getting jobs done. It is powered by a 3.0 GHz Intel Xeon E3-1505M v6 Quad-Core processor which allows you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.0 GHz using Intel Turbo Boost 2.0 technology. The 16GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs.

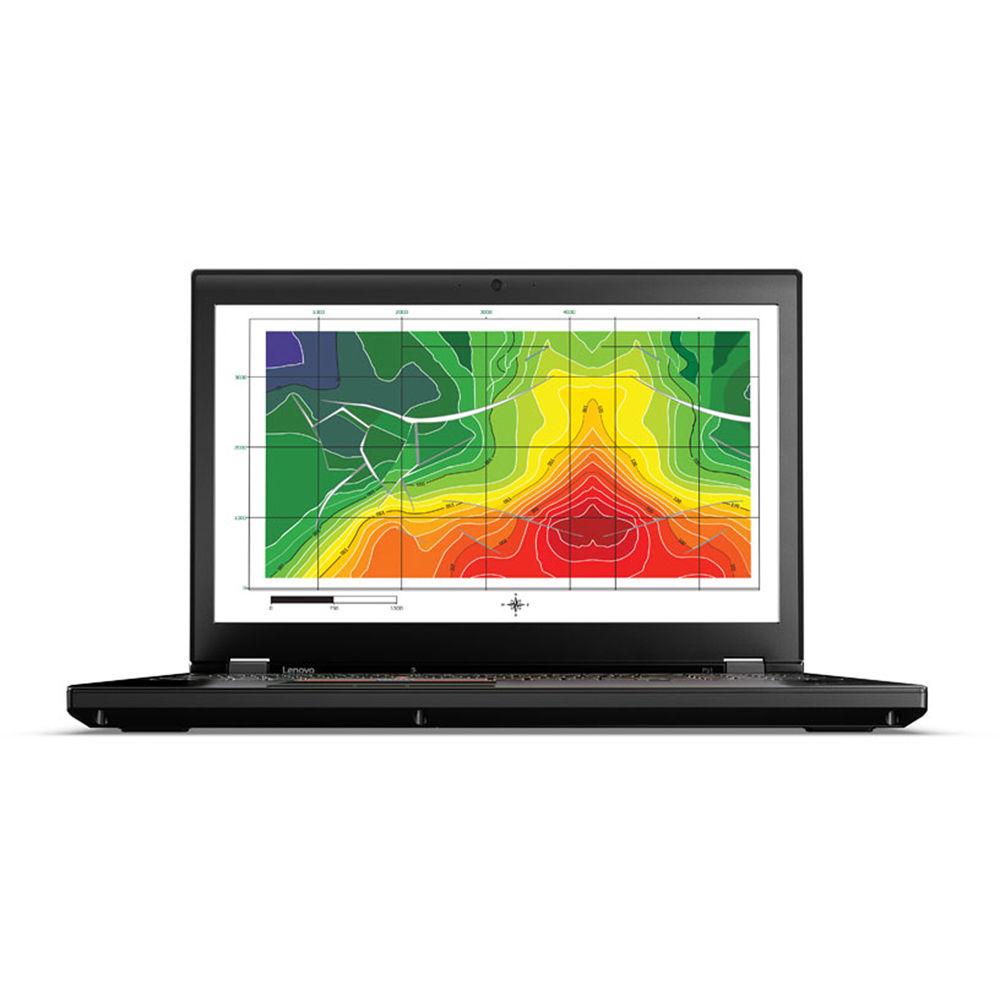

The 15.6" IPS display features a Full HD 1920 x 1080 screen resolution, an anti-glare finish, LED-backlighting, a 16:9 aspect ratio, a contrast ratio of 700:1, a brightness of 250 cd/m2, and viewing angles of 160°. The dedicated NVIDIA Quadro M2200M graphics card has 4GB of discrete GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display at resolutions up to 4096 x 2160 using the system's Mini DisplayPort 1.2a, HDMI 1.4b, and Thunderbolt 3 ports, the latter of which supports DisplayPort 1.2.
For long-term storage of your files, this ThinkPad P51 is equipped with a 512GB Opal2 NVMe PCIe M.2 SSD, which offers quick access to your data. If you'd like to expand your system's internal storage, there is one additional M.2 slot, which utilizes the PCIe 3.0 x4 bus to provide data transfer speeds of up to 32 Gb/s, as well as one 2.5" / 7mm SATA drive bay. While the SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as they don't have any read and write heads.

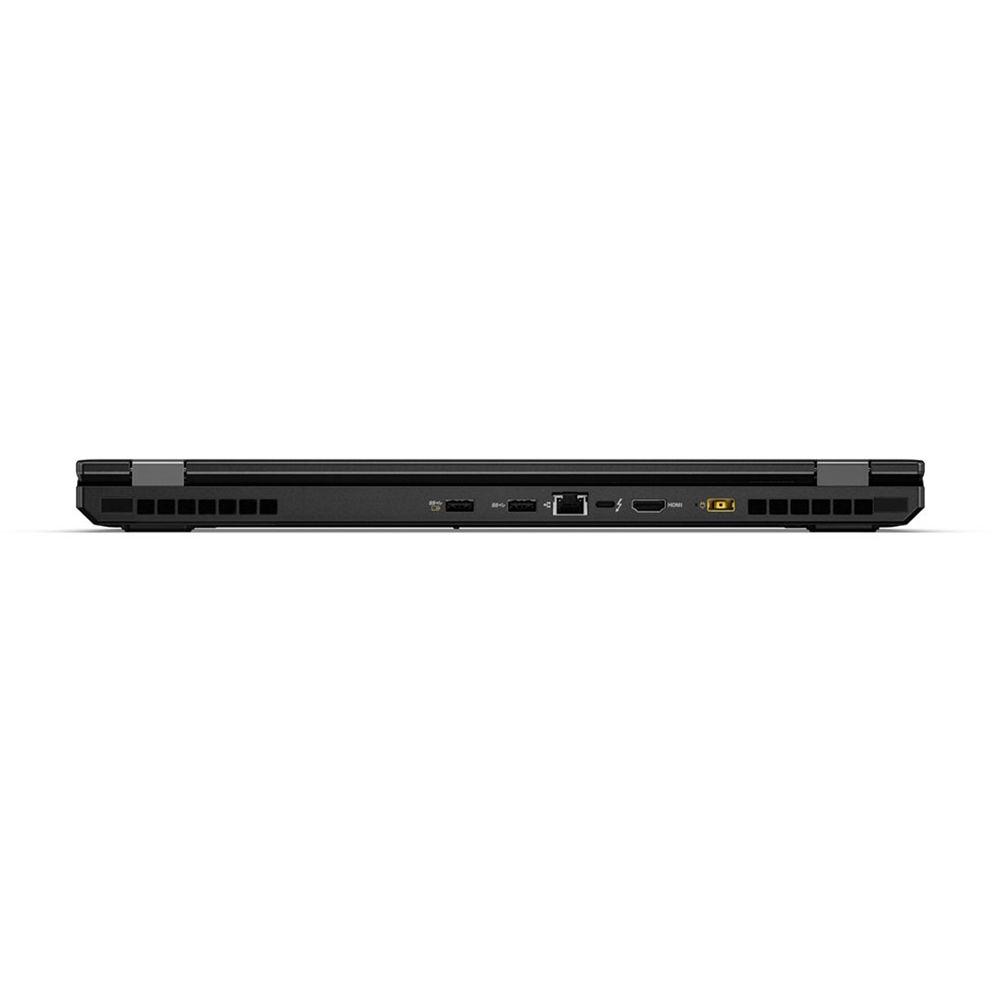

If you want to add external storage, optical drives, memory card readers, and more, the ThinkPad P51 offers one 40 Gb/s Thunderbolt 3 port that also supports 10 Gb/s USB 3.1 Type-C. There are also four 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac Wi-Fi are also built-in for wired and wireless networking, and Bluetooth 4.1 technology will also allow you to connect additional compatible peripherals. Memory cards may be accessed via a built-in SD/SDHC/SDXC/MMC card reader that supports UHS-II flash media. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with Dolby Home Theater audio.
The ThinkPad P51 Mobile Workstation includes a 170W AC adapter, a power cord, and a 6-cell / 90Wh lithium-polymer battery that lasts for up to 6.1 hours. The installed operating system is Windows 10 Professional (64-bit). General Features ThinkPad P51 Mobile Workstation - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum bi-directional throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to simultaneously connect two 4K displays or one 5K display. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Up to 64GB RAM
- The ThinkPad P51 supports up to 64GB of 2400 MHz DDR4 RAM when 16GB modules are used in each of the four 260-pin SO-DIMM slots. Both non-ECC and ECC memory is supported, although ECC memory requires a Xeon processor.
- Up to Four Simultaneous Displays
- The ThinkPad P51 supports up to four simultaneous displays. Using a DisplayPort via a Mini DisplayPort cable, a maximum resolution of 3840 x 2160 @ 60 Hz is supported. The Thunderbolt 3 port supports the same resolution, while the HDMI 1.4b port supports a maximum resolution of 4096 x 2160 @ 24 Hz.
- 4 x USB 3.0 Type-A Ports
- The four 5 Gb/s USB 3.0 Type-A ports can be used to add peripherals such as external storage, optical drives, printers, memory card readers, and more.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses a Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8260 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using wireless technology.
- Bluetooth 4.1
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.1 technology. While the Intel 8265ac card supports Bluetooth 4.2, Windows limits it to Bluetooth 4.1.
- Mobile Broadband (WWAN) Upgradable
- Mobile broadband functionality can be added using a Qualcomm Snapdragon X7 LTE-A (Sierra Wireless EM7455) card.
Windows 10 Professional (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 191376354092 In the Box Lenovo 15.6" ThinkPad P51 Mobile Workstation 170W AC Adapter Limited 1-Year Battery Warranty Limited 3-Year Depot Repair Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 15.6" ThinkPad P51 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo P51 Specs | | | Processor | Intel Xeon E3-1505M v6 Quad-Core | | Base Clock Speed | 3.0 GHz | | Maximum Boost Speed | 4.0 GHz | | Total Installed Memory | 16 GB | | Maximum Memory Capacity | 64 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2400 MHz | | Available Memory Slots | 2 | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M2200M with 4 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Viewing Angle (H x V) | 160 x 160° | | External Resolution | Up to 4096 x 2160 | | | | Available Slots | 1 x 2.5" (7 mm)
1 x M.2 | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 1 x Thunderbolt 3
4 x USB 3.1 Gen 1 Type-A
1 x Docking Connector | | Display | 1 x Mini DisplayPort 1.2
1 x HDMI 1.4 | | Audio | 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | 1 x ExpressCard/34 Slot | | Media Card Slots | SD/SDHC/SDXC
MMC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Modem | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.1 | | Mobile Broadband | None | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 90 Wh | | Cells | 6 | | Maximum Runtime | 6.1 Hours | | Power Supply | x 170 W | | | | Operating System | Windows 10 Pro (64-Bit) | | Security | HDD User Password Protection, Power-On Password, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Full-Size (Backlight, Numeric Keypad) | | Pointing Device | TouchPad & Pointing Stick | | Dimensions (W x H x D) | 14.9 x 1.0 x 10.0" / 378.5 x 25.4 x 254.0 mm | | Weight | 5.9 lb / 2.7 kg | | | | Package Weight | 8.85 lb | | Box Dimensions (LxWxH) | 19.3 x 13.4 x 3.8" |
