User Manual for Lenovo 21.5" ThinkCentre M820z Multi-Touch All-in-One Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo 21.5" ThinkCentre M820z Multi-Touch All-in-One
- Product category: All-In-One Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo All-In-One Desktop Computers
|
User manual for the Lenovo 21.5" ThinkCentre M820z Multi-Touch All-in-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

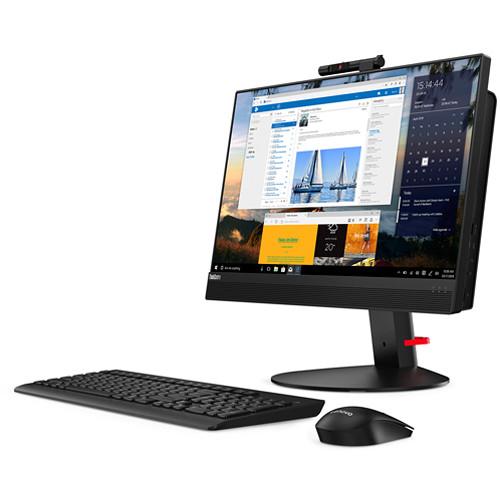

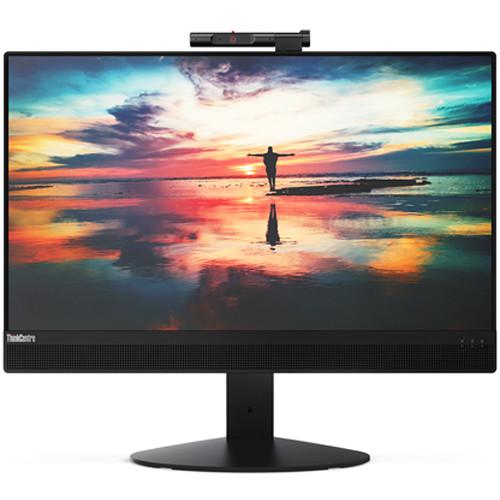

Product description 5 Essential Tips for Cleaning Your Gadgets Read More The ThinkCentre M820z Multi-Touch All-in-One Desktop Computer from Lenovo provides a system that can handle robust workloads thanks to its Intel Core i5-8400 processor and 8GB of DDR4 memory. For storage options, the ThinkCentre M820z AIO comes equipped with a 256GB Opal PCIe NVMe M.2 solid-state drive, DVD burner, and 3-in-1 card reader. In terms of graphics, Lenovo has armed this ThinkCentre M820z with a 21.5" MVA anti-glare display that has wide-viewing angles. The screen also features a crisp native resolution of 1920 x 1080, which is powered by an Intel UHD Graphics 630 chipset. When you want to extend your screen for work or entertainment, you can connect the ThinkCentre M820z to an optional monitor via its single DisplayPort. Moreover, this AIO system provides an interactive interface with its 10-point, multi-touch display, so you can scroll with ease or play your favorite games with a few taps.

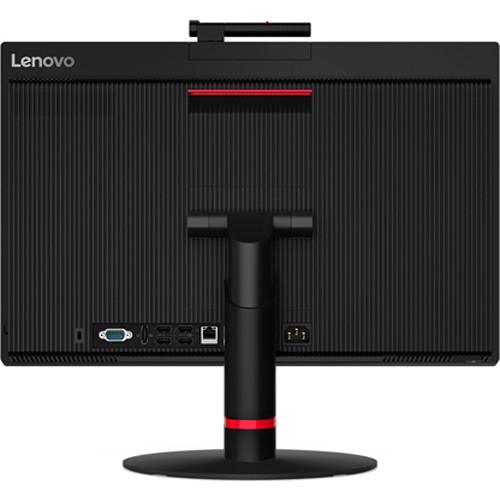

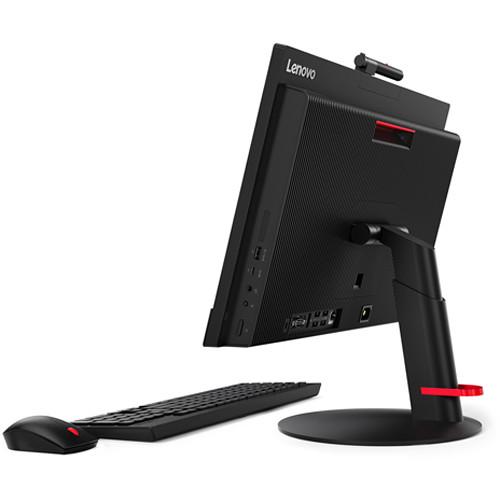

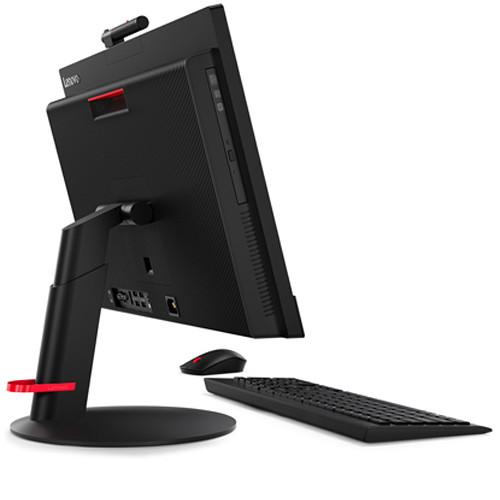

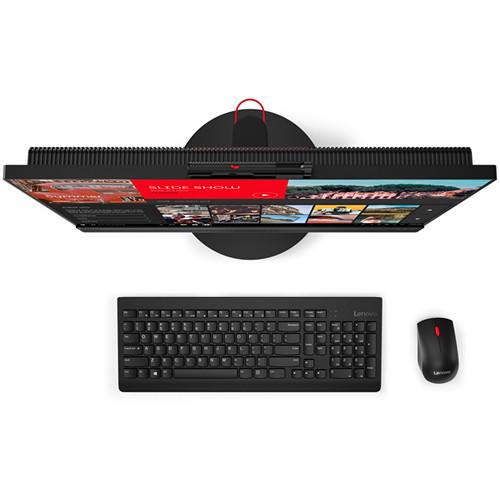

Another notable feature of the Lenovo ThinkCentre M820z AIO is that it houses a number of ports for your wired peripherals, which includes four USB 3.1 Gen 1 Type-A inputs on the system's rear along with a single USB 3.1 Gen 1 Type-C input at its side. For faster data transfer and always-on fast charging support, the ThinkCentre M820z AIO also has a USB 3.1 Gen 2 Type-A port, as well as a combo audio jack, and two M.2 card slots for WLAN and/or an optional Intel Optane-supported SSD. Included with the ThinkCentre M820z AIO computer are a wired keyboard and mouse, so you can start working right away. If you prefer to connect to your peripherals wirelessly, this AIO system is designed to support Bluetooth 4.2. The operating system that's preinstalled on the ThinkCentre M820z is Windows 10 Pro, which lets you fully utilize features like Cortana and Windows Continuum.

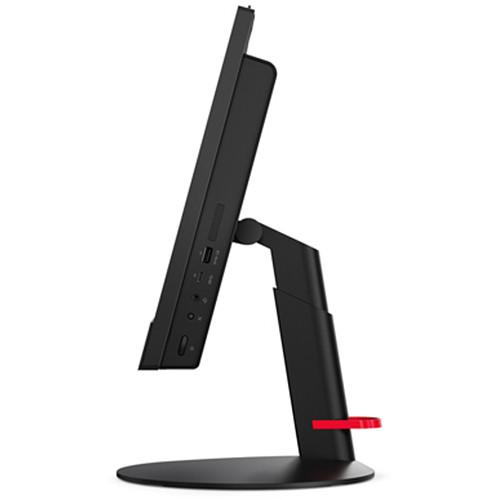

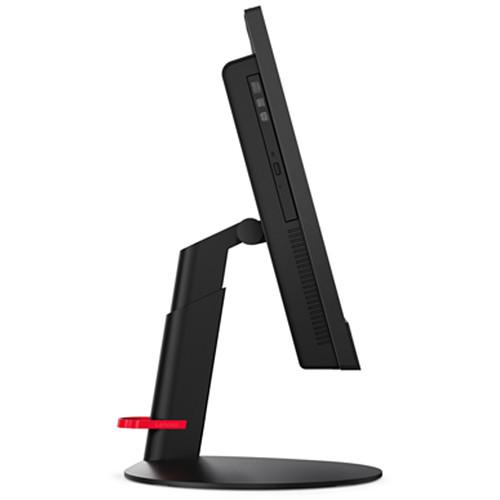

Accessing networks and the internet can be accomplished wirelessly or wired with 802.11ac Wi-Fi and Gigabit Ethernet on board. Once connected online, you can conduct face-to-face conversation by utilizing the AIO's built-in 1080p webcam, microphone, and pair of 2W speakers. Furthermore, with a MIL-STD-810G certification, the ThinkCentre M820z is designed to function in less-than-desirable environments. Lenovo has outfitted this ThinkCentre M820z AIO computer with a versatile UltraFlex III stand that offers tilt adjustments of -5° (forward) and 45° (back), and swivel rotations between -45 and 45°. ThinkCentre M820z Features - Performance
- The Lenovo ThinkCentre M820z AIO is powered by an Intel Core i5-7400 processor that sports four cores, which feature a stock speed of 3.0 GHz and can achieve speeds of up to 3.5 GHz while running demanding apps. The 7th-generation processor also comes with 6MB of cache memory and supports Intel Optane Memory technology, allowing the system to deliver SSD-like performance by installing an optional Optane M.2 drive into the M.2 slot.
- Durability
- Put through a range of military-spec tests and over 200 reliability tests in everything from tropical climates to rough transportation conditions, the ThinkCentre AIO can virtually handle any environment.
- Security
- Smart USB Protection prevents data from being transferred from USB ports while still allowing you to connect peripheral devices so your data stays confidential. Additionally, you can lock the inbuilt privacy camera with the flick of a switch for privacy.
- USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- USB 3.1 Gen 2
- Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
- SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo 21.5" ThinkCentre M820z Multi-Touch All-in-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkCentre M820z Specs Operating System | Windows 10 Pro (64-Bit) | | Chipset | Intel B360 | CPU | 2.8 GHz Intel Core i5-8400 6-Core | Maximum Boost Speed | 4.0 GHz | L3 Cache | 9 MB | Memory Type | 2666 MHz DDR4 | Total Installed Memory | 8 GB | Memory Configuration | 1 x 8 GB (User-Replaceable) | Maximum Memory Capacity | 32 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | 1 | Buffered Memory | No | ECC Memory | No | Graphics Type | Integrated | GPU | Intel UHD Graphics 630 | | Panel Type | VA | Size | 21.5" | Aspect Ratio | 16:9 | Resolution | 1920 x 1080 | Touchscreen | Yes | Maximum Brightness | 250 cd/m2 | Viewing Angle (H x V) | 89 x 89° | | 2.5" Slots | 1 x Height Unspecified | SSD Slots | 1 x M.2 | Solid State Storage | 1 x 256 GB M.2 PCIe | PCI Expansion | None | Optical Drive | Tray-Load SuperDrive with Dual Layer Support | | Ports | 1 x USB Type-A (USB 3.1 Gen 2) 4 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 1 x USB 3.1 Gen 1 | Display | 1 x DisplayPort | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Built-In Speakers | 2 | Built-In Microphones | 1 | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 4.2 | Webcam | User-Facing | | Keyboard | Full-Size Keyboard with Number Pad | Pointing Device | USB Mouse | | Power Supply | 150 W | Mounting-Hole Pattern | 100 x 100 mm | Dimensions | 19.3 x 1.9 x 13.5" / 490.2 x 48.3 x 342.9 mm | Weight | 11.6 lb / 5.3 kg | | Package Weight | 24.7 lb | Box Dimensions (LxWxH) | 29.0 x 21.5 x 8.25" |
