User Manual for Lenovo 23.8" ThinkCentre M920z All-in-One Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo 23.8" ThinkCentre M920z All-in-One Desktop
- Product category: All-In-One Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo All-In-One Desktop Computers
 |
User manual for the Lenovo 23.8" ThinkCentre M920z All-in-One Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

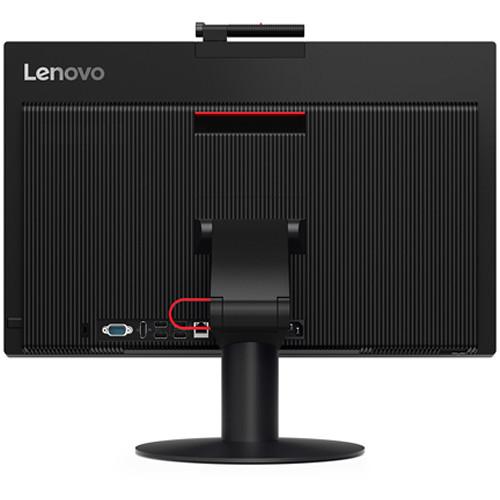

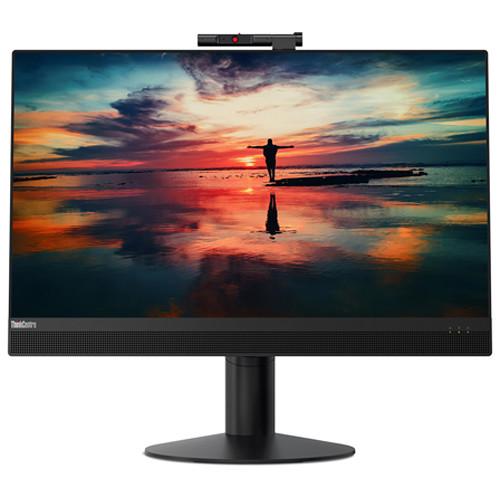

Product description 5 Essential Tips for Cleaning Your Gadgets Read More The ThinkCentre M920z All-in-One Desktop Computer from Lenovo is an efficient system that can handle robust workloads for all your computing needs. The system is powered by a 3.0 GHz Intel Core i5-8500 Six-Core processor, which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 4.1 GHz. The ThinkCentre M920z's 8GB of 2666 MHz DDR4 SDRAM memory helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 1 x 8GB, the RAM can be upgraded to 16GB. Additionally, the ThinkCentre M920z is equipped with a borderless 23.8" TFT anti-glare display, which delivers a resolution of 1920 x 1080, viewing angles of 178°, 250 cd/m2 brightness, a 16:9 aspect ratio, and 1000:1 contrast ratio.
For long-term storage of your files, a 1TB 7200 rpm SATA III 2.5" hard drive offers quick access to your data, and there is an empty M.2 slot for additional internal storage. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M920z features one USB 3.1 Gen 2 Type-A port (always on, fast charging), five USB 3.1 Gen 1 Type-A ports, (one supports Smart Power On), and one USB 3.1 Gen 1 Type-C port. In terms of visuals, the M920z uses the integrated Intel UHD Graphics 630 chipset to deliver a sharp, clear picture, while allowing for external displays to be used at resolutions up to 4096 x 2304 @ 60 Hz via its DisplayPort input/output combo interface. Whether you are listening to music, watching a movie, or playing a game, the dual integrated microphones and dual 3W speakers produce high fidelity. Other integrated features include Gigabit Ethernet, Wi-Fi 5 (802.11ac), Bluetooth 5.0, a SuperMulti DVD drive, an SD/SDHC/SDXC card reader, and a 1080p webcam that supports multi-degree rotation (0 to 180° horizontal, -25 to 25° vertical).

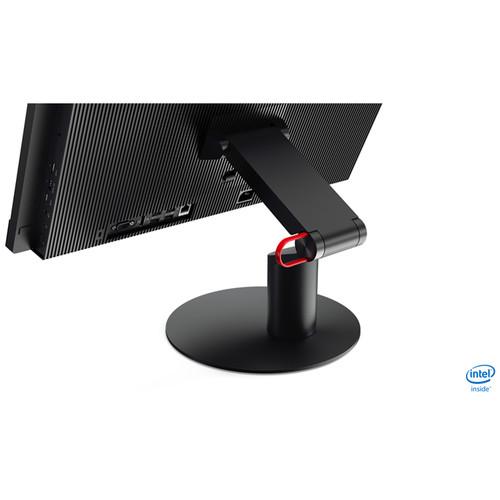

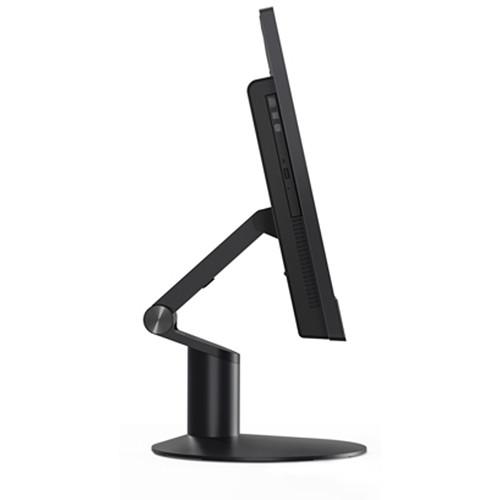

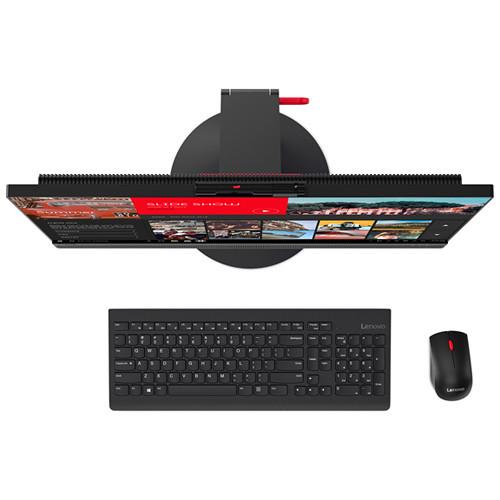

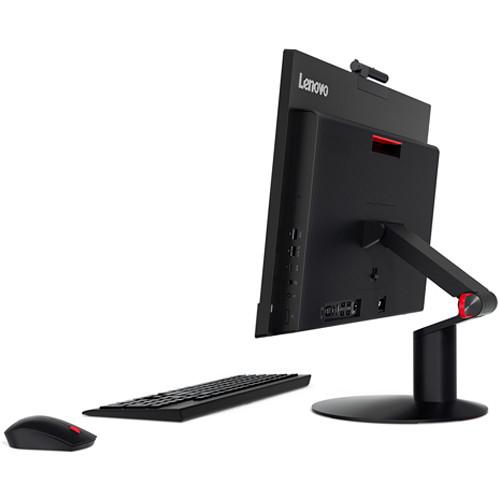

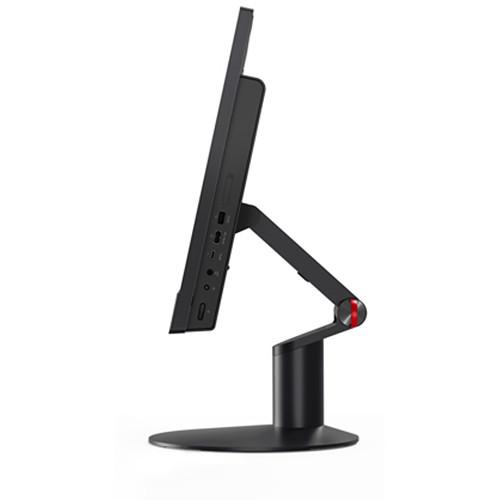

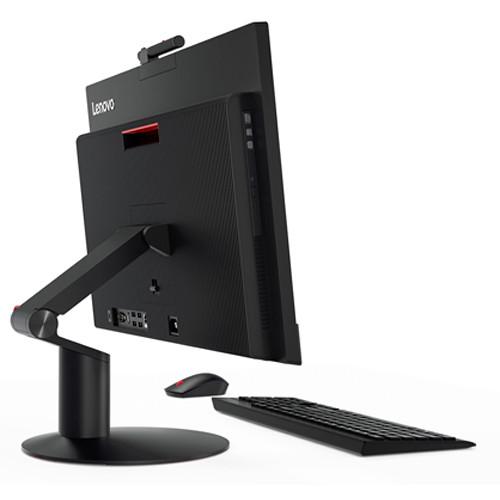

Lenovo's ThinkCentre M920z All-in-One Desktop Computer includes a USB keyboard, a USB mouse, and a 150W power adapter. Mount the M920z on a wall using the 100 x 100mm VESA mount, or place it on the included Ultra Flex III stand, which tilts -5 to 70°, swivels ±45°, and rises 5.36". The installed operating system is Windows 10 Pro (64-bit). General Features - USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- USB 3.1 Gen 2
- Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices. USB 3.1 Gen 2 is synonymous with USB 3.1.
- SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo 23.8" ThinkCentre M920z All-in-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkCentre M920z Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel Q370 | | CPU | 3 GHz Intel Core i5-8500 6-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | Panel Type | TFT | | Size | 23.8" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Viewing Angle (H x V) | 178 x 178° | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | 1 x 1 TB 2.5" SATA (7200 rpm) | | Optical Drive | Tray-Load SuperDrive with Dual Layer Support | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
5 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 5.0 | | Webcam | User-Facing | | | | Keyboard | Notebook Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 150 W | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions | 21.3 x 14.3 x 9.9" / 542 x 363 x 252 mm | | Weight | 19.2 lb / 8.7 kg | | | | Package Weight | 27.075 lb | | Box Dimensions (LxWxH) | 31.0 x 21.6 x 8.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
