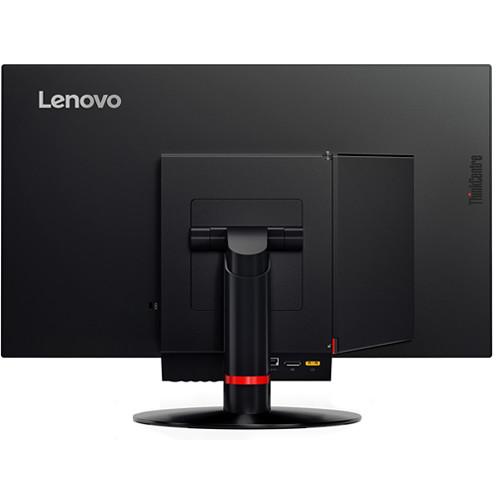

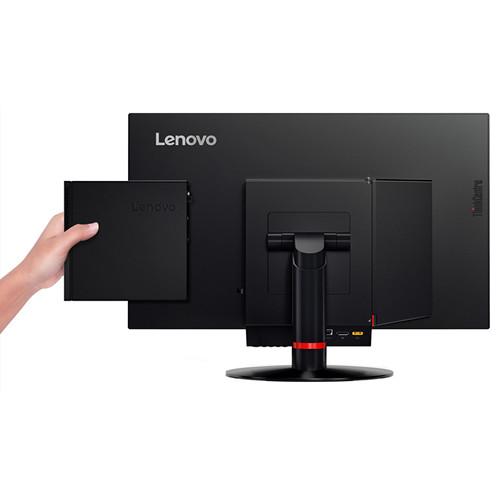

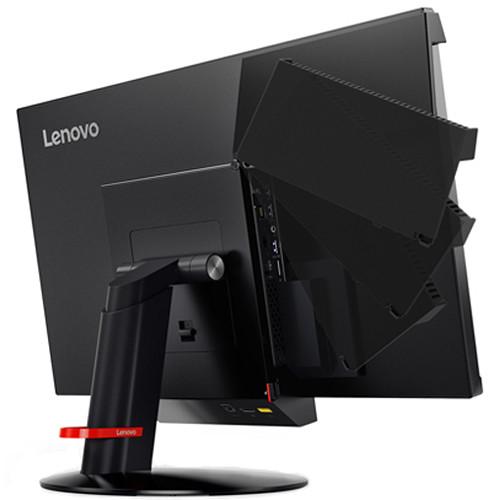

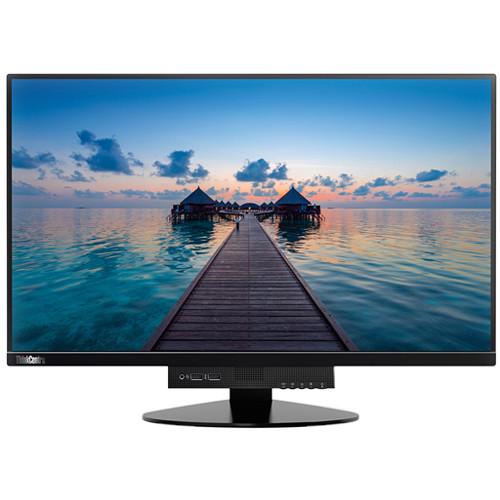

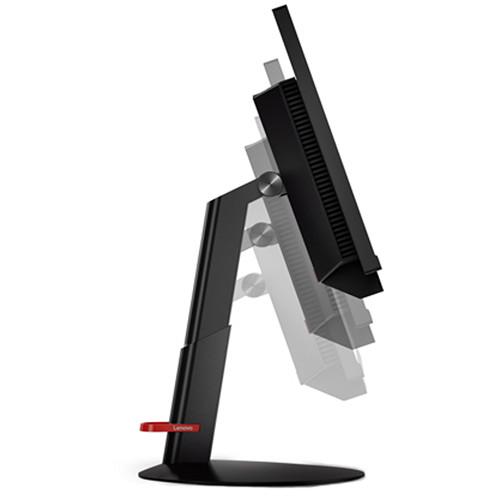

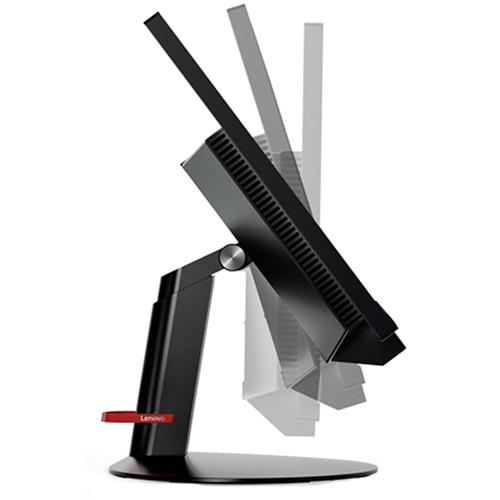

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More deddrsstuxxcsudbfqaarbrzrrvesqzesu Combine your computer and your display for an all-in-one solution with the 23.8" ThinkCentre Tiny-In-One 24 Display from Lenovo. It's made to house a Tiny PC, which can be replaced when needed, so you can upgrade your system and display separately. Built with an In-Plane Switching (IPS) panel, this display provides you with wide 178° viewing angles and vivid colors. With a 250 cd/m² brightness rating and a 1000:1 static contrast ratio, it delivers bright colors and dark blacks. It features a built-in USB hub, an audio jack, and a speaker. After setting it up, tilt, swivel, and adjust its height to your preferred viewing position. - Compatible with second-generation Tiny (M93p, M83, M73, and M53), third-generation Tiny (M900, M700, and M600), and ThinkCentre Thin Clients (M73, M53, and M32, M700, and M600)
UPC: 190404554640 In the Box Lenovo 23.8" ThinkCentre Tiny-In-One 24 Display Stand & Base Power Cable & Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 23.8" ThinkCentre Tiny-In-One 24 Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo 10LLPAR6US Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Pixels Per Inch (ppi) | 92.6 ppi | | Contrast Ratio | 1000:1 | | Adaptive Sync Technology | None | | Response Time | 7 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | | | Connectivity | 3 x USB Type-A (USB 3.1 Gen 1)
1 x DisplayPort Input | | Built-In Speakers | Yes, 1 x 1.5 W | | | | Power Consumption | 35 W (Maximum)
16.7 W (Typical) | | Power Supply | 90 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 8 to 80% | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, as per Manufacturer | | | | Height Adjustment | 4.3" / 10.9 cm | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 35° | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.2 x 19.5 x 9.9" / 54.0 x 46.0 x 25.1 cm | | Weight | 12.3 lb / 5.6 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 23.8 x 16.8 x 6.7" |
