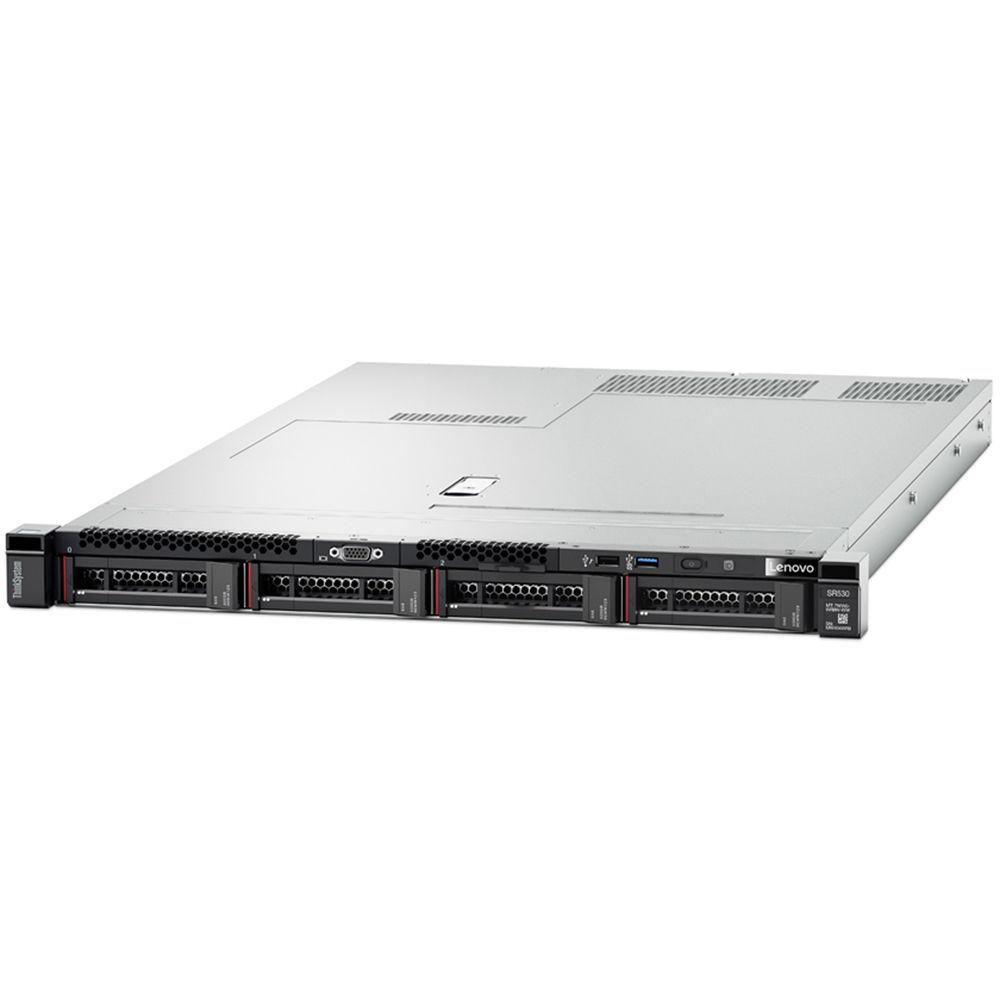

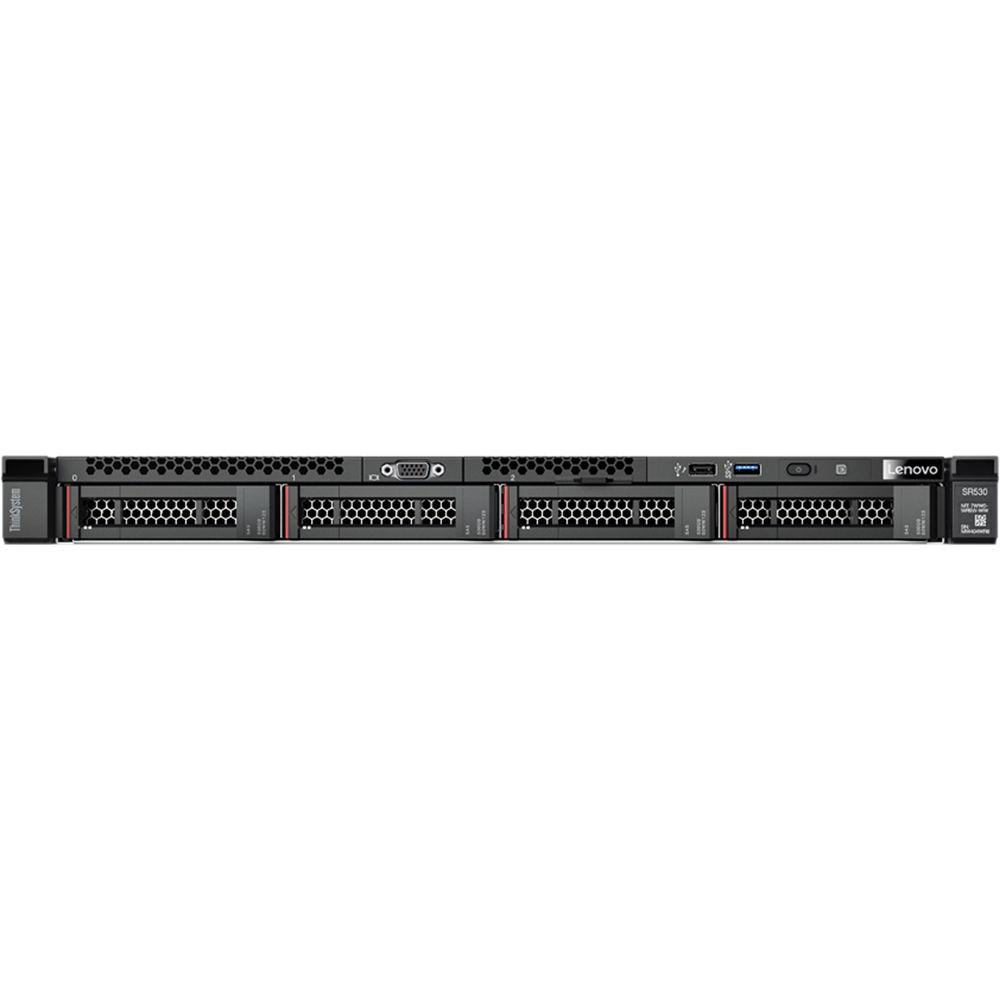

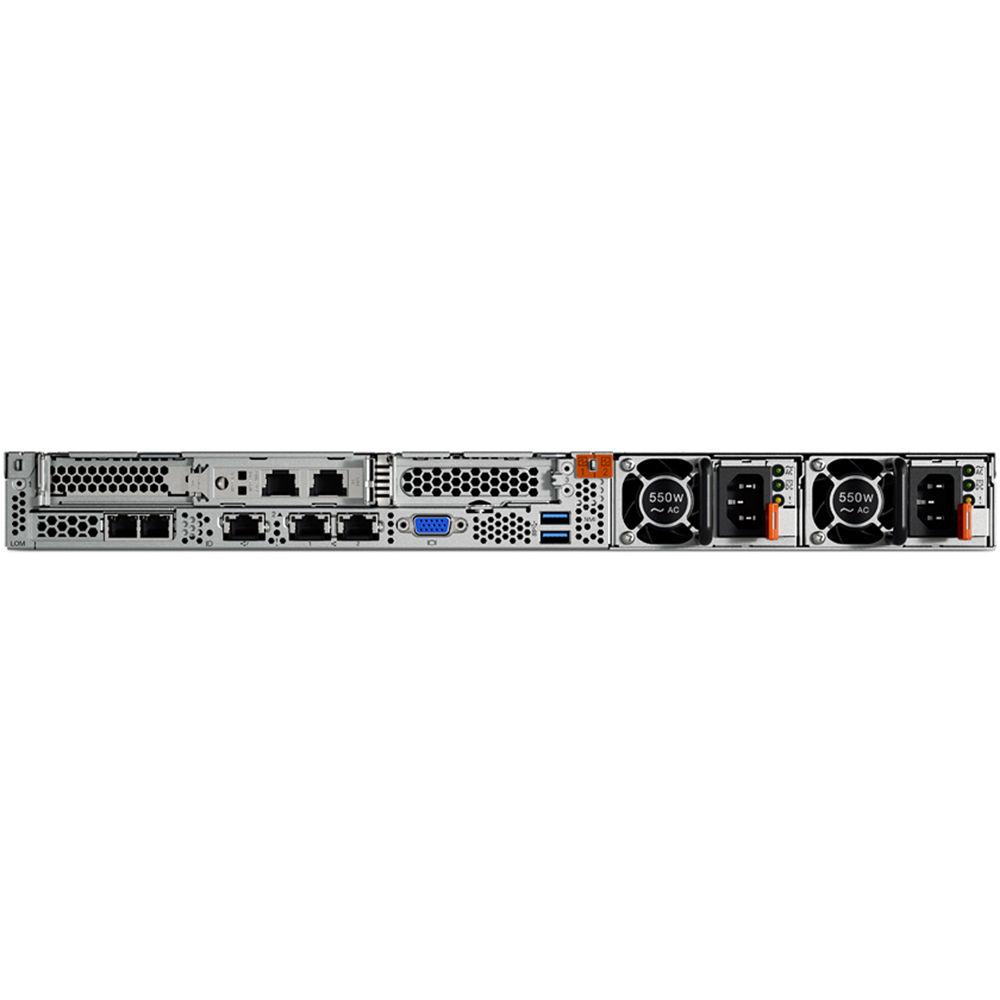

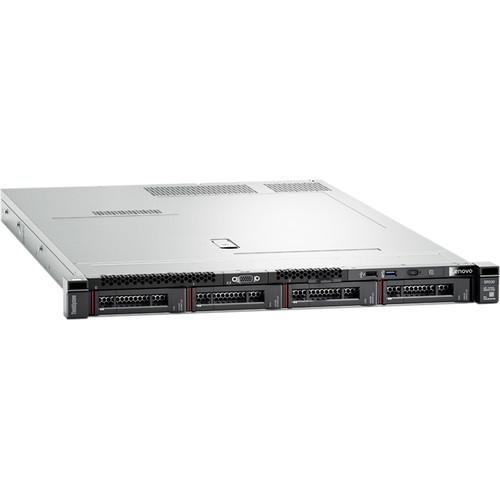

User Manual for Lenovo 7X08A04FNA ThinkSystem SR530 Server Click to enlarge the picture
Contents of the user manual for the Lenovo 7X08A04FNA ThinkSystem SR530 Server
- Product category: Server Systems Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Server Systems
 |
User manual for the Lenovo 7X08A04FNA ThinkSystem SR530 Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description Provided by third party: Lenovo ThinkSystem SR530 is an ideal rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business. ThinkSystem SR530 offers numerous features to increase performance and flexibility. SR530 offers a balance of performance, capacity and value.
- Key Features
-
- Essential and priced within reach
- Flexible to grow with your business
- Essential and priced within reach
- Lenovo ThinkSystem SR530 is an ideal rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
- Flexible to grow with your business
- ThinkSystem SR530 offers numerous features to increase performance and flexibility. SR530 offers a balance of performance, capacity and value.
UPC: 889488450534 In the Box Lenovo 7X08A04FNA ThinkSystem SR530 Server Lenovo ThinkSystem SR530 7X08 Tool-less rail kit 1 x power cable (C13-C14) Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo 7X08A04FNA ThinkSystem SR530 Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkSystem SR530 Specs | | | Type | Server | | Product Form Factor | Rack-mountable - 1U | | Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip | | Server Scalability | 2-way | | Hot-Swap Bays Qty | 4 | | Localization | Region: Canada, United States | | | | CPU | Intel Xeon Bronze 3106 / 1.7 GHz | | Max Turbo Speed | 1.7 GHz | | Number of Cores | 8-core | | CPU Qty | 1 | | Max CPU Qty | 2 | | Chipset Type | Intel C622 | | | | Installed Size | 11 MB | | Cache Per Processor | 11 MB | | | | Installed Size | 16 GB / 384 GB (max) | | Technology | DDR4 SDRAM - ECC | | Effective Memory Speed | 2133 MHz | | Rated Memory Speed | 2666 MHz | | Form Factor | DIMM 288-pin | | Slots | 12 (total) / 11 (empty) | | Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, Patrol Scrubbing, Demand Scrubbing | | Configuration Features | 1 x 16 GB | | RAM Supported | 384 GB registered - ECC
768 GB Load-Reduced - ECC | | | | Type | 1 x RAID - PCIe 3.0 x8 | | Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s | | Storage Controller Name | ThinkSystem RAID 530-8i | | Channel Qty | 8 | | RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 | | | | Graphics Processor | Matrox G200 | | Video Memory | 16 MB | | Video Interfaces | VGA | | | | Ethernet Ports | 2 x Gigabit Ethernet | | Data Link Protocol | Gigabit Ethernet | | Remote Management Controller | XClarity Controller (XCC) Enterprise | | | | Bays | 4 (total) / 4 (free) x hot-swap 3.5" | | Slots | 12 (total) / 11 (free) x DIMM 288-pin
2 (total) / 1 (free) x CPU
1 (total) / 1 (free) x LAN-on-Motherboard (LOM)
1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (2 processors must be installed)
1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile | | Interfaces | 3 x USB 3.0 (1 front, 2 rear)
1 x USB 2.0 (1 in front)
2 x VGA (1 front, 1 rear)
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45 | | | | Included Accessories | Tool-less rail kit | | Cables Included | Power cable (C13-C14) | | Compliant Standards | TUV GS, CISPR 22 Class A, CB, ICES-003 Class A, RoHS, FCC Part 15 A, GB 17625.1, GB 9254 Class A, VCCI Class A, KN24, KN22 Class A, NMB-3 Class A, AS/NZS CISPR 22, GB 4943.1, GOST-R 51318.24, GOST-R 51317.3.2, GOST-R 51317.3.3, IEC60950-1, NOM-019, GOST-R 51318.22, UL/CSA60950-1, GOST ME01 | | Manufacturer Selling Program | TopSeller | | | | Device Type | Power supply - hot-plug | | Power Redundancy | Optional | | Power Redundancy Scheme | 1+1 (with optional power supply) | | Installed Qty | 1 | | Max Supported Qty | 2 | | Nominal Voltage | AC 120/230 V (50/60 Hz) | | Power Provided | 750 Watt | | 80 PLUS Certification | 80 PLUS Platinum | | | | OS Provided | No operating system | | | | ENERGY STAR Certified | Yes | | ENERGY STAR Version | 2.1 | | | | Service & Support | Limited warranty - 3 years - on-site - response time: next business day | | | | Width | 17.1 in | | Depth | 28.1 in | | Height | 1.7 in | | Weight | 22.49 lbs |
