User Manual for Lenovo M920T Tower Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo M920T Tower Desktop Computer
- Product category: Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Desktop Computers
 |
User manual for the Lenovo M920T Tower Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

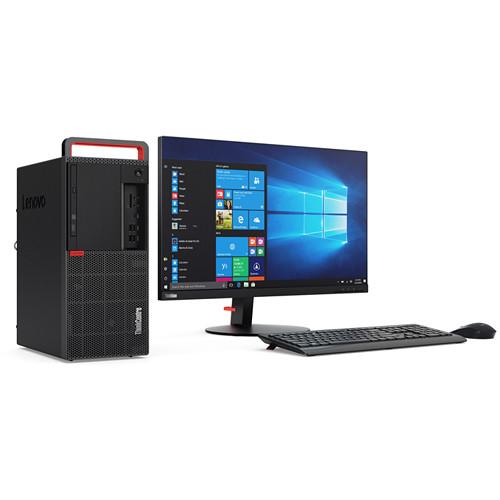

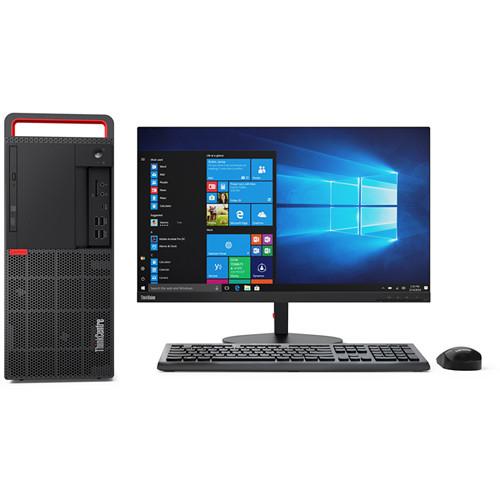

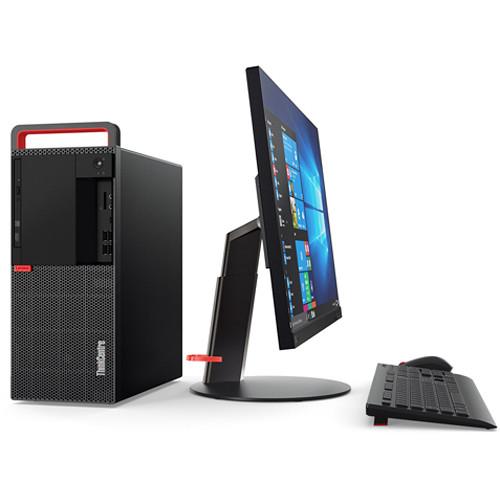

Product description The ThinkCentre M920T Tower Desktop Computer from Lenovo is an efficient system that can handle robust workloads for all your computing needs. The system is powered by a 3.0 GHz Intel Core i5-8500 six-core processor, which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 4.1 GHz. The ThinkCentre M920T's 8GB of 2666 MHz DDR4 SDRAM memory helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 1 x 8GB, the RAM can be upgraded to 64GB.
For long-term storage of your files, a 1TB 7200 rpm hard drive offers quick access to your data, and there is an empty 3.5" drive bay along with an M.2 slot for additional internal storage, plus an additional M.2 slot for Wi-Fi. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M920T Tower features a single USB 3.1 Gen 1 Type-C port, six USB 3.1 Gen 1 Type-A ports, and two USB 3.1 Gen 2 Type-A ports. In terms of visuals, the M920T Tower has an integrated Intel UHD Graphics 630 chipset that delivers a sharp, clear picture while allowing for three simultaneous displays to be used via its DisplayPort and VGA video outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated microphone and speakers produce high fidelity.
Lenovo's ThinkCentre M920T Tower Desktop Computer includes a USB keyboard, a USB mouse, and a 250W power adapter. The installed operating system is Windows 10 Pro (64-bit). The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications. - USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- USB 3.1 Gen 2
- Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
- SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo M920T Tower Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo M920T Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 3 GHz Intel Core i5-8500 6-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Available Memory Slots | 1 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | Total Drive Bays | 2 x 3.5" (Internal) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe Gen 3 x16
1 x PCIe Gen 3 x4 (x16 Mechanical)
1 x PCIe Gen 3 x1 | | Optical Drive | Tray-Load SuperDrive with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x VGA
2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 1 | | Built-In Microphones | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 250 W | | Dimensions | 12.7 x 6.5 x 16.2" / 321.4 x 165 x 410.3 mm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 21.6 lb | | Box Dimensions (LxWxH) | 21.25 x 15.5 x 10.75" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
