Lenovo P Series ThinkStation P410 Workstation

Search your instruction manual in PDF to download

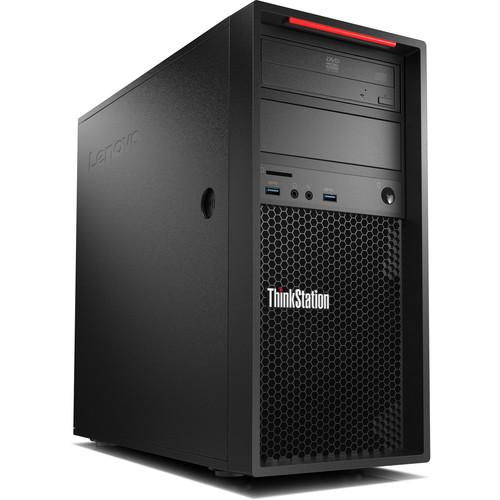

User Manual for Lenovo P Series ThinkStation P410 Workstation with Xeon E5-1620 v4 Processor

Click to enlarge the picture
Lenovo P Series ThinkStation P410 Workstation with Xeon E5-1620 v4 Processor Contents of the user manual for the Lenovo P Series ThinkStation P410 Workstation
  • Product category: PC Workstations Lenovo
  • Brand: Lenovo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lenovo PC Workstations

User manual for the Lenovo P Series ThinkStation P410 Workstation contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lenovo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!



Product description

The P Series ThinkStation P410 Workstation from Lenovo is powered by a Xeon E5-1620 v4 quad-core processor that operates on 3.5 GHz frequency. If you need more power, the CPU can deliver extra performance by increasing the clock speed up to 3.8 GHz utilizing Intel's Turbo Boost technology. To run multiple applications simultaneously, the workstation comes equipped with 8GB of 2400 MHz DDR4 ECC RAM with 288-pin RDIMM form factor.For long-term storage of your files, this P Series ThinkStation P410 Workstation is equipped with a 1TB 7200 rpm SATA III 3.5" hard drive. If you want to add external storage drives or other peripherals, the P410 features six USB 3.0 ports, two USB 2.0 ports, and two PS/2 ports. For users who wish to add additional components to the system, there are two internal 3.5", two 5.25" external, and two flex drive bays. The workstation also comes with an onboard RAID 0, 1, 5, 10 controller.
  • 10MB cache
  • Intel C612 Platform Controller Hub (PCH)
  • Integrated 9-in-1 media card reader
  • Intel Active Management Technology 9
  • Integrated one Gigabit Ethernet (Intel i218LM) with support for Wake-on-LAN
  • Realtek ALC662 audio codec
  • TCG 1.2-compliant
  • 450W, 92% efficiency power supply
  • Onboard RAID controller
  • DVD±RW optical drive
  • Windows 10 OS with Windows 7 Pro 64-bit downgrade license
  • RoHS compliant
  • GREENGUARD certified
  • ErP Lot-6 2014
  • Suitable for engineering, architecture, finance, media and entertainment, simulation, game development, animation, and 3D CAD modeling applications
  • Pre-loaded Software: CyberLink PowerDVD, CyberLink Create, Lenovo Companion, Lenovo Solution Center, and Microsoft Office 2016 (trial)
  • 50 to 95°F operating and 14 to 140°F non-operating temperature range
  • 0 to 10,000' operating altitude
  • 10 to 80% operating non-condensing humidity
  • 10 to 90% operating non-condensing humidity
UPC: 190940498453 In the Box Lenovo P Series ThinkStation P410 Workstation with Xeon E5-1620 v4 Processor
  • USB Keyboard
  • USB Optical Mouse
  • Limited 3-Year Warranty
  • More from Manufacturer Table of Contents




    Upload User Manual

    Have you got an user manual for the Lenovo P Series ThinkStation P410 Workstation with Xeon E5-1620 v4 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lenovo P410 Specs

    Operating System Windows 10 Pro
    Chipset Intel C612
    CPU 3.5 GHz Intel Xeon E5-1620 v4 Quad-Core
    Maximum Boost Speed 3.8 GHz
    Memory Type 2400 MHz DDR4
    Total Installed Memory 8 GB
    Memory Configuration 1 x 8 GB (User-Replaceable)
    Maximum Memory Capacity 128 GB
    Available Memory Slots 3
    ECC Memory Yes
    Graphics Type None
    Total Drive Bays 2 x 3.5" (Internal)
    2 x 5.25" (External)
    Hard Disk Storage 1 x 1 TB 3.5" SATA (7200 rpm)
    PCI Expansion 2 x PCIe x16
    1 x PCIe x8
    1 x PCIe x4
    Optical Drive SuperMulti DVD Burner
    Ports 6 x USB Type-A (USB 3.1 Gen 1)
    2 x USB Type-A (USB 2.0)
    2 x PS/2
    Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
    1 x 1/8" / 3.5 mm Line Input
    1 x 1/8" / 3.5 mm Line Output
    2 x 1/8" / 3.5 mm Microphone Input
    Ethernet 1 x RJ45 (Gigabit)
    Keyboard Full-Size Keyboard with Number Pad
    Pointing Device USB Mouse
    Power Supply 450 W
    Dimensions 6.9 x 14.8 x 16.8" / 175.3 x 375.9 x 426.7 mm
    Weight 30.9 lb / 14 kg
