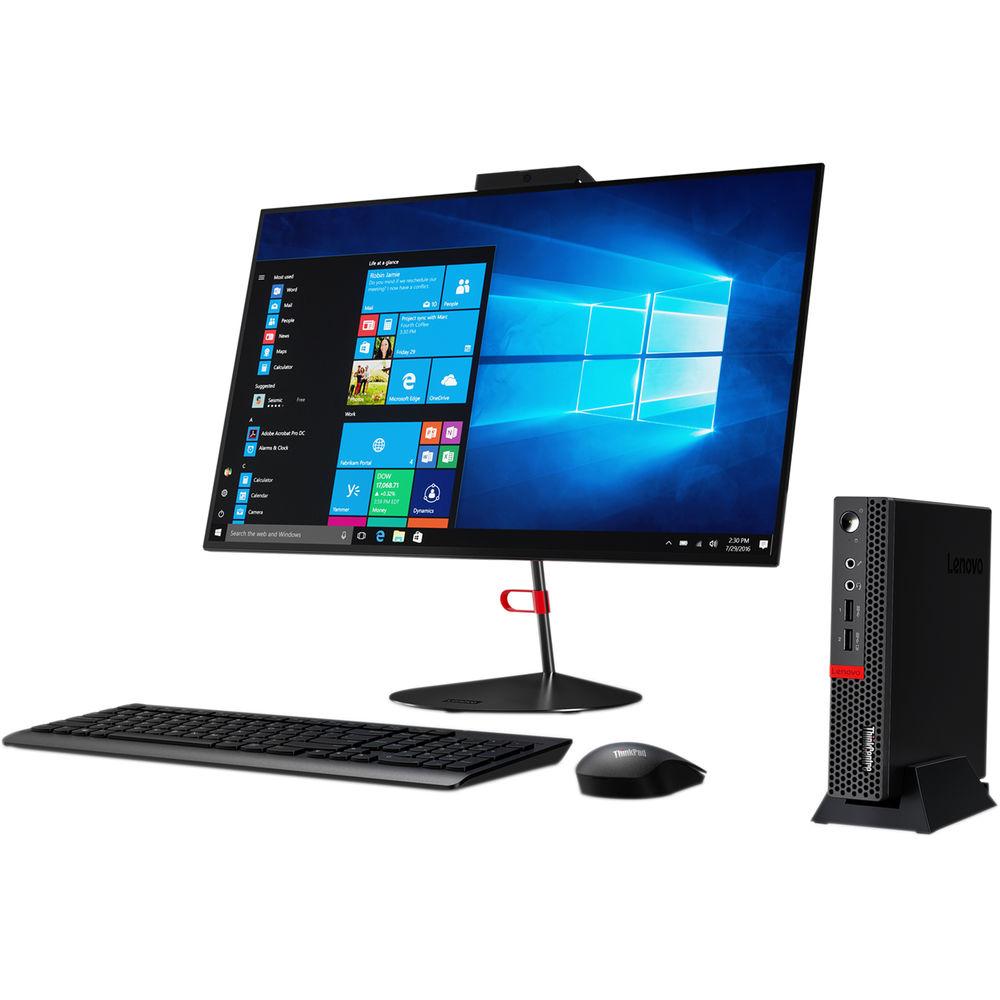

User Manual for Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M625q Tiny Thin Client
- Product category: Terminal & Thin Clients Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Terminal & Thin Clients
|
User manual for the Lenovo ThinkCentre M625q Tiny Thin Client contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

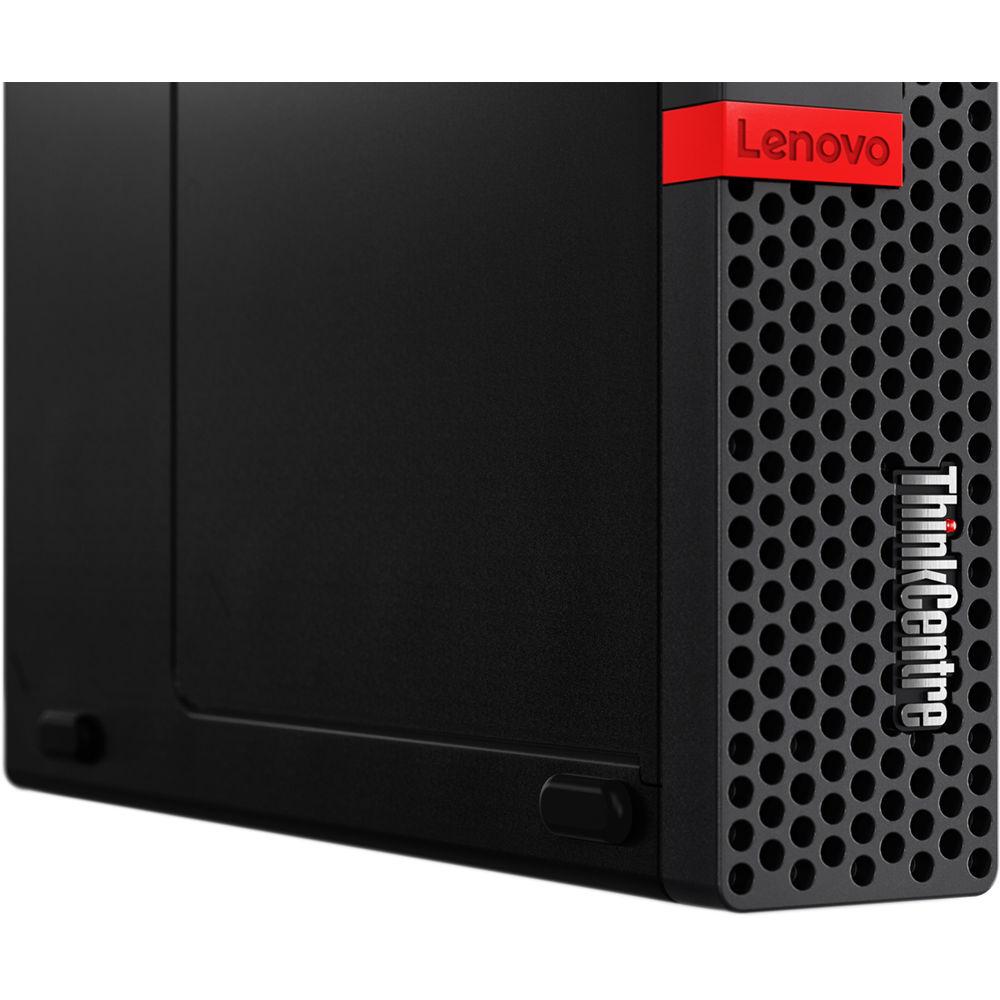

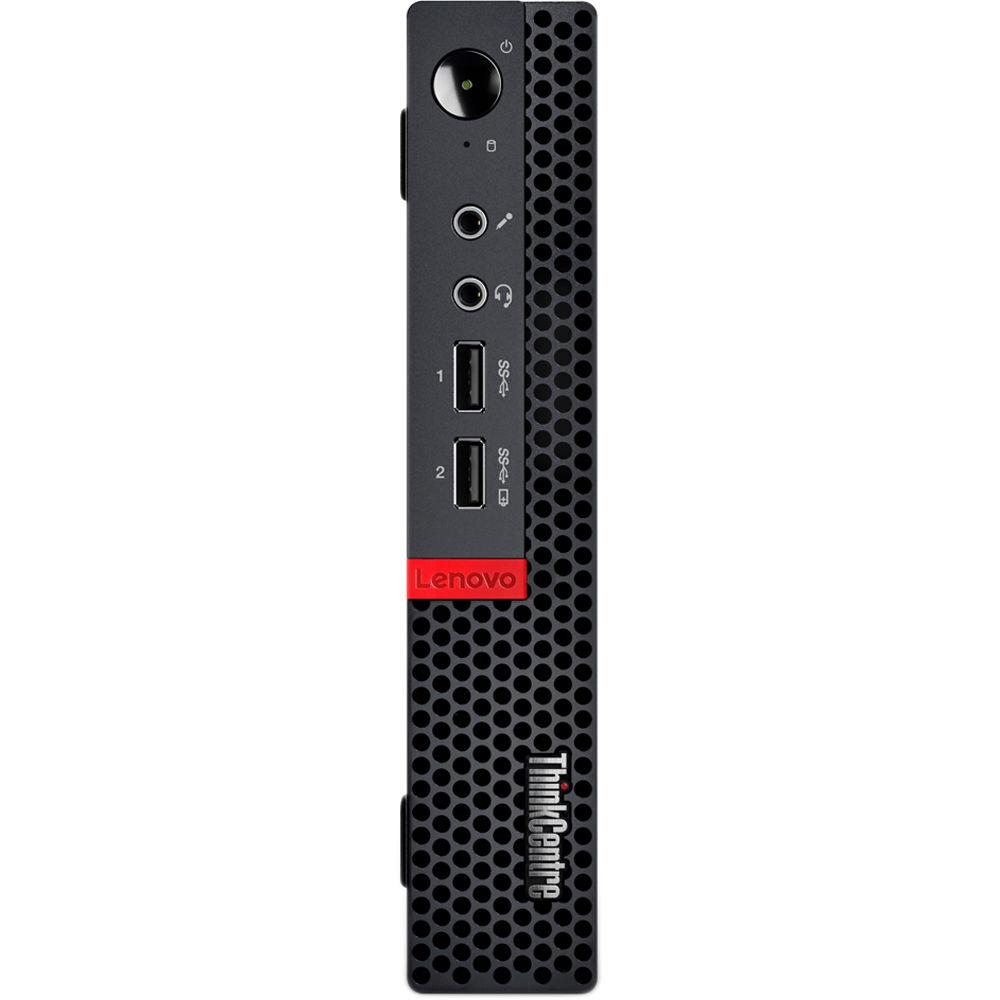

Product description The ThinkCentre M625q Tiny Thin Client Desktop Computer from Lenovo harnesses the full potential of your network servers to provide rendering performance for robust workloads. Utilizing a 1.5 GHz AMD Pro E2-9000E Dual-Core processor and 4GB of DDR4 memory, the M625q provides efficient processing and easy multitasking. Furthermore, the M625q houses a 32GB SSD for storing your files and handling the system's overall virtualized environment. In terms of graphics, the M625q has an integrated AMD Radeon R2 chipset that delivers crystal clear images.

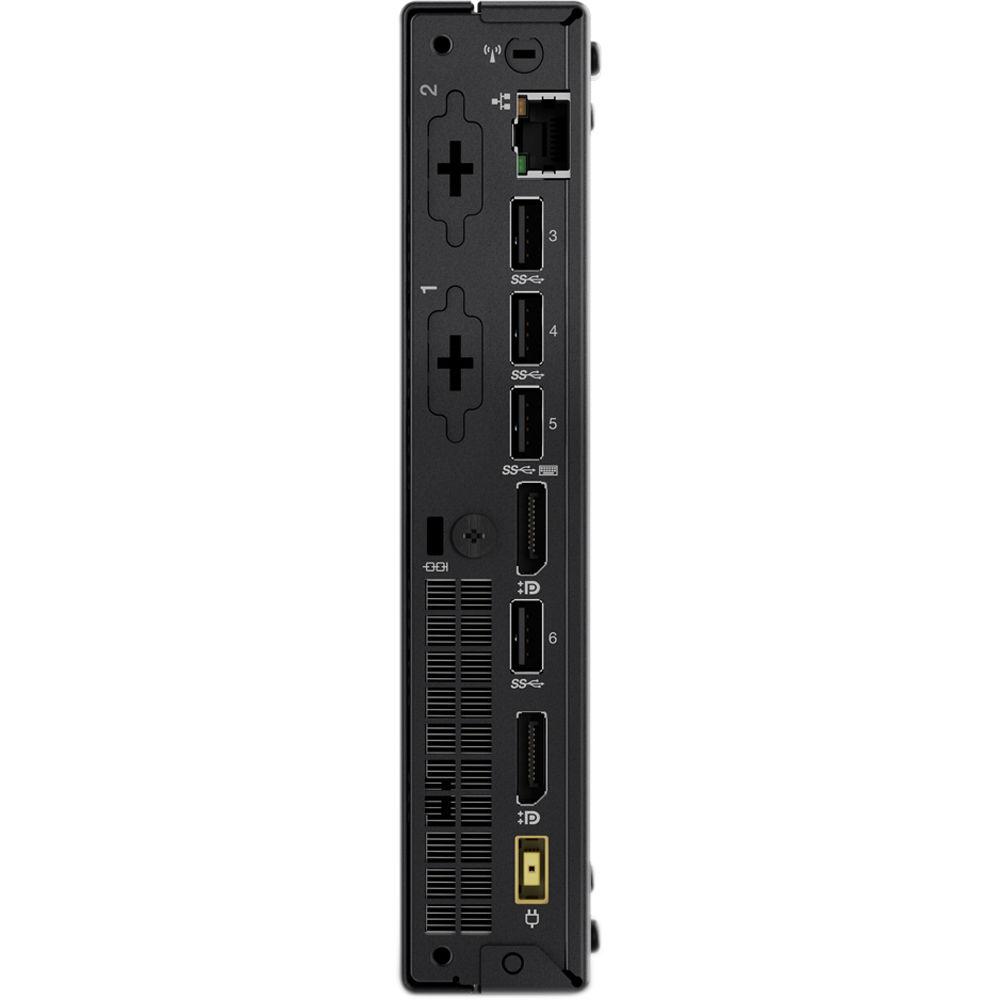

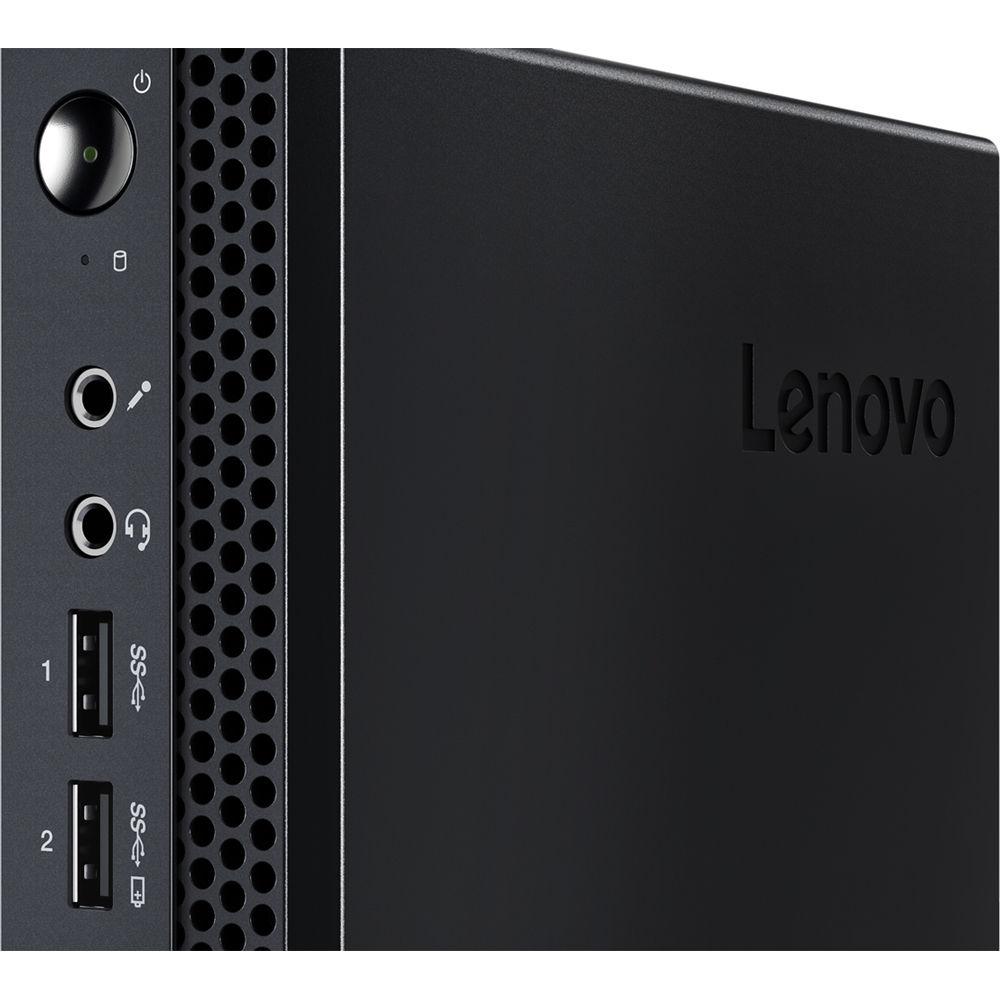

The ThinkCentre M625q Tiny Thin Client comes equipped with two DisplayPort outputs for supporting dual-monitor setups, as well as three USB 3.0 and three USB 2.0 ports to access printers, external storage drives, and other useful devices. Other notable features include a built-in 1.5W speaker system along with three audio jacks, powered by a Realtek ALC233-CG audio processor. The M625q connects you to the internet via QCA6174Aac Wi-Fi or Gigabit Ethernet, while wireless peripherals pair via Bluetooth 4.2. Moreover, the M625q accesses the network using a Linux-based Lenovo Terminal operating system. General Features - Bluetooth 4.2
- If you've run out of USB ports, or would just rather save them, compatible peripherals, such as keyboards, mice, and headsets can be paired using Bluetooth 4.2 technology.
- QCA6174Aac Wi-Fi & Gigabit Ethernet
- Connect to the internet wirelessly using QCA6174Aac Wi-Fi. Additionally, the system uses an integrated Gigabit Ethernet controller for internet access when connected to a router, modem, or network switch.
- 6 x USB Type-A Ports
- The M625q Tiny Thin Client features three 5 Gb/s USB 3.0 Type-A and three 480 Mb/s USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. One of the USB 3.0 ports is equipped with always on and fast charge technology.
- 2 x DisplayPort
- The two DisplayPort outputs support resolutions up to 3840 x 2160 @ 60 Hz. Up to two independent displays are supported.
- Energy Star Certified
- The 65W power supply is 88% efficient.
- Mil-SPEC Tested
- The ThinkCentre M625q Tiny Thin Client's Mil-SPEC design is built to resist shock and most environments, including arctic temperatures of -4°F / -20°C, to desert heat of 140°F / 60°C.
- Portable & Compact Design

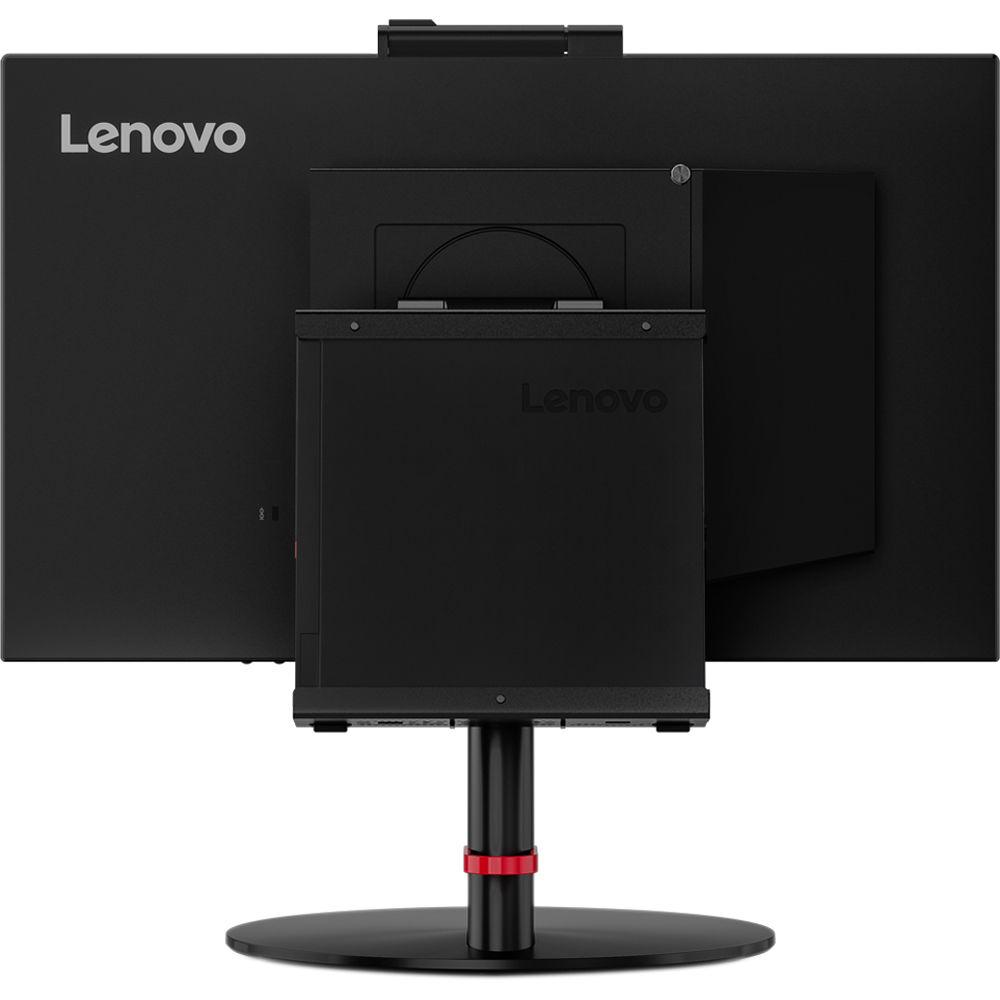

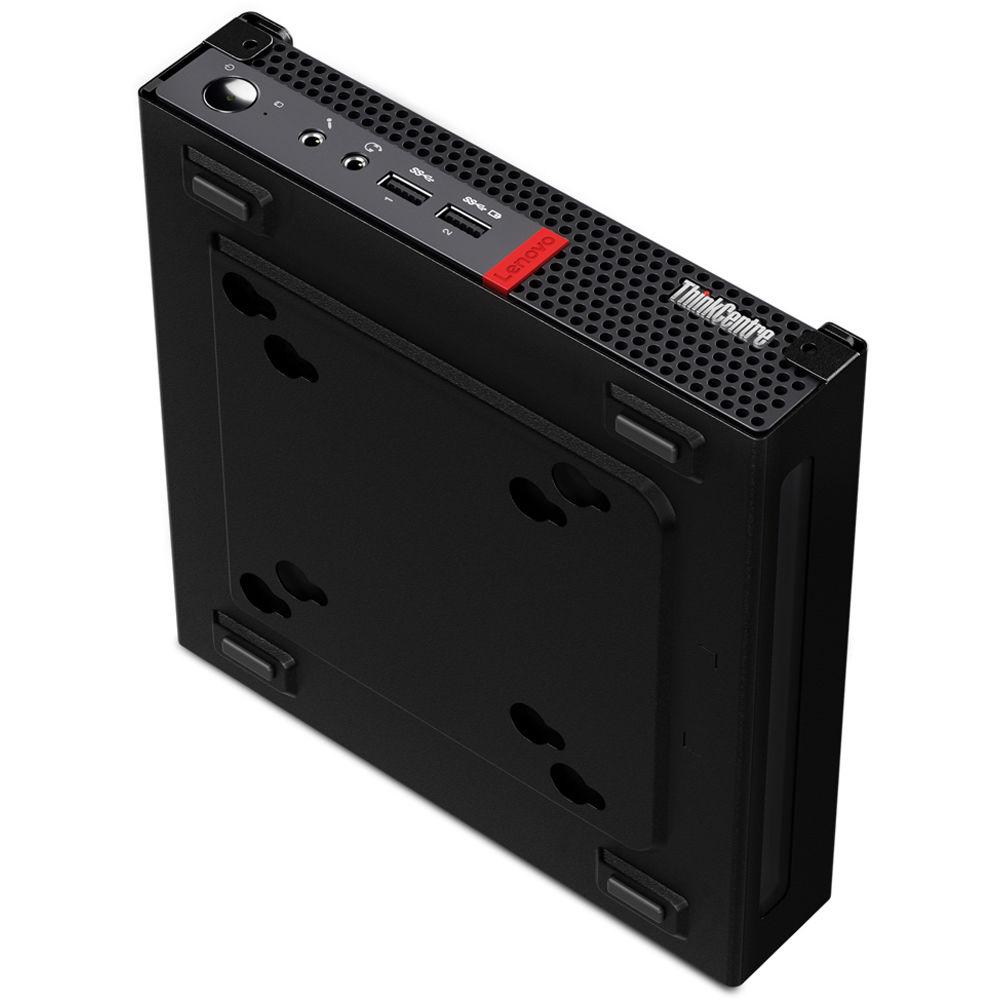

- The M625q Tiny Thin Client desktop can be positioned horizontally or vertically, mounted on a wall, behind a monitor, or even under a desk. Furthermore, you can power digital signage with a PC that's easy to hide from view. It also delivers professional-level performance while freeing up valuable desk-space.
UPC: 192563113720 In the Box Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M625q Tiny Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkCentre M625 Thin Client Specs Operating System | Lenovo Terminal Operating System v2 (64-Bit) | | CPU | 1.5 GHz AMD E2-9000E Dual-Core | Maximum Boost Speed | 2.0 GHz | Memory Type | 1866 MHz DDR4 | Total Installed Memory | 4 GB | Memory Configuration | 1 x 4 GB (User-Replaceable) | Maximum Memory Capacity | 8 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | 1 | Graphics Type | Integrated | GPU | AMD Radeon R2 | | Total Drive Bays | Not Specified by Manufacturer | Total Installed Capacity | 32 GB | Solid State Storage | 1 x 32 GB M.2 SATA | PCI Expansion | None | Optical Drive | None | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) 3 x USB Type-A (USB 2.0) | Display | 2 x DisplayPort | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Microphone Input | Built-In Speakers | Yes | Media Card Slots | None | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 4.2 | | Security | Infineon TPM Software Professional Package | Dimensions | 1.4 x 7.2 x 7" / 3.6 x 18.3 x 17.8 cm | Weight | 2.9 lb / 1.3 kg | | Package Weight | 7.9 lb | Box Dimensions (LxWxH) | 19.2 x 10.9 x 5.4" |
