User Manual for Lenovo ThinkCentre M710e Small Form Factor Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M710e Small Form Factor
- Product category: Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Desktop Computers
 |
User manual for the Lenovo ThinkCentre M710e Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

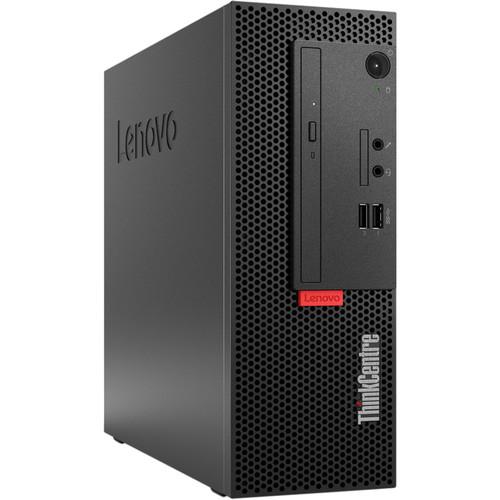

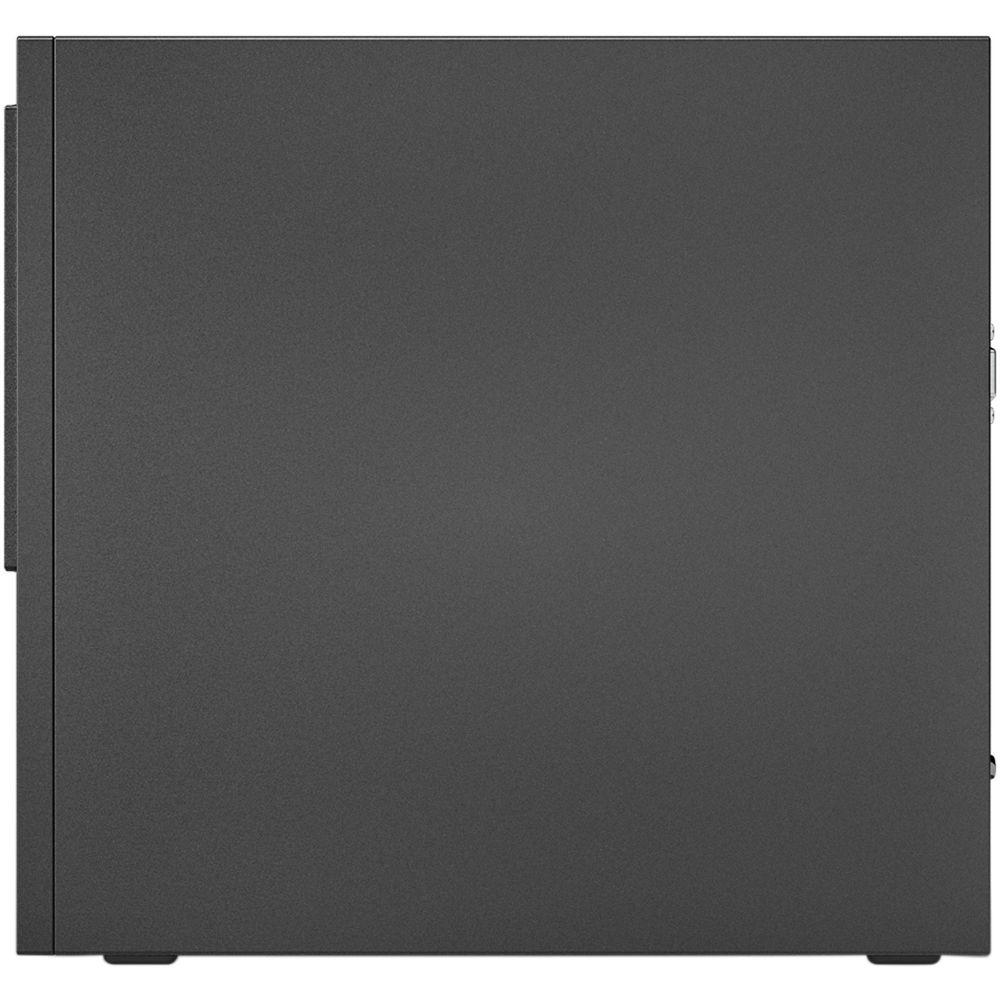

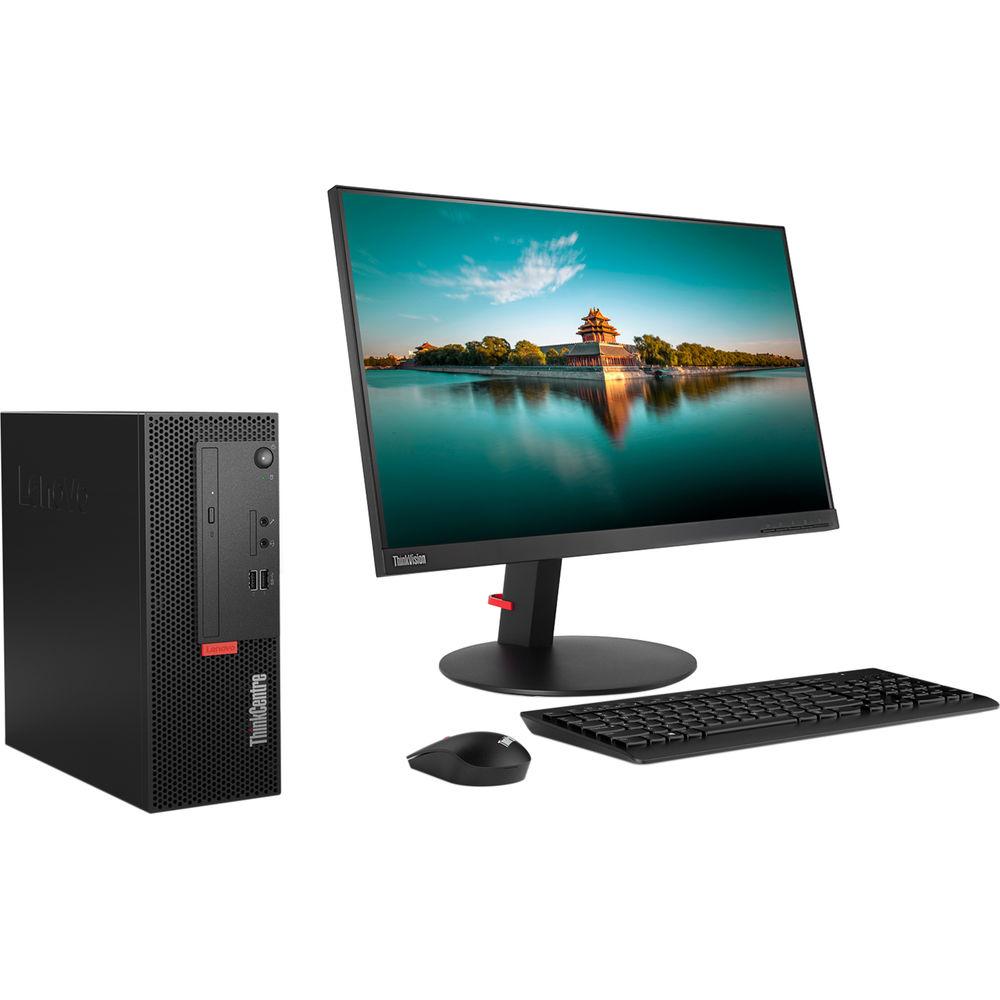

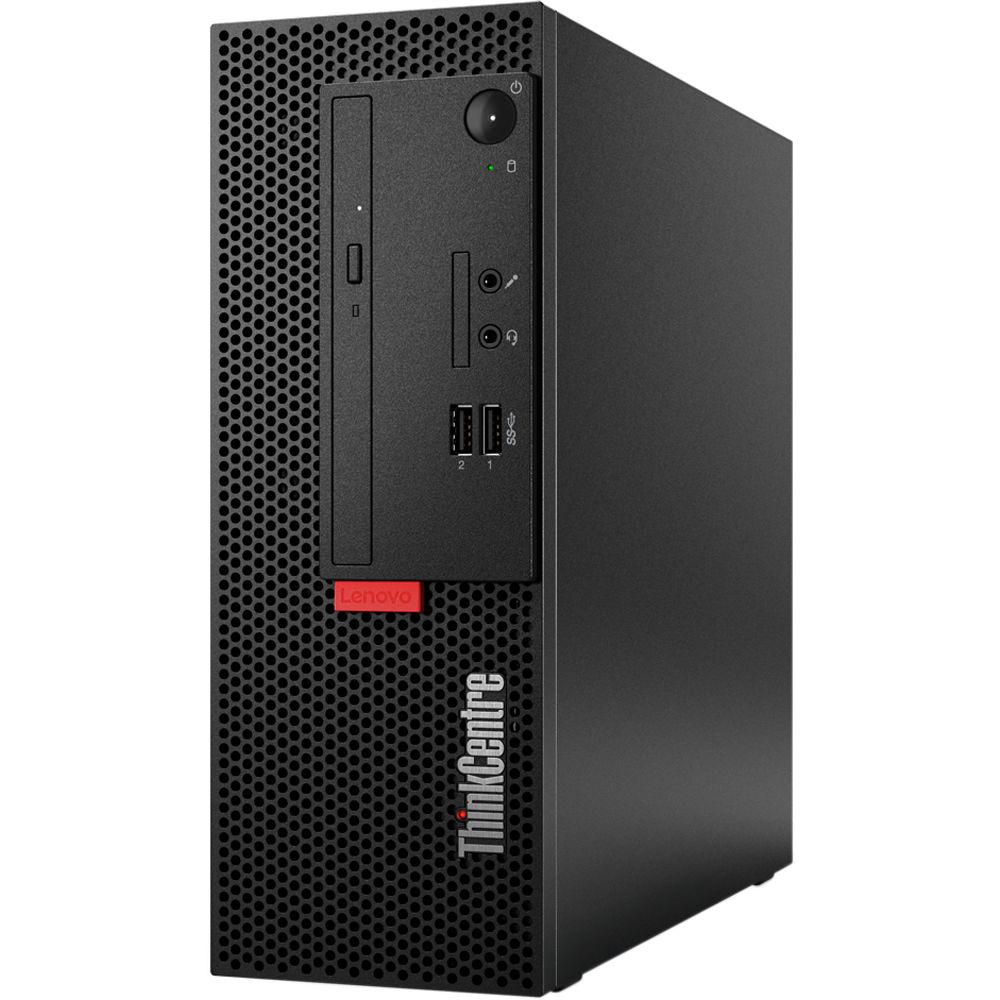

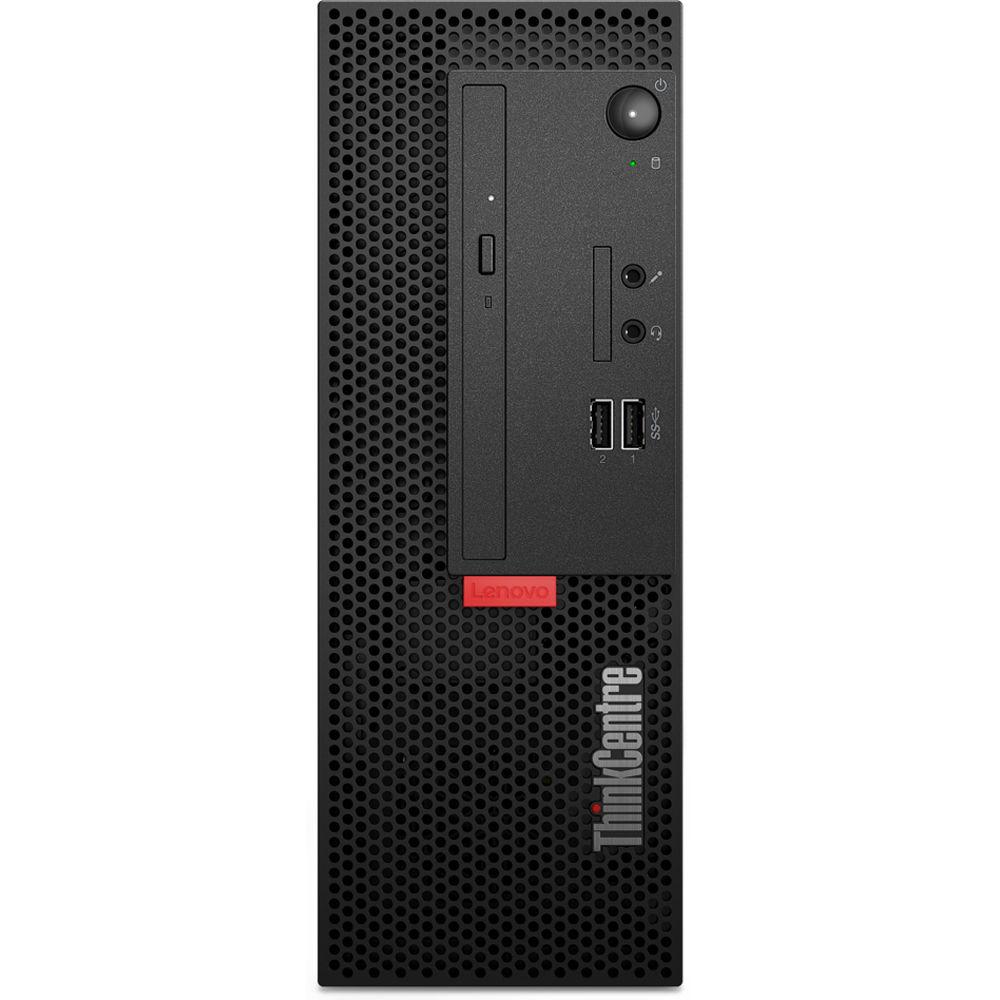

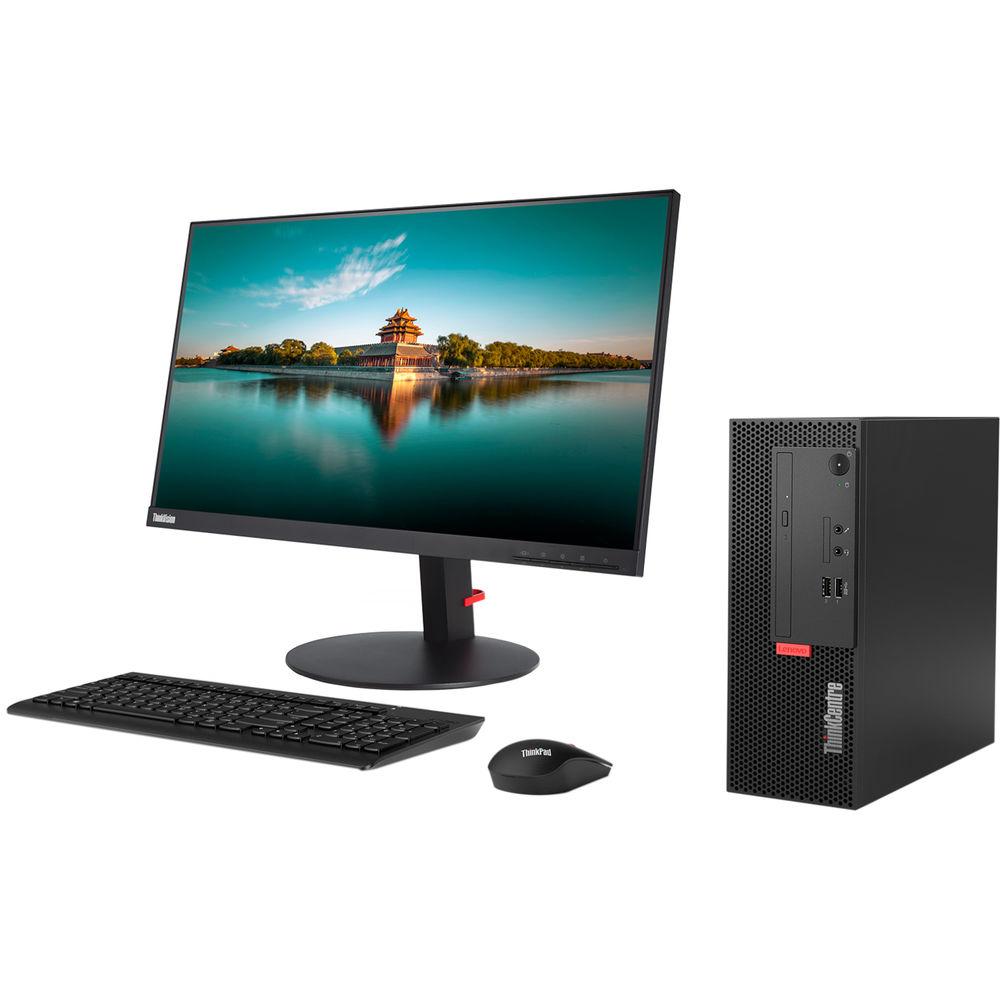

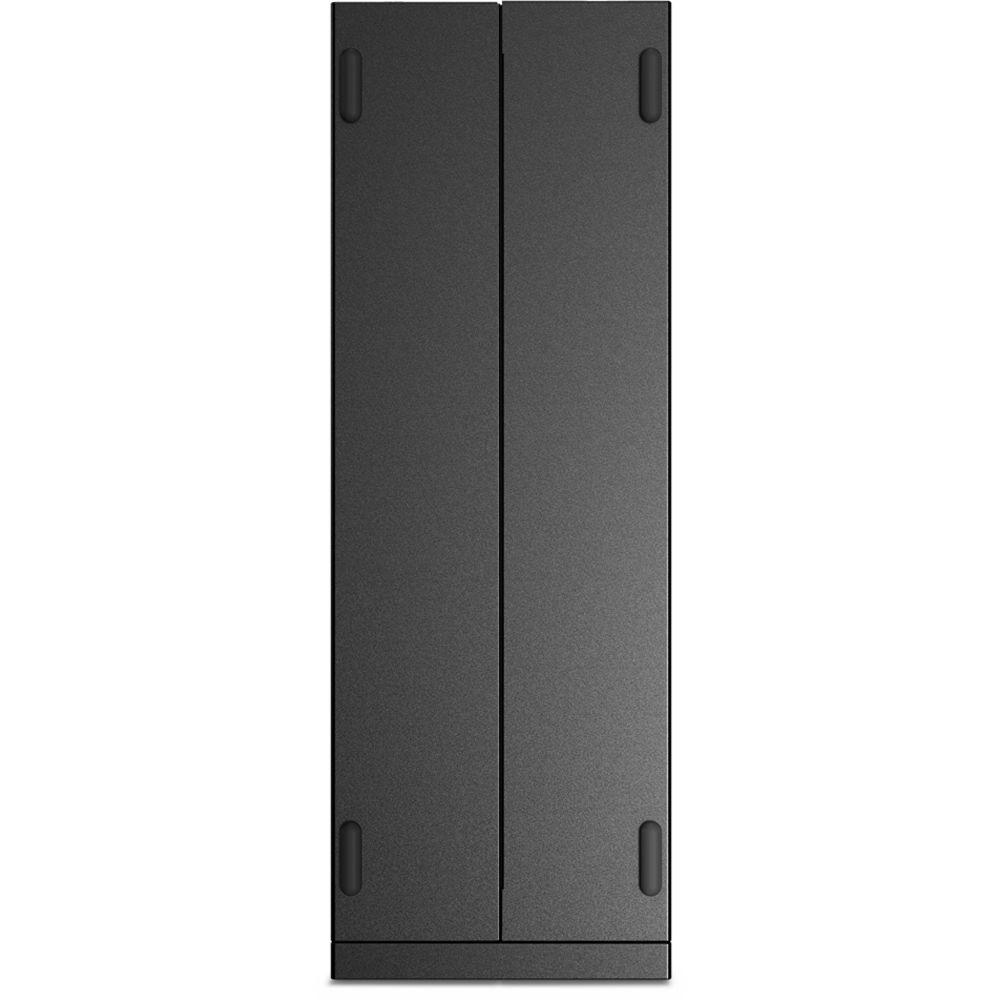

Product description Stay productive without taking up too much space with the Lenovo ThinkCentre M710e Small Form Factor Desktop Computer. It features a small form factor design that has a small footprint, which provides you with more desk space. You can connect to an external display via DisplayPort or VGA. The system is powered by a 3.9 GHz Intel Core i3-7100 dual-core processor with integrated Intel HD Graphics 630. It also has 4GB of 2400 MHz DDR4 RAM, a 1TB 7200 rpm HDD, a SuperMulti DVD burner, Gigabit Ethernet, USB 3.1 Gen 1 Type-A, and USB 2.0 Type-A. The M710e includes a USB keyboard, a USB mouse, a floor stand, and an auto-sensing 180W power adapter. The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications. Lenovo ThinkCentre M710e - SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M710e Small Form Factor Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

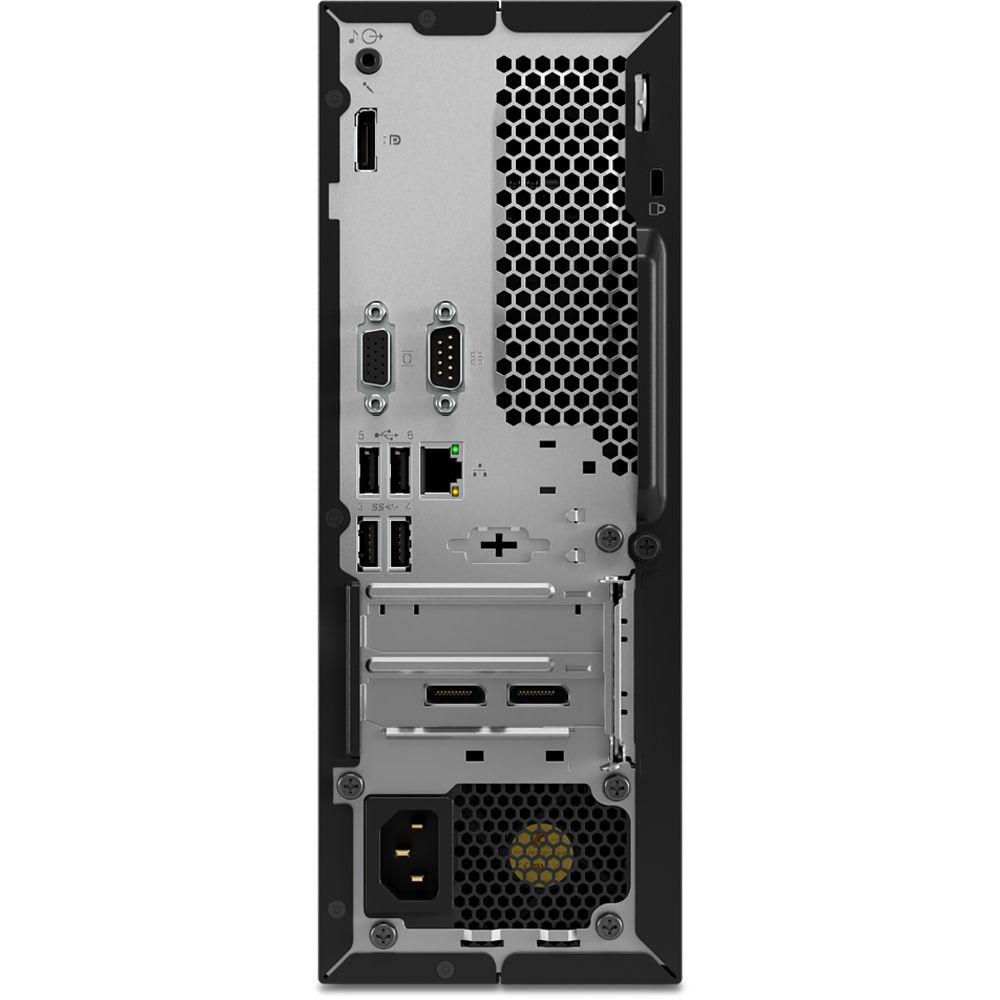

Technical parametersLenovo M710e Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 3.9 GHz Intel Core i3-7100 Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 1 | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel HD Graphics 630 | | | | Total Drive Bays | 1 x 2.5/3.5" (Internal) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x M.2 2230 (E-Key)
1 x PCIe Gen 3 x1
1 x PCIe Gen 3 x16 | | Optical Drive | SuperMulti DVD Burner | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | 1 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Microphone Input | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 180 W | | Dimensions | 3.9 x 10.8 x 11.9" / 9.9 x 27.4 x 30.2 cm | | Weight | 9.4 lb / 4.2 kg | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 19.7 x 15.4 x 7.7" |
