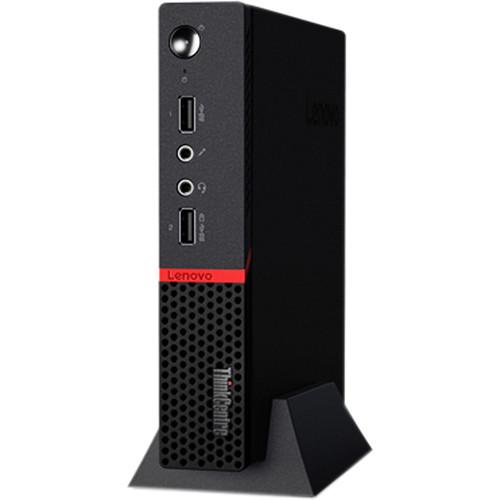

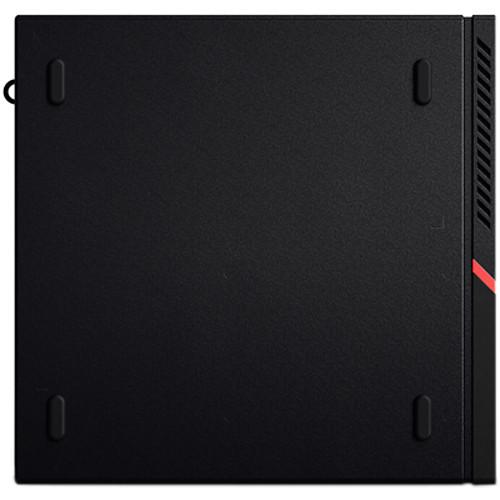

User Manual for Lenovo ThinkCentre M715q Tiny Thin Client Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M715q Tiny Thin Client
- Product category: Terminal & Thin Clients Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Terminal & Thin Clients
 |
User manual for the Lenovo ThinkCentre M715q Tiny Thin Client contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description The Lenovo ThinkCentre M715q Tiny Thin Client harnesses the full potential of your network servers to provide processing and rendering performance for demanding workloads. The ThinkCentre M715q Tiny accesses the network using a Linux-based LeTOS v2 operating system and its Gigabit Ethernet or 802.11ac Wi-Fi connection. Once connected, the M715q handles the virtualized environment, created by a server or cloud, with an AMD Pro A6-8570E APU, 4GB of DDR4 memory, and 32GB SSD.
The AMD Pro A6-8570E accelerated processing unit grants two computing cores, which operate between 3.0 and 3.4 GHz frequencies, along with an integrated AMD Radeon R5 Graphics chipset. The ThinkCentre M715q Tiny comes equipped with two DisplayPort outputs for supporting dual-monitor setups as well as three USB 3.0 and three USB 2.0 ports to access printers, external storage drives, and other useful devices. Other notable features include one built-in 1.5W speaker along with three audio jacks, powered by a Realtek ALC233-CG audio processor. There's also Bluetooth 4.0, so the thin client can wirelessly pair with headsets and mice. UPC: 191927136092 In the Box Lenovo ThinkCentre M715q Tiny Thin Client Desktop Computer USB Keyboard Wired USB Mouse 65W Power Supply (88% Efficiency) Floor Stand Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M715q Tiny Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkCentre M715q Specs | Operating System | Lenovo Terminal Operating System v2 | | | | CPU | 3 GHz AMD PRO A6-8570E Dual-Core | | Maximum Boost Speed | 3.4 GHz | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | AMD Radeon R5 | | | | Total Drive Bays | Not Specified by Manufacturer | | 2.5" Slots | 1 x Height Unspecified (Available) | | Total Installed Capacity | 32 GB | | Solid State Storage | 1 x 32 GB M.2 SATA | | PCI Expansion | None | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1)
3 x USB Type-A (USB 2.0) | | Display | 2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Microphone Input
1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Single-Band (2.4 GHz) | | Bluetooth | 4.0 | | | | Security | BIOS Booting, HDD User Password Protection, Power-On Password, Kensington Lock Slot, Infineon TPM Software Professional Package | | Dimensions | 7.1 x 1.4 x 7.2" / 180.3 x 35.6 x 182.9 mm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 19.6 x 11.2 x 7.0" |
