User Manual for Lenovo ThinkCentre M720 SFF Tower Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M720 SFF Tower Desktop
- Product category: Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Desktop Computers
 |
User manual for the Lenovo ThinkCentre M720 SFF Tower Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

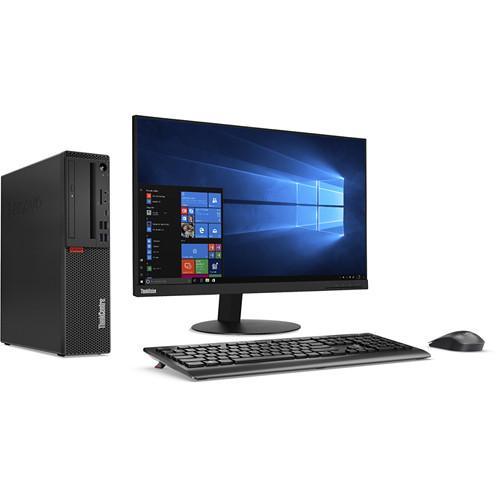

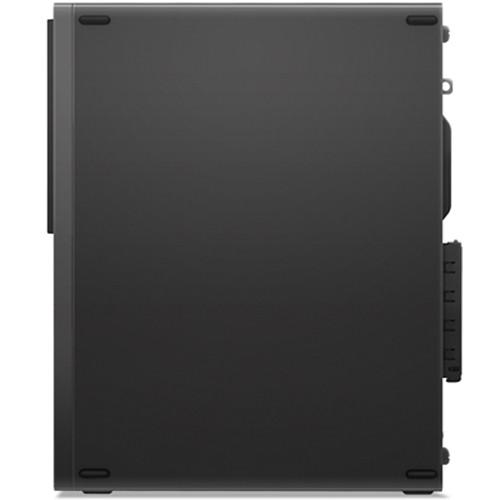

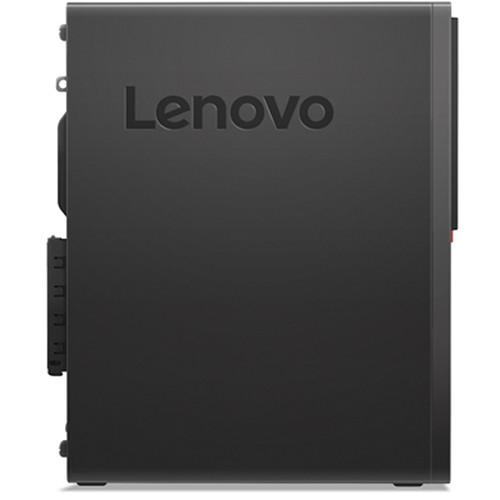

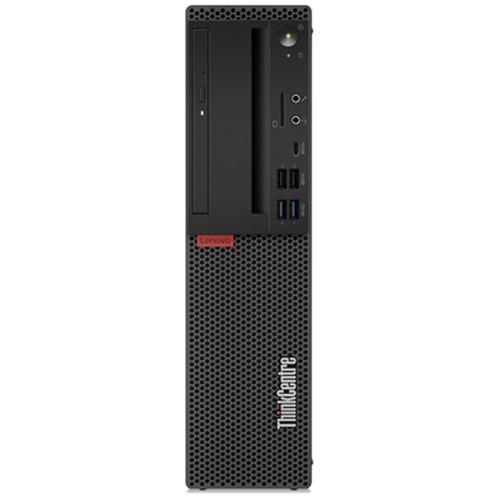

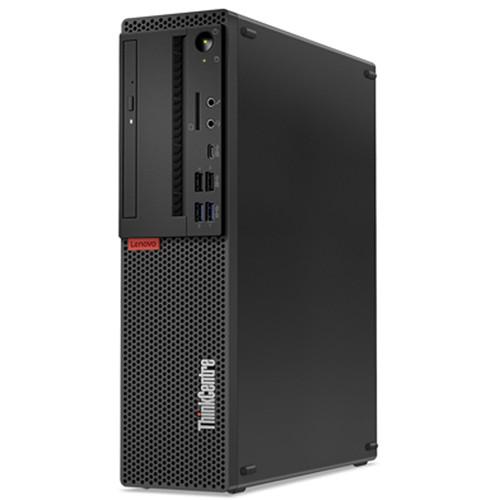

Product description The ThinkCentre M720 SFF Tower Desktop Computer from Lenovo is engineered to work with robust workloads while remaining energy efficient with its 210W power supply and 2.8 GHz Intel Core i5-8400 six-core processor. Coupling this system's multiple cores with its 4GB of DDR4 memory allows you to run various applications simultaneously, so you can get your work done as soon as possible. If you need more RAM for enhanced multitasking, the ThinkCentre M720 SFF's memory can be upgraded to a maximum of 64GB. For long-term storage of your files, a 1TB hard drive offers quick access to your data, and there is an empty 3.5" drive bay for additional internal storage. Additionally, the ThinkCentre M720 SFF is equipped with 16GB of Intel Optane Memory, which is designed to enhance your hard drive's performance by caching data.

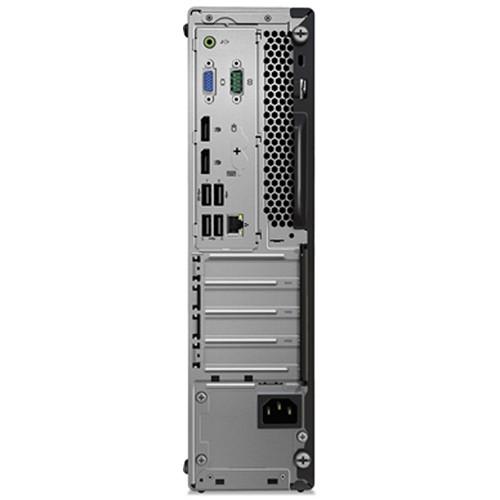

Lenovo has built the ThinkCentre M720 SFF with an integrated Intel UHD Graphics 630 chipset, which delivers a sharp and clear picture while allowing for multiple displays to be used via its VGA and DisplayPort outputs. If you'd like to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M720 SFF features four USB 2.0 ports, two USB 3.1 Gen 1 ports, and two USB 3.1 Gen 2 Type-A ports, as well as a single USB 3.1 Gen 1 Type-C port for all your connection needs. In terms of accessing networks or the internet, the ThinkCentre M720 SFF supports Gigabit Ethernet.
For your productivity, Lenovo's ThinkCentre M720 SFF comes with an included USB keyboard and mouse. Furthermore, this desktop tower is also preloaded with a Windows 10 Pro operating system, which provides useful features like Cortana and Windows Continuum. In addition, your data is encrypted and secured via the M720 SFF's Trusted Platform Module. General Features - USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- USB 3.1 Gen 2
- Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
- SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M720 SFF Tower Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo M720 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.8 GHz Intel Core i5-8400 6-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 3 | | Intel Optane Memory | 16 GB (M.2) | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | Total Drive Bays | 1 x 3.5" (Internal) | | SSD Slots | 1 x M.2 | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe x16
2 x PCIe x1 | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 2)
4 x USB Type-A (USB 2.0) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 210 W | | Dimensions | 11.4 x 3.6 x 13.5" / 289.6 x 91.4 x 342.9 mm | | Weight | 13.2 lb / 6 kg | | | | Package Weight | 17.45 lb | | Box Dimensions (LxWxH) | 21.0 x 15.3 x 7.8" |
