Product description

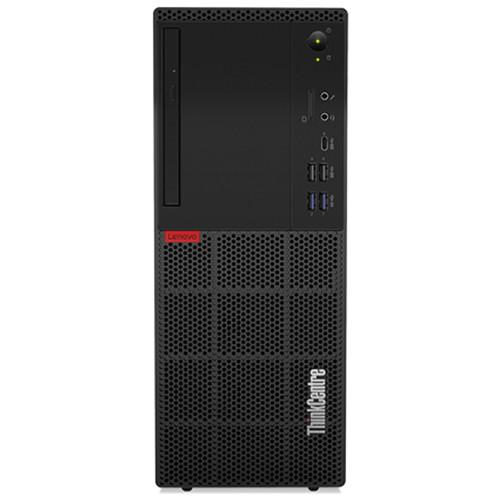

The ThinkCentre M720T Tower Desktop Computer from Lenovo is engineered to work with robust workloads while remaining energy efficient with its 210W power supply and a 3.6 GHz Intel Core i3-8100 quad-core processor. Coupling this system's multiple cores with its 8GB of DDR4 memory allows you to run various applications simultaneously, so you can get your work done as soon as possible. If you need more RAM for enhanced multitasking, the ThinkCentre M720T's memory can be upgraded to a maximum of 64GB. For long-term storage of your files, a 1TB hard drive offers quick access to your data, and there is an empty 3.5" drive bay for additional internal storage.

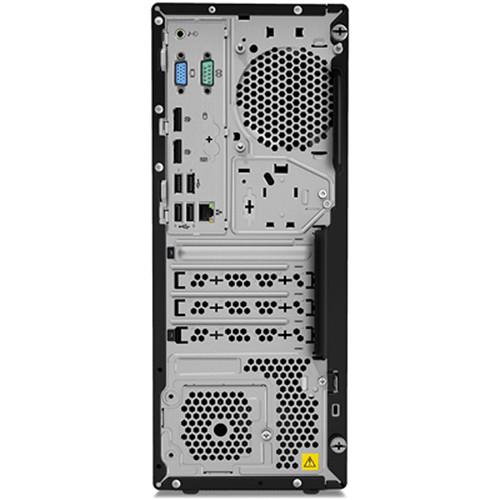

Lenovo has built the ThinkCentre M720T with an integrated Intel UHD Graphics 630 chipset, which delivers a sharp and clear picture while allowing for multiple displays to be used via its VGA and DisplayPort outputs. If you'd like to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M720T features four USB 2.0 ports, two USB 3.1 Gen 1 ports, and two USB 3.1 Gen 2 Type-A ports, as well as a single USB 3.1 Gen 1 Type-C port for all your connection needs. In terms of accessing networks or the internet, the ThinkCentre M720T supports Gigabit Ethernet.

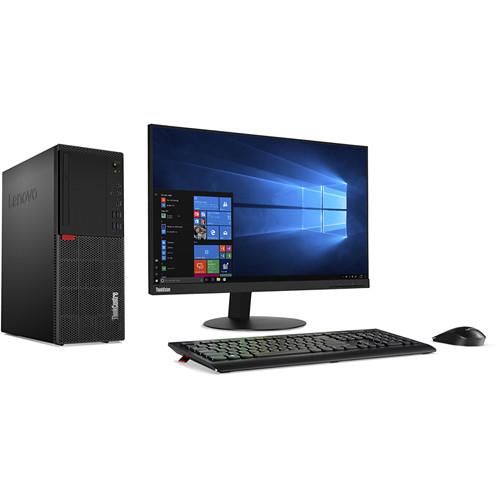

For your productivity, Lenovo's ThinkCentre M720T comes with an included USB keyboard and mouse. Furthermore, this desktop tower is also preloaded with a Windows 10 Pro operating system, which provides useful features like Cortana and Windows Continuum.

General Features

    USB 3.1 Gen 1
  • USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
    USB 3.1 Gen 2
  • Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
    SuperMulti DVD Burner
  • The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD




Upload User Manual

Have you got an user manual for the Lenovo ThinkCentre M720T Tower Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Lenovo M720T Specs

Operating System Windows 10 Pro (64-Bit)
CPU 3.6 GHz Intel Core i3-8100 Quad-Core
L3 Cache 6 MB
Memory Type 2666 MHz DDR4
Total Installed Memory 8 GB
Memory Configuration 1 x 8 GB (User-Replaceable)
Maximum Memory Capacity 64 GB
Memory Slot Type 288-Pin DIMM
Available Memory Slots 3
Graphics Type Integrated
GPU Intel UHD Graphics 630
Hard Disk Storage 1 x 1 TB 3.5" SATA (7200 rpm)
Optical Drive Tray-Load SuperMulti DVD Burner with Dual Layer Support
Ports 2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 2)
4 x USB Type-A (USB 2.0)
USB Type-C Ports 1 x USB 3.1 Gen 1
Display 2 x DisplayPort
1 x VGA
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
Media Card Slots None
Ethernet 1 x RJ45 (Gigabit)
Keyboard Full-Size Keyboard with Number Pad
Pointing Device USB Mouse
Power Supply 210 W
Dimensions 5.9 x 10.6 x 14.2" / 150 x 270.5 x 360 mm
Weight 15.2 lb / 6.9 kg
